Model Electrolux FSK190EN3V REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

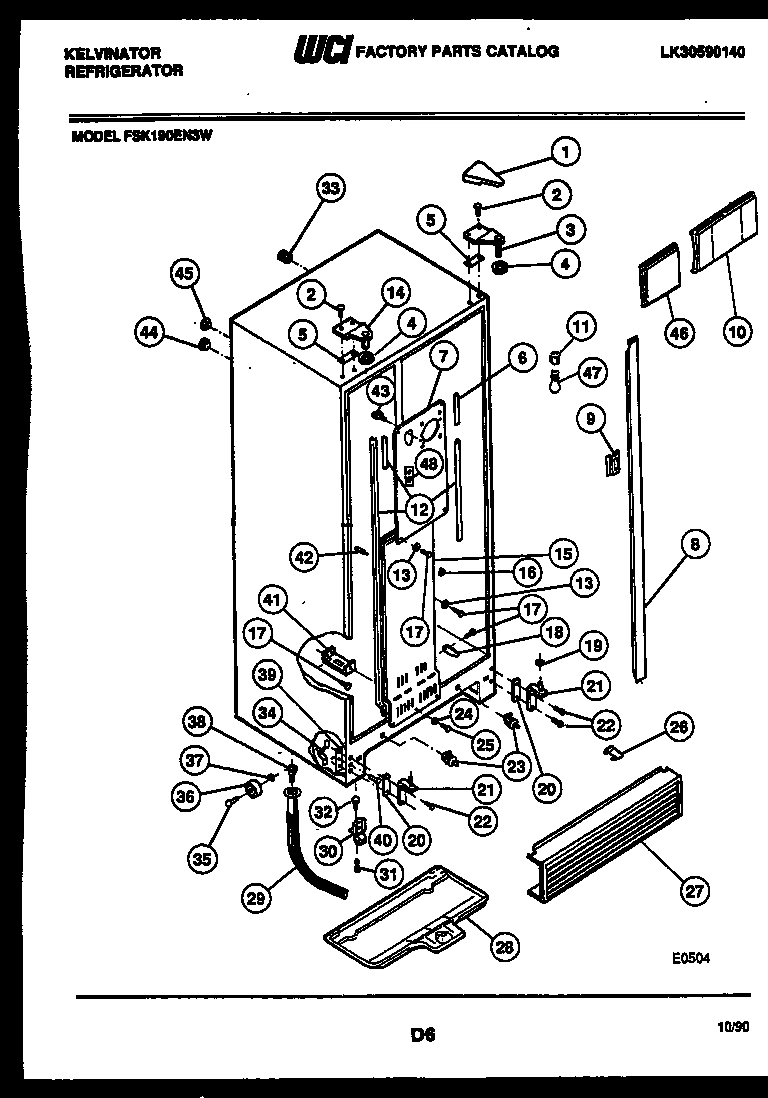

04 - CABINET PARTS

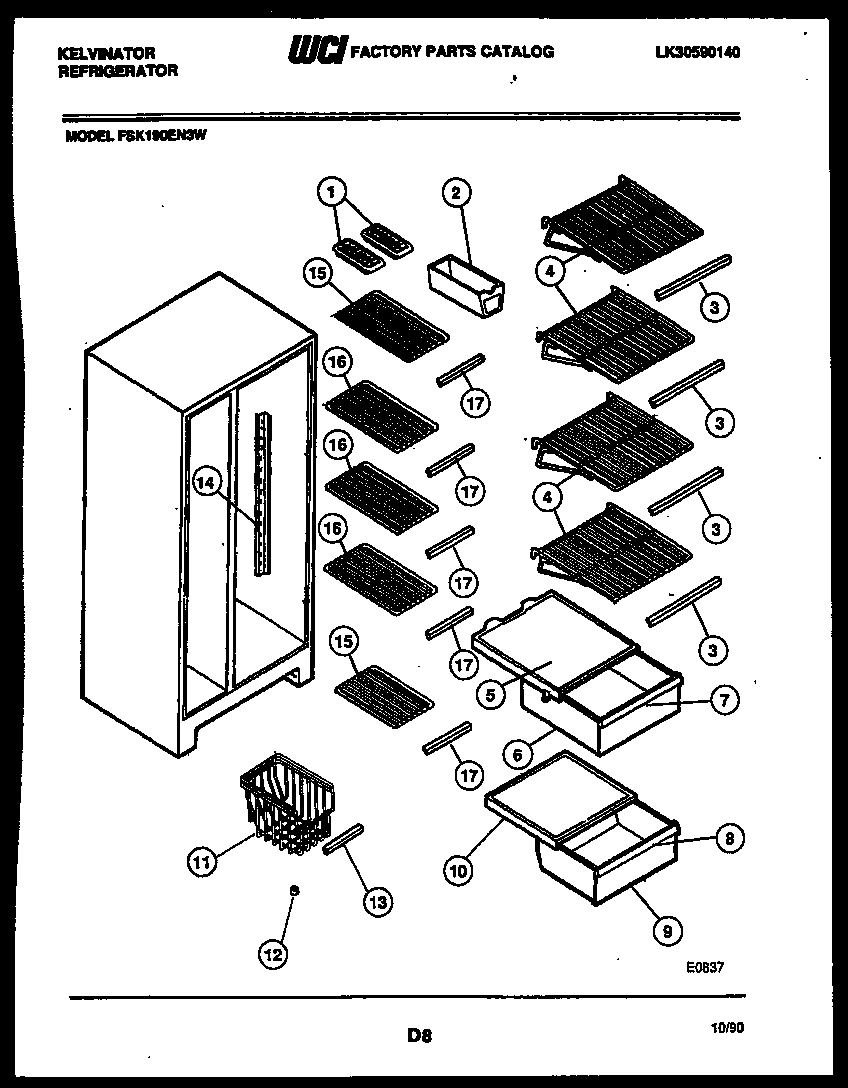

05 - SHELVES AND SUPPORTS

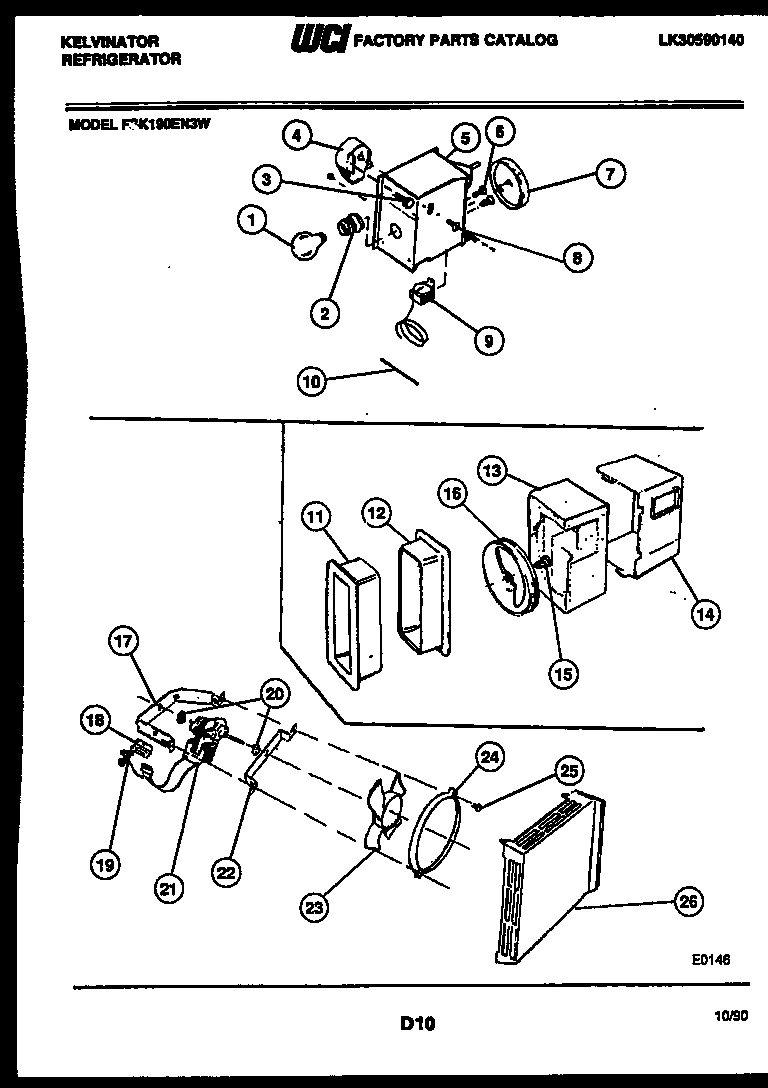

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

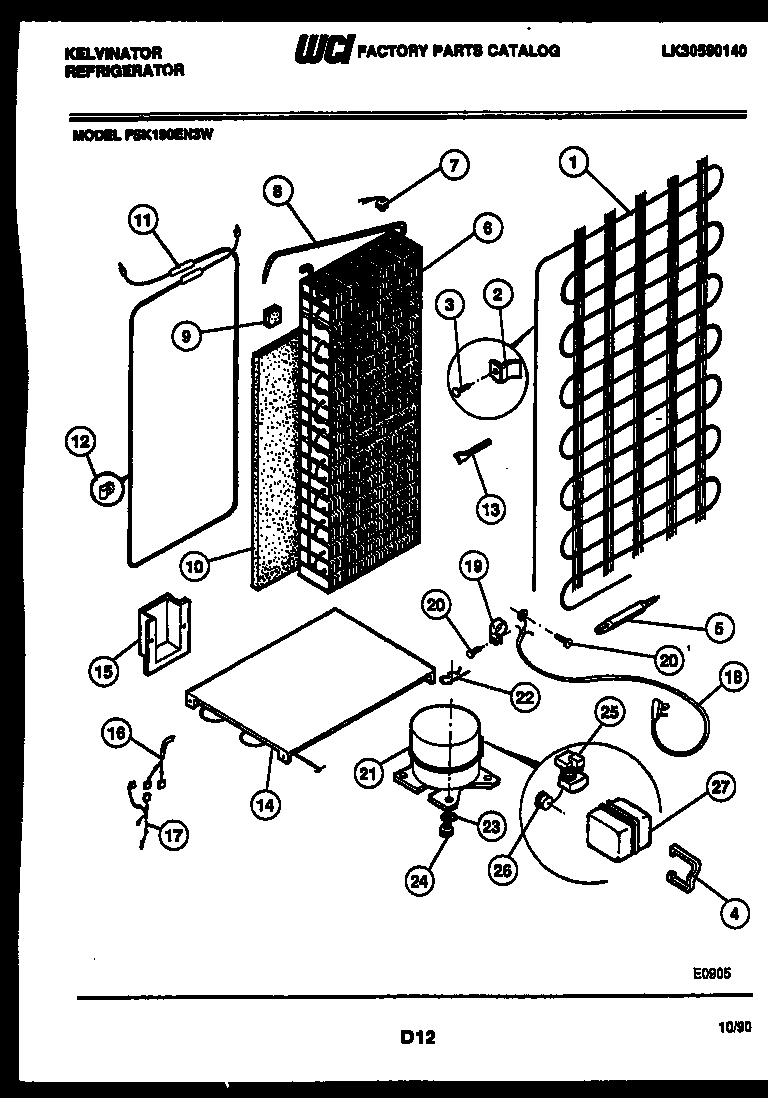

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FSK190EN3V REFRIGERATOR
*13895
BUTTON-PLUG (3) WCI 5308016571 Contact Us For Availability
*13895
SUPPORT-SPEC BARREL-LIGHT SHIELD (6) WCI 5303001213 Contact Us For Availability
*13895
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*13897
GASKET - COVER UPPER WCI 3018752 Contact Us For Availability
*13901
INSULATOR - BOX WCI 3001269 Contact Us For Availability
*13908
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*13908
INSULATOR-FREEZER COIL TOP WCI 5308009619 Contact Us For Availability
1
BEARING - UPPER WCI 5308012007 Contact Us For Availability
1
HINGE COVER - AVOCADO (2) WCI 5303001664 Contact Us For Availability
1
WCI 5308017228 WCI 5308017228 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 3205334 WCI 3205334 Contact Us For Availability
2
WCI G161015-17 WCI G161015-17 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
3
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI 5303211070 WCI 5303211070 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 Contact Us For Availability
4
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
4
WCI 5303211071 WCI 5303211071 Contact Us For Availability
4A
SCREW-DOOR CLOSER (NON-ILLUSTRATED) WCI 3001020 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
COVER - CRISPER UPPER WCI 5308008727 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
6
GASKET WCI 5303201811 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
WCI 5317970709 WCI 5317970709 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
7
END - HANDLE WCI 5318945101 Contact Us For Availability
7
COVER-UPPER COIL WCI 5303006543 Contact Us For Availability
7
KNOB, TEMPERATURE CONTROL WCI 5308010380 Contact Us For Availability
7A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
8
WCI G164731-17 WCI G164731-17 Contact Us For Availability
8
WCI 3916445 WCI 3916445 Contact Us For Availability
8
TRIM-PAN WCI G161013-71 Contact Us For Availability
8
WCI 5308017565 WCI 5308017565 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
HANDLE - DOOR WCI 5318945501 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI G179708-09 WCI G179708-09 Contact Us For Availability
9
INSULATOR - BLOCK - EVAPORATOR (4) WCI 5308000828 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
10
WCI G161019-81 WCI G161019-81 Contact Us For Availability
10
LIGHT SHIELD - REFRIGERATOR WCI G164419-30 Contact Us For Availability
10
COVER - CRISPER LOWER WCI 5316391601 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
11
WCI 5303007568 WCI 5303007568 Contact Us For Availability
11
SUPPORT - RACK RH (4) WCI 5316101801 Contact Us For Availability
11
WCI 5303211068 WCI 5303211068 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
SUPPORT - RACK LH (4) WCI 5316108001 Contact Us For Availability
12
WCI 5303001233 WCI 5303001233 Contact Us For Availability
12
CAP - PROTECTOR WCI 5303207490 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
13
WCI G166897-03 WCI G166897-03 Contact Us For Availability
13
WASHER-NYLON (8) WCI 5303001216 Contact Us For Availability
13
WCI 5303211067 WCI 5303211067 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
14
WCI 5308000790 WCI 5308000790 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
CHANNEL-SHELF (2) WCI 5308002744 Contact Us For Availability
14
CONTROL BOX-DAMPER WCI 5303001252 Contact Us For Availability
14
DEFROST PLATE & TUBE ASSEMBLY WCI 5300188724 Contact Us For Availability
14A
PLATE-TAPPING (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
15
PANEL - EXTERIOR - AVOCADO WCI 3916193 Contact Us For Availability
15
COVER-LOWER COIL WCI 5308017223 Contact Us For Availability
15
WCI 08000905 WCI 08000905 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
15A
PLUG - BUTTON (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
16
END - HANDLE WCI 5318945201 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WCI 08000906 WCI 08000906 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
16A
INSERT - HANDLE (NON-ILLUSTRATED) WCI 5303015132 Contact Us For Availability
16B
SCREWS - SPACER (2) (NON-ILLUSTRATED) WCI 5300172321 Contact Us For Availability
16C
SPACER-HANDLE (2) (NON-ILLUSTRATED) WCI 5300191430 Contact Us For Availability
16D
WCI 5308011745 WCI 5308011745 Contact Us For Availability
16E
ANCHOR - NUT (2) (NON-ILLUSTRATED) WCI 5303016230 Contact Us For Availability
17
WCI 5303211069 WCI 5303211069 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WIRING HARNESS - COMPRESSOR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
BEARING - LOWER WCI 5303001022 Contact Us For Availability
18
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD (2) WCI 5303001038 Contact Us For Availability
20
SHIM-LOWER HINGE (6) WCI 5303001272 Contact Us For Availability
21
WCI 5303001271 WCI 5303001271 Contact Us For Availability
21
COMPRESSOR W/ ELECTRICALS WCI 5308950223 Contact Us For Availability
21A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
22
SCREW-HINGE MOUNTING (4) WCI 5303001041 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
23A
WCI 08009775 WCI 08009775 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
25
WCI 5303007173 WCI 5303007173 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
26
CLIP-GRILLE WCI 5308000091 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
27
GRILLE WCI G161905-07 Contact Us For Availability
28
WCI 5308000086 WCI 5308000086 Contact Us For Availability
28A
WCI 08000099 WCI 08000099 Contact Us For Availability
29
DRAIN TUBE & OUTLET ASSEMBLY WCI 5303209723 Contact Us For Availability
30
ROLLER ASSEMBLY - FRONT (2) WCI 5308000118 Contact Us For Availability
31
SCREW-ROLLER MOUNTING (2) WCI 5308017044 Contact Us For Availability
32
BOLT - ROLLER ADJUSTMENT (2) WCI 5308009568 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
35
PIN-REAR ROLLER (2) WCI 5308000266 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
37
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
39
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
42
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
43
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
44
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
45
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
46
LIGHT SHIELD - FREEZER WCI G164452-35 Contact Us For Availability
48
DECORATIVE PLUG WCI 08012270 Contact Us For Availability
× ![]()
