Model Electrolux FSK190EN2D REFRIGERATOR – Common Parts & Diagrams

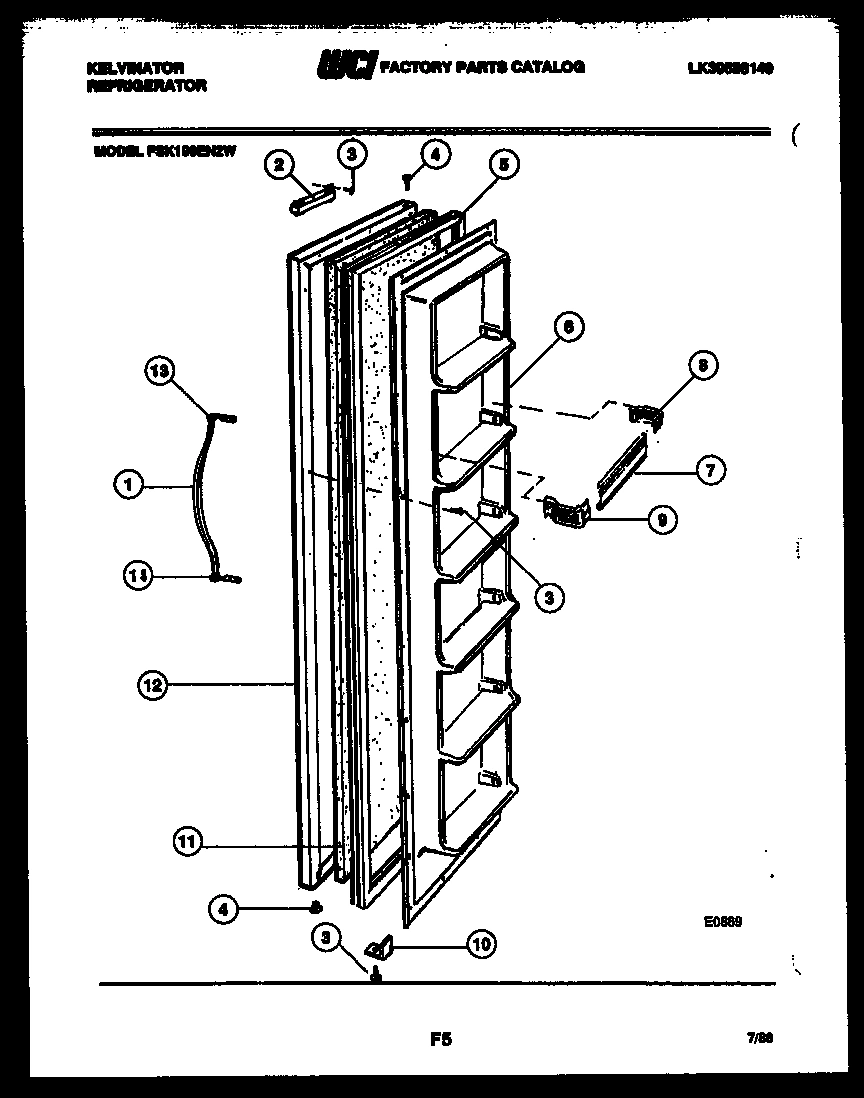

02 - DOOR PARTS

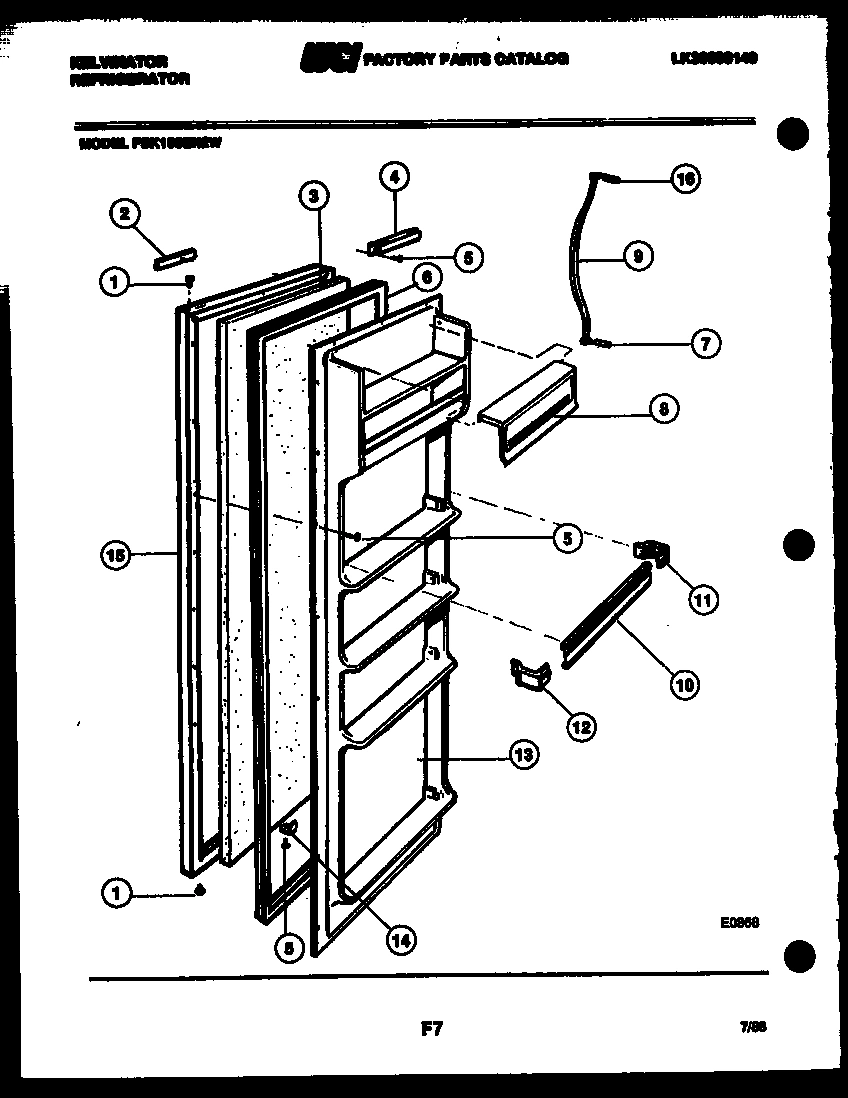

03 - DOOR PARTS

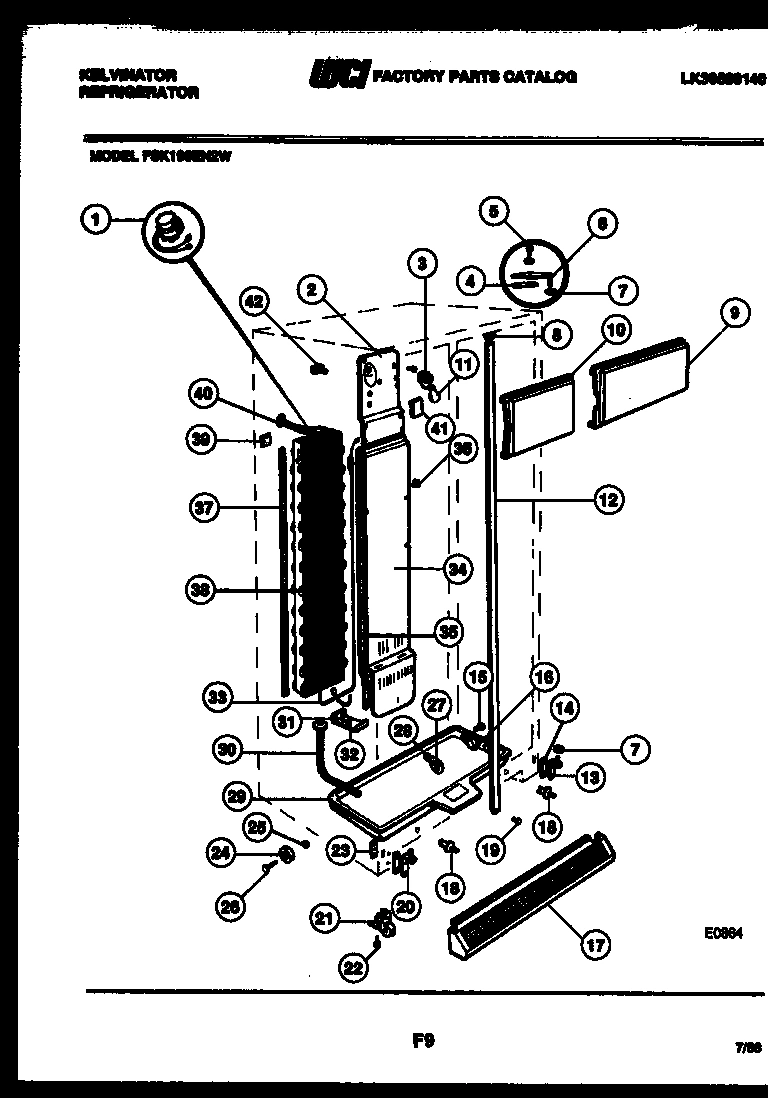

04 - CABINET PARTS

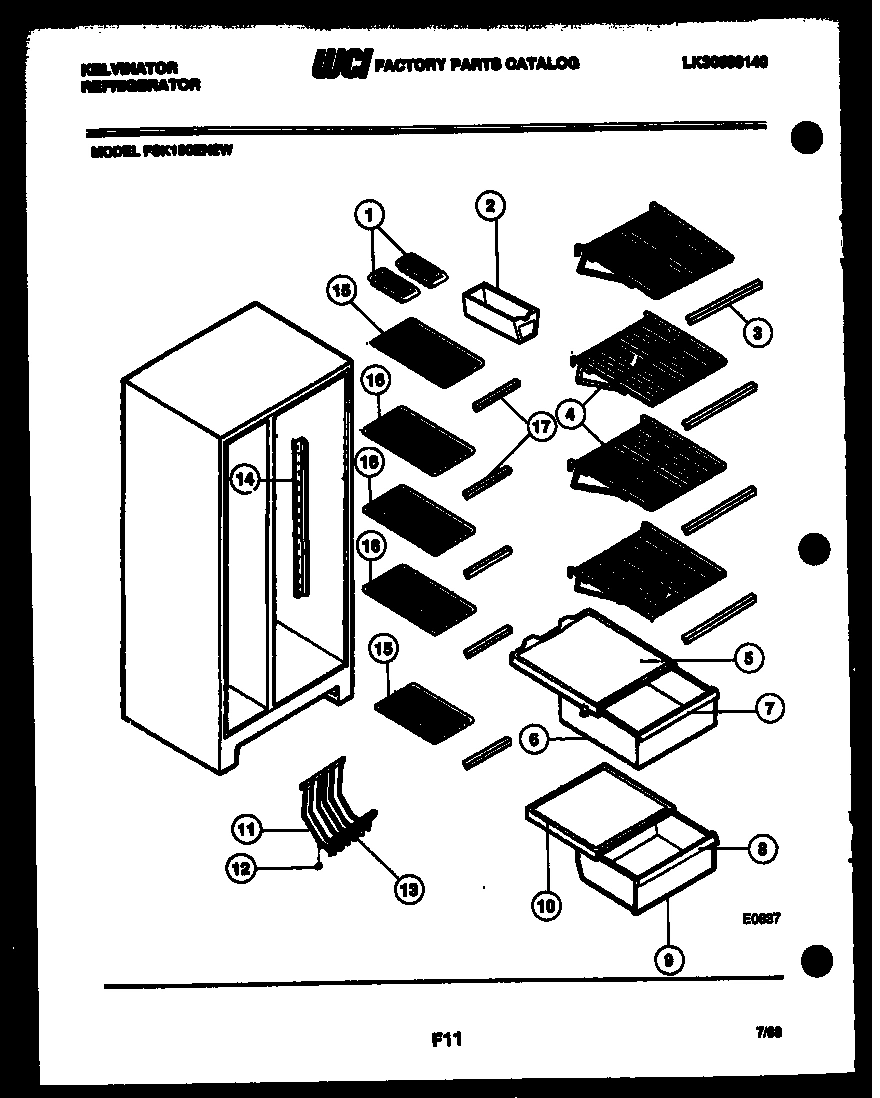

05 - SHELVES AND SUPPORTS

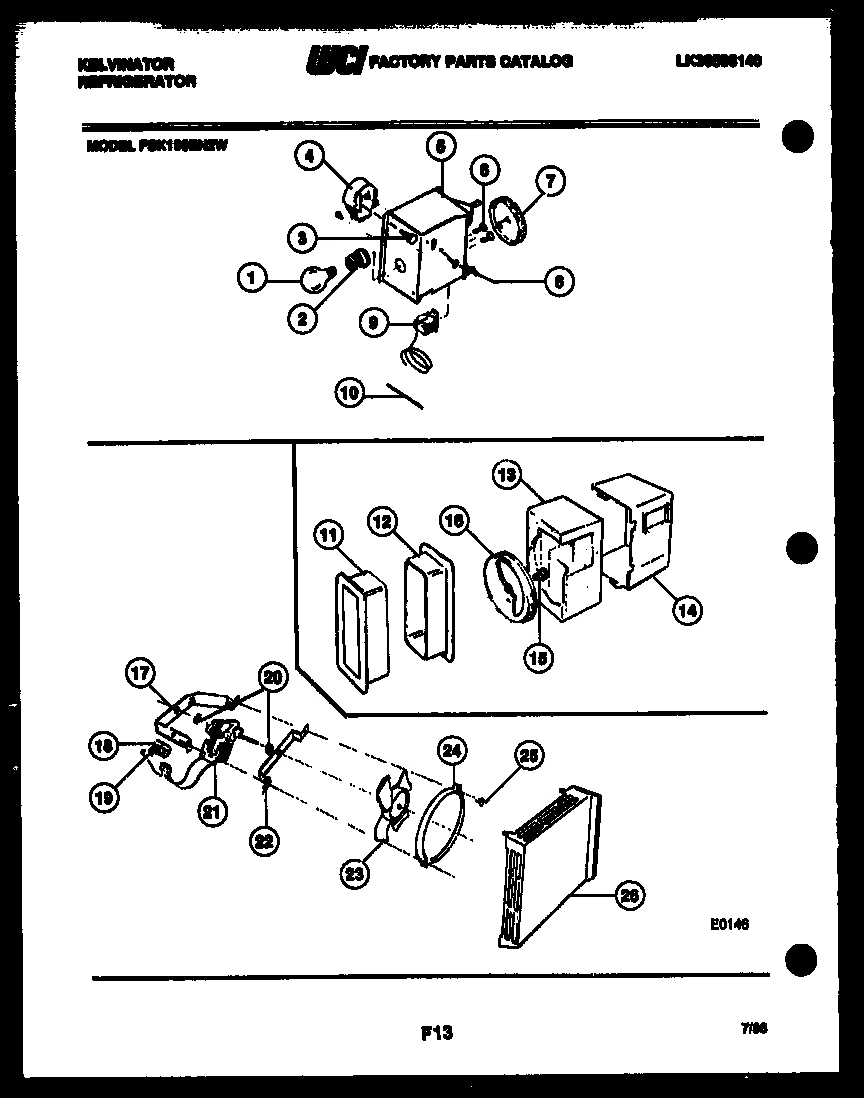

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

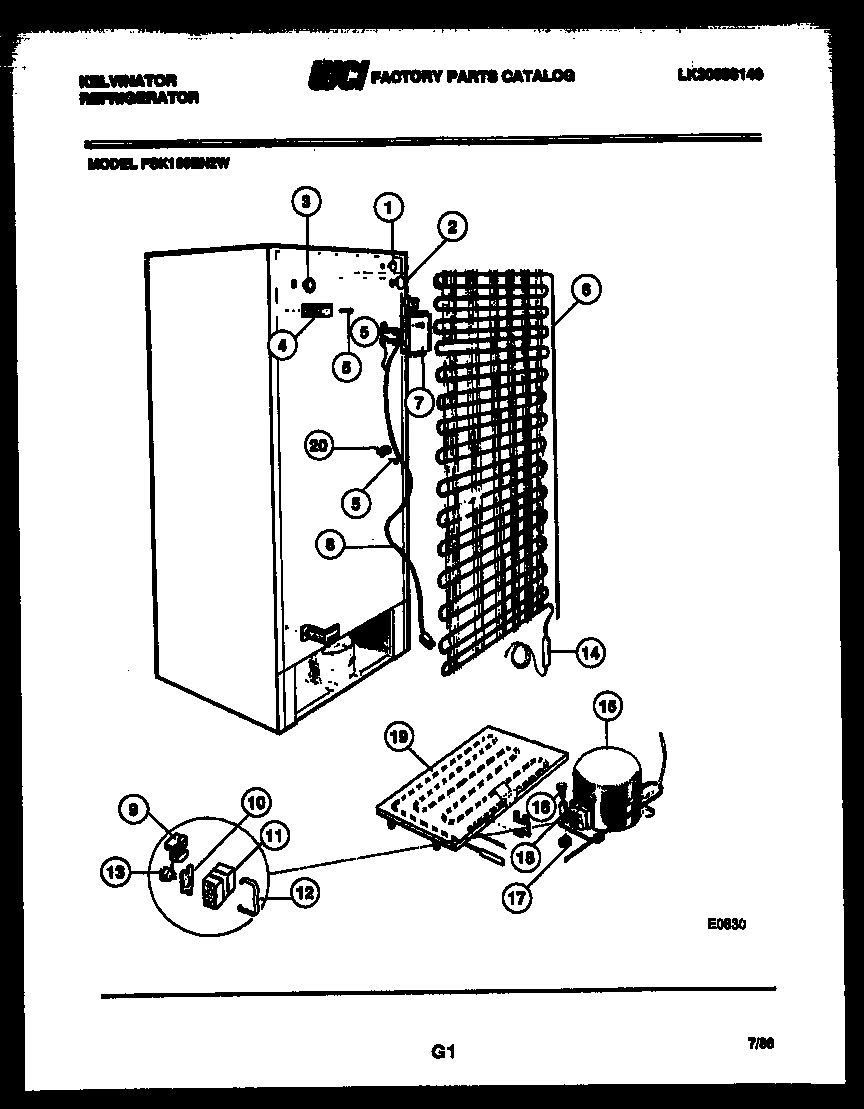

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FSK190EN2D REFRIGERATOR
*42970
INSERT-HANDLE WCI 3015132 Contact Us For Availability
*43018
BUTTON-PLUG (4) WCI G162892-01 Contact Us For Availability
*43018
GASKET-COIL COVER WCI G174234-02 Contact Us For Availability
*43018
GASKET-COIL COVER (2) WCI G188000-03 Contact Us For Availability
*43019
SUPPORT-COIL COVER (5) WCI G169471 Contact Us For Availability
*43031
GASKET-COVER UPPER WCI G180108-06 Contact Us For Availability
*43062
WCI 3015098 WCI 3015098 Contact Us For Availability
*43062
WCI G164579 WCI G164579 Contact Us For Availability
*43063
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
BEARING (2) WCI G183138 Contact Us For Availability
1
WCI G174734 WCI G174734 Contact Us For Availability
2
WCI G189500-01 WCI G189500-01 Contact Us For Availability
2
COVER, UPPER COIL WCI G169481-01 Contact Us For Availability
2
WCI G174733 WCI G174733 Contact Us For Availability
2
WCI G161015-17 WCI G161015-17 Contact Us For Availability
2
SOCKET LIGHT WCI G168302 Contact Us For Availability
2A
FRAME-NAMEPLATE (NON-ILLUSTRATED) WCI G178292 Contact Us For Availability
3
WCI G167957 WCI G167957 Contact Us For Availability
3
TRIM-SHELF (4) WCI 3017854 Contact Us For Availability
3
TUBE-RUBBER (3) WCI G85642 Contact Us For Availability
4
WCI G161119 WCI G161119 Contact Us For Availability
4
SHIM-UPPER HINGE (2) WCI G183861 Contact Us For Availability
4
WCI 3017855 WCI 3017855 Contact Us For Availability
4
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
5
WCI G180551-03 WCI G180551-03 Contact Us For Availability
5
WCI G185566 WCI G185566 Contact Us For Availability
5
COVER CRISPER UPPER WCI G163915-01 Contact Us For Availability
5
WCI G189359 WCI G189359 Contact Us For Availability
6
WCI G166891-03 WCI G166891-03 Contact Us For Availability
6
WCI G180551-01 WCI G180551-01 Contact Us For Availability
6
WCI G183715 WCI G183715 Contact Us For Availability
6
WCI G179707-09 WCI G179707-09 Contact Us For Availability
6
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI G188725 WCI G188725 Contact Us For Availability
6A
BRACKET-UPPER HINGE LH (NON-ILLUSTRATED) WCI G183716 Contact Us For Availability
7
WCI G161019-82 WCI G161019-82 Contact Us For Availability
7
END-HANDLE WCI G189451-01 Contact Us For Availability
7
WASHER-NYLON (2) WCI G164355 Contact Us For Availability
7
WCI G164906-01 WCI G164906-01 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G164731-17 WCI G164731-17 Contact Us For Availability
8
WCI G169745-11 WCI G169745-11 Contact Us For Availability
8
TRIM-PAN WCI G161013-71 Contact Us For Availability
8
CORD, SERVICE WCI G162549-01 Contact Us For Availability
9
HANDLE-DOOR WCI G189455-01 Contact Us For Availability
9
WCI G164419-30 WCI G164419-30 Contact Us For Availability
9
WCI G179708-09 WCI G179708-09 Contact Us For Availability
9
WCI G162205-05 WCI G162205-05 Contact Us For Availability
9
WCI G182225-04 WCI G182225-04 Contact Us For Availability
10
WCI G161019-81 WCI G161019-81 Contact Us For Availability
10
WCI G164452-35 WCI G164452-35 Contact Us For Availability
10
COVER, CRISPER, LOWER WCI G163916-01 Contact Us For Availability
10
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
11
SUPPORT-RACK RH (4) WCI G161018-01 Contact Us For Availability
11
WCI G167958 WCI G167958 Contact Us For Availability
11
WCI G189483 WCI G189483 Contact Us For Availability
11
WCI G166802 WCI G166802 Contact Us For Availability
12
SUPPORT-RACK LH (4) WCI G161080-01 Contact Us For Availability
12
WCI G189879-11 WCI G189879-11 Contact Us For Availability
12
WCI G164643-11 WCI G164643-11 Contact Us For Availability
12
WCI G166495-01 WCI G166495-01 Contact Us For Availability
12
WCI G166803 WCI G166803 Contact Us For Availability
13
WCI G166897-03 WCI G166897-03 Contact Us For Availability
13
BRACKET-LOWER HINGE WCI G162383 Contact Us For Availability
13
WCI G172434-49 WCI G172434-49 Contact Us For Availability
13
WCI G164575 WCI G164575 Contact Us For Availability
13
WCI G188727 WCI G188727 Contact Us For Availability
13A
SCREW (4) (NON-ILLUSTRATED) WCI G99167 Contact Us For Availability
14
WCI G165376 WCI G165376 Contact Us For Availability
14
SHIM-LOWER (2) WCI G162903 Contact Us For Availability
14
CHANNEL-SHELF (2) WCI G170694 Contact Us For Availability
14
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
14A
WCI G142361 WCI G142361 Contact Us For Availability
14B
WCI G141673 WCI G141673 Contact Us For Availability
15
WCI G189873-11 WCI G189873-11 Contact Us For Availability
15
WCI G180425-01 WCI G180425-01 Contact Us For Availability
15
WCI G185373 WCI G185373 Contact Us For Availability
15
COMPRESSOR WCI G189470 Contact Us For Availability
15A
PLUG-BUTTON (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
16
END-HANDLE WCI G189452-01 Contact Us For Availability
16
WCI G164912-03 WCI G164912-03 Contact Us For Availability
16
WCI G180425-02 WCI G180425-02 Contact Us For Availability
16
WCI G165217-01 WCI G165217-01 Contact Us For Availability
16
SCREW (3) WCI G183344 Contact Us For Availability
17
GRILL-FRONT WCI G161905-07 Contact Us For Availability
17
WCI 3016879 WCI 3016879 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI G185303 Contact Us For Availability
18
WCI G164571 WCI G164571 Contact Us For Availability
18
SLEEVE-COMP (3) WCI G154588 Contact Us For Availability
19
SCREW-MULLION WCI G167125 Contact Us For Availability
19
PLATE-DEFROST WCI G188724 Contact Us For Availability
20
CLIP-GRILL (2) WCI G162994 Contact Us For Availability
21
WCI G166138 WCI G166138 Contact Us For Availability
22
WCI G166171 WCI G166171 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI G185302 Contact Us For Availability
23
PLATE, TAPPING WCI G179797 Contact Us For Availability
24
WCI G162808 WCI G162808 Contact Us For Availability
24
RING-ORIFICE WCI G167217 Contact Us For Availability
25
NUT - PUSH (2) WCI G162662 Contact Us For Availability
26
WCI G162809 WCI G162809 Contact Us For Availability
26
WCI G164654-01 WCI G164654-01 Contact Us For Availability
28
WCI G163952 WCI G163952 Contact Us For Availability
29
PAN, DEFROST WCI G162890 Contact Us For Availability
31
WCI G158022 WCI G158022 Contact Us For Availability
33
WCI G190223 WCI G190223 Contact Us For Availability
34
WCI G169477-01 WCI G169477-01 Contact Us For Availability
35
GASKET-COIL COVER WCI G174234-01 Contact Us For Availability
36
CLIP, GROUNDING WCI G162703 Contact Us For Availability
37
GASKET-COIL COVER (2) WCI G165233 Contact Us For Availability
38
WCI 3007567 WCI 3007567 Contact Us For Availability
39
BLOCK COIL (4) WCI G169493 Contact Us For Availability
40
WCI G186609 WCI G186609 Contact Us For Availability
41
WCI G165416-02 WCI G165416-02 Contact Us For Availability
42
WCI G163669 WCI G163669 Contact Us For Availability
× ![]()
