Model Maytag FS17EVP COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - CONTOL PANEL & SHELF ASSY
03 - CAVITY ASSY
04 - INTERIOR ELECTRICAL & RELATED PARTS
05 - BACK PANEL ASSY
06 - DOOR ASSY

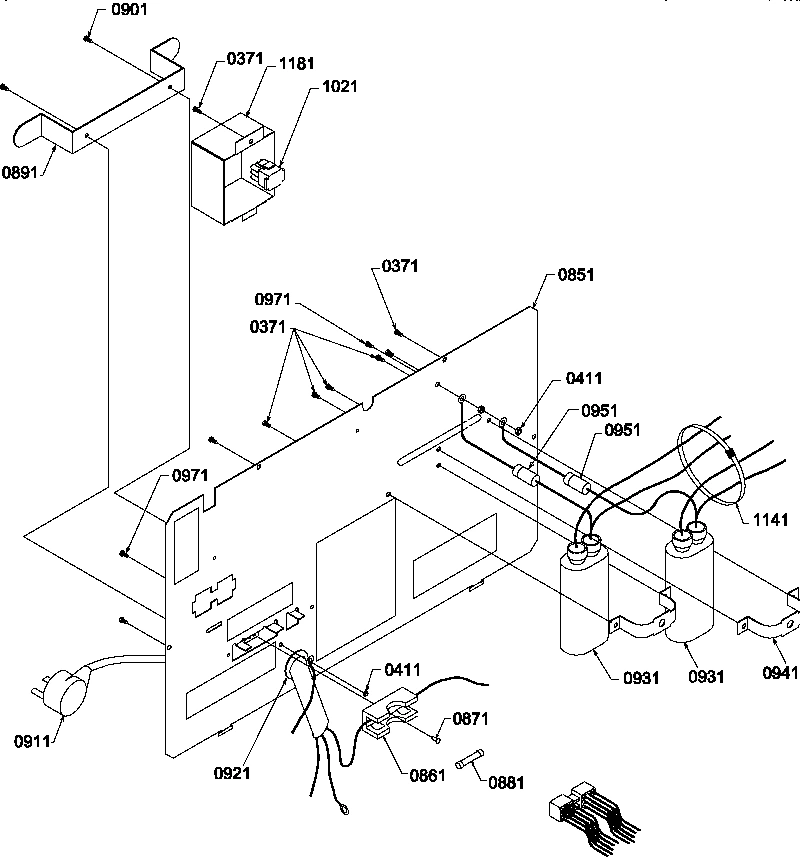

01 - BACK PANEL ASSY

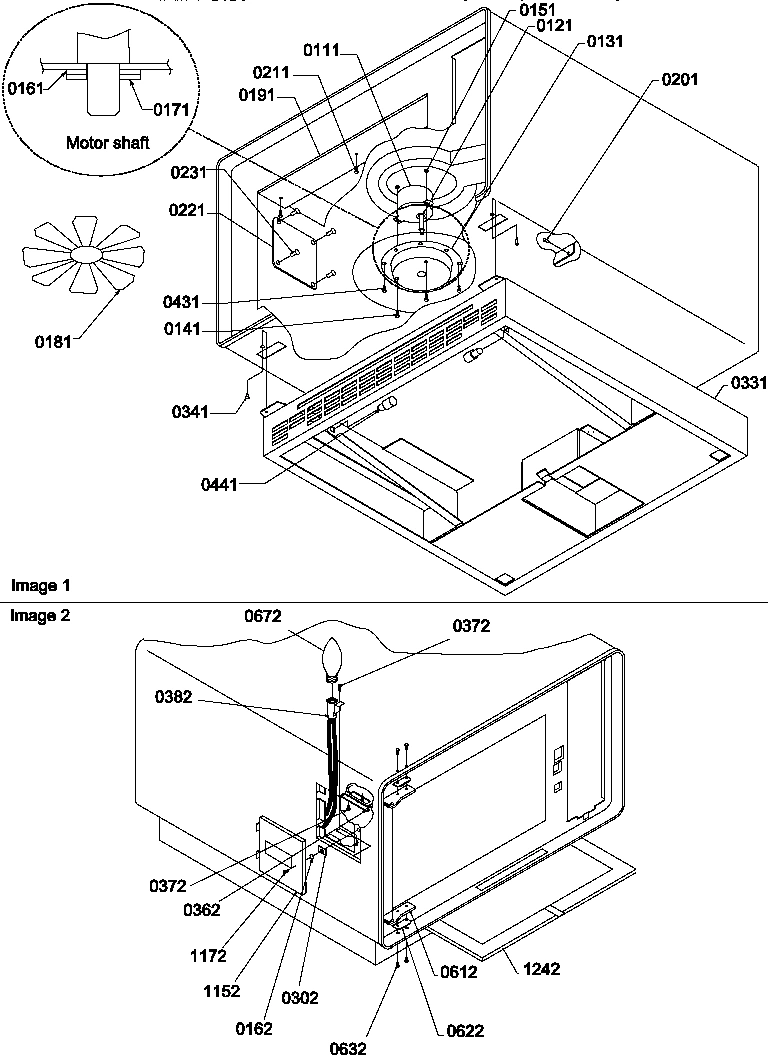

02 - CAVITY ASSY

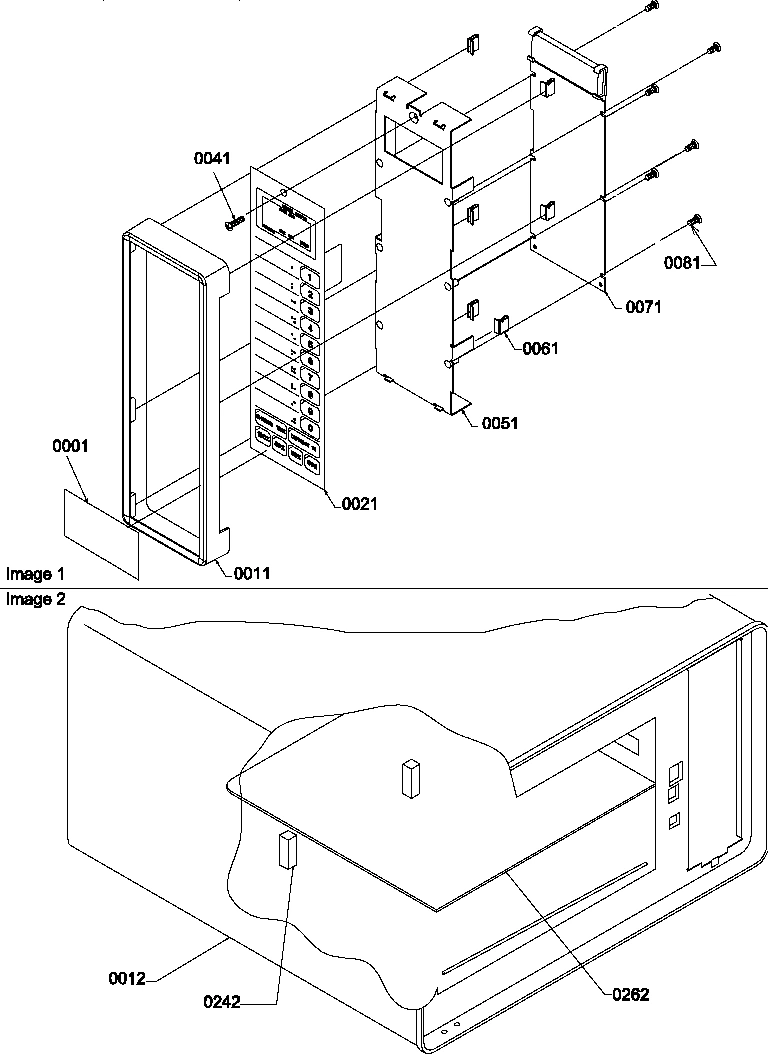

03 - CONTOL PANEL & SHELF ASSY

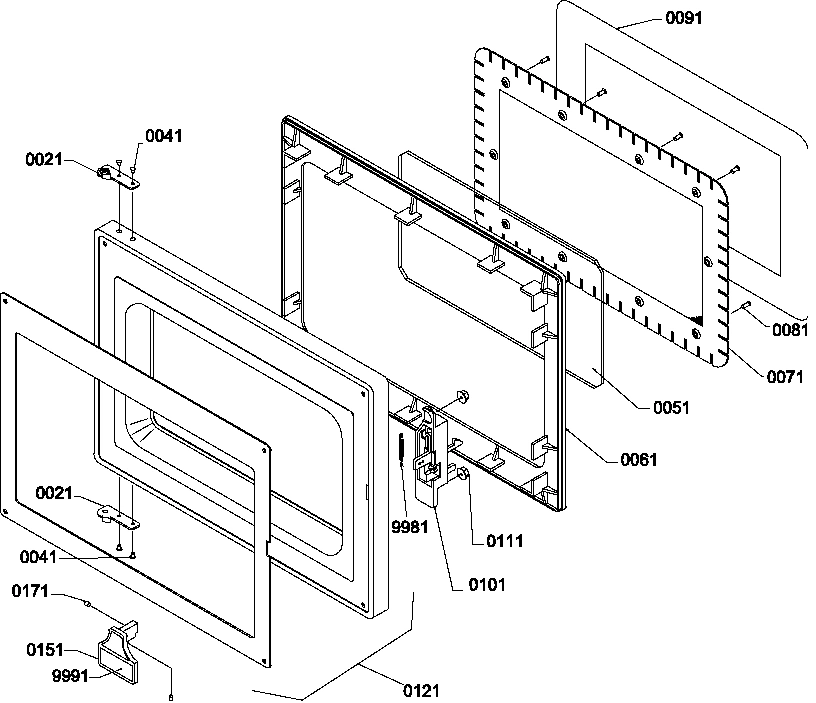

04 - DOOR ASSY

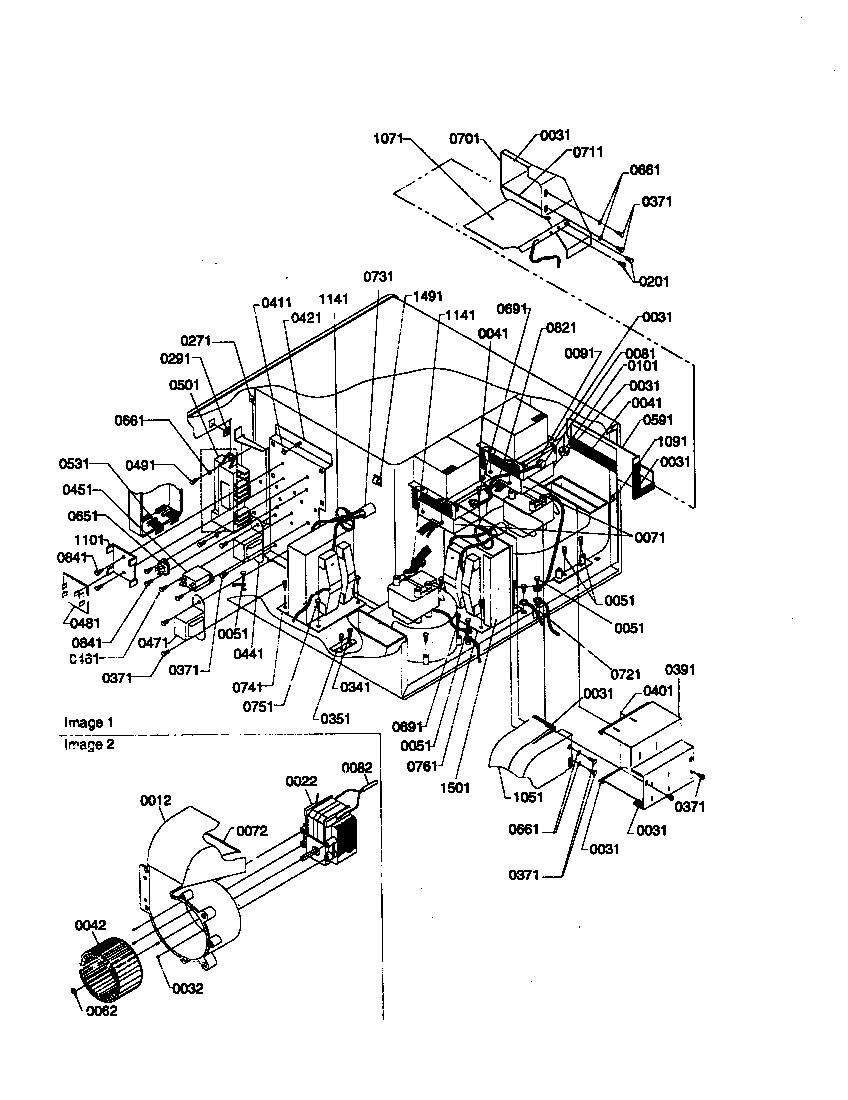

05 - INTERIOR ELECTRICAL & RELATED PARTS
Common parts from model Maytag FS17EVP COMMERCIAL MICROWAVE
1
POW BTN CVR ALUM/BLACK MAY 46508P04 Contact Us For Availability
11
FRAME, CONT PNL MAY 45398P04 Contact Us For Availability
12
MAY R0163301 MAY R0163301 Contact Us For Availability
12
MAY 45559P01 MAY 45559P01 Contact Us For Availability
21
MAY 4100010317 MAY 4100010317 Contact Us For Availability
21
HINGE ASY KIT MAY R0163252 Contact Us For Availability
22
KIT, BLOWER MOTOR MAY R0163291 Contact Us For Availability
31
MAY A3030302 MAY A3030302 Contact Us For Availability
32
MAY M1D888 MAY M1D888 Contact Us For Availability
41
SCREW,No.8-32 X 1-1/4 FL HD SCRE MAY 5149-P Contact Us For Availability
41
MAY 46139P01 MAY 46139P01 Contact Us For Availability
41
MAY A3030361 MAY A3030361 Contact Us For Availability
42
WHEEL, BLOWER M35D39 MAY 36300P01 Contact Us For Availability
51
MAY 4180001602 MAY 4180001602 Contact Us For Availability
51
SCREW MAY 5078-CC Contact Us For Availability
51
MAY M70D246 MAY M70D246 Contact Us For Availability
61
CLIP MAY 5522546002 Contact Us For Availability
61
MAY M55D18 MAY M55D18 Contact Us For Availability
71
KIT, CONTROLLER +$50.00 CORE MAY M31R60 Contact Us For Availability
71
MAGNETRON MAY 10489403 Contact Us For Availability
71
INNER DOOR KIT MAY R0163255 Contact Us For Availability
72
MAY 10825601 MAY 10825601 Contact Us For Availability
81
No.6 PAN HD MACHINE SCREW MAY 5057-N Contact Us For Availability
81
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
91
SCREW MAY M0251717 Contact Us For Availability
91
MAY 10785001 MAY 10785001 Contact Us For Availability
101
MAY Y35691P01S MAY Y35691P01S Contact Us For Availability
101
DOOR LATCH KIT MAY R0163256 Contact Us For Availability
101
MAY 35691P01 S MAY 35691P01 S Contact Us For Availability
111
KIT, STIRRER MOTOR MAY R0163259 Contact Us For Availability
111
No.10-24 FLANGE WHIZ-LK NUT MAY 5015-T Contact Us For Availability
117
SCREW-SM MAY YM0214931 Contact Us For Availability
121
MAY 24597P01 MAY 24597P01 Contact Us For Availability
121
OUTER DOOR ASSY. MAY R0163257 Contact Us For Availability
131
MAY 45437P01 MAY 45437P01 Contact Us For Availability
141
MAY M0234003 MAY M0234003 Contact Us For Availability
151
MAY 5010-X MAY 5010-X Contact Us For Availability
151
MAY 12066802 MAY 12066802 Contact Us For Availability
162
MAY 32383P01 MAY 32383P01 Contact Us For Availability
171
MAY Y5147V MAY Y5147V Contact Us For Availability
171
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
171
MAY 5147-V MAY 5147-V Contact Us For Availability
181
MAY 10824805Q MAY 10824805Q Contact Us For Availability
191
STIRRER COVER MAY 45422P01 Contact Us For Availability
201
.187 DIA PUSH RIVET MAY 5039-T Contact Us For Availability
221
MAY 2570000202 MAY 2570000202 Contact Us For Availability
231
RIVET-PLASTCx MAY 42192P01 Contact Us For Availability
242
MAY 3010003001 MAY 3010003001 Contact Us For Availability
262
MAY R0156904 MAY R0156904 Contact Us For Availability
271
MAY 42365P01 MAY 42365P01 Contact Us For Availability
291
No.8-32 CAPTIVE NUT(25) MAY 5072-D Contact Us For Availability
302
MAY M0288120 MAY M0288120 Contact Us For Availability
331
KIT, BASE MAY R0163258 Contact Us For Availability
341
.187 DIA POP RIVET STEEL MAY 5067-A Contact Us For Availability
351
CLIP, BLOWER MTG MAY 45537P01 Contact Us For Availability
362
MAY 4520500504 MAY 4520500504 Contact Us For Availability
371
MAY M0216716 MAY M0216716 Contact Us For Availability
382
MAY 2040100701 MAY 2040100701 Contact Us For Availability
391
MAY 45751P03 MAY 45751P03 Contact Us For Availability
401
MAY 45752P03 MAY 45752P03 Contact Us For Availability
411
MAY M0282007 MAY M0282007 Contact Us For Availability
421
MAY 10791901 MAY 10791901 Contact Us For Availability
441
MAY 5571173001 MAY 5571173001 Contact Us For Availability
441
MAY 45507P01 MAY 45507P01 Contact Us For Availability
451
MAY 38806P01 MAY 38806P01 Contact Us For Availability
461
SCREW K MAY 5074-DD Contact Us For Availability
471
XFMR-AUTO MAY 42604P01 Contact Us For Availability
481
BOARD, P.C. MAY 10791801 Contact Us For Availability
491
MAY M0211018 MAY M0211018 Contact Us For Availability
501
SVC INTERLOCK SWITCH ASY MAY 4002006801 Contact Us For Availability
531
ASSY, CONNECTOR MAY 4520400703 Contact Us For Availability
591
TRANSITION-CAV EXH FS-10 MAY 45753P01 Contact Us For Availability
612
MAY 4180032601Q MAY 4180032601Q Contact Us For Availability
622
MAY 45540P01 MAY 45540P01 Contact Us For Availability
632
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
651
MAY R0157373 MAY R0157373 Contact Us For Availability
661
SEE NOTE No.8 FLAT WASHER MAY Y00000000 Contact Us For Availability
672
M9D107 LAMP MAY 2031415101 Contact Us For Availability
691
SCREW 1`` MAY M0211021 Contact Us For Availability
701
M65D345 DUCT, AIR MAY 45407P01 Contact Us For Availability
711
M65D346 DIVIDER AIR MAY 45402P01 Contact Us For Availability
721
MAY 39126P01 MAY 39126P01 Contact Us For Availability
731
MAY 12075801 MAY 12075801 Contact Us For Availability
741
MAY 45602P01 MAY 45602P01 Contact Us For Availability
751
No.10 T X 3/8`` SCREW MAY 5018-JJ Contact Us For Availability
761
MAY 10788605 MAY 10788605 Contact Us For Availability
821
LD MAY 4229913003 Contact Us For Availability
841
MAY M0231604 MAY M0231604 Contact Us For Availability
851
MAY R0156978 MAY R0156978 Contact Us For Availability
861
FUSE HOLDER MAY 10091101 Contact Us For Availability
871
MAY M0216529 MAY M0216529 Contact Us For Availability
881
FUSE, M4D87 MAY 36108P01 Contact Us For Availability
891
MAY 45531P01 MAY 45531P01 Contact Us For Availability
901
MAY A4539629 MAY A4539629 Contact Us For Availability
911
CORD, POWER (300) MAY 1732000101 Contact Us For Availability
921
STRAIN RELIEF MAY M0370003 Contact Us For Availability
931
MAY D8547928 MAY D8547928 Contact Us For Availability
941
MAY 10825501 MAY 10825501 Contact Us For Availability
951
MAY B8383102 MAY B8383102 Contact Us For Availability
999
INSERT-HANDLE MAY NLA Contact Us For Availability
1021
PLUG, TAP SET MAY 42321P02 Contact Us For Availability
1051
MAY 46385P01 MAY 46385P01 Contact Us For Availability
1071
DEFLECTOR-AIR M65D344 MAY 46762P01 Contact Us For Availability
1091
MAY 5147-ZZ MAY 5147-ZZ Contact Us For Availability
1101
MAY 10741801 MAY 10741801 Contact Us For Availability
1141
MAY M0321204 MAY M0321204 Contact Us For Availability
1152
COVER LIGHT (SS) MAY 10785601 Contact Us For Availability
1172
MAY M0214931 MAY M0214931 Contact Us For Availability
1181
MAY 45532P01 MAY 45532P01 Contact Us For Availability
1242
MAY 45412P01 MAY 45412P01 Contact Us For Availability
1491
MAY M0104102 MAY M0104102 Contact Us For Availability
1501
MAY 12065001 MAY 12065001 Contact Us For Availability
9981
MAY 412058P01 MAY 412058P01 Contact Us For Availability
9991
MAY 10805820 MAY 10805820 Contact Us For Availability
NI
MAY M0275501 MAY M0275501 Contact Us For Availability
NI
MAY 10798701 MAY 10798701 Contact Us For Availability
× ![]()
