Model Frigidaire FRTE1622AS REFRIGERATOR – Common Parts & Diagrams

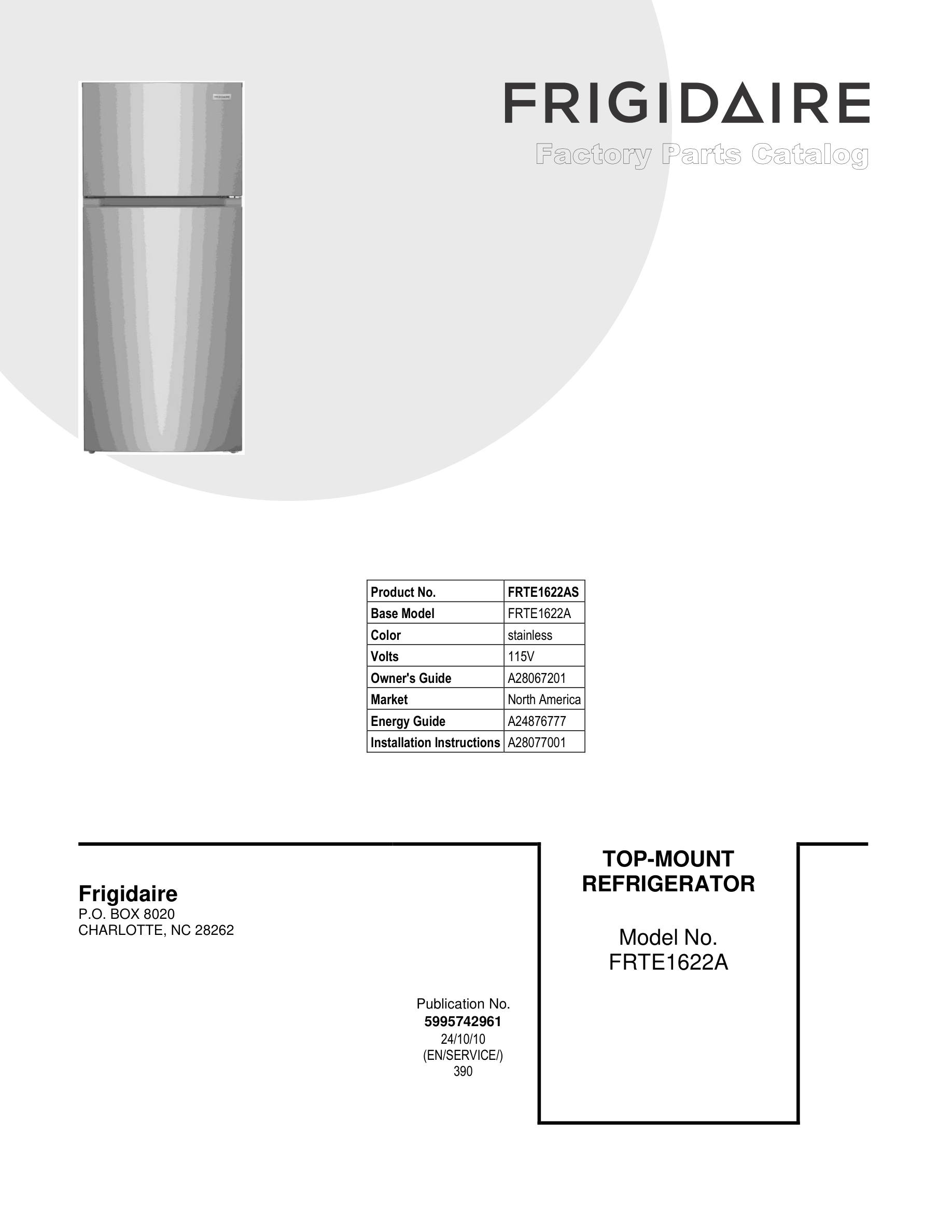

01 - COVER

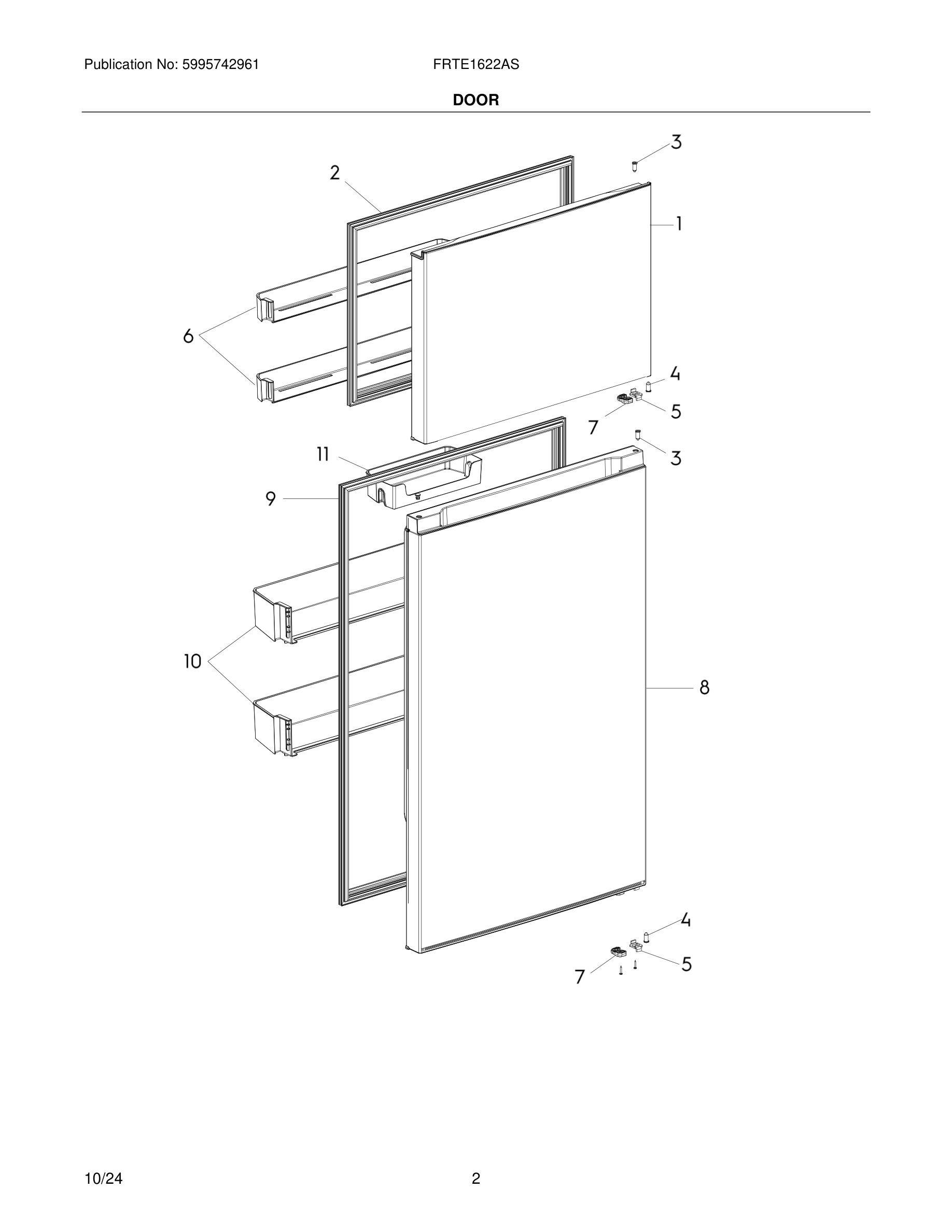

03 - DOOR

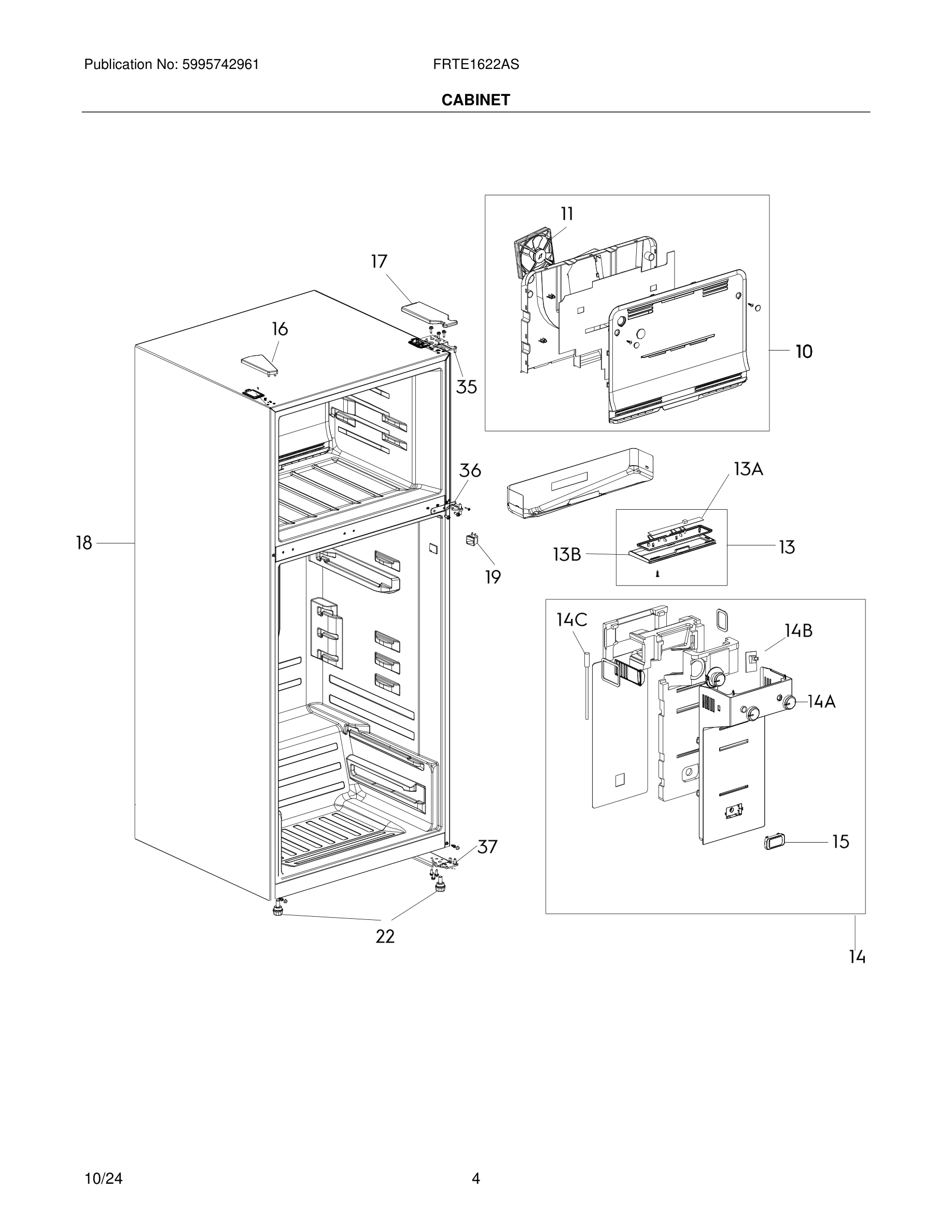

05 - CABINET

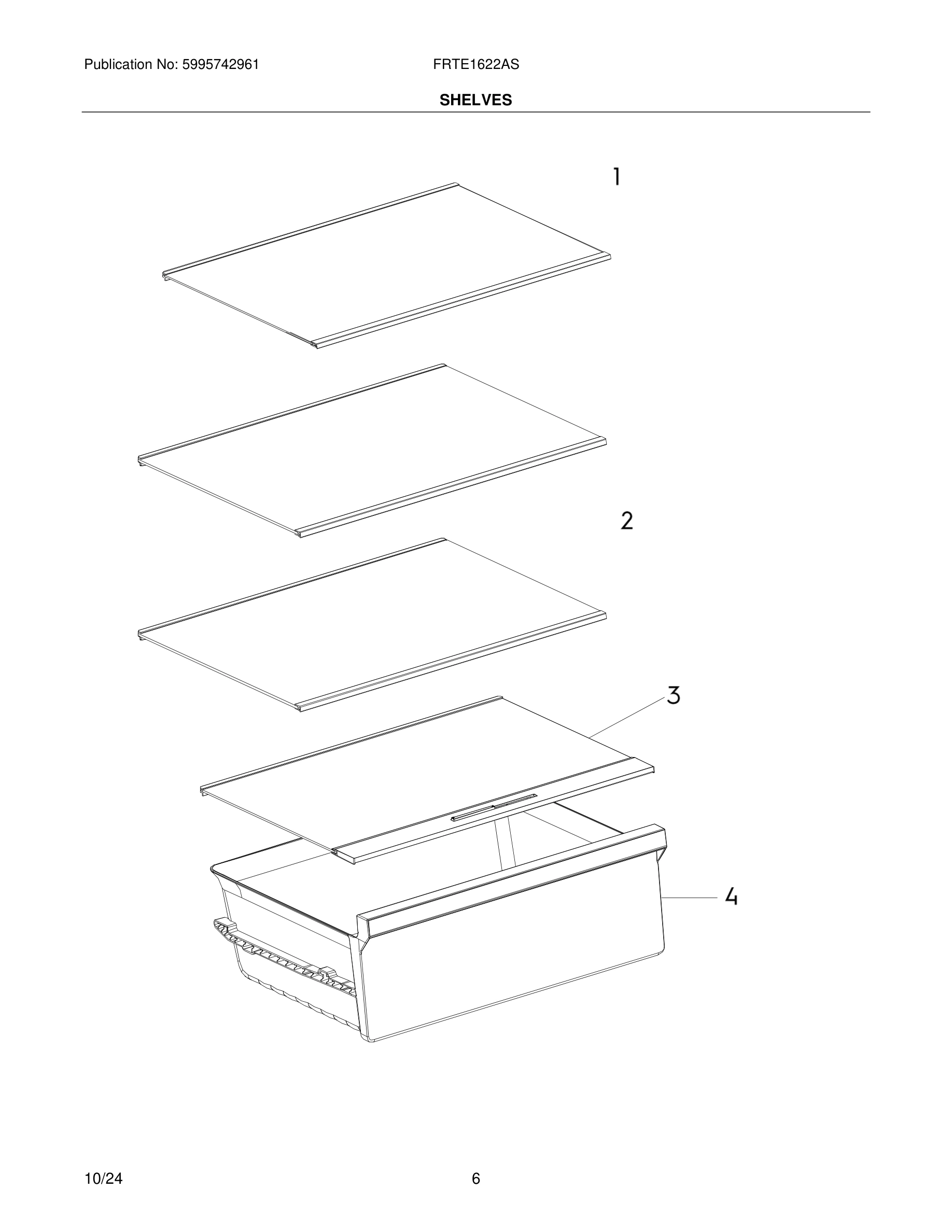

07 - SHELVES

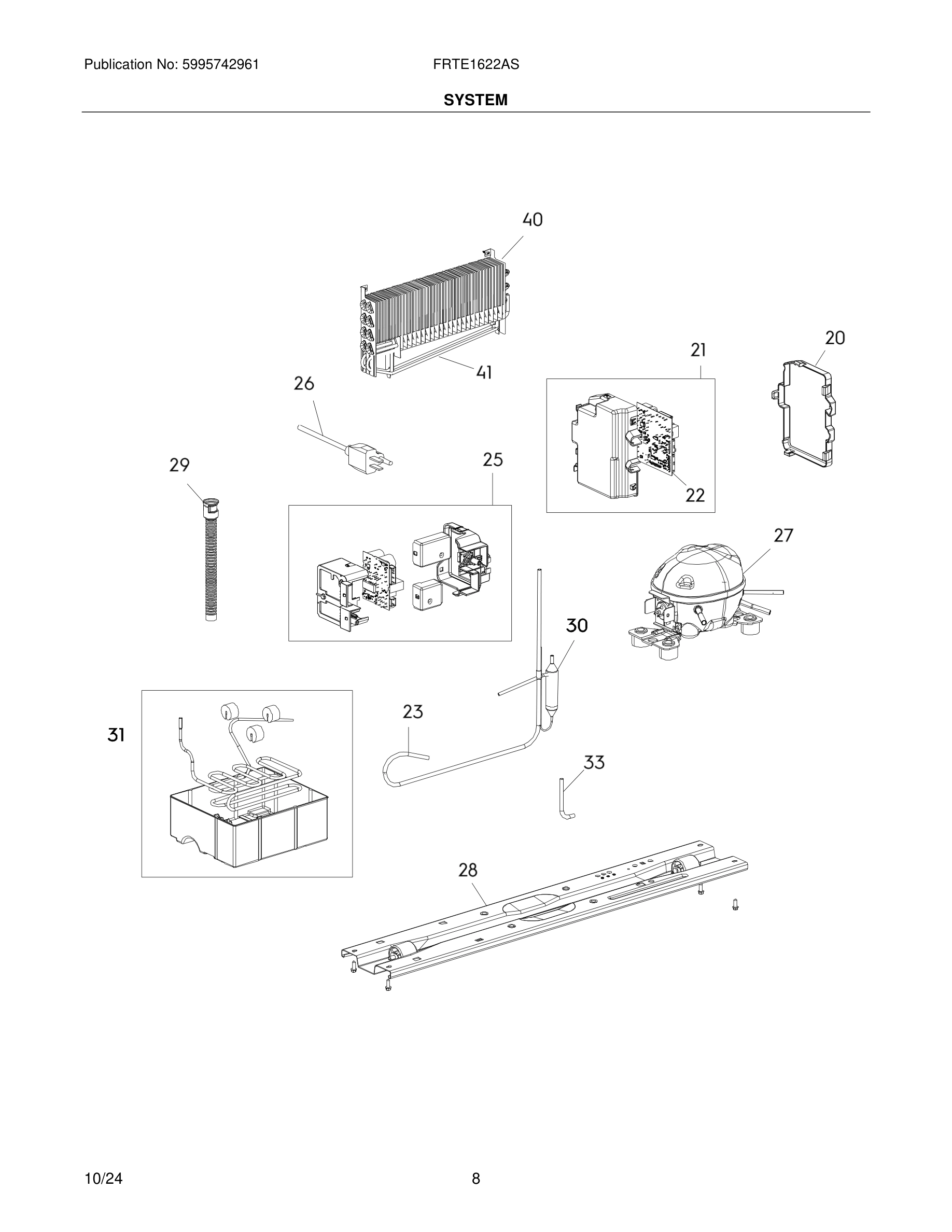

09 - SYSTEM

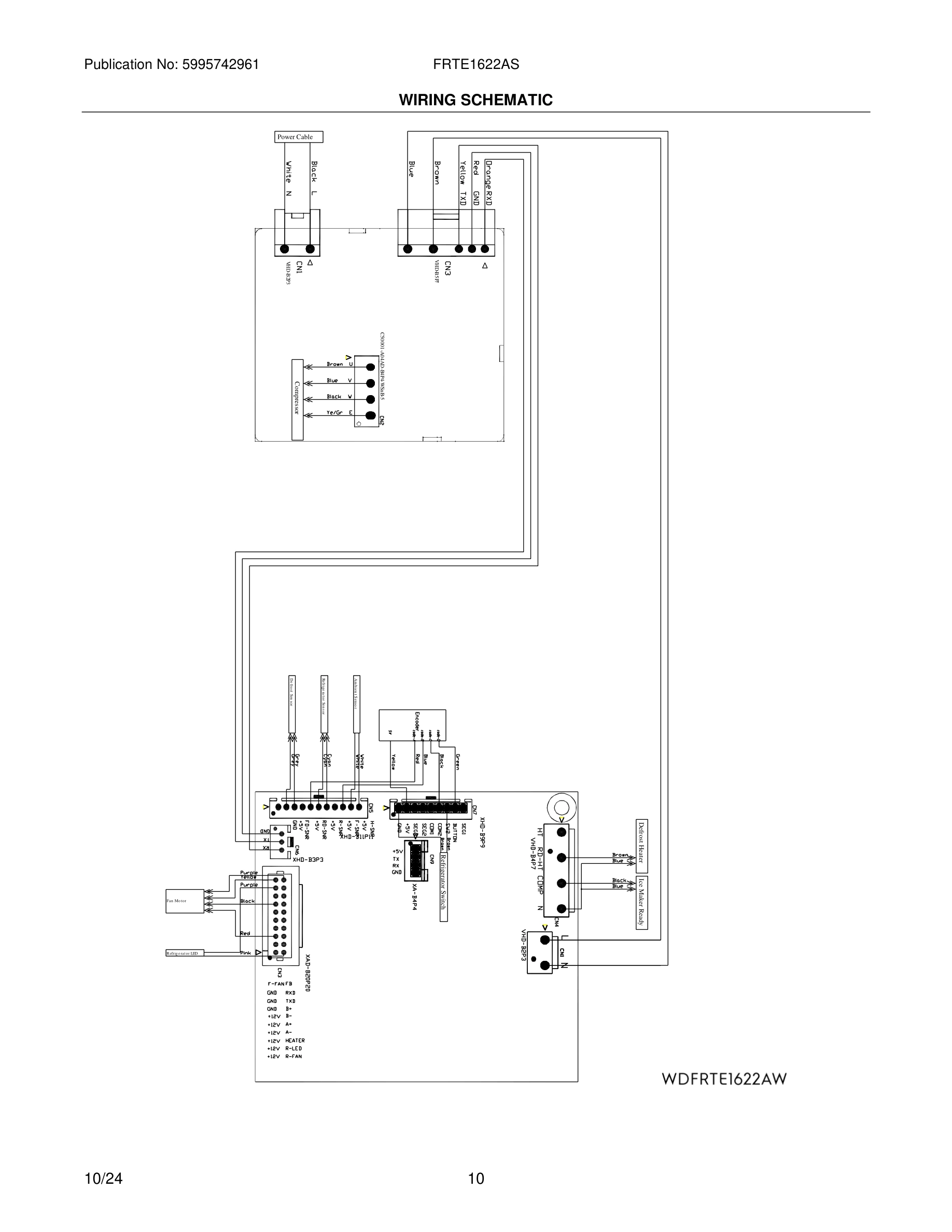

10 - WIRING SCHEMATIC
Common parts from model Frigidaire FRTE1622AS REFRIGERATOR
1
Shelf Assembly, freezer, glass WCI 5304536952 Contact Us For Availability
2
Shelf Assembly, refrigerator, glass WCI 5304536953 Contact Us For Availability
3
Cover Assembly, box, glass WCI 5304536954 Contact Us For Availability
4
Drawer Assembly, fresh food WCI 5304536955 Contact Us For Availability
5
Stopper, freezer WCI 5304536943 Contact Us For Availability
6
Bin, door, white, freezer WCI 5304536950 Contact Us For Availability
7
Door Lock, freezer WCI 5304536944 Contact Us For Availability
9
Gasket assembly, refrigerator WCI 5304536998 Contact Us For Availability
10
Bin, door, white, fresh food WCI 5304536951 Contact Us For Availability
10#
Air duct, assembly WCI 5304536956 Contact Us For Availability
13#
Lamp Assembly WCI 5304536961 Contact Us For Availability
13A#
Light Bulb, lamp WCI 5304536962 Contact Us For Availability
13B
Lamp Cover WCI 5304536963 Contact Us For Availability
14#
Air duct assembly, refrigerator WCI 5304536964 Contact Us For Availability
14A
Knob, control WCI 5304536965 Contact Us For Availability
14B#
Control-panel WCI 5304536966 Contact Us For Availability
14C#
Thermostat, temperature WCI 5304536967 Contact Us For Availability
15
Cover, air-duct WCI 5304536968 Contact Us For Availability
16
Cover, hinge, upper-left WCI 5304537000 Contact Us For Availability
17
Cover, hinge, upper-right WCI 5304537001 Contact Us For Availability
18
Screw, hinge WCI 5304536971 Contact Us For Availability
20
Cover, main, control-panel WCI 5304536975 Contact Us For Availability
21#
Main control panel, assembly WCI 5304536976 Contact Us For Availability
23#
Dryer, filter WCI 5304536986 Contact Us For Availability
27#
Compressor, assembly WCI 5304536984 Contact Us For Availability
28
Base Assembly, compressor, w/rollers WCI 5304536989 Contact Us For Availability
29
Tube, drain WCI 5304536985 Contact Us For Availability
30#
Tube, suction WCI 5304536987 Contact Us For Availability
33#
Process Tube WCI 5304536990 Contact Us For Availability
35
Hinge, door, upper WCI 5304536972 Contact Us For Availability
36
Hinge, middle WCI 5304536973 Contact Us For Availability
37
Hinge Assembly, door, lower WCI 5304536974 Contact Us For Availability
40#
Evaporator, assembly WCI 5304536958 Contact Us For Availability
41#
Heater, defrost WCI 5304536960 Contact Us For Availability
× ![]()
