Model Frigidaire FRTE1622AB REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

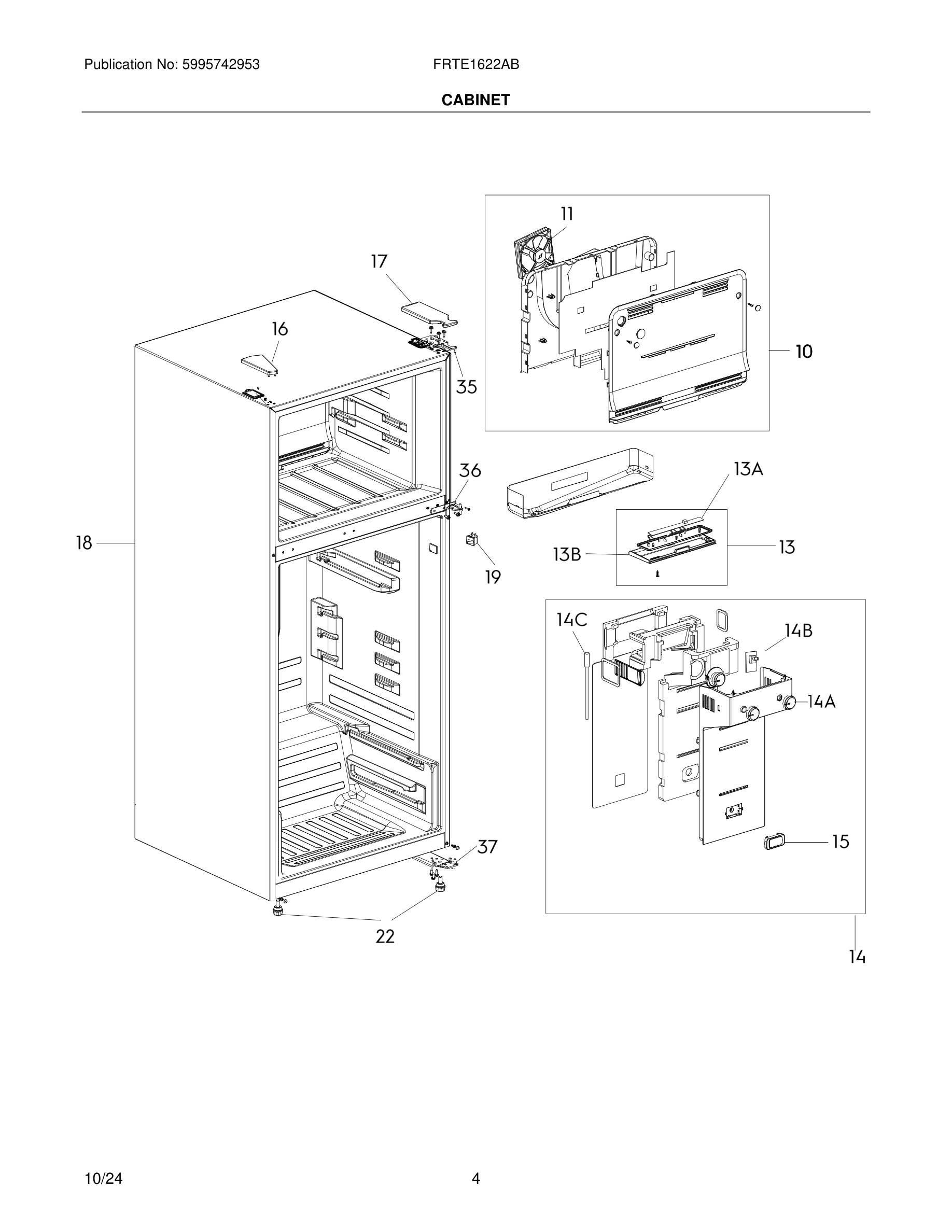

05 - CABINET

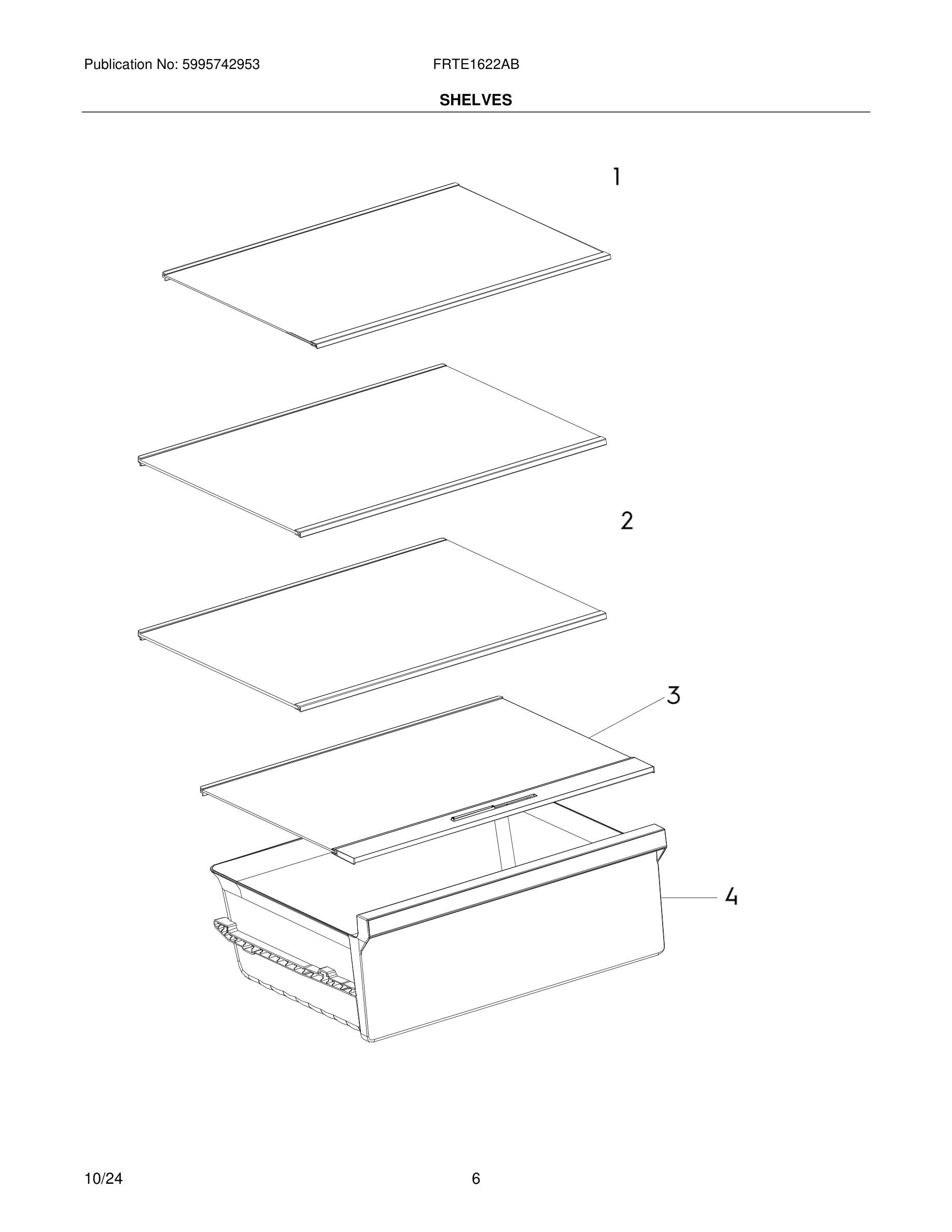

07 - SHELVES

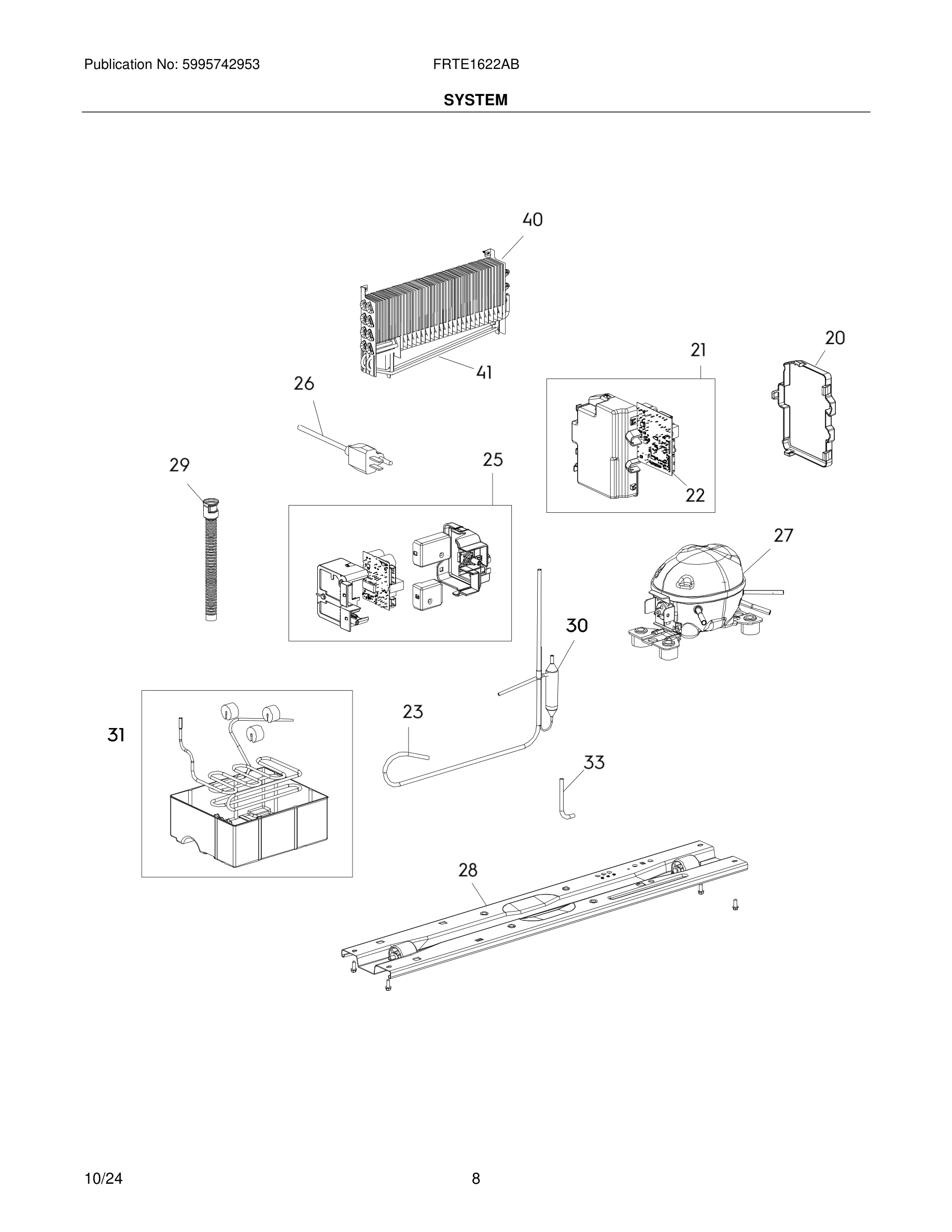

09 - SYSTEM

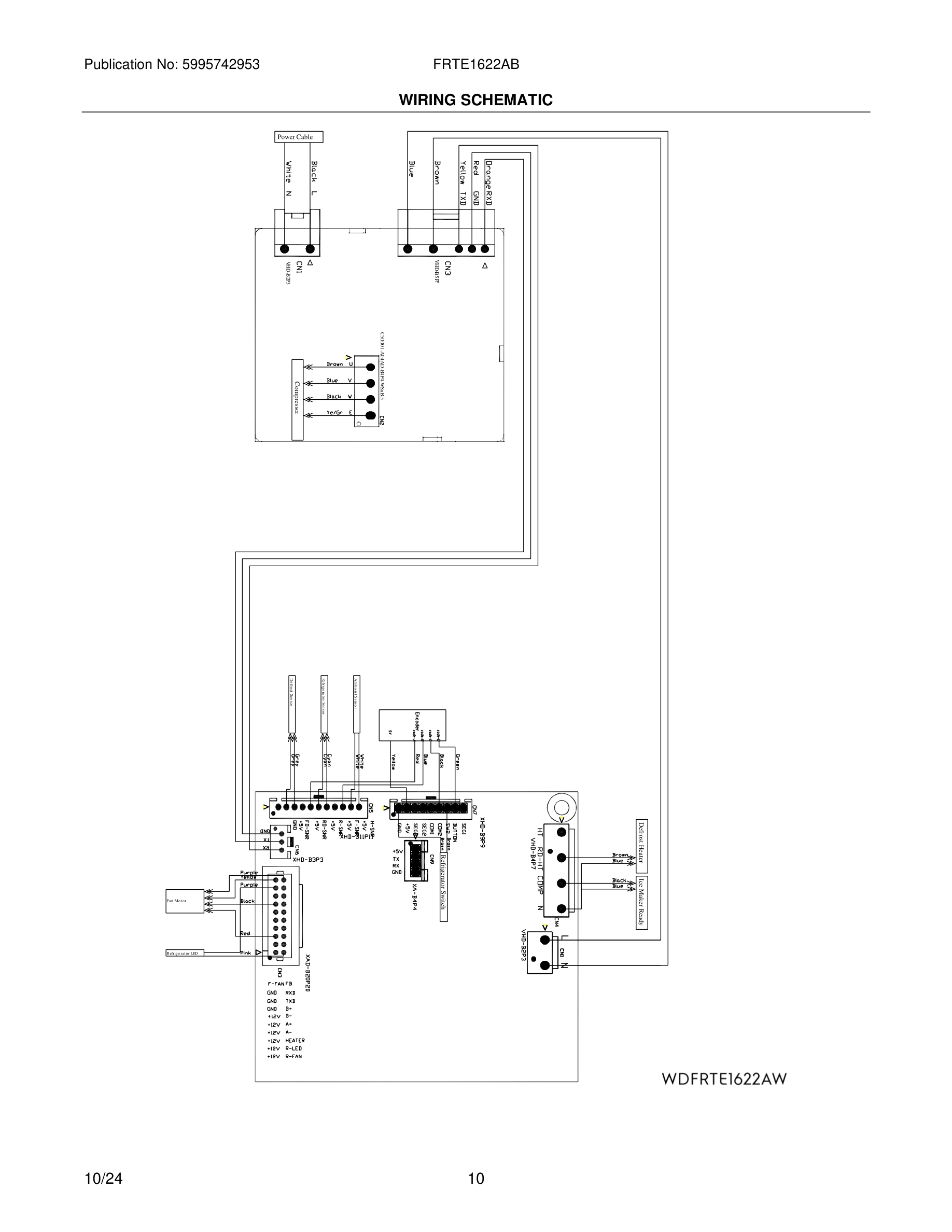

10 - WIRING SCHEMATIC
Common parts from model Frigidaire FRTE1622AB REFRIGERATOR
1
Shelf Assembly, freezer, glass WCI 5304536952 Contact Us For Availability
4
Drawer Assembly, fresh food WCI 5304536955 Contact Us For Availability
5
Stopper, freezer WCI 5304536943 Contact Us For Availability
6
Bin, door, white, freezer WCI 5304536950 Contact Us For Availability
7
Door Lock, freezer WCI 5304536944 Contact Us For Availability
8
Door Assembly, refrigerator, black WCI 5304537005 Contact Us For Availability
9
Gasket assembly, refrigerator WCI 5304537006 Contact Us For Availability
10
Bin, door, white, fresh food WCI 5304536951 Contact Us For Availability
10#
Air duct, assembly WCI 5304536956 Contact Us For Availability
13#
Lamp Assembly WCI 5304536961 Contact Us For Availability
13A#
Light Bulb, lamp WCI 5304536962 Contact Us For Availability
13B
Lamp Cover WCI 5304536963 Contact Us For Availability
14#
Air duct assembly, refrigerator WCI 5304536964 Contact Us For Availability
14A
Knob, control WCI 5304536965 Contact Us For Availability
14B#
Control-panel WCI 5304536966 Contact Us For Availability
15
Cover, air-duct WCI 5304536968 Contact Us For Availability
16
Cover, hinge, upper-left WCI 5304537008 Contact Us For Availability
17
Cover, hinge, upper-right WCI 5304537009 Contact Us For Availability
23#
Dryer, filter WCI 5304536986 Contact Us For Availability
29
Tube, drain WCI 5304536985 Contact Us For Availability
30#
Tube, suction WCI 5304536987 Contact Us For Availability
33#
Process Tube WCI 5304536990 Contact Us For Availability
36
Hinge, middle WCI 5304536973 Contact Us For Availability
37
Hinge Assembly, door, lower WCI 5304536974 Contact Us For Availability
40#
Evaporator, assembly WCI 5304536958 Contact Us For Availability
41#
Heater, defrost WCI 5304536960 Contact Us For Availability
× ![]()
