Model Electrolux FRT26XGCD4 REFRIGERATOR – Common Parts & Diagrams

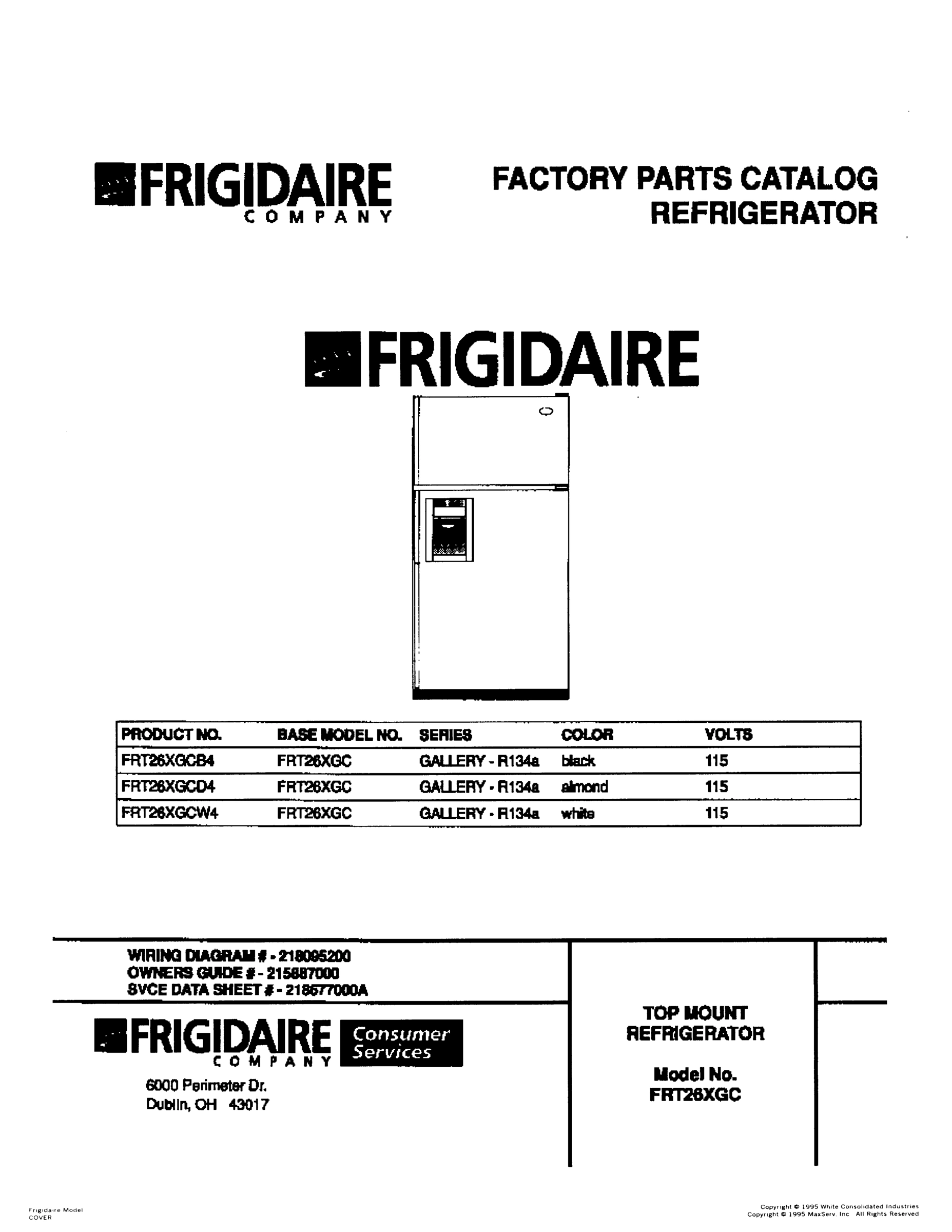

01 - COVER

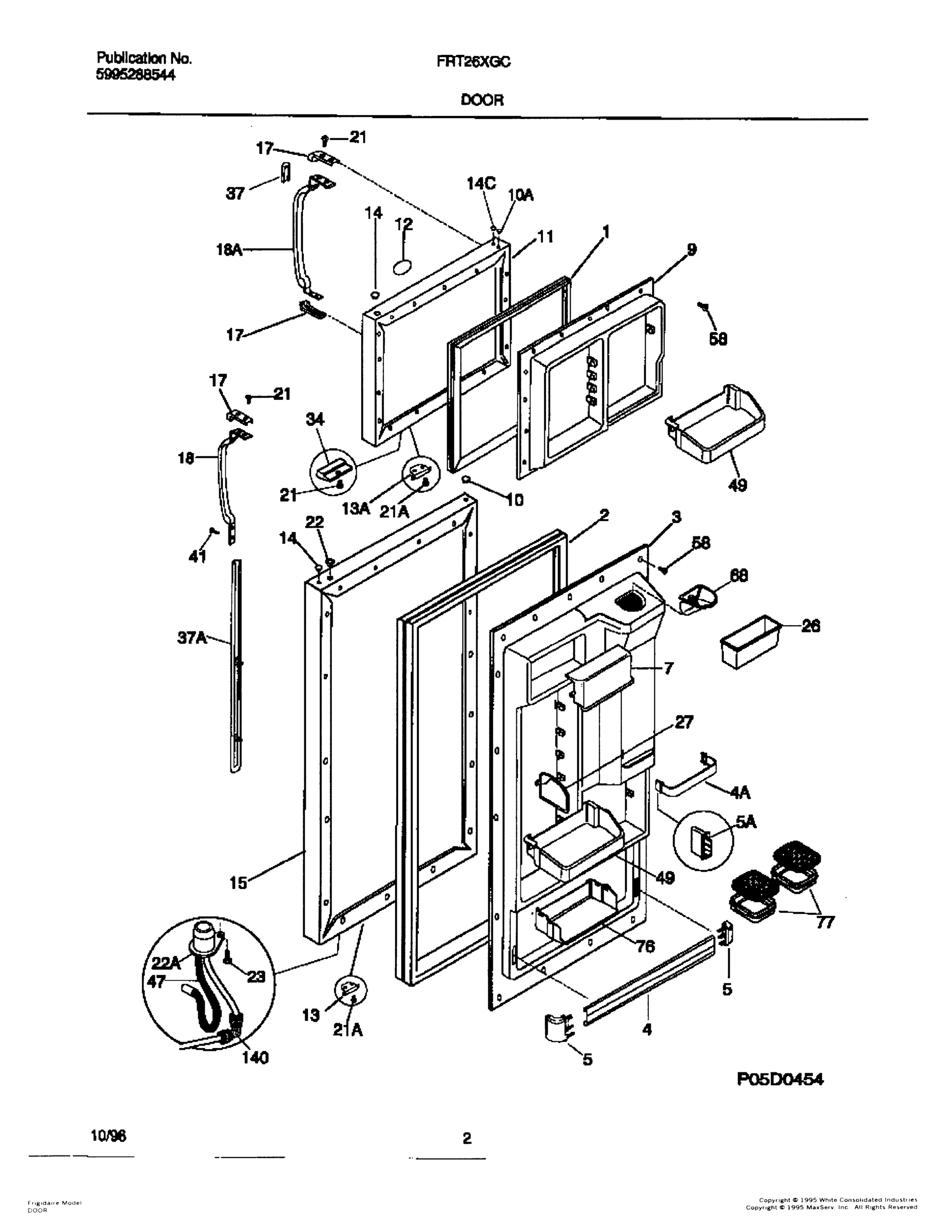

02 - DOOR

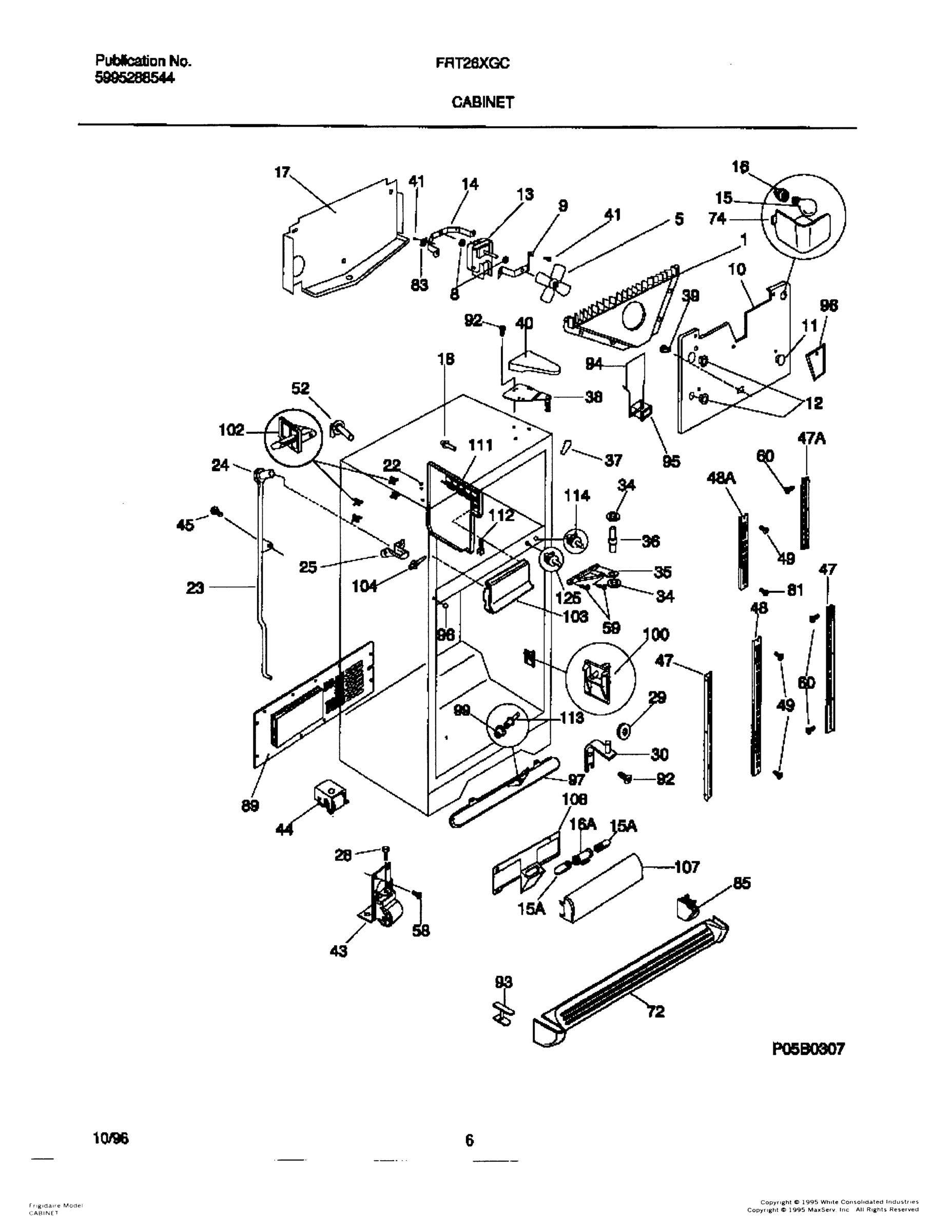

03 - CABINET

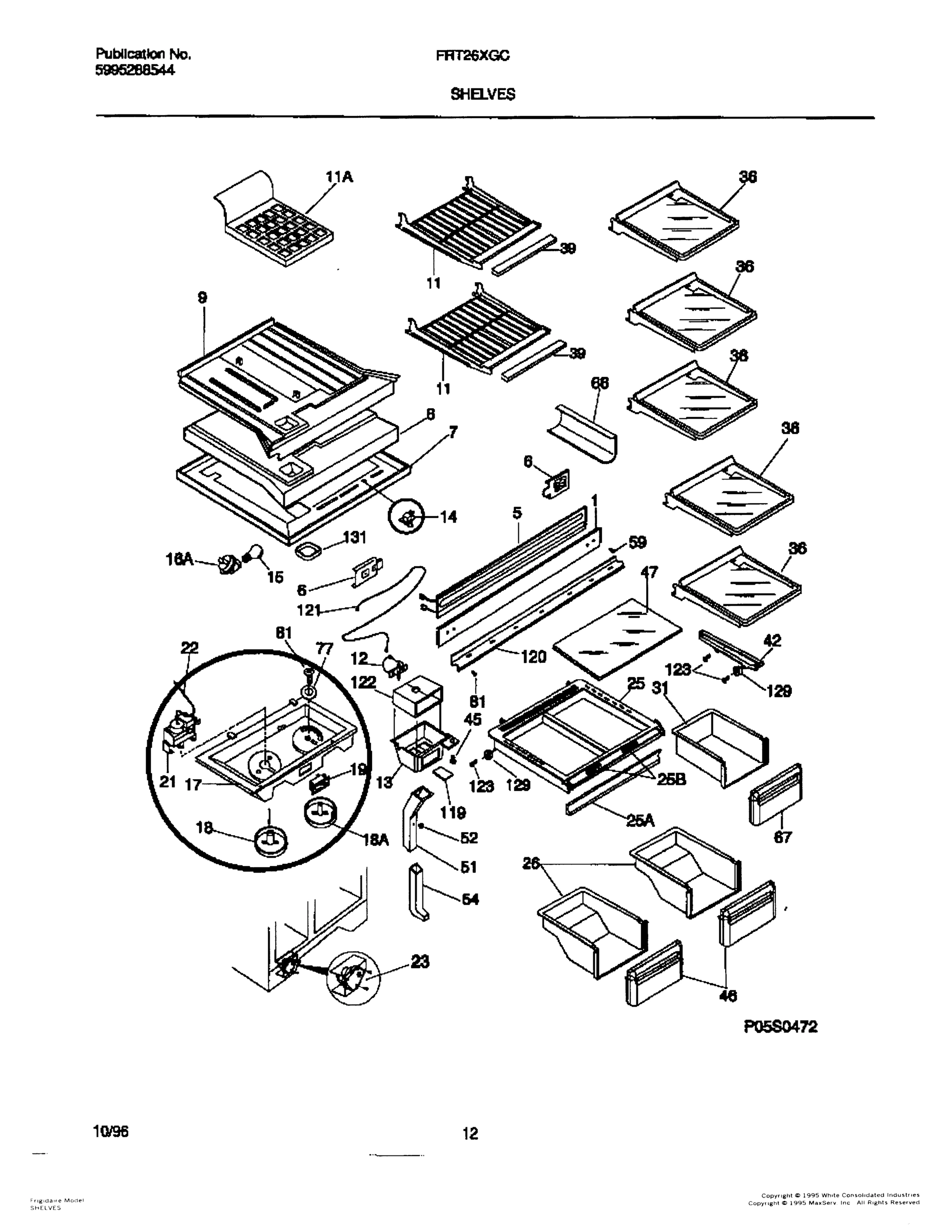

04 - SHELVES

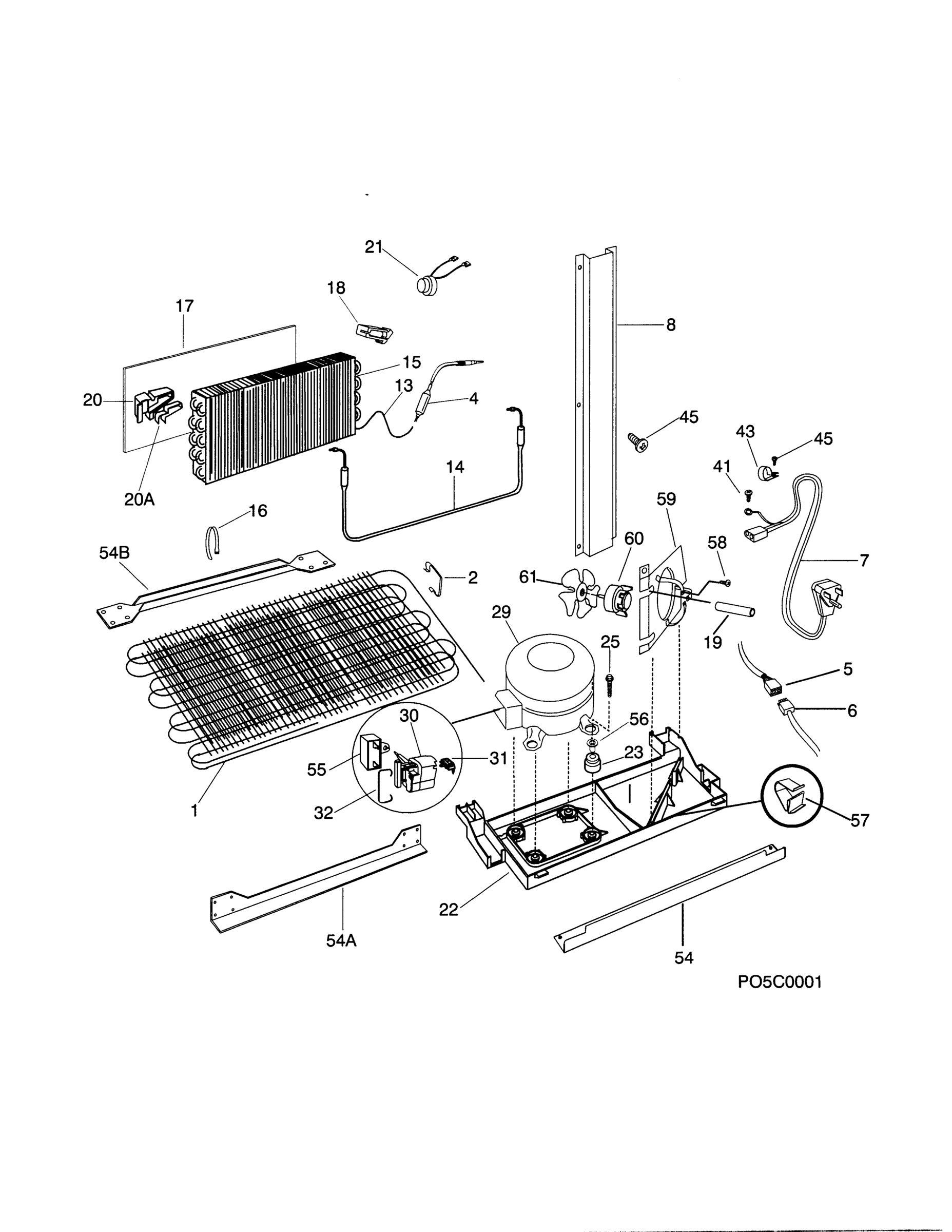

05 - SYSTEM

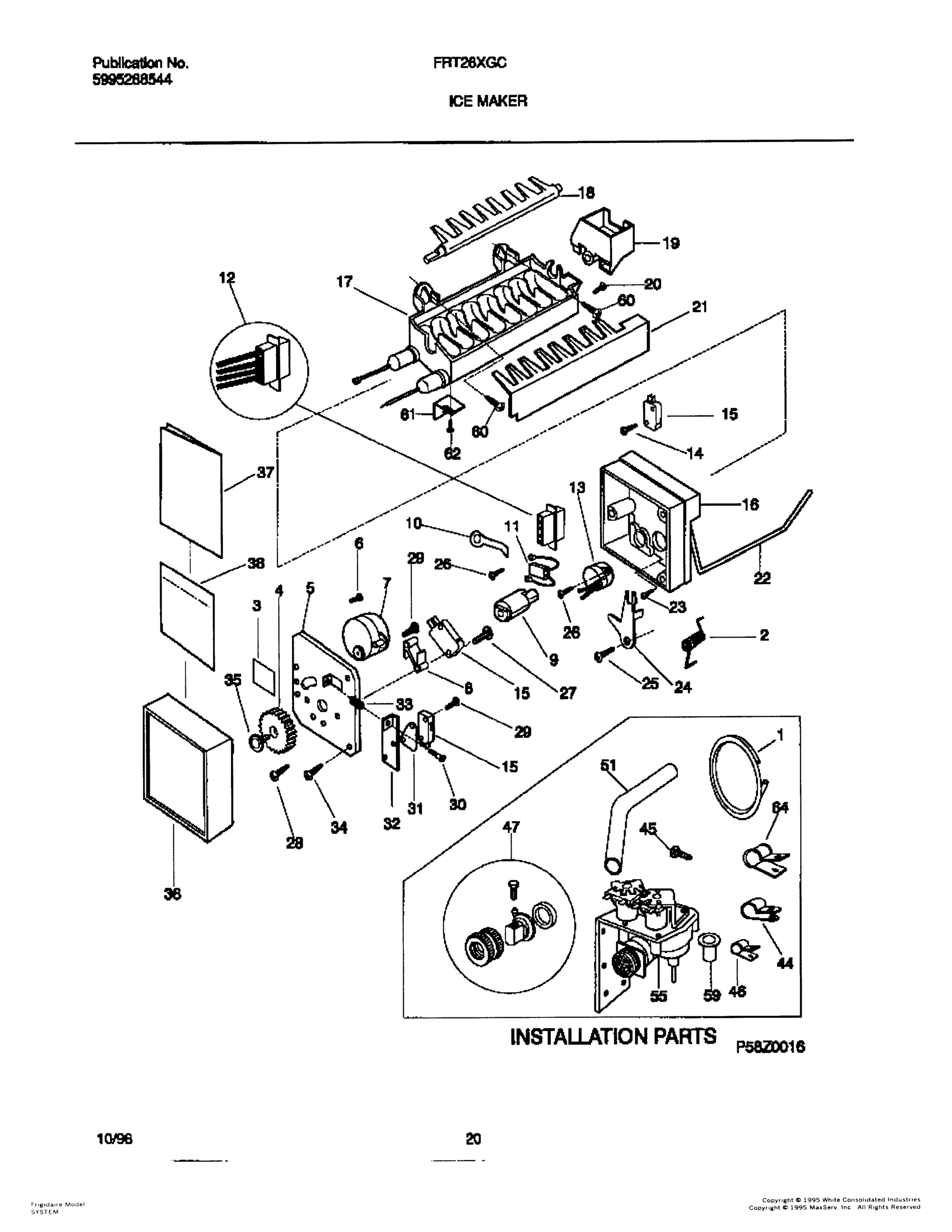

06 - ICE MAKER

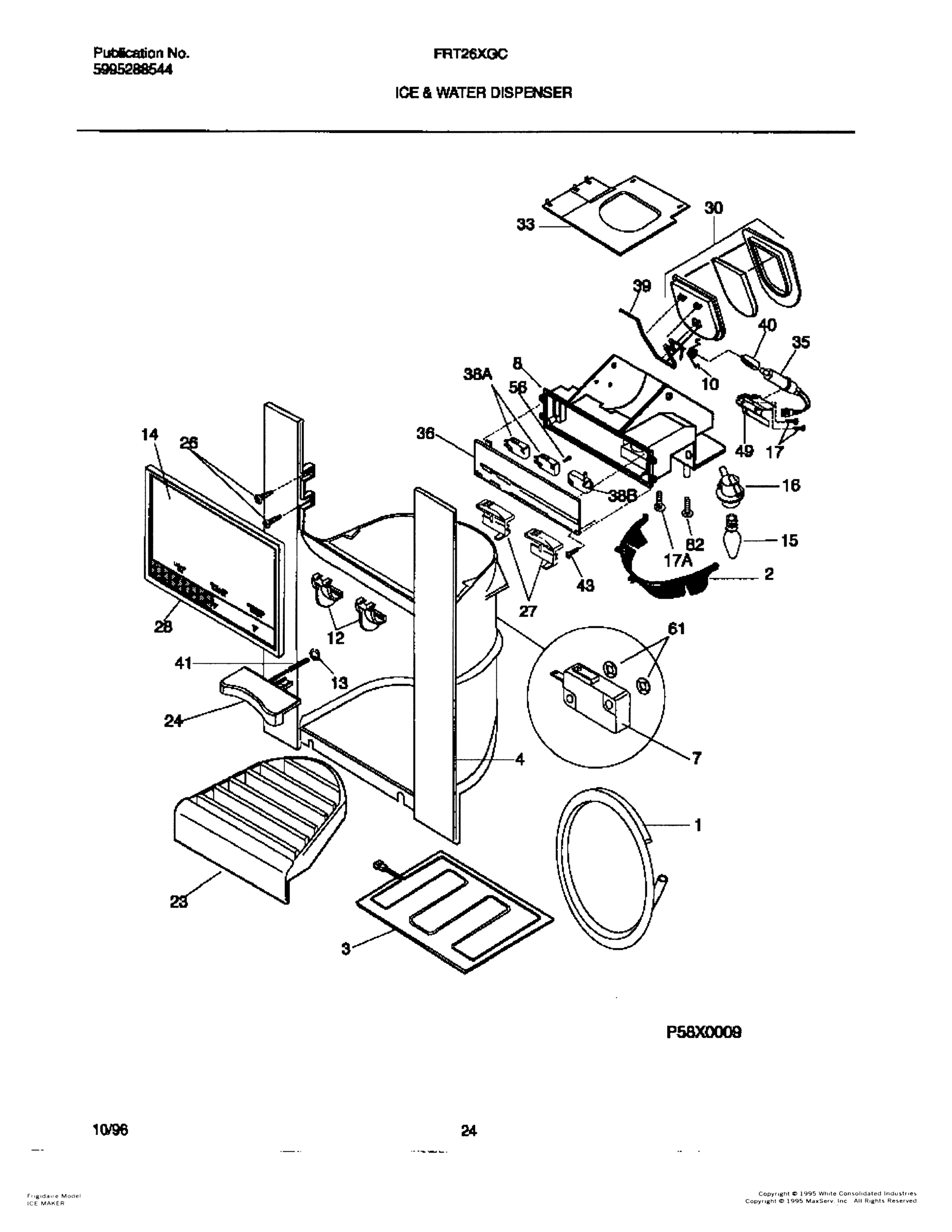

07 - ICE & WATER DISPENSER

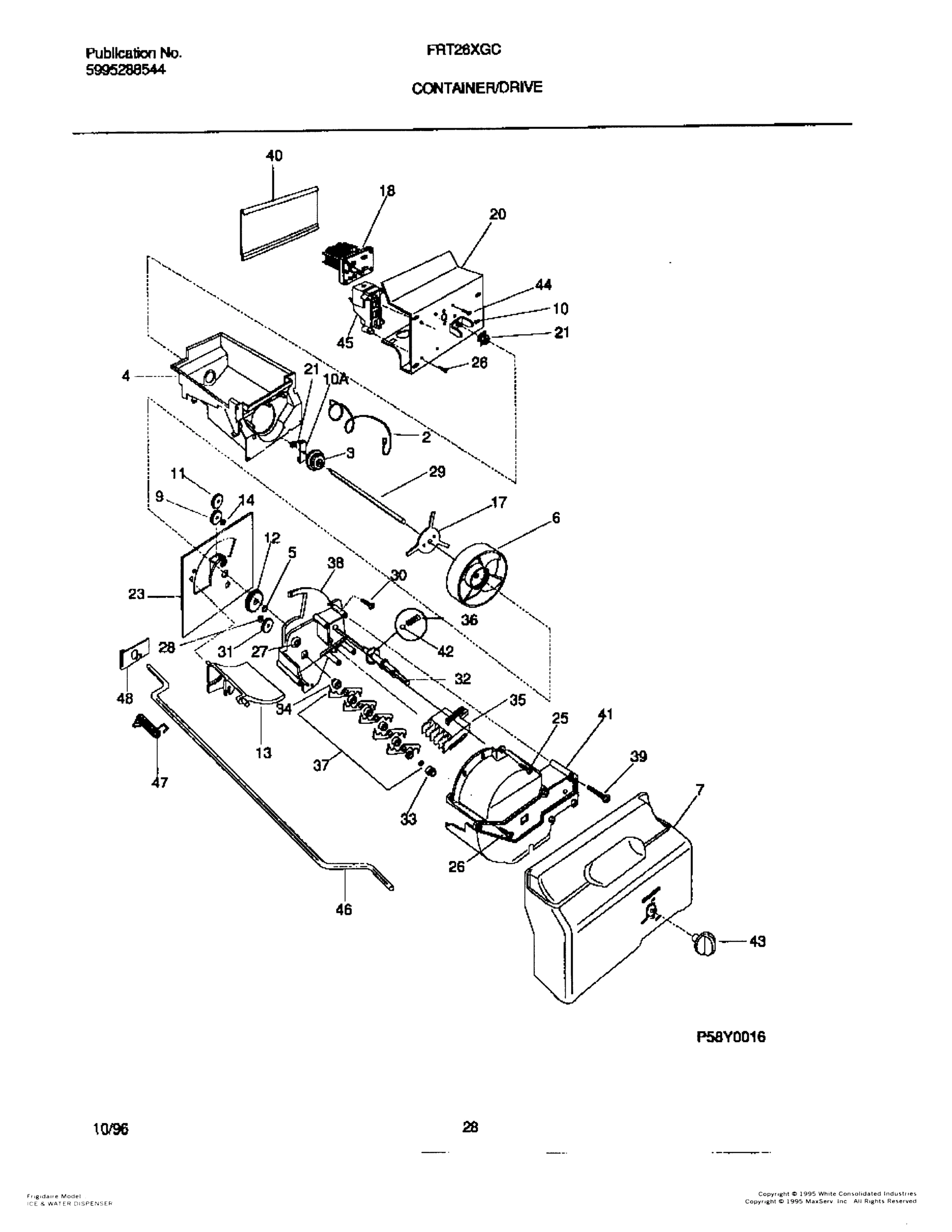

08 - CONTAINER/DRIVE
Common parts from model Electrolux FRT26XGCD4 REFRIGERATOR
*06160
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*06165
WCI 215339900 WCI 215339900 Contact Us For Availability
*06166
WCI 215339100 WCI 215339100 Contact Us For Availability
*06167
WCI 215359900 WCI 215359900 Contact Us For Availability
*06168
CLIP, SNAP-IN, DIVIDER WCI 218660800 Contact Us For Availability
*06169
WCI 215848000 WCI 215848000 Contact Us For Availability
*06170
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*06172
WCI 215781700 WCI 215781700 Contact Us For Availability
*06173
WCI 218432501 WCI 218432501 Contact Us For Availability
*06174
WCI 215962400 WCI 215962400 Contact Us For Availability
1
WCI 5303300209 WCI 5303300209 Contact Us For Availability
1
WCI 215408100 WCI 215408100 Contact Us For Availability
1
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
1
TUBE-WATER INLET, FORMED, PLASTIC, DISPENSER WCI 215294102 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2
WCI 218505302 WCI 218505302 Contact Us For Availability
2
WCI 218232900 WCI 218232900 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
4
WCI 218432102 WCI 218432102 Contact Us For Availability
4
WCI 218216900 WCI 218216900 Contact Us For Availability
4
LABEL-ICE CONTAINER (NOT ILLUSTRATED) WCI 218363200 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215527200 WCI 215527200 Contact Us For Availability
5
WCI 218463600 WCI 218463600 Contact Us For Availability
5
WCI 218672000 WCI 218672000 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5A
WCI 5303288950 WCI 5303288950 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 218741700 WCI 218741700 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218646802 WCI 218646802 Contact Us For Availability
7
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7
SHIELD-MICRO SWITCH (NOT ILLUSTRATED) WCI 215944300 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
7
WCI 215421613 WCI 215421613 Contact Us For Availability
8
WCI 215340402 WCI 215340402 Contact Us For Availability
8
GASKET-ICE CHUTE (NOT ILLUSTRATED) WCI 215771700 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8
WCI 218505201 WCI 218505201 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215309700 WCI 215309700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10A
WCI 218232800 WCI 218232800 Contact Us For Availability
11
WCI 215309601 WCI 215309601 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
11A
SHELF-FREEZER, CANTILEVER, WIDE, (2) WCI 5303300007 Contact Us For Availability
12
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
12
SPACER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363800 Contact Us For Availability
12
WASHER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363900 Contact Us For Availability
12
WCI 218634902 WCI 218634902 Contact Us For Availability
12
WCI 215766502 WCI 215766502 Contact Us For Availability
12
WCI 215420400 WCI 215420400 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 218168602 WCI 218168602 Contact Us For Availability
13
WCI 218629900 WCI 218629900 Contact Us For Availability
13
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 218285200 WCI 218285200 Contact Us For Availability
13A
WCI 5303289522 WCI 5303289522 Contact Us For Availability
14
WCI 5303292671 WCI 5303292671 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
14
WCI 218408402 WCI 218408402 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
15
WCI 215812200 WCI 215812200 Contact Us For Availability
15
WCI 215217102 WCI 215217102 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
WCI 218708700 WCI 218708700 Contact Us For Availability
16
WCI 5303299157 WCI 5303299157 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16A
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
WCI 215932905 WCI 215932905 Contact Us For Availability
17
NUT, ANCHOR, CONTROL BOX MTG (NOT ILLUSTRATE WCI 215935700 Contact Us For Availability
17
WCI 5303292457 WCI 5303292457 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WASHER-FLAT (NOT ILLUSTRATED) WCI 215923400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
18
WCI 5303310731 WCI 5303310731 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED) WCI 215832900 Contact Us For Availability
18A
WCI 5303310732 WCI 5303310732 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303292405 WCI 5303292405 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20
WCI 215379402 WCI 215379402 Contact Us For Availability
20A
WCI 5303292406 WCI 5303292406 Contact Us For Availability
21
WCI 5303001260 WCI 5303001260 Contact Us For Availability
21
WCI 5303319419 WCI 5303319419 Contact Us For Availability
21
WCI 215095200 WCI 215095200 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 218660701 WCI 218660701 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
22A
WCI 5303289320 WCI 5303289320 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.000, (4) WCI 3206334 Contact Us For Availability
23
WCI 215755300 WCI 215755300 Contact Us For Availability
23
RING-RETAINER (NOT ILLUSTRATED) WCI 215755700 Contact Us For Availability
23
STUD (NOT ILLUSTRATED) WCI 215755800 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218746302 WCI 218746302 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25A
WCI 5303308329 WCI 5303308329 Contact Us For Availability
25B
COVER-CRISPER PAN, WITH BEAM, ROLLERS, TRIM, WCI 215216633 Contact Us For Availability
26
WCI 5303300008 WCI 5303300008 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
27
WCI 215748400 WCI 215748400 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
28
WCI 218700602 WCI 218700602 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29
WCI 215757502 WCI 215757502 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
31
WCI 5303304565 WCI 5303304565 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
31
WCI 215757400 WCI 215757400 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32
WCI 215747501 WCI 215747501 Contact Us For Availability
32
RING-SNAP (NOT ILLUSTRATED) WCI 215748102 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
33
WCI 218510201 WCI 218510201 Contact Us For Availability
33
WCI 215748200 WCI 215748200 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
35
WCI 218740003 WCI 218740003 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
WCI 215406114 WCI 215406114 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36
WCI 218432400 WCI 218432400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37
SHAFT-CRUSHER (NOT ILLUSTRATED) WCI 215253600 Contact Us For Availability
37
RING-SNAP (NOT ILLUSTRATED) WCI 215748104 Contact Us For Availability
37
BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED) WCI 215753000 Contact Us For Availability
37
BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED) WCI 215753100 Contact Us For Availability
37
BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED) WCI 215753200 Contact Us For Availability
37
BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED) WCI 215753300 Contact Us For Availability
37
BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED) WCI 215753400 Contact Us For Availability
37
SPACER, (2) (NOT ILLUSTRATED) WCI 215756200 Contact Us For Availability
37
BLADE-PROTECTIVE (NOT ILLUSTRATED) WCI 215906400 Contact Us For Availability
37
SPACER (NOT ILLUSTRATED) WCI 215906600 Contact Us For Availability
37
WCI 215906700 WCI 215906700 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38A
SWITCH-MICRO WCI 218479900 Contact Us For Availability
38B
WCI 218480000 WCI 218480000 Contact Us For Availability
39
TRIM-FRZR SHELF, WIDE WCI 215217542 Contact Us For Availability
39
SCREW, 10 X 2.00 WCI 215757000 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
42
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43
SPRING-KNOB (NOT ILLUSTRATED) WCI 215752900 Contact Us For Availability
43
WCI 215755003 WCI 215755003 Contact Us For Availability
44
SCREW, PAN HEAD, 8-32 X 0.25 WCI 218359200 Contact Us For Availability
45
WCI 215935901 WCI 215935901 Contact Us For Availability
46
FRONT-CRISPER PAN, (2) WCI 218278301 Contact Us For Availability
46
WCI 218285302 WCI 218285302 Contact Us For Availability
47
WCI 215209100 WCI 215209100 Contact Us For Availability
47
WCI 218498104 WCI 218498104 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
47
WCI 215254800 WCI 215254800 Contact Us For Availability
47A
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
48
WCI 215209200 WCI 215209200 Contact Us For Availability
48
WCI 215898200 WCI 215898200 Contact Us For Availability
48A
WCI 218487200 WCI 218487200 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 215132809 WCI 215132809 Contact Us For Availability
51
WCI 215133200 WCI 215133200 Contact Us For Availability
51
INSULATION, AIR DUCT, FRONT (NOT ILLUSTRATED WCI 215133300 Contact Us For Availability
51
WCI 215141200 WCI 215141200 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215132901 WCI 215132901 Contact Us For Availability
52
DAMPER, AIR, MEAT KPR DUCT (NOT ILLUSTRATED) WCI 215133000 Contact Us For Availability
54
WCI 215133100 WCI 215133100 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54B
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218720500 WCI 218720500 Contact Us For Availability
55
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
CAP-MULLION SCREW, WHITE (NOT ILLUSTRATED) WCI 215069501 Contact Us For Availability
59
SCREW-MULLION MTG, LH, CR SPCL OVAL HD, 10-32 WCI 218188500 Contact Us For Availability
59
SEAL, FOAM, COND FAN SHROUD (NOT ILLUSTRATED WCI 215226700 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61
GROMMET-SILENCER (NOT ILLUSTRATED) WCI 215004800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
66
WCI 5303307872 WCI 5303307872 Contact Us For Availability
67
WCI 218278601 WCI 218278601 Contact Us For Availability
72
WCI 218359606 WCI 218359606 Contact Us For Availability
74
WCI 215423500 WCI 215423500 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
85
WCI 218359902 WCI 218359902 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
93
WCI 218362602 WCI 218362602 Contact Us For Availability
94
SEAL, AIR DUCT COVER (NOT ILLUSTRATED) WCI 218044800 Contact Us For Availability
94
WCI 5303319993 WCI 5303319993 Contact Us For Availability
95
WCI 218663100 WCI 218663100 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 215571900 WCI 215571900 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
102
SUPPORT, MOTOR BRKT, & SHELF WCI 215134700 Contact Us For Availability
103
WCI 218368301 WCI 218368301 Contact Us For Availability
104
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15A X 1. WCI 3001212 Contact Us For Availability
104
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
107
WCI 218188800 WCI 218188800 Contact Us For Availability
108
WCI 218710800 WCI 218710800 Contact Us For Availability
111
WCI 215309502 WCI 215309502 Contact Us For Availability
112
WCI 215734400 WCI 215734400 Contact Us For Availability
113
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
119
WCI 215132700 WCI 215132700 Contact Us For Availability
120
WCI 218019202 WCI 218019202 Contact Us For Availability
121
NUT, PUSH, ON, DAMPER CABLE (NOT ILLUSTRATED WCI 215209400 Contact Us For Availability
121
WCI 215364002 WCI 215364002 Contact Us For Availability
122
WCI 218561202 WCI 218561202 Contact Us For Availability
122
WCI 218561204 WCI 218561204 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
129
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
131
WCI 215379800 WCI 215379800 Contact Us For Availability
140
ELBOW-WATER TUBE, (2) WCI 218518700 Contact Us For Availability
× ![]()
