Model Electrolux FRT24WRAD0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
04 - CABINET PARTS

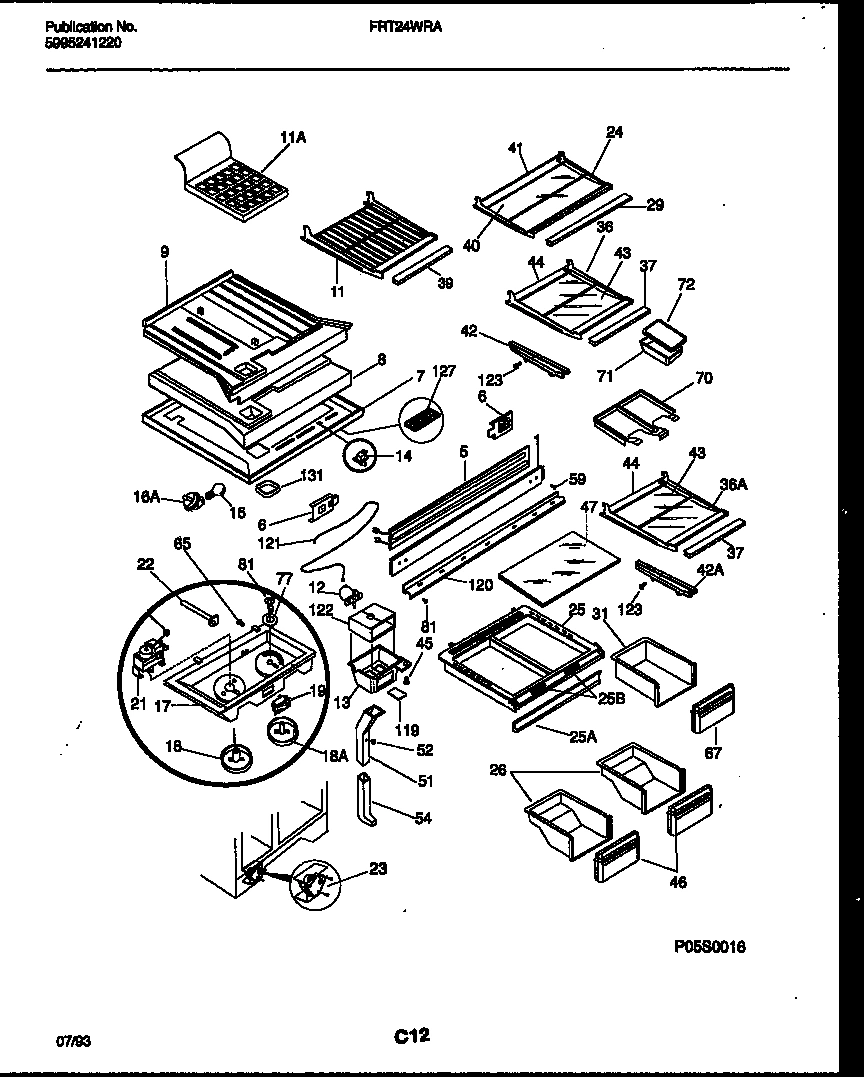

06 - SHELVES AND SUPPORTS

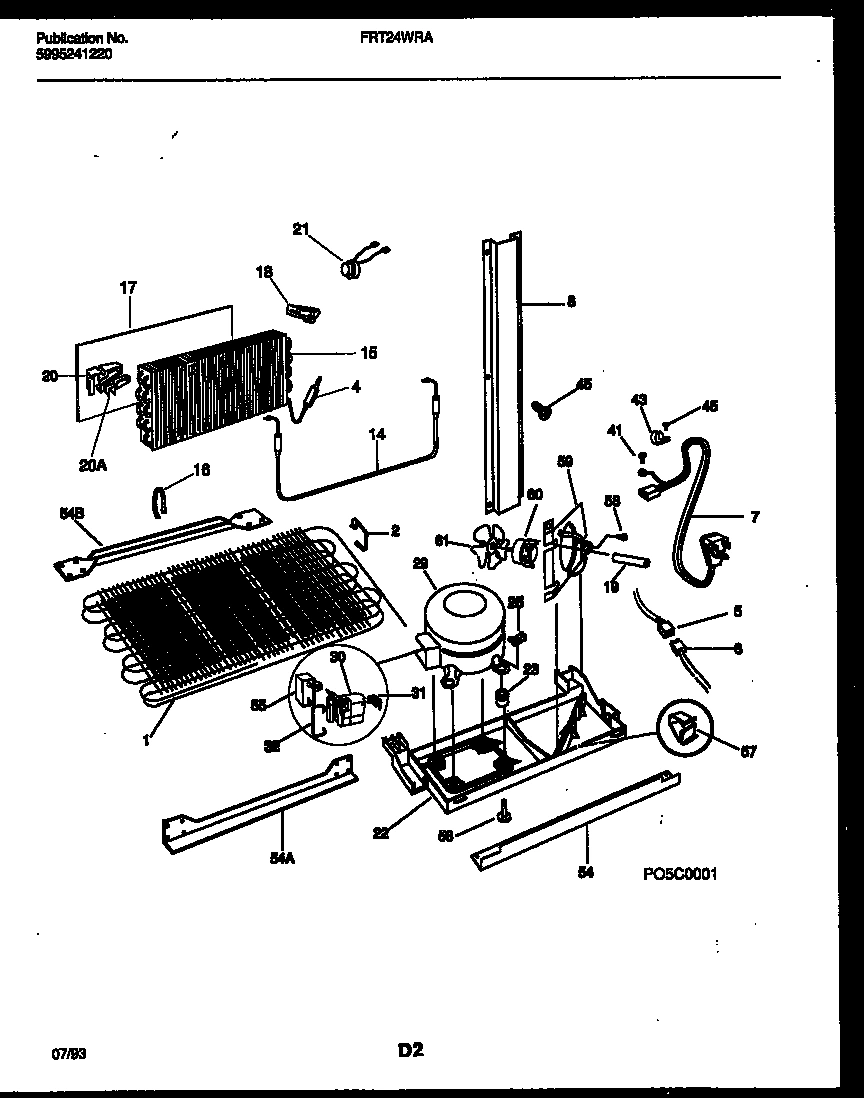

08 - SYSTEM AND AUTOMATIC DEFROST PARTS

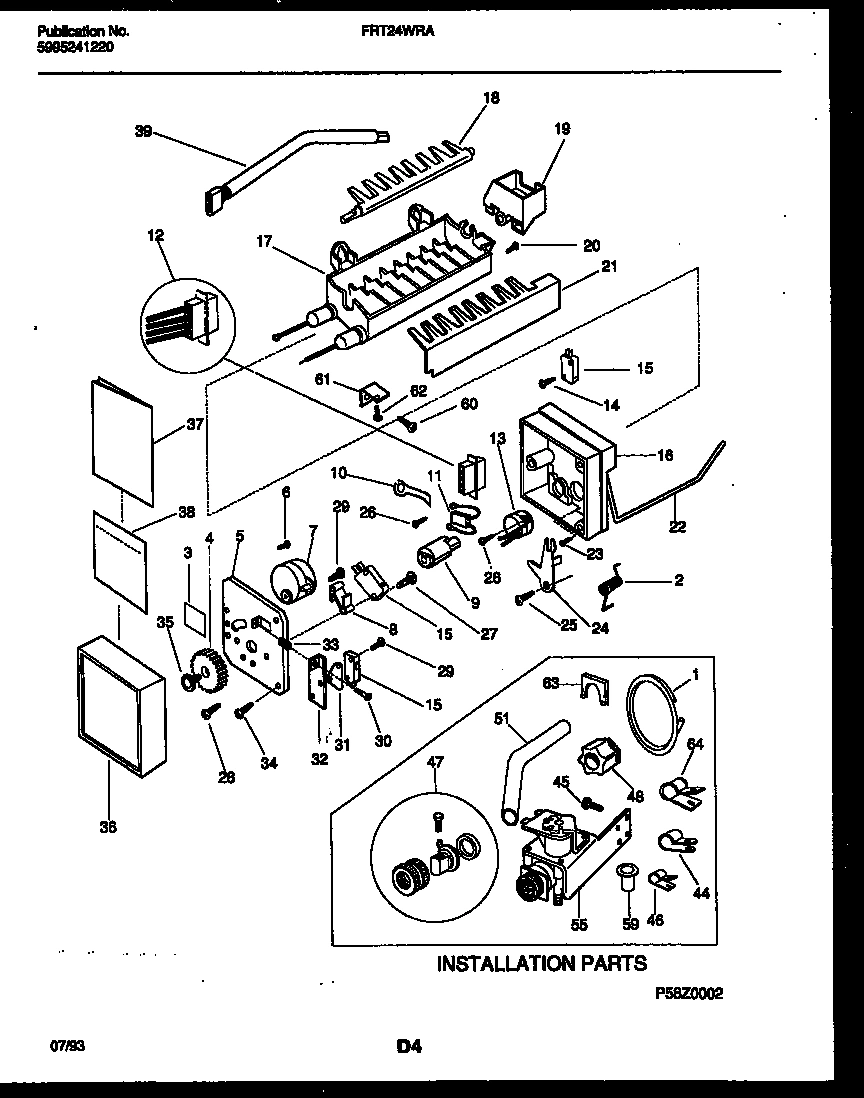

09 - ICE MAKER AND INSTALLATION PARTS

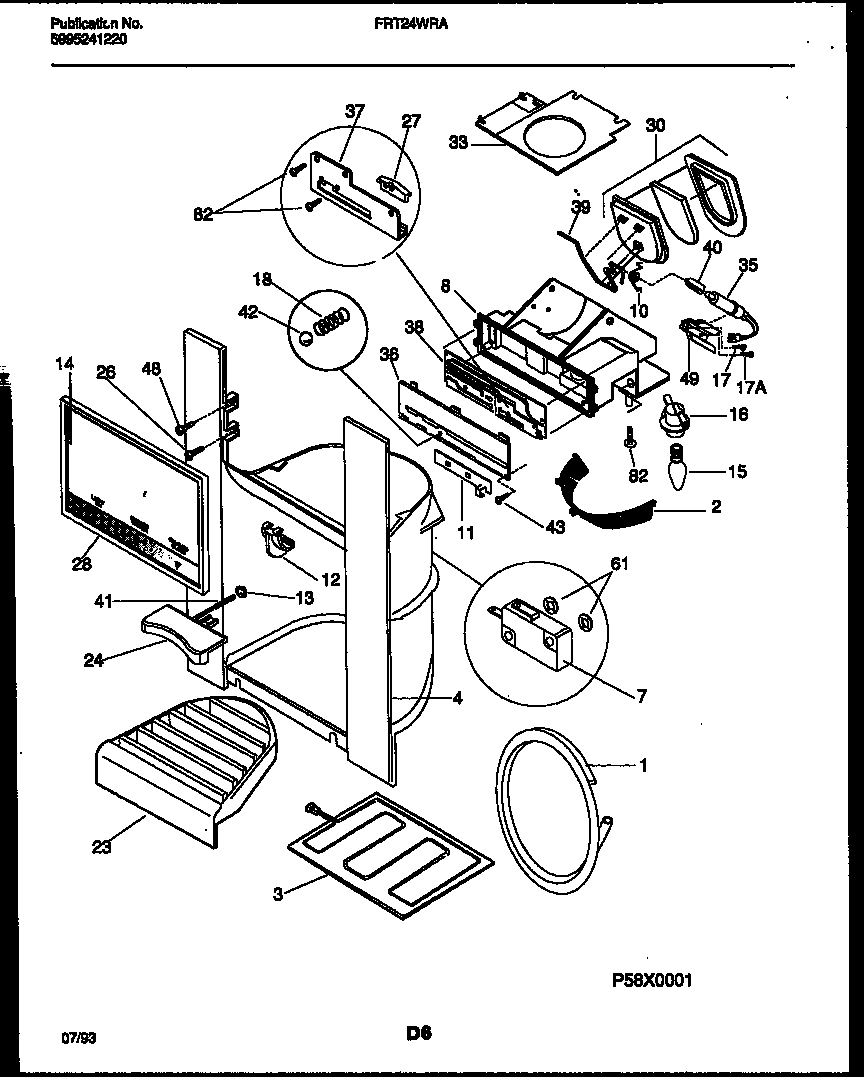

10 - ICE DOOR, DISPENSER AND WATER TANKS

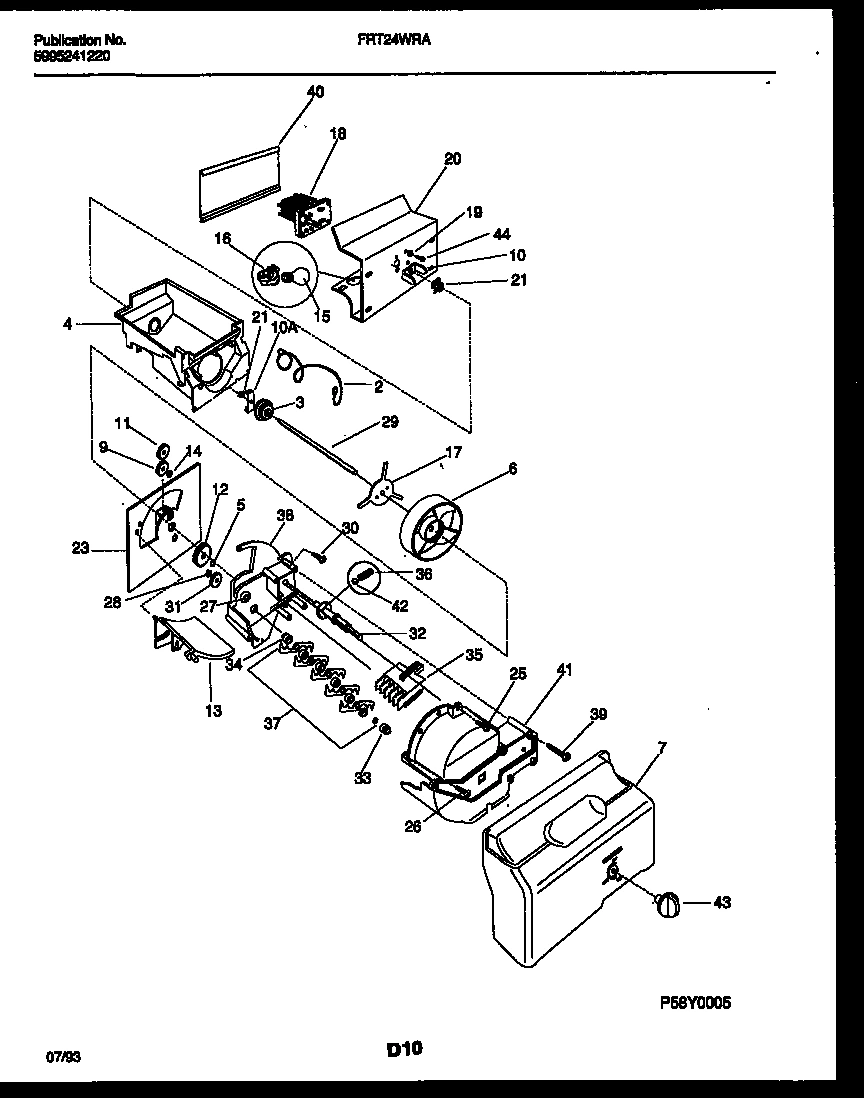

12 - ICE DISPENSER
Common parts from model Electrolux FRT24WRAD0 REFRIGERATOR
*80446
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
1
WCI 5303300295 WCI 5303300295 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1
WCI 215294102 WCI 215294102 Contact Us For Availability
1A
WCI 5303289026 WCI 5303289026 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2
WCI 215732111 WCI 215732111 Contact Us For Availability
2
WCI 215419100 WCI 215419100 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 215419200 WCI 215419200 Contact Us For Availability
4
WCI 5303298525 WCI 5303298525 Contact Us For Availability
4
WCI 215417500 WCI 215417500 Contact Us For Availability
4A
WCI 215463900 WCI 215463900 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215527200 WCI 215527200 Contact Us For Availability
5
WCI 215351700 WCI 215351700 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5A
WCI 5303288950 WCI 5303288950 Contact Us For Availability
6
WCI 215096700 WCI 215096700 Contact Us For Availability
6
WCI 215437000 WCI 215437000 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215028102 WCI 215028102 Contact Us For Availability
7
WCI 215765600 WCI 215765600 Contact Us For Availability
7
WCI 215421601 WCI 215421601 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 215038602 WCI 215038602 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8
WCI 215763500 WCI 215763500 Contact Us For Availability
8B
GASKET-ICE CHUTE WCI 215771700 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215019800 WCI 215019800 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
9
GEAR-AUGER WCI 215419700 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10
WCI 215793600 WCI 215793600 Contact Us For Availability
10A
WCI 215757200 WCI 215757200 Contact Us For Availability
11
WCI 5303292429 WCI 5303292429 Contact Us For Availability
11
SLIDE-SELECTOR SW, (PC BOARD) WCI 215253300 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
11A
WCI 215309601 WCI 215309601 Contact Us For Availability
12
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215132300 WCI 215132300 Contact Us For Availability
12
WCI 215766502 WCI 215766502 Contact Us For Availability
12
GEAR-AUGER WCI 215420400 Contact Us For Availability
12A
WCI 215363800 WCI 215363800 Contact Us For Availability
12B
WCI 215363900 WCI 215363900 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215132600 WCI 215132600 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 215420600 WCI 215420600 Contact Us For Availability
13A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
14
WCI 5303292671 WCI 5303292671 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
14
LABEL-MODULE COVER, ALMOND WCI 215731600 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
15
WCI 215379602 WCI 215379602 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16
WCI 215767100 WCI 215767100 Contact Us For Availability
17
WCI 5303292440 WCI 5303292440 Contact Us For Availability
17
WCI 5303292409 WCI 5303292409 Contact Us For Availability
17
WCI 5303292457 WCI 5303292457 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215280700 WCI 215280700 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5303292410 WCI 5303292410 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
WCI 215760200 WCI 215760200 Contact Us For Availability
18A
WCI 5303292411 WCI 5303292411 Contact Us For Availability
18A
WCI 215285500 WCI 215285500 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
19
WCI 215771000 WCI 215771000 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20
WCI 215379401 WCI 215379401 Contact Us For Availability
20A
WCI 5303292405 WCI 5303292405 Contact Us For Availability
21
WCI 5303292452 WCI 5303292452 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 215134511 WCI 215134511 Contact Us For Availability
22
WCI 5303274945 WCI 5303274945 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
23
WCI 215755300 WCI 215755300 Contact Us For Availability
23A
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
23A
WCI 215755700 WCI 215755700 Contact Us For Availability
23B
WCI 215755800 WCI 215755800 Contact Us For Availability
23C
WCI 5303289058 WCI 5303289058 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215069014 WCI 215069014 Contact Us For Availability
24
WCI 215766302 WCI 215766302 Contact Us For Availability
25
WCI 5303292412 WCI 5303292412 Contact Us For Availability
25
WCI 215216608 WCI 215216608 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 5303300010 WCI 5303300010 Contact Us For Availability
26
WCI 5303292432 WCI 5303292432 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
27
WCI 215254700 WCI 215254700 Contact Us For Availability
27
BEARING WCI 215748400 Contact Us For Availability
28
WCI 5303289062 WCI 5303289062 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
28
WCI 5303297847 WCI 5303297847 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
29
WCI 215744100 WCI 215744100 Contact Us For Availability
29
WCI 5303292427 WCI 5303292427 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29
WCI 215757502 WCI 215757502 Contact Us For Availability
29A
RETAINER-GLASS WCI 5303209274 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 215009000 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30
WCI 215753600 WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30A
TAPPING PLATE, LH WCI 5303289290 Contact Us For Availability
30B
TAPPING PLATE,RH(NON-ILLUSTRATED) WCI 5303289291 Contact Us For Availability
31
WCI 5303292434 WCI 5303292434 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
31
GEAR-CRUSHER WCI 215757400 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32
WCI 215747501 WCI 215747501 Contact Us For Availability
32A
WCI 215748102 WCI 215748102 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
33
WCI 215280800 WCI 215280800 Contact Us For Availability
33
BEARING WCI 215748200 Contact Us For Availability
34
WASHER, CTR HNGE PIN WCI 215095400 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
35
WCI 215002611 WCI 215002611 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
35
WCI 215793900 WCI 215793900 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
FRAME-M/W TRAY SHLF, CANTILEVER WCI 215069013 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36
COVER-PC BOARD WCI 215254400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36A
FRAME-MEAT KPR SHLF, CANTILEVER WCI 215069015 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 5303292424 WCI 5303292424 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37
WCI 215763400 WCI 215763400 Contact Us For Availability
37
WCI 215906700 WCI 215906700 Contact Us For Availability
37A
WCI 5303209263 WCI 5303209263 Contact Us For Availability
37A
WCI 215753400 WCI 215753400 Contact Us For Availability
37B
WCI 215753300 WCI 215753300 Contact Us For Availability
37C
WCI 215753200 WCI 215753200 Contact Us For Availability
37D
WCI 215753100 WCI 215753100 Contact Us For Availability
37E
WCI 215753000 WCI 215753000 Contact Us For Availability
37F
WCI 215906400 WCI 215906400 Contact Us For Availability
37G
WCI 215253600 WCI 215253600 Contact Us For Availability
37H
WCI 215748104 WCI 215748104 Contact Us For Availability
37I
SPACER (NON-ILLUSTRATED) WCI 215756200 Contact Us For Availability
37J
WCI 215906600 WCI 215906600 Contact Us For Availability
38
WCI 5303292368 WCI 5303292368 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38
WCI 215894601 WCI 215894601 Contact Us For Availability
38
WCI 215756900 WCI 215756900 Contact Us For Availability
38A
WCI 215630800 WCI 215630800 Contact Us For Availability
38B
WCI 215631000 WCI 215631000 Contact Us For Availability
38C
WCI 215763900 WCI 215763900 Contact Us For Availability
39
WCI 08006983 WCI 08006983 Contact Us For Availability
39
WCI 5303292430 WCI 5303292430 Contact Us For Availability
39
WCI 5303289065 WCI 5303289065 Contact Us For Availability
39
WCI 215793700 WCI 215793700 Contact Us For Availability
39
WCI 215757000 WCI 215757000 Contact Us For Availability
40
WCI 5303288946 WCI 5303288946 Contact Us For Availability
40
GLASS-SHELF, FULL SHELF WCI 5303292428 Contact Us For Availability
40
WCI 215794300 WCI 215794300 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 5303292426 WCI 5303292426 Contact Us For Availability
41
WCI 215756800 WCI 215756800 Contact Us For Availability
42
HANGER-M/W TRAY, LH WCI 5303209272 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
42A
WCI 215002401 WCI 215002401 Contact Us For Availability
42A
WCI 215002301 WCI 215002301 Contact Us For Availability
42A
HANGER-M/W TRAY, RH (NON-ILLUSTRATED) WCI 5303209273 Contact Us For Availability
43
WCI 5303289059 WCI 5303289059 Contact Us For Availability
43
GLASS-SHELF, HALF SHELF, (2) WCI 5303292425 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43
WCI 215755001 WCI 215755001 Contact Us For Availability
43A
SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) WCI 5308017044 Contact Us For Availability
43A
WCI 215752900 WCI 215752900 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
44
WCI 5303292423 WCI 5303292423 Contact Us For Availability
44
WCI 215285200 WCI 215285200 Contact Us For Availability
46
FRONT-CRISPER PAN WCI 5303291323 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 5303292394 WCI 5303292394 Contact Us For Availability
47
WCI 5303292438 WCI 5303292438 Contact Us For Availability
47A
WCI 215209100 WCI 215209100 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
48
WCI 5303001083 WCI 5303001083 Contact Us For Availability
48A
WCI 215209200 WCI 215209200 Contact Us For Availability
49
SCREW-CTR CHANNEL,HEX HEAD,8(AB) X 1-1/2 WCI 215507300 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 215132801 WCI 215132801 Contact Us For Availability
51
WCI 215141200 WCI 215141200 Contact Us For Availability
51A
WCI 215133200 WCI 215133200 Contact Us For Availability
51B
WCI 215133300 WCI 215133300 Contact Us For Availability
52
WCI 5303289294 WCI 5303289294 Contact Us For Availability
52
WCI 215132901 WCI 215132901 Contact Us For Availability
52A
WCI 215133000 WCI 215133000 Contact Us For Availability
54
WCI 215133100 WCI 215133100 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
55
WCI 215197400 WCI 215197400 Contact Us For Availability
55A
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
55B
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 215073800 WCI 215073800 Contact Us For Availability
59
WCI 215097000 WCI 215097000 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
59A
WCI 215226700 WCI 215226700 Contact Us For Availability
59B
WCI 215069501 WCI 215069501 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
NUT, SPEED (NON-ILLUSTRATED) WCI 215004700 Contact Us For Availability
61B
GROMMET-SILENCER WCI 215223700 Contact Us For Availability
63
WCI 215552300 WCI 215552300 Contact Us For Availability
65
WCI 5303274946 WCI 5303274946 Contact Us For Availability
67
WCI 5303292670 WCI 5303292670 Contact Us For Availability
70
WCI 5303275653 WCI 5303275653 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
71
DISH-CORNING GLASS WCI 5303275753 Contact Us For Availability
72
WCI 5303300002 WCI 5303300002 Contact Us For Availability
72
WCI 5303275754 WCI 5303275754 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
82
SCREW, CR PLASK, 8-10 X 1/2 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
85
WCI 215003903 WCI 215003903 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
93
WCI 215327111 WCI 215327111 Contact Us For Availability
94
WCI 5303292669 WCI 5303292669 Contact Us For Availability
95
WCI 215338900 WCI 215338900 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 215571900 WCI 215571900 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
WCI 5303288973 No Longer Available
102
WCI 215134700 WCI 215134700 Contact Us For Availability
103
WCI 215413100 WCI 215413100 Contact Us For Availability
104
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
104A
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X WCI 3001212 Contact Us For Availability
111
WCI 215309501 WCI 215309501 Contact Us For Availability
112
WCI 215734400 WCI 215734400 Contact Us For Availability
113
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
119
WCI 215132700 WCI 215132700 Contact Us For Availability
120
WCI 215097102 WCI 215097102 Contact Us For Availability
121
WCI 215364001 WCI 215364001 Contact Us For Availability
121A
WCI 215209400 WCI 215209400 Contact Us For Availability
122
WCI 215132502 WCI 215132502 Contact Us For Availability
123
WCI 08014528 WCI 08014528 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
127
WCI 215771600 WCI 215771600 Contact Us For Availability
131
WCI 215379800 WCI 215379800 Contact Us For Availability
80432
INSUALTION-DOOR, FIBERGLASS, (BULK) WCI 5303917276 Contact Us For Availability
80443
LOCK-SHELF TRIM, REAR WCI 5303211351 Contact Us For Availability
80453
WCI 215781700 WCI 215781700 Contact Us For Availability
80453
WASHER-FLAT WCI 215923400 Contact Us For Availability
80453
SHIELD-MICRO SWITCH WCI 215944300 Contact Us For Availability
× ![]()
