Model Electrolux FRT24RGCW3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

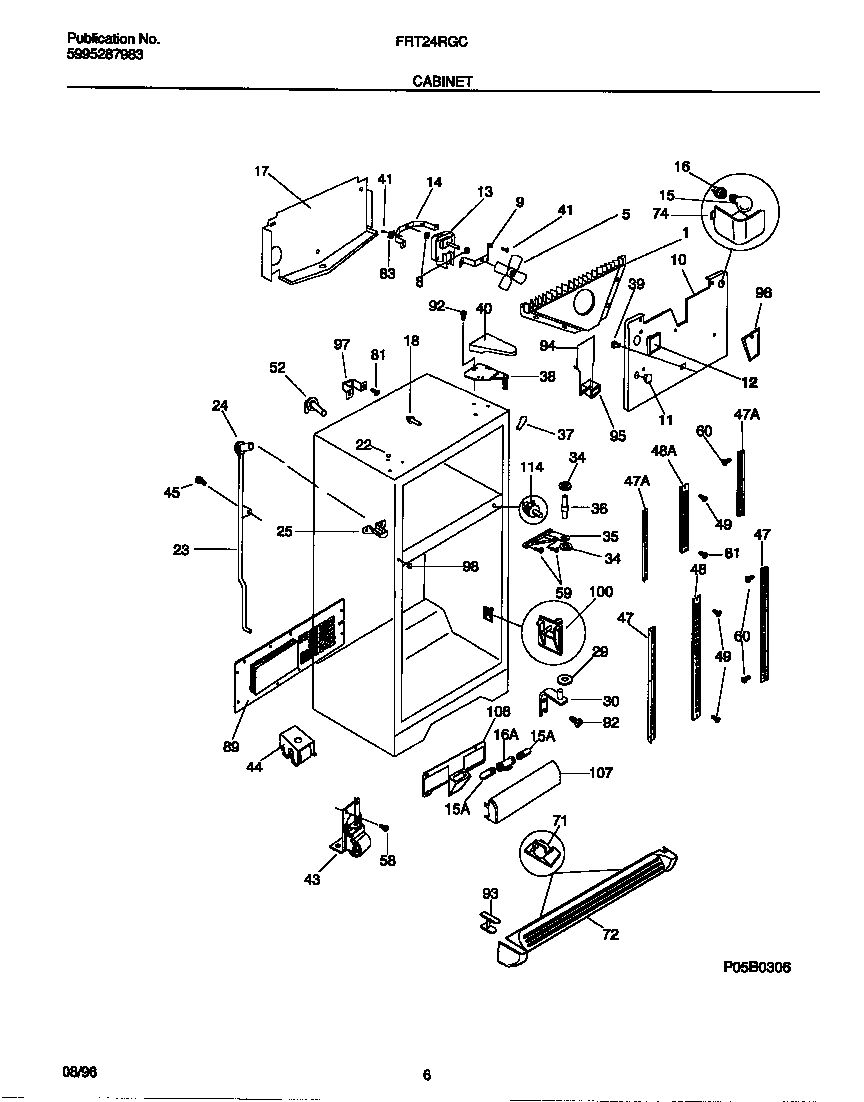

03 - CABINET

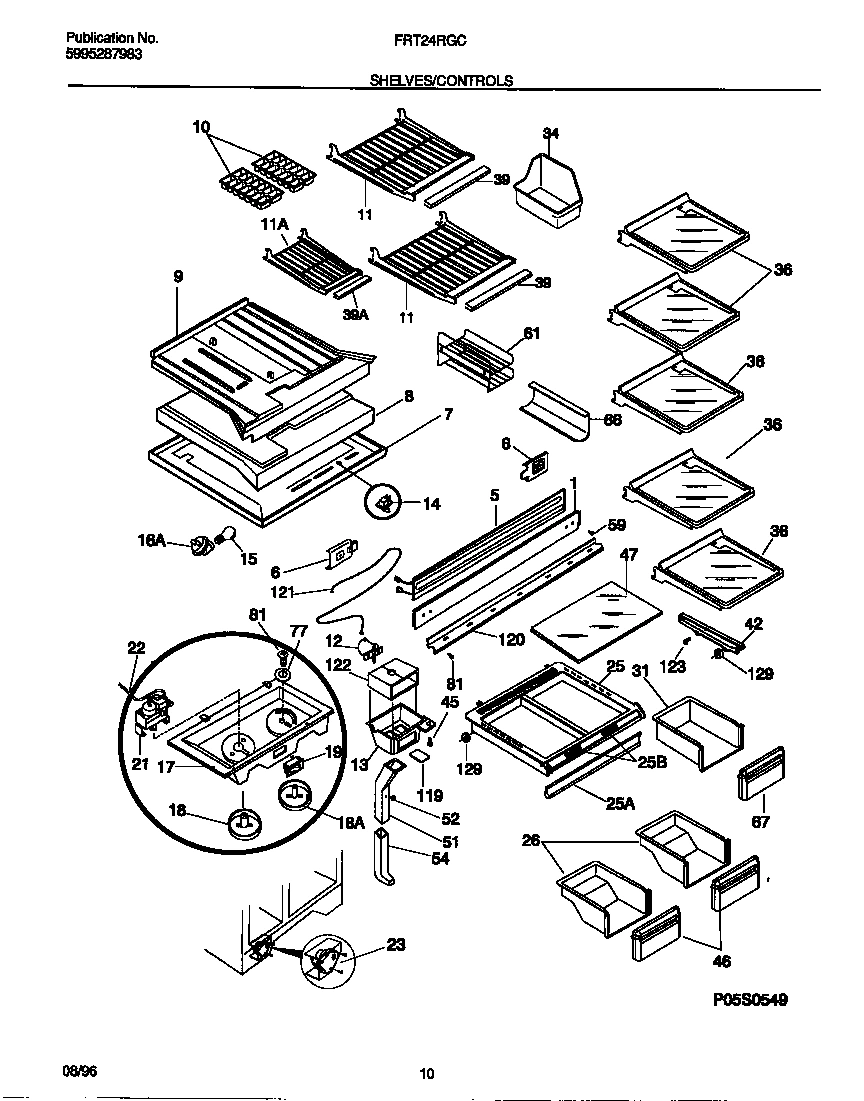

04 - SHELVES/CONTROLS

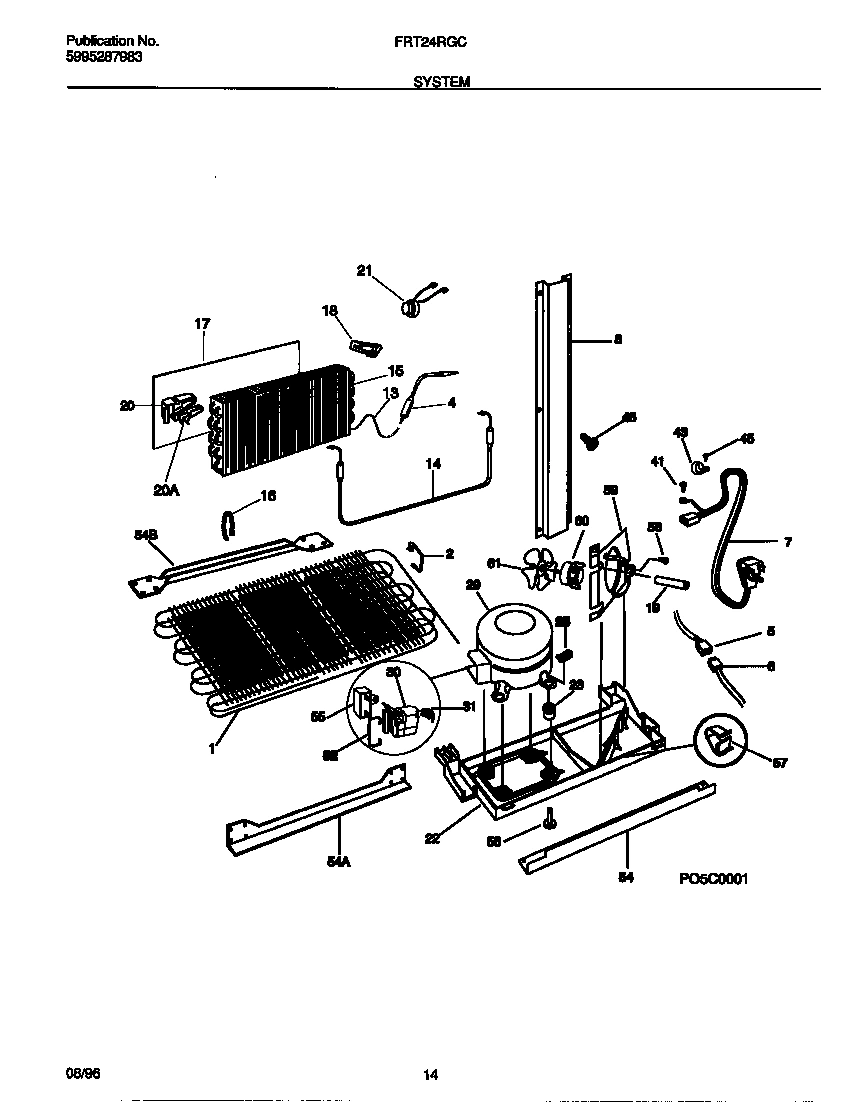

05 - SYSTEM
Common parts from model Electrolux FRT24RGCW3 REFRIGERATOR
*81280
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*81281
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*81285
WCI 215339100 WCI 215339100 Contact Us For Availability
*81286
WCI 215359900 WCI 215359900 Contact Us For Availability
*81287
WCI 215848000 WCI 215848000 Contact Us For Availability
*81288
CLIP, SNAP-IN, DIVIDER WCI 218660800 Contact Us For Availability
*81289
WCI 215339900 WCI 215339900 Contact Us For Availability
*81290
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
1
WCI 5303300295 WCI 5303300295 Contact Us For Availability
1A
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1B
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215527200 WCI 215527200 Contact Us For Availability
5A
WCI 218671800 WCI 218671800 Contact Us For Availability
5B
WCI 218463600 WCI 218463600 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215633901 WCI 215633901 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7A
WCI 218646601 WCI 218646601 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 215038601 WCI 215038601 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215033800 WCI 215033800 Contact Us For Availability
11
SHELF-FREEZER, CANTILEVER, WIDE WCI 5303292429 Contact Us For Availability
11
SHELF-FREEZER, CANTILEVER, NARROW WCI 5303292431 Contact Us For Availability
12A
WCI 218634902 WCI 218634902 Contact Us For Availability
12B
WASHER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363900 Contact Us For Availability
12C
SPACER-AIR DEFLECTR (NOT ILLUSTRATED) WCI 218634800 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 218168602 WCI 218168602 Contact Us For Availability
13A
WCI 218629900 WCI 218629900 Contact Us For Availability
13B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
14
WCI 5303292671 WCI 5303292671 Contact Us For Availability
15
WCI 218708700 WCI 218708700 Contact Us For Availability
15
WCI 215812200 WCI 215812200 Contact Us For Availability
15
WCI 215217102 WCI 215217102 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 5303299157 WCI 5303299157 Contact Us For Availability
17
WCI 218696401 WCI 218696401 Contact Us For Availability
17
WCI 5303292457 WCI 5303292457 Contact Us For Availability
17A
WCI 215932905 WCI 215932905 Contact Us For Availability
17B
NUT, ANCHOR, CONTROL BOX MTG (NOT ILLUSTRATE WCI 215935700 Contact Us For Availability
18
WCI 5303310731 WCI 5303310731 Contact Us For Availability
18
WCI 5303310732 WCI 5303310732 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
20
WCI 5303292405 WCI 5303292405 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
21
WCI 215095200 WCI 215095200 Contact Us For Availability
21A
WCI 5303319419 WCI 5303319419 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 218660701 WCI 218660701 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23B
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23D
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
25
WCI 215216632 WCI 215216632 Contact Us For Availability
25
WCI 5303308329 WCI 5303308329 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25A
WCI 5303292412 WCI 5303292412 Contact Us For Availability
25B
PIN-MOUNTING, PUSH-IN, PLASTIC (NOT ILLUSTRAT WCI 5303001361 Contact Us For Availability
26
WCI 5303292432 WCI 5303292432 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30A
WCI 218150800 WCI 218150800 Contact Us For Availability
30B
TAPPING PLATE, LH (NOT ILLUSTRATED) WCI 218730700 Contact Us For Availability
30C
TAPPING PLATE, RH (NOT ILLUSTRATED) WCI 218730800 Contact Us For Availability
31
WCI 5303304565 WCI 5303304565 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WASHER, CTR HNGE PIN WCI 215095400 Contact Us For Availability
35
WCI 215002601 WCI 215002601 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
WCI 215406114 WCI 215406114 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH WCI 218215215 Contact Us For Availability
39
WCI 08006983 WCI 08006983 Contact Us For Availability
39
TRIM-FRZR SHELF, WIDE WCI 215217542 Contact Us For Availability
39
WCI 215217582 WCI 215217582 Contact Us For Availability
40
WCI 218374404 WCI 218374404 Contact Us For Availability
42A
WCI 215002301 WCI 215002301 Contact Us For Availability
42B
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
43A
WCI 218615300 WCI 218615300 Contact Us For Availability
43B
BOLT-ROLLER ADJ, HEX HEAD, 5/16-24 X 7/8 (NOT WCI 5303289062 Contact Us For Availability
43C
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
FRONT-CRISPER PAN, (2) WCI 218278301 Contact Us For Availability
47
WCI 215209100 WCI 215209100 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 218390537 WCI 218390537 Contact Us For Availability
48
WCI 215209200 WCI 215209200 Contact Us For Availability
48
WCI 218487200 WCI 218487200 Contact Us For Availability
51A
WCI 215132809 WCI 215132809 Contact Us For Availability
51B
WCI 215133200 WCI 215133200 Contact Us For Availability
51C
INSULATION, AIR DUCT, FRONT (NOT ILLUSTRATED WCI 215133300 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52A
WCI 215132901 WCI 215132901 Contact Us For Availability
52B
DAMPER, AIR, MEAT KPR DUCT (NOT ILLUSTRATED) WCI 215133000 Contact Us For Availability
54
WCI 215133100 WCI 215133100 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
CAP-MULLION SCREW, WHITE (NOT ILLUSTRATED) WCI 215069501 Contact Us For Availability
59
SCREW-MULLION MTG, LH, CR SPCL OVAL HD, 10-32 WCI 218188500 Contact Us For Availability
59A
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59B
SEAL, FOAM, COND FAN SHROUD (NOT ILLUSTRATED WCI 215226700 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61A
WCI 218620901 WCI 218620901 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
GASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATE WCI 218430200 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET-SILENCER (NOT ILLUSTRATED) WCI 215004800 Contact Us For Availability
66
WCI 5303307872 WCI 5303307872 Contact Us For Availability
67
WCI 218278601 WCI 218278601 Contact Us For Availability
72
WCI 218359603 WCI 218359603 Contact Us For Availability
74
WCI 215423500 WCI 215423500 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
93
WCI 218362601 WCI 218362601 Contact Us For Availability
94A
WCI 5303319993 WCI 5303319993 Contact Us For Availability
94B
SEAL, AIR DUCT COVER (NOT ILLUSTRATED) WCI 218044800 Contact Us For Availability
95
WCI 218663100 WCI 218663100 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
107
WCI 218188800 WCI 218188800 Contact Us For Availability
108
WCI 218710800 WCI 218710800 Contact Us For Availability
119
WCI 215132700 WCI 215132700 Contact Us For Availability
120
WCI 218019202 WCI 218019202 Contact Us For Availability
121A
WCI 215364001 WCI 215364001 Contact Us For Availability
121B
NUT, PUSH, ON, DAMPER CABLE (NOT ILLUSTRATED WCI 215209400 Contact Us For Availability
122A
WCI 218561202 WCI 218561202 Contact Us For Availability
122B
WCI 218561204 WCI 218561204 Contact Us For Availability
129A
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129B
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
× ![]()
