Model Electrolux FRT24RGCD1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

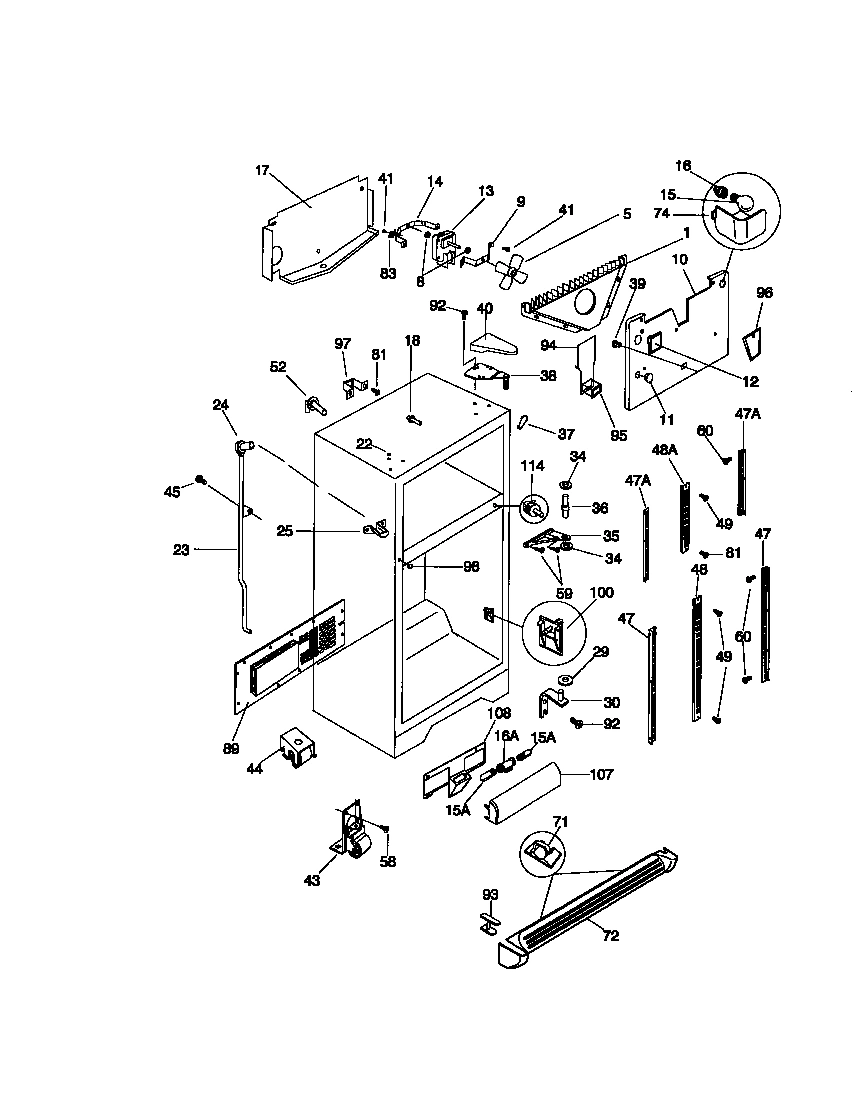

03 - CABINET

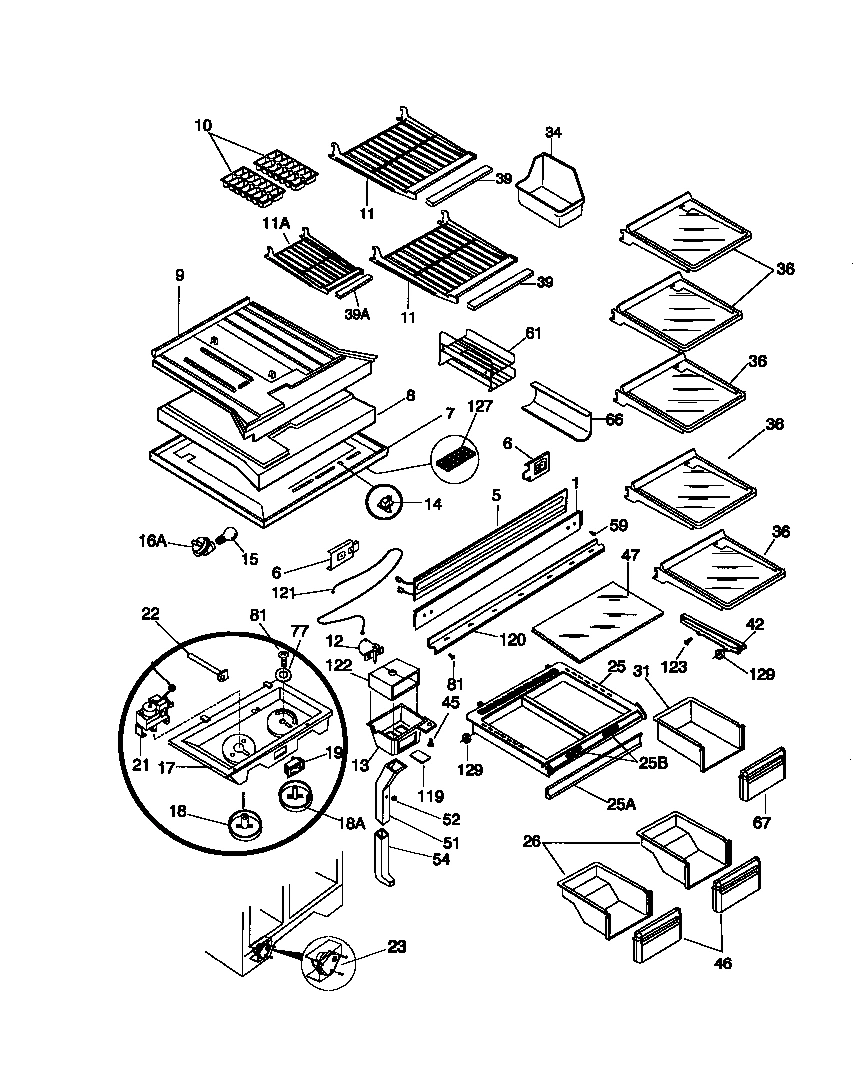

04 - SHELVES/CONTROLS

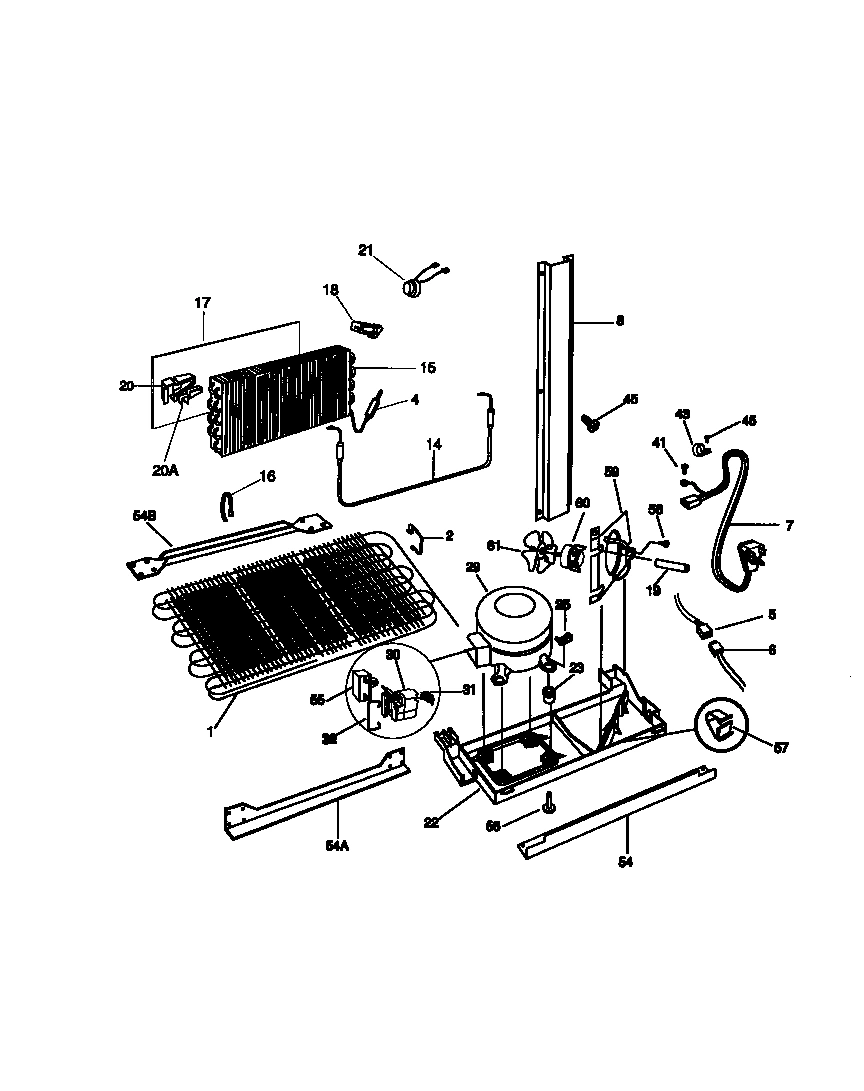

05 - SYSTEM

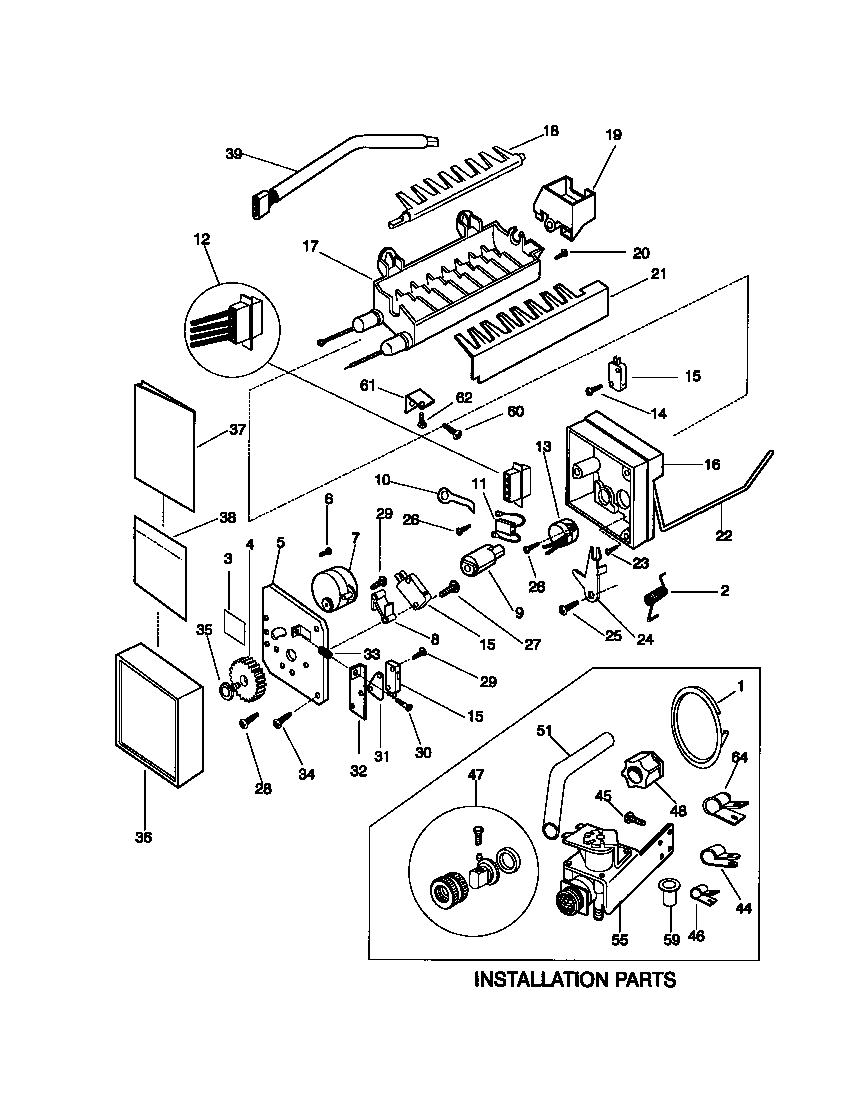

06 - ICE MAKER
Common parts from model Electrolux FRT24RGCD1 REFRIGERATOR
*34200
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*34204
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*34205
WCI 215339100 WCI 215339100 Contact Us For Availability
*34206
WCI 215339900 WCI 215339900 Contact Us For Availability
*34207
WCI 215359900 WCI 215359900 Contact Us For Availability
*34208
WCI 215848000 WCI 215848000 Contact Us For Availability
*34209
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
1
WCI 5303300295 WCI 5303300295 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1A
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215527200 WCI 215527200 Contact Us For Availability
5
WCI 215634001 WCI 215634001 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 218463600 WCI 218463600 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215633901 WCI 215633901 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215028104 WCI 215028104 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 215038601 WCI 215038601 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215033800 WCI 215033800 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
SHELF-FREEZER, CANTILEVER, WIDE WCI 5303292429 Contact Us For Availability
11A
SHELF-FREEZER, CANTILEVER, NARROW WCI 5303292431 Contact Us For Availability
12
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215132300 WCI 215132300 Contact Us For Availability
12A
SPACER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363800 Contact Us For Availability
12B
WASHER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363900 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215420300 WCI 215420300 Contact Us For Availability
13A
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
14
WCI 5303292671 WCI 5303292671 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 215812200 WCI 215812200 Contact Us For Availability
15
WCI 215379602 WCI 215379602 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16A
WCI 5303299157 WCI 5303299157 Contact Us For Availability
17
WCI 215932904 WCI 215932904 Contact Us For Availability
17
WCI 5303292457 WCI 5303292457 Contact Us For Availability
17A
NUT, ANCHOR, CONTROL BOX MTG (NOT ILLUSTRATE WCI 215935700 Contact Us For Availability
18
WCI 5303310731 WCI 5303310731 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18A
WCI 5303310732 WCI 5303310732 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
WCI 5303292405 WCI 5303292405 Contact Us For Availability
21
WCI 5303303674 WCI 5303303674 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 215932100 WCI 215932100 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.00, (4) WCI 3206334 Contact Us For Availability
23A
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23C
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
25
WCI 215216632 WCI 215216632 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303308329 WCI 5303308329 Contact Us For Availability
26
WCI 5303292432 WCI 5303292432 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
COMPRESSOR, WITH OVERLOAD WCI 5303917193 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
31
WCI 5303304565 WCI 5303304565 Contact Us For Availability
31
OVERLOAD WCI 5303299560 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WASHER, CTR HNGE PIN WCI 215095400 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 215002611 WCI 215002611 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
WCI 215406114 WCI 215406114 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
WCI 218158000 WCI 218158000 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 08006983 WCI 08006983 Contact Us For Availability
39
TRIM-FRZR SHELF, WIDE WCI 215217542 Contact Us For Availability
39
WCI 5303289065 WCI 5303289065 Contact Us For Availability
39A
WCI 215217582 WCI 215217582 Contact Us For Availability
40
WCI 218374402 WCI 218374402 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
42A
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
43
WCI 218615300 WCI 218615300 Contact Us For Availability
43A
BOLT-ROLLER ADJ, HEX HEAD, 5/16-24 X 7/8 (NOT WCI 5303289062 Contact Us For Availability
43B
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
FRONT-CRISPER PAN, (2) WCI 218278301 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 218390537 WCI 218390537 Contact Us For Availability
47A
WCI 215209100 WCI 215209100 Contact Us For Availability
48
WCI 218487200 WCI 218487200 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
48A
WCI 215209200 WCI 215209200 Contact Us For Availability
51
WCI 215132809 WCI 215132809 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
51A
WCI 215133200 WCI 215133200 Contact Us For Availability
51B
INSULATION, AIR DUCT, FRONT (NOT ILLUSTRATED WCI 215133300 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215132901 WCI 215132901 Contact Us For Availability
52A
PLUG-WTR INLET TUBE (NOT ILLUSTRATED) WCI 215058000 Contact Us For Availability
52A
DAMPER, AIR, MEAT KPR DUCT (NOT ILLUSTRATED) WCI 215133000 Contact Us For Availability
54
WCI 215133100 WCI 215133100 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
55
CAP-WATER VALVE (NOT ILLUSTRATED) WCI 5303015102 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
59A
SCREW-MULLION MTG, LH, CR SPCL OVAL HD, 10-32 WCI 218188500 Contact Us For Availability
59A
SEAL, FOAM, COND FAN SHROUD (NOT ILLUSTRATED WCI 215226700 Contact Us For Availability
59B
CAP-MULLION SCREW, WHITE (NOT ILLUSTRATED) WCI 215069501 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 218620901 WCI 218620901 Contact Us For Availability
61
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61
WCI 5303289066 WCI 5303289066 Contact Us For Availability
61A
WCI 218430200 WCI 218430200 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
GROMMET, SILENCER (NOT ILLUSTRATED) WCI 215223700 Contact Us For Availability
62
WCI 5303289067 WCI 5303289067 Contact Us For Availability
66
WCI 5303307872 WCI 5303307872 Contact Us For Availability
67
WCI 218278601 WCI 218278601 Contact Us For Availability
72
WCI 218359607 WCI 218359607 Contact Us For Availability
74
WCI 215423500 WCI 215423500 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
93
WCI 218362602 WCI 218362602 Contact Us For Availability
94
WCI 5303292669 WCI 5303292669 Contact Us For Availability
94A
SEAL, AIR DUCT COVER (NOT ILLUSTRATED) WCI 218044800 Contact Us For Availability
95
WCI 215931300 WCI 215931300 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
107
WCI 218188800 WCI 218188800 Contact Us For Availability
108
WCI 218476800 WCI 218476800 Contact Us For Availability
119
WCI 215132700 WCI 215132700 Contact Us For Availability
120
WCI 218019202 WCI 218019202 Contact Us For Availability
121
WCI 215364001 WCI 215364001 Contact Us For Availability
121A
NUT, PUSH, ON, DAMPER CABLE (NOT ILLUSTRATED WCI 215209400 Contact Us For Availability
122
WCI 218561202 WCI 218561202 Contact Us For Availability
122A
WCI 218561204 WCI 218561204 Contact Us For Availability
129
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129A
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
× ![]()
