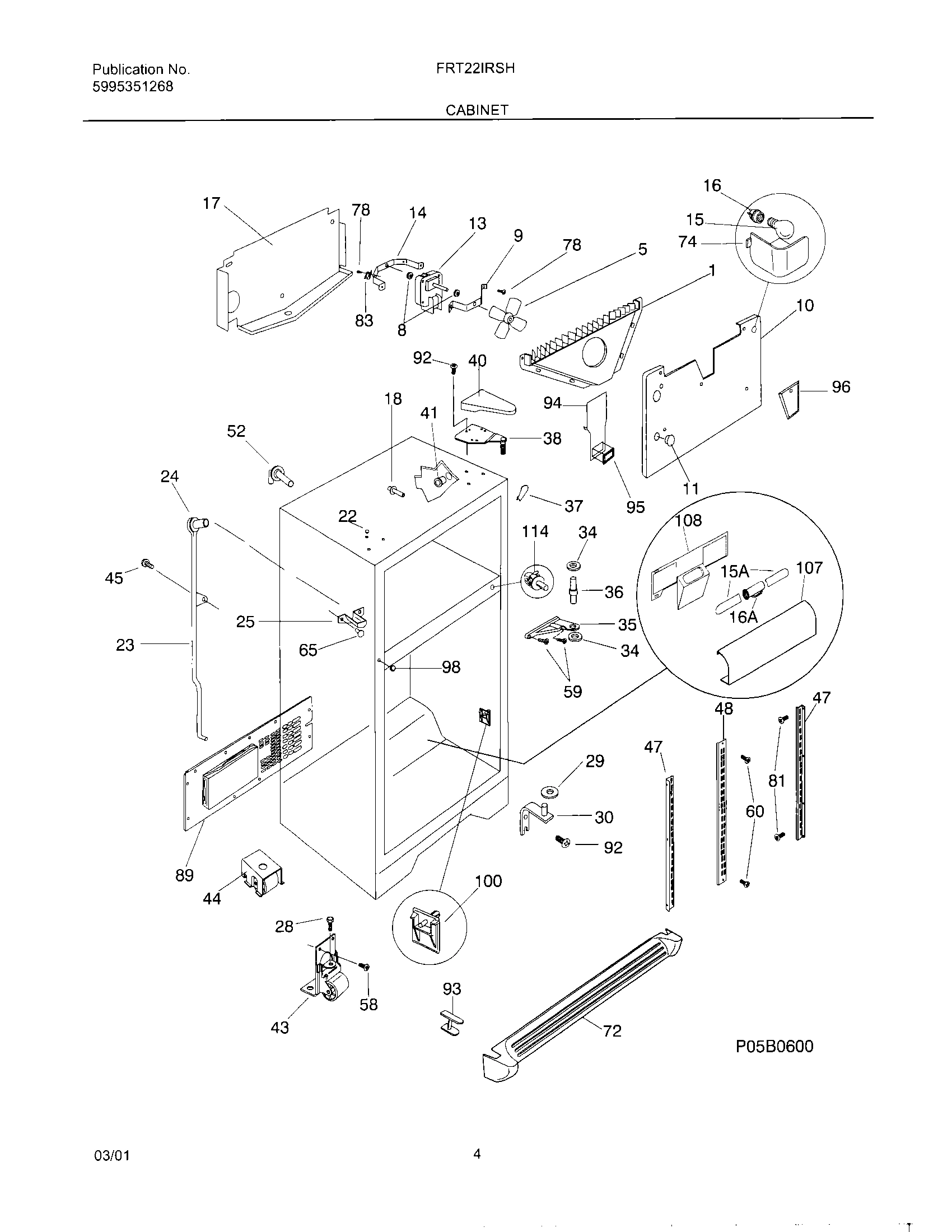

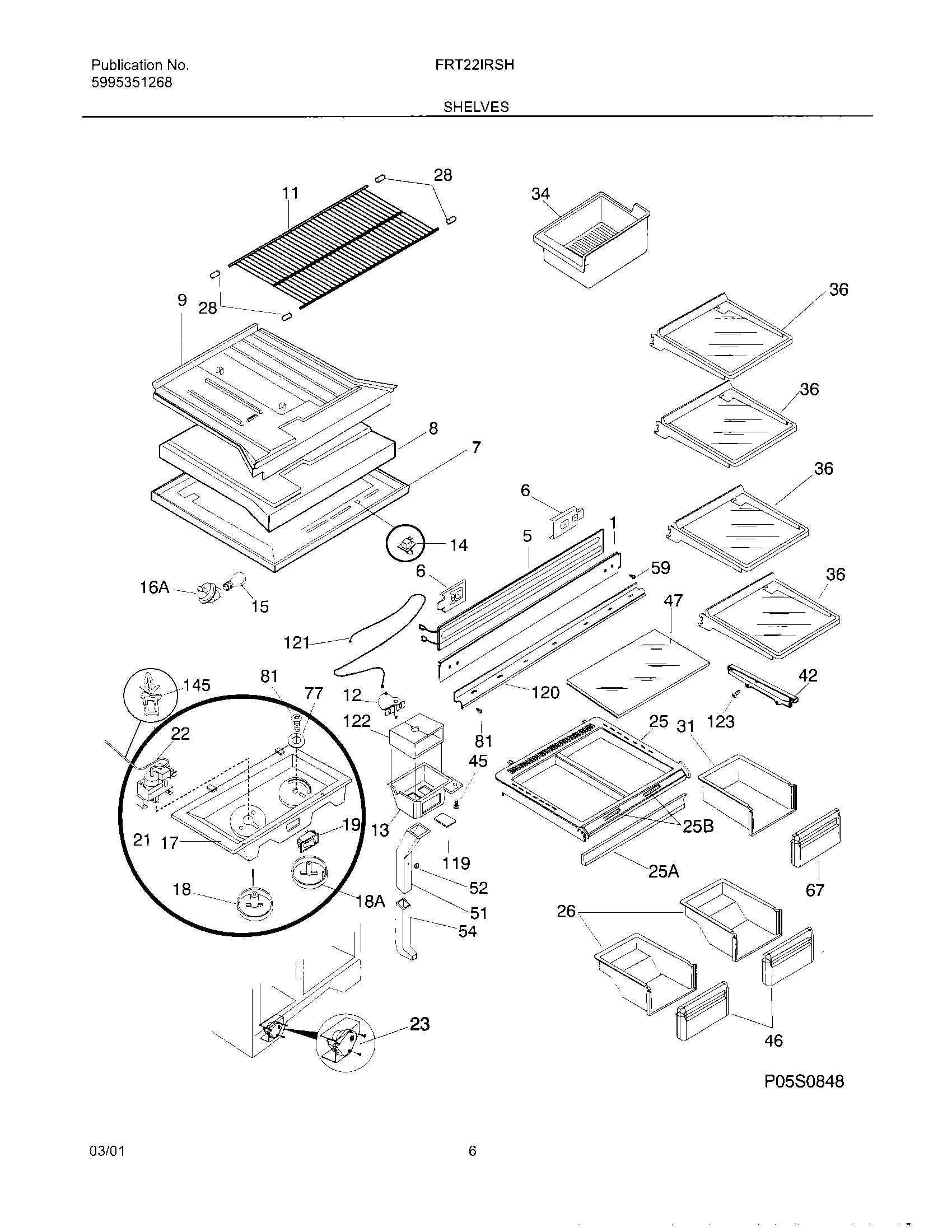

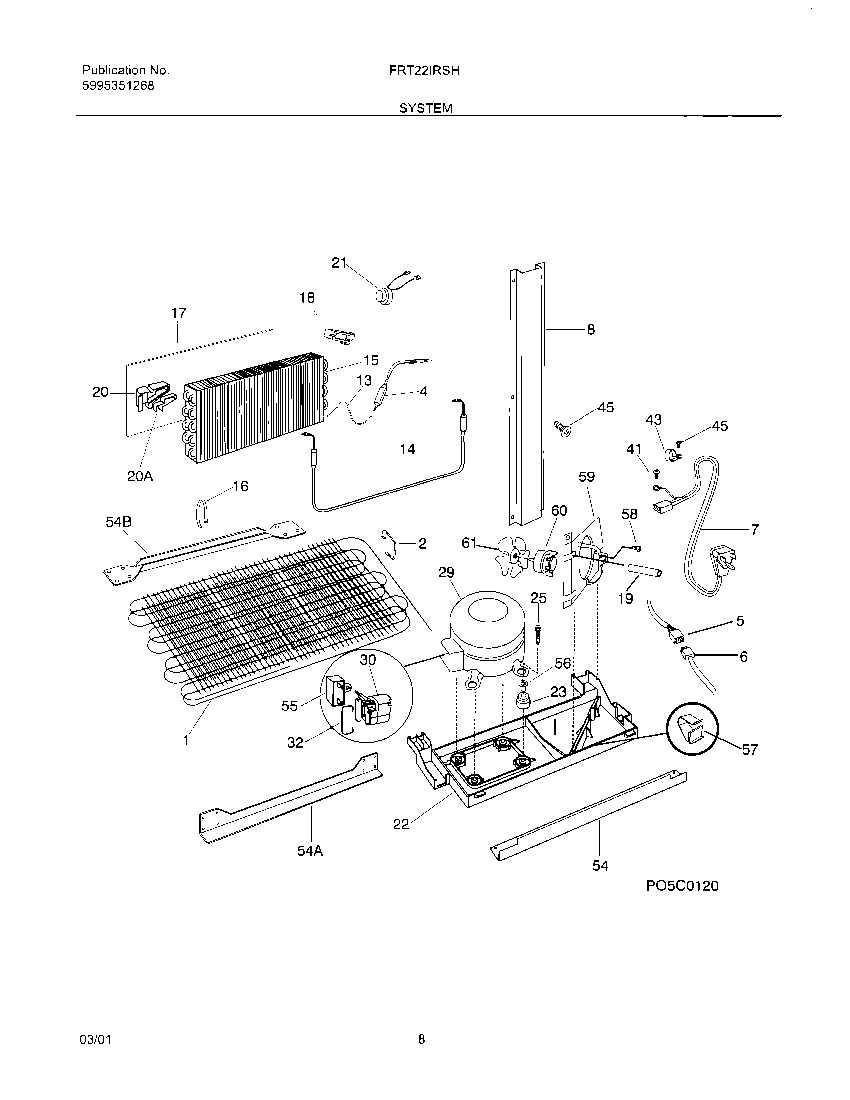

Model Electrolux FRT22IRSHB5 REFRIGERATOR – Common Parts &amp; Diagrams

1

WCI 5303299280 WCI 5303299280 Contact Us For Availability

1

WCI 218787700 WCI 218787700 Contact Us For Availability

2

WCI 218730616 WCI 218730616 Contact Us For Availability

2

WCI 5303289029 WCI 5303289029 Contact Us For Availability

2

WCI 3206348 WCI 3206348 Contact Us For Availability

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

5

WCI 5303292398 WCI 5303292398 Contact Us For Availability

5

WCI 218752300 WCI 218752300 Contact Us For Availability

5

WCI 218965601 WCI 218965601 Contact Us For Availability

5

WCI 3206303 WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

218809701 Frigidaire Refrigerator Door Rack S In Stock WCI 218809701 $27.62

6

218809801 Frigidaire Refrigerator Door Rack S In Stock WCI 218809801 $27.64

6

WCI 218845601 WCI 218845601 Contact Us For Availability

6

WCI 218966001 WCI 218966001 Contact Us For Availability

7

WCI 215459201 WCI 215459201 Contact Us For Availability

7

WCI 218907501 WCI 218907501 Contact Us For Availability

8

WCI 218909707 WCI 218909707 Contact Us For Availability

8

WCI 218803400 WCI 218803400 Contact Us For Availability

8

SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability

9

WCI 5303292396 WCI 5303292396 Contact Us For Availability

9

WCI 215058300 WCI 215058300 Contact Us For Availability

9

WCI 3206313 WCI 3206313 Contact Us For Availability

10

WCI 3206315 WCI 3206315 Contact Us For Availability

11

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

WCI 5304409141 WCI 5304409141 Contact Us For Availability

12

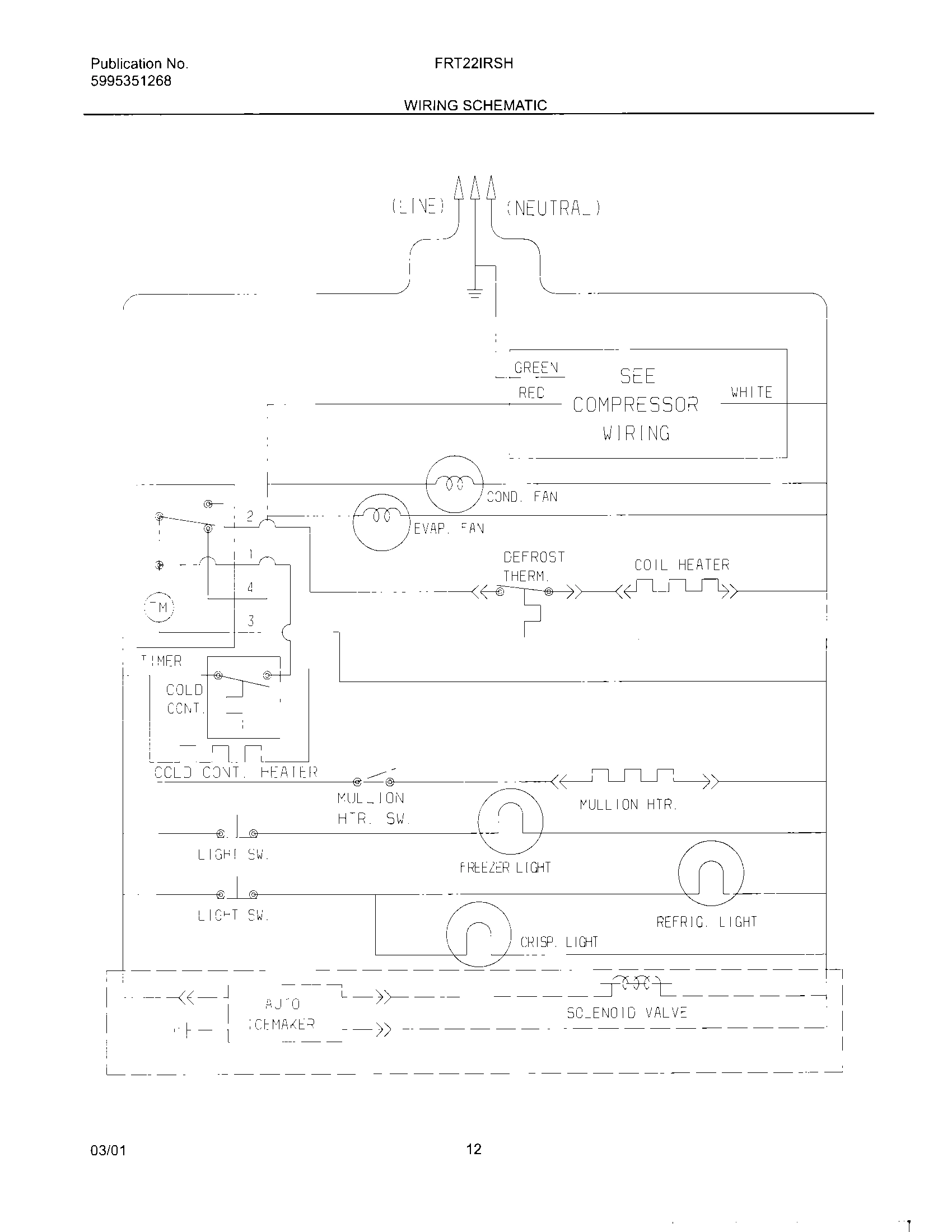

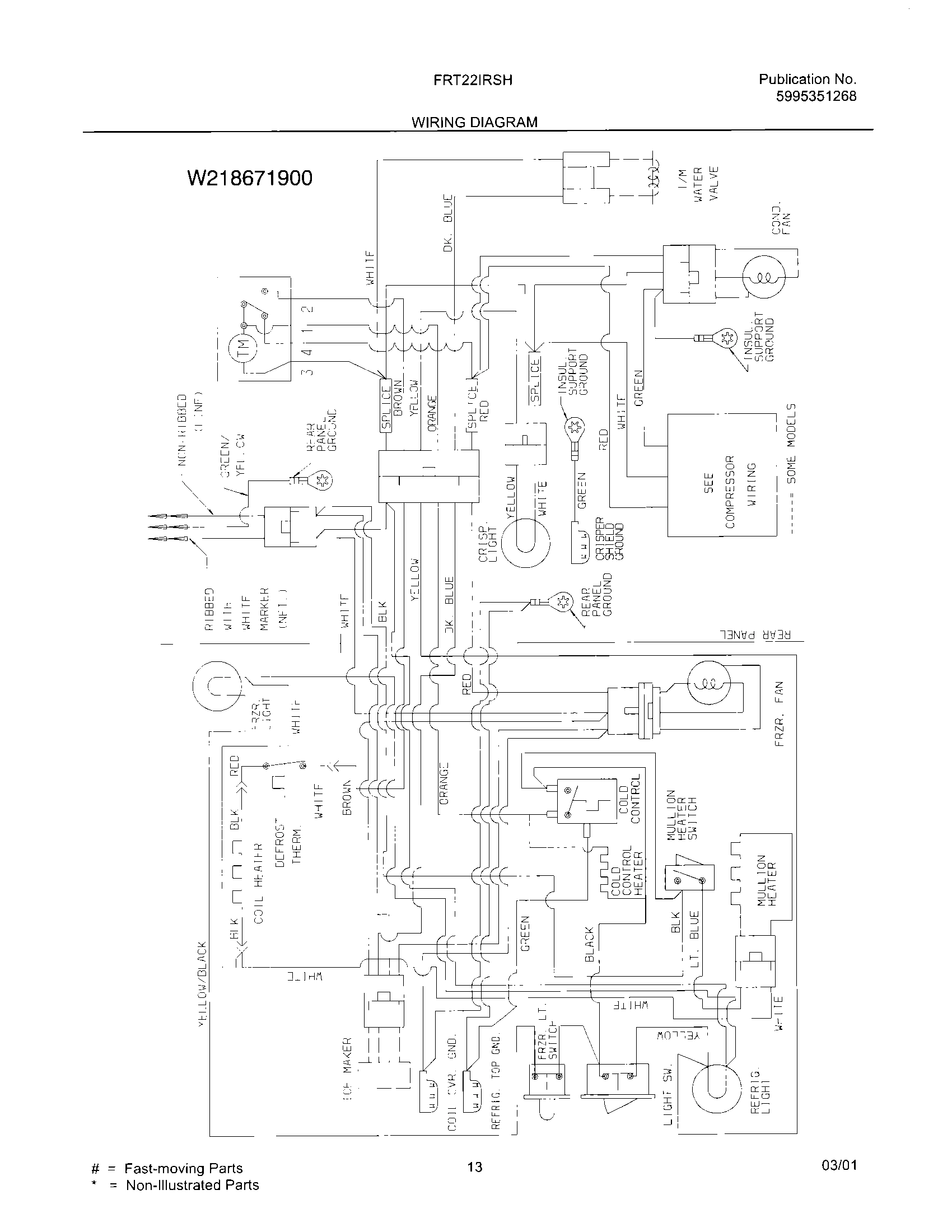

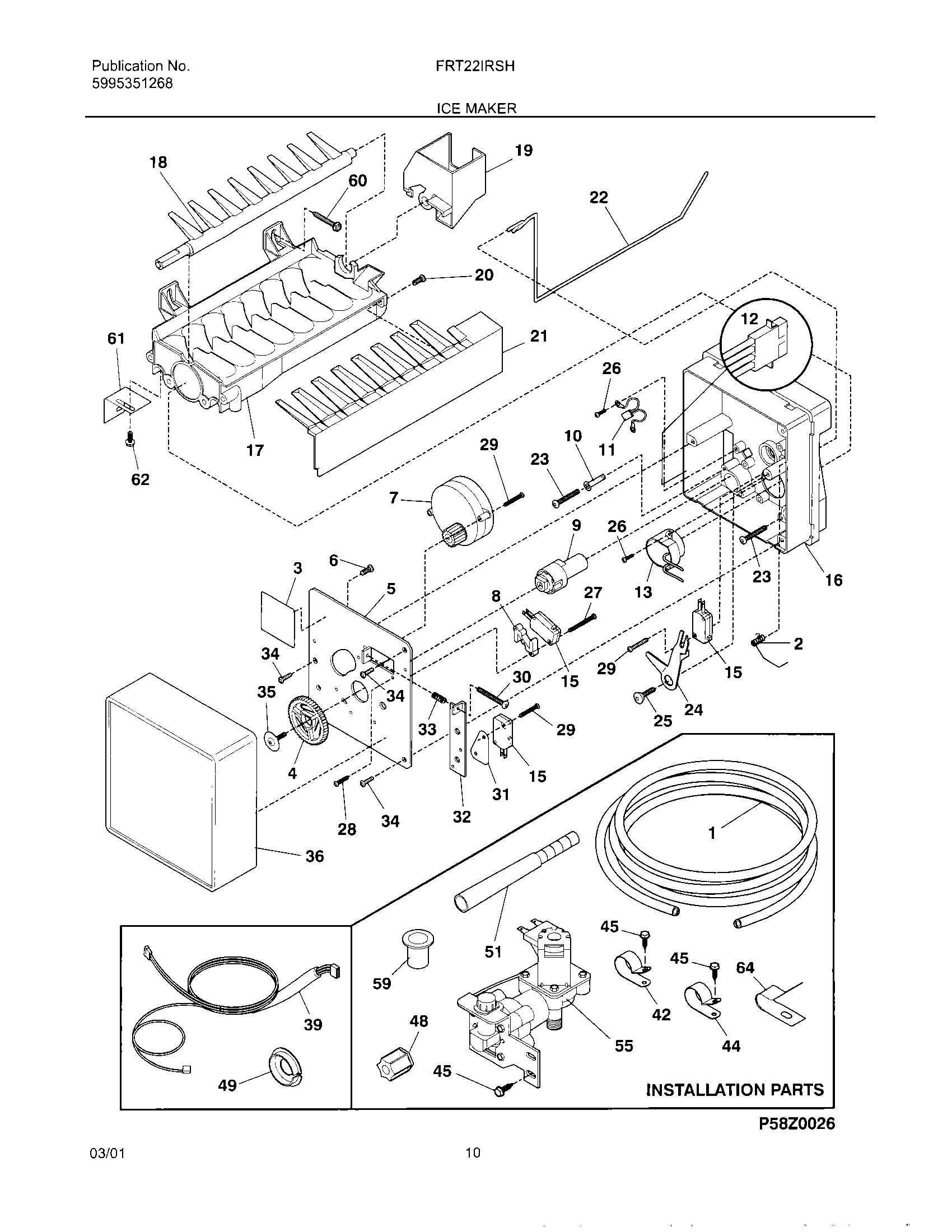

WIRING HARNESS,ICE MAKER ,INTERNAL ,WITH PLUG WCI 3206349 Contact Us For Availability

12

WCI 218634902 WCI 218634902 Contact Us For Availability

WCI 5303289522 WCI 5303289522 Contact Us For Availability

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

WCI 218168602 WCI 218168602 Contact Us For Availability

WCI 218629900 WCI 218629900 Contact Us For Availability

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $14.02

14

WCI 5304419040 WCI 5304419040 Contact Us For Availability

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

WCI 218708700 WCI 218708700 Contact Us For Availability

WCI 215812200 WCI 215812200 Contact Us For Availability

WCI 218956001 WCI 218956001 Contact Us For Availability

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability

WCI 5303299157 WCI 5303299157 Contact Us For Availability

SUPPORT,PHENOLIC WCI 3206326 Contact Us For Availability

17

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

17

WCI 215932906 WCI 215932906 Contact Us For Availability

17

WCI 5304415939 WCI 5304415939 Contact Us For Availability

WCI 5304414918 WCI 5304414918 Contact Us For Availability

WCI 5304414917 WCI 5304414917 Contact Us For Availability

WCI 218979801 WCI 218979801 Contact Us For Availability

EJECTOR-ICE WCI 3206328 Contact Us For Availability

19

SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability

19

WCI 218631200 WCI 218631200 Contact Us For Availability

19

WCI 3206330 WCI 3206330 Contact Us For Availability

20

WCI 218979501 WCI 218979501 Contact Us For Availability

20

WCI 5303292405 WCI 5303292405 Contact Us For Availability

20

WCI 5304408581 WCI 5304408581 Contact Us For Availability

21

297216600 Frigidaire Refrigerator Defrost The In Stock WCI 297216600 $13.53

21

WCI 5304402184 WCI 5304402184 Contact Us For Availability

21

ICE STRIPPER WCI 3206332 Contact Us For Availability

215774918 Frigidaire Refrigerator Button Plug Backorder WCI 215774918 $5.88

WCI 5303289320 No Longer Available

WCI 218660701 WCI 218660701 Contact Us For Availability

WCI 218811100 WCI 218811100 Contact Us For Availability

SHUT-OFF ARM WCI 3206333 Contact Us For Availability

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

WCI 215266301 WCI 215266301 Contact Us For Availability

WCI 5304408582 WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

WCI 5303207353 WCI 5303207353 Contact Us For Availability

WCI 215216649 WCI 215216649 Contact Us For Availability

WCI 5303308349 WCI 5303308349 Contact Us For Availability

WCI 218773500 WCI 218773500 Contact Us For Availability

SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability

26

215817806 Frigidaire Refrigerator Egg Tray In Stock WCI 215817806 $8.14

26

WCI 5303292386 WCI 5303292386 Contact Us For Availability

26

SCREW-THERMO/SPRT,4-24 X 0.375 ,(4) WCI 3206337 Contact Us For Availability

27

SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,(2) WCI 3206338 Contact Us For Availability

28

END CAP-SHELF, PROTECTOR WCI 215341200 Contact Us For Availability

28

Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

5304475098 Frigidaire Refrigerator Compressor In Stock WCI 5304475098 $358.66

29

WCI 215314301 WCI 215314301 Contact Us For Availability

29

SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

WCI 218721109 WCI 218721109 Contact Us For Availability

30

SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability

31

WCI 5303304632 WCI 5303304632 Contact Us For Availability

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

WCI 216649100 WCI 216649100 Contact Us For Availability

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

WCI 5304408583 WCI 5304408583 Contact Us For Availability

34

241679901 Frigidaire Refrigerator Screw Backorder WCI 241679901 $9.06

34

5303212918 Frigidaire Refrigerator Control Backorder WCI 5303212918 $61.86

35

WCI 5304408585 WCI 5304408585 Contact Us For Availability

36

SHELF-``SPILL-SAFE``, FIXED, TEAL GRAPHICS WCI 215406115 Contact Us For Availability

36

COVER-ICE MAKER WCI 3206347 Contact Us For Availability

39

WIRING HARNESS,ICE MAKER ,EXTERNAL WCI 5303289065 Contact Us For Availability

42

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

42

WCI 215002301 WCI 215002301 Contact Us For Availability

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45

WCI 218769200 WCI 218769200 Contact Us For Availability

46

WCI 218278401 WCI 218278401 Contact Us For Availability

47

WCI 218390564 WCI 218390564 Contact Us For Availability

48

NUT,7/16-20 ,NYLON WCI 5308000200 Contact Us For Availability

49

5303001147 Frigidaire Refrigerator Hole Harne Backorder WCI 5303001147 $14.26

51

WCI 215132809 WCI 215132809 Contact Us For Availability

51

TUBE-WATER,ICE MOLD FILL ,EXTENSION WCI 215811600 Contact Us For Availability

52

TUBE-WATER,ICE MOLD FILL ,ELBOW WCI 215454600 Contact Us For Availability

52

WCI 215132901 WCI 215132901 Contact Us For Availability

WCI 215133100 WCI 215133100 Contact Us For Availability

WCI 5303289027 WCI 5303289027 Contact Us For Availability

WCI 5303289292 WCI 5303289292 Contact Us For Availability

WCI 5303289311 WCI 5303289311 Contact Us For Availability

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55

WCI 218959401 WCI 218959401 Contact Us For Availability

56

WCI 218769300 WCI 218769300 Contact Us For Availability

57

WCI 218247300 WCI 218247300 Contact Us For Availability

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

WCI 5303289031 WCI 5303289031 Contact Us For Availability

59

WCI 5303001191 WCI 5303001191 Contact Us For Availability

60

WCI 218956401 WCI 218956401 Contact Us For Availability

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

WCI 218956501 WCI 218956501 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

67

WCI 218278701 WCI 218278701 Contact Us For Availability

77

WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability

79

218755401 Frigidaire Refrigerator Screw Set In Stock WCI 218755401 $14.94

81

WCI 5303001380 WCI 5303001380 Contact Us For Availability

83

WCI 5308000107 WCI 5308000107 Contact Us For Availability

108

COVER-WIRING,CRISPER LIGHT WCI 218834202 Contact Us For Availability

114

WCI 5303299156 WCI 5303299156 Contact Us For Availability

119

WCI 215132700 WCI 215132700 Contact Us For Availability

120

WCI 218019201 WCI 218019201 Contact Us For Availability

121

NUT,PUSH-ON ,DAMPER CABLE WCI 215209400 Contact Us For Availability

121

WCI 215364001 WCI 215364001 Contact Us For Availability

122

WCI 218561202 WCI 218561202 Contact Us For Availability

122

WCI 218561204 WCI 218561204 Contact Us For Availability

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

145

WCI 218660800 WCI 218660800 Contact Us For Availability

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

5303299664 Frigidaire Refrigerator Shelf Spac In Stock WCI 5303299664 $15.40

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

WCI 5303917276 WCI 5303917276 Contact Us For Availability

HANGER-PAN/TRAY, RH WCI 215002401 Contact Us For Availability

COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability

PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability

CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability

HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability

WCI 215848000 WCI 215848000 Contact Us For Availability

SEAL-AIR DUCT COVER WCI 218044800 Contact Us For Availability

WCI 218999001 WCI 218999001 Contact Us For Availability

WCI 218999101 WCI 218999101 Contact Us For Availability

GROMMET-SHELF MTG,.69`` LONG WCI 5303294247 Contact Us For Availability

WCI 5304403492 WCI 5304403492 Contact Us For Availability

SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) WCI 5308017044 Contact Us For Availability

CAP-MULLION SCREW,BLACK WCI 215069518 Contact Us For Availability

DAMPER-AIR,MEAT KPR DUCT WCI 215133000 Contact Us For Availability

INSULATION-AIR DUCT,REAR WCI 215133200 Contact Us For Availability

INSULATION-AIR DUCT,FRONT WCI 215133300 Contact Us For Availability

WCI 215339100 WCI 215339100 Contact Us For Availability

CLIP-SHELF WCI 215339900 Contact Us For Availability

WCI 215359900 WCI 215359900 Contact Us For Availability

WCI 215363801 WCI 215363801 Contact Us For Availability

WCI 215363901 WCI 215363901 Contact Us For Availability

Screw-mullion mtg,LH,cr spcl oval hd ,10-32 x WCI 218188500 Contact Us For Availability

WCI 218634800 WCI 218634800 Contact Us For Availability

WCI 218989901 WCI 218989901 Contact Us For Availability

WCI 5303001260 WCI 5303001260 Contact Us For Availability

SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability

NUT-ANCHOR WCI 5308016567 Contact Us For Availability

WCI 215004700 WCI 215004700 Contact Us For Availability

SEAL-FOAM,COND FAN SHROUD WCI 215226700 Contact Us For Availability

WIRING HARNESS,CRISPER LIGHTS WCI 218463600 Contact Us For Availability

SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability

WCI 218956801 WCI 218956801 Contact Us For Availability

SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability

SPACER TUBE WCI 5303289026 Contact Us For Availability

WCI 5304406721 WCI 5304406721 Contact Us For Availability
