Model Electrolux FRT22INLHD1 REFRIGERATOR – Common Parts & Diagrams

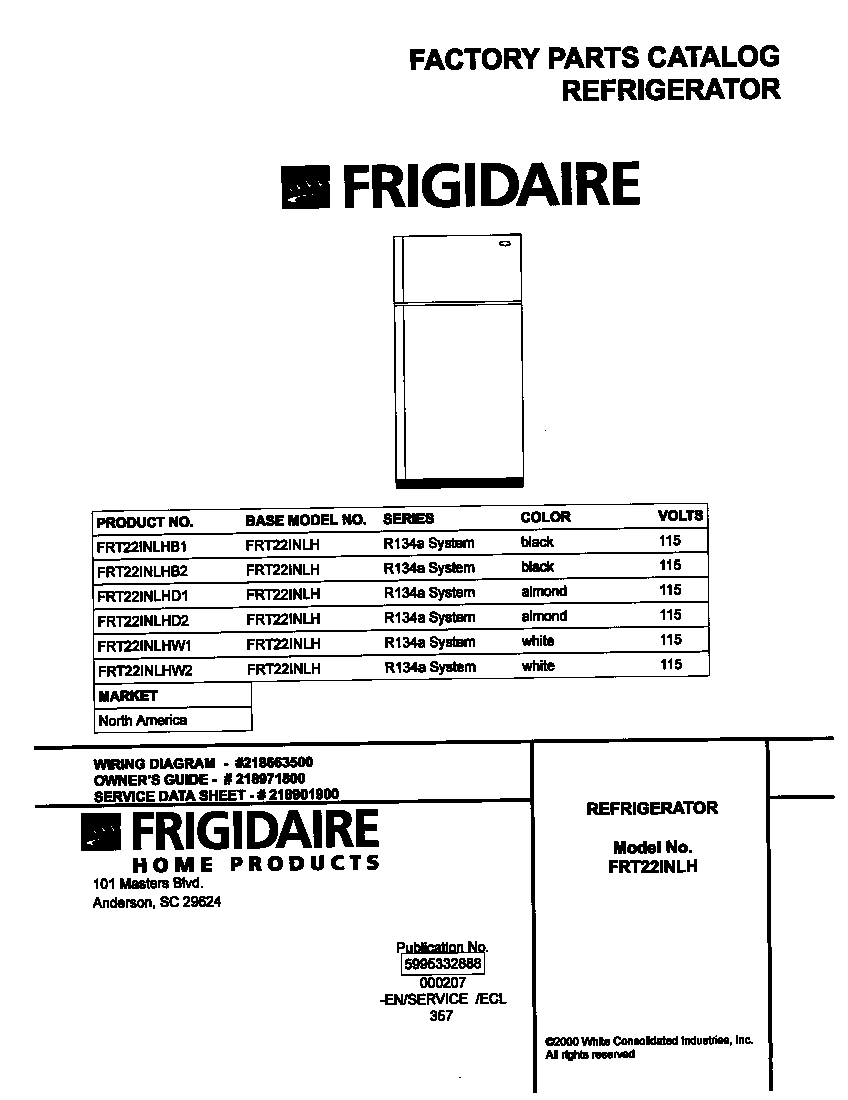

01 - COVER

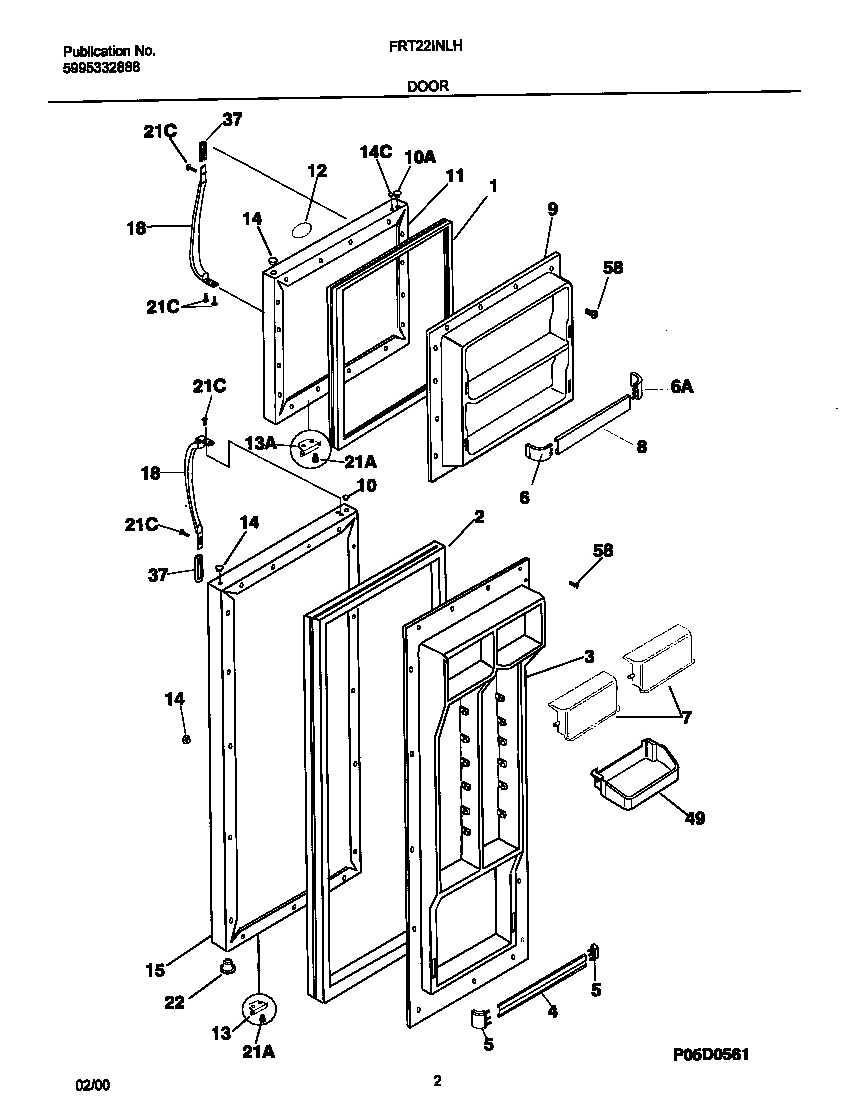

02 - DOORS

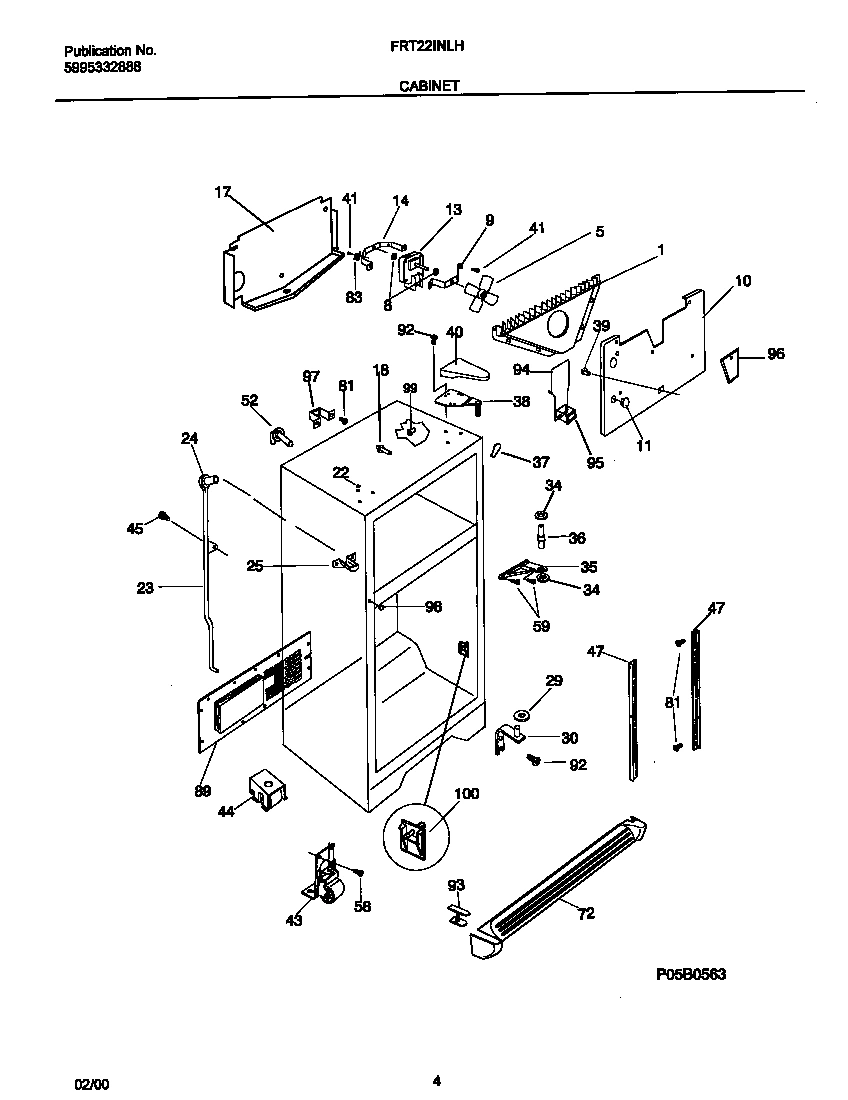

03 - CABINET

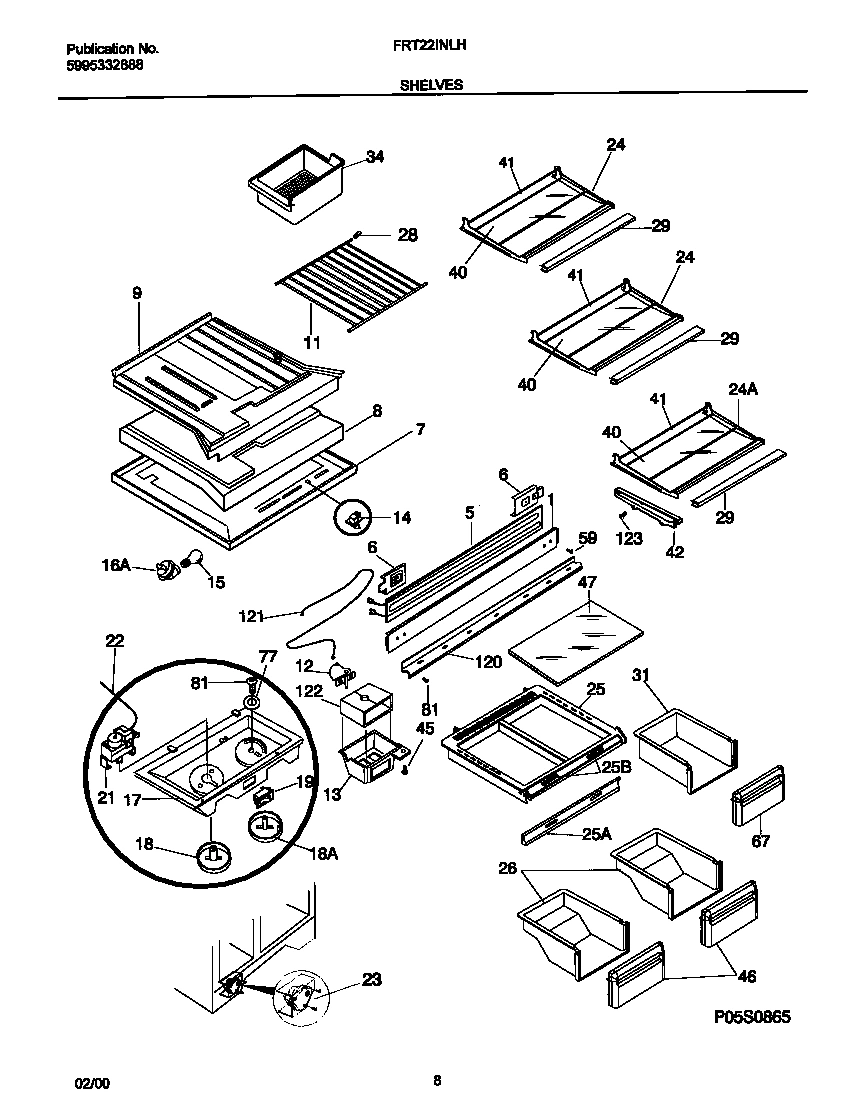

04 - SHELVES

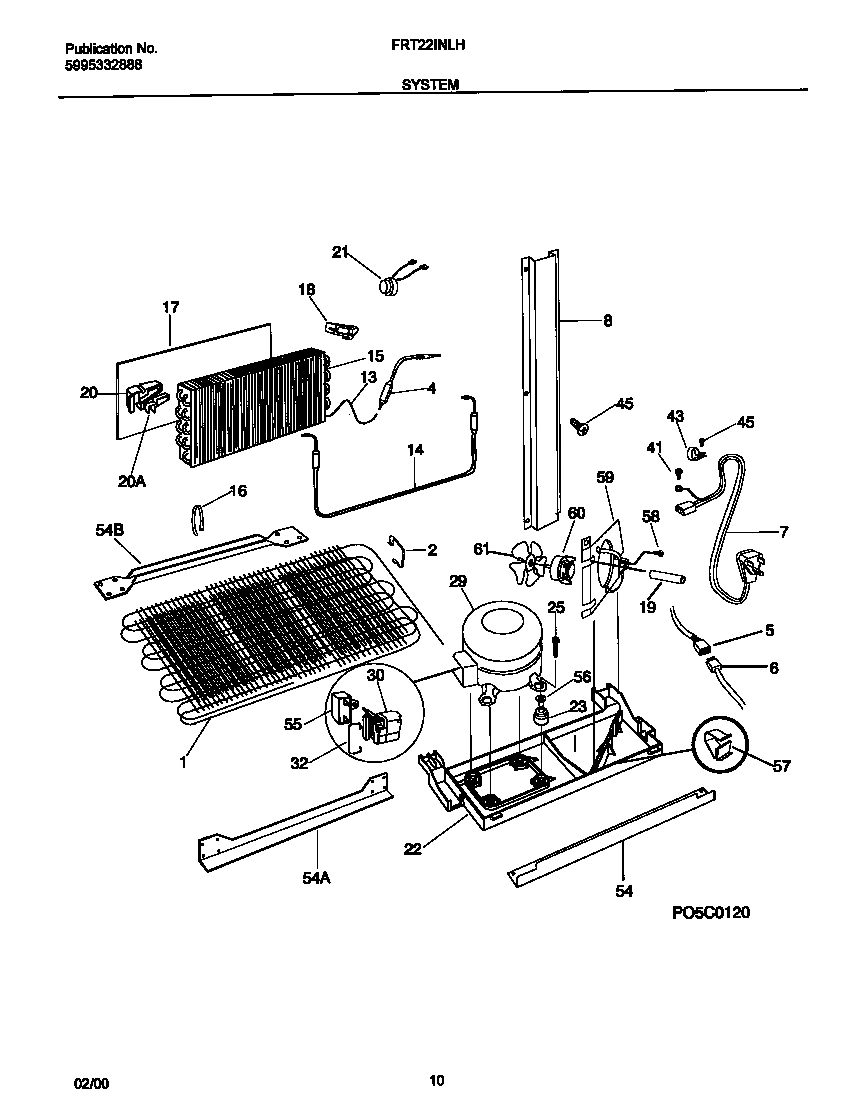

05 - SYSTEM

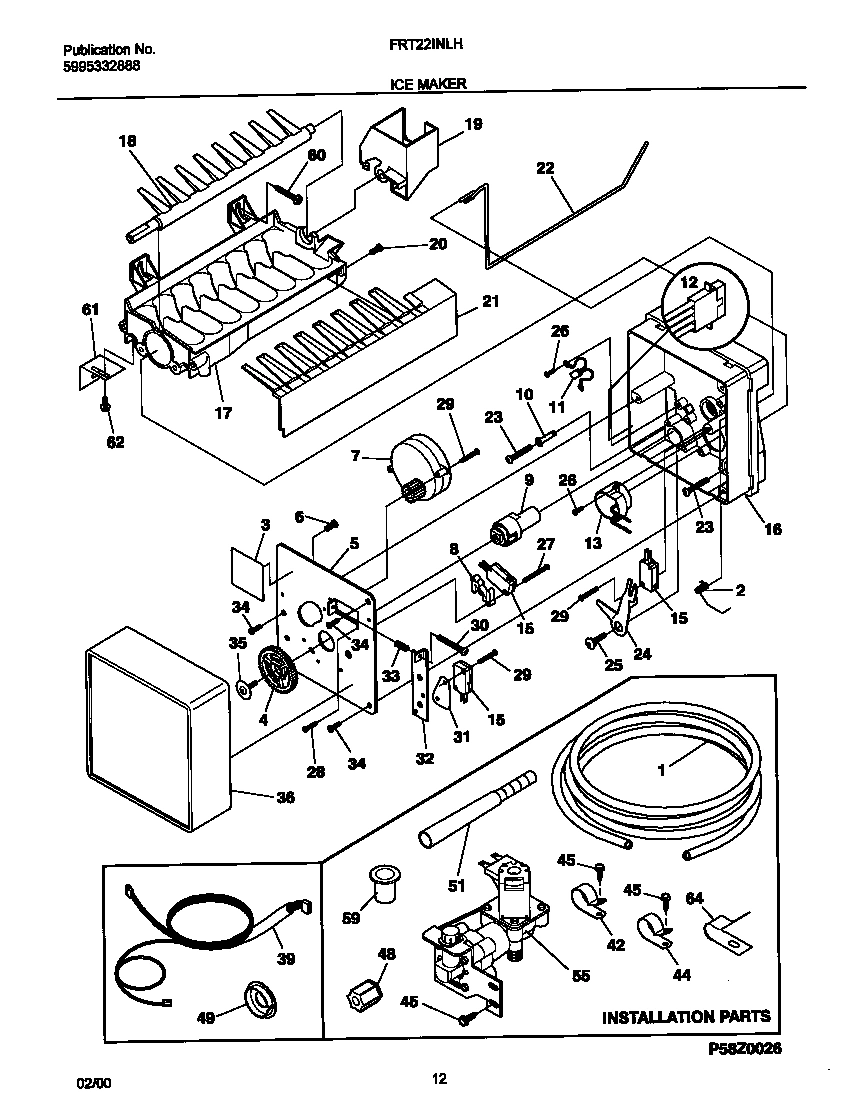

06 - ICE MAKER

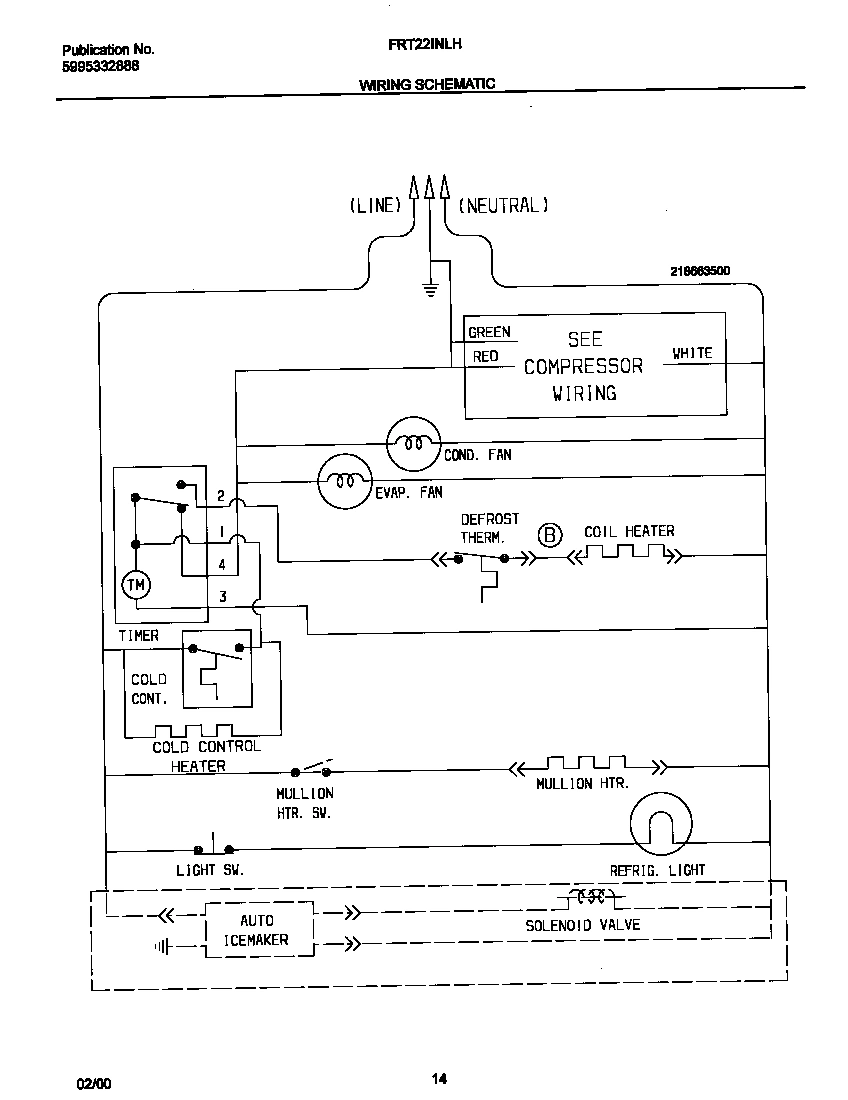

07 - WIRING DIAGRAM

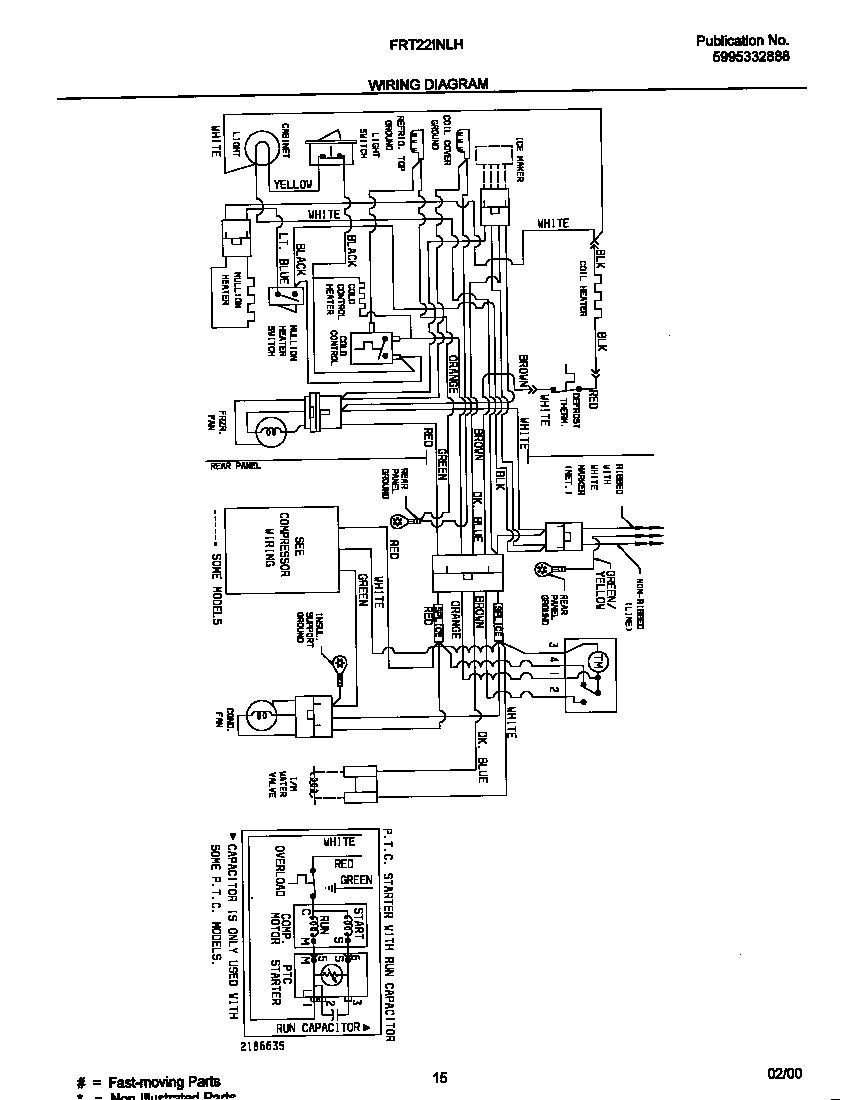

08 - WIRING DIAGRAM
Common parts from model Electrolux FRT22INLHD1 REFRIGERATOR
*46521
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*46522
WCI 215003200 WCI 215003200 Contact Us For Availability
*46531
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*46536
WCI 215363901 WCI 215363901 Contact Us For Availability
*46537
NUT-ANCHOR WCI 215935700 Contact Us For Availability
*46538
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*46539
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*46540
WCI 218660800 WCI 218660800 Contact Us For Availability
*46541
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*46543
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*46544
WCI 215339100 WCI 215339100 Contact Us For Availability
*46545
WCI 215359900 WCI 215359900 Contact Us For Availability
*46546
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*46547
SPACER TUBE WCI 5303289026 Contact Us For Availability
*46550
WCI 218897001 WCI 218897001 Contact Us For Availability
*46551
SEAL-FOAM,COND FAN SHROUD WCI 215226700 Contact Us For Availability
*46552
WCI 215004700 WCI 215004700 Contact Us For Availability
*46553
WCI 215004800 WCI 215004800 Contact Us For Availability
*46554
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*46555
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
1
WCI 218652300 WCI 218652300 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 218730614 WCI 218730614 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
WCI 218763640 WCI 218763640 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 218752300 WCI 218752300 Contact Us For Availability
5
WIRING HARNESS,MAIN WCI 218663600 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218845601 WCI 218845601 Contact Us For Availability
6
WIRING HARNESS,MACHINE COMPT WCI 215501601 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218907501 WCI 218907501 Contact Us For Availability
8
WCI 218909707 WCI 218909707 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215058300 WCI 215058300 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5304409141 WCI 5304409141 Contact Us For Availability
12
WCI 218917602 WCI 218917602 Contact Us For Availability
12
WIRING HARNESS,IM INTERNAL ,WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 218634902 WCI 218634902 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 218168602 WCI 218168602 Contact Us For Availability
13
WCI 218629900 WCI 218629900 Contact Us For Availability
15
WCI 5303321220 WCI 5303321220 Contact Us For Availability
16
SUPPORT,PHENOLIC WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 215932906 WCI 215932906 Contact Us For Availability
18
WCI 5304414918 WCI 5304414918 Contact Us For Availability
18
WCI 5304414917 WCI 5304414917 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
18
EJECTOR-ICE WCI 3206328 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303292405 WCI 5303292405 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
20
WCI 5304408581 WCI 5304408581 Contact Us For Availability
21
WCI 5304403880 WCI 5304403880 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 218660701 WCI 218660701 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
SHUT-OFF ARM WCI 3206333 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23
SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT , WCI 5304408582 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919142 WCI 215919142 Contact Us For Availability
24
FRAME-SHELF,CANTILEVER ,FULL WIDTH , WCI 215919172 Contact Us For Availability
25
COVER-CRISPER PAN,WITH BEAM , WCI 215216653 Contact Us For Availability
25
WCI 5304412853 WCI 5304412853 Contact Us For Availability
25
SCREW-COMPRESSOR MTG,HEX WASHER HEAD , WCI 218773500 Contact Us For Availability
25
SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability
26
WCI 5303292386 WCI 5303292386 Contact Us For Availability
26
SCREW-THERMO/SPRT,4-24 X 0.375 ,(4) WCI 3206337 Contact Us For Availability
27
SCREW,4-40 X 1.000 ,HOLD SWITCH MTG , WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 215341200 Contact Us For Availability
28
Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
WCI 215919494 WCI 215919494 Contact Us For Availability
29
SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 218888601 WCI 218888601 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
SPRING WCI 5304408583 Contact Us For Availability
35
WCI 5304408585 WCI 5304408585 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
COVER-ICE MAKER WCI 3206347 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
39
WIRING HARNESS,IM TO REFR WCI 5303289065 Contact Us For Availability
40
GLASS-SHELF,27.14`` X 15.57 ,W/GRAPHICS WCI 218498192 Contact Us For Availability
41
WCI 215919806 WCI 215919806 Contact Us For Availability
42A
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42B
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
46
WCI 5304405084 WCI 5304405084 Contact Us For Availability
47
WCI 218498180 WCI 218498180 Contact Us For Availability
48
NUT,7/16-20 ,NYLON WCI 5308000200 Contact Us For Availability
51
TUBE-WATER FILL,EXTENSION WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218909902 WCI 218909902 Contact Us For Availability
55
WCI 218959401 WCI 218959401 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
67
WCI 215357813 WCI 215357813 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
WCI 215099711 WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
120
WCI 218019201 WCI 218019201 Contact Us For Availability
121A
WCI 215364001 WCI 215364001 Contact Us For Availability
121B
NUT,PUSH-ON ,DAMPER CABLE WCI 215209400 Contact Us For Availability
122A
WCI 218561201 WCI 218561201 Contact Us For Availability
122B
WCI 218561203 WCI 218561203 Contact Us For Availability
× ![]()
