Model Electrolux FRT21TSCD6 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

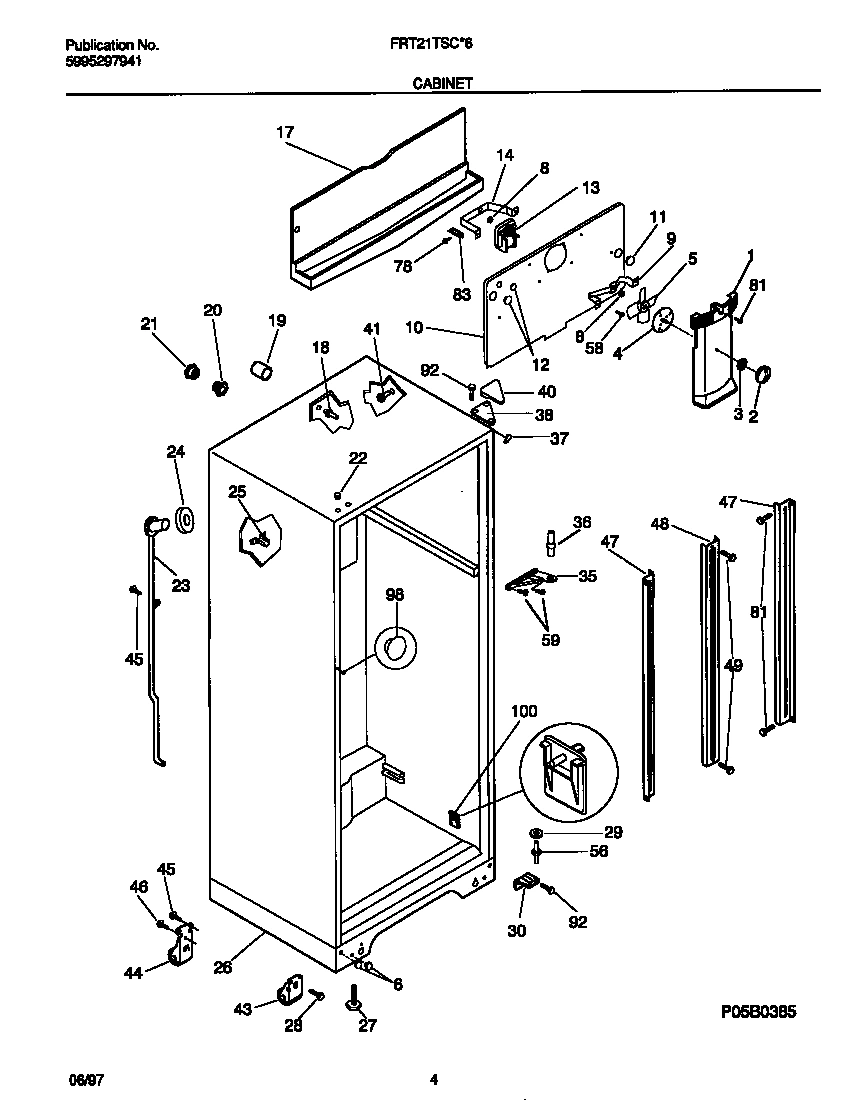

03 - CABINET

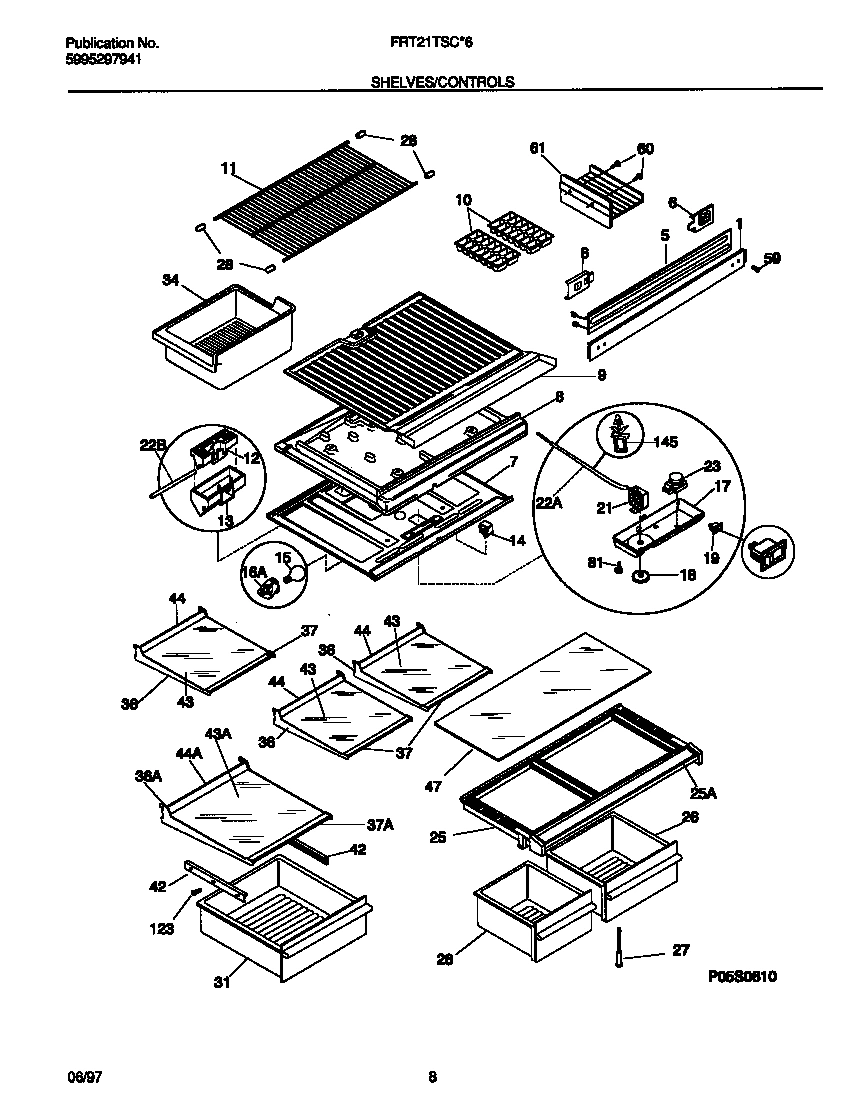

04 - SHELVES/CONTROLS

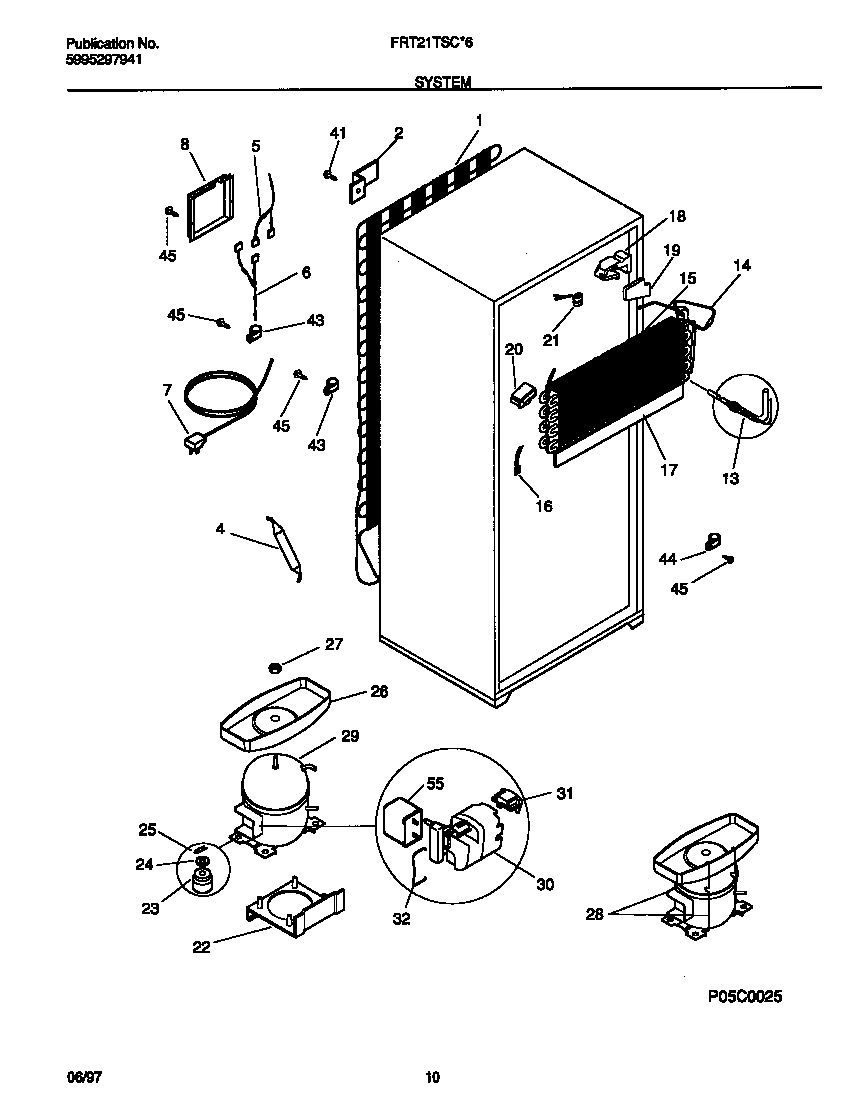

05 - SYSTEM

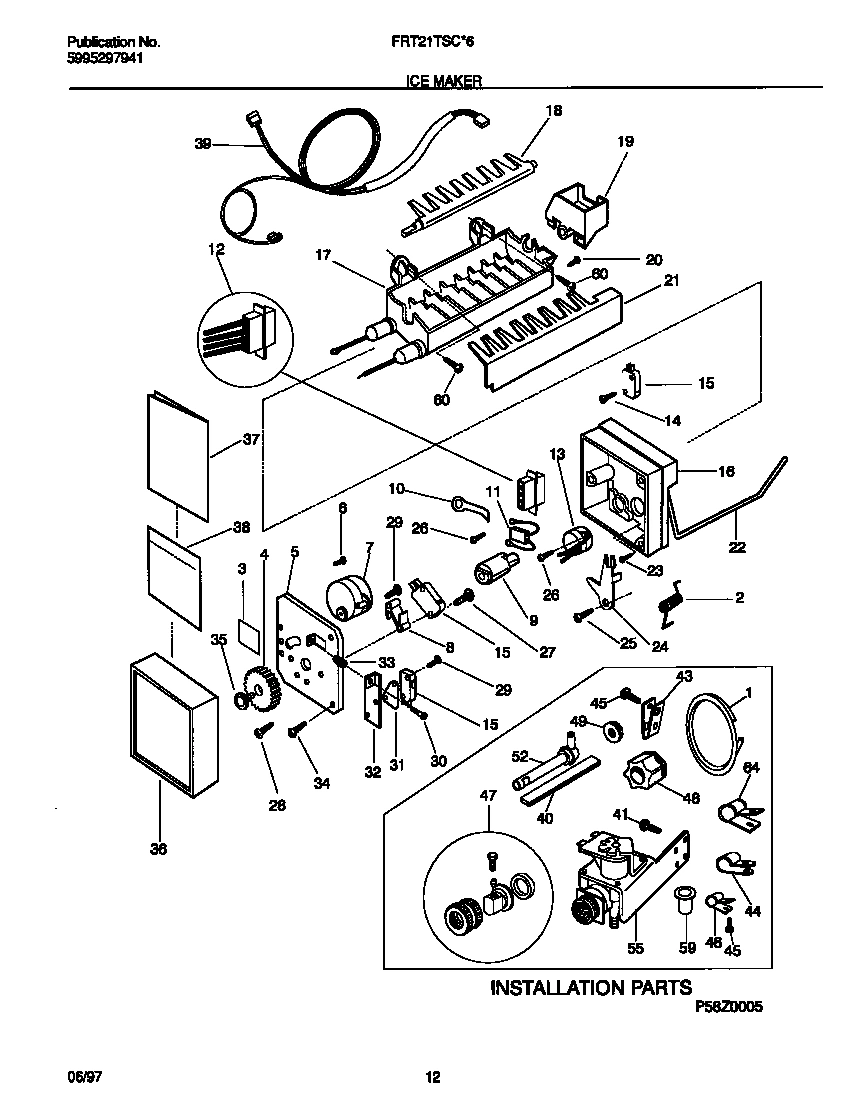

06 - ICE MAKER

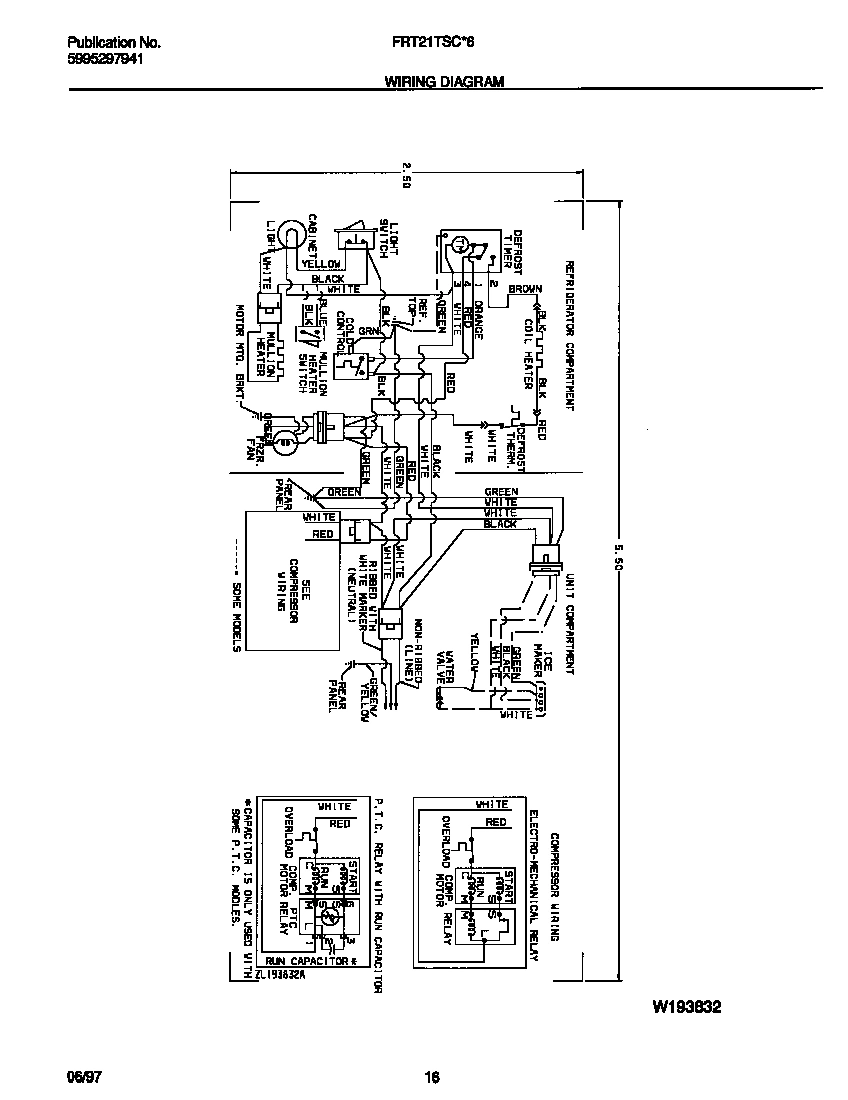

07 - WIRING DIAGRAM
Common parts from model Electrolux FRT21TSCD6 REFRIGERATOR
*49600
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*49601
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*49606
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*49607
WCI 08000185 WCI 08000185 Contact Us For Availability
1
WCI 218651901 WCI 218651901 Contact Us For Availability
1A
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730610 WCI 218730610 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 218738800 WCI 218738800 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8A
WCI 218781400 WCI 218781400 Contact Us For Availability
8A
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8B
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILL WCI 5308003607 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11A
WCI 5303288243 WCI 5303288243 Contact Us For Availability
11B
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12A
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
12B
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215076402 WCI 215076402 Contact Us For Availability
14
SCREW-SWITCH MTG, 4-24 X 3/4, WCI 3206323 Contact Us For Availability
14A
PLUG-BUTTON, WHITE, REFR DOOR FRONT, LOWER WCI 218074001 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17A
WCI 5303321455 WCI 5303321455 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32CA X .625, CROSS WCI 218251900 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
TUBE, PVC, WHITE, @ AIR DEFLECTOR, WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.000, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303206538 WCI 5303206538 Contact Us For Availability
25
WCI 5303308338 WCI 5303308338 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
26A
WCI 215791938 WCI 215791938 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
26B
WCI 5303323459 WCI 5303323459 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29B
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
30A
WCI 216008900 WCI 216008900 Contact Us For Availability
30B
STARTER-PTC WCI 218721100 Contact Us For Availability
31
WCI 5303323460 WCI 5303323460 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 215919115 WCI 215919115 Contact Us For Availability
36
WCI 215919167 WCI 215919167 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
WCI 215919411 WCI 215919411 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 Contact Us For Availability
37C
BAND-DECORATIVE, CHROME (NOT ILLUSTRATED) WCI 218676001 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRAT WCI 5308012296 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
43
WCI 218390522 WCI 218390522 Contact Us For Availability
43
WCI 218390525 WCI 218390525 Contact Us For Availability
43A
WCI 218703001 WCI 218703001 Contact Us For Availability
43B
SPRING-ROLLER ADJ (NOT ILLUSTRATED) WCI 5308009790 Contact Us For Availability
44
WCI 218713600 WCI 218713600 Contact Us For Availability
44
TRIM-GLASS SHELF, 12.59``, REAR WCI 215919810 Contact Us For Availability
44
TRIM-GLASS SHELF,13.07`` ,REAR WCI 215919811 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 0. WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 218390523 WCI 218390523 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
52
WCI 218462000 WCI 218462000 Contact Us For Availability
55A
WCI 218720300 WCI 218720300 Contact Us For Availability
55B
CAP-WATER VALVE (NOT ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
