Model Electrolux FRT21NNGW0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER

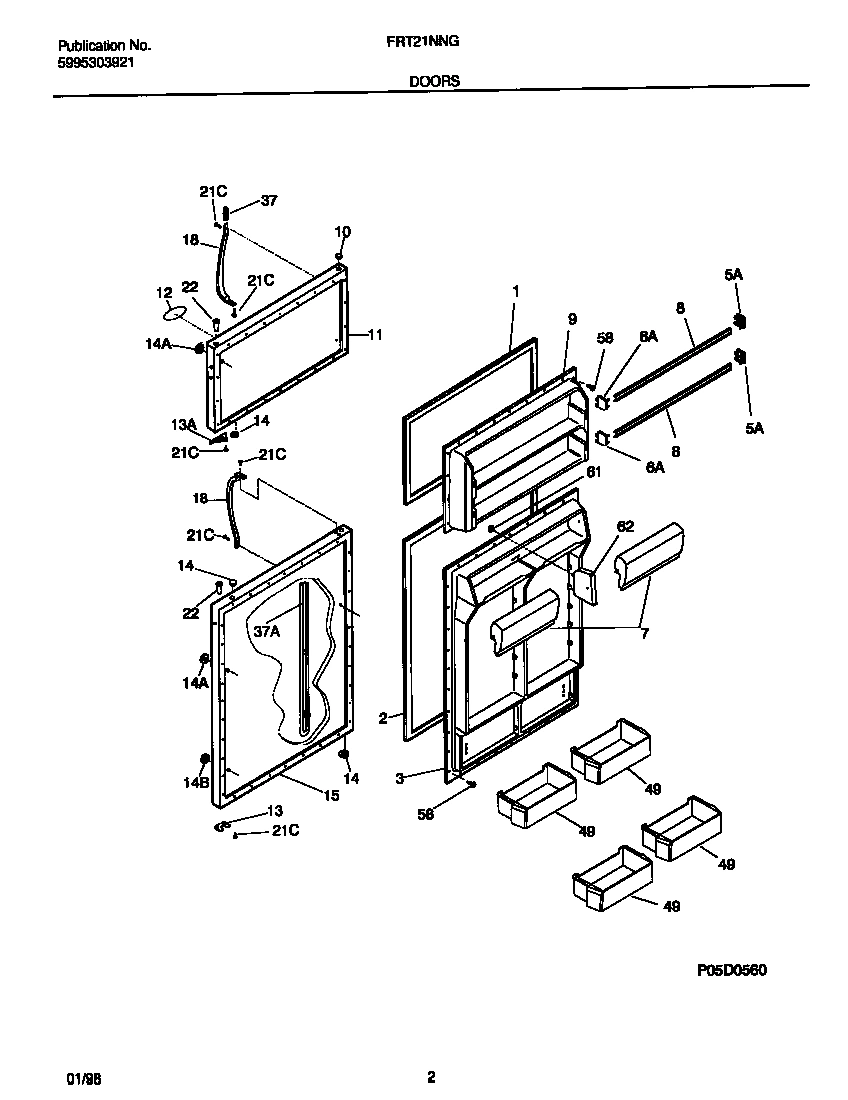

02 - DOORS

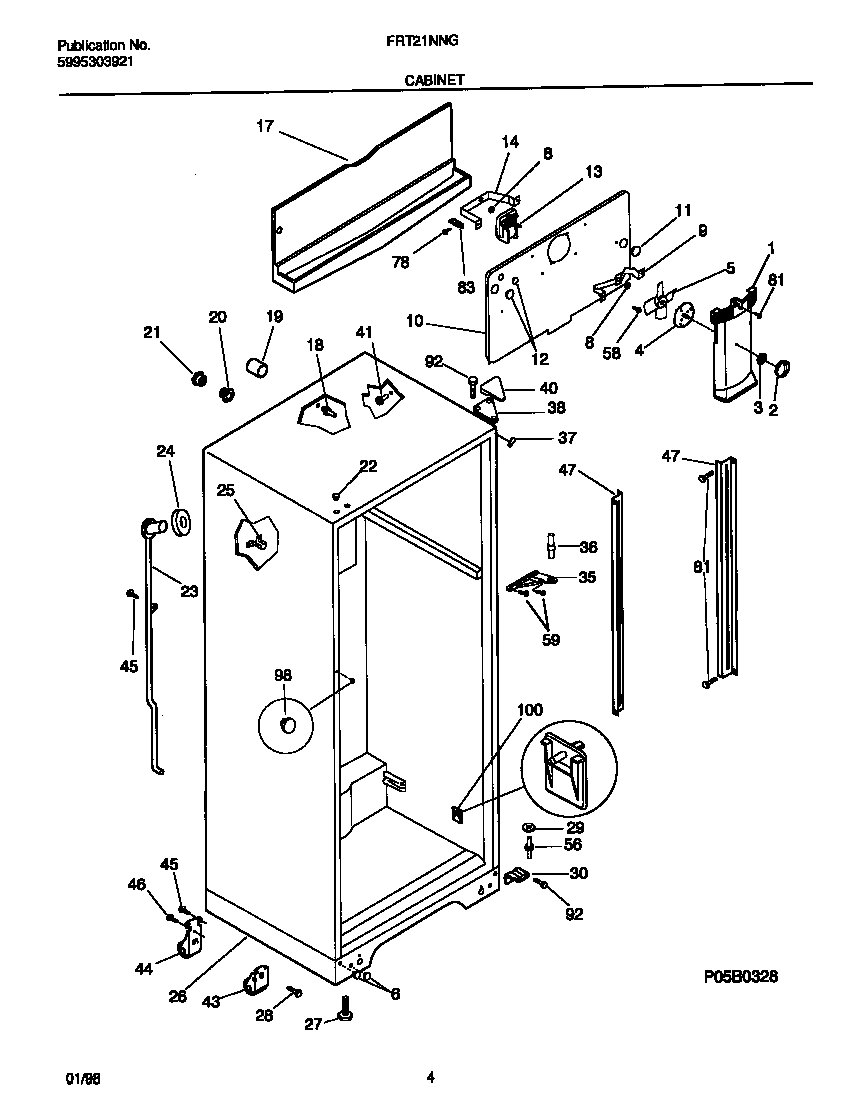

03 - CABINET

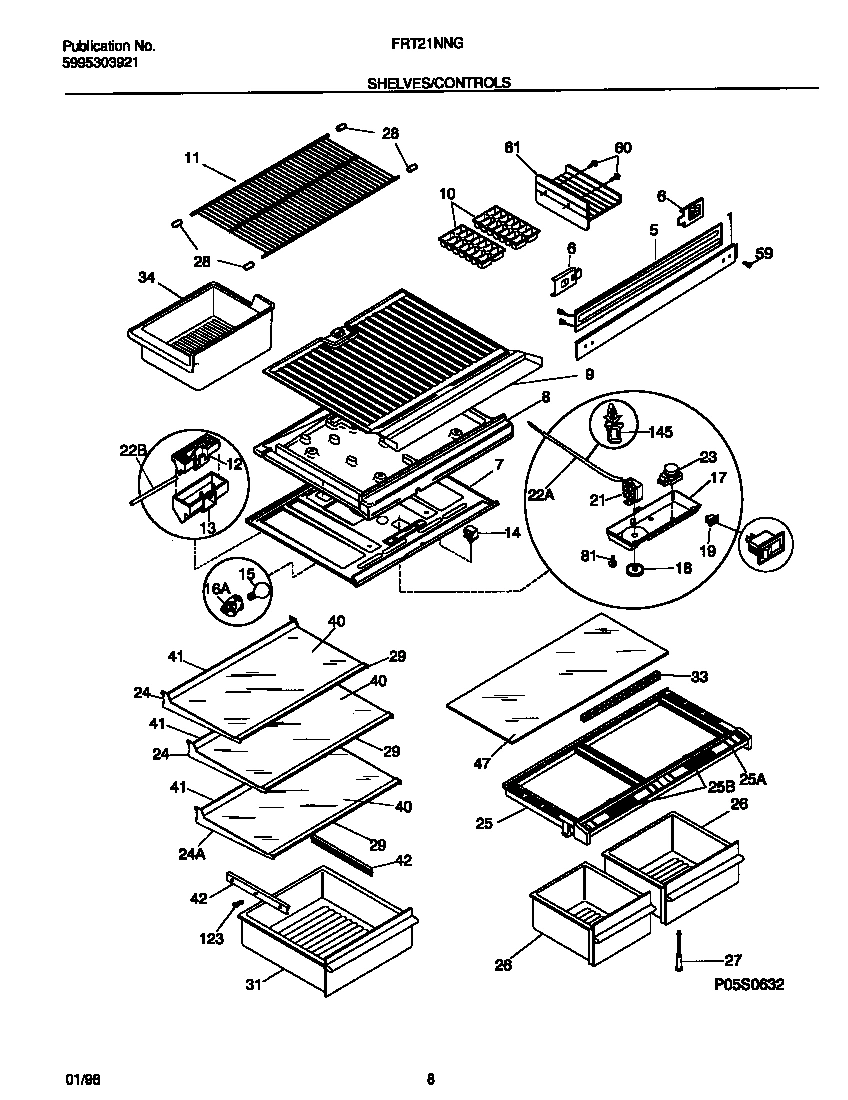

04 - SHELVES/CONTROLS

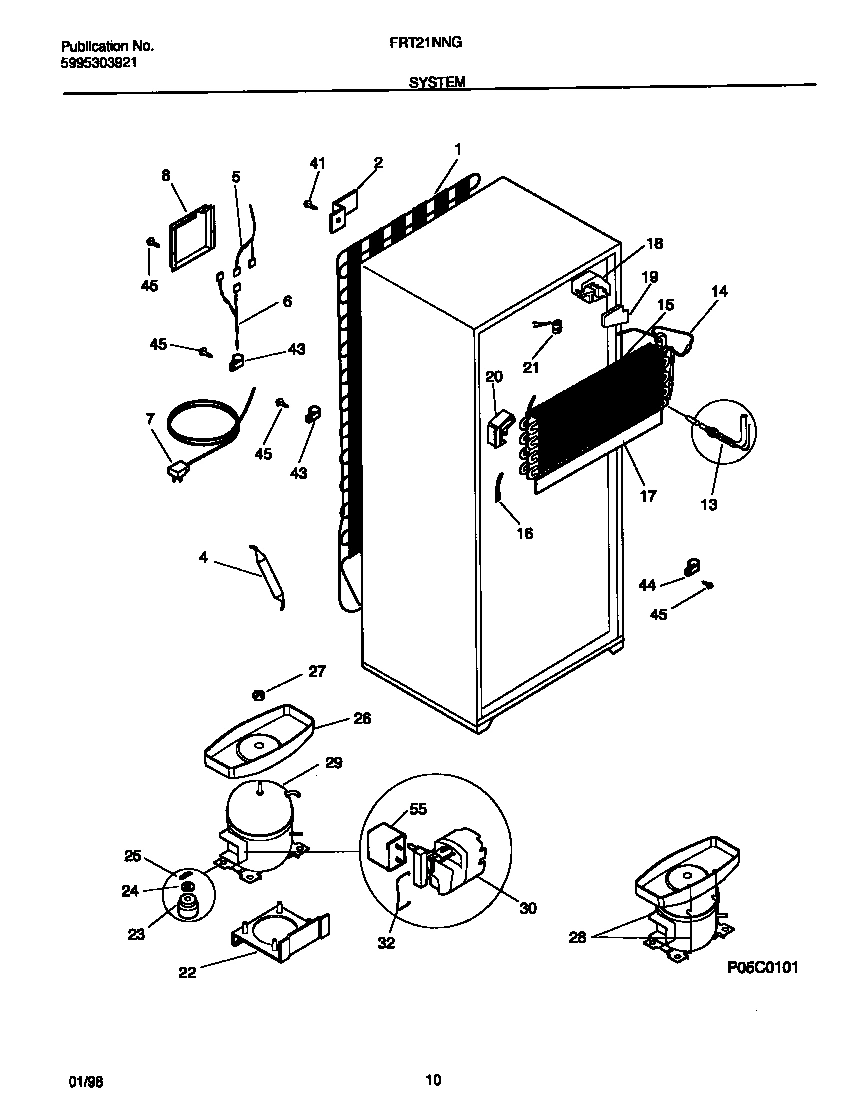

05 - SYSTEM

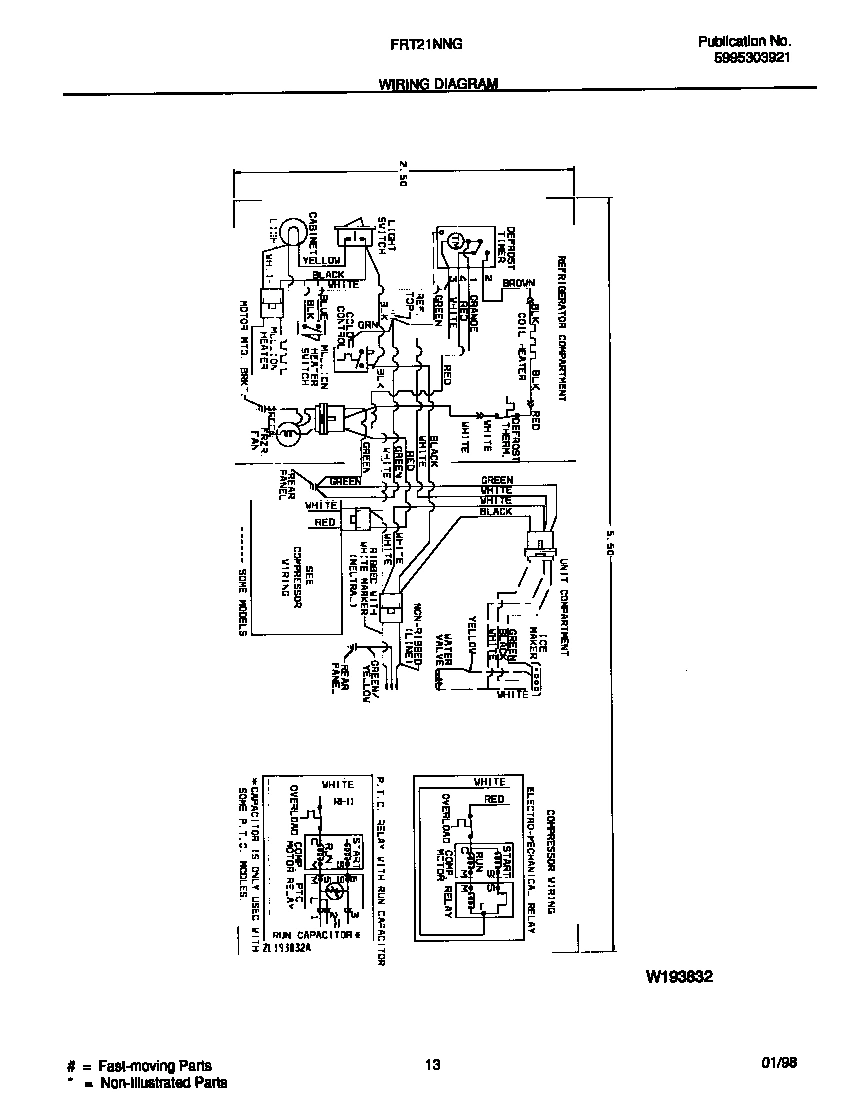

06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux FRT21NNGW0 REFRIGERATOR
*86041
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*86047
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*86053
SPACER-SHELF WCI 218159700 Contact Us For Availability
*86054
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*86057
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*86058
WCI 218754500 WCI 218754500 Contact Us For Availability
*86061
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218651900 WCI 218651900 Contact Us For Availability
1
WCI 218651901 WCI 218651901 Contact Us For Availability
1
WCI 218651902 WCI 218651902 Contact Us For Availability
1
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730610 No Longer Available
2
WCI 218730609 WCI 218730609 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 218767600 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
WCI 218738800 WCI 218738800 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218781400 WCI 218781400 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
WCI 5303288243 WCI 5303288243 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076405 WCI 215076405 Contact Us For Availability
14
PLUG-BUTTON, WHITE, REFR DOOR FRONT, LOWER WCI 218074001 Contact Us For Availability
14
WCI 5303322992 WCI 5303322992 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
SUPPORT - EVAP COVER, (2) WCI 215245000 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
WCI 215919170 WCI 215919170 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215774100 WCI 215774100 Contact Us For Availability
25
WCI 5303206538 WCI 5303206538 Contact Us For Availability
25
WCI 5303311404 WCI 5303311404 Contact Us For Availability
25
WCI 5303311411 WCI 5303311411 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 218605101 WCI 218605101 Contact Us For Availability
26
WCI 218605102 WCI 218605102 Contact Us For Availability
26
WCI 218605103 WCI 218605103 Contact Us For Availability
26
WCI 215791938 WCI 215791938 Contact Us For Availability
26
WCI 5303323459 WCI 5303323459 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, UPPER FZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ,HEX HD SEMS ,1/4-28 X 2.75,(2 WCI 5303271412 Contact Us For Availability
29
WCI 218666700 WCI 218666700 Contact Us For Availability
29
WCI 215919405 WCI 215919405 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
30
WCI 218721100 WCI 218721100 Contact Us For Availability
31
WCI 5303323460 WCI 5303323460 Contact Us For Availability
33
GASKET-PAN COVER, 13.25``, RH WCI 5303200329 Contact Us For Availability
35
WCI 218220103 WCI 218220103 Contact Us For Availability
35
BRACKET-CTR HINGE, LIGHT GREY WCI 218220101 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
37
WCI 215782300 No Longer Available
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
BAND-DECORATIVE,CHROME WCI 218676001 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 5303321083 WCI 5303321083 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
40
WCI 5304400454 WCI 5304400454 Contact Us For Availability
40
WCI 218390524 WCI 218390524 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
43
ROLLER ASSY,FRONT ,(2) WCI 218703001 Contact Us For Availability
44
ROLLER ASSY,REAR ,(2) WCI 218713600 Contact Us For Availability
46
BOLT-ROLLER MTG,HEX WSHR HD ,1/4-28 X .5,(2) WCI 5308009762 Contact Us For Availability
47
WCI 218390523 WCI 218390523 Contact Us For Availability
47
WCI 218233300 WCI 218233300 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
98
WCI 215099718 WCI 215099718 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
