Model Electrolux FRT20NGCDA REFRIGERATOR – Common Parts & Diagrams

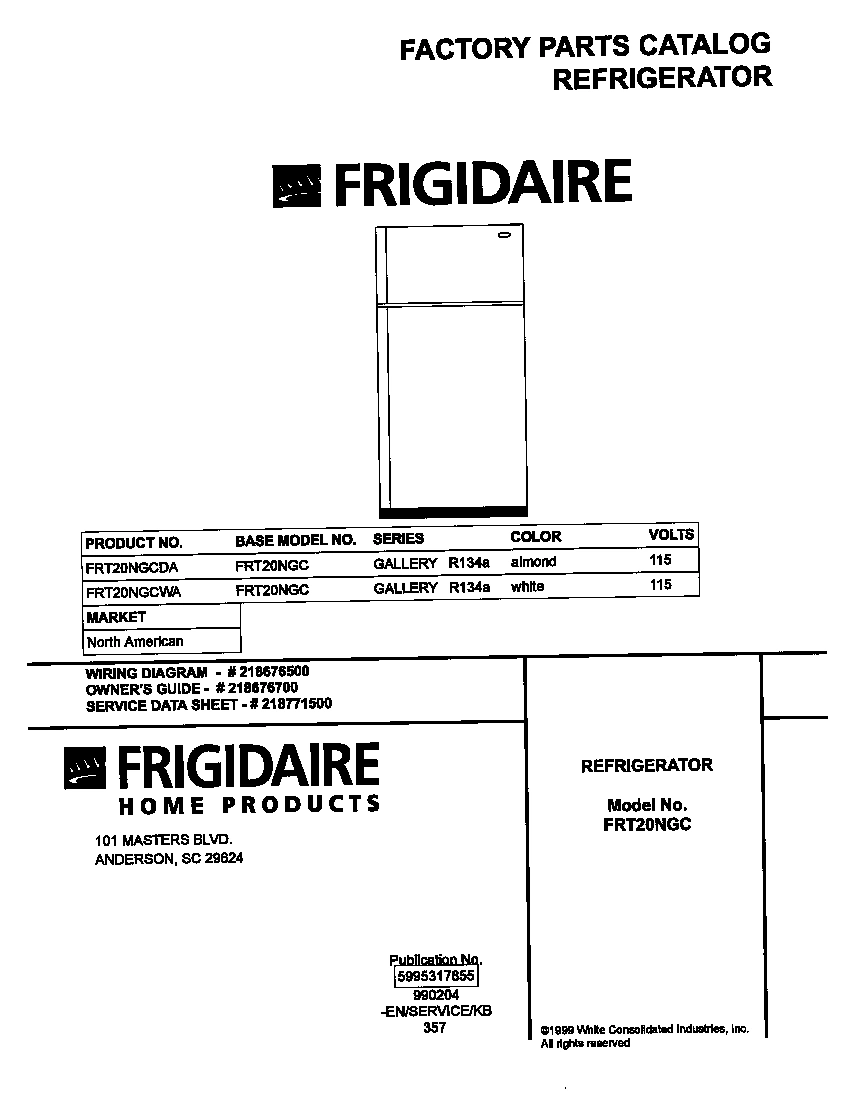

01 - COVER

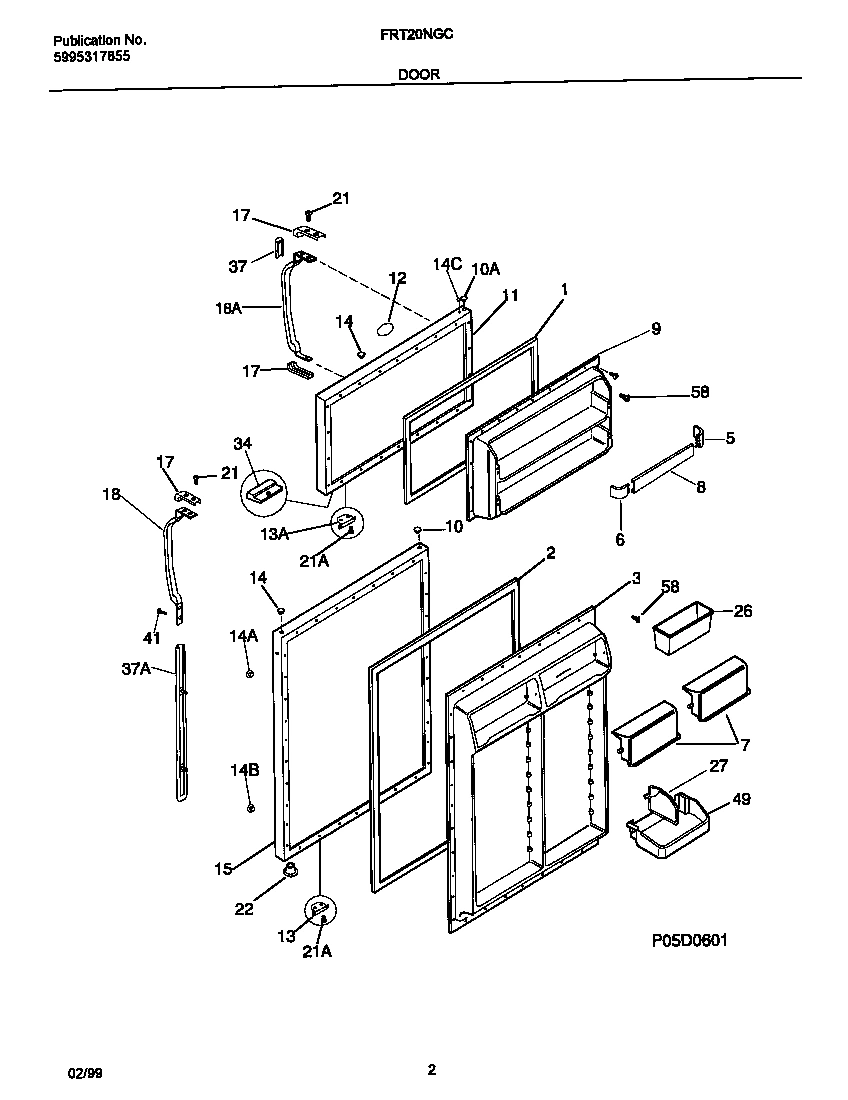

02 - DOORS

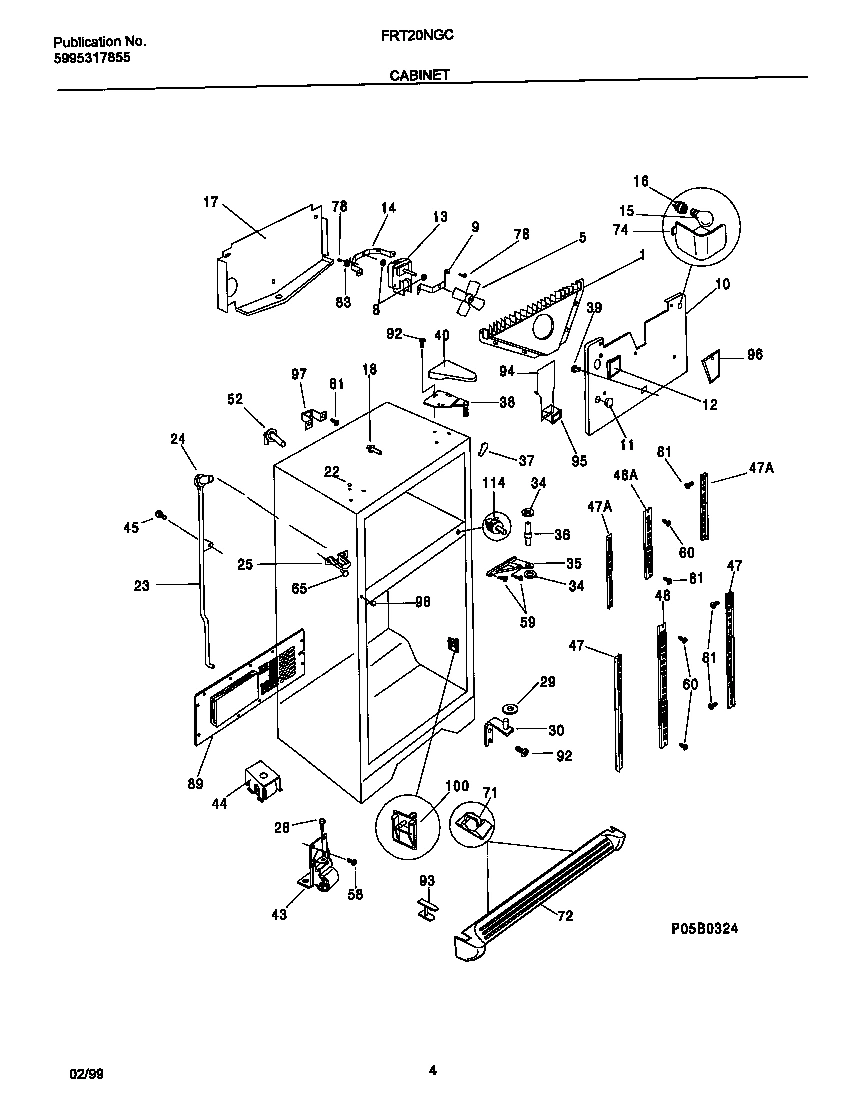

03 - CABINET

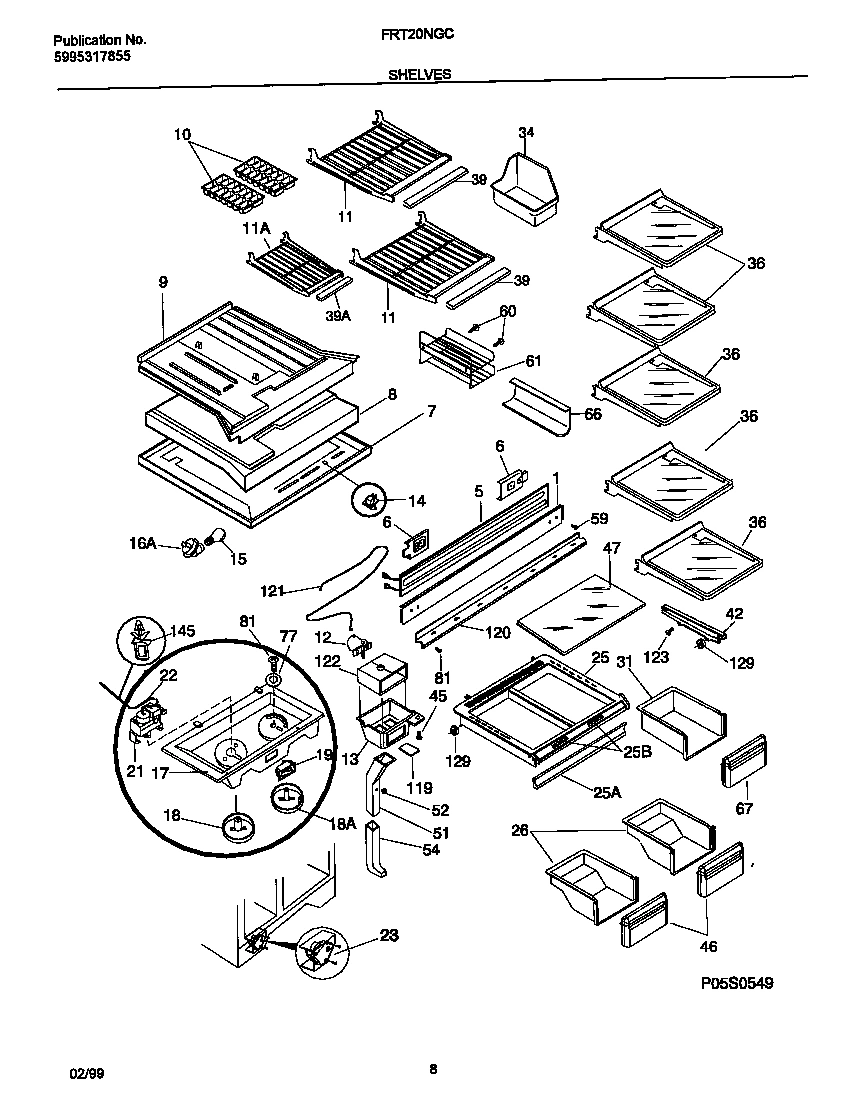

04 - SHELVES

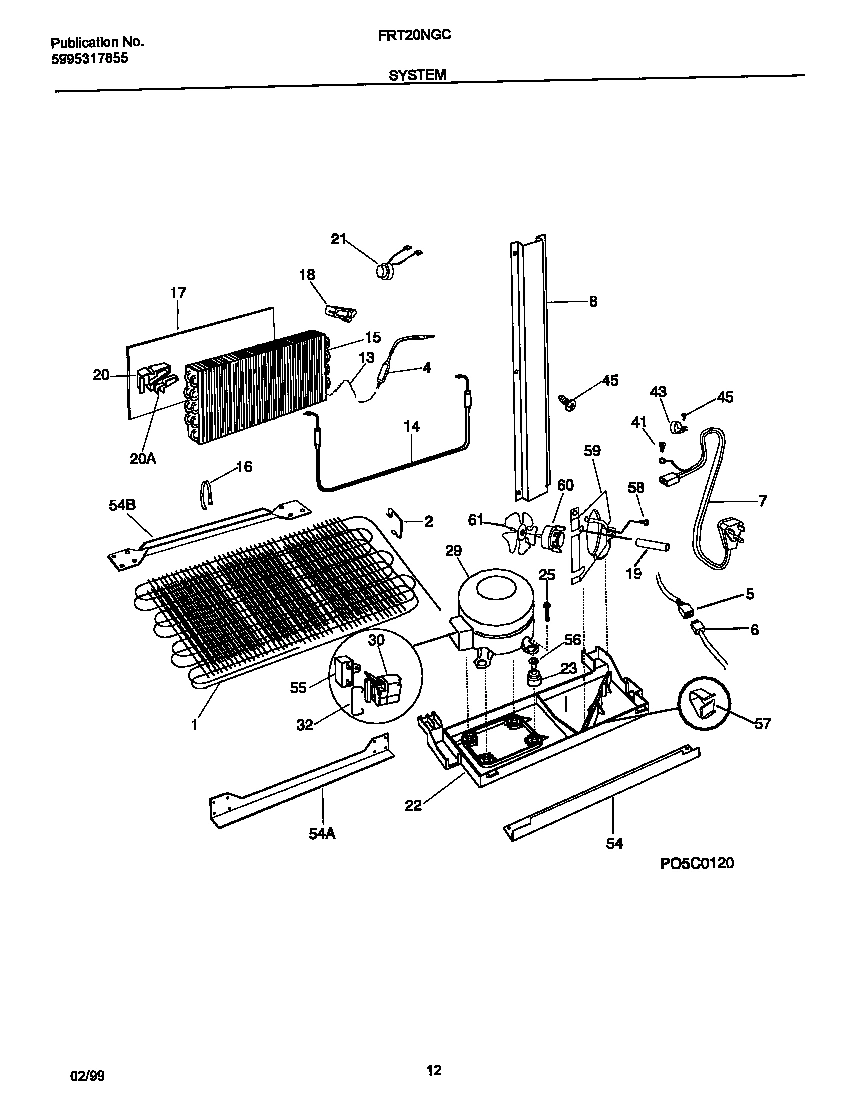

05 - SYSTEM

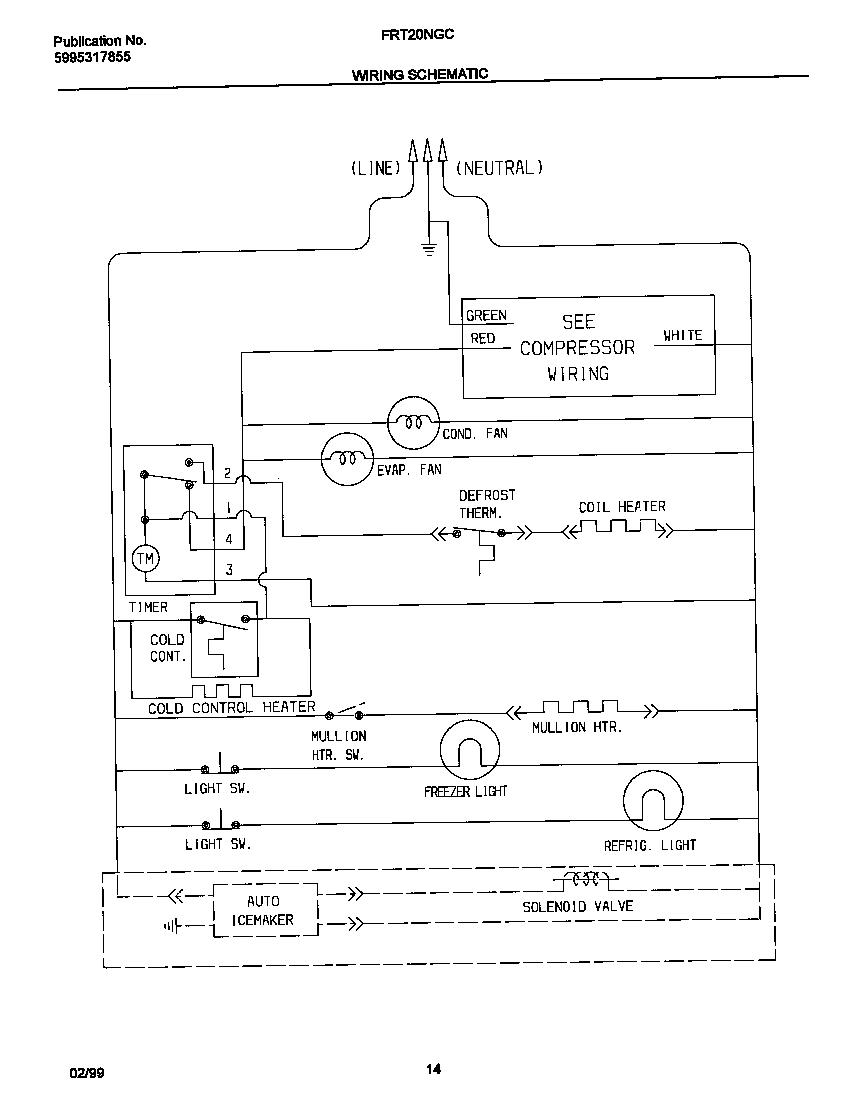

06 - WIRING DIAGRAM

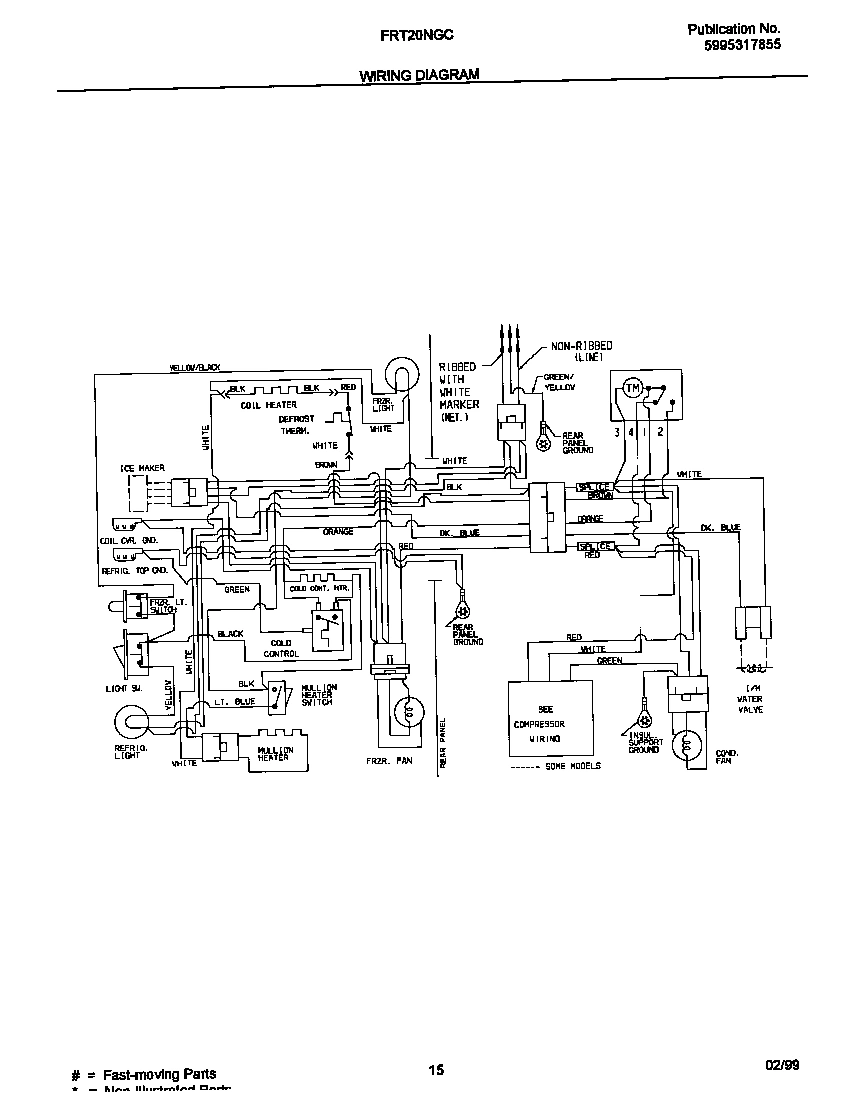

07 - WIRING DIAGRAM
Common parts from model Electrolux FRT20NGCDA REFRIGERATOR
*32522
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*32524
WCI 215314301 WCI 215314301 Contact Us For Availability
*32533
PLUG-BUTTON,CABINET LINER ,ICEMAKER HOLES WCI 5308016571 Contact Us For Availability
*32534
NUT-ANCHOR WCI 215935700 Contact Us For Availability
*32535
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*32537
WCI 215363801 WCI 215363801 Contact Us For Availability
*32538
WCI 215363901 WCI 215363901 Contact Us For Availability
*32539
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*32540
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*32541
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*32543
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*32544
HANGER-PAN/TRAY, RH WCI 215002401 Contact Us For Availability
*32545
INSULATION-AIR DUCT,REAR WCI 215133200 Contact Us For Availability
*32546
INSULATION-AIR DUCT,FRONT WCI 215133300 Contact Us For Availability
*32547
DAMPER-AIR,MEAT KPR DUCT WCI 215133000 Contact Us For Availability
*32548
GASKET/SPACER,ICE TRAY SHELF WCI 218430200 Contact Us For Availability
*32549
CLIP-SHELF WCI 215339900 Contact Us For Availability
*32550
WCI 215339100 WCI 215339100 Contact Us For Availability
*32551
WCI 215359900 WCI 215359900 Contact Us For Availability
*32552
WCI 215848000 WCI 215848000 Contact Us For Availability
*32554
SPACER TUBE WCI 5303289026 Contact Us For Availability
*32557
SEAL-FOAM,COND FAN SHROUD WCI 215226700 Contact Us For Availability
*32558
WCI 215004700 WCI 215004700 Contact Us For Availability
*32559
WCI 215004800 WCI 215004800 Contact Us For Availability
*32560
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
1
WCI 5303299279 WCI 5303299279 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 218730611 WCI 218730611 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 218671800 WCI 218671800 Contact Us For Availability
5
WCI 215634100 WCI 215634100 Contact Us For Availability
6
WCI 218845601 WCI 218845601 Contact Us For Availability
6
WCI 215501601 WCI 215501601 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218907501 WCI 218907501 Contact Us For Availability
8
WCI 215062700 WCI 215062700 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215058300 WCI 215058300 Contact Us For Availability
11
WCI 5303292383 WCI 5303292383 Contact Us For Availability
11
WCI 5303292384 WCI 5303292384 Contact Us For Availability
12
WCI 218634902 WCI 218634902 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 218629900 WCI 218629900 Contact Us For Availability
13
WCI 215208801 WCI 215208801 Contact Us For Availability
14
PLUG-BUTTON, WHITE, REFR DOOR FRONT, LOWER WCI 218074001 Contact Us For Availability
15
WCI 215812200 WCI 215812200 Contact Us For Availability
15
WCI 5303321220 WCI 5303321220 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 218696401 WCI 218696401 Contact Us For Availability
17
WCI 215932905 WCI 215932905 Contact Us For Availability
18
WCI 5303310731 WCI 5303310731 Contact Us For Availability
18
WCI 5303310732 WCI 5303310732 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
20
WCI 5303292405 WCI 5303292405 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
21
WCI 5304403880 WCI 5304403880 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 218660701 WCI 218660701 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
25
COVER-CRISPER PAN,WITH BEAM ,ROLLERS,TRIM,AND WCI 215216635 Contact Us For Availability
25
WCI 5303308349 WCI 5303308349 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
26
WCI 215298001 WCI 215298001 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
31
WCI 5303304632 WCI 5303304632 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
SHELF-``SPILL-SAFE``, FIXED, TEAL GRAPHICS WCI 215406115 Contact Us For Availability
37
WCI 215782300 WCI 215782300 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
39
WCI 08006983 WCI 08006983 Contact Us For Availability
39
WCI 215217539 WCI 215217539 Contact Us For Availability
39
WCI 5303284480 WCI 5303284480 Contact Us For Availability
40
WCI 5303318773 WCI 5303318773 Contact Us For Availability
41
SCREW,HEX HD SER WSHR ,8118 X 3/8 WCI 218754500 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
43
WCI 218615300 WCI 218615300 Contact Us For Availability
44
WCI 218738300 WCI 218738300 Contact Us For Availability
46
WCI 218278401 WCI 218278401 Contact Us For Availability
47
WCI 215209100 WCI 215209100 Contact Us For Availability
47
WCI 215359500 WCI 215359500 Contact Us For Availability
47
WCI 218390565 WCI 218390565 Contact Us For Availability
48
WCI 215209200 WCI 215209200 Contact Us For Availability
48
WCI 218877701 WCI 218877701 Contact Us For Availability
51
WCI 215132809 WCI 215132809 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215132901 WCI 215132901 Contact Us For Availability
54
WCI 215133100 WCI 215133100 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 218620901 WCI 218620901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
66
WCI 5304402116 WCI 5304402116 Contact Us For Availability
67
WCI 218278701 WCI 218278701 Contact Us For Availability
72
WCI 218359604 WCI 218359604 Contact Us For Availability
74
WCI 215423500 WCI 215423500 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 5303288947 WCI 5303288947 Contact Us For Availability
93
WCI 218362601 WCI 218362601 Contact Us For Availability
94
WCI 5303319993 WCI 5303319993 Contact Us For Availability
95
WCI 218663101 WCI 218663101 Contact Us For Availability
96
WCI 215775901 WCI 215775901 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
119
WCI 215132700 WCI 215132700 Contact Us For Availability
120
WCI 218019201 WCI 218019201 Contact Us For Availability
121
NUT,PUSH-ON ,DAMPER CABLE WCI 215209400 Contact Us For Availability
121
WCI 215364001 WCI 215364001 Contact Us For Availability
122
WCI 218561202 WCI 218561202 Contact Us For Availability
122
WCI 218561204 WCI 218561204 Contact Us For Availability
129
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129
BEARING-ROLLER WCI 5303299153 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
