Model Frigidaire FRT18QGFW3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

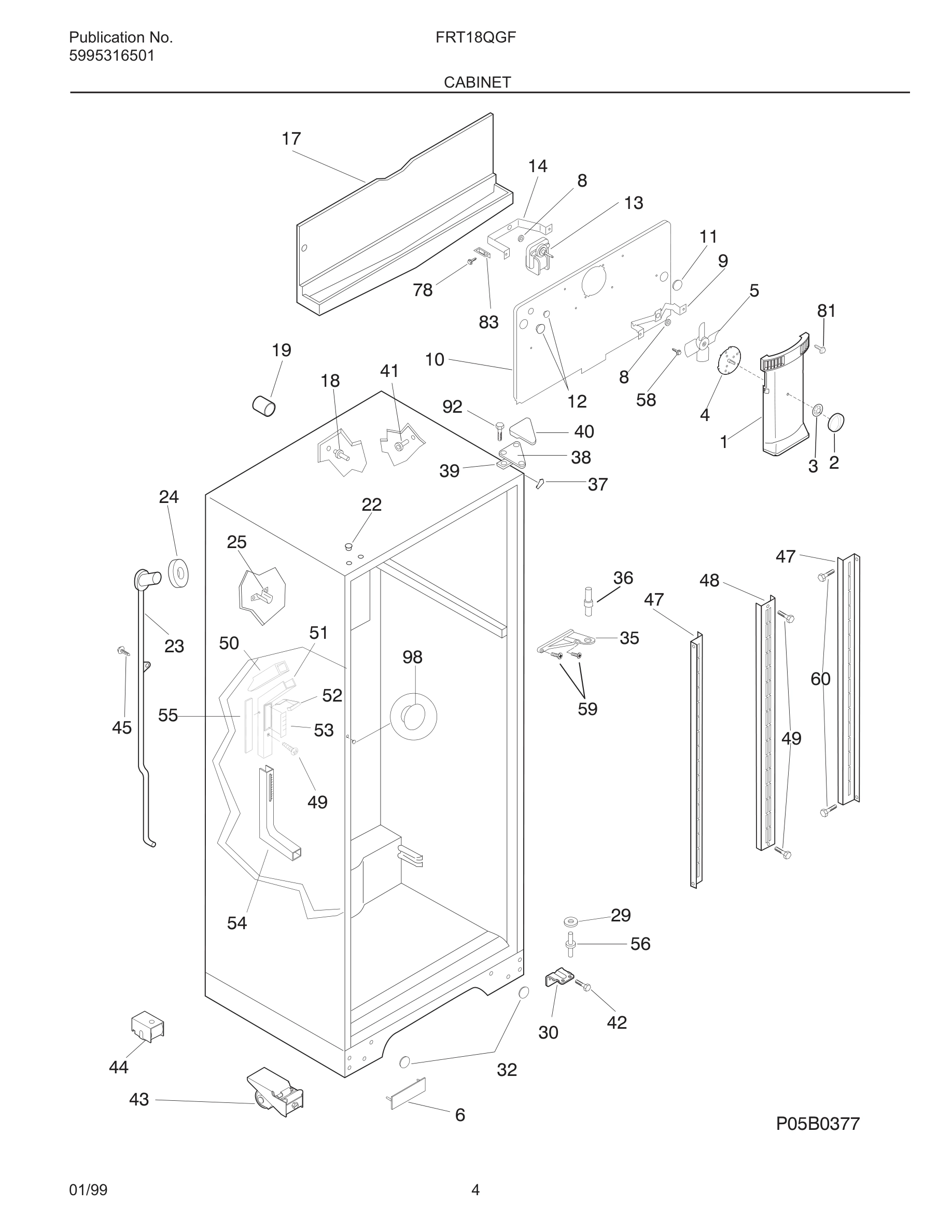

05 - CABINET

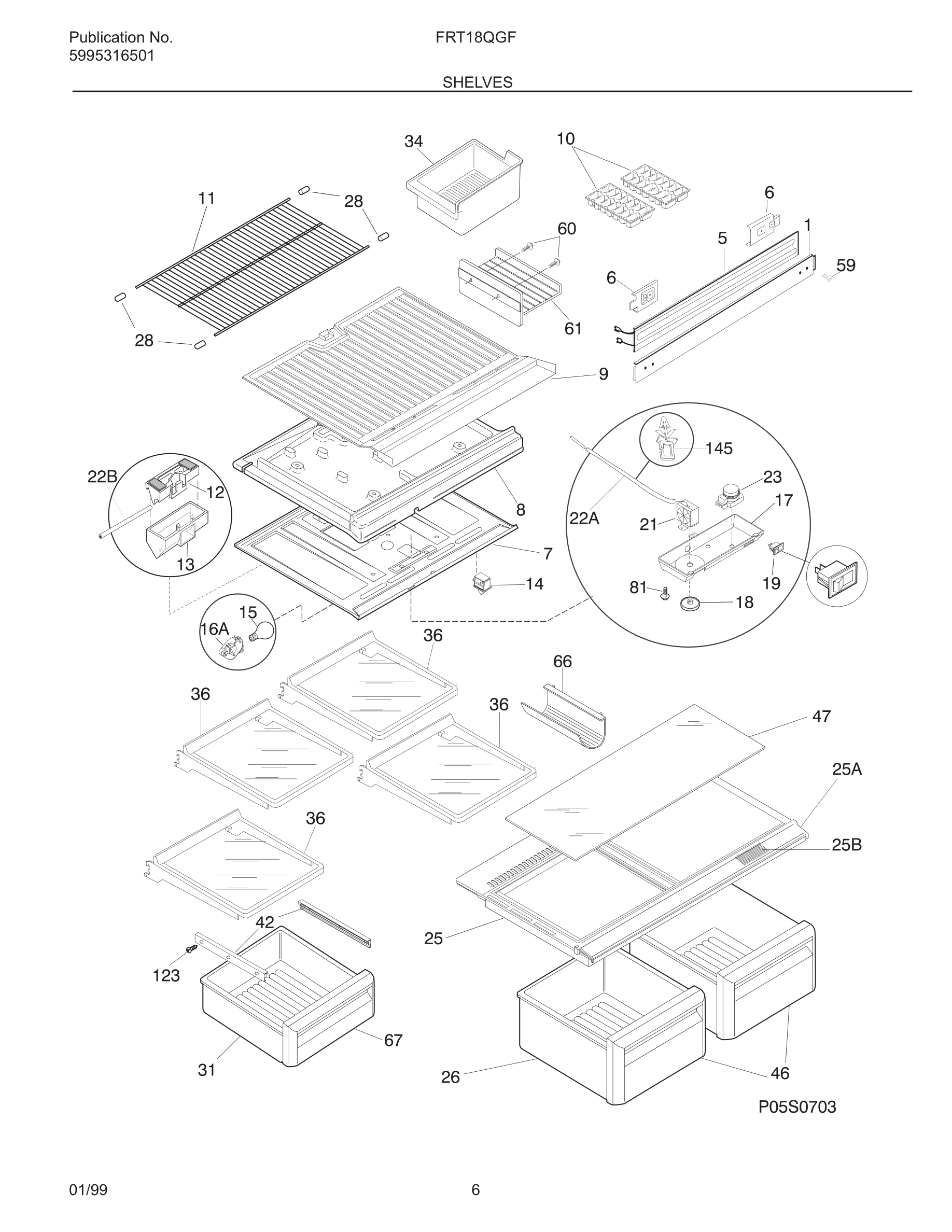

07 - SHELVES

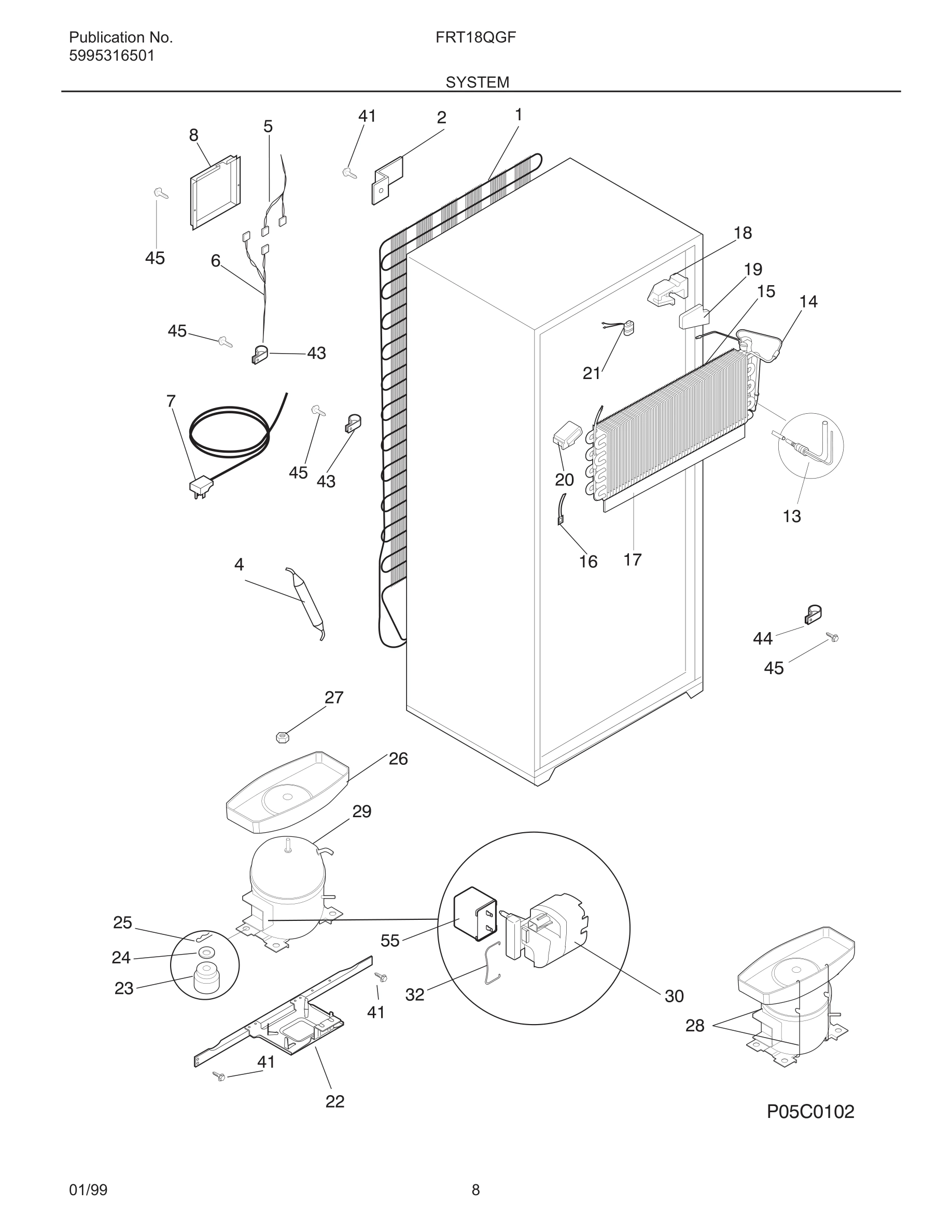

09 - SYSTEM
Common parts from model Frigidaire FRT18QGFW3 REFRIGERATOR
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Plug-button,cabinet liner ,icemaker holes WCI 5308016571 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 3916557 Contact Us For Availability
1
Mullion,white ,1 WCI 218874301 Contact Us For Availability
1#
Gasket-frzr door,white ,magnetic WCI 215608916 Contact Us For Availability
1#
Condenser WCI 218173900 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2*
Washer,ext tooth lock ,#10 WCI 5308009617 Contact Us For Availability
5#
Heater-mullion WCI 218781003 Contact Us For Availability
5#
Harness-wiring,control/divider WCI 218878500 Contact Us For Availability
6
Tapping Plate,mullion mtg ,(2) WCI 218845602 Contact Us For Availability
6#
Harness-wiring,compressor WCI 215257004 Contact Us For Availability
7
Panel-top,refr cavity WCI 218814800 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
7*
Screw,truss head ,8-10 x 1.750 WCI 5303001380 Contact Us For Availability
8
Divider,styrofoam WCI 218814600 Contact Us For Availability
8
Cover-wiring WCI 5303001197 Contact Us For Availability
8*#
Harness-wiring,control/divider WCI 3018900 Contact Us For Availability
9
Panel-bottom,frzr cavity WCI 218814700 Contact Us For Availability
10
Plug-button,white ,hinge brg hole WCI 5308000134 Contact Us For Availability
11
Shelf-freezer,fixed/flat ,full width ,wire WCI 5303288242 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 218429306 Contact Us For Availability
13A
Door Stop,white ,frzr section WCI 218249001 Contact Us For Availability
14B
Plug-button,white ,refr door front ,lower WCI 218074001 Contact Us For Availability
15#
Evaporator WCI 3206452 Contact Us For Availability
17
Control Box WCI 5303321455 Contact Us For Availability
17
Insulator-evap,plastic WCI 5303207493 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Insulation Block,RH WCI 5308013648 Contact Us For Availability
19
Insulation Plug,RH WCI 5303007287 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 5308017227 Contact Us For Availability
21*
Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability
21A
Screw,#8 oval head ,10-32CA x .625 ,cross rec WCI 218251900 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plate-compr mtg,with rail WCI 218802500 Contact Us For Availability
22B
Tube,PVC ,white ,@ air deflector ,insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303269702 Contact Us For Availability
24
Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Cover-crisper pan,with beam WCI 215686501 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
25A
Trim-crisper cover WCI 218905802 Contact Us For Availability
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
End Cap-shelf,protector ,upper fzr shelf WCI 3201150 No Longer Available
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
30*
Shim-lower hinge WCI 218368500 Contact Us For Availability
36
Shelf-"Spill-Safe",fixed ,teal graphics WCI 215406127 Contact Us For Availability
37
Trim-cabinet corner,white WCI 5303321081 Contact Us For Availability
39
Shim-upper hinge WCI 5303001037 Contact Us For Availability
40
Cover-upper hinge,white WCI 3206101 Contact Us For Availability
43
Roller Assy,front ,complete WCI 218724000 Contact Us For Availability
43*
Washer,.34 x .62 x .02 ,nylon WCI 5308011326 Contact Us For Availability
43*
Roller WCI 218703002 Contact Us For Availability
43*
Roller WCI 5308009760 Contact Us For Availability
43*
Bolt-roller adj WCI 5308009761 Contact Us For Availability
43*
Spring-roller adj WCI 5308009790 Contact Us For Availability
44
Roller Assy,metal housing WCI 5303283014 Contact Us For Availability
46
Front-crisper pan,(2) WCI 215357608 Contact Us For Availability
47
Channel-shelf mtg,side ,(2) WCI 218233300 Contact Us For Availability
47
Insert-pan cover,glass ,clear ,w/teal graphic WCI 218498125 Contact Us For Availability
48
Channel-shelf mtg,center WCI 5303292395 Contact Us For Availability
50
Insulation-air duct,upper WCI 5308009765 Contact Us For Availability
51
Duct-meat pan,upper WCI 3203820 Contact Us For Availability
52
Control-damper,meat pan duct WCI 5303001445 Contact Us For Availability
53
Label-meat kpr duct WCI 215410000 Contact Us For Availability
54
Duct-meat pan,lower WCI 5303001443 Contact Us For Availability
55
Insulation-air duct,lower WCI 5308009764 Contact Us For Availability
56
Pin-lower hinge WCI 218220300 Contact Us For Availability
61
Shelf-ice tray,wire WCI 215781501 Contact Us For Availability
66
Rack-wine WCI 5304402116 Contact Us For Availability
67
Front-meat pan WCI 215357811 Contact Us For Availability
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,white ,ctr hinge hole WCI 215099701 Contact Us For Availability
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
