Model Frigidaire FRT18QGFD3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER

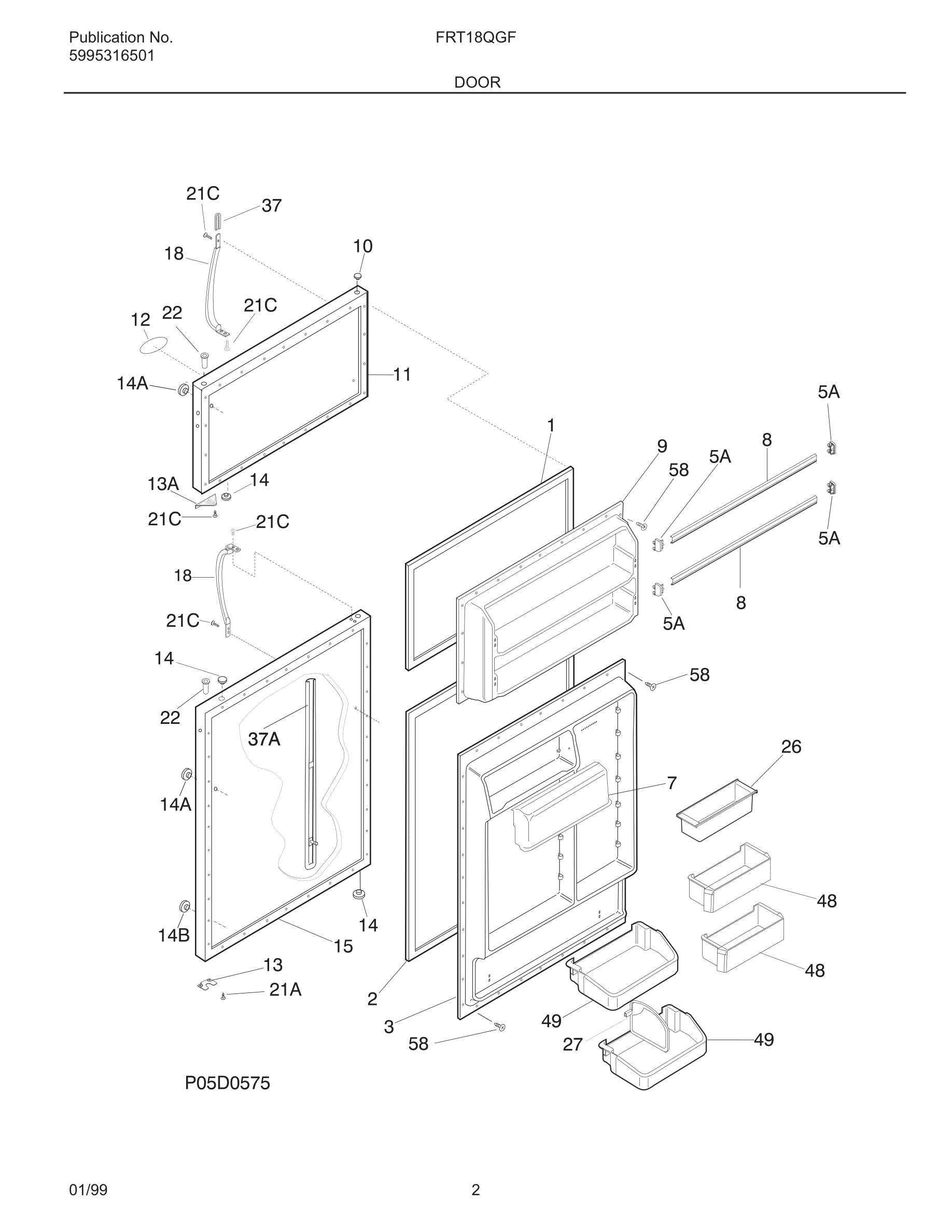

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
Common parts from model Frigidaire FRT18QGFD3 REFRIGERATOR
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Plug-button,cabinet liner ,icemaker holes WCI 5308016571 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 3916557 Contact Us For Availability
1
Mullion,almond ,1 WCI 218874311 Contact Us For Availability
1#
Condenser WCI 218173900 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2*
Washer,ext tooth lock ,#10 WCI 5308009617 Contact Us For Availability
5#
Heater-mullion WCI 218781003 Contact Us For Availability
5#
Harness-wiring,control/divider WCI 218878500 Contact Us For Availability
6
Tapping Plate,mullion mtg ,(2) WCI 218845602 Contact Us For Availability
6#
Harness-wiring,compressor WCI 215257004 Contact Us For Availability
7
Panel-top,refr cavity WCI 218814800 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
7*
Screw,truss head ,8-10 x 1.750 WCI 5303001380 Contact Us For Availability
8
Divider,styrofoam WCI 218814600 Contact Us For Availability
8
Cover-wiring WCI 5303001197 Contact Us For Availability
8*#
Harness-wiring,control/divider WCI 3018900 Contact Us For Availability
9
Panel-bottom,frzr cavity WCI 218814700 Contact Us For Availability
10
Plug-button,almond ,hinge brg hole WCI 5303001308 Contact Us For Availability
11
Shelf-freezer,fixed/flat ,full width ,wire WCI 5303288242 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 218429306 Contact Us For Availability
15#
Evaporator WCI 3206452 Contact Us For Availability
17
Trough-drain WCI 218725700 Contact Us For Availability
17
Control Box WCI 5303321455 Contact Us For Availability
17
Insulator-evap,plastic WCI 5303207493 Contact Us For Availability
18
Support-evap cover,(2) WCI 215245000 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Insulation Block,RH WCI 5308013648 Contact Us For Availability
19
Tube,rubber WCI 5303001198 Contact Us For Availability
19
Insulation Plug,RH WCI 5303007287 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 5308017227 Contact Us For Availability
21*
Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability
21A
Screw,#8 oval head ,10-32CA x .625 ,cross rec WCI 218251900 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plug-button,almond ,upr hinge holes WCI 215774911 Contact Us For Availability
22
Plate-compr mtg,with rail WCI 218802500 Contact Us For Availability
22B
Tube,PVC ,white ,@ air deflector ,insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303269702 Contact Us For Availability
24
Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Spout-drain tube,w/mounting pins WCI 215774100 Contact Us For Availability
25
Cover-crisper pan,with beam WCI 215686501 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
25A
Trim-crisper cover WCI 218905802 Contact Us For Availability
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
End Cap-shelf,protector ,upper fzr shelf WCI 3201150 No Longer Available
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
29
Washer,.34 x .62 x .05 ,nylon WCI 5308000007 Contact Us For Availability
30
Bracket-lower hinge WCI 3206136 Contact Us For Availability
30*
Shim-lower hinge WCI 218368500 Contact Us For Availability
30*
Tapping Plate,lower hinge ,(2) WCI 215882300 Contact Us For Availability
32
Plug-button,almond ,cabinet base ,(2) WCI 215217703 Contact Us For Availability
35
Bracket-ctr hinge,almond WCI 218220102 Contact Us For Availability
36
Shelf-"Spill-Safe",fixed ,teal graphics WCI 215406127 Contact Us For Availability
37
Trim-cabinet corner,almond WCI 5303321082 Contact Us For Availability
38
Bracket-upper hinge WCI 3206100 Contact Us For Availability
39
Shim-upper hinge WCI 5303001037 Contact Us For Availability
40
Cover-upper hinge,almond WCI 3206105 Contact Us For Availability
43
Roller Assy,front ,complete WCI 218724000 Contact Us For Availability
43*
Washer,.34 x .62 x .02 ,nylon WCI 5308011326 Contact Us For Availability
43*
Roller WCI 218703002 Contact Us For Availability
43*
Roller WCI 5308009760 Contact Us For Availability
43*
Bolt-roller adj WCI 5308009761 Contact Us For Availability
43*
Spring-roller adj WCI 5308009790 Contact Us For Availability
44
Roller Assy,metal housing WCI 5303283014 Contact Us For Availability
46
Front-crisper pan,(2) WCI 215357608 Contact Us For Availability
47
Channel-shelf mtg,side ,(2) WCI 218233300 Contact Us For Availability
47
Insert-pan cover,glass ,clear ,w/teal graphic WCI 218498125 Contact Us For Availability
48
Channel-shelf mtg,center WCI 5303292395 Contact Us For Availability
50
Insulation-air duct,upper WCI 5308009765 Contact Us For Availability
51
Duct-meat pan,upper WCI 3203820 Contact Us For Availability
52
Control-damper,meat pan duct WCI 5303001445 Contact Us For Availability
53
Label-meat kpr duct WCI 215410000 Contact Us For Availability
54
Duct-meat pan,lower WCI 5303001443 Contact Us For Availability
55
Insulation-air duct,lower WCI 5308009764 Contact Us For Availability
56
Pin-lower hinge WCI 218220300 Contact Us For Availability
61
Shelf-ice tray,wire WCI 215781501 Contact Us For Availability
66
Rack-wine WCI 5304402116 Contact Us For Availability
67
Front-meat pan WCI 215357811 Contact Us For Availability
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,almond ,ctr hinge hole WCI 215099711 Contact Us For Availability
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
