Model Electrolux FRT18JRCD4 REFRIGERATOR – Common Parts & Diagrams

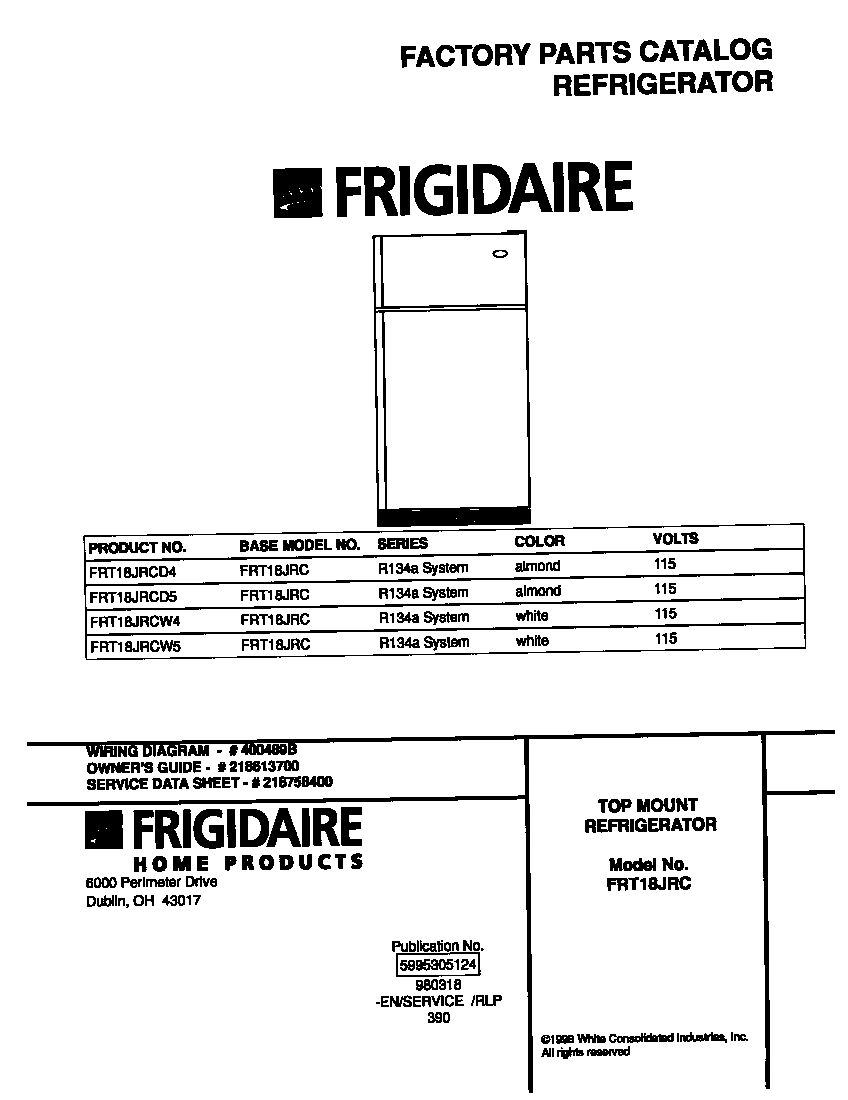

01 - COVER

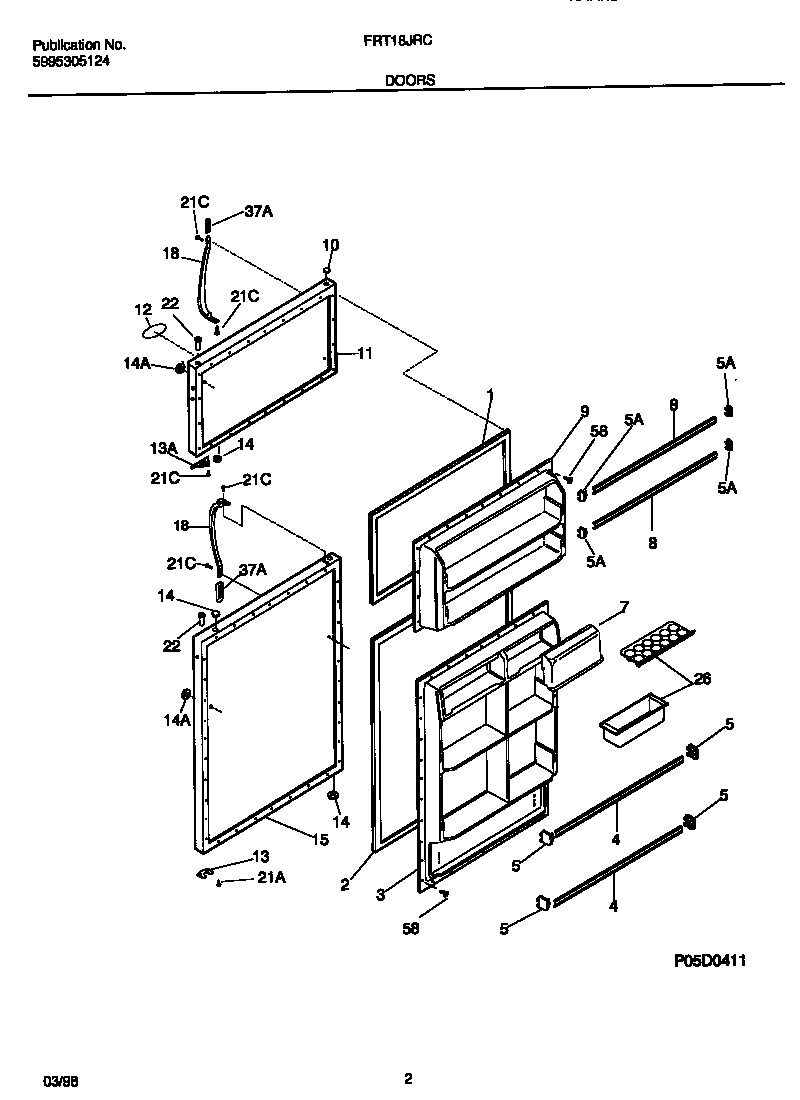

02 - DOORS

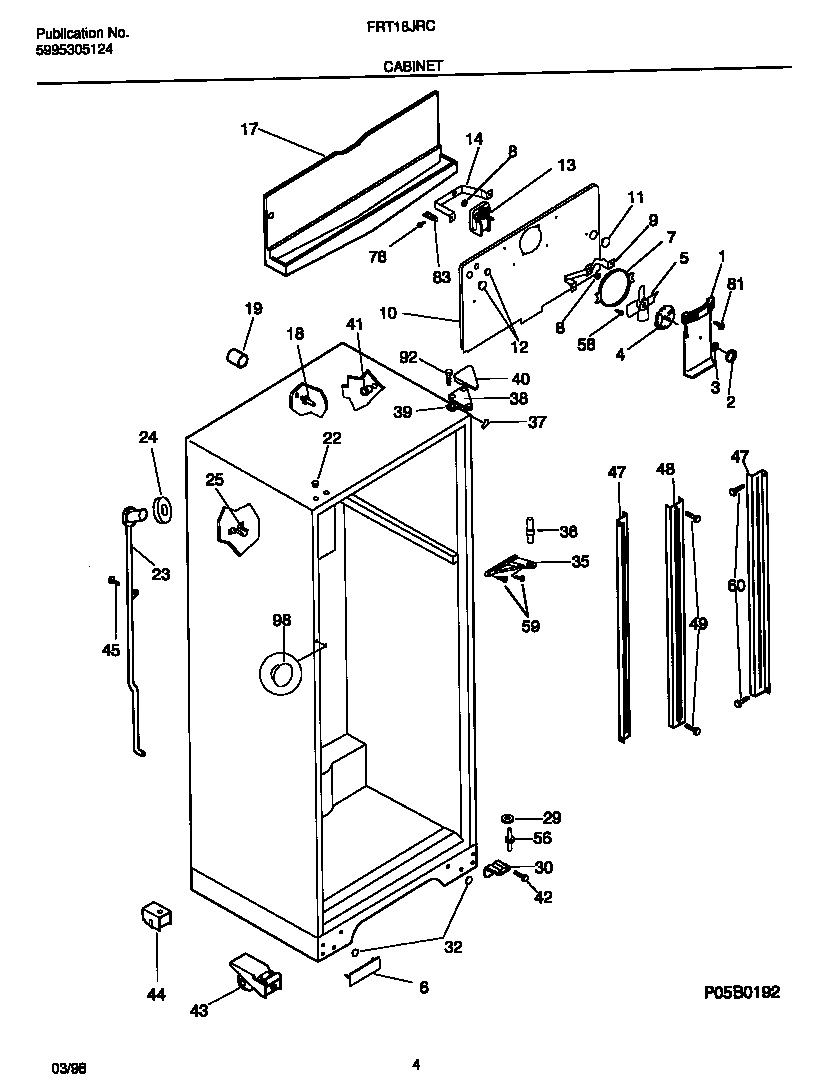

03 - CABINET

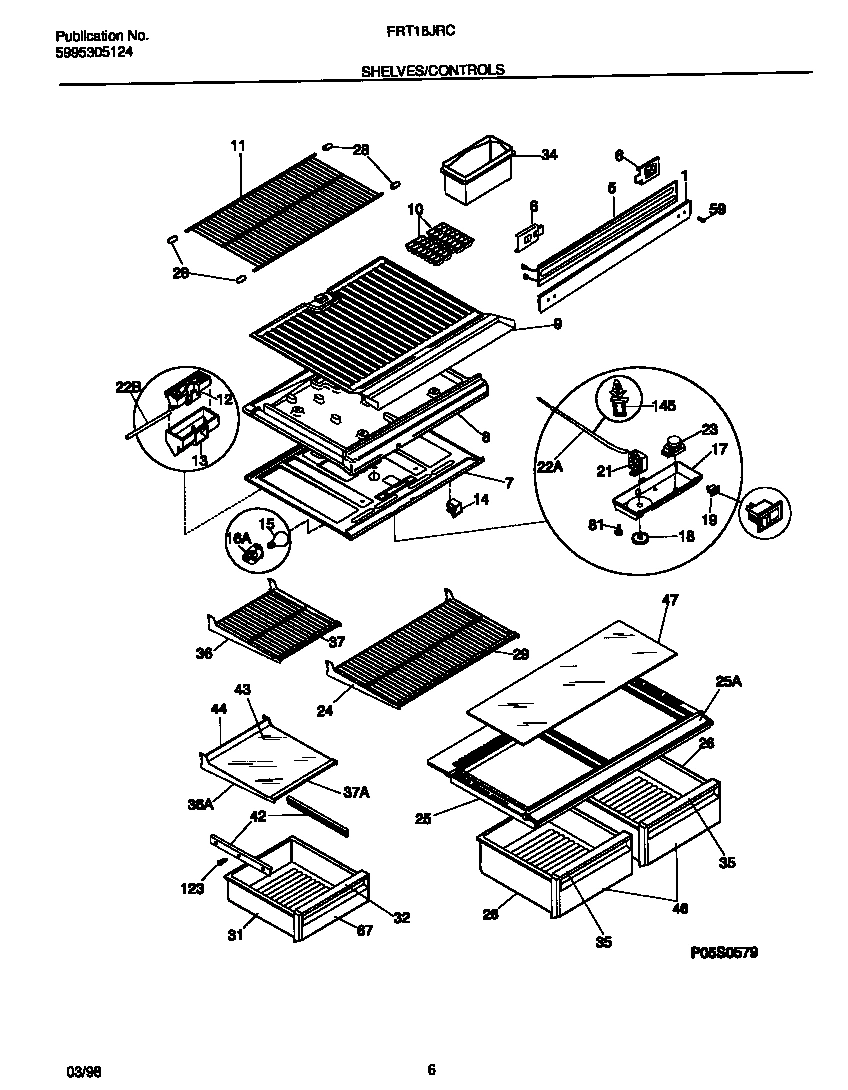

04 - SHELVES

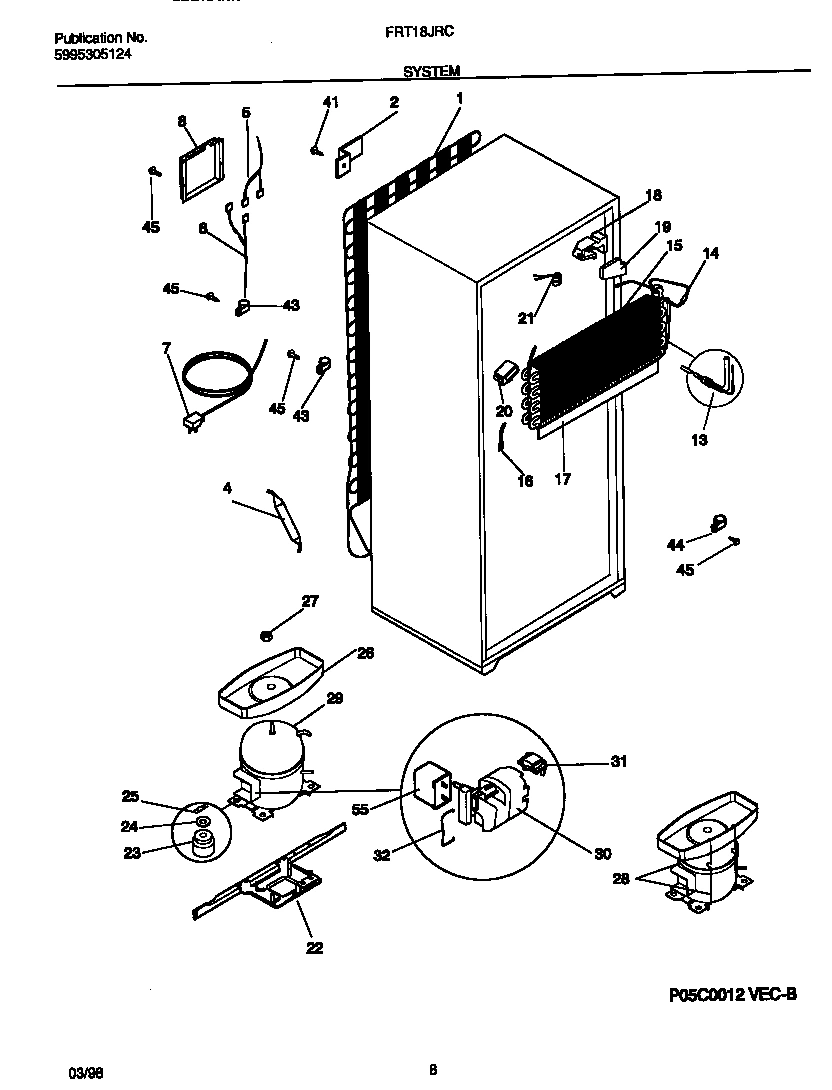

05 - SYSTEM
Common parts from model Electrolux FRT18JRCD4 REFRIGERATOR
*03368
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*03371
WCI 218368500 WCI 218368500 Contact Us For Availability
*03381
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*03385
EXTENSION, AIR DEFLECTOR, FOR 2-PC COVER WCI 5303200590 Contact Us For Availability
*03386
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*03387
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*03395
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*03396
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 218781711 WCI 218781711 Contact Us For Availability
1
WCI 218173900 WCI 218173900 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
3
WCI 218360001 WCI 218360001 Contact Us For Availability
5
WCI 218781003 WCI 218781003 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
HARNESS-WIRING, COMPRESSOR WCI 215257004 Contact Us For Availability
7
WCI 218287904 WCI 218287904 Contact Us For Availability
7
TOP PANEL-REFR, HASC WCI 218814800 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218814600 WCI 218814600 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218814700 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303288242 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218429306 WCI 218429306 Contact Us For Availability
15
EVAPORATOR WCI 3206452 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
18
WCI 5303307352 WCI 5303307352 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303305486 WCI 5303305486 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 ,CROSS RECE WCI 218251900 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303307355 WCI 5303307355 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
WCI 215774100 WCI 215774100 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, UPPER FZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215217504 WCI 215217504 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
OVERLOAD PROTECTOR WCI 5303276514 Contact Us For Availability
32
WCI 215217703 WCI 215217703 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
36
FRAME-HALF SHELF, CANTILEVER WCI 215919160 Contact Us For Availability
36
WCI 5303307356 WCI 5303307356 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 215217503 WCI 215217503 Contact Us For Availability
37
WCI 215919424 WCI 215919424 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
43
ROLLER ASSY, FRONT WCI 5300188673 Contact Us For Availability
43
WCI 218390517 WCI 218390517 Contact Us For Availability
44
ROLLER ASSY, METAL HOUSING WCI 5303283014 Contact Us For Availability
44
TRIM-GLASS SHELF, 12.13``, REAR WCI 215919809 Contact Us For Availability
46
WCI 215357605 WCI 215357605 Contact Us For Availability
47
WCI 218233300 WCI 218233300 Contact Us For Availability
47
WCI 218390516 WCI 218390516 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
49
SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2 WCI 215507300 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
67
WCI 215357805 WCI 215357805 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
