Model Frigidaire FRT18BNHZ0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER

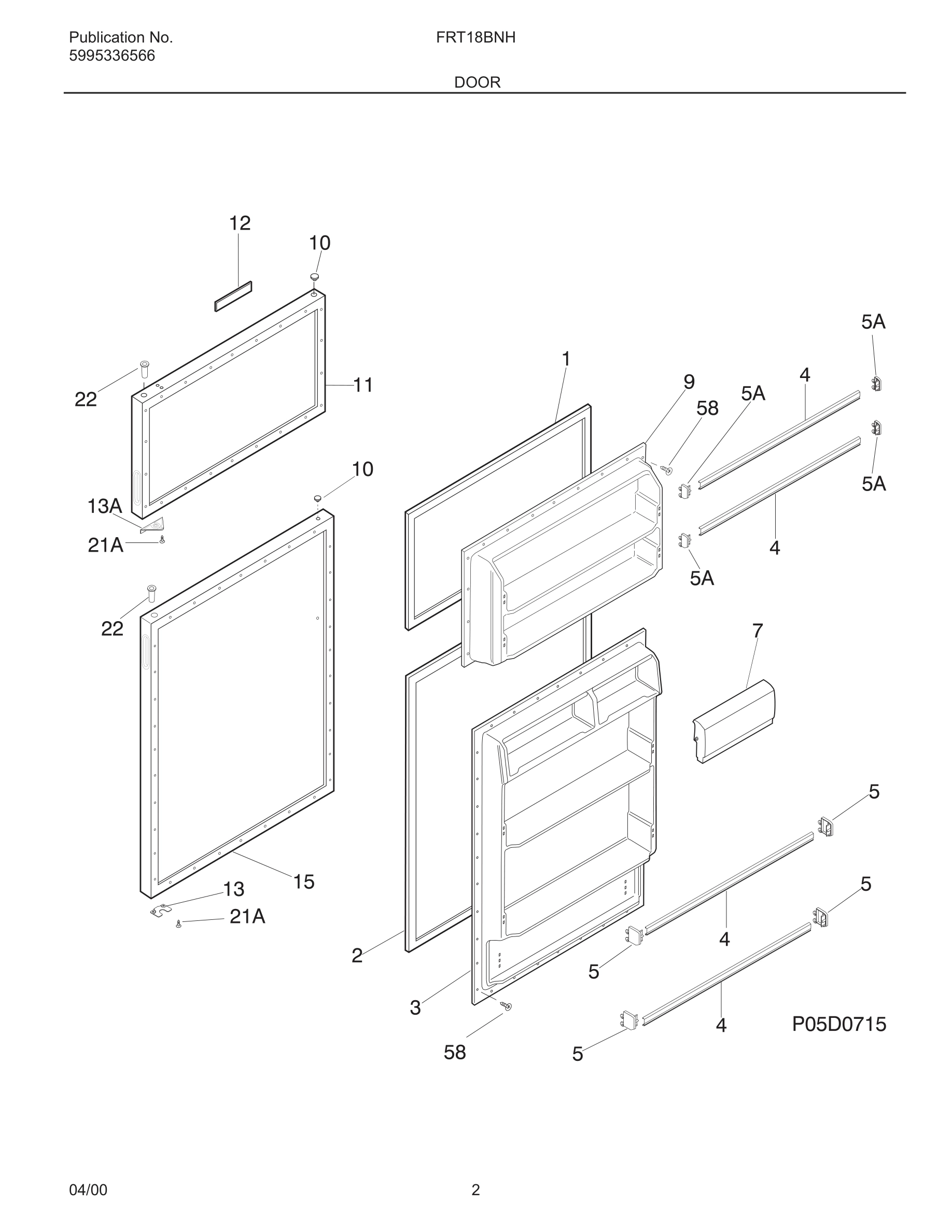

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Frigidaire FRT18BNHZ0 REFRIGERATOR
#
Hot Tube Repair Kit,Service WCI 3916557 Contact Us For Availability
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Plug-button,cab liner holes WCI 5308016571 Contact Us For Availability
1#
Gasket-frzr door,white ,magnetic WCI 215608916 Contact Us For Availability
1#
Condenser WCI 218173900 Contact Us For Availability
1*
Spacer-cond tube,black WCI 5303208866 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
3
Panel-inner door,refr WCI 218360001 Contact Us For Availability
5#
Wiring Harness,control/divider WCI 218878500 Contact Us For Availability
6#
Wiring Harness,compressor WCI 215257004 Contact Us For Availability
7
Door-dairy,10.71" wide ,white ,no graphics WCI 218287801 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
8
Divider,styrofoam ,w/foil tape WCI 218872903 Contact Us For Availability
8
Cover-wiring WCI 5303001197 Contact Us For Availability
10
Plug-button,white ,hinge brg hole WCI 5308000134 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 218429306 Contact Us For Availability
13A
Door Stop,white ,frzr section WCI 218249001 Contact Us For Availability
15#
Evaporator WCI 3206452 Contact Us For Availability
17
Control Box WCI 5304414816 Contact Us For Availability
17
Insulator-evap,plastic WCI 5303207493 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Insulation Block,RH WCI 5308013648 Contact Us For Availability
19
Insulation Plug,RH WCI 5303007287 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 5308017227 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plate-compr mtg,with rail WCI 218802500 Contact Us For Availability
22B
Tube,PVC ,white ,@ air deflector ,insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303269702 Contact Us For Availability
24
Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Shelf,sliding ,wire ,refr section WCI 5303307451 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Cover-crisper pan,with beam ,less insert WCI 5303207340 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
29*
Washer,.34 x .62 x .10 ,nylon WCI 5308000186 No Longer Available
29*
Washer,.34 x .62 x .02 ,nylon WCI 5308011326 Contact Us For Availability
30
Cover-meat pan WCI 5303285319 Contact Us For Availability
30*
Shim-lower hinge WCI 218368500 Contact Us For Availability
31
Pan-meat WCI 3206209 Contact Us For Availability
37
Trim-cabinet corner,white WCI 5303321081 Contact Us For Availability
40
Cover-upper hinge,white WCI 3206101 Contact Us For Availability
41*
Washer,ext tooth lock ,#10 ,grounding WCI 5308009617 Contact Us For Availability
46
Front-crisper pan WCI 5303304709 Contact Us For Availability
47
Insert-pan cover,glass WCI 5303281398 Contact Us For Availability
67
Front-meat pan WCI 5303309966 Contact Us For Availability
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,white WCI 215099701 Contact Us For Availability
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
