Model Electrolux FRT16PDFW0 REFRIGERATOR – Common Parts & Diagrams

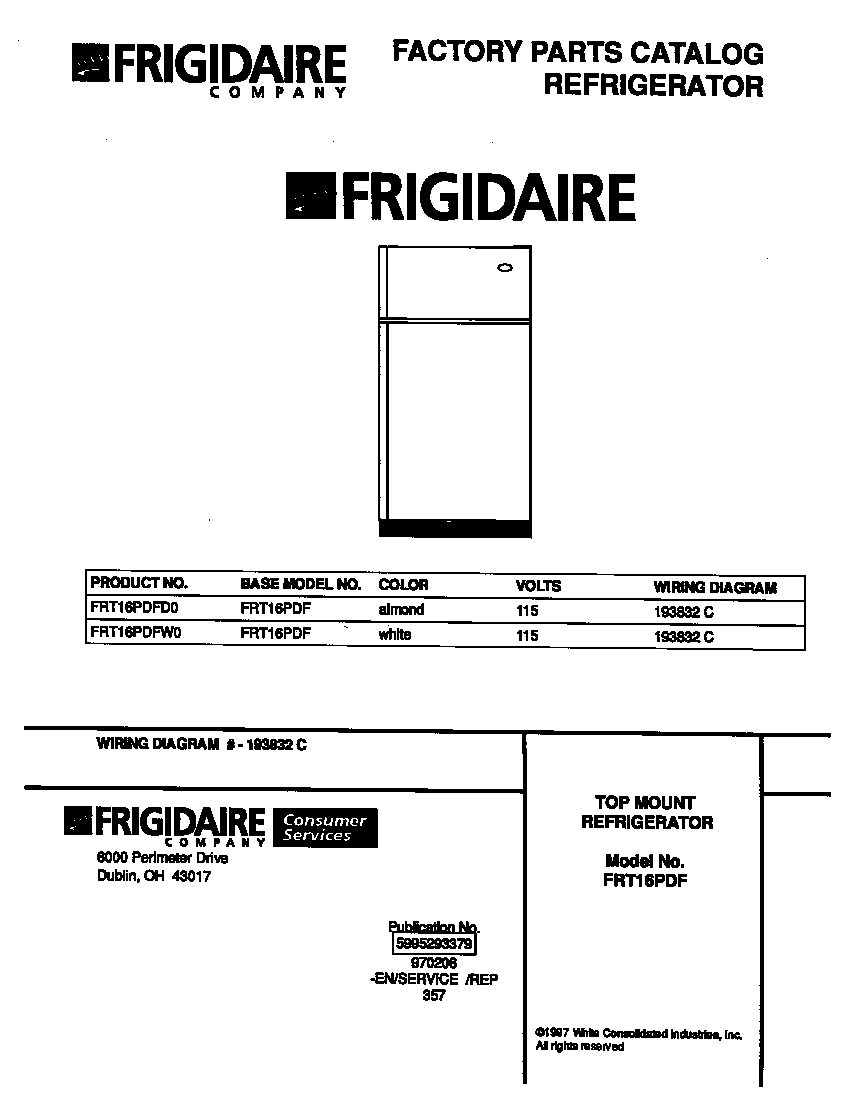

01 - COVER

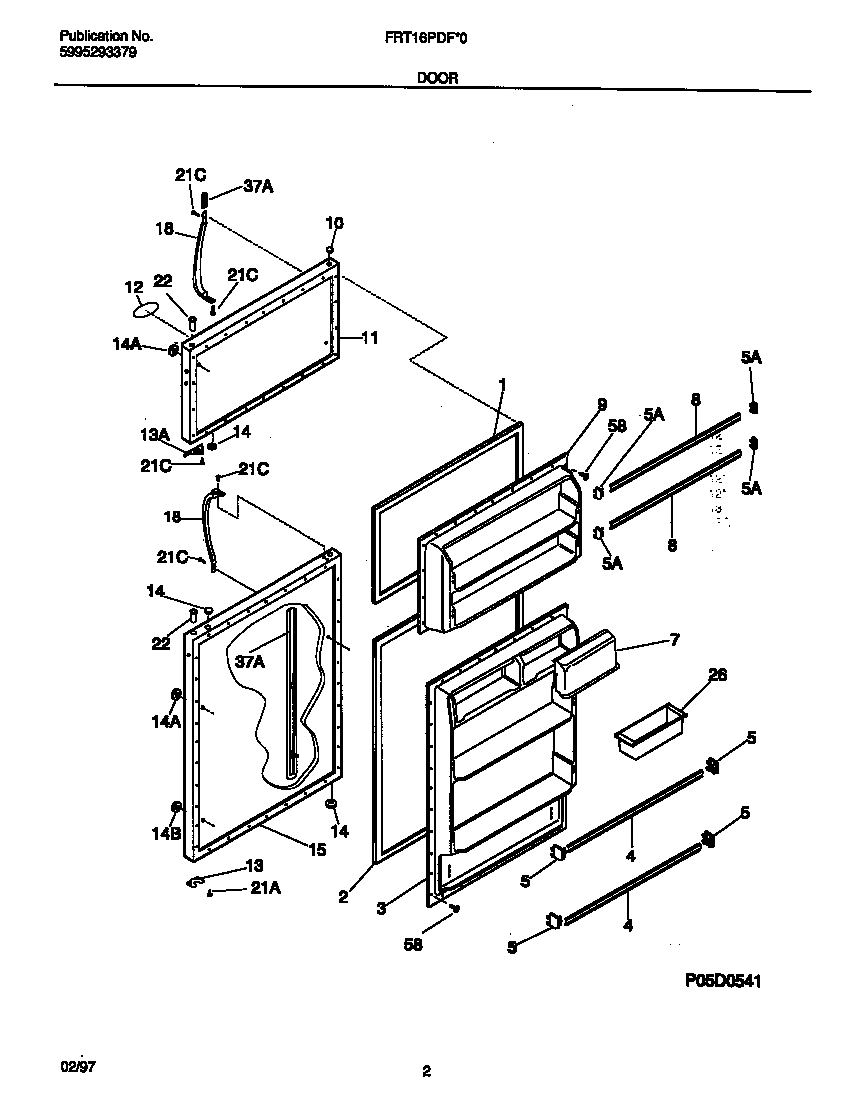

02 - DOOR

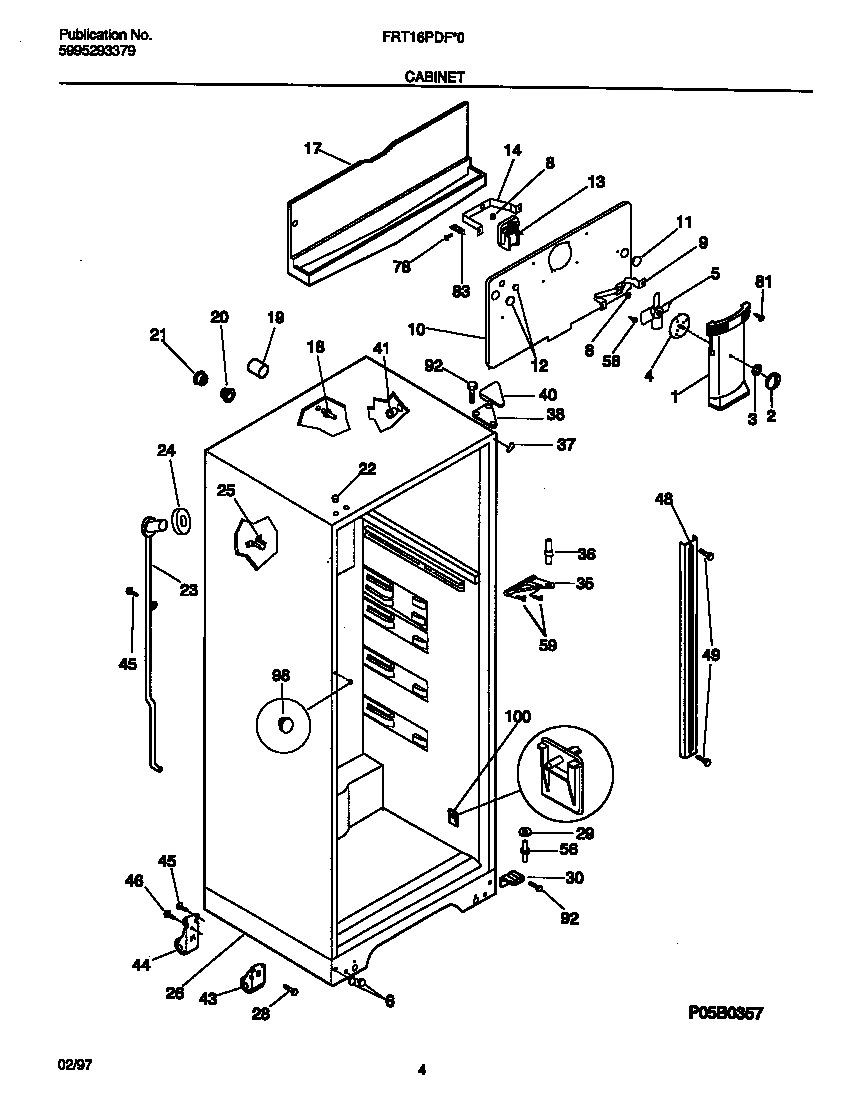

03 - CABINET

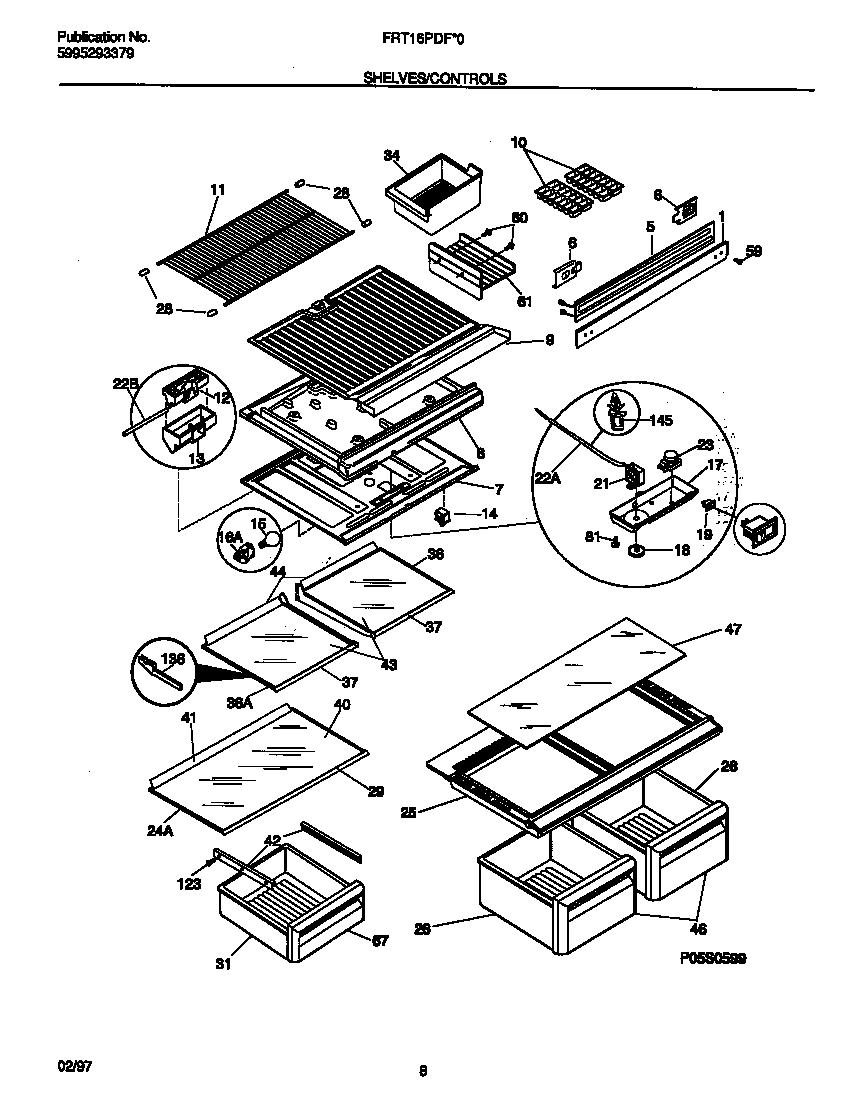

04 - SHELVES/CONTROLS

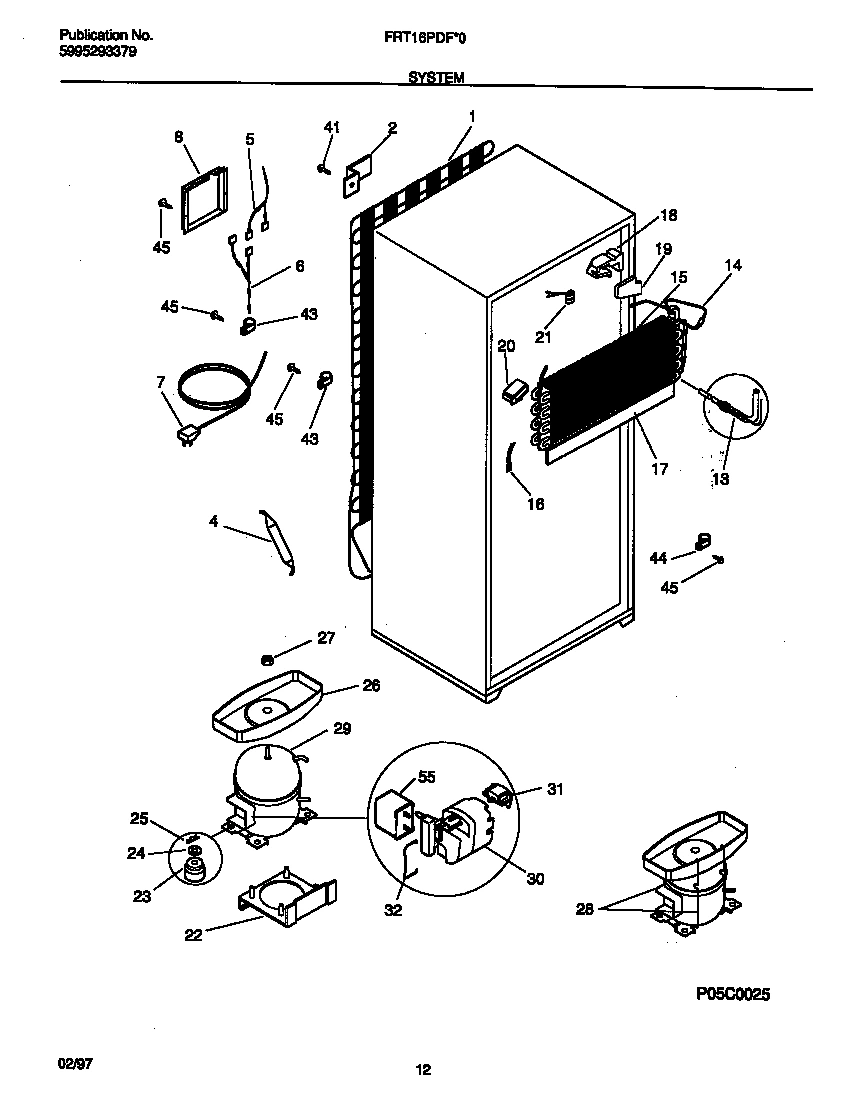

05 - SYSTEM

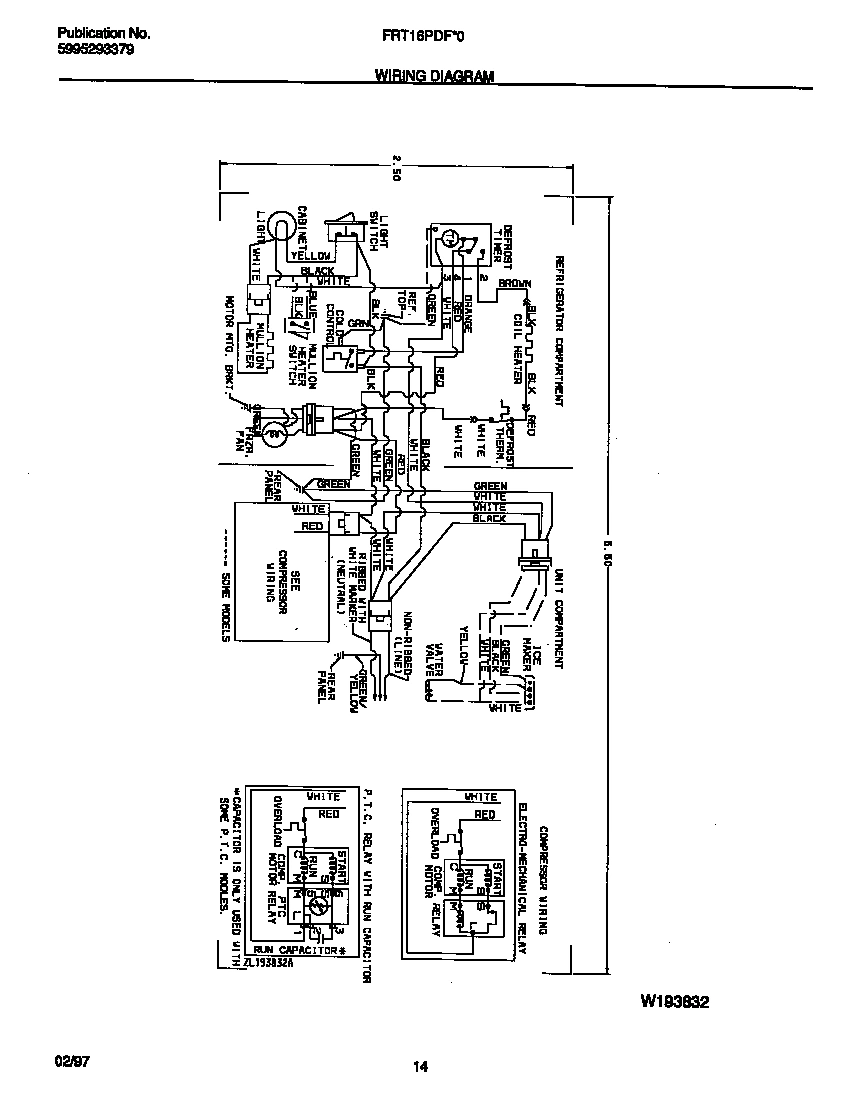

06 - WIRING DIAGRAM
Common parts from model Electrolux FRT16PDFW0 REFRIGERATOR
*91080
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*91081
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*91086
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 218252501 WCI 218252501 Contact Us For Availability
1A
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218271401 WCI 218271401 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 218740400 WCI 218740400 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8A
WCI 3206186 WCI 3206186 Contact Us For Availability
8A
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8B
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILL WCI 5308003607 Contact Us For Availability
9
PANEL-BOTTOM, FRZR SECTION WCI 3206187 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11A
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH WCI 5303283107 Contact Us For Availability
11B
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12A
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, FOR 2-PC COVER WCI 5303200590 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
14A
PLUG-BUTTON, WHITE, REFR DOOR FRONT, LOWER WCI 218074001 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17A
WCI 5303321455 WCI 5303321455 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32CA X 0.625, CROS WCI 218251900 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731101 WCI 218731101 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218276002 WCI 218276002 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215919442 WCI 215919442 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
36
WCI 218310301 WCI 218310301 Contact Us For Availability
36
WCI 218310302 WCI 218310302 Contact Us For Availability
37
WCI 215870619 WCI 215870619 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
37
WCI 215919458 WCI 215919458 Contact Us For Availability
37A
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 No Longer Available
38A
WCI 3206100 WCI 3206100 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRAT WCI 5308012296 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 218390578 WCI 218390578 Contact Us For Availability
41
WCI 215919839 WCI 215919839 Contact Us For Availability
42A
WCI 5303305309 WCI 5303305309 Contact Us For Availability
42B
WCI 5303305310 WCI 5303305310 Contact Us For Availability
43
WCI 218390579 WCI 218390579 Contact Us For Availability
43A
WCI 218703001 WCI 218703001 Contact Us For Availability
43B
SPRING-ROLLER ADJ (NOT ILLUSTRATED) WCI 5308009790 Contact Us For Availability
43C
WASHER, .34 X .62 X .02, NYLON (NOT ILLUSTRAT WCI 5308011326 Contact Us For Availability
44
WCI 218713600 WCI 218713600 Contact Us For Availability
44
WCI 215919842 WCI 215919842 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 0. WCI 5308009762 Contact Us For Availability
46
WCI 215357408 WCI 215357408 Contact Us For Availability
47
WCI 218390576 WCI 218390576 Contact Us For Availability
48
WCI 218261900 WCI 218261900 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
67
WCI 215359805 WCI 215359805 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
136
WCI 218553900 WCI 218553900 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
