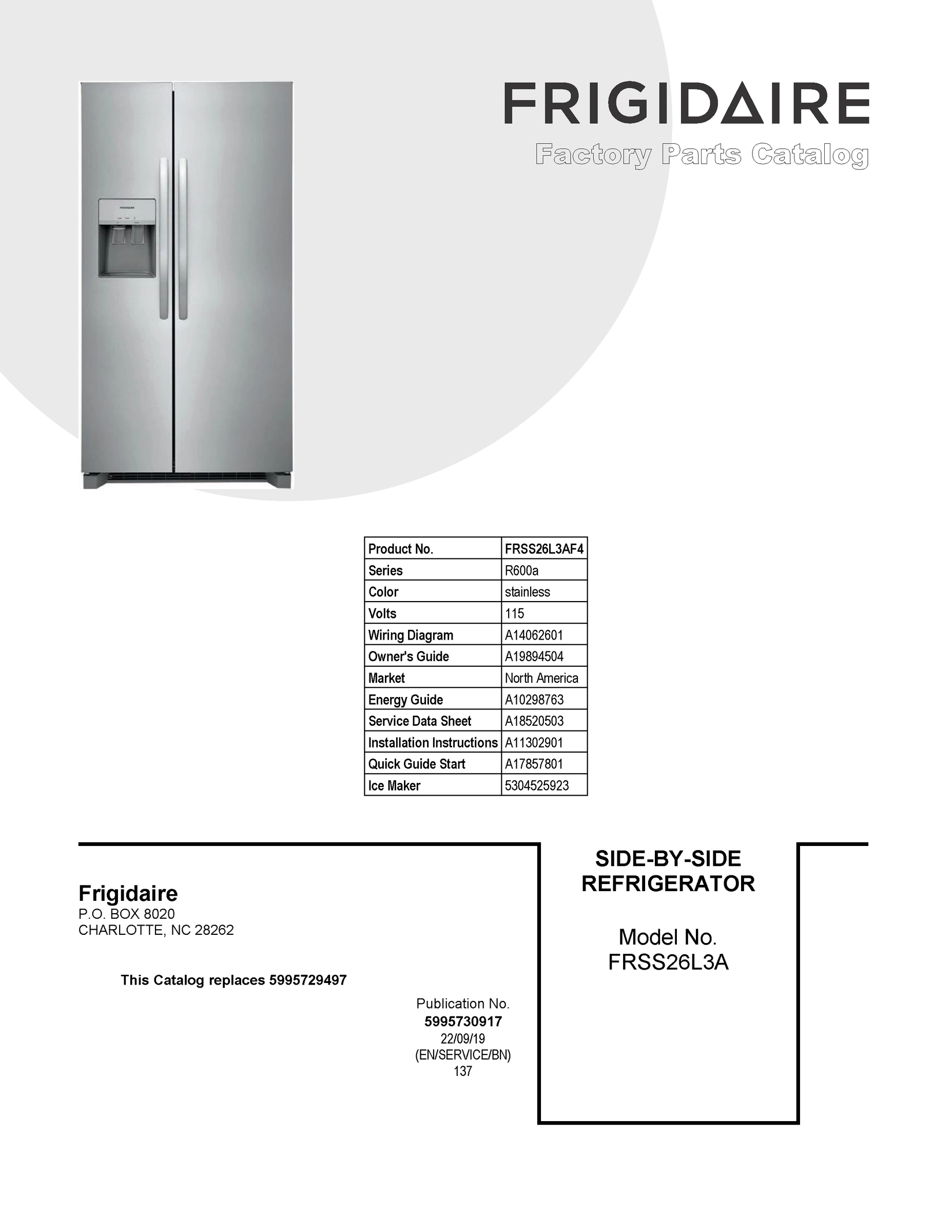

Model Electrolux FRSS26L3AF4 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC
12 - WIRING DIAGRAM
Common parts from model Electrolux FRSS26L3AF4 REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 62", NATURAL, DOOR, TO DISPENSER WCI 218976438 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
9
BUSHING-MOTOR MTG WCI 241563601 Contact Us For Availability
10
BAR-DRIVE WCI 241726501 Contact Us For Availability
10
SPRING, WATER HOSE, FRZ DOOR WCI 807688301 Contact Us For Availability
10
COVER-AIR DUCT WCI 240435912 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11A
SHELF, FIXED, FREEZER WCI 241657502 Contact Us For Availability
11B
SHELF, FIXED, UPPER, FREEZER WCI 241657504 Contact Us For Availability
11D
SHELF-FREEZER, GLASS, LOWER WCI 240350605 Contact Us For Availability
14
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
14A
SWITCH-LIGHT/LAMP WCI 241547902 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918284 Contact Us For Availability
15
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
18
HANDLE, DOOR, STAINLESS, W/SET SCREWS WCI 5304511770 Contact Us For Availability
21A
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR WCI 5303918645 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22B
BEARING, HINGE, TOP, RH DOOR WCI 241760403 Contact Us For Availability
22C
BEARING, HINGE, TOP, LH DOOR WCI 241760401 Contact Us For Availability
23
PLATE-FRONT WCI 241684001 Contact Us For Availability
23
GROMMET, COMPRESSOR WCI 5304523829 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
MANIFOLD, WATER FILTER WCI 5304524817 Contact Us For Availability
25
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
TRIM-CABINET CORNER, GRAY WCI 5304519618 Contact Us For Availability
41
GROMMET-SHELF MTG, .96" LONG WCI 241550701 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
41A
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
CLIP, GRILLE/TUBE, & HINGE WCI 218515401 Contact Us For Availability
43
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
45
SOLENOID, ASSEMBLY WCI 241675705 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
SPRING-SOLENOID WCI 241675902 Contact Us For Availability
45B
E-RING-SOLENOID WCI 241676001 Contact Us For Availability
45C
ACTUATOR-SOLENOID WCI 241676101 Contact Us For Availability
50
GUIDE-SOLENOID WCI 241675601 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
58
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
59
SCREW, 10-32 X 3/8 WCI 241548003 Contact Us For Availability
60
SCREW, HEX WASHER HEAD, 8-15A X 1.000 WCI 5304455852 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, LOWER WCI 241830905 Contact Us For Availability
91
DUCT-ICE MAKER WCI 240380101 Contact Us For Availability
91
CLIP, SENSOR WCI 241519401 Contact Us For Availability
92
SCRE WCI 241710601 Contact Us For Availability
93
WCI 5304508041 WCI 5304508041 Contact Us For Availability
94
WCI 5303918775 WCI 5303918775 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
116
SEAL-DAMPER, FOAM WCI 241518601 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
137
FILTER, WATER, WF-1, FRIG PUREPOUR WCI FPPWFU01 Contact Us For Availability
149
SHROUD-EVAP FAN MTG, W/SEAL WCI 5304521331 Contact Us For Availability
NI
SCREW, #10-16 X 1/2 WCI 240521303 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
WCI 5304414863 WCI 5304414863 Contact Us For Availability
NI
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NIA
BLADE DRIVE WCI 241684503 Contact Us For Availability
NIA
TUBE, WATER, 32", YELLOW, VALVE, TO DOOR WCI 218976439 Contact Us For Availability
NIA
TAPE, FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIB
TUBE, WATER, 97.5", NATURAL, FILTER BASE TO, WCI 242220119 Contact Us For Availability
NIB
SCREW-F WCI 240359403 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
× ![]()
