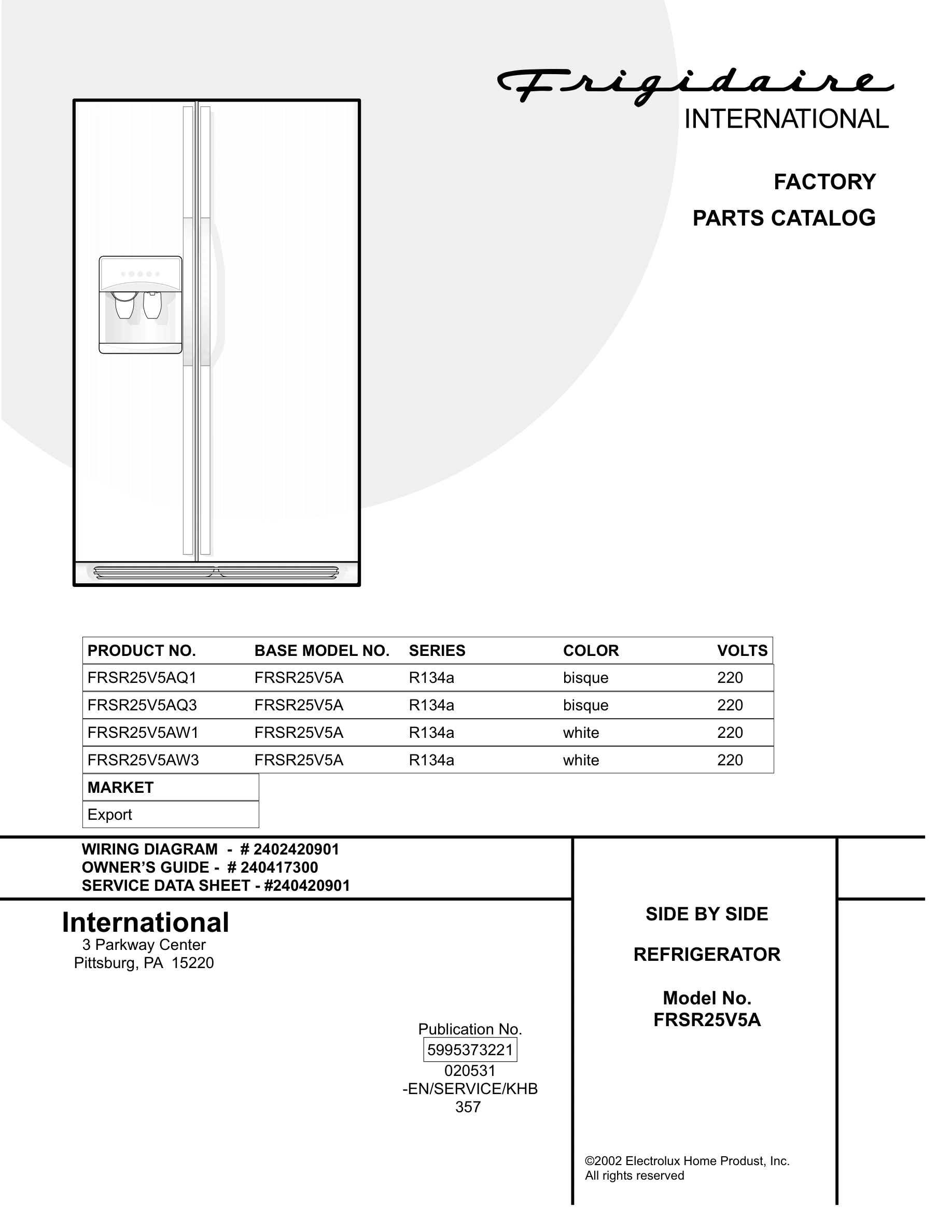

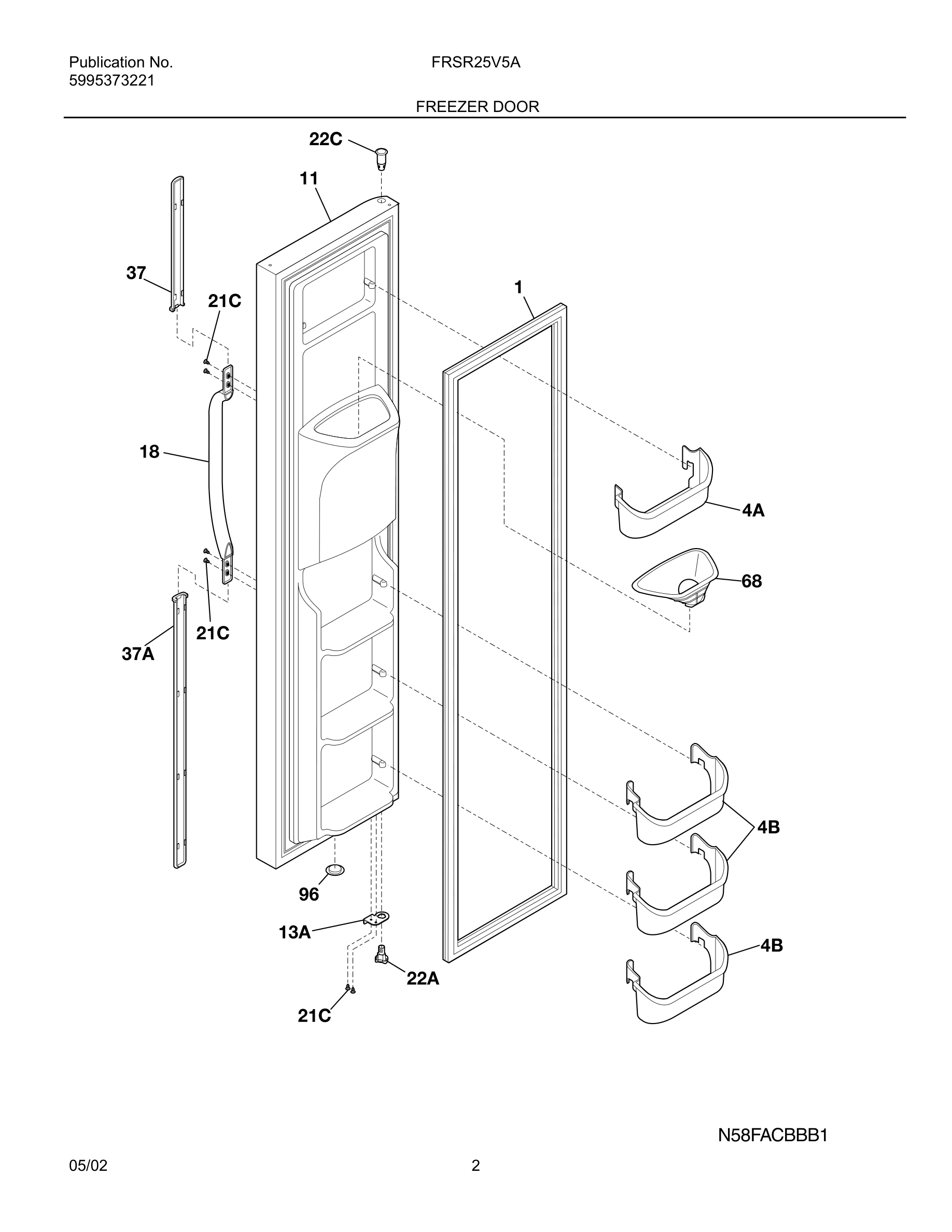

Model Frigidaire FRSR25V5AQ1 REFRIGERATOR – Common Parts &amp; Diagrams

*

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

*

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

*

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

*

3205266 Frigidaire Refrigerator Edge Protecto Backorder WCI 3205266 $50.64

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

Hot Tube Repair Kit,Service WCI 5303918244 Contact Us For Availability

*

Dispenser heater kit,220 WCI 5303918273 Contact Us For Availability

*

Adapter-water supply,nut & sleeve, compressio WCI 218888001 Contact Us For Availability

*

Shield-light,refr WCI 240410601 Contact Us For Availability

*

Shield-light WCI 218817301 Contact Us For Availability

*

Saddle Valve Kit WCI 5308000247 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

*#

Ice Maker, Radius Cube, 220 V, no instl parts WCI 240352404 Contact Us For Availability

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

1

Condenser WCI 240333602 Contact Us For Availability

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $69.91

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

Tube-water inlet,valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Spring,shut-off arm WCI 5304420650 Contact Us For Availability

3

218679613 Frigidaire Refrigerator Evaporator Backorder WCI 218679613 $10.87

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Plate-I.D. WCI 5303210334 Contact Us For Availability

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Cover-module,bisque WCI 5304421848 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

Harness-wiring,machine compt WCI 240392503 Contact Us For Availability

6*

Wiring Harness,controls WCI 240439901 Contact Us For Availability

6*

Harness-wiring WCI 240315901 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

7#

Motor-ice maker WCI 5303210332 Contact Us For Availability

8

Bushing-motor mtg,(2) WCI 5300157666 Contact Us For Availability

8

Module-dispenser WCI 5304421849 Contact Us For Availability

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

12#

Wiring Harness, ice maker, internal, with plu WCI 240352601 Contact Us For Availability

13#

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

13#

Motor-evap fan,220V WCI 240419601 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $87.38

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14

Label-module cover, bisque WCI 240323929 Contact Us For Availability

14

Screw,4 x 0.750 ,switch mtg. WCI 5304420652 Contact Us For Availability

14#

Defrost Heater Kit,220 WCI 5303918245 Contact Us For Availability

14A#

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

218814402 Frigidaire Refrigerator Lamp Bulb In Stock WCI 218814402 $33.06

15

Light Bulb/Lamp WCI 218557200 Contact Us For Availability

15#

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Socket-light/lamp WCI 218971501 Contact Us For Availability

Support,phenolic WCI 5304420653 Contact Us For Availability

16#

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

17

Box-control,front WCI 240374004 Contact Us For Availability

17#

Mold-ice maker, Radius Cube, 220V, with heate WCI 5304420711 Contact Us For Availability

17*

Screw-control box mtg,hex hd,8-15A x 1.000,re WCI 215188300 Contact Us For Availability

18

Knob,temp control WCI 240360801 Contact Us For Availability

18

Motor-auger WCI 240326902 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18*

Wiring Harness,auger motor WCI 5304404335 Contact Us For Availability

19

Cup-water inlet,w/bearing WCI 5304408580 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Control-temperature WCI 240448302 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

21A#

Control-temperature WCI 5304424386 Contact Us For Availability

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $9.52

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

Plate-compr mtg WCI 240330002 Contact Us For Availability

Shut-off Arm WCI 3206333 Contact Us For Availability

22B

Bearing-hinge,upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241649003 Frigidaire Refrigerator Drip Tray In Stock WCI 241649003 $38.99

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Control-defrost, adaptive timer, PC board WCI 240375804 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

5304493021 Frigidaire Refrigerator Actuator K Backorder WCI 5304493021 $45.12

25

Screw-compressor mtg,1/4-28 x 1.16,shoulder,t WCI 240491501 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

26

Screw-thermo/sprt, 4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $28.07

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

27A

240396102 Frigidaire Refrigerator Retainer Backorder WCI 240396102 $12.22

28

Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Compressor,w/electricals WCI 5303918242 Contact Us For Availability

29

Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

Relay WCI 5303309882 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

Insulator WCI 3206342 Contact Us For Availability

31#

Overload Protector WCI 5304425502 Contact Us For Availability

32

5303006412 Frigidaire Refrigerator Cover Moun Backorder WCI 5303006412 $1.79

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability

35

Damper-rotary WCI 5304421620 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Carrier WCI 5304421824 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37A*

Lock-handle trim,snap-in WCI 215782300 No Longer Available

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Power Board WCI 5304427283 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

Board-control WCI 5304426004 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

Trim-shelf,front WCI 240430705 Contact Us For Availability

39A

Trim-shelf,front WCI 240430701 Contact Us For Availability

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41

Screw,hex washer head, 8-32 x 1/4 WCI 218897001 Contact Us For Availability

41*

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42*

Clip,(2) ,tube mtg. WCI 218515402 Contact Us For Availability

42A

240349701 Frigidaire Refrigerator Left Hand M In Stock WCI 240349701 $36.75

42A*

Block-meat pan rail,LH WCI 240349901 Contact Us For Availability

42A*

Spring-meat pan rail WCI 240350001 Contact Us For Availability

43

Screw,plask h/l ,#6 x 3/8 WCI 215296300 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

Screw,pan head ,8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45#

Solenoid Assy,220 V WCI 5304406815 Contact Us For Availability

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

45D#

Solenoid,220 V WCI 5304406820 Contact Us For Availability

46

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

46

Control Rod WCI 5304404341 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

240324502 Frigidaire Gallon Door Shelf Bin In Stock WCI 240324502 $40.96

49

Rail Assy WCI 5304404329 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

242252902 Frigidaire Refrigerator Water Valve Backorder WCI 242252902 $77.99

55#

Capacitr-run,350-400 VAC,7.5 microfarad,13.5" WCI 218909906 Contact Us For Availability

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Screw-micro switch,pan head WCI 5304421830 Contact Us For Availability

56

Cover-terminal WCI 218128400 Contact Us For Availability

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan WCI 240315501 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket,(3) WCI 240346601 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

60

Motor,condensor fan WCI 240419801 Contact Us For Availability

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61#

Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability

61A

Nut,speed WCI 215004700 Contact Us For Availability

61B

Grommet-silencer WCI 215004800 Contact Us For Availability

62

Trough-drain WCI 240429401 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B*

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $40.32

72

Button-handle mtg,dovetail WCI 218397000 No Longer Available

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

85

Tube-connector,suction WCI 240346201 Contact Us For Availability

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

Shield-light WCI 5304421615 Contact Us For Availability

90

Light Pipe,reflector WCI 5304421831 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

91

Light Pipe,reflector ,short WCI 5304421850 Contact Us For Availability

115

Damper Assy,w/seal WCI 240521102 Contact Us For Availability

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

138

Cup-water filter WCI 240370205 Contact Us For Availability

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

139

Housing-wtr filter WCI 240369901 Contact Us For Availability

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

149

Shroud-fan orfice WCI 240331601 Contact Us For Availability

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
