Model Electrolux FRS26ZGEW4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

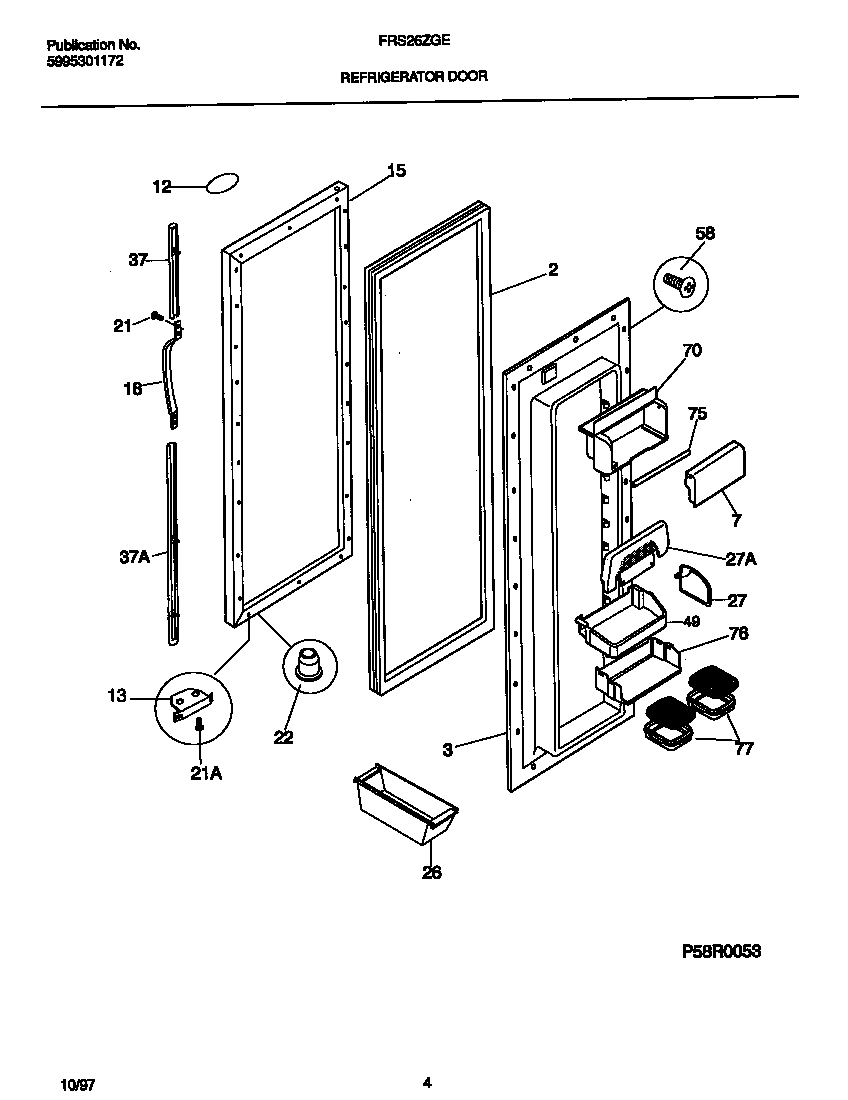

03 - REFRIGERATOR DOOR

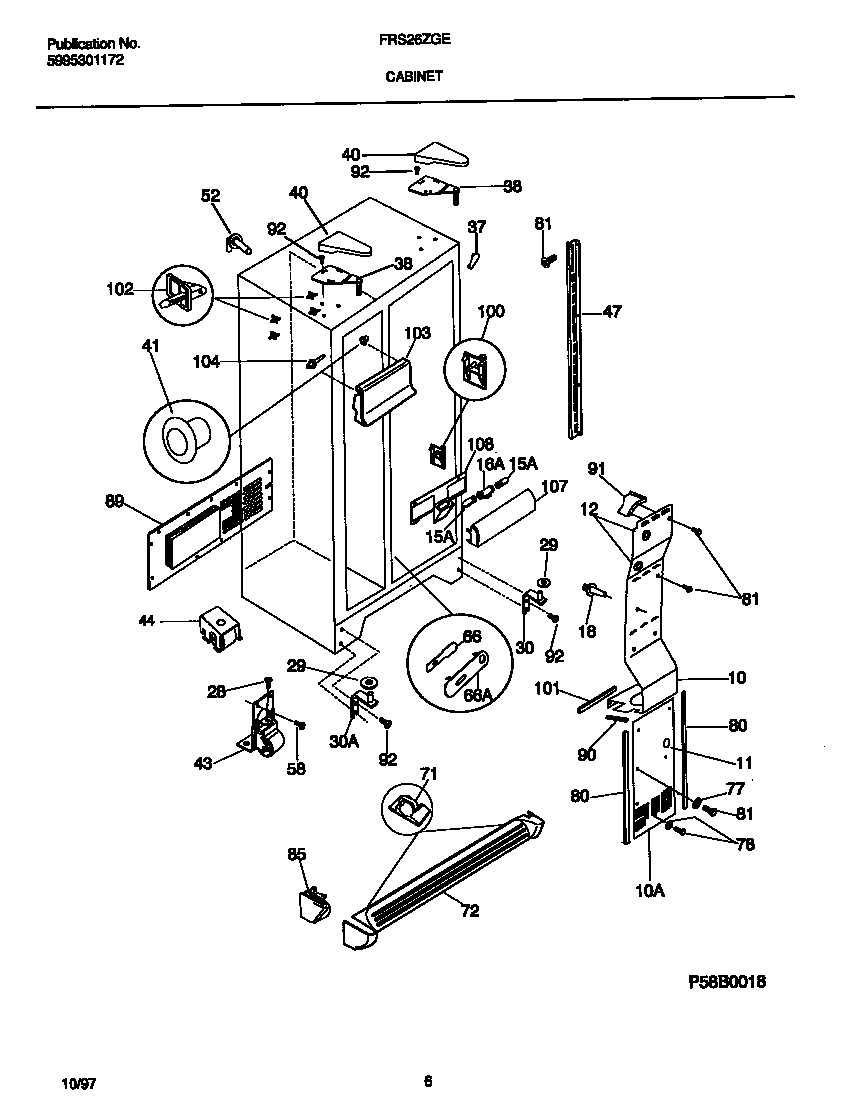

04 - CABINET

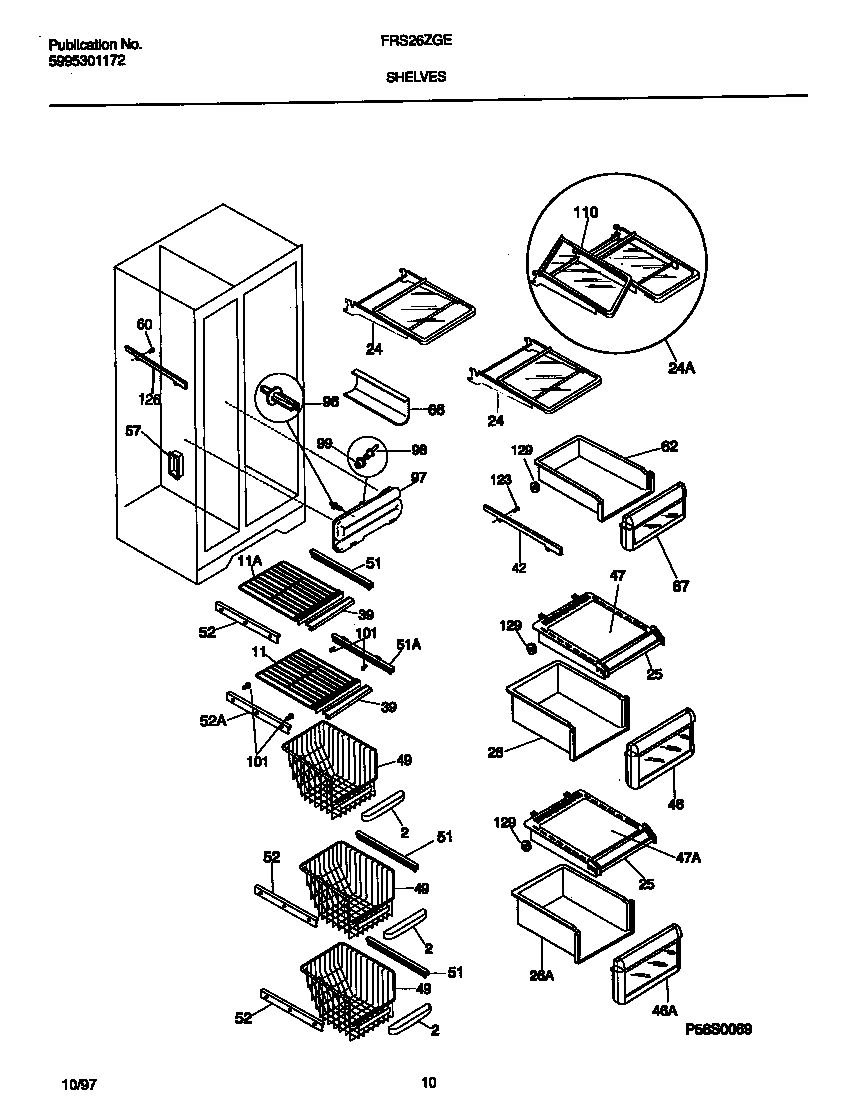

05 - SHELVES

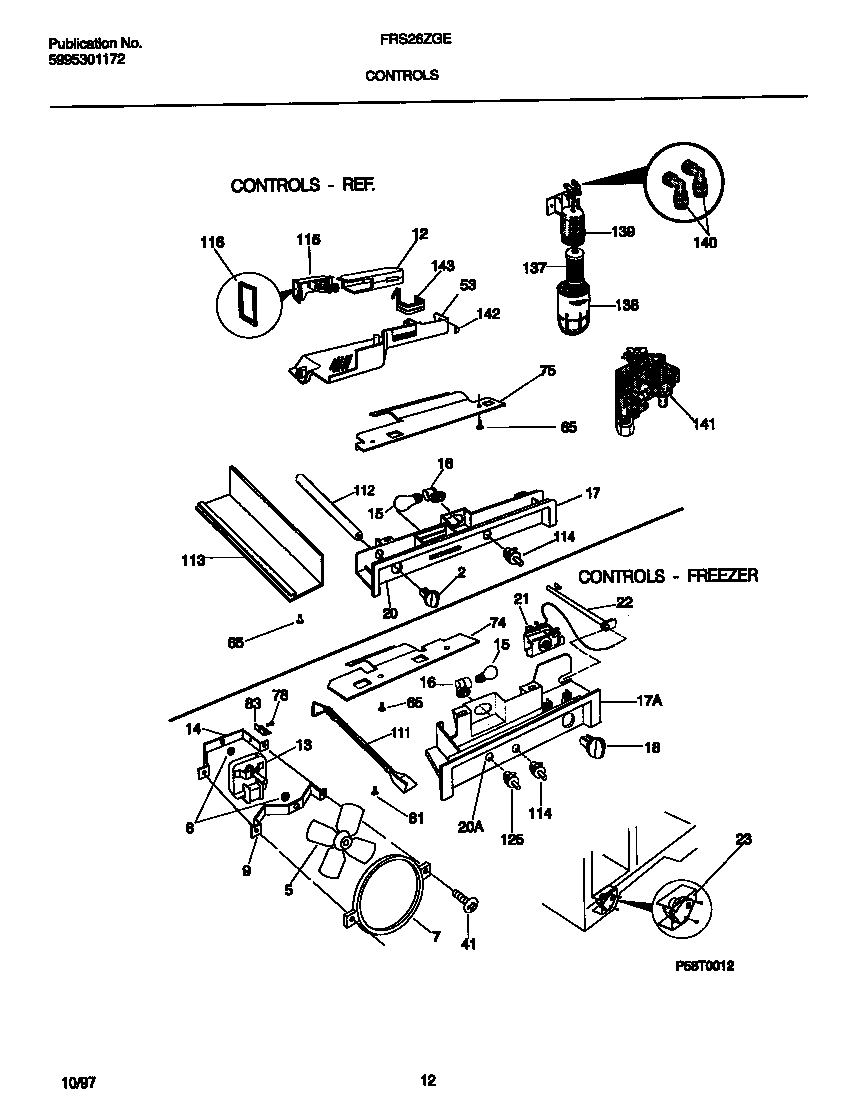

06 - CONTROLS

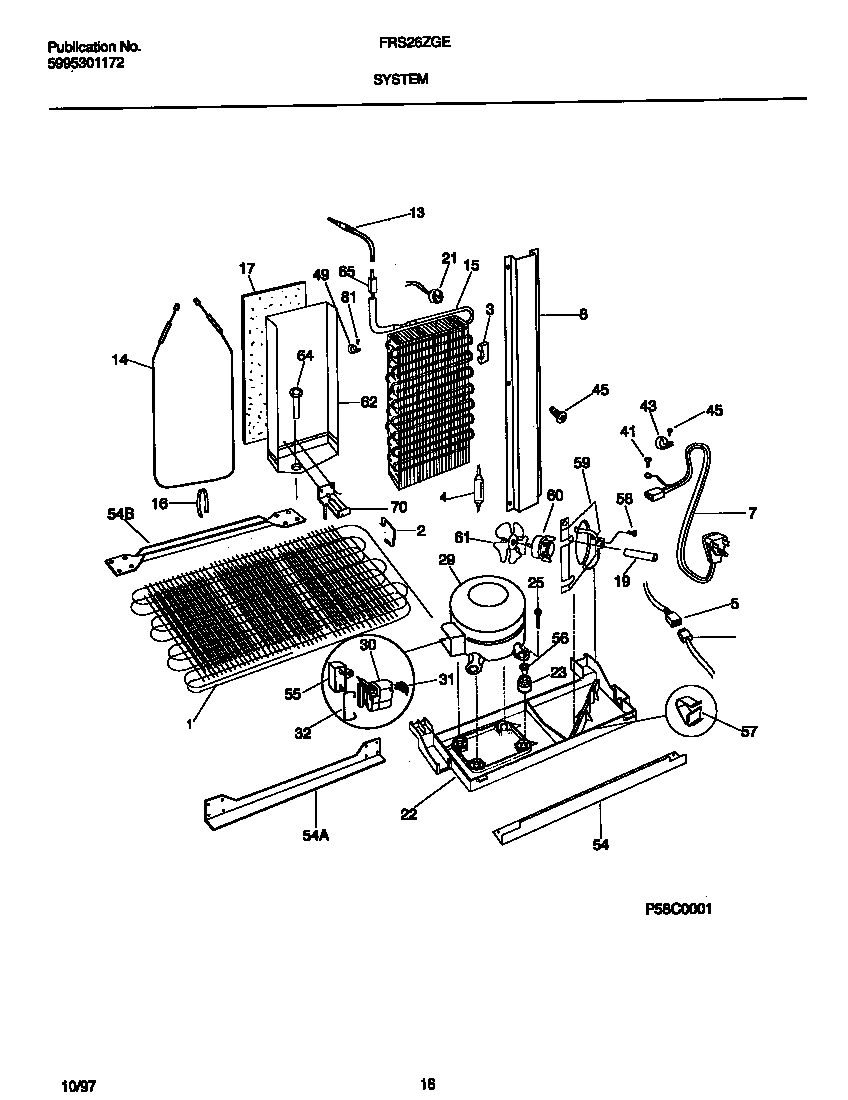

08 - SYSTEM

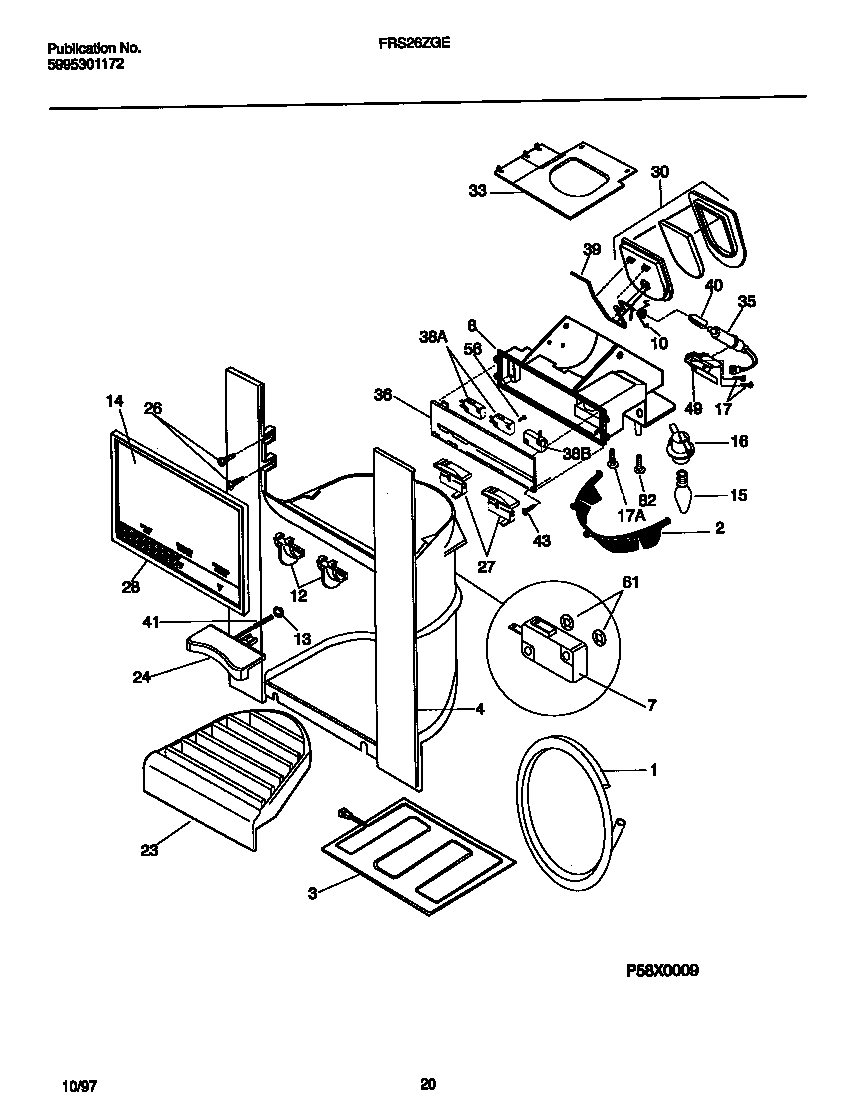

09 - ICE & WATER DISPENSER

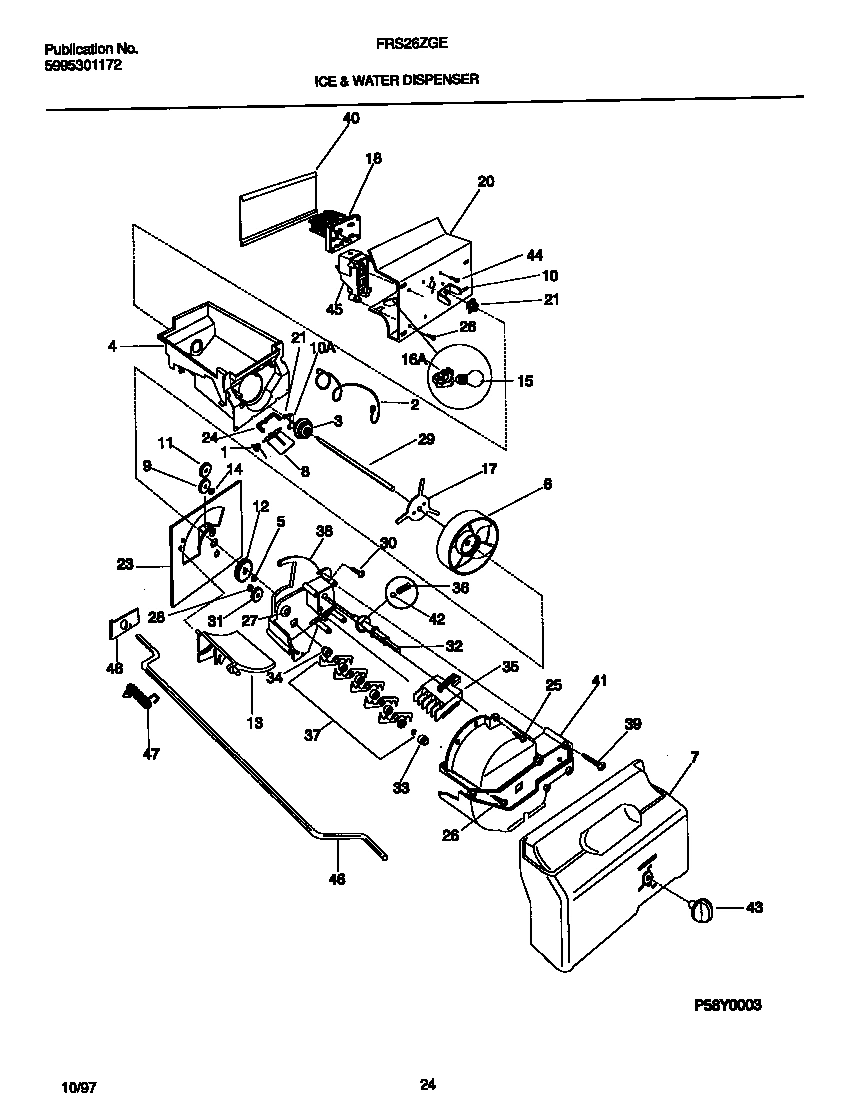

10 - CONTAINER/DRIVE

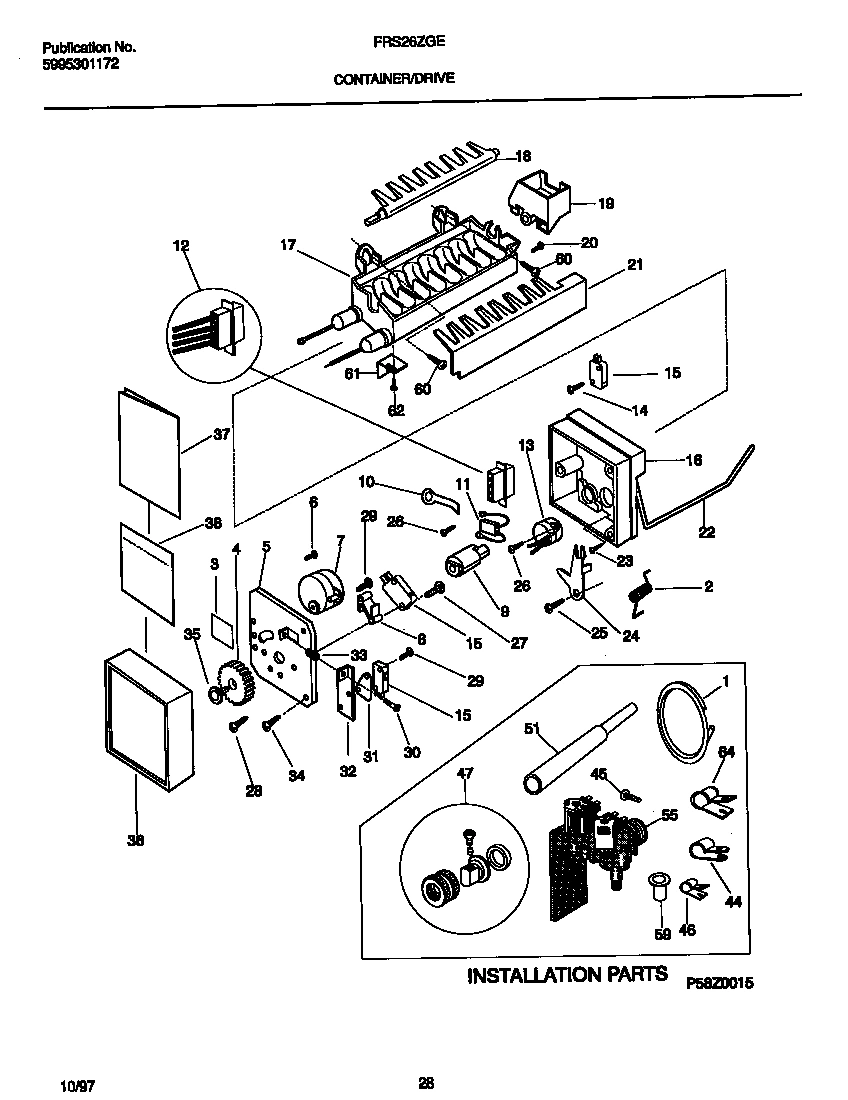

11 - ICE MAKER

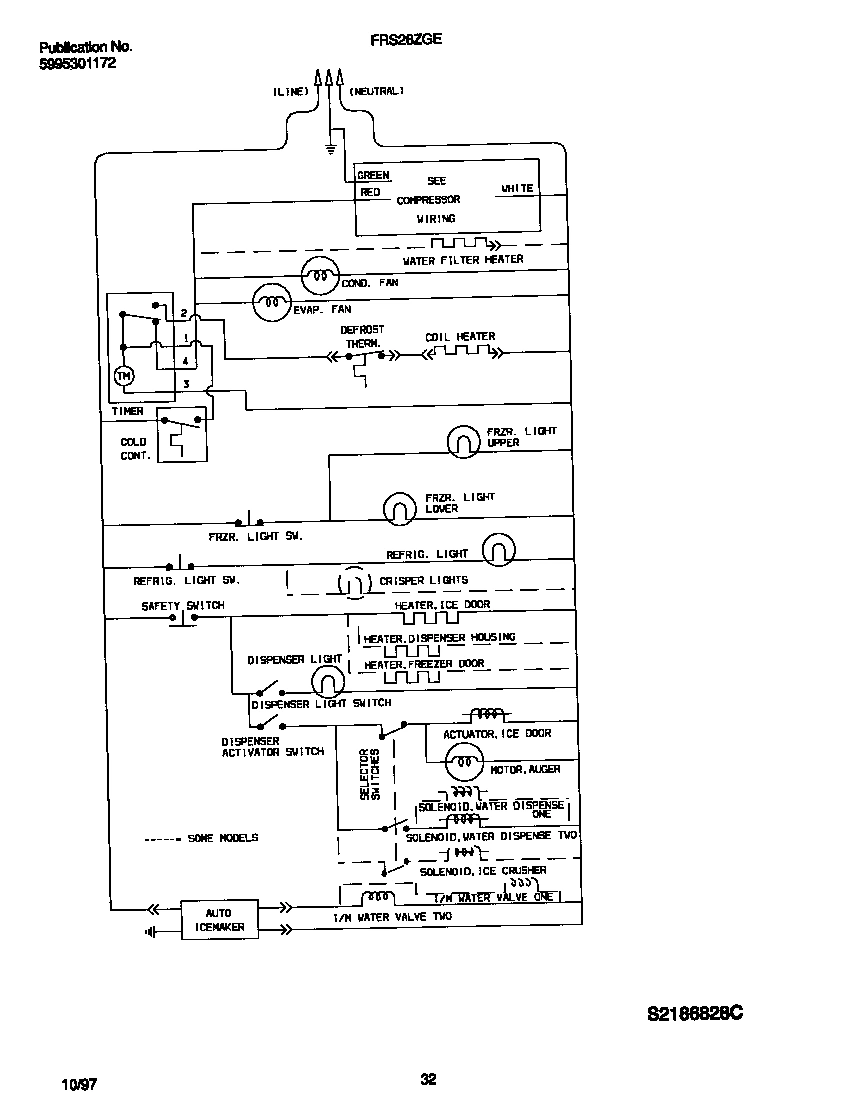

12 - WIRING DIAGRAM

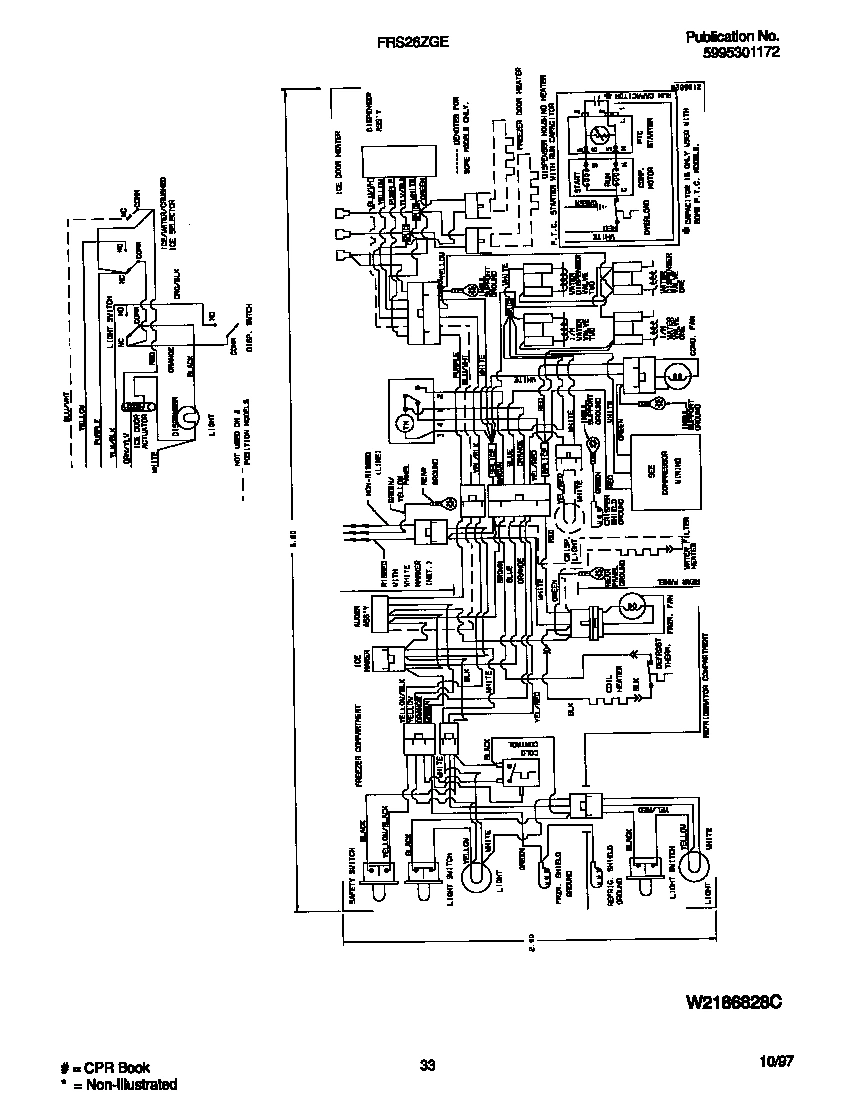

13 - WIRING DIAGRAM
Common parts from model Electrolux FRS26ZGEW4 REFRIGERATOR
*80682
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*80684
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*80689
SCREW-CONTROL BOX MTG, HEX HEAD, 8-15A X 1.00 WCI 215188300 Contact Us For Availability
*80694
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*80696
WCI 218432501 WCI 218432501 Contact Us For Availability
*80697
TAPE-I&W DISPENSER, DOUBLE FACED, FOAM, 60 X WCI 5300460947 Contact Us For Availability
*80698
WCI 215781700 WCI 215781700 Contact Us For Availability
*80699
Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability
1
WCI 215571300 WCI 215571300 Contact Us For Availability
1A
WCI 218787900 WCI 218787900 Contact Us For Availability
1B
TUBE-WATER INLET, FORMED, PLASTIC, DISPENSER WCI 215294101 Contact Us For Availability
1B
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
1C
WCI 218658301 WCI 218658301 Contact Us For Availability
1C
TUBE-WATER INLET, INLET VALVE, TO FILTER (NOT WCI 218770401 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 218383601 WCI 218383601 Contact Us For Availability
2
WCI 5303307883 WCI 5303307883 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505301 WCI 218505301 Contact Us For Availability
2
WCI 218232500 WCI 218232500 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679602 WCI 218679602 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218432101 WCI 218432101 Contact Us For Availability
4A
WCI 218709600 WCI 218709600 Contact Us For Availability
4B
WCI 218737700 WCI 218737700 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 218646100 WCI 218646100 Contact Us For Availability
5B
WCI 215004900 WCI 215004900 Contact Us For Availability
5C
HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATE WCI 215005200 Contact Us For Availability
5D
WCI 218463600 WCI 218463600 Contact Us For Availability
5E
WCI 218646000 WCI 218646000 Contact Us For Availability
6
WCI 218741400 WCI 218741400 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215421613 WCI 215421613 Contact Us For Availability
7A
WCI 218284800 WCI 218284800 Contact Us For Availability
7B
SHIELD-MICRO SWITCH (NOT ILLUSTRATED) WCI 215944300 Contact Us For Availability
8
WCI 215571200 WCI 215571200 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
WCI 218505201 WCI 218505201 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218232800 WCI 218232800 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298003 WCI 218298003 Contact Us For Availability
11
WCI 218298004 WCI 218298004 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 215766501 WCI 215766501 Contact Us For Availability
12
WCI 215420400 WCI 215420400 Contact Us For Availability
12A
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
12B
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 218285200 WCI 218285200 Contact Us For Availability
13A
WCI 215426200 WCI 215426200 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416114 WCI 218416114 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218708700 WCI 218708700 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
WCI 218691301 WCI 218691301 Contact Us For Availability
15B
TUBE-INLET (NOT ILLUSTRATED) WCI 3206414 Contact Us For Availability
16
WCI 5303299157 WCI 5303299157 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 218468701 WCI 218468701 Contact Us For Availability
17
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
WASHER-FLAT (NOT ILLUSTRATED) WCI 215923400 Contact Us For Availability
18
WCI 5303307882 WCI 5303307882 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18B
HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED) WCI 218329300 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303307884 WCI 5303307884 Contact Us For Availability
20
WCI 5303307888 WCI 5303307888 Contact Us For Availability
20
WCI 215285302 WCI 215285302 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
22A
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22B
TUBE, INSULATOR, PVC, WHITE, ON TEMP SENSOR ( WCI 218731102 Contact Us For Availability
23
WCI 5303297844 WCI 5303297844 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.000, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215755300 WCI 215755300 Contact Us For Availability
23B
RING-RETAINER (NOT ILLUSTRATED) WCI 215755700 Contact Us For Availability
23C
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23C
STUD (NOT ILLUSTRATED) WCI 215755800 Contact Us For Availability
23D
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 215571400 WCI 215571400 Contact Us For Availability
24
WCI 215029002 WCI 215029002 Contact Us For Availability
24
WCI 218636601 WCI 218636601 Contact Us For Availability
24
WCI 218796501 WCI 218796501 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
COVER-STORAGE PAN WCI 218147701 Contact Us For Availability
25B
TRIM-STORAGE PAN CVR, UPPER, W/HUMIDITY HOLE WCI 5303307878 Contact Us For Availability
25D
TRIM-STORAGE PAN CVR, LOWER (NOT ILLUSTRATED) WCI 5303289586 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 215748400 WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
28
WCI 218700601 WCI 218700601 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 216008902 WCI 216008902 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
31
OVERLOAD PROTECTOR WCI 5303308603 Contact Us For Availability
31
WCI 215757400 WCI 215757400 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32A
WCI 215747501 WCI 215747501 Contact Us For Availability
32B
RING-SNAP (NOT ILLUSTRATED) WCI 215748102 Contact Us For Availability
33
WCI 218510201 WCI 218510201 Contact Us For Availability
33
WCI 215748200 WCI 215748200 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 218740003 WCI 218740003 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218432400 WCI 218432400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 215867064 WCI 215867064 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 No Longer Available
37A
WCI 215756100 WCI 215756100 Contact Us For Availability
37B
BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED) WCI 215753400 Contact Us For Availability
37C
BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED) WCI 215753300 Contact Us For Availability
37D
BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED) WCI 215753200 Contact Us For Availability
37E
BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED) WCI 215753100 Contact Us For Availability
37F
BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED) WCI 215753000 Contact Us For Availability
37G
SHAFT-CRUSHER (NOT ILLUSTRATED) WCI 215253600 Contact Us For Availability
37H
RING-SNAP (NOT ILLUSTRATED) WCI 215748104 Contact Us For Availability
37I
SPACER, (2) (NOT ILLUSTRATED) WCI 215756200 Contact Us For Availability
37J
SPACER, (4) (NOT ILLUSTRATED) WCI 215839400 Contact Us For Availability
38
WCI 218480000 WCI 218480000 Contact Us For Availability
38
SWITCH-MICRO WCI 218479900 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
39
SCREW, 10 X 2.00 WCI 215757000 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
41B
NUT, ``U`` TYPE, 8-15(A), FAN MOTOR MOUNT (NO WCI 5303209814 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
42A
WCI 215002301 WCI 215002301 Contact Us For Availability
42B
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43A
WCI 215755003 WCI 215755003 Contact Us For Availability
43B
SPRING-KNOB (NOT ILLUSTRATED) WCI 215752900 Contact Us For Availability
44
SCREW, PAN HEAD, 8-32 X 0.25 WCI 218359200 Contact Us For Availability
45
WCI 215935901 WCI 215935901 Contact Us For Availability
45A
SCREW,HEX HD SER WSHR ,8-18 X 3/8 ,WIRING COV WCI 218754500 Contact Us For Availability
45E
SCREW, HX WSHR HD SPEC, 6-32 X .5 (NOT ILLUST WCI 218769200 Contact Us For Availability
46
WCI 218285301 WCI 218285301 Contact Us For Availability
47
WCI 215723574 WCI 215723574 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
47
WCI 215254800 WCI 215254800 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
48
WCI 215898200 WCI 215898200 Contact Us For Availability
49
WCI 218384701 WCI 218384701 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 5303307887 No Longer Available
51
WCI 5303296575 WCI 5303296575 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162504 WCI 215162504 Contact Us For Availability
53
WCI 215809508 WCI 215809508 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218698900 WCI 218698900 Contact Us For Availability
55
WCI 218764602 WCI 218764602 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET-SILENCER (NOT ILLUSTRATED) WCI 215004800 Contact Us For Availability
62
WCI 218285701 WCI 218285701 Contact Us For Availability
62
WCI 215048701 WCI 215048701 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 5303307872 WCI 5303307872 Contact Us For Availability
67
WCI 218278501 WCI 218278501 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359601 WCI 218359601 Contact Us For Availability
74
WCI 218465000 WCI 218465000 Contact Us For Availability
75
WCI 218465100 WCI 218465100 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
103
WCI 215413100 WCI 215413100 Contact Us For Availability
110
WCI 218641901 WCI 218641901 Contact Us For Availability
111
WCI 5303297842 WCI 5303297842 Contact Us For Availability
112
WCI 215277102 WCI 215277102 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303296580 Contact Us For Availability
115
WCI 215011502 WCI 215011502 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
126A
WCI 215205400 WCI 215205400 Contact Us For Availability
126B
RAIL-AUGER BUCKET, RH (NOT ILLUSTRATED) WCI 218232700 Contact Us For Availability
129A
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129B
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
137
WCI 215334201 WCI 215334201 Contact Us For Availability
138
WCI 218657401 WCI 218657401 Contact Us For Availability
139
WCI 218657500 WCI 218657500 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
141
WCI 218658000 WCI 218658000 Contact Us For Availability
142
WCI 218657701 WCI 218657701 Contact Us For Availability
143
WCI 218696700 WCI 218696700 Contact Us For Availability
× ![]()
