Model Electrolux FRS26WPFD0 REFRIGERATOR – Common Parts & Diagrams

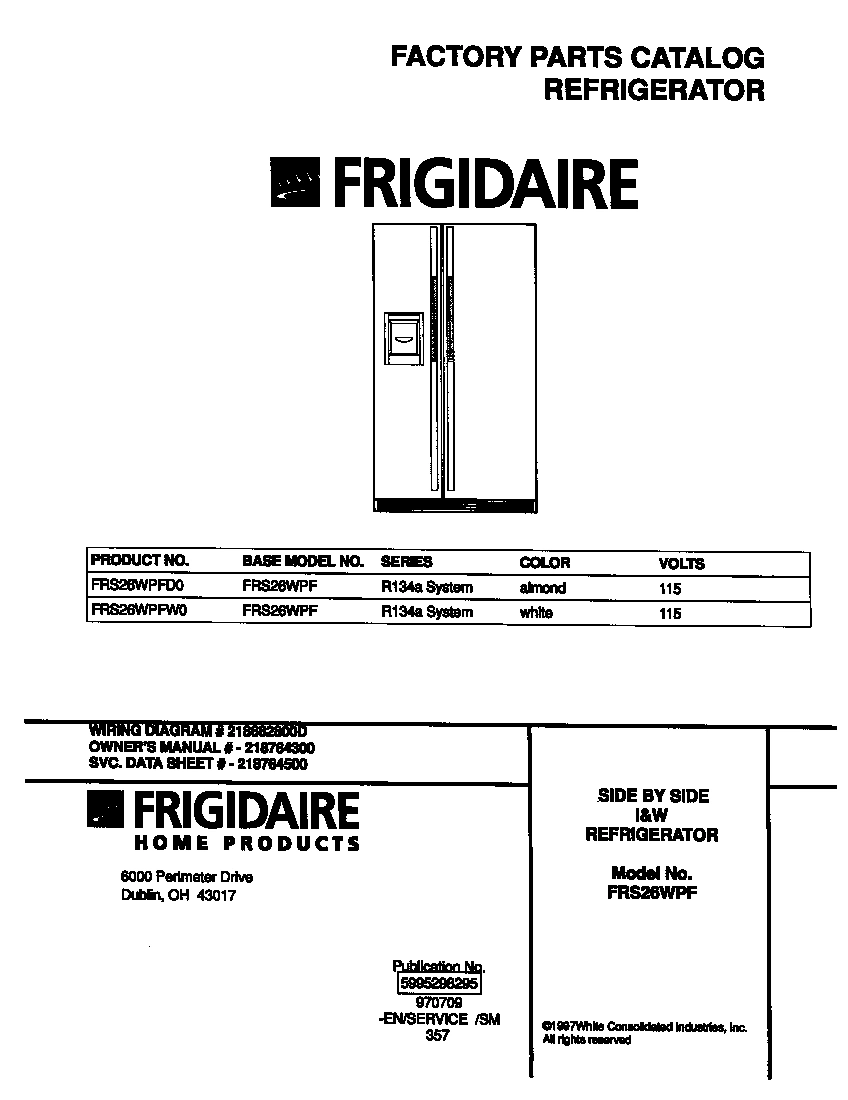

01 - COVER

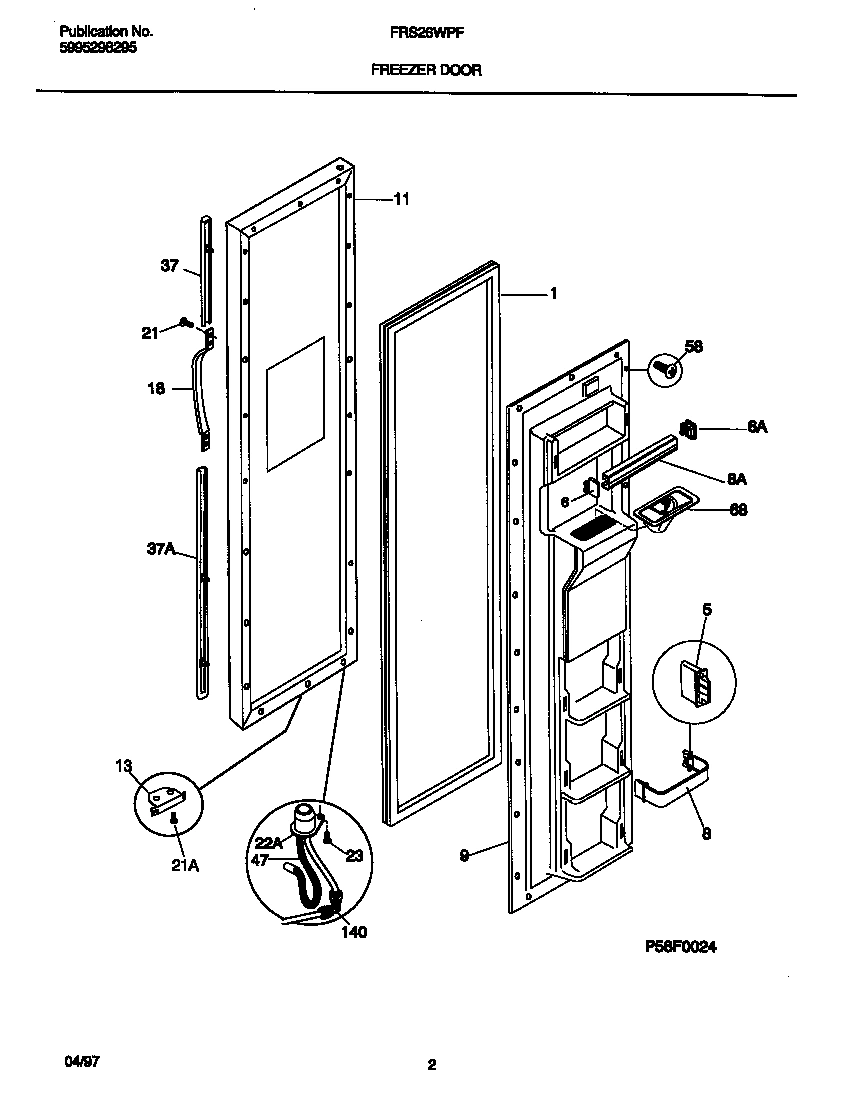

02 - FREEZER DOOR

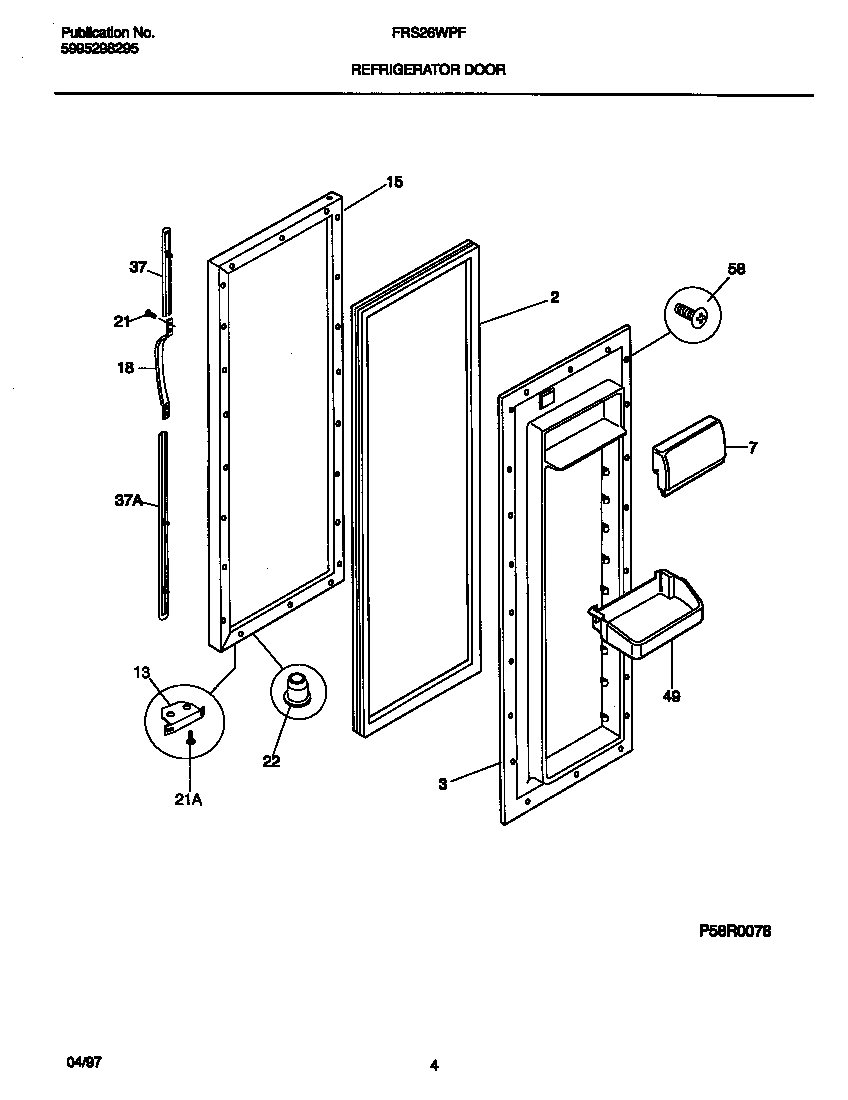

03 - REFRIGERATOR DOOR
04 - CABINET

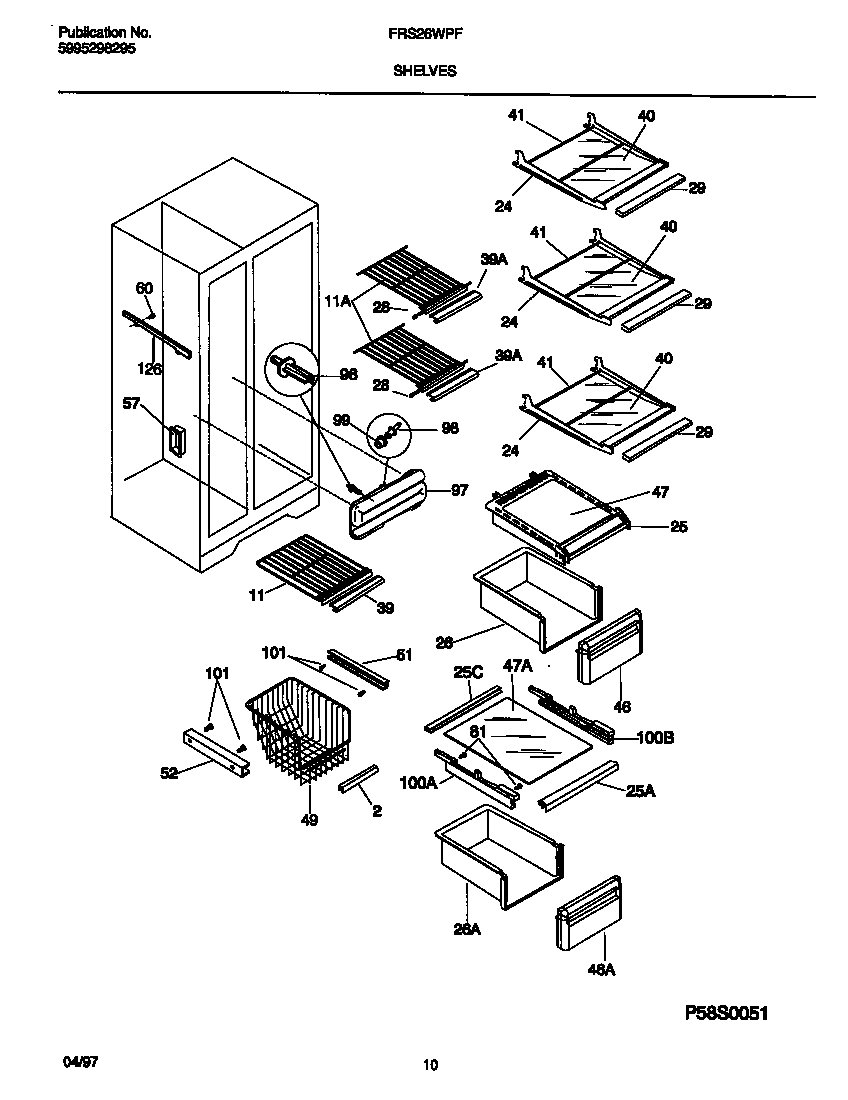

05 - SHELVES

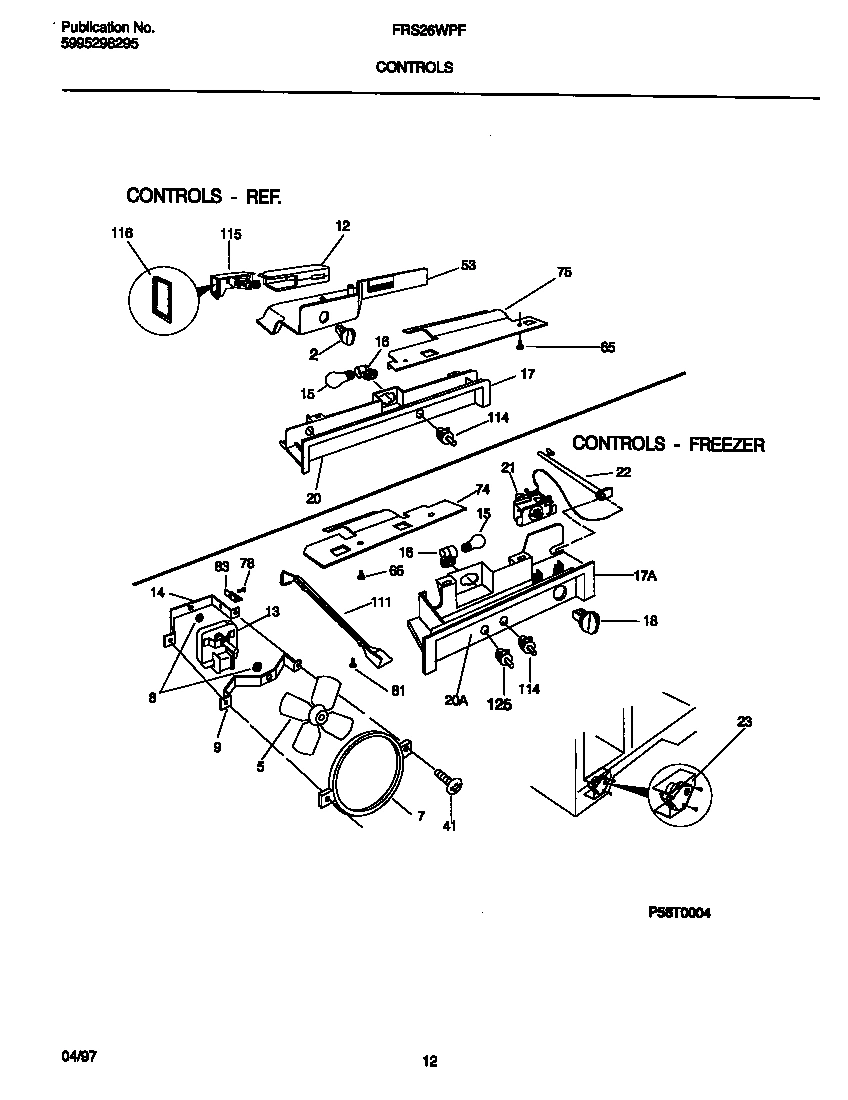

06 - CONTROLS

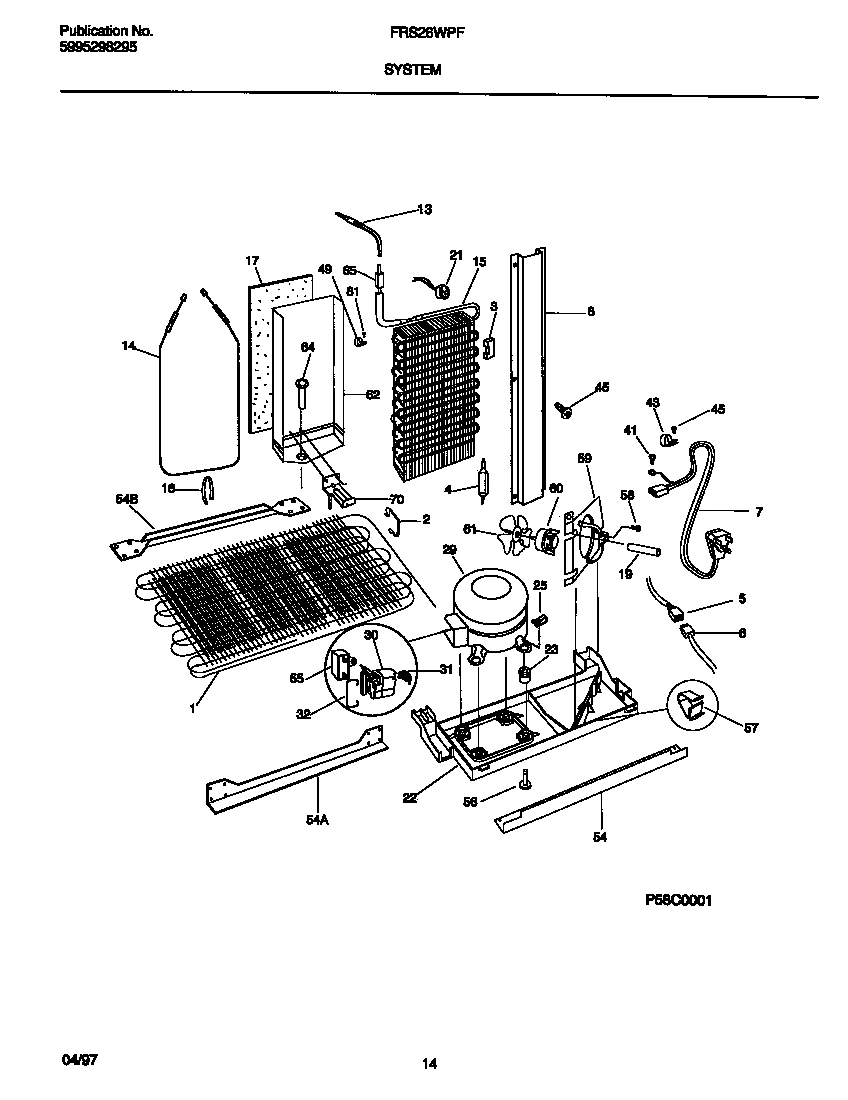

07 - SYSTEM

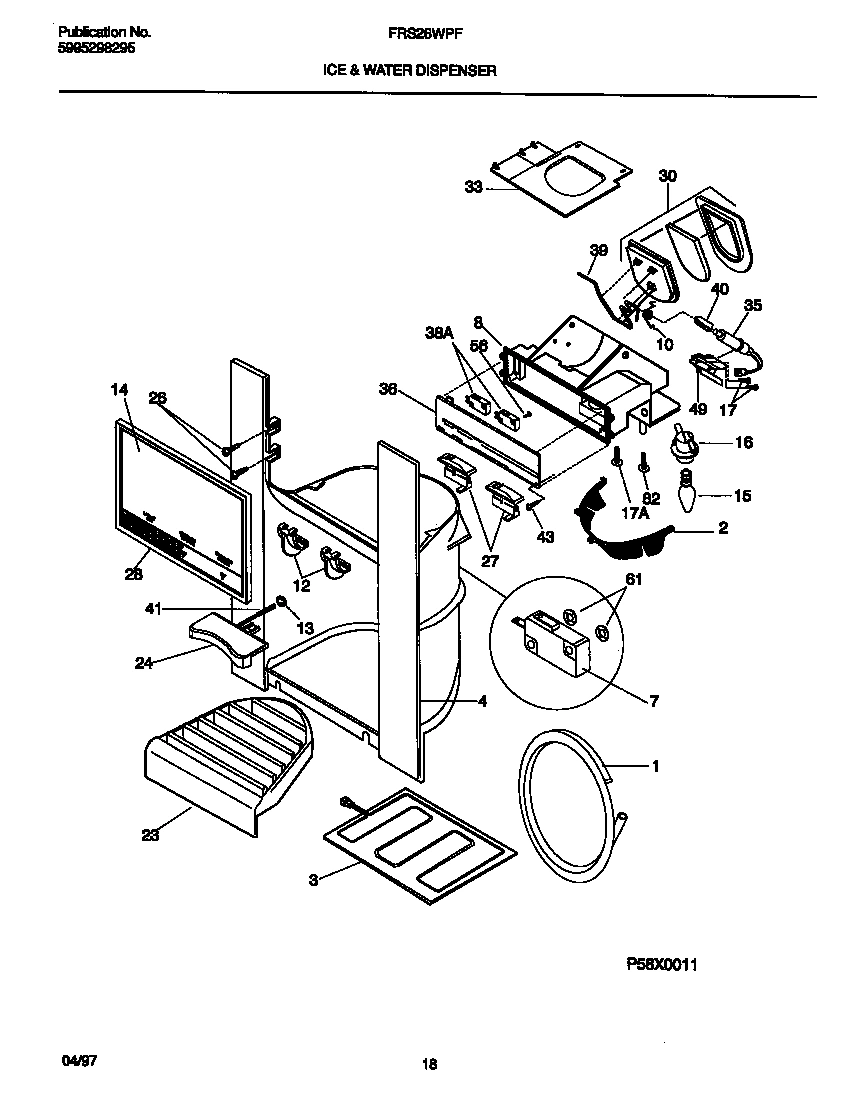

08 - ICE & WATER DISPENSER

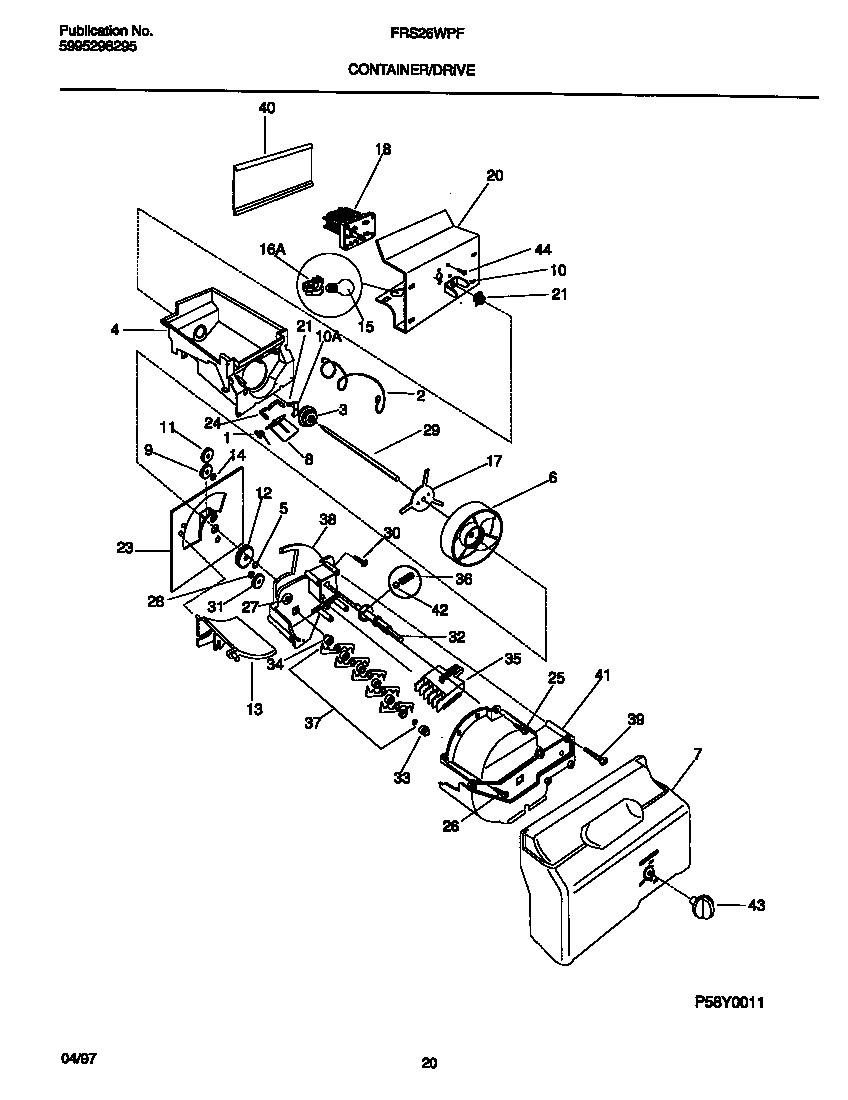

09 - CONTAINER/DRIVE

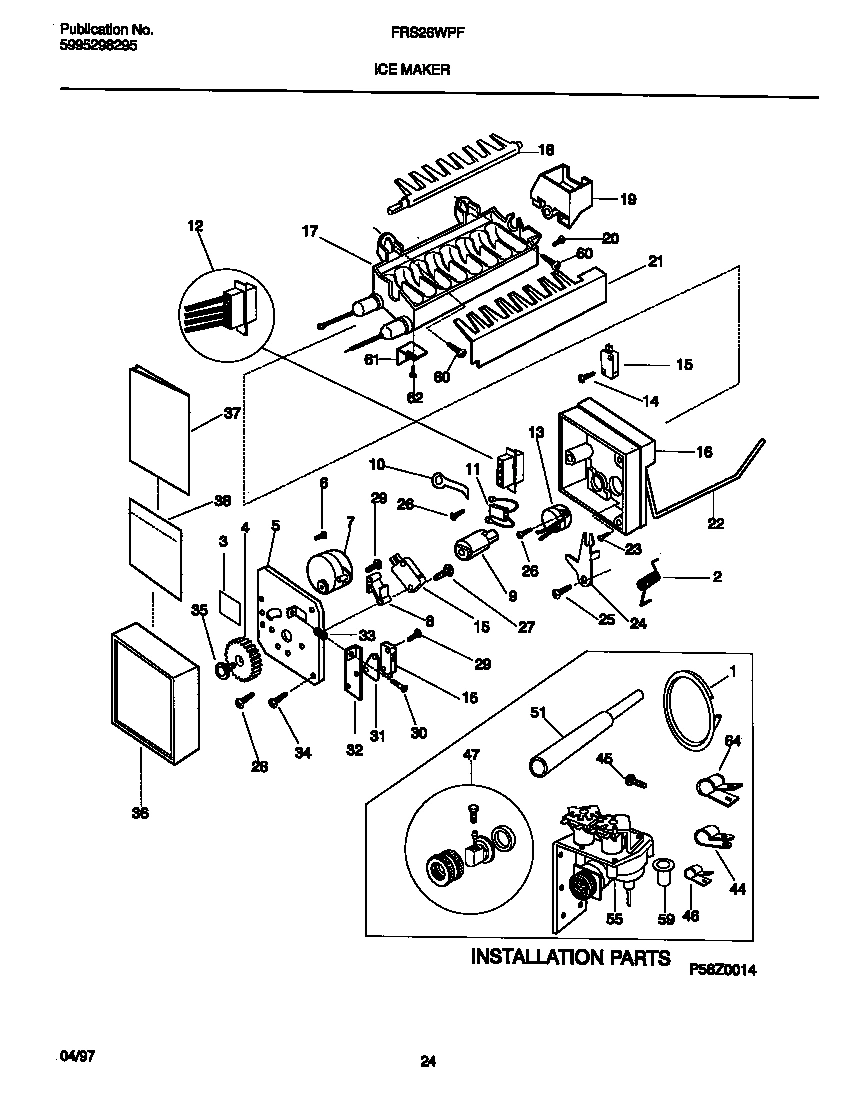

10 - ICE MAKER

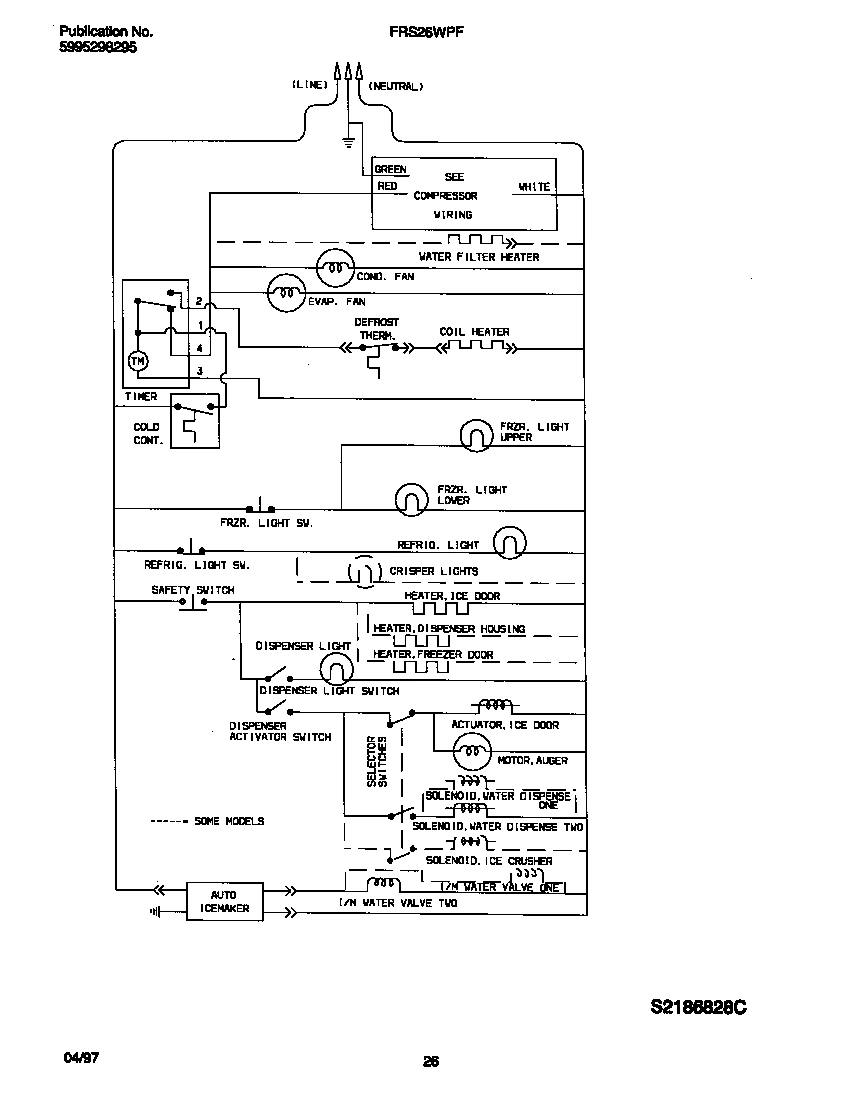

11 - WIRING DIAGRAM
12 - WIRING DIAGRAM
Common parts from model Electrolux FRS26WPFD0 REFRIGERATOR
*79521
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*79526
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*79528
SCREW-CONTROL BOX MTG, HEX HEAD, 8-15A X 1.00 WCI 215188300 Contact Us For Availability
*79529
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*79531
WCI 218432502 WCI 218432502 Contact Us For Availability
*79532
TAPE-I & W DISPENSER, DOUBLE FACED, FOAM, 60 WCI 5300460947 Contact Us For Availability
*79533
WCI 215781700 WCI 215781700 Contact Us For Availability
*79534
SCREW-VALVE, HX HD-SLOT WSHR, 12-24 X 3/4 WCI 215290100 Contact Us For Availability
1
WCI 215571300 WCI 215571300 Contact Us For Availability
1A
WCI 218787900 WCI 218787900 Contact Us For Availability
1B
TUBE-WATER INLET, FORMED, PLASTIC, DISPENSER WCI 215294101 Contact Us For Availability
1B
SPACER-TUBE (NOT ILLUSTRATED) WCI 5303208866 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505302 WCI 218505302 Contact Us For Availability
2
WCI 218232500 WCI 218232500 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679602 WCI 218679602 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218432102 WCI 218432102 Contact Us For Availability
4A
WCI 218709600 WCI 218709600 Contact Us For Availability
4B
WCI 218737700 WCI 218737700 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 218738500 WCI 218738500 Contact Us For Availability
5B
WCI 215004900 WCI 215004900 Contact Us For Availability
5C
HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATE WCI 215005200 Contact Us For Availability
6
WCI 218741500 WCI 218741500 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215421615 WCI 215421615 Contact Us For Availability
7A
WCI 218284800 WCI 218284800 Contact Us For Availability
7B
SHIELD-MICRO SWITCH (NOT ILLUSTRATED) WCI 215944300 Contact Us For Availability
8
WCI 215571200 WCI 215571200 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 218505201 WCI 218505201 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8A
WCI 218803400 WCI 218803400 Contact Us For Availability
8B
SCREW-WIRING COVER, HEX HD SER WSHR, 8-18 X 3 WCI 218754500 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218232800 WCI 218232800 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
11
WCI 218298003 WCI 218298003 Contact Us For Availability
11
SHELF-FREEZER, FIXED WIRE WCI 5303296576 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 215766502 WCI 215766502 Contact Us For Availability
12
WCI 215420400 WCI 215420400 Contact Us For Availability
12A
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
12B
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215746800 WCI 215746800 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 218285200 WCI 218285200 Contact Us For Availability
13A
WCI 215426200 WCI 215426200 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416126 WCI 218416126 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW-SWITCH MTG, 4-24 X 3/4, SW/SUPT WCI 3206323 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
WCI 218691301 WCI 218691301 Contact Us For Availability
15B
TUBE-INLET (NOT ILLUSTRATED) WCI 3206414 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17
WCI 5303296805 WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
WASHER-FLAT (NOT ILLUSTRATED) WCI 215923400 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18B
HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED) WCI 218329200 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303296804 WCI 5303296804 Contact Us For Availability
20
WCI 5303308611 WCI 5303308611 Contact Us For Availability
20
WCI 215285301 WCI 215285301 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
22A
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22B
TUBE, INSULATOR, PVC, WHITE, ON TEMP SENSOR ( WCI 218731102 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.000, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215755300 WCI 215755300 Contact Us For Availability
23B
RING-RETAINER (NOT ILLUSTRATED) WCI 215755700 Contact Us For Availability
23C
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23C
STUD (NOT ILLUSTRATED) WCI 215755800 Contact Us For Availability
23D
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 215571400 WCI 215571400 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER WCI 215919139 Contact Us For Availability
24
WCI 215766302 WCI 215766302 Contact Us For Availability
25
WCI 218015302 WCI 218015302 Contact Us For Availability
25
WCI 218015402 WCI 218015402 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
COVER-STORAGE PAN WCI 218147701 Contact Us For Availability
25B
TRIM-STORAGE PAN CVR, UPPER, W/HUMIDITY HOLE WCI 5303307878 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 215748400 WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
28
WCI 218700602 WCI 218700602 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 5303917933 WCI 5303917933 Contact Us For Availability
29
WCI 215919415 WCI 215919415 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 216008903 WCI 216008903 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
31
WCI 5303322093 WCI 5303322093 Contact Us For Availability
31
WCI 215757400 WCI 215757400 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 218762900 WCI 218762900 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32A
WCI 215747501 WCI 215747501 Contact Us For Availability
32B
RING-SNAP (NOT ILLUSTRATED) WCI 215748102 Contact Us For Availability
33
WCI 218510201 WCI 218510201 Contact Us For Availability
33
WCI 215748200 WCI 215748200 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 218740002 WCI 218740002 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218432400 WCI 218432400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 No Longer Available
37A
WCI 215756100 WCI 215756100 Contact Us For Availability
37B
BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED) WCI 215753400 Contact Us For Availability
37C
BAND-DECORATIVE, CHROME (NOT ILLUSTRATED) WCI 218676001 Contact Us For Availability
37C
BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED) WCI 215753300 Contact Us For Availability
37D
BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED) WCI 215753200 Contact Us For Availability
37E
BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED) WCI 215753100 Contact Us For Availability
37F
BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED) WCI 215753000 Contact Us For Availability
37G
SHAFT-CRUSHER (NOT ILLUSTRATED) WCI 215253600 Contact Us For Availability
37H
RING-SNAP (NOT ILLUSTRATED) WCI 215748104 Contact Us For Availability
37I
SPACER, (2) (NOT ILLUSTRATED) WCI 215756200 Contact Us For Availability
37J
SPACER, (4) (NOT ILLUSTRATED) WCI 215839400 Contact Us For Availability
38
SWITCH-MICRO WCI 218479900 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
39
WCI 215217558 WCI 215217558 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
39
SCREW, 10 X 2.00 WCI 215757000 Contact Us For Availability
40
GLASS-REFR SHELF, CLEAR WCI 5303300033 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
TRIM-REFR SHELF, REAR WCI 215919815 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
41B
NUT, ``U`` TYPE, 8-15(A), FAN MOTOR MOUNT (NO WCI 5303209814 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43A
WCI 215755003 WCI 215755003 Contact Us For Availability
43B
SPRING-KNOB (NOT ILLUSTRATED) WCI 215752900 Contact Us For Availability
44
SCREW, PAN HEAD, 8-32 X 0.25 WCI 218359200 Contact Us For Availability
45C
SCREW, HX WSHR HD SPEC, 6-32 X .5 (NOT ILLUST WCI 218769200 Contact Us For Availability
47
WCI 215723552 WCI 215723552 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
49
WCI 5303296573 WCI 5303296573 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 5303296575 WCI 5303296575 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
53
WCI 215809505 WCI 215809505 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218720500 WCI 218720500 Contact Us For Availability
55
WCI 218764602 WCI 218764602 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET-SILENCER (NOT ILLUSTRATED) WCI 215004800 Contact Us For Availability
62
WCI 215048701 WCI 215048701 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359605 WCI 218359605 Contact Us For Availability
74
WCI 218465000 WCI 218465000 Contact Us For Availability
75
WCI 218465100 WCI 218465100 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
100
WCI 218015501 WCI 218015501 Contact Us For Availability
100
WCI 218015601 WCI 218015601 Contact Us For Availability
103
WCI 215413100 WCI 215413100 Contact Us For Availability
111
WCI 5303297842 WCI 5303297842 Contact Us For Availability
115
WCI 215011502 WCI 215011502 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
126A
WCI 215205400 WCI 215205400 Contact Us For Availability
126B
RAIL-AUGER BUCKET, RH (NOT ILLUSTRATED) WCI 218232700 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
× ![]()
