Model Electrolux FRS24WSGW5 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

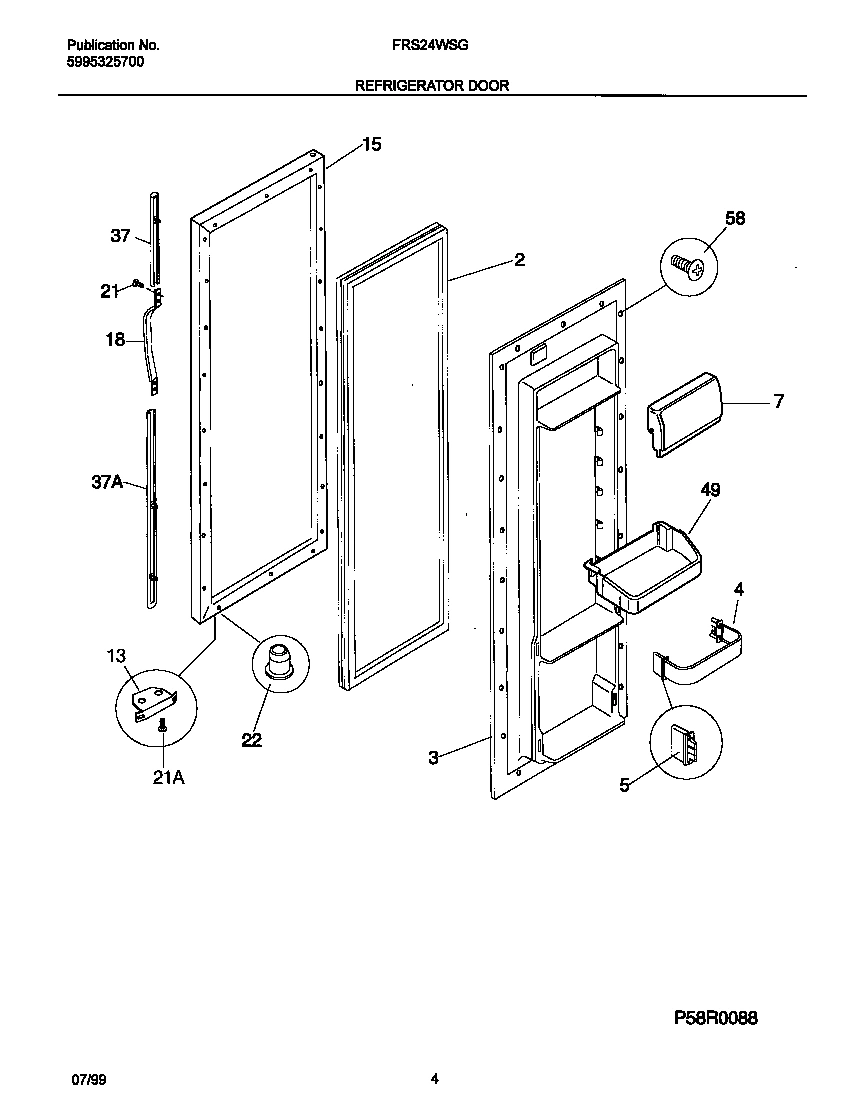

03 - REFRIGERATOR DOOR

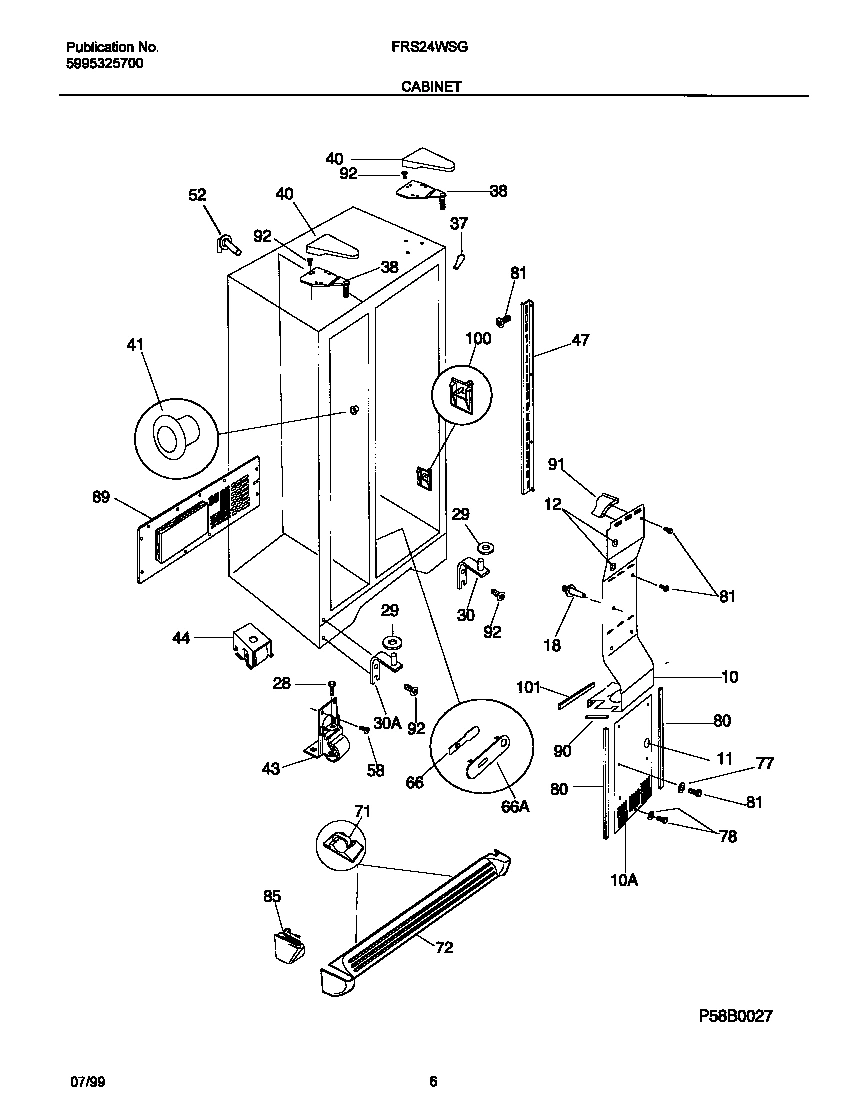

04 - CABINET

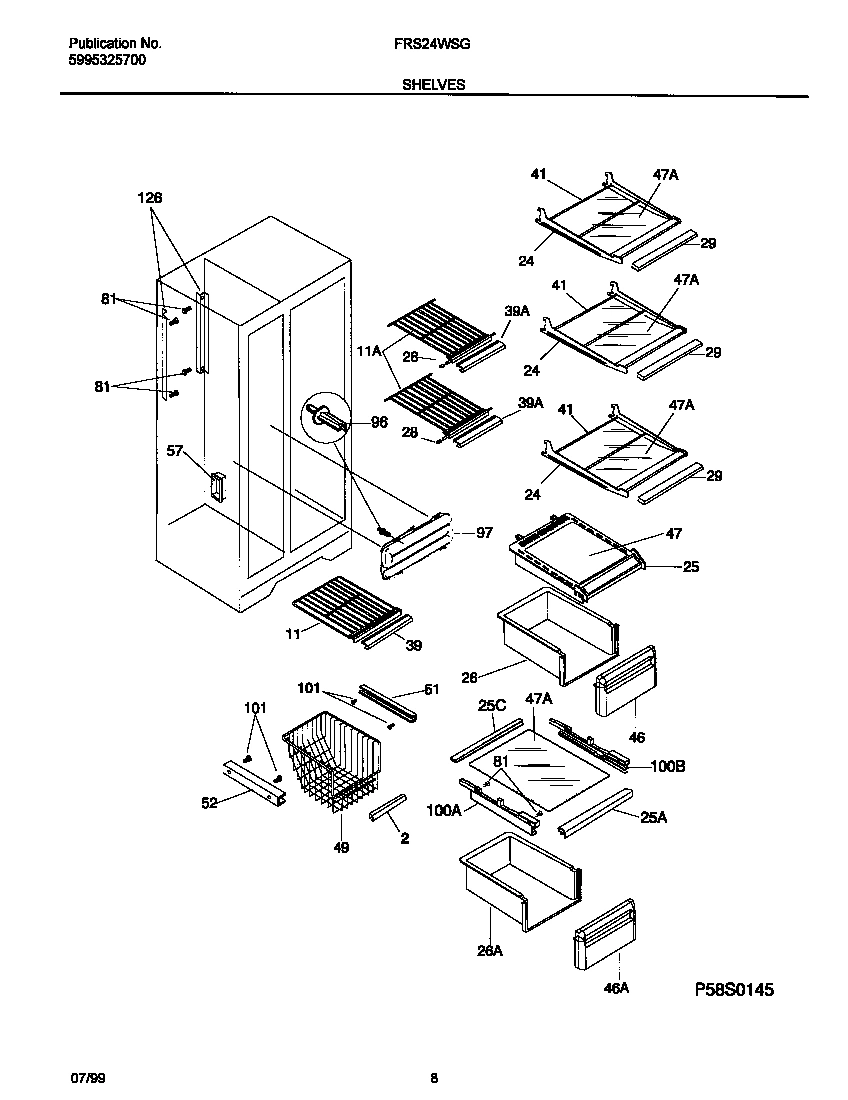

05 - SHELVES

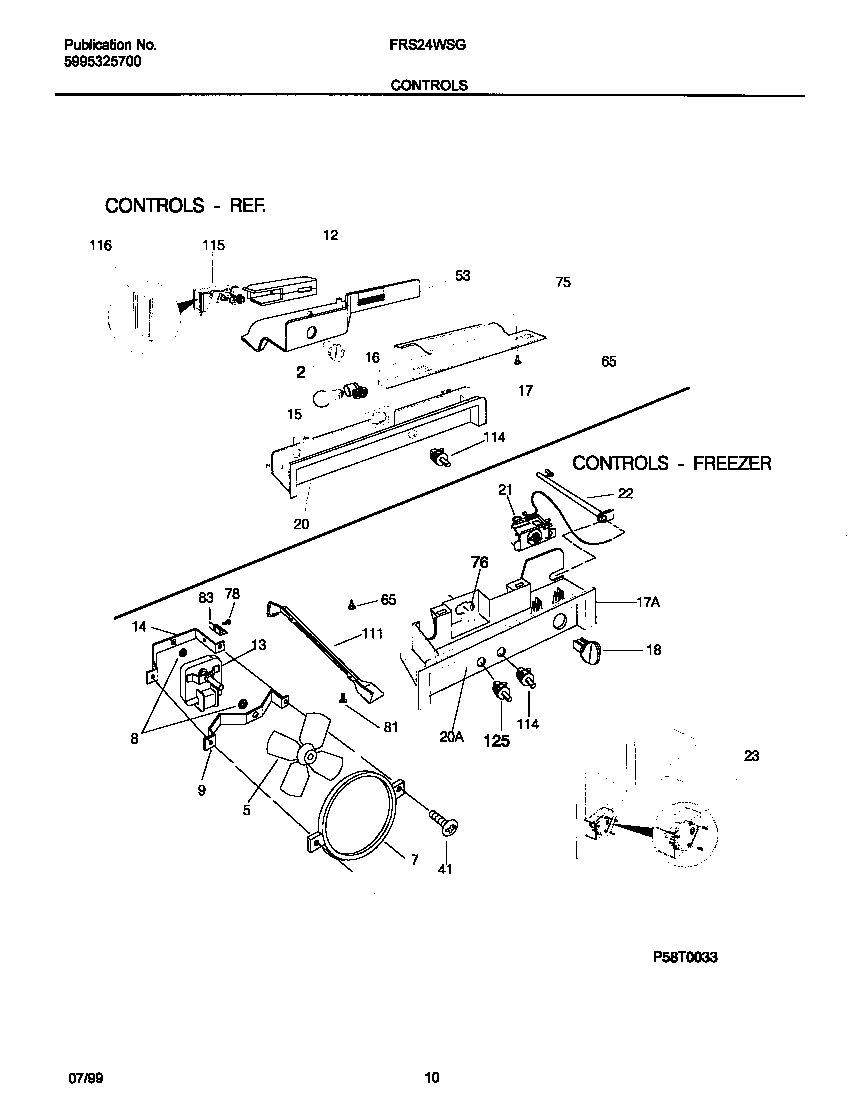

06 - CONTROLS

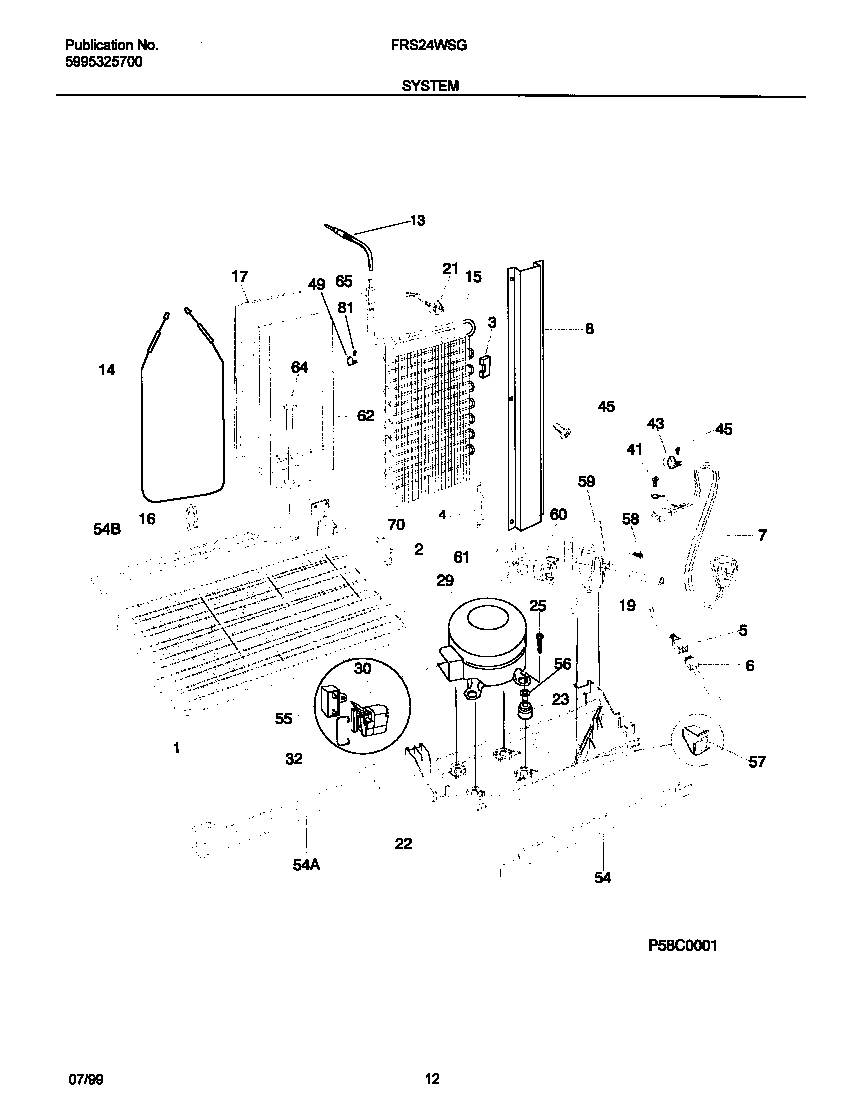

07 - SYSTEM

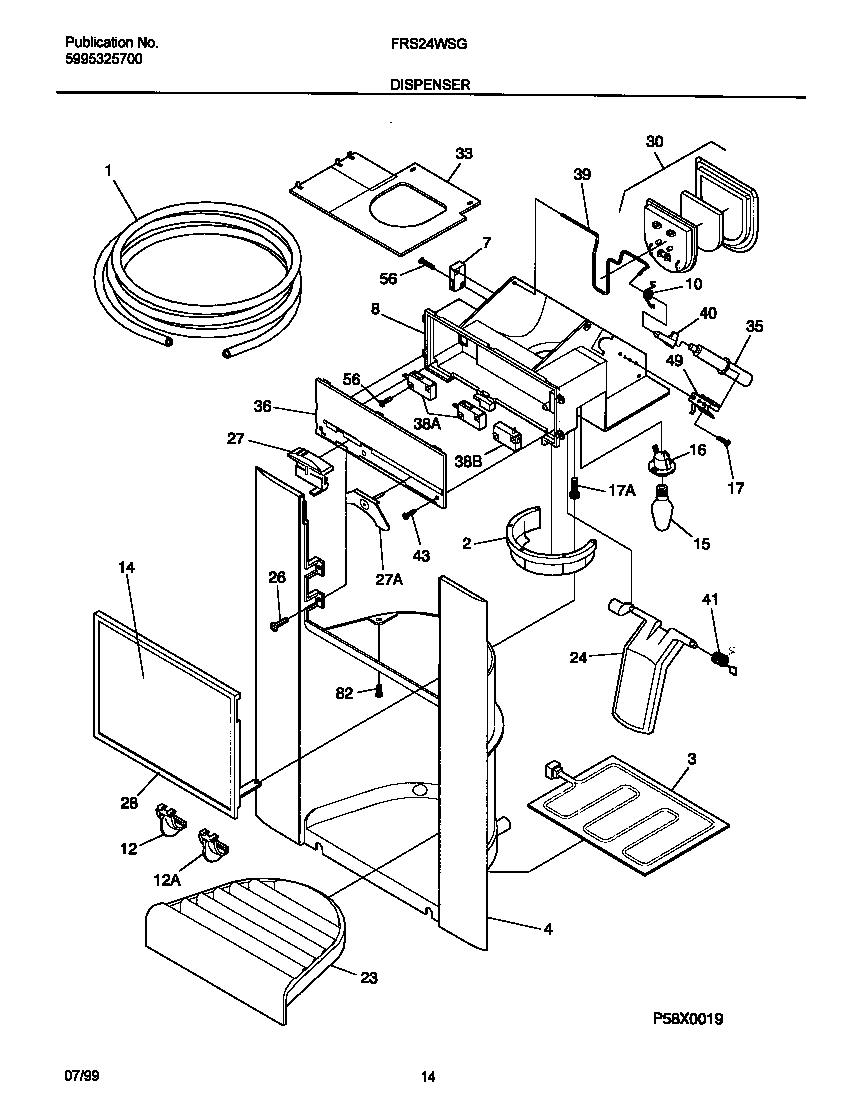

08 - ICE DISPENSER

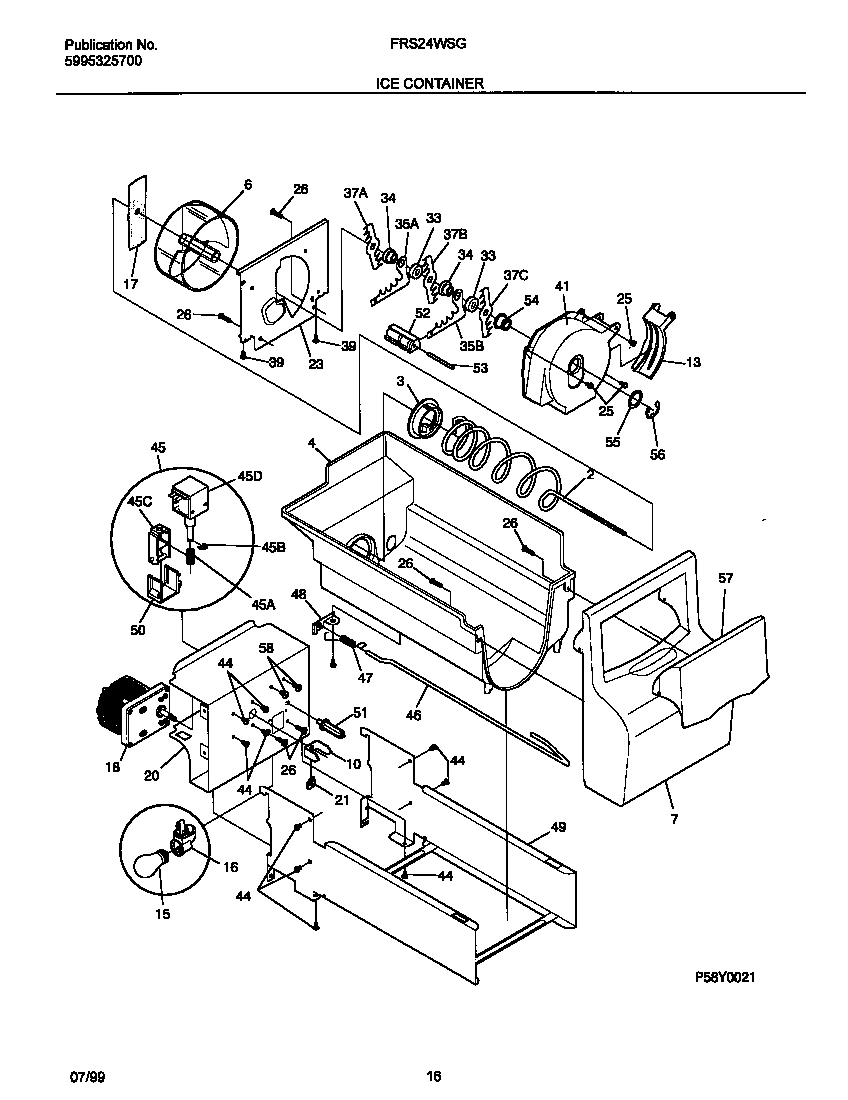

09 - ICE CONTAINER

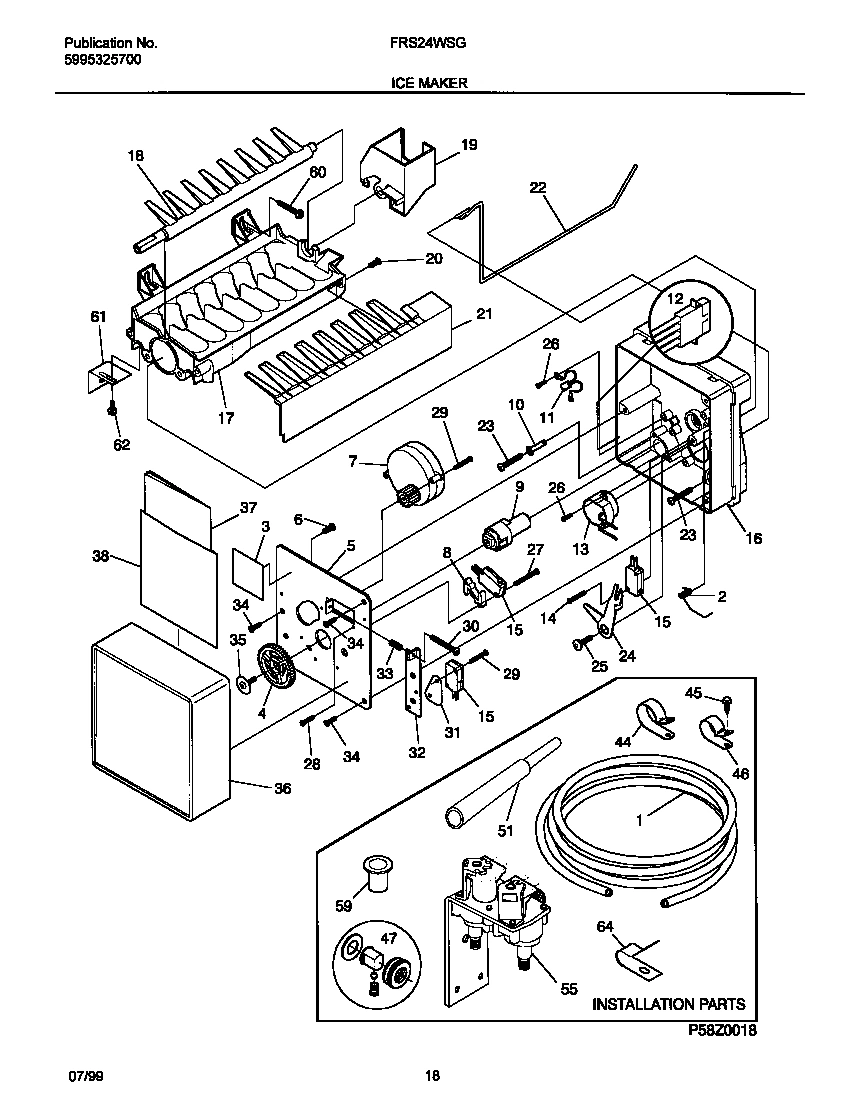

10 - ICE MAKER

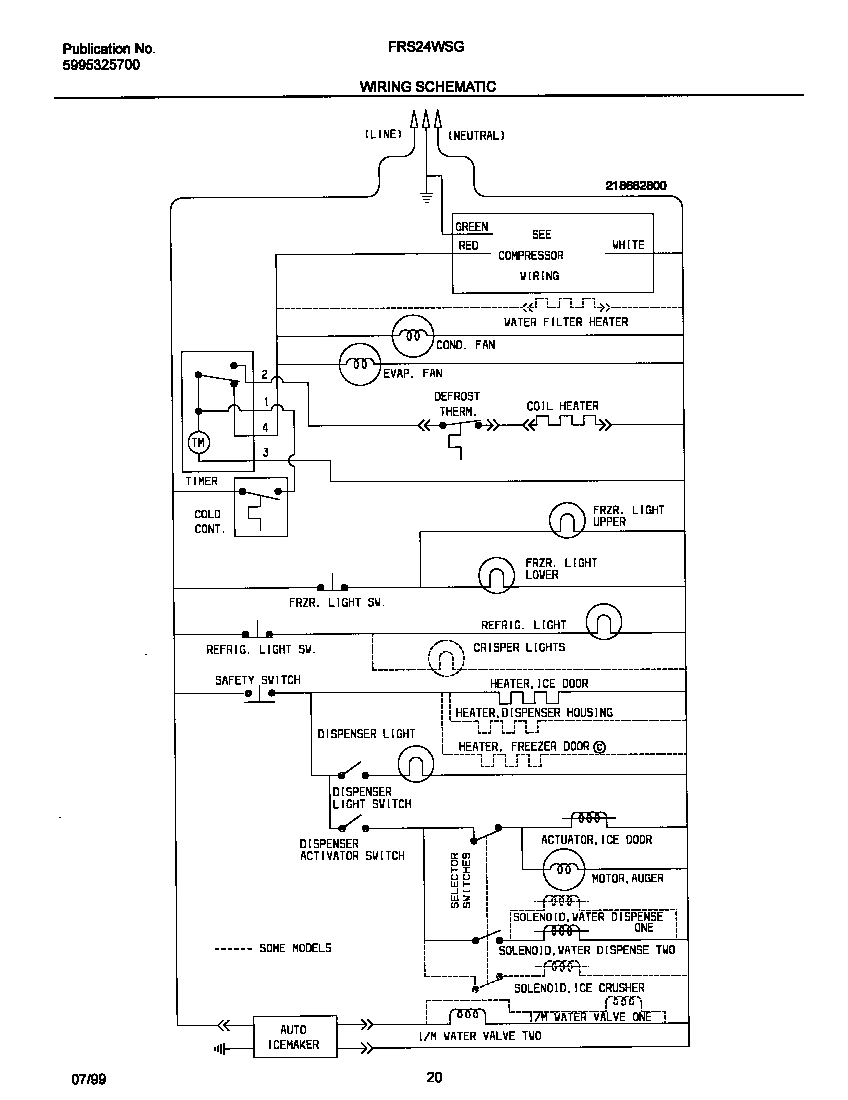

11 - WIRING DIAGRAM

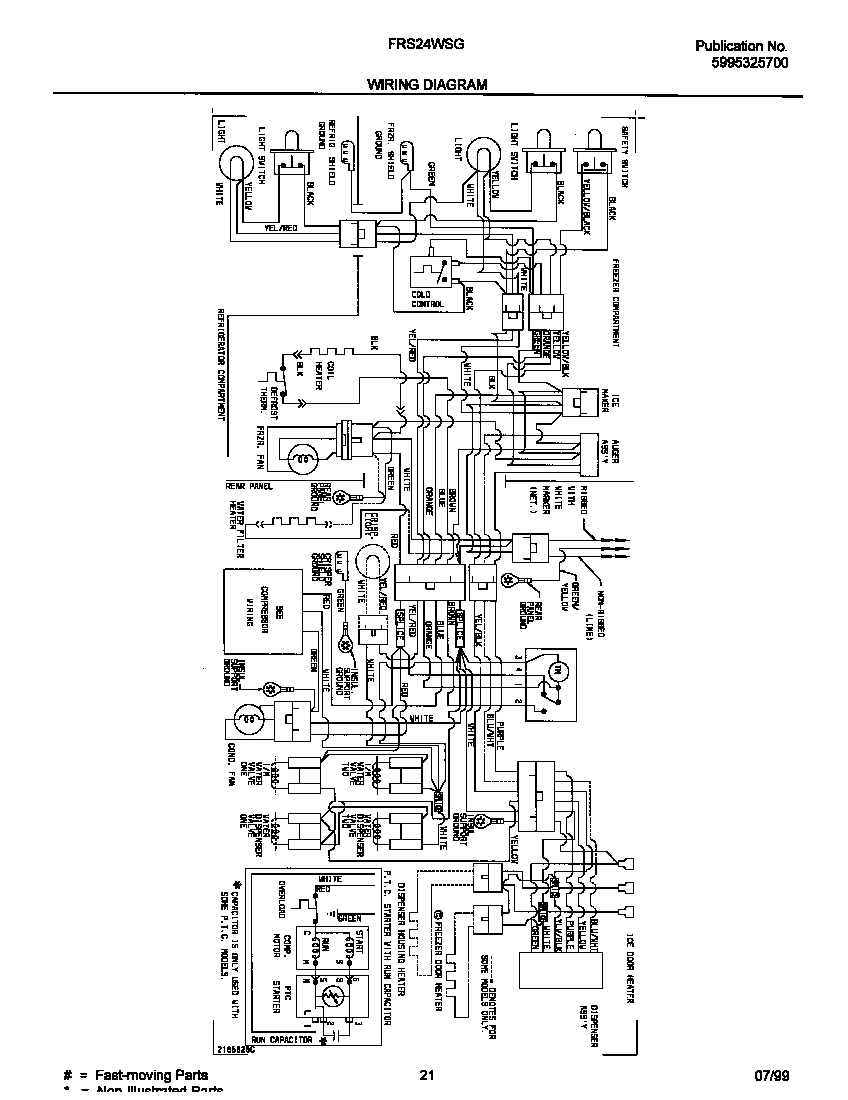

12 - WIRING DIAGRAM
Common parts from model Electrolux FRS24WSGW5 REFRIGERATOR
*35361
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*35375
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*35382
WCI 218731102 WCI 218731102 Contact Us For Availability
*35383
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*35385
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*35386
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*35387
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*35388
SPACER TUBE WCI 5303289026 Contact Us For Availability
*35389
WCI 215005200 WCI 215005200 Contact Us For Availability
*35390
WCI 218815101 WCI 218815101 Contact Us For Availability
*35391
SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability
*35392
TUBE-INLET WCI 3206414 Contact Us For Availability
*35397
WCI 215732700 WCI 215732700 Contact Us For Availability
*35398
WCI 218897001 WCI 218897001 Contact Us For Availability
*35399
WCI 215004700 WCI 215004700 Contact Us For Availability
*35400
GROMMET-SILENCER WCI 215223700 Contact Us For Availability
*35401
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*35403
WCI 218863108 WCI 218863108 Contact Us For Availability
*35404
WCI 5304404335 WCI 5304404335 Contact Us For Availability
*35405
WCI 5304404364 WCI 5304404364 Contact Us For Availability
*35407
WCI 218949201 WCI 218949201 Contact Us For Availability
*35408
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
*35409
WCI 218835800 WCI 218835800 Contact Us For Availability
*35410
Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability
*35412
ADAPTER-WATER SPLY,STRAIGHT WCI 5308000205 Contact Us For Availability
1
WCI 218787900 WCI 218787900 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505301 WCI 218505301 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218852401 WCI 218852401 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 218646100 WCI 218646100 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218897101 WCI 218897101 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 5303308608 WCI 5303308608 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
WCI 218874901 WCI 218874901 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
12
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 218836201 WCI 218836201 Contact Us For Availability
12
WCI 218925401 WCI 218925401 Contact Us For Availability
12
WCI 218925501 WCI 218925501 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416158 WCI 218416158 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218691301 WCI 218691301 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 5303296805 WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303296804 WCI 5303296804 Contact Us For Availability
20
WCI 5303308611 WCI 5303308611 Contact Us For Availability
20
WCI 5304404332 WCI 5304404332 Contact Us For Availability
20
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303297844 WCI 5303297844 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 218921301 WCI 218921301 Contact Us For Availability
25
COVER-STORAGE PAN WCI 218147701 Contact Us For Availability
25
WCI 218015302 WCI 218015302 Contact Us For Availability
25
WCI 218015402 WCI 218015402 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 218814901 WCI 218814901 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
28
WCI 218906201 WCI 218906201 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
WCI 215919415 WCI 215919415 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 218888601 WCI 218888601 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218870201 WCI 218870201 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
WCI 218740003 WCI 218740003 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218835601 WCI 218835601 Contact Us For Availability
36
COVER-ICE MAKER,COMPLETE WCI 3206347 Contact Us For Availability
37
WCI 215867053 WCI 215867053 Contact Us For Availability
37
WCI 215867055 WCI 215867055 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
WCI 215782300 No Longer Available
37C
WCI 218676001 WCI 218676001 Contact Us For Availability
38
WCI 218479900 WCI 218479900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
39
WCI 215217558 WCI 215217558 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
TRIM-REFR SHELF, REAR WCI 215919815 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
45
WCI 218769200 WCI 218769200 Contact Us For Availability
46
WCI 5304404341 WCI 5304404341 Contact Us For Availability
47
WCI 215723552 WCI 215723552 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
47
WCI 5304404342 WCI 5304404342 Contact Us For Availability
49
WCI 5303296573 WCI 5303296573 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404329 WCI 5304404329 Contact Us For Availability
51
WCI 5303296575 WCI 5303296575 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
53
WCI 215809505 WCI 215809505 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218720500 WCI 218720500 Contact Us For Availability
55
WCI 218909902 WCI 218909902 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
58
WCI 5304404331 WCI 5304404331 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048701 WCI 215048701 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359601 WCI 218359601 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
111
WCI 5303297842 WCI 5303297842 Contact Us For Availability
115
WCI 215011502 WCI 215011502 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
140
WCI 218922801 WCI 218922801 Contact Us For Availability
× ![]()
