Model Electrolux FRS24BGGW0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

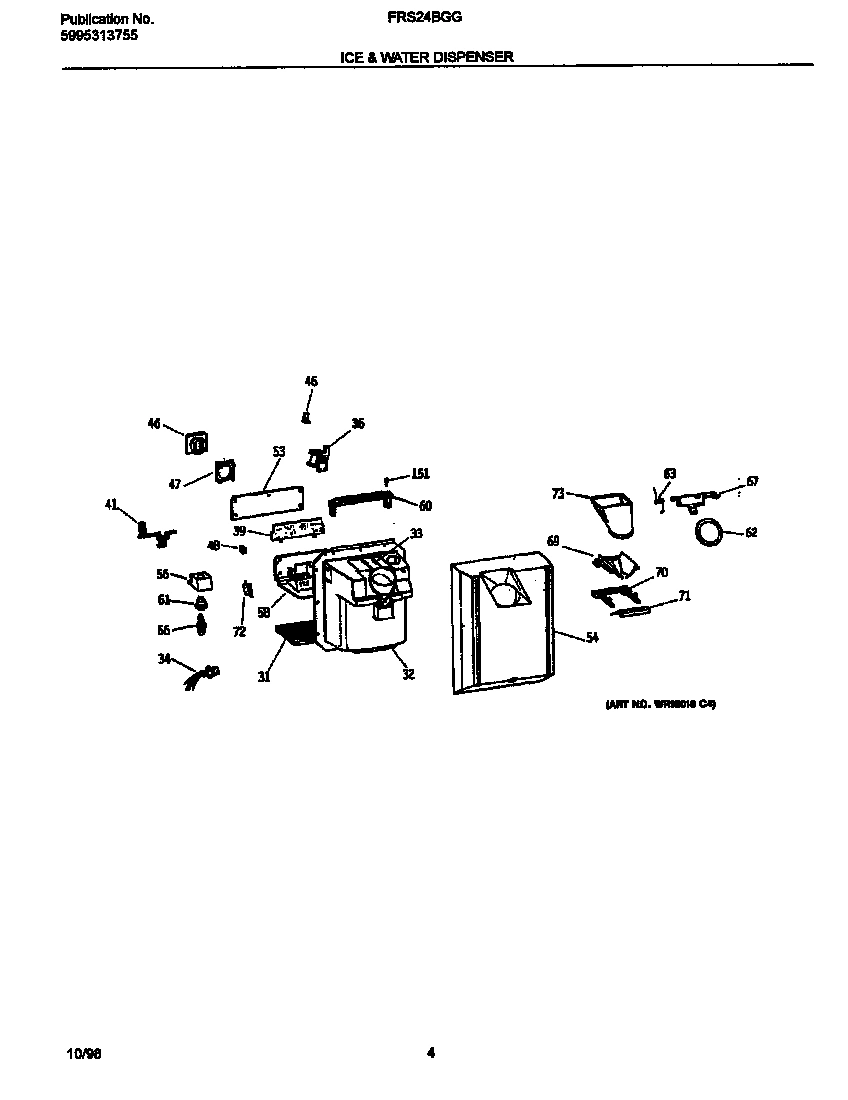

03 - ICE & WATER DISPENSER

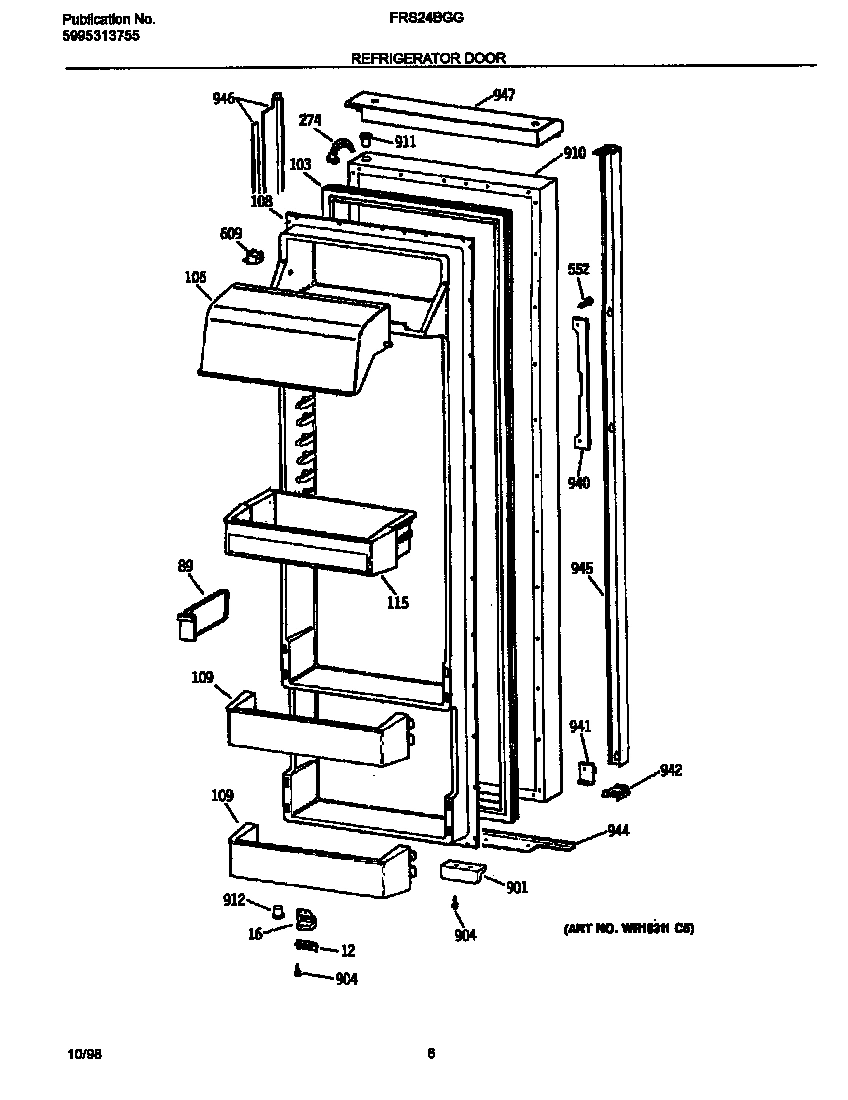

04 - REFRIGERATOR DOOR

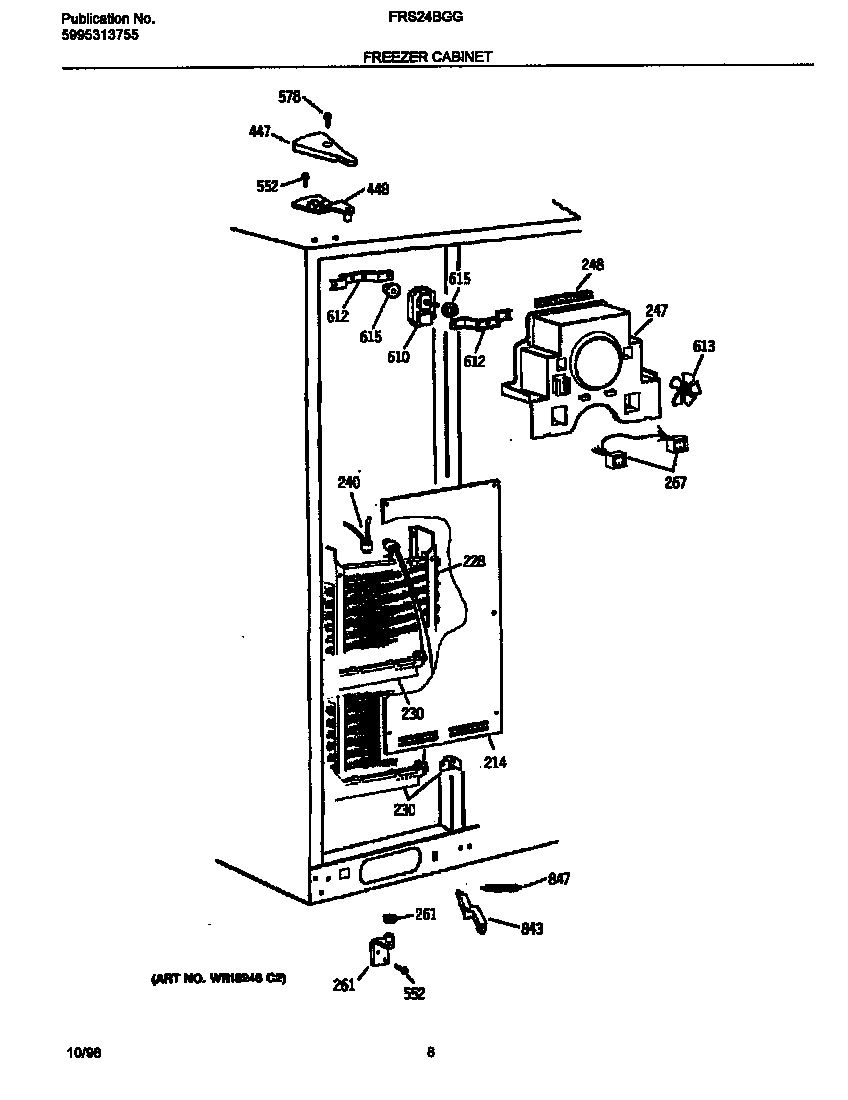

05 - FREEZER CABINET

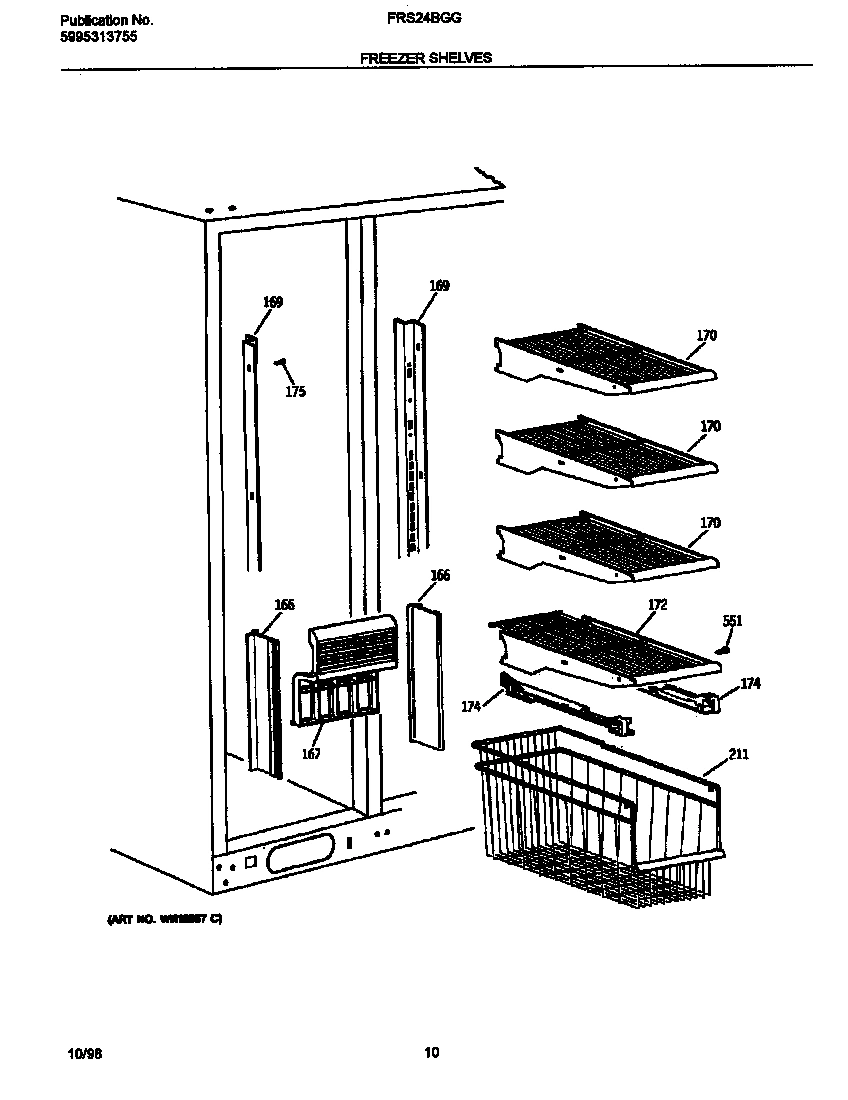

06 - FREEZER SHELVES

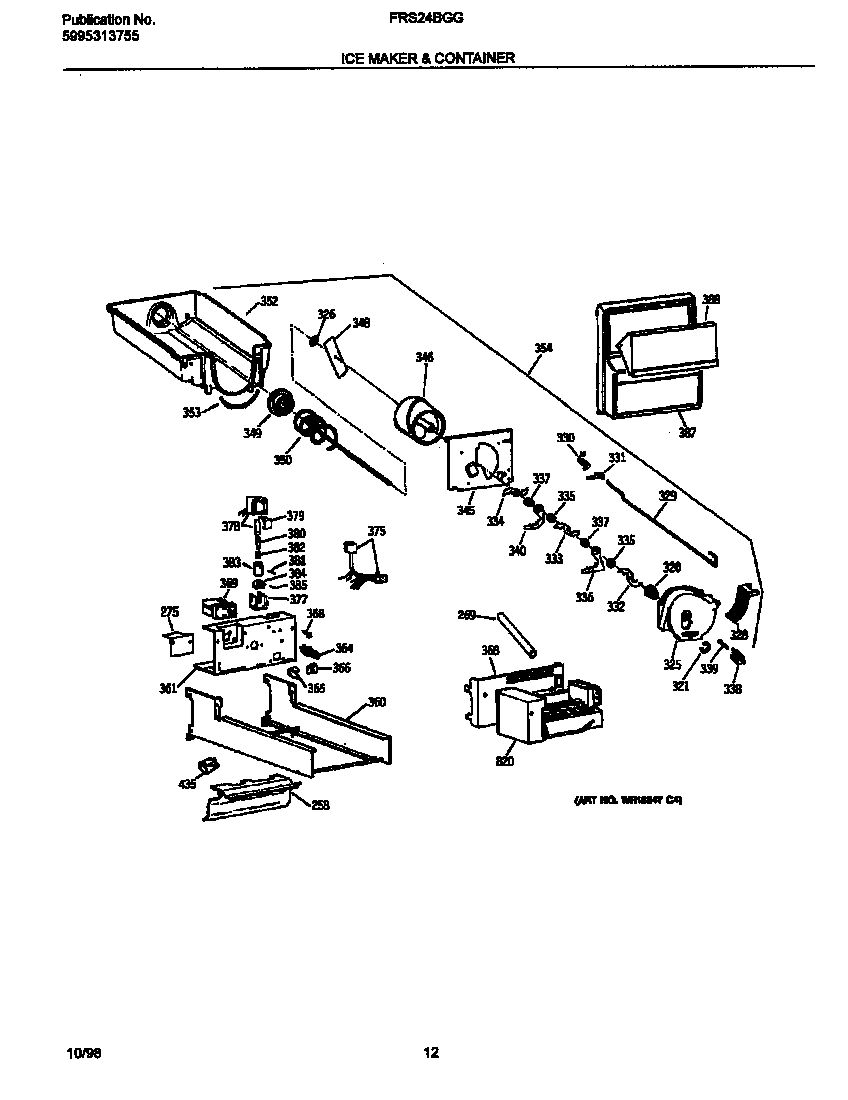

07 - ICE MAKER & CONTAINER

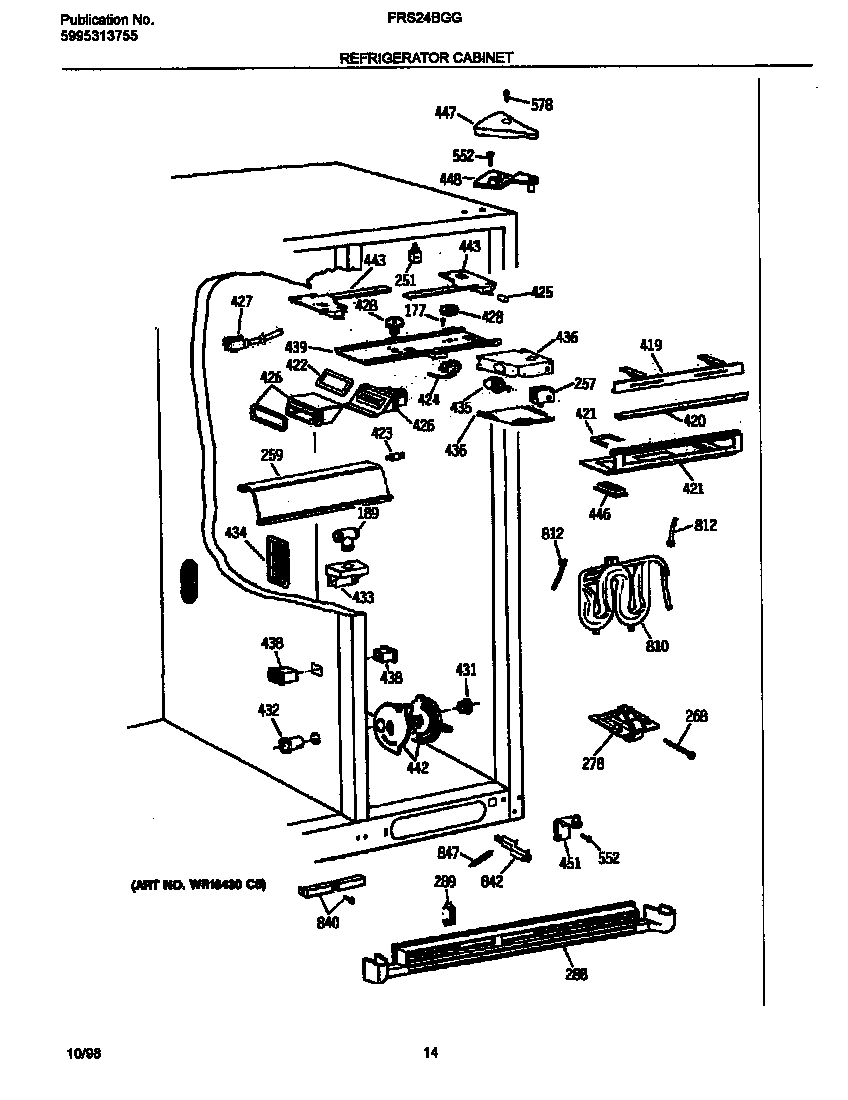

08 - REFRIGERATOR CABINET

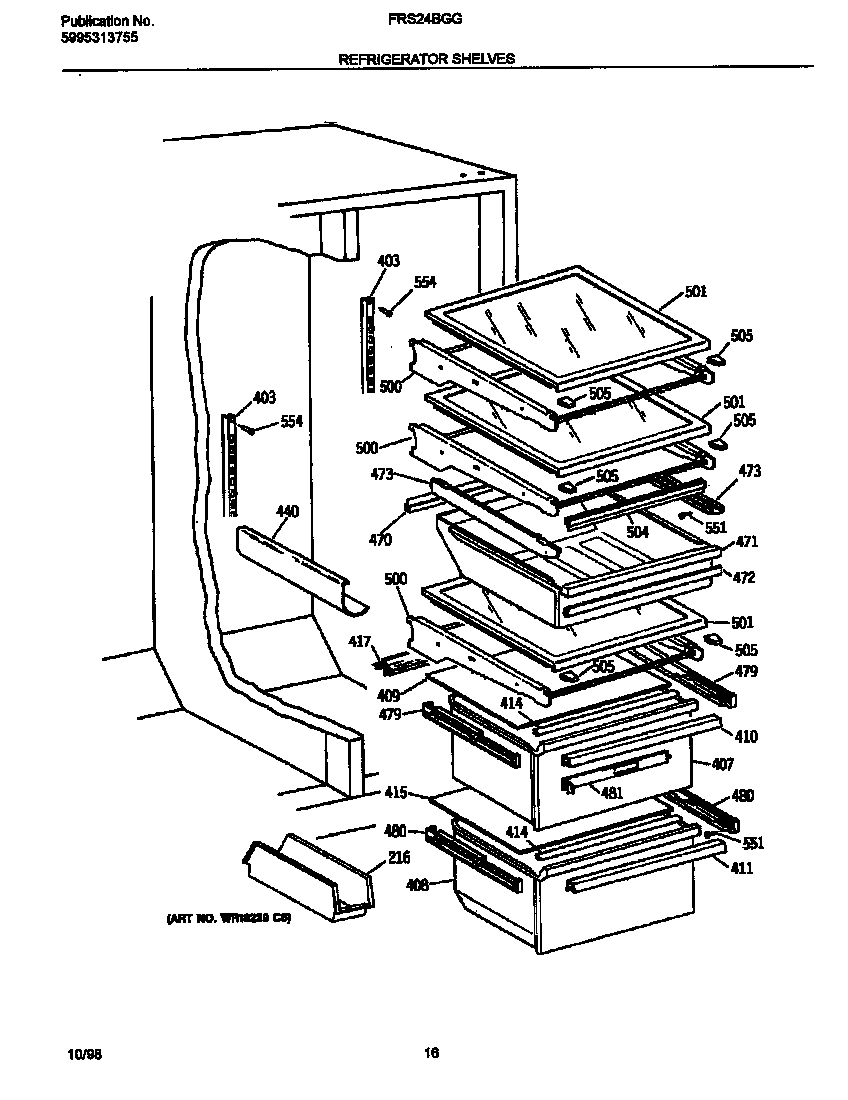

09 - REFRIGERATOR SHELVES

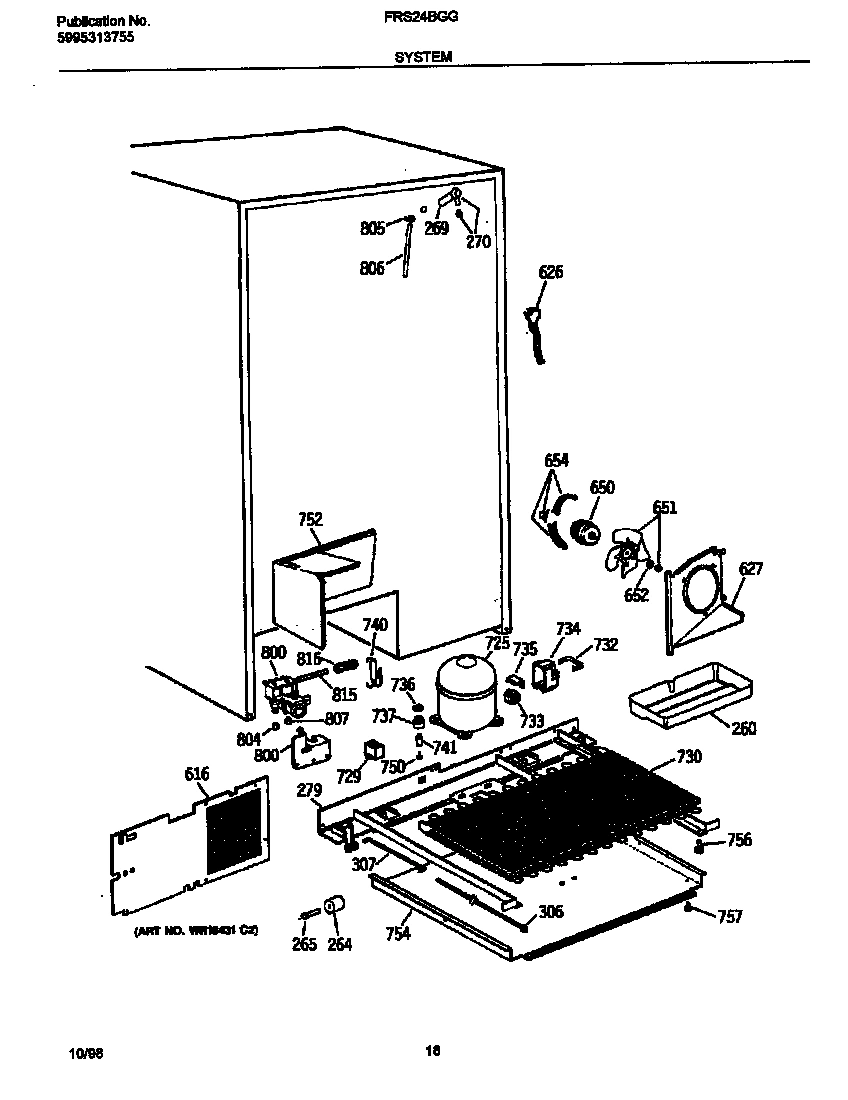

10 - SYSTEM
Common parts from model Electrolux FRS24BGGW0 REFRIGERATOR
1A
WCI 5304406629 WCI 5304406629 Contact Us For Availability
1B
WCI 5304406357 WCI 5304406357 Contact Us For Availability
3
WCI 5304406358 WCI 5304406358 Contact Us For Availability
11
WCI 5304406360 WCI 5304406360 Contact Us For Availability
12
WCI 5304406361 WCI 5304406361 Contact Us For Availability
14
WCI 5304406362 WCI 5304406362 Contact Us For Availability
15
WCI 5304406364 WCI 5304406364 Contact Us For Availability
16
WCI 5304406433 WCI 5304406433 Contact Us For Availability
19
WCI 5304406366 WCI 5304406366 Contact Us For Availability
23
WCI 5304406367 WCI 5304406367 Contact Us For Availability
29
WCI 5304406368 WCI 5304406368 Contact Us For Availability
31
WCI 5304406399 WCI 5304406399 Contact Us For Availability
32
WCI 5304406400 WCI 5304406400 Contact Us For Availability
33
WCI 5304406402 WCI 5304406402 Contact Us For Availability
34
HARNESS-WIRING,DISP LIGHT SW WCI 5304406403 Contact Us For Availability
36
WCI 5304406404 WCI 5304406404 Contact Us For Availability
39
WCI 5304406405 WCI 5304406405 Contact Us For Availability
41
WCI 5304406406 WCI 5304406406 Contact Us For Availability
45
WCI 5304406407 WCI 5304406407 Contact Us For Availability
46
WCI 5304406409 WCI 5304406409 Contact Us For Availability
47
WCI 5304406410 WCI 5304406410 Contact Us For Availability
48
WCI 5304406411 WCI 5304406411 Contact Us For Availability
53
WCI 5304406414 WCI 5304406414 Contact Us For Availability
54
WCI 5304406415 WCI 5304406415 Contact Us For Availability
56A
WCI 5304406416 WCI 5304406416 Contact Us For Availability
56B
WCI 5304406417 WCI 5304406417 Contact Us For Availability
58
WCI 5304406419 WCI 5304406419 Contact Us For Availability
60
WCI 5304406420 WCI 5304406420 Contact Us For Availability
61
WCI 5304406421 WCI 5304406421 Contact Us For Availability
62
WCI 5304406422 WCI 5304406422 Contact Us For Availability
63
WCI 5304406423 WCI 5304406423 Contact Us For Availability
67
WCI 5304406424 WCI 5304406424 Contact Us For Availability
69
WCI 5304406425 WCI 5304406425 Contact Us For Availability
70
WCI 5304406427 WCI 5304406427 Contact Us For Availability
71
WCI 5304406428 WCI 5304406428 Contact Us For Availability
72
WCI 5304406429 WCI 5304406429 Contact Us For Availability
73
WCI 5304406430 WCI 5304406430 Contact Us For Availability
75
WCI 5304406369 WCI 5304406369 Contact Us For Availability
76
WCI 5304406370 WCI 5304406370 Contact Us For Availability
80
WCI 5304406371 WCI 5304406371 Contact Us For Availability
89
WCI 5304406434 WCI 5304406434 Contact Us For Availability
103
WCI 5304406436 WCI 5304406436 Contact Us For Availability
106
WCI 5304406437 WCI 5304406437 Contact Us For Availability
108
WCI 5304406438 WCI 5304406438 Contact Us For Availability
109
WCI 5304406439 WCI 5304406439 Contact Us For Availability
115
WCI 5304406440 WCI 5304406440 Contact Us For Availability
122
WCI 5304406372 WCI 5304406372 Contact Us For Availability
124
WCI 5304406373 WCI 5304406373 Contact Us For Availability
150
WCI 5304406374 WCI 5304406374 Contact Us For Availability
166
WCI 5304406485 WCI 5304406485 Contact Us For Availability
167
WCI 5304406486 WCI 5304406486 Contact Us For Availability
169A
WCI 5304406487 WCI 5304406487 Contact Us For Availability
169B
WCI 5304406488 WCI 5304406488 Contact Us For Availability
170
WCI 5304406490 WCI 5304406490 Contact Us For Availability
172
WCI 5304406491 WCI 5304406491 Contact Us For Availability
174A
WCI 5304406492 WCI 5304406492 Contact Us For Availability
174B
WCI 5304406493 WCI 5304406493 Contact Us For Availability
175
SCREW,(16) WCI 5304406494 Contact Us For Availability
177
SCREW,(6) WCI 5304406552 Contact Us For Availability
189
WCI 5304406553 WCI 5304406553 Contact Us For Availability
211
WCI 5304406495 WCI 5304406495 Contact Us For Availability
214
WCI 5304406460 WCI 5304406460 Contact Us For Availability
216
WCI 5304406602 WCI 5304406602 Contact Us For Availability
228
EVAPORATOR WCI 5304406461 Contact Us For Availability
230A
WCI 5304406462 WCI 5304406462 Contact Us For Availability
230B
WCI 5304406463 WCI 5304406463 Contact Us For Availability
240
WCI 5304406464 WCI 5304406464 Contact Us For Availability
247
WCI 5304406465 WCI 5304406465 Contact Us For Availability
248
WCI 5304406466 WCI 5304406466 Contact Us For Availability
251
WCI 5304406554 WCI 5304406554 Contact Us For Availability
257
WCI 5304406555 WCI 5304406555 Contact Us For Availability
258
WCI 5304406497 WCI 5304406497 Contact Us For Availability
259
SHIELD-LIGHT,REFR ,LOWER WCI 5304406556 Contact Us For Availability
260
WCI 5304406304 WCI 5304406304 Contact Us For Availability
261
WCI 5304406468 WCI 5304406468 Contact Us For Availability
261
WCI 5304406469 WCI 5304406469 Contact Us For Availability
264
WCI 5304406305 WCI 5304406305 Contact Us For Availability
265
WCI 5304406306 WCI 5304406306 Contact Us For Availability
267
WCI 5304406470 WCI 5304406470 Contact Us For Availability
268
WCI 5304406557 WCI 5304406557 Contact Us For Availability
269
WCI 5304406307 WCI 5304406307 Contact Us For Availability
270A
WCI 5304406308 WCI 5304406308 Contact Us For Availability
270B
WCI 5304406309 WCI 5304406309 Contact Us For Availability
274
HARNESS-WIRING,REFR LIGHT SW WCI 5304406441 Contact Us For Availability
275
WCI 5304406498 WCI 5304406498 Contact Us For Availability
278
WCI 5304406558 WCI 5304406558 Contact Us For Availability
279
WCI 5304406310 WCI 5304406310 Contact Us For Availability
288
WCI 5304406560 WCI 5304406560 Contact Us For Availability
289
WCI 5304406561 WCI 5304406561 Contact Us For Availability
306
WCI 5304406311 WCI 5304406311 Contact Us For Availability
307
WCI 5304406312 WCI 5304406312 Contact Us For Availability
320
WCI 5304406499 WCI 5304406499 Contact Us For Availability
321
WCI 5304406500 WCI 5304406500 Contact Us For Availability
325
WCI 5304406502 WCI 5304406502 Contact Us For Availability
326
WCI 5304406503 WCI 5304406503 Contact Us For Availability
328A
WCI 5304406504 WCI 5304406504 Contact Us For Availability
328B
WCI 5304406506 WCI 5304406506 Contact Us For Availability
328C
WCI 5304406507 WCI 5304406507 Contact Us For Availability
329
WCI 5304406508 WCI 5304406508 Contact Us For Availability
330
WCI 5304406509 WCI 5304406509 Contact Us For Availability
331
WCI 5304406510 WCI 5304406510 Contact Us For Availability
332
WCI 5304406511 WCI 5304406511 Contact Us For Availability
333
WCI 5304406512 WCI 5304406512 Contact Us For Availability
334
WCI 5304406513 WCI 5304406513 Contact Us For Availability
335
WCI 5304406514 WCI 5304406514 Contact Us For Availability
336
WCI 5304406515 WCI 5304406515 Contact Us For Availability
337
WCI 5304406516 WCI 5304406516 Contact Us For Availability
338
WCI 5304406517 WCI 5304406517 Contact Us For Availability
339
WCI 5304406518 WCI 5304406518 Contact Us For Availability
340
WCI 5304406519 WCI 5304406519 Contact Us For Availability
345
WCI 5304406521 WCI 5304406521 Contact Us For Availability
346
WCI 5304406522 WCI 5304406522 Contact Us For Availability
348
WCI 5304406523 WCI 5304406523 Contact Us For Availability
349
WCI 5304406524 WCI 5304406524 Contact Us For Availability
350
WCI 5304406525 WCI 5304406525 Contact Us For Availability
352
WCI 5304406526 WCI 5304406526 Contact Us For Availability
353
WCI 5304406527 WCI 5304406527 Contact Us For Availability
354
WCI 5304406528 WCI 5304406528 Contact Us For Availability
360
WCI 5304406529 WCI 5304406529 Contact Us For Availability
361
WCI 5304406530 WCI 5304406530 Contact Us For Availability
364
WCI 5304406531 WCI 5304406531 Contact Us For Availability
365
WCI 5304406532 WCI 5304406532 Contact Us For Availability
366
WCI 5304406533 WCI 5304406533 Contact Us For Availability
368A
SCREW-MOTOR MTG,(11) WCI 5304406534 Contact Us For Availability
368B
WCI 5304406535 WCI 5304406535 Contact Us For Availability
369
WCI 5304406536 WCI 5304406536 Contact Us For Availability
375
HARNESS-WIRING,AUGER MOTOR WCI 5304406537 Contact Us For Availability
377
WCI 5304406538 WCI 5304406538 Contact Us For Availability
378
WCI 5304406539 WCI 5304406539 Contact Us For Availability
379
WCI 5304406540 WCI 5304406540 Contact Us For Availability
380
WCI 5304406541 WCI 5304406541 Contact Us For Availability
381
PIN-SPIRAL,SPIRAL ,SLND COLLAR WCI 5304406542 Contact Us For Availability
382
WCI 5304406543 WCI 5304406543 Contact Us For Availability
383
WCI 5304406544 WCI 5304406544 Contact Us For Availability
384
WCI 5304406545 WCI 5304406545 Contact Us For Availability
385
PIN-SPIRAL,SLND STIRRUP WCI 5304406546 Contact Us For Availability
387
WCI 5304406547 WCI 5304406547 Contact Us For Availability
388
WCI 5304406548 WCI 5304406548 Contact Us For Availability
403
WCI 5304406603 WCI 5304406603 Contact Us For Availability
407
WCI 5304406604 WCI 5304406604 Contact Us For Availability
408
WCI 5304406605 WCI 5304406605 Contact Us For Availability
409
WCI 5304406606 WCI 5304406606 Contact Us For Availability
410
WCI 5304406607 WCI 5304406607 Contact Us For Availability
411
WCI 5304406608 WCI 5304406608 Contact Us For Availability
414
WCI 5304406609 WCI 5304406609 Contact Us For Availability
415
WCI 5304406610 WCI 5304406610 Contact Us For Availability
417
WCI 5304406611 WCI 5304406611 Contact Us For Availability
419
WCI 5304406562 WCI 5304406562 Contact Us For Availability
420
WCI 5304406563 WCI 5304406563 Contact Us For Availability
421A
WCI 5304406564 WCI 5304406564 Contact Us For Availability
421B
WCI 5304406565 WCI 5304406565 Contact Us For Availability
421C
WCI 5304406566 WCI 5304406566 Contact Us For Availability
422
WCI 5304406567 WCI 5304406567 Contact Us For Availability
423
WCI 5304406568 WCI 5304406568 Contact Us For Availability
424A
WCI 5304406569 WCI 5304406569 Contact Us For Availability
424B
WCI 5304406570 WCI 5304406570 Contact Us For Availability
425
KNOB-CONTROL WCI 5304406571 Contact Us For Availability
426A
WCI 5304406572 WCI 5304406572 Contact Us For Availability
426B
WCI 5304406573 WCI 5304406573 Contact Us For Availability
426C
WCI 5304406574 WCI 5304406574 Contact Us For Availability
427
WCI 5304406575 WCI 5304406575 Contact Us For Availability
428A
WCI 5304406576 WCI 5304406576 Contact Us For Availability
428B
WCI 5304406577 WCI 5304406577 Contact Us For Availability
431
WCI 5304406578 WCI 5304406578 Contact Us For Availability
432
WCI 5304406579 WCI 5304406579 Contact Us For Availability
433A
WCI 5304406580 WCI 5304406580 Contact Us For Availability
433B
WCI 5304406581 WCI 5304406581 Contact Us For Availability
434
WCI 5304406582 WCI 5304406582 Contact Us For Availability
435B
WCI 5304406550 WCI 5304406550 Contact Us For Availability
436A
WCI 5304406583 WCI 5304406583 Contact Us For Availability
436B
WCI 5304406584 WCI 5304406584 Contact Us For Availability
438A
WCI 5304406585 WCI 5304406585 Contact Us For Availability
438B
WCI 5304406586 WCI 5304406586 Contact Us For Availability
439
WCI 5304406587 WCI 5304406587 Contact Us For Availability
440
WCI 5304406612 WCI 5304406612 Contact Us For Availability
442
WCI 5304406588 WCI 5304406588 Contact Us For Availability
443A
WCI 5304406589 WCI 5304406589 Contact Us For Availability
443B
WCI 5304406590 WCI 5304406590 Contact Us For Availability
446
WCI 5304406591 WCI 5304406591 Contact Us For Availability
447
COVER-UPPER HINGE,WHITE ,FRZR SIDE WCI 5304406471 Contact Us For Availability
447
COVER-UPPER HINGE,WHITE ,REFR SIDE WCI 5304406473 Contact Us For Availability
448
WCI 5304406476 WCI 5304406476 Contact Us For Availability
448
WCI 5304406475 WCI 5304406475 Contact Us For Availability
451
WCI 5304406592 WCI 5304406592 Contact Us For Availability
470
WCI 5304406613 WCI 5304406613 Contact Us For Availability
471
WCI 5304406614 WCI 5304406614 Contact Us For Availability
472
WCI 5304406615 WCI 5304406615 Contact Us For Availability
473A
WCI 5304406616 WCI 5304406616 Contact Us For Availability
473B
WCI 5304406617 WCI 5304406617 Contact Us For Availability
473C
WCI 5304406618 WCI 5304406618 Contact Us For Availability
479A
WCI 5304406619 WCI 5304406619 Contact Us For Availability
479B
WCI 5304406620 WCI 5304406620 Contact Us For Availability
480A
WCI 5304406621 WCI 5304406621 Contact Us For Availability
480B
WCI 5304406622 WCI 5304406622 Contact Us For Availability
481
WCI 5304406623 WCI 5304406623 Contact Us For Availability
500
WCI 5304406624 WCI 5304406624 Contact Us For Availability
501
WCI 5304406625 WCI 5304406625 Contact Us For Availability
504
WCI 5304406626 WCI 5304406626 Contact Us For Availability
505
WCI 5304406627 WCI 5304406627 Contact Us For Availability
551
SCREW-HANGER MTG,(2) WCI 5304406496 Contact Us For Availability
552
SCREW-HINGE MTG,(12) WCI 5304406375 Contact Us For Availability
554
SCREW-CHANNEL MTG,(6) WCI 5304406628 Contact Us For Availability
578
SCREW-HINGE COVER,(2) WCI 5304406477 Contact Us For Availability
608
WCI 5304406376 WCI 5304406376 Contact Us For Availability
609
WCI 5304406442 WCI 5304406442 Contact Us For Availability
610
WCI 5304406478 WCI 5304406478 Contact Us For Availability
612
WCI 5304406479 WCI 5304406479 Contact Us For Availability
613A
WCI 5304406480 WCI 5304406480 Contact Us For Availability
613B
WCI 5308067917 WCI 5308067917 Contact Us For Availability
615
WCI 5304406481 WCI 5304406481 Contact Us For Availability
616
WCI 5304406313 WCI 5304406313 Contact Us For Availability
626A
WCI 5304406315 WCI 5304406315 Contact Us For Availability
626B
WCI 5304406314 WCI 5304406314 Contact Us For Availability
627
WCI 5304406316 WCI 5304406316 Contact Us For Availability
650
WCI 5304406317 WCI 5304406317 Contact Us For Availability
651A
WCI 5304406319 WCI 5304406319 Contact Us For Availability
651B
WCI 5304406318 WCI 5304406318 Contact Us For Availability
652
WCI 5304406320 WCI 5304406320 Contact Us For Availability
654A
WCI 5304406321 WCI 5304406321 Contact Us For Availability
654B
WCI 5304406322 WCI 5304406322 Contact Us For Availability
729
WCI 5304406333 WCI 5304406333 Contact Us For Availability
730
WCI 5304406334 WCI 5304406334 Contact Us For Availability
732
WCI 5304406335 WCI 5304406335 Contact Us For Availability
733
WCI 5304406336 WCI 5304406336 Contact Us For Availability
734
WCI 5304406337 WCI 5304406337 Contact Us For Availability
735
WCI 5304406338 WCI 5304406338 Contact Us For Availability
736
WCI 5304406339 WCI 5304406339 Contact Us For Availability
737
WCI 5304406340 WCI 5304406340 Contact Us For Availability
740
WCI 5304406341 WCI 5304406341 Contact Us For Availability
741
WCI 5304406342 WCI 5304406342 Contact Us For Availability
750
WCI 5304406343 WCI 5304406343 Contact Us For Availability
752
WCI 5304406344 WCI 5304406344 Contact Us For Availability
754
WCI 5304406345 WCI 5304406345 Contact Us For Availability
756
WCI 5304406346 WCI 5304406346 Contact Us For Availability
757
FASTENER,PUSH-IN ,(5) WCI 5304406347 Contact Us For Availability
800A
WCI 5304406349 WCI 5304406349 Contact Us For Availability
800B
WCI 5304406348 WCI 5304406348 Contact Us For Availability
804
WCI 5304406350 WCI 5304406350 Contact Us For Availability
805
CLAMP-WATER TUBE,(2) WCI 5304406351 Contact Us For Availability
806
WCI 5304406352 WCI 5304406352 Contact Us For Availability
807A
NUT-SLEEVE,5/16 ,(3) WCI 5304406353 Contact Us For Availability
807B
WCI 5304406354 WCI 5304406354 Contact Us For Availability
810
WCI 5304406594 WCI 5304406594 Contact Us For Availability
812A
WCI 5304406595 WCI 5304406595 Contact Us For Availability
812B
WCI 5304406596 WCI 5304406596 Contact Us For Availability
815
WCI 5304406355 WCI 5304406355 Contact Us For Availability
816
WCI 5304406356 WCI 5304406356 Contact Us For Availability
820
WCI 5304406551 WCI 5304406551 Contact Us For Availability
840
SCREW,MAGNET MTG ,(3) WCI 5304406597 Contact Us For Availability
840
WCI 5304406599 WCI 5304406599 Contact Us For Availability
842
LEVER-DOOR CLOSER,WHITE ,REFR SIDE WCI 5304406600 Contact Us For Availability
843
LEVER-DOOR CLOSER,WHITE ,FRZR SIDE WCI 5304406483 Contact Us For Availability
847
WCI 5304406484 WCI 5304406484 Contact Us For Availability
900
WCI 5304406378 WCI 5304406378 Contact Us For Availability
901
WCI 5304406380 WCI 5304406380 Contact Us For Availability
903
WCI 5304406381 WCI 5304406381 Contact Us For Availability
904
SCREW-DOOR STRIKE,(8) WCI 5304406383 Contact Us For Availability
910
WCI 5304406444 WCI 5304406444 Contact Us For Availability
911
WCI 5304406384 WCI 5304406384 Contact Us For Availability
912
WCI 5304406446 WCI 5304406446 Contact Us For Availability
920
WCI 5304406386 WCI 5304406386 Contact Us For Availability
921
WCI 5304406387 WCI 5304406387 Contact Us For Availability
922
WCI 5304406389 WCI 5304406389 Contact Us For Availability
924
WCI 5304406391 WCI 5304406391 Contact Us For Availability
925
WCI 5304406393 WCI 5304406393 Contact Us For Availability
926
WCI 5304406395 WCI 5304406395 Contact Us For Availability
927
WCI 5304406397 WCI 5304406397 Contact Us For Availability
940
WCI 5304406447 WCI 5304406447 Contact Us For Availability
941A
WCI 5304406449 WCI 5304406449 Contact Us For Availability
941B
WCI 5304406448 WCI 5304406448 Contact Us For Availability
942
WCI 5304406451 WCI 5304406451 Contact Us For Availability
944
WCI 5304406453 WCI 5304406453 Contact Us For Availability
945
WCI 5304406455 WCI 5304406455 Contact Us For Availability
946
WCI 5304406457 WCI 5304406457 Contact Us For Availability
947
WCI 5304406459 WCI 5304406459 Contact Us For Availability
× ![]()
