Model Frigidaire FRS24AGGW9 REFRIGERATOR – Common Parts & Diagrams

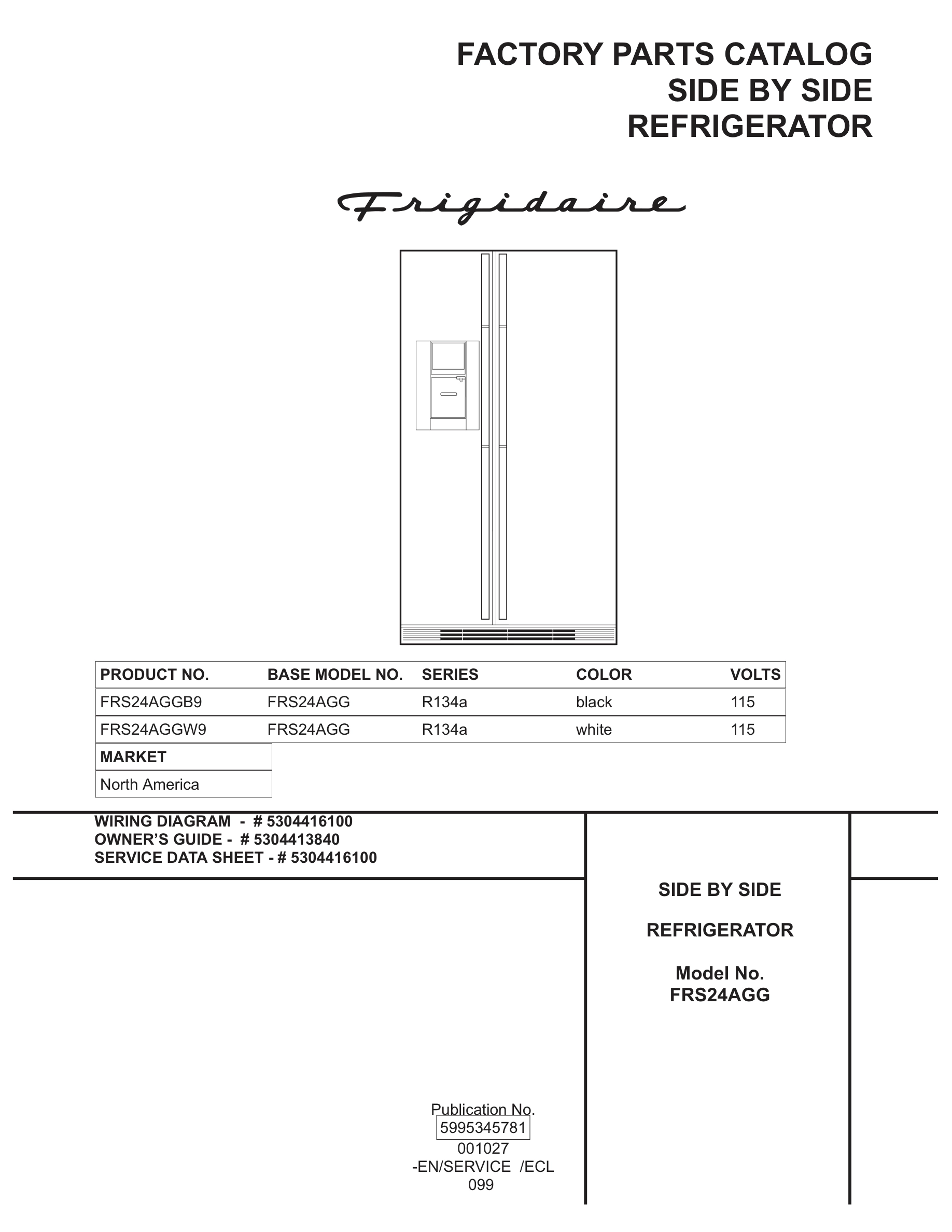

01 - COVER

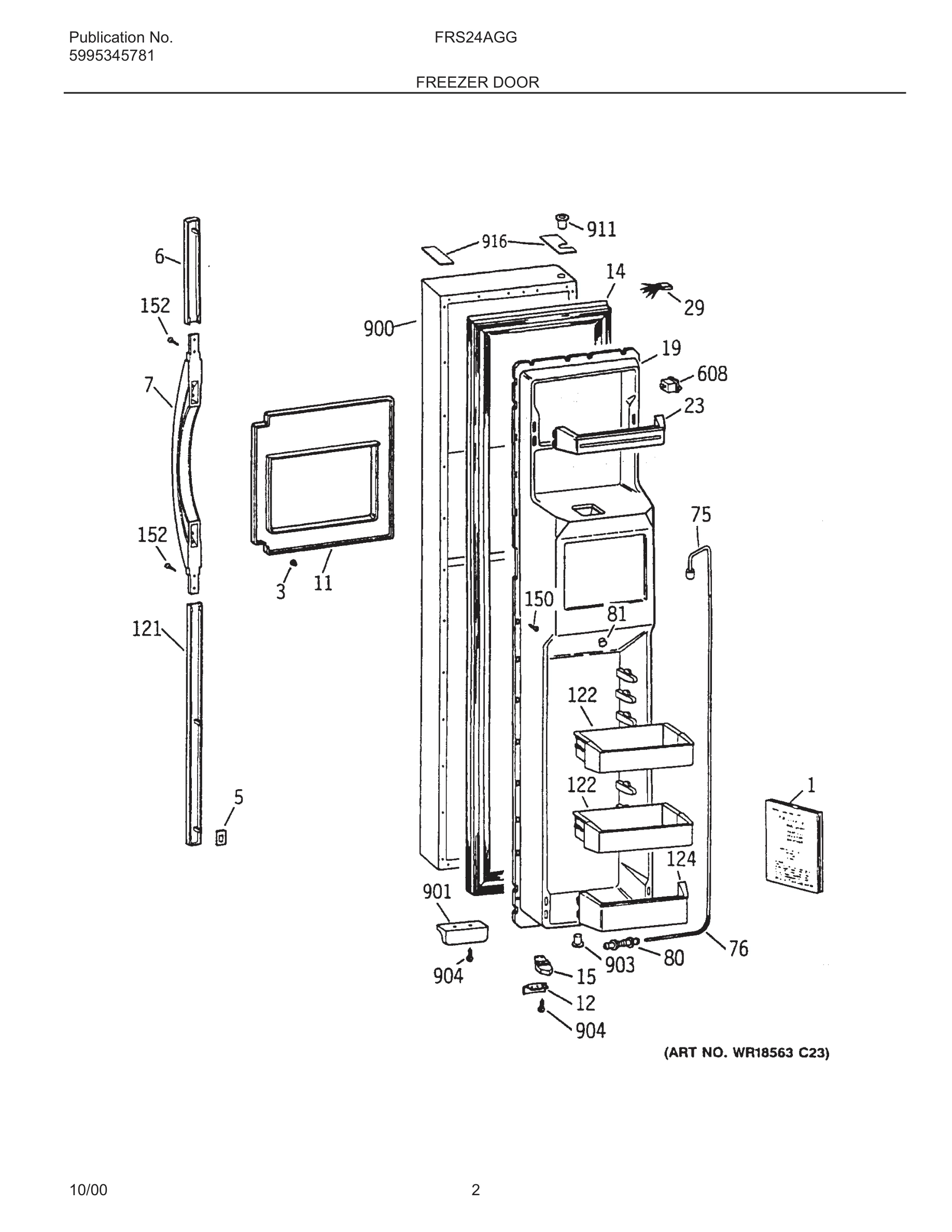

03 - FREEZER DOOR
05 - ICE & WATER DISPENSER
07 - REFRIGERATOR DOOR
09 - FREEZER CABINET
11 - FREEZER SHELVES
13 - ICE CONTAINER
15 - REFRIGERATOR CABINET
17 - REFRIGERATOR SHELVES
19 - SYSTEM
21 - ICE MAKER
Common parts from model Frigidaire FRS24AGGW9 REFRIGERATOR
001
Owner(cid:146)s Guide WCI 5304413840 Contact Us For Availability
001
Technical Guide,mini manual ,wiring diagram WCI 5304416100 Contact Us For Availability
003
Fastener-tubular,(2) WCI 5304406358 Contact Us For Availability
005
Clip-dart,handle trim mtg ,(2) WCI 5304416766 Contact Us For Availability
006
Trim-handle,white ,upper ,(2) WCI 5304406664 Contact Us For Availability
007
Handle-door,white ,(2) WCI 5304416767 Contact Us For Availability
010
Screw,8-18 x 5/8 ,(6) WCI 5304413846 Contact Us For Availability
011
Trim-disp recess,white WCI 5304406667 Contact Us For Availability
012
Door Stop,(2) WCI 5304406361 Contact Us For Availability
014
Gasket-frzr door,white ,magnetic WCI 5304406362 Contact Us For Availability
015
Door Closer,cam ,white ,frzr section WCI 5304406364 Contact Us For Availability
016
Door Closer,cam ,white ,refr section WCI 5304406433 Contact Us For Availability
019
Panel-inner door,frzr section WCI 5304413798 Contact Us For Availability
023
Rack-door,top-frzr WCI 5304406367 Contact Us For Availability
029#
Wiring Harness,frzr door WCI 5304419383 Contact Us For Availability
031
Drip Tray,white ,dispenser WCI 5304406399 Contact Us For Availability
032
Housing-dispenser,white WCI 5304406400 Contact Us For Availability
033#
Heater-disp housing WCI 5304406402 Contact Us For Availability
034#
Wiring Harness,disp light sw WCI 5304406403 Contact Us For Availability
036#
Solenoid-dispenser WCI 5304406404 Contact Us For Availability
039#
PC Board-dispenser,time delay WCI 5304406405 Contact Us For Availability
041
Cradle-actuator WCI 5304406406 Contact Us For Availability
045
Retainer-disp door WCI 5304406407 Contact Us For Availability
046
Pad-actuator,white WCI 5304406409 Contact Us For Availability
047
Support-act pad,black WCI 5304406410 Contact Us For Availability
048
Knob-dispenser,white ,(2) WCI 5304406411 Contact Us For Availability
053
Nameplate-dispenser,white WCI 5304406684 Contact Us For Availability
054
Insulation-housing,foam ,dispenser WCI 5304406415 Contact Us For Availability
056
Reflector-lamp skt WCI 5304406416 Contact Us For Availability
056
Lamp,7C7 WCI 5304406417 Contact Us For Availability
058
Shield-dispenser,white WCI 5304406419 Contact Us For Availability
060
Cover-electrical,disp housing WCI 5304406420 Contact Us For Availability
061
Socket-light/lamp,E12 WCI 5304406421 Contact Us For Availability
062
Door-ice dispenser WCI 5304406422 Contact Us For Availability
063
Spring-disp door WCI 5304406423 Contact Us For Availability
065
Screw,8-15A x 0.375 WCI 5304419380 Contact Us For Availability
067
Crank-disp door WCI 5304406424 Contact Us For Availability
069
Funnel-disp shield,black WCI 5304406425 Contact Us For Availability
070
Support-fnl shield,white WCI 5304406427 Contact Us For Availability
071
Deflector-ice disp,black WCI 5304406428 Contact Us For Availability
072#
Switch,cradle actuator WCI 5304406429 Contact Us For Availability
073
Chute-ice WCI 5304406430 Contact Us For Availability
075
Tube-water,frzr door ,w/grommet WCI 5304413799 Contact Us For Availability
076
Sleeve-water tube WCI 5304406370 Contact Us For Availability
080
Nut-compression,5/16 ,union WCI 5304406353 Contact Us For Availability
081
Plug button,inner dr panel WCI 5304413800 Contact Us For Availability
089
Retainer-bottle,(2) WCI 5304406434 Contact Us For Availability
103
Gasket-refr door,white ,magnetic WCI 5304406436 Contact Us For Availability
106
Door-dairy,clear WCI 5304406437 Contact Us For Availability
108
Panel-inner door,refr section WCI 5304406438 Contact Us For Availability
109
Rack-door,bottom-refr ,(2) ,w/end caps WCI 5304406439 Contact Us For Availability
115
Bin-door,(2) WCI 5304406440 Contact Us For Availability
121
Trim-handle,white ,lower ,(2) WCI 5304406670 Contact Us For Availability
122
Bin-door,(2) WCI 5304406372 Contact Us For Availability
124
Rack-door,bottom-frzr ,w/end caps WCI 5304406373 Contact Us For Availability
125
Nameplate,white WCI 5304406688 Contact Us For Availability
150
Screw-panel mtg,8-15 ,(84) WCI 5304406374 Contact Us For Availability
152
Screw-handle mtg,flat head ,8-18AB x 5/8 S,(4 WCI 5304406671 Contact Us For Availability
166
Cover-drain trough,side ,basket mount WCI 5304406485 Contact Us For Availability
167
Cover-drain trough,front WCI 5304406486 Contact Us For Availability
169
Channel-shelf mtg,LS WCI 5304406487 Contact Us For Availability
169
Channel-shelf mtg,RS WCI 5304406488 Contact Us For Availability
170
Shelf,cantilever ,half-width ,wire ,(3) WCI 5304406490 Contact Us For Availability
172
Shelf,cantilever ,half-width ,wire ,basket mt WCI 5304406491 Contact Us For Availability
174
Hanger-basket,LS WCI 5304406492 Contact Us For Availability
174
Hanger-basket,RS WCI 5304406493 Contact Us For Availability
175
Screw,ind hex wshr hd ,8-18AB x 0.625 ,(18) WCI 5304406494 Contact Us For Availability
175
Screw,ind hex wshr hd ,8-18AB x 0.625 ,(4) WCI 5304406641 Contact Us For Availability
177
Screw,hex head ,8-18A x 0.500 ,(5) WCI 5304406552 Contact Us For Availability
180
Screw,6-32 x 0.375 WCI 5304413845 Contact Us For Availability
189#
Socket-light/lamp,E12 WCI 5304406553 Contact Us For Availability
211
Basket,sliding ,frzr WCI 5304406495 Contact Us For Availability
214
Cover-evaporator WCI 5304406642 Contact Us For Availability
215
Bin-utility,white WCI 5304416857 Contact Us For Availability
228#
Evaporator,low side assy WCI 5304406461 Contact Us For Availability
230#
Wiring Harness,defrost heater WCI 5304413836 Contact Us For Availability
230#
Heater-defrost,with bracket WCI 5304413837 Contact Us For Availability
240#
Thermostat-defrost WCI 5304413827 Contact Us For Availability
247
Housing-evap fan WCI 5304413828 Contact Us For Availability
248
Seal-fan housing,foam strip WCI 5304406644 Contact Us For Availability
251
Support,twist mt ,(2) WCI 5304406554 Contact Us For Availability
257#
Timer-defrost WCI 5304406555 Contact Us For Availability
258
Shield-light,frzr WCI 5304413829 Contact Us For Availability
259
Light Shield,refr section ,lower WCI 5304406556 Contact Us For Availability
260
Pan-defrost drain WCI 5304406304 Contact Us For Availability
261
Bracket-lower hinge,white ,frzr ,w/hinge pin WCI 5304406468 Contact Us For Availability
261
Washer-thrust,hinge bracket WCI 5304406469 Contact Us For Availability
264
Roller,rear ,(2) WCI 5304406305 Contact Us For Availability
265
Axle-roller,(2) WCI 5304406306 Contact Us For Availability
267#
Wiring Harness,evaporator WCI 5304406646 Contact Us For Availability
268
Screw-roller mtg,(2) WCI 5304406557 Contact Us For Availability
269
Tube-water fill,icemaker WCI 5304406307 Contact Us For Availability
270
Clamp-hose WCI 5304406308 Contact Us For Availability
270
Grommet-fill tube WCI 5304419382 Contact Us For Availability
274#
Wiring Harness,refr light sw WCI 5304406441 Contact Us For Availability
275
Cover-icemaker plug WCI 5304406498 Contact Us For Availability
278
Roller Assy,front ,(2) WCI 5304406558 Contact Us For Availability
279
Rail Assy,compressor mtg WCI 5304415919 Contact Us For Availability
288
Grille/Kickplate,white WCI 5304406560 Contact Us For Availability
289
Clip-grille,(2) WCI 5304406561 Contact Us For Availability
306
Screw/Rod,rear roller adj ,(2) WCI 5304406311 Contact Us For Availability
307
Link-adj screw,(2) WCI 5304406312 Contact Us For Availability
312
Roller,(2) ,wheel only WCI 5304413807 Contact Us For Availability
320
Nut-auger WCI 5304406499 Contact Us For Availability
321
Retainer,E-ring WCI 5304406500 Contact Us For Availability
325
Housing-crusher WCI 5304406502 Contact Us For Availability
326
Washer WCI 5304406503 Contact Us For Availability
328
Deflector-ice WCI 5304406507 Contact Us For Availability
328
Spring-deflector WCI 5304406504 Contact Us For Availability
328
Pin-deflector WCI 5304406506 Contact Us For Availability
329
Rod-disp control,actuator wire WCI 5304406508 Contact Us For Availability
330
Spring-control rod WCI 5304406509 Contact Us For Availability
331
Retainer-cont rod WCI 5304406510 Contact Us For Availability
332
Blade-crusher,moving WCI 5304406511 Contact Us For Availability
333
Blade-crusher,moving WCI 5304406512 Contact Us For Availability
334
Blade-crusher,moving WCI 5304406513 Contact Us For Availability
335
Spacer-blade,(2) WCI 5304406514 Contact Us For Availability
336
Blade-crusher,fixed ,square WCI 5304406515 Contact Us For Availability
337
Spacer-fixed blade,(2) WCI 5304406516 Contact Us For Availability
338
Spacer-fixed blade,blade rest WCI 5304406517 Contact Us For Availability
339
Pin-spiral,blade spacer WCI 5304406518 Contact Us For Availability
340
Blade-crusher,fixed ,round WCI 5304406519 Contact Us For Availability
345
Plate-disp front WCI 5304406521 Contact Us For Availability
346
Drum-ice dispenser,helix WCI 5304406522 Contact Us For Availability
348
Blade-disp drive WCI 5304406523 Contact Us For Availability
349
Cam-dispenser drive,cup WCI 5304406524 Contact Us For Availability
350
Auger-ice dispenser,helix WCI 5304406525 Contact Us For Availability
352
Container-ice,disp ice bucket WCI 5304406526 Contact Us For Availability
353
Seal-ice container WCI 5304406527 Contact Us For Availability
354#
Ice Dispenser Assy WCI 5304413806 Contact Us For Availability
360
Support-dispenser,rail/shelf assy ,(2) WCI 5304413830 Contact Us For Availability
361
Cover-motor WCI 5304413831 Contact Us For Availability
364
Support,twist mt ,rotation stop WCI 5304406531 Contact Us For Availability
365
Drive-auger,bar drive WCI 5304406532 Contact Us For Availability
366
Nut-drive,J type WCI 5304406533 Contact Us For Availability
367
Screw-motor mtg,8-18 x 1/4 ,(5) WCI 5304406534 Contact Us For Availability
368
Bracket-mounting,icemaker WCI 5304406535 Contact Us For Availability
369#
Motor-auger/crusher WCI 5304406536 Contact Us For Availability
375#
Wiring Harness,auger motor WCI 5304406537 Contact Us For Availability
377
Guide-solenoid,saddle WCI 5304406538 Contact Us For Availability
378#
Solenoid Arm Assy WCI 5304406539 Contact Us For Availability
379
Shroud-solenoid WCI 5304406540 Contact Us For Availability
380
Plunger-solenoid WCI 5304406541 Contact Us For Availability
381
Pin-spiral,solenoid collar WCI 5304406542 Contact Us For Availability
382
Spring-solenoid,linkage WCI 5304406543 Contact Us For Availability
383
Collar-solenoid WCI 5304406544 Contact Us For Availability
384
Stirrup-solenoid WCI 5304406545 Contact Us For Availability
385
Pin-spiral,sol stirrup WCI 5304406546 Contact Us For Availability
387
Cover-ice container,front WCI 5304406547 Contact Us For Availability
388
Door-access,ice container WCI 5304406548 Contact Us For Availability
403
Channel-shelf mtg,(2) WCI 5304406603 Contact Us For Availability
407
Pan-storage,vegetable ,middle WCI 5304406604 Contact Us For Availability
408
Pan-storage,meat ,bottom WCI 5304415937 Contact Us For Availability
409
Panel-shelf,glass ,veg pan cover WCI 5304406606 Contact Us For Availability
410
Handle-veg pan WCI 5304406607 Contact Us For Availability
411
Handle-meat pan WCI 5304406608 Contact Us For Availability
414
Gasket-pan cover,(2) WCI 5304406609 Contact Us For Availability
415
Panel-shelf,glass ,meat pan cover WCI 5304406610 Contact Us For Availability
417
Gasket-veg pan,rear ,shield WCI 5304406611 Contact Us For Availability
419
Bezel-control WCI 5304406562 Contact Us For Availability
420
Trim-bezel,extrusion WCI 5304406563 Contact Us For Availability
421
Light Shield Assy,refr section ,upper WCI 5304413808 Contact Us For Availability
421
Gasket-light shield WCI 5304406564 Contact Us For Availability
422
Gasket-damper,foam block WCI 5304406567 Contact Us For Availability
423
Support-lt shield,top ,(2) WCI 5304406568 Contact Us For Availability
424
Sleeve-temp sensor,vinyl WCI 5304406570 Contact Us For Availability
424#
Control-temperature WCI 5304406569 Contact Us For Availability
425
Knob-control,(2) WCI 5304406571 Contact Us For Availability
426
Damper Control-air WCI 5304413833 Contact Us For Availability
426
Duct-air,foam WCI 5304406573 Contact Us For Availability
426
Gasket-air duct WCI 5304406574 Contact Us For Availability
427#
Wiring Harness,control module WCI 5304406653 Contact Us For Availability
428
Gear-pinion,RS WCI 5304406576 Contact Us For Availability
428
Gear-pinion,LS WCI 5304406577 Contact Us For Availability
431
Cap-air duct,meat pan damper WCI 5304406578 Contact Us For Availability
432
Duct-air,meat pan damper ,round WCI 5304406579 Contact Us For Availability
433
Housing-lamp socket WCI 5304406580 Contact Us For Availability
434
Grille-air return WCI 5304406582 Contact Us For Availability
435
Lamp,appliance ,60 W ,120 V ,(2) WCI 5304416768 Contact Us For Availability
435#
Socket-light/lamp WCI 5304406550 Contact Us For Availability
435#
Socket-terminal,white WCI 5304406581 Contact Us For Availability
436
Control Box,bottom WCI 5304406583 Contact Us For Availability
436
Control Box,top WCI 5304406584 Contact Us For Availability
438
Duct-air,refr mullion ,rectangular WCI 5304406585 Contact Us For Availability
438
Duct-air,frzr mullion ,rectangular WCI 5304406586 Contact Us For Availability
439
Control-slide WCI 5304413809 Contact Us For Availability
440
Rack-wine WCI 5304406612 Contact Us For Availability
442
Damper-air,meat pan duct WCI 5304406588 Contact Us For Availability
443
Rack-gear,air control ,LS WCI 5304406589 Contact Us For Availability
443
Rack-gear,air control ,RS WCI 5304406590 Contact Us For Availability
444#
Housing/Socket Assy,refr section ,lower WCI 5304413810 Contact Us For Availability
446
Grille-light shield WCI 5304419381 Contact Us For Availability
447
Cover-upper hinge,white ,frzr section WCI 5304406471 Contact Us For Availability
447
Cover-upper hinge,white ,refr section WCI 5304406473 Contact Us For Availability
448
Bracket-upper hinge,frzr section WCI 5304413804 Contact Us For Availability
448
Bracket-upper hinge,refr section WCI 5304413803 Contact Us For Availability
451
Bracket-lower hinge,white ,refr ,w/hinge pin WCI 5304406592 Contact Us For Availability
452
Shim,0.062 in. thick ,bottom hinge WCI 5304419379 Contact Us For Availability
468
Bearing-pan hanger,(8) WCI 5304406616 Contact Us For Availability
470
Gasket-snack pan,rear WCI 5304406613 Contact Us For Availability
471
Pan-storage,snack ,top WCI 5304415938 Contact Us For Availability
472
Trim-snack pan,front WCI 5304406615 Contact Us For Availability
473
Hanger-snack pan,RS WCI 5304406617 Contact Us For Availability
473
Hanger-snack pan,LS WCI 5304406618 Contact Us For Availability
479
Hanger-veg pan,RS WCI 5304406619 Contact Us For Availability
479
Hanger-veg pan,LS WCI 5304406620 Contact Us For Availability
480
Hanger-meat pan,RS WCI 5304406621 Contact Us For Availability
480
Hanger-meat pan,LS WCI 5304406622 Contact Us For Availability
481
Control-humidity,slider ,veg pan WCI 5304406623 Contact Us For Availability
500
Frame-shelf,cantilever ,(3) ,spillproof WCI 5304406624 Contact Us For Availability
501
Shelf-slideout,glass ,(3) ,spillproof WCI 5304406625 Contact Us For Availability
504
Seal-snk pan shelf,front WCI 5304406626 Contact Us For Availability
505
Stop-shelf,front ,(6) WCI 5304406627 Contact Us For Availability
551
Screw-hanger mtg,round wshr hd,8-18AB x 0.625 WCI 5304406496 Contact Us For Availability
552
Screw,12-24TT x 0.900 ,(12) WCI 5304406375 Contact Us For Availability
554
Screw-channel mtg,10-24 x 1.00 ,(6) WCI 5304406628 Contact Us For Availability
578
Screw-hinge cover,8-32 x 0.375 ,(2) WCI 5304406477 Contact Us For Availability
608#
Switch-light/lamp,frzr door WCI 5304419384 Contact Us For Availability
609#
Switch-light/lamp,refr door WCI 5304419378 Contact Us For Availability
610#
Motor-evap fan WCI 5304406647 Contact Us For Availability
611
Bracket-evap fan,small WCI 5304406648 Contact Us For Availability
612
Bracket-evap fan,large WCI 5304406649 Contact Us For Availability
613
Blade-evap fan WCI 5304413805 Contact Us For Availability
613
Ring-compression,fan blade WCI 5308067917 Contact Us For Availability
615
Grommet-evap fan,spacer ,(2) WCI 5304406650 Contact Us For Availability
616
Cover-machine compt WCI 5304413815 Contact Us For Availability
617
Grommet-screw,(3) ,closed WCI 5304406651 Contact Us For Availability
626
Clamp-power cord WCI 5304406314 Contact Us For Availability
626#
Cord-electric power WCI 5304406315 Contact Us For Availability
627
Housing-cond fan WCI 5304406316 Contact Us For Availability
650#
Motor-condenser fan WCI 5304406656 Contact Us For Availability
651
Blade-condenser fan WCI 5304406319 Contact Us For Availability
651
Nut-lock,fan blade WCI 5304406318 Contact Us For Availability
652
Washer,cond fan blade WCI 5304406320 Contact Us For Availability
654
Leg-fan housing,(3) WCI 5304406322 Contact Us For Availability
654
Grommet,cond fan leg ,(3) WCI 5304406321 Contact Us For Availability
725#
Compressor,high side assy ,w/electricals WCI 5304416278 Contact Us For Availability
730#
Condenser WCI 5304406334 Contact Us For Availability
732
Clamp-terminal cover WCI 5304406335 Contact Us For Availability
733#
Relay/Starter-PTCR WCI 5304416279 Contact Us For Availability
734
Cover-Relay WCI 5304406337 Contact Us For Availability
735#
Overload Protector WCI 5304416280 Contact Us For Availability
736
Clip-compressor mtg,(3) WCI 5304406658 Contact Us For Availability
737
Grommet-compr mtg,(4) WCI 5304406659 Contact Us For Availability
740#
Drier-filter WCI 5304406341 Contact Us For Availability
741
Stud-compressor mtg,(4) WCI 5304406342 Contact Us For Availability
750
Screw-compr stud,10-32TR x 0.500 ,(4) WCI 5304406343 Contact Us For Availability
752
Insulation,machine compt WCI 5304406344 Contact Us For Availability
754
Base Plate-unit WCI 5304413817 Contact Us For Availability
756
Pad-base plate,(2) WCI 5304406346 Contact Us For Availability
757
Fastener,push-in WCI 5304406347 Contact Us For Availability
800
Bracket-water valve WCI 5304413818 Contact Us For Availability
800#
Valve-water WCI 5304415920 Contact Us For Availability
805
Clamp-water tube WCI 5304406351 Contact Us For Availability
806
Tube-water inlet WCI 5304406352 Contact Us For Availability
809
Fastener-water tube,(2) WCI 5304413819 Contact Us For Availability
810
Water Tank Assy WCI 5304406594 Contact Us For Availability
812
Tubing-water,plastic ,dispenser tank WCI 5304406595 Contact Us For Availability
812
Tubing-water,plastic ,dispenser tank WCI 5304406596 Contact Us For Availability
818
Guard-splash,water valve WCI 5304415921 Contact Us For Availability
820#
Ice Maker,crescent cube WCI 5304406551 Contact Us For Availability
822
Screw,10-32BT x 0.375 ,(2) WCI 5304413751 Contact Us For Availability
833
Screw,8-16 x 2.00 ,(2) WCI 5304413832 Contact Us For Availability
840
Screw,8-32 x 0.875 ,magnet mtg ,(3) WCI 5304406597 Contact Us For Availability
840
Magnet & Cover Assy,white WCI 5304406599 Contact Us For Availability
842
Lever-door closer,white ,refr section WCI 5304406600 Contact Us For Availability
843
Lever-door closer,white ,frzr section WCI 5304406483 Contact Us For Availability
847
Spring-door closer,(2) WCI 5304406484 Contact Us For Availability
850
Cover-ice maker WCI 5304413752 Contact Us For Availability
851
Gear-ice maker WCI 5304413753 Contact Us For Availability
853
Plate-mounting WCI 5304413754 Contact Us For Availability
854
Spring Beam WCI 5304413755 Contact Us For Availability
855#
Motor-ice maker WCI 5304413756 Contact Us For Availability
856
Spacer-hldg switch WCI 5304413757 Contact Us For Availability
857#
Switch-ice maker WCI 5304413758 Contact Us For Availability
858
Cam-ice maker WCI 5304413759 Contact Us For Availability
859
Spring-ice maker WCI 5304413760 Contact Us For Availability
860
Plate-valve switch WCI 5304413761 Contact Us For Availability
861
Insulator-switch,ice maker WCI 5304413762 Contact Us For Availability
863
Lever Arm,ice maker WCI 5304413763 Contact Us For Availability
864
Housing/Support,ice maker WCI 5304413764 Contact Us For Availability
864
E-ring,(4) WCI 5304413834 Contact Us For Availability
865
Ice Stripper WCI 5304413765 Contact Us For Availability
866
Ice Ejector WCI 5304413766 Contact Us For Availability
867
Bearing & Inlet,fill cup WCI 5304413767 Contact Us For Availability
868#
Mold-ice maker,with heater WCI 5304413768 Contact Us For Availability
869#
Thermostat,ice maker WCI 5304413769 Contact Us For Availability
870#
Wiring Harness,ice maker WCI 5304413770 Contact Us For Availability
871
Clamp-thermostat,ice maker WCI 5304413771 Contact Us For Availability
872
Sleeve-shutoff arm,vinyl ,ice maker WCI 5304413772 Contact Us For Availability
873
Shutoff Arm,ice maker WCI 5304413773 Contact Us For Availability
874#
Thermal Cutoff,ice maker WCI 5304413774 Contact Us For Availability
875
Spring-shutoff arm,ice maker WCI 5304413775 Contact Us For Availability
876
Plug button,ice maker cover ,(2) WCI 5304413776 Contact Us For Availability
900
Panel-frzr door,white ,w/foam insul WCI 5304406631 Contact Us For Availability
901
Strike-door,white ,(2) ,magnetic WCI 5304406380 Contact Us For Availability
903
Bearing-door hinge,white ,bottom WCI 5304406381 Contact Us For Availability
904
Screw,10-32 x 1 ,(12) WCI 5304406383 Contact Us For Availability
910
Panel-refr door,white ,w/foam insul WCI 5304406638 Contact Us For Availability
911
Bearing-door hinge,white ,top ,(2) WCI 5304406384 Contact Us For Availability
912
Bearing-door hinge,white ,bottom WCI 5304406446 Contact Us For Availability
913
Corner Cover-door,white WCI 5304406689 Contact Us For Availability
916
Corner Cover-door,white ,hinge side WCI 5304406675 Contact Us For Availability
× ![]()
