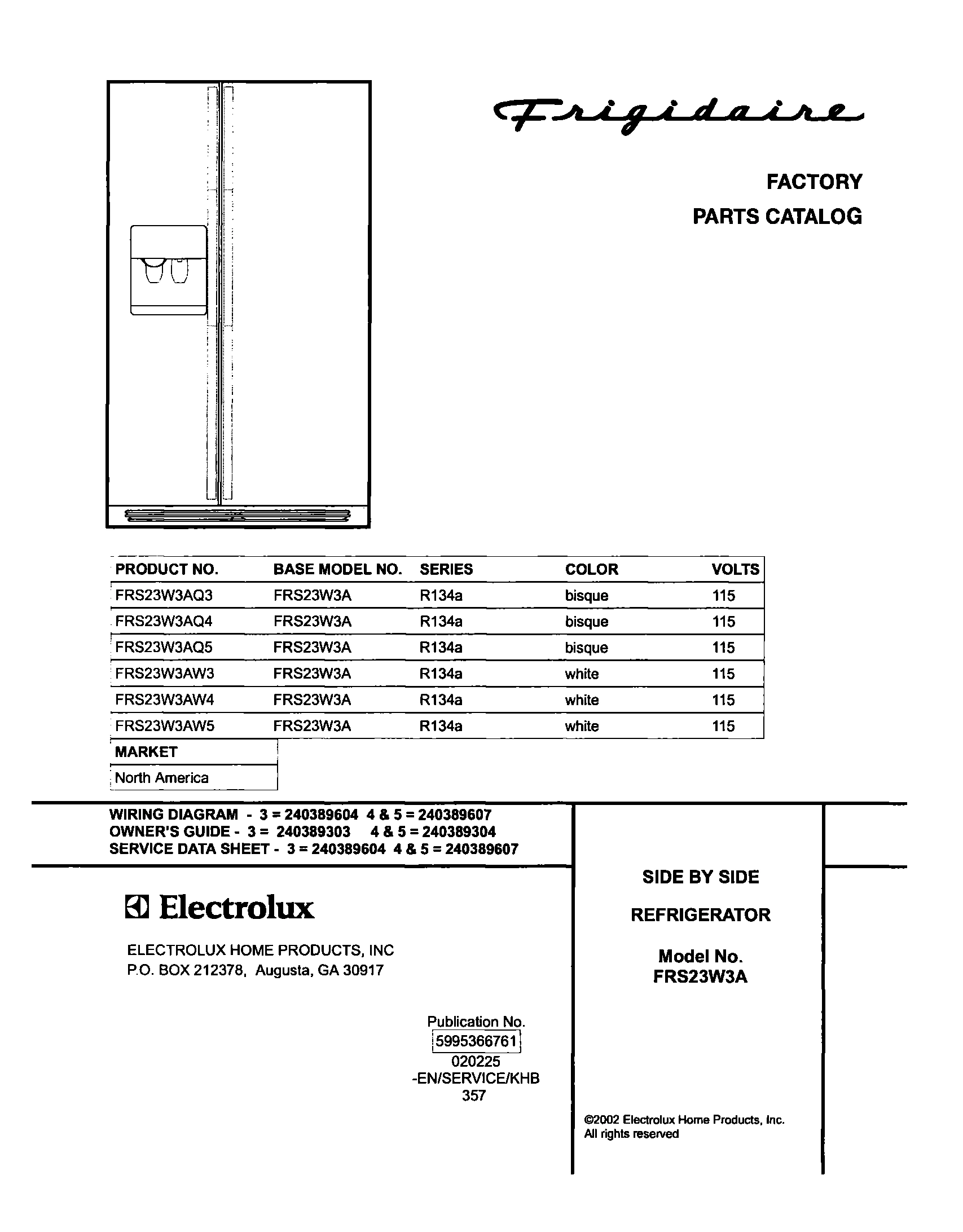

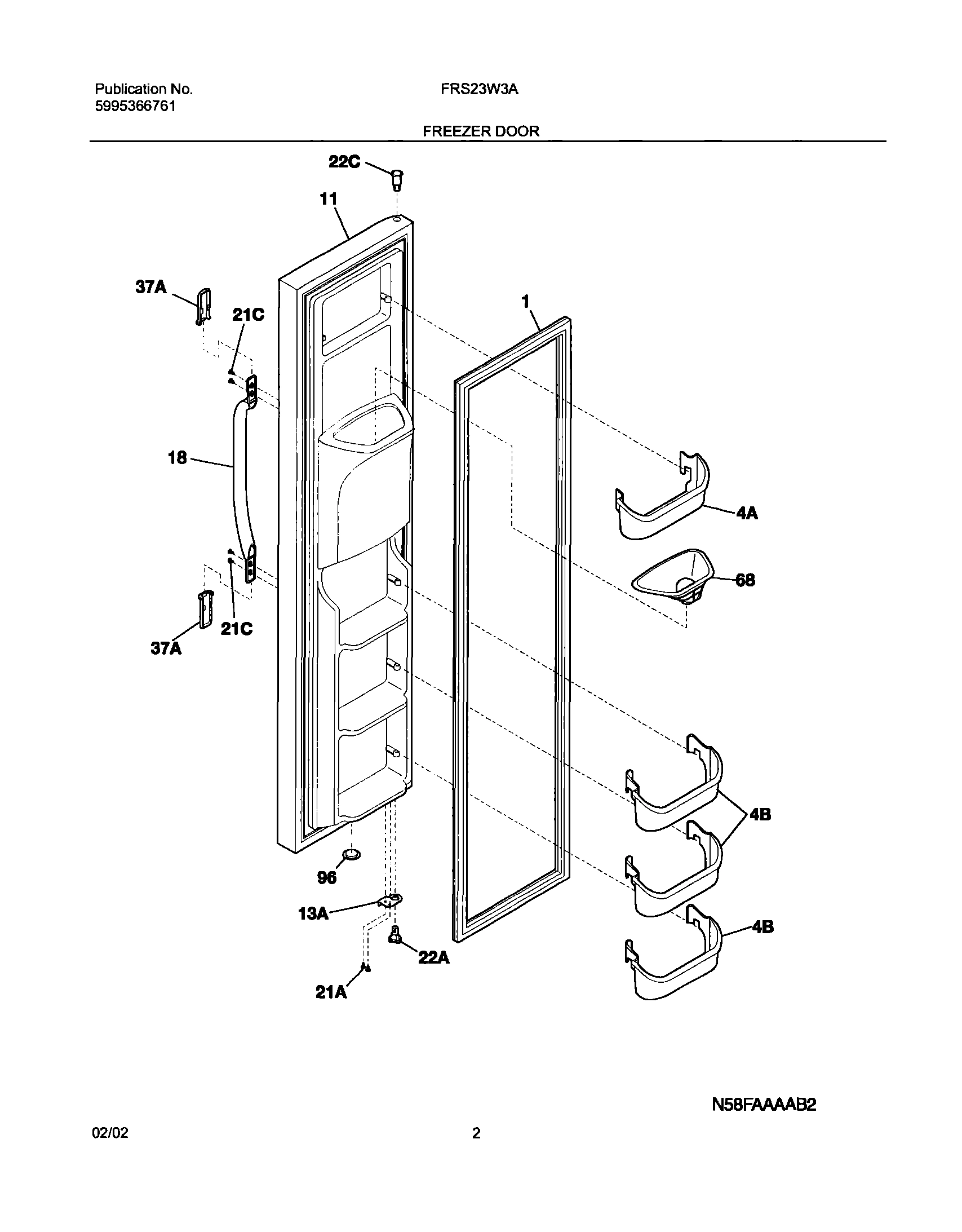

Model Electrolux FRS23W3AW3 REFRIGERATOR – Common Parts &amp; Diagrams

1

WCI 240333602 WCI 240333602 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

WCI 5304420650 WCI 5304420650 Contact Us For Availability

3

218679613 Frigidaire Refrigerator Evaporator Backorder WCI 218679613 $10.87

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

WCI 240351801 WCI 240351801 Contact Us For Availability

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

WCI 3206303 WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

WCI 240346402 No Longer Available

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

WCI 5300157666 WCI 5300157666 Contact Us For Availability

8

Module-dispenser WCI 5304421823 Contact Us For Availability

8

SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability

9

WCI 5303292396 WCI 5303292396 Contact Us For Availability

9

WCI 3206313 WCI 3206313 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

WCI 3206315 WCI 3206315 Contact Us For Availability

11

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

Wiring Harness,ice maker ,internal , WCI 240352601 Contact Us For Availability

13

5303918549 Frigidaire Refrigerator Evaporator In Stock WCI 5303918549 $39.53

13

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

5303918255 Frigidaire Refrigerator Defrost He In Stock WCI 5303918255 $65.42

WCI 240323908 WCI 240323908 Contact Us For Availability

WCI 5304420652 WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

WCI 5304420653 WCI 5304420653 Contact Us For Availability

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

WCI 240374002 WCI 240374002 Contact Us For Availability

18

242221501 Frigidaire Refrigerator Auger Motor In Stock WCI 242221501 $123.61

18

Knob-control WCI 240360801 Contact Us For Availability

18

EJECTOR-ICE WCI 3206328 Contact Us For Availability

19

WCI 3206330 WCI 3206330 Contact Us For Availability

20

WCI 5304407106 WCI 5304407106 Contact Us For Availability

20

WCI 5304408581 WCI 5304408581 Contact Us For Availability

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

WCI 240375902 WCI 240375902 Contact Us For Availability

ICE STRIPPER WCI 3206332 Contact Us For Availability

21A

5304496561 Frigidaire Refrigerator Cold Tempe In Stock WCI 5304496561 $86.97

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $9.52

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

WCI 240330002 WCI 240330002 Contact Us For Availability

SHUT-OFF ARM WCI 3206333 Contact Us For Availability

22B

Bearing-hinge,upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241649007 Frigidaire Drip Tray Assembly (Grey In Stock WCI 241649007 $17.66

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

WCI 240402701 WCI 240402701 Contact Us For Availability

WCI 240375803 WCI 240375803 Contact Us For Availability

SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT , WCI 5304408582 Contact Us For Availability

24

241682001 Frigidaire Actuator Lever Assembly Backorder WCI 241682001 $36.70

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24A

241681901 Frigidaire Refrigerator Ice Actuato In Stock WCI 241681901 $51.08

25

Screw-compressor mtg,hex washer head , WCI 240491501 Contact Us For Availability

25

SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $134.67

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

WCI 5304420654 WCI 5304420654 Contact Us For Availability

27

SCREW,4-40 X 1.000 ,HOLD SWITCH MTG , WCI 3206338 Contact Us For Availability

28

Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

5304511983 Frigidaire Refrigerator Compressor Backorder WCI 5304511983 $487.91

29

SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

5304491941 Frigidaire Refrigerator Starter Re In Stock WCI 5304491941 $82.43

30

SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

WCI 5304408583 WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

WCI 5304420655 WCI 5304420655 Contact Us For Availability

35

WCI 5304421620 WCI 5304421620 Contact Us For Availability

35

WCI 5304408585 WCI 5304408585 Contact Us For Availability

36

COVER-ICE MAKER WCI 3206347 Contact Us For Availability

37A

215870629 Frigidaire Refrigerator Handle Trim Backorder WCI 215870629 $35.78

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

WCI 240430705 WCI 240430705 Contact Us For Availability

39B

WCI 240430701 WCI 240430701 Contact Us For Availability

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

WCI 240357805 WCI 240357805 Contact Us For Availability

WCI 218897001 WCI 218897001 Contact Us For Availability

42

WCI 218515402 WCI 218515402 Contact Us For Availability

43

WCI 215296300 WCI 215296300 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

WCI 218359200 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

47

240350613 Frigidaire Refrigerator Insert Backorder WCI 240350613 $73.05

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $47.27

49

WCI 240338401 WCI 240338401 Contact Us For Availability

49

WCI 5304404329 WCI 5304404329 Contact Us For Availability

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

WCI 5304404336 WCI 5304404336 Contact Us For Availability

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

54

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

218909912 Frigidaire Capacitor Run Backorder WCI 218909912 $47.26

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

240531001 Frigidaire Refrigerator Water Valve Backorder WCI 240531001 $105.45

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

WCI 5304421830 WCI 5304421830 Contact Us For Availability

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

59

WCI 240315501 WCI 240315501 Contact Us For Availability

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

WCI 240346601 WCI 240346601 Contact Us For Availability

60

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

WCI 240315401 WCI 240315401 Contact Us For Availability

61A

WCI 215004700 WCI 215004700 Contact Us For Availability

61B

WCI 215004800 WCI 215004800 Contact Us For Availability

62

WCI 240429401 WCI 240429401 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

66B

WCI 240374301 WCI 240374301 Contact Us For Availability

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $40.32

72

WCI 218397000 No Longer Available

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

85

WCI 240346201 WCI 240346201 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

97

Water Tank Assy,coiled tubing , WCI 240453001 Contact Us For Availability

100

240326303 Frigidaire Refrigerator Cover Backorder WCI 240326303 $38.75

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

115

WCI 240521101 WCI 240521101 Contact Us For Availability

115

WCI 5304421593 WCI 5304421593 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

149

WCI 240331601 WCI 240331601 Contact Us For Availability

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

3205266 Frigidaire Refrigerator Edge Protecto Backorder WCI 3205266 $50.64

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

WCI 5303918222 WCI 5303918222 Contact Us For Availability

Adapter-water supply,nut & sleeve , WCI 218888001 Contact Us For Availability

WCI 215328300 WCI 215328300 Contact Us For Availability

WCI 240439901 WCI 240439901 Contact Us For Availability

WCI 240315901 WCI 240315901 Contact Us For Availability

WCI 215781700 WCI 215781700 Contact Us For Availability

WCI 218842801 WCI 218842801 Contact Us For Availability

WIRING HARNESS,AUGER MOTOR WCI 5304407107 Contact Us For Availability
