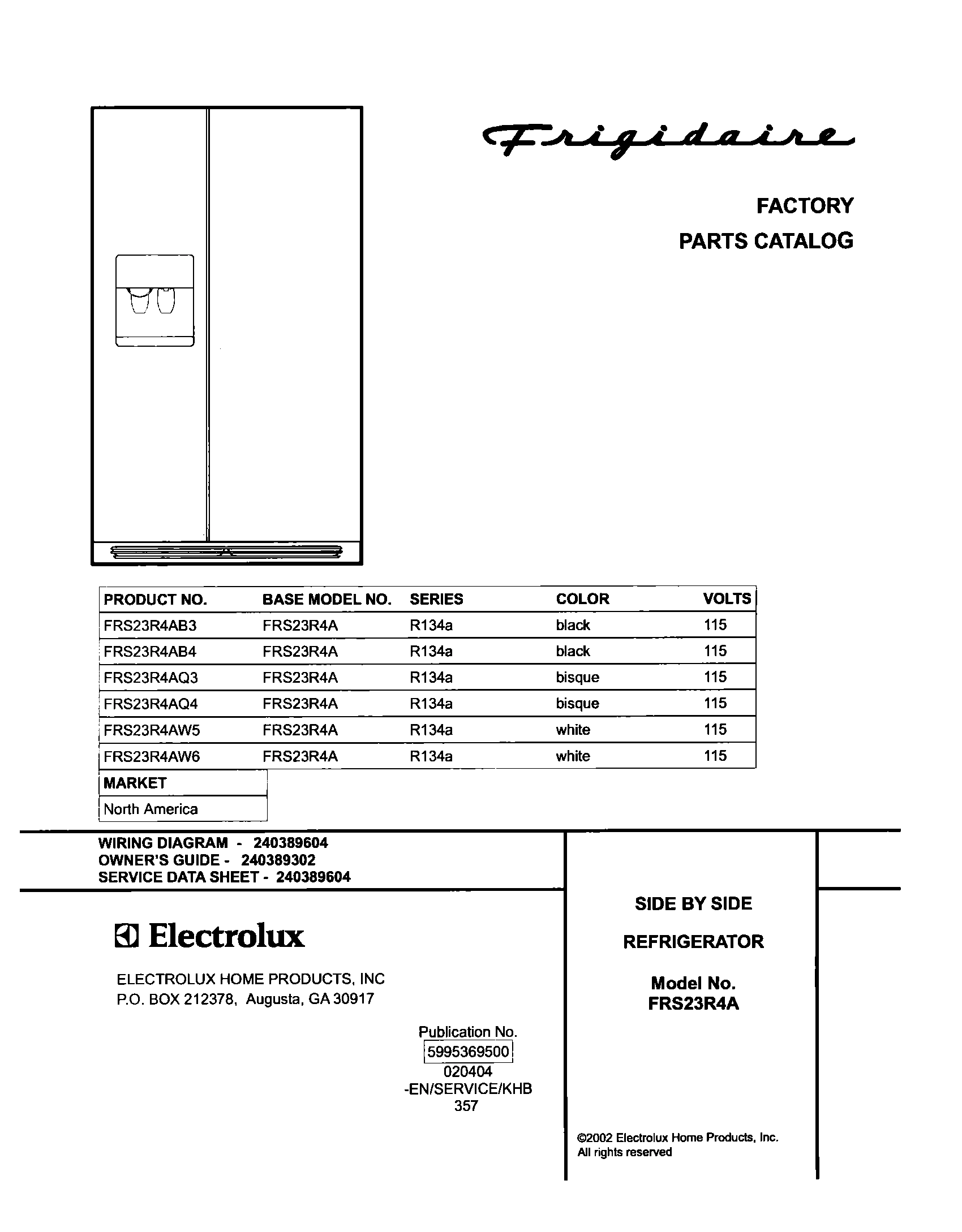

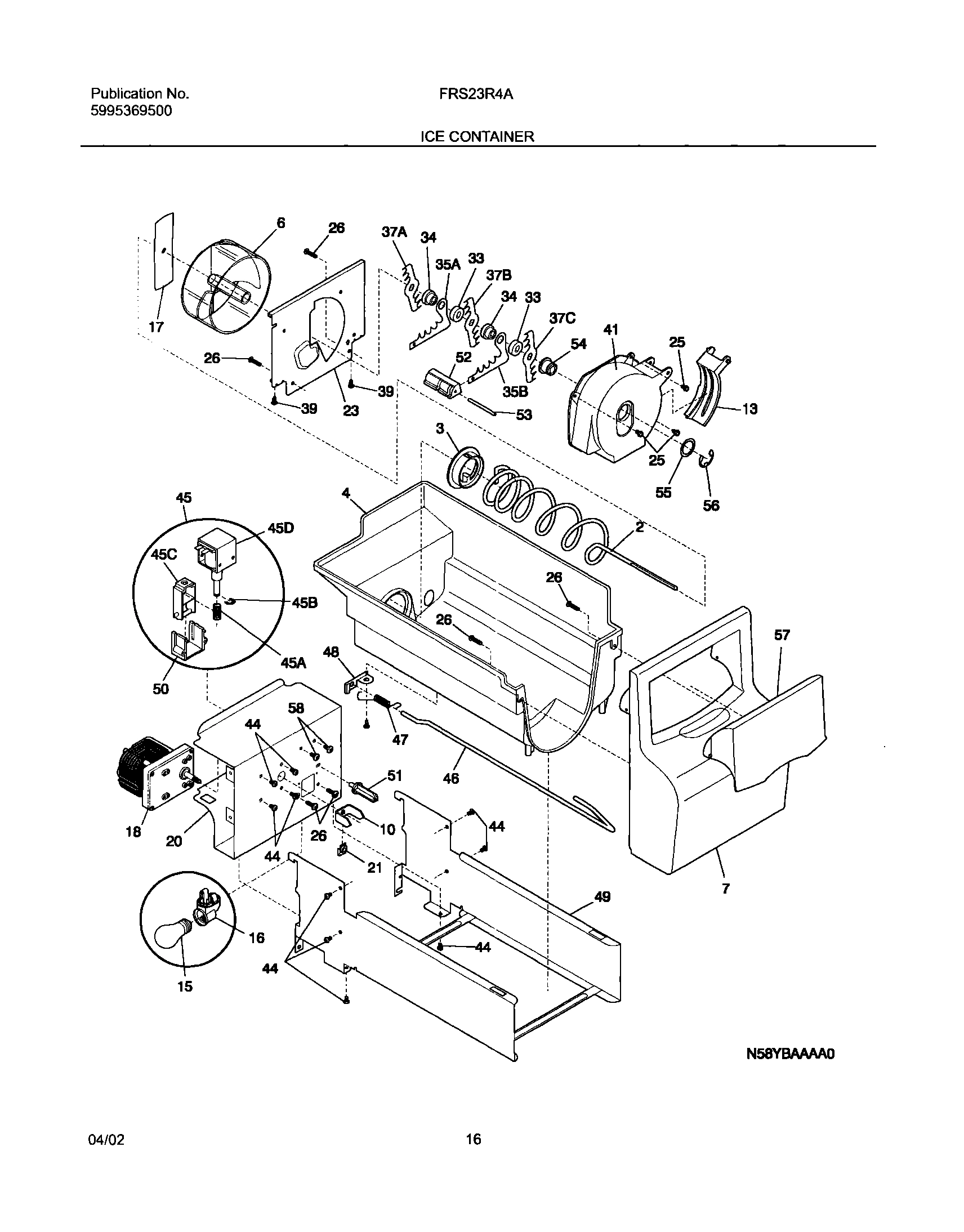

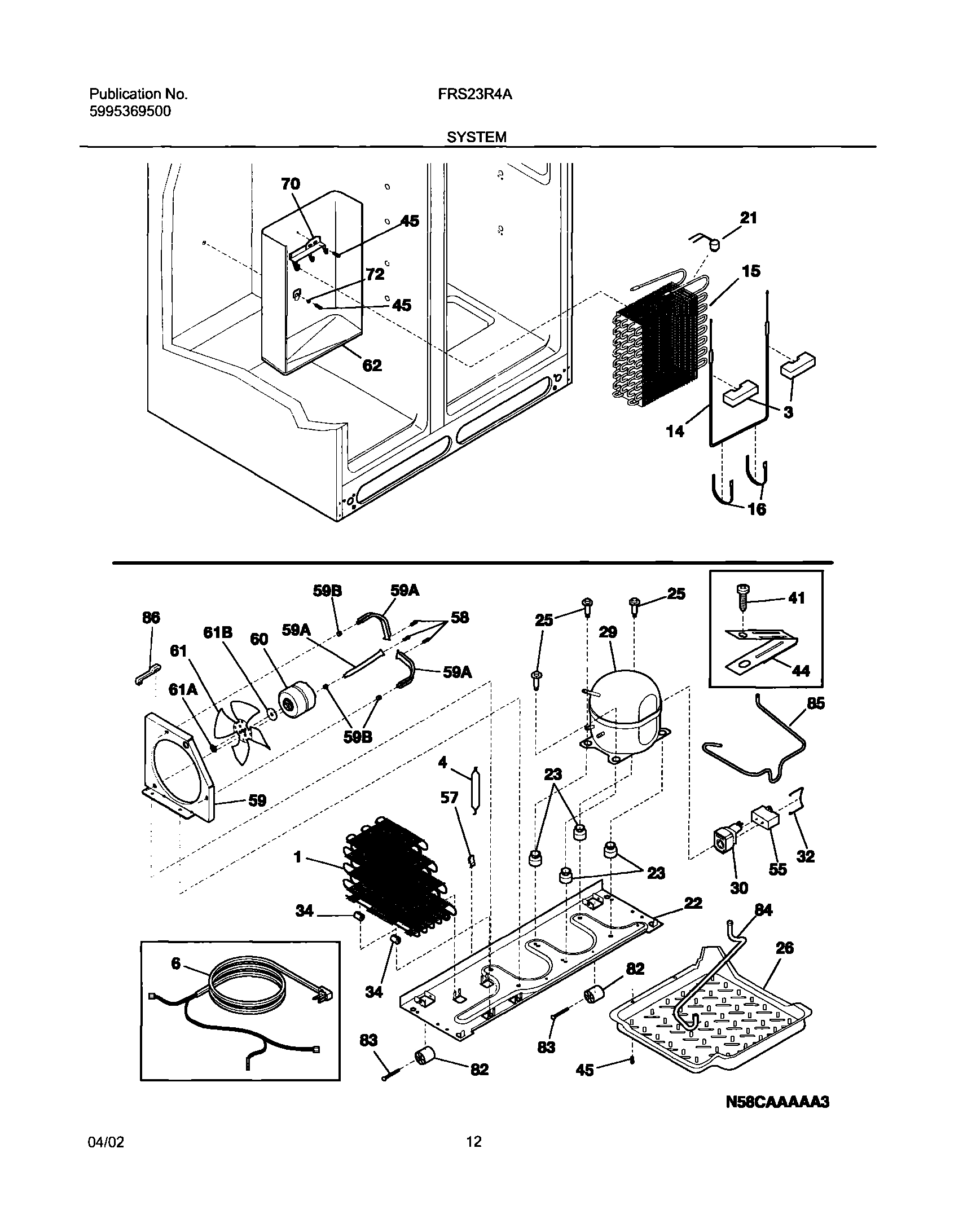

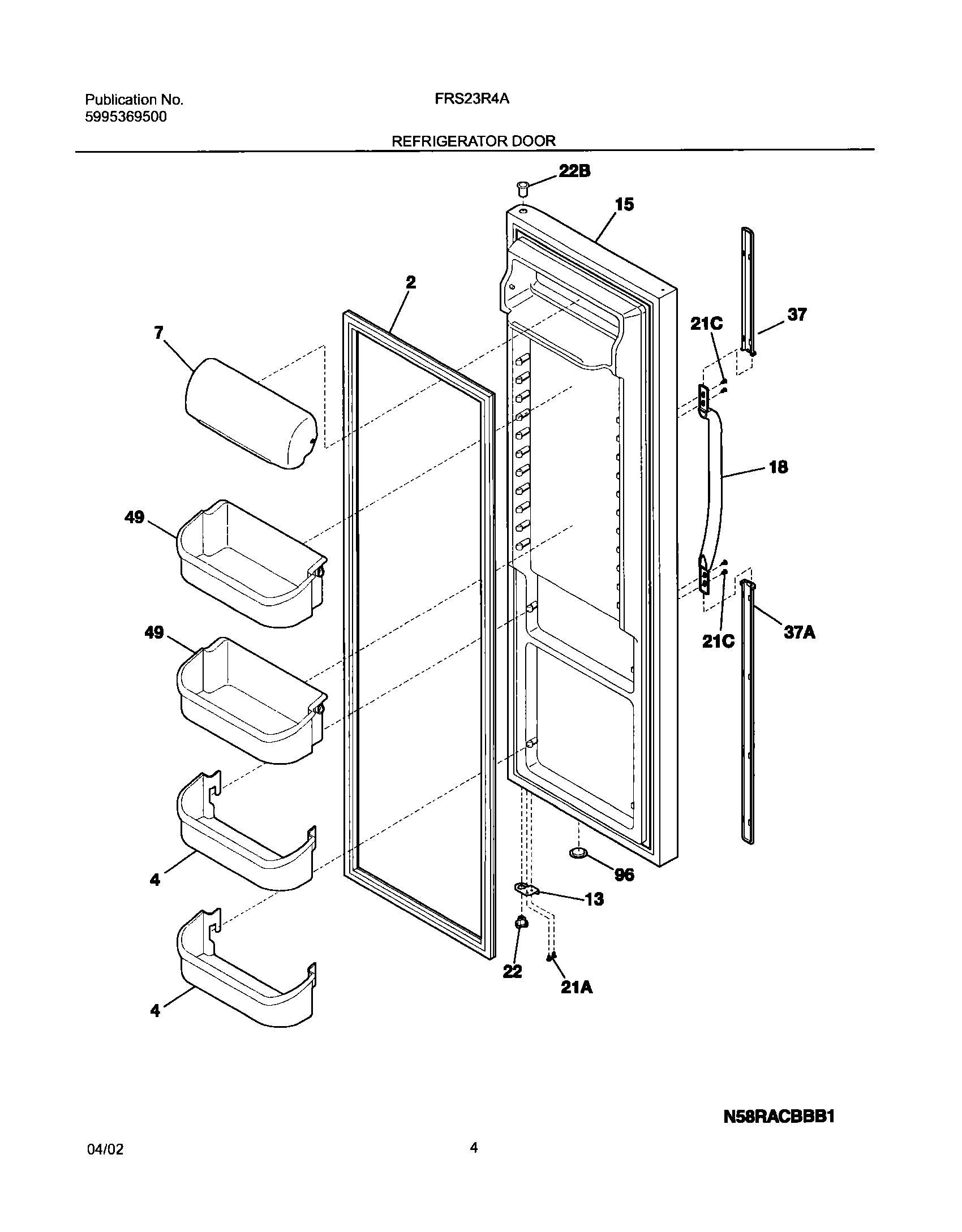

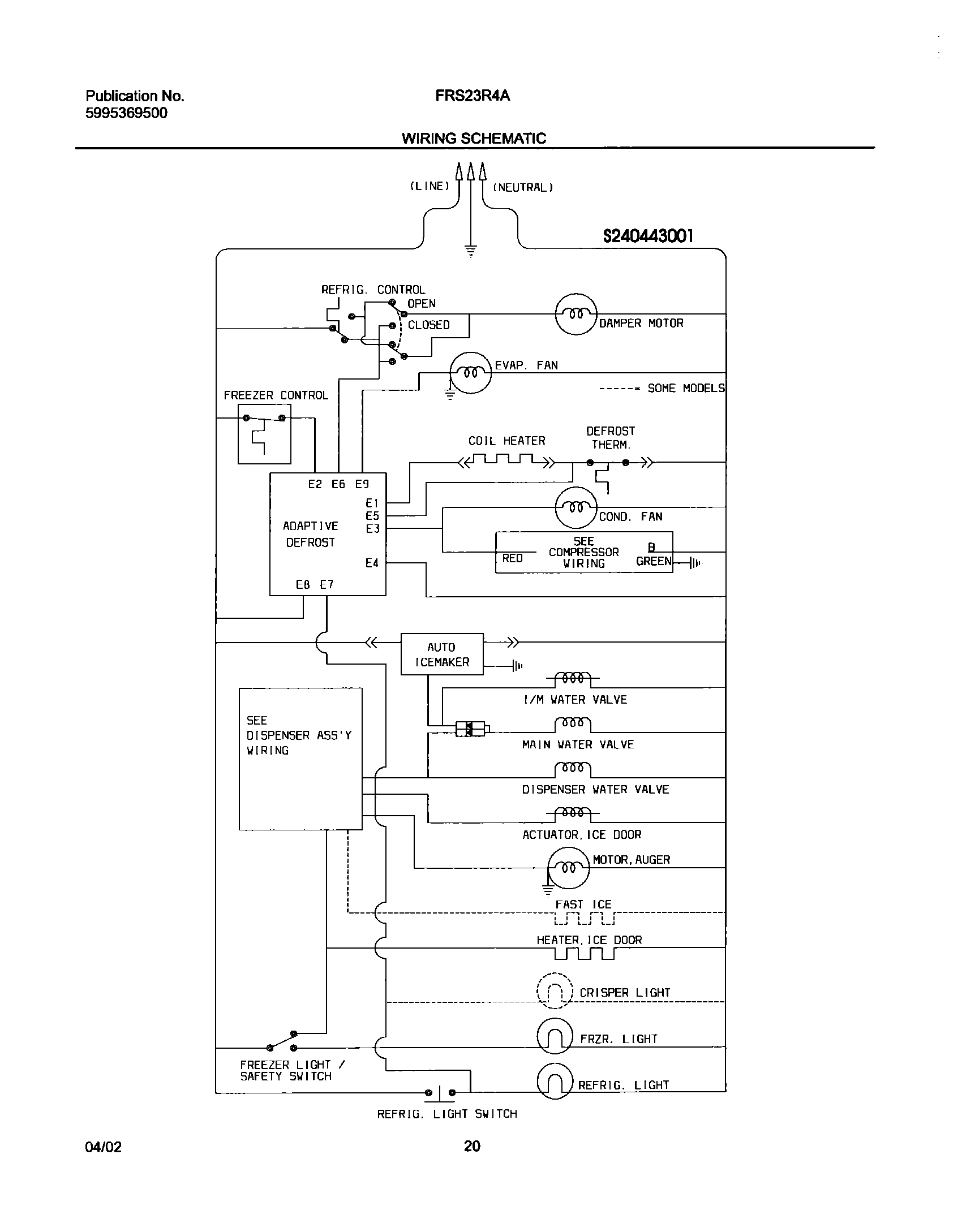

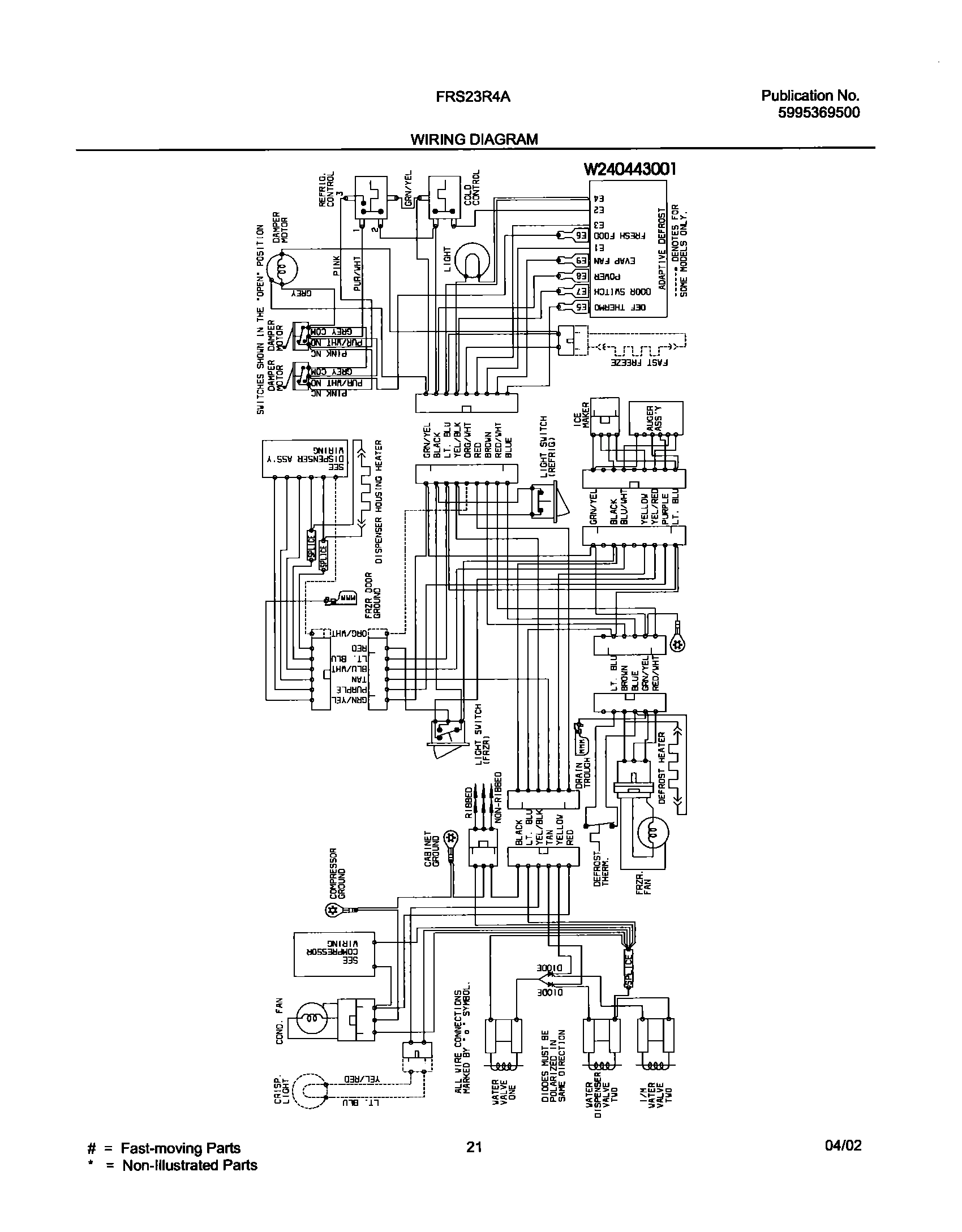

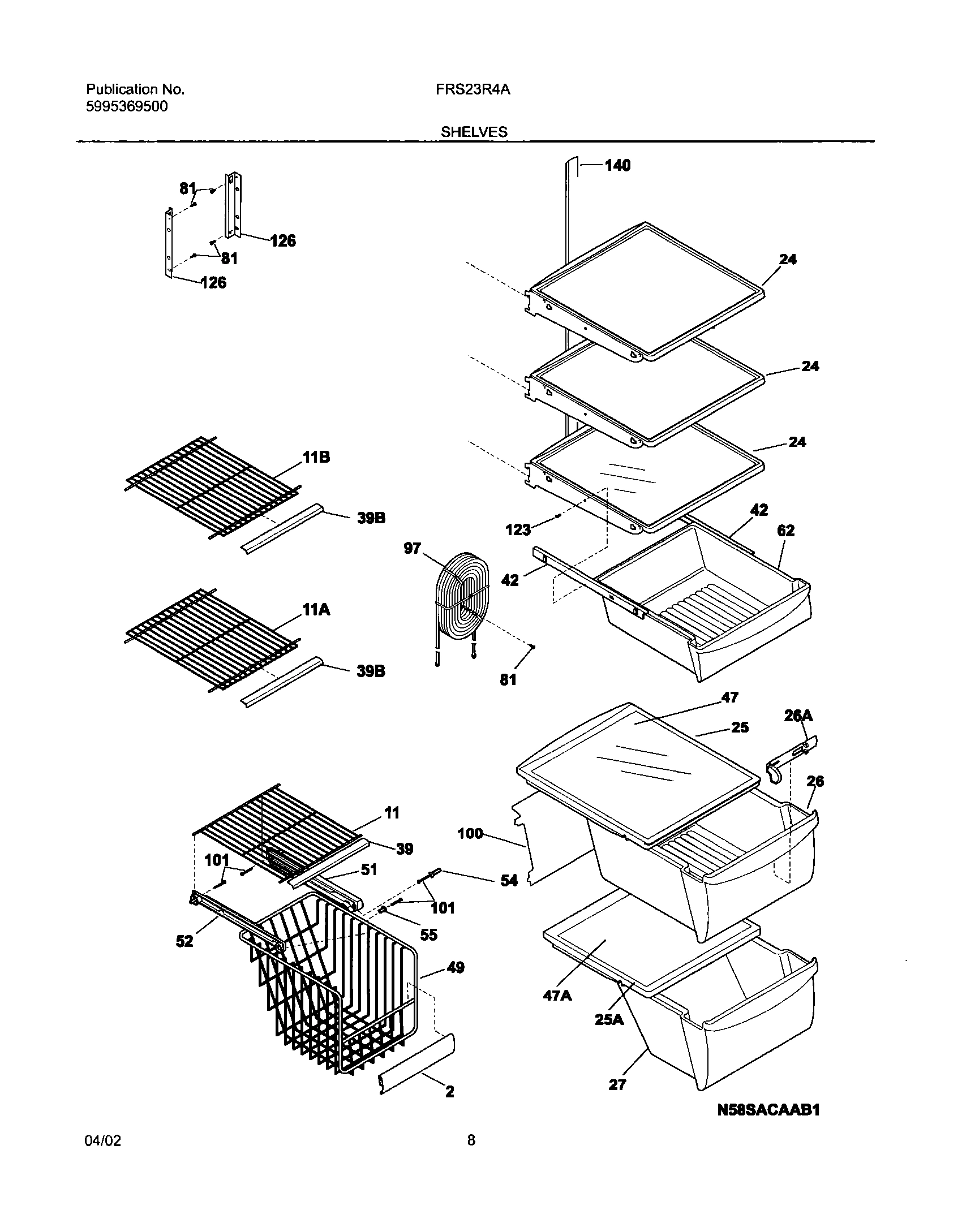

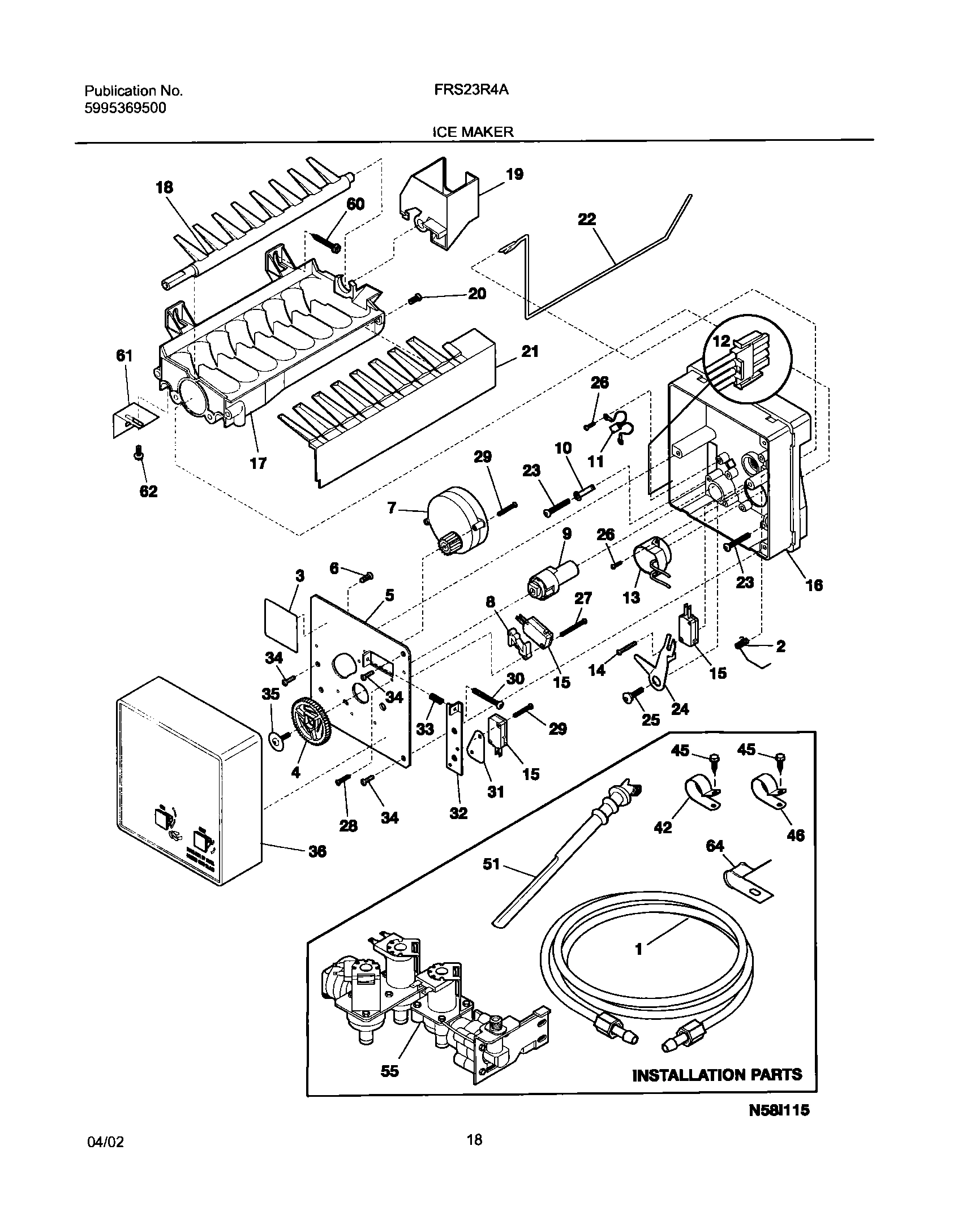

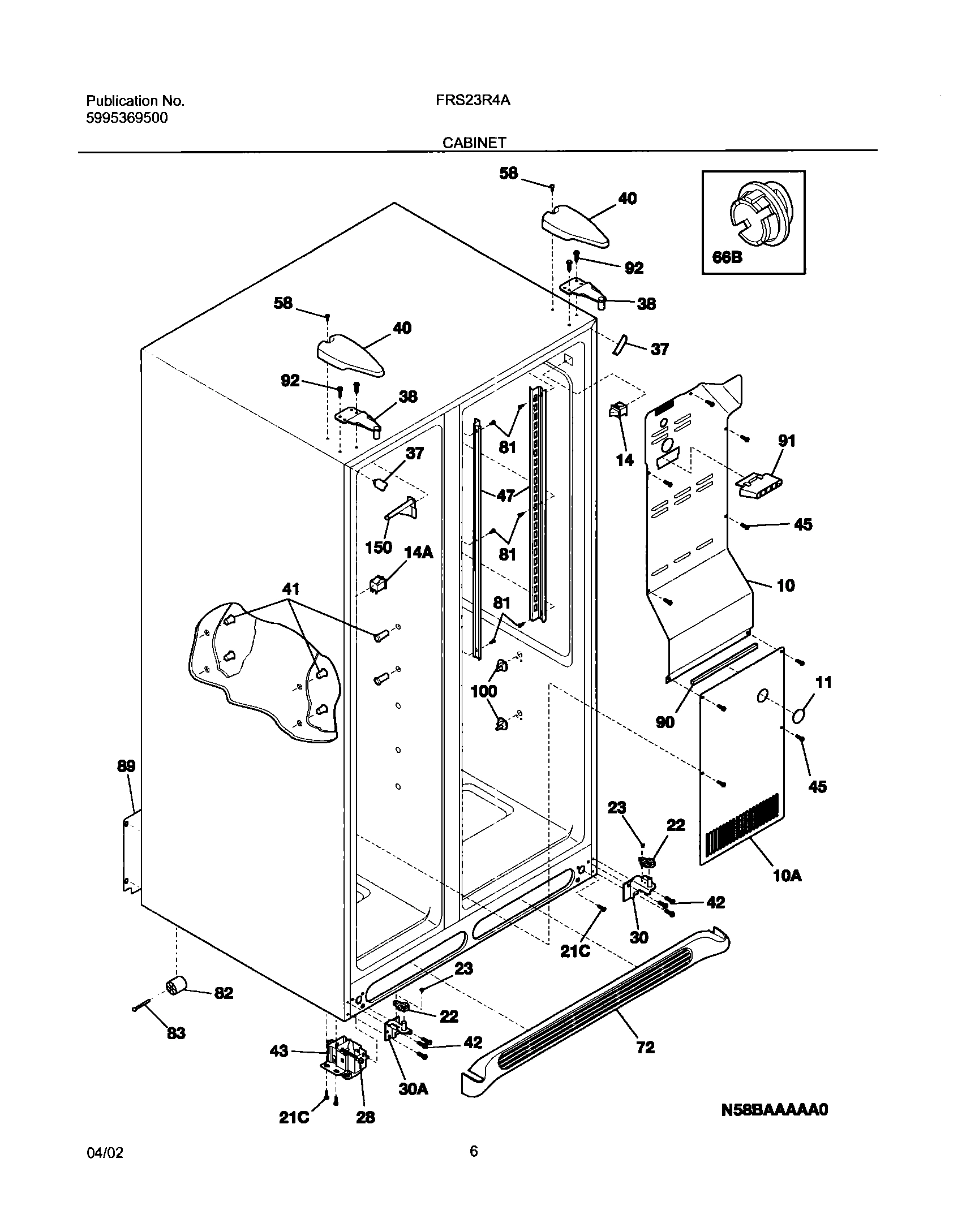

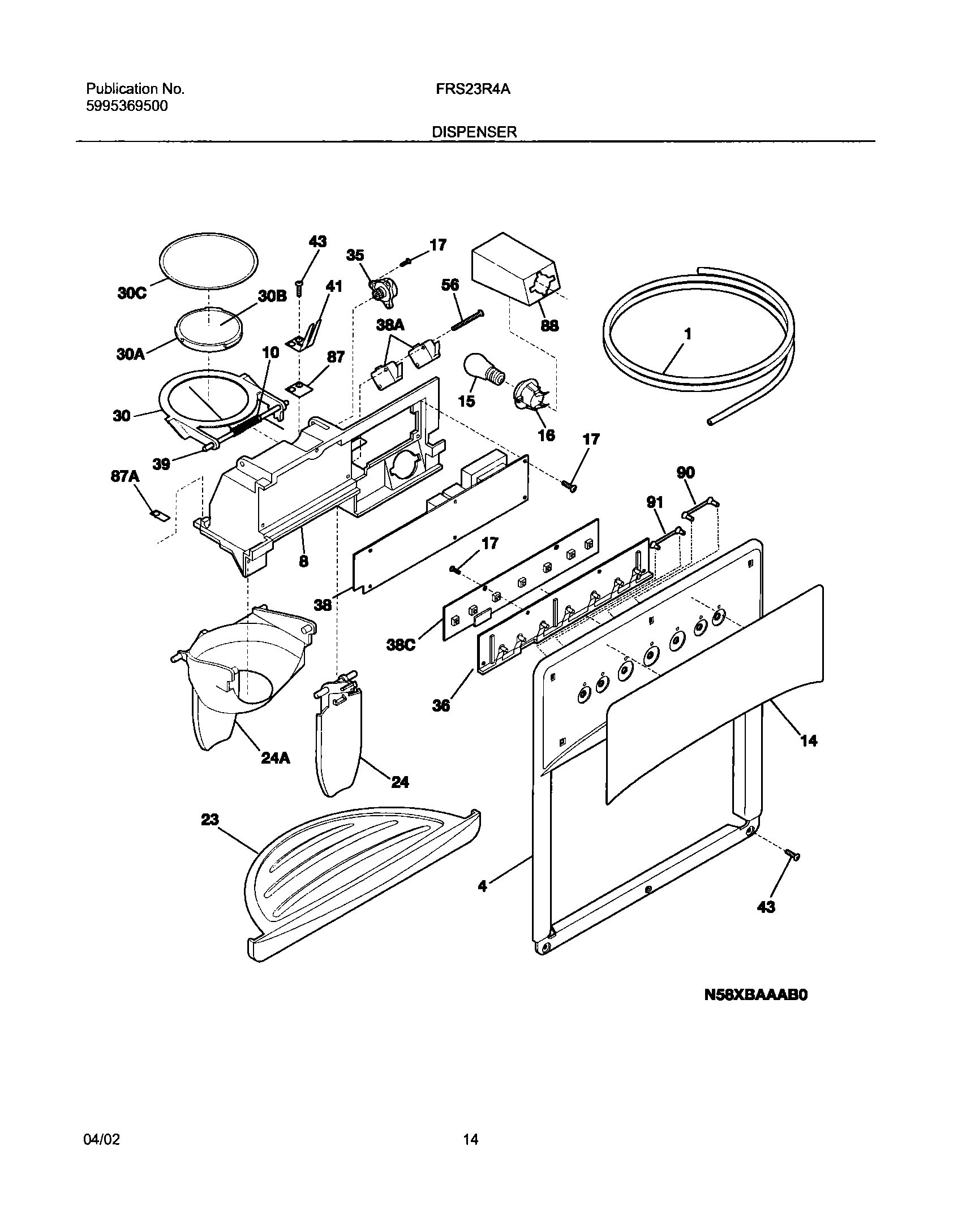

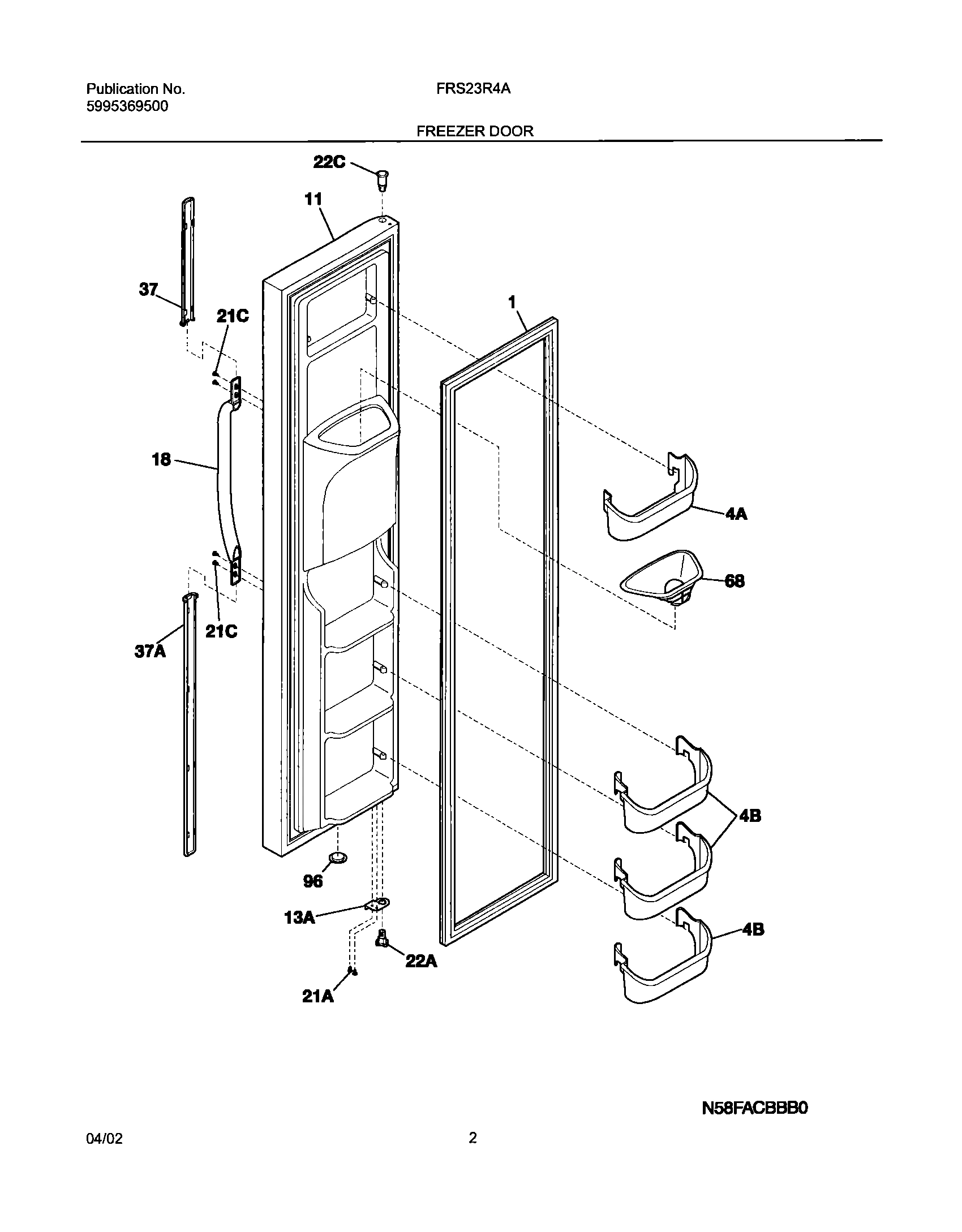

Model Electrolux FRS23R4AQ3 REFRIGERATOR – Common Parts &amp; Diagrams

1

WCI 240333602 WCI 240333602 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

WCI 5304420650 WCI 5304420650 Contact Us For Availability

3

218679613 Frigidaire Refrigerator Evaporator Backorder WCI 218679613 $10.87

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

WCI 5304421848 WCI 5304421848 Contact Us For Availability

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

WCI 3206303 WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

WCI 240346402 No Longer Available

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

WCI 5304421849 WCI 5304421849 Contact Us For Availability

8

SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability

9

WCI 5303292396 WCI 5303292396 Contact Us For Availability

9

WCI 3206313 WCI 3206313 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

WCI 3206315 WCI 3206315 Contact Us For Availability

11

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

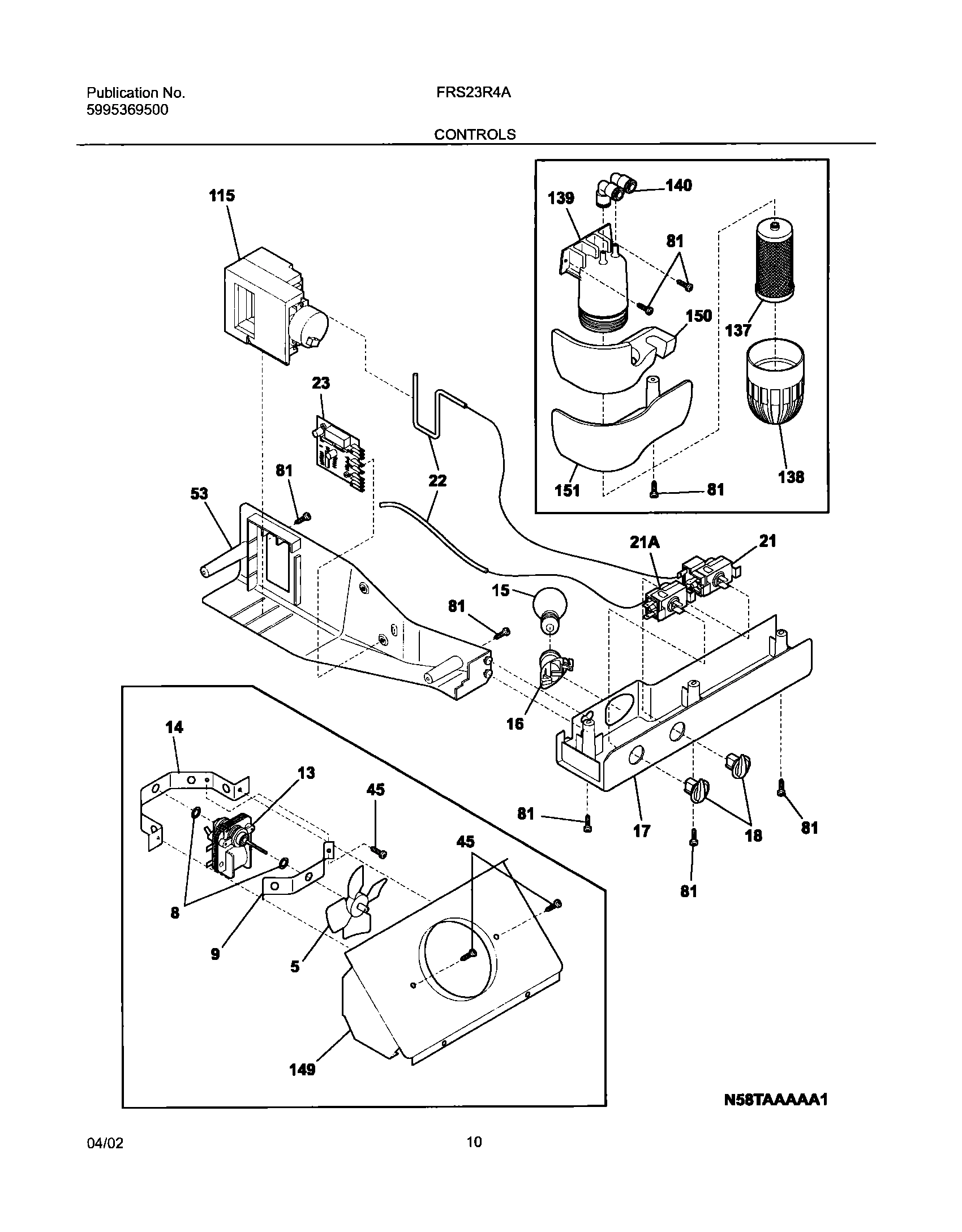

Wiring Harness,ice maker ,internal , WCI 240352601 Contact Us For Availability

13

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

5303918255 Frigidaire Refrigerator Defrost He In Stock WCI 5303918255 $65.42

WCI 240323905 WCI 240323905 Contact Us For Availability

WCI 5304420652 WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

Light Bulb/Lamp WCI 5304421616 Contact Us For Availability

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

WCI 5304420653 WCI 5304420653 Contact Us For Availability

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

17

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

WCI 240360801 WCI 240360801 Contact Us For Availability

WCI 218762706 WCI 218762706 Contact Us For Availability

WCI 240326901 WCI 240326901 Contact Us For Availability

EJECTOR-ICE WCI 3206328 Contact Us For Availability

19

WCI 3206330 WCI 3206330 Contact Us For Availability

20

WCI 5304404332 WCI 5304404332 Contact Us For Availability

20

WCI 5304408581 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

ICE STRIPPER WCI 3206332 Contact Us For Availability

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

WCI 240330002 WCI 240330002 Contact Us For Availability

SHUT-OFF ARM WCI 3206333 Contact Us For Availability

22B

Bearing-hinge,upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241649003 Frigidaire Refrigerator Drip Tray In Stock WCI 241649003 $38.99

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

WCI 240402701 WCI 240402701 Contact Us For Availability

SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT , WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

5304493021 Frigidaire Refrigerator Actuator K Backorder WCI 5304493021 $45.12

24

WCI 240355211 WCI 240355211 Contact Us For Availability

25

Screw-compressor mtg,hex washer head , WCI 240491501 Contact Us For Availability

25

SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $134.67

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

WCI 5304420654 WCI 5304420654 Contact Us For Availability

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $28.07

27

240354805 Frigidaire Refrigerator Pan In Stock WCI 240354805 $70.26

27

SCREW,4-40 X 1.000 ,HOLD SWITCH MTG , WCI 3206338 Contact Us For Availability

28

Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

5304511983 Frigidaire Refrigerator Compressor Backorder WCI 5304511983 $487.91

29

SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

5304491941 Frigidaire Refrigerator Starter Re In Stock WCI 5304491941 $82.43

30

SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

WCI 5304408583 WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

WCI 5304420655 WCI 5304420655 Contact Us For Availability

35

WCI 5304421620 WCI 5304421620 Contact Us For Availability

35

WCI 5304408585 WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

WCI 5304421824 WCI 5304421824 Contact Us For Availability

36

COVER-ICE MAKER WCI 3206347 Contact Us For Availability

37A

WCI 215782300 No Longer Available

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

WCI 5304421827 WCI 5304421827 Contact Us For Availability

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

WCI 5304422029 WCI 5304422029 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

WCI 240430705 WCI 240430705 Contact Us For Availability

39B

WCI 240430701 WCI 240430701 Contact Us For Availability

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41

WCI 218897001 WCI 218897001 Contact Us For Availability

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

42

WCI 218515402 WCI 218515402 Contact Us For Availability

43

WCI 215296300 WCI 215296300 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

WCI 218359200 WCI 218359200 Contact Us For Availability

45

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

WCI 5304404341 WCI 5304404341 Contact Us For Availability

47

WCI 5304404342 WCI 5304404342 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $47.27

49

WCI 5304404329 WCI 5304404329 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

WCI 5304404336 WCI 5304404336 Contact Us For Availability

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

218909912 Frigidaire Capacitor Run Backorder WCI 218909912 $47.26

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

WCI 5304421830 WCI 5304421830 Contact Us For Availability

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

58

WCI 5304404331 WCI 5304404331 Contact Us For Availability

59

WCI 240315501 WCI 240315501 Contact Us For Availability

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

WCI 240346601 WCI 240346601 Contact Us For Availability

60

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

WCI 240315401 WCI 240315401 Contact Us For Availability

61A

WCI 215004700 WCI 215004700 Contact Us For Availability

61B

WCI 215004800 WCI 215004800 Contact Us For Availability

62

240355527 Frigidaire Meat Crisper Pan In Stock WCI 240355527 $111.02

62

WCI 240429401 WCI 240429401 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

66B

WCI 240374301 WCI 240374301 Contact Us For Availability

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $40.32

72

WCI 218397000 No Longer Available

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

85

WCI 240346201 WCI 240346201 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

WCI 5304421615 WCI 5304421615 Contact Us For Availability

90

WCI 5304421831 WCI 5304421831 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

91

WCI 5304421850 WCI 5304421850 Contact Us For Availability

139

WCI 240369901 WCI 240369901 Contact Us For Availability

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

149

WCI 240331601 WCI 240331601 Contact Us For Availability

150

WCI 240394102 WCI 240394102 Contact Us For Availability

151

WCI 240376002 WCI 240376002 Contact Us For Availability

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $69.91

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

3205266 Frigidaire Refrigerator Edge Protecto Backorder WCI 3205266 $50.64

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

WCI 5303918222 WCI 5303918222 Contact Us For Availability

WCI 218976907 WCI 218976907 Contact Us For Availability

BAND-DECORATIVE,SATIN ALUMINUM , WCI 218676004 Contact Us For Availability

Adapter-water supply,nut & sleeve , WCI 218888001 Contact Us For Availability

SCREW-CONTROL BOX MTG,HEX HEAD , WCI 215188300 Contact Us For Availability

WCI 240439901 WCI 240439901 Contact Us For Availability

WCI 240315901 WCI 240315901 Contact Us For Availability

WIRING HARNESS,AUGER MOTOR WCI 5304404335 Contact Us For Availability

WCI 5304404364 WCI 5304404364 Contact Us For Availability
