Model Electrolux FRS22ZGHD4 REFRIGERATOR – Common Parts & Diagrams

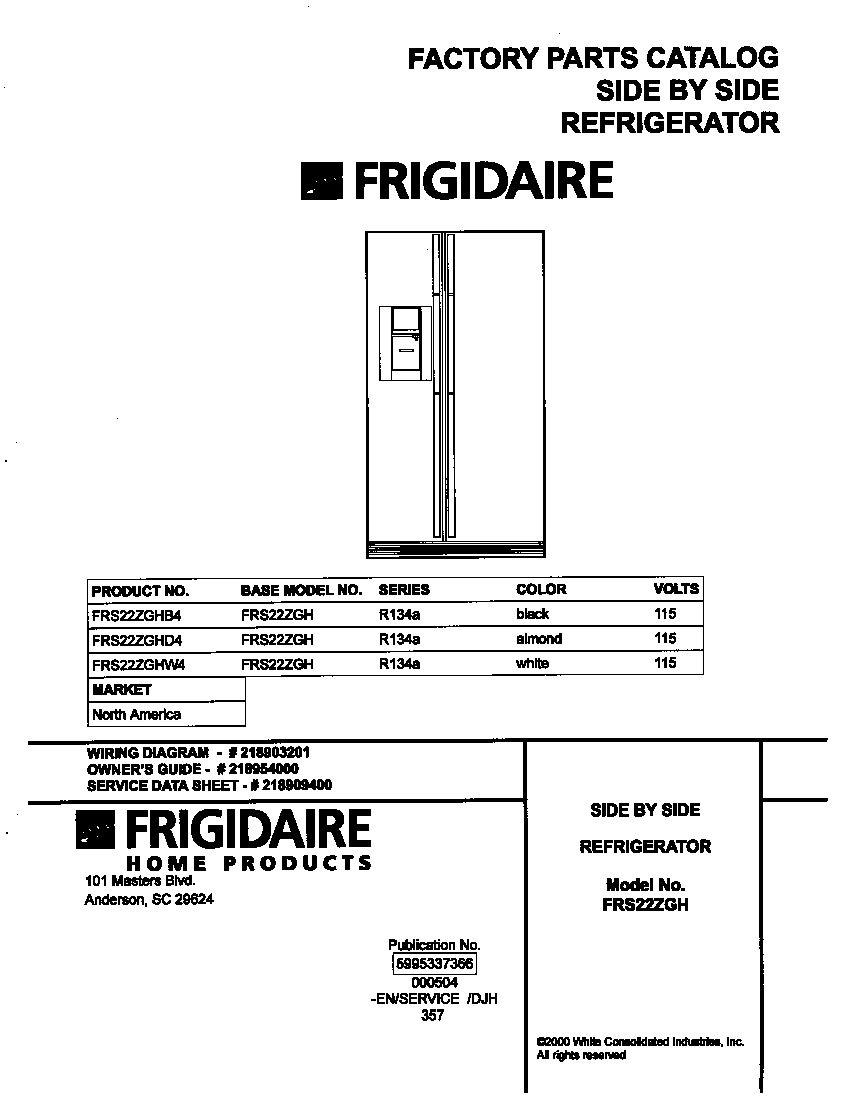

01 - COVER

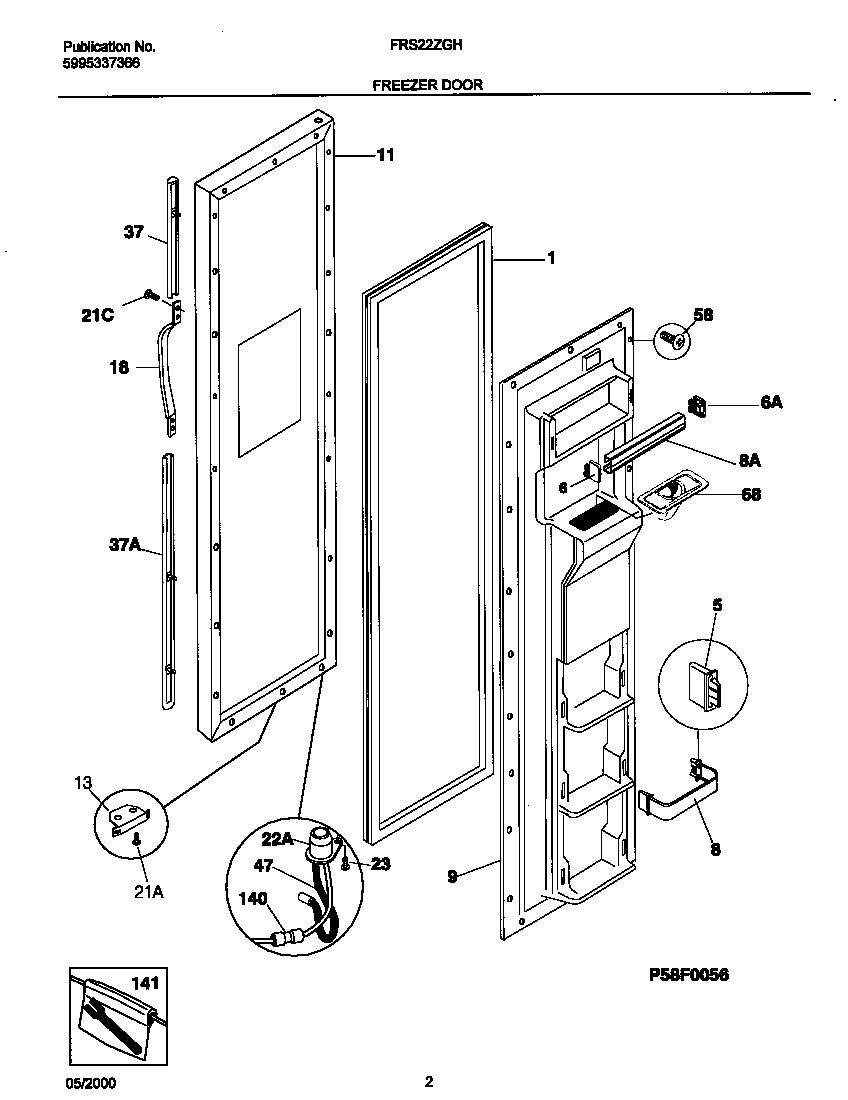

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE AND WATER DISP
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING DIAGRAM
12 - WIRING DIAGRAM
Common parts from model Electrolux FRS22ZGHD4 REFRIGERATOR
*27360
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*27379
TRIM-STORAGE PAN CVR,LOWER WCI 5303289586 Contact Us For Availability
*27380
WCI 5303307878 WCI 5303307878 Contact Us For Availability
*27382
HANGER-PAN/TRAY, RH WCI 215002401 Contact Us For Availability
*27384
WCI 218731102 WCI 218731102 Contact Us For Availability
*27385
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*27387
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*27388
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*27389
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*27390
SPACER TUBE WCI 5303289026 Contact Us For Availability
*27391
WCI 5304406721 WCI 5304406721 Contact Us For Availability
*27392
WIRING HARNESS,REFR CONTROLS WCI 215005200 Contact Us For Availability
*27393
WIRING HARNESS,FRZR CONTROLS WCI 218815101 Contact Us For Availability
*27394
WIRING HARNESS,CRISPER LIGHTS WCI 218463600 Contact Us For Availability
*27395
TUBE-INLET WCI 3206414 Contact Us For Availability
*27398
WCI 218769200 WCI 218769200 Contact Us For Availability
*27400
WCI 215732700 WCI 215732700 Contact Us For Availability
*27401
WCI 218897001 WCI 218897001 Contact Us For Availability
*27402
WCI 215004700 WCI 215004700 Contact Us For Availability
*27403
WCI 215004800 WCI 215004800 Contact Us For Availability
*27404
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*27407
WCI 215781700 WCI 215781700 Contact Us For Availability
*27408
WIRING HARNESS,AUGER MOTOR WCI 5304404335 Contact Us For Availability
*27409
WCI 5304404364 WCI 5304404364 Contact Us For Availability
*27411
WCI 218832301 WCI 218832301 Contact Us For Availability
*27412
WCI 218859901 WCI 218859901 Contact Us For Availability
*27413
WCI 218949201 WCI 218949201 Contact Us For Availability
*27414
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
1
WCI 218787800 WCI 218787800 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 5303298147 WCI 5303298147 Contact Us For Availability
2
WCI 5303307883 WCI 5303307883 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505302 WCI 218505302 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
WCI 218852402 WCI 218852402 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 218959901 WCI 218959901 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218960301 WCI 218960301 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
WCI 218874901 WCI 218874901 Contact Us For Availability
8
SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298001 WCI 218298001 Contact Us For Availability
11
WCI 218298002 WCI 218298002 Contact Us For Availability
12
WIRING HARNESS,ICE MAKER ,INTERNAL ,WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 218691301 WCI 218691301 Contact Us For Availability
15
WCI 218708700 WCI 218708700 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
WCI 5303299157 WCI 5303299157 Contact Us For Availability
16
SUPPORT,PHENOLIC WCI 3206326 Contact Us For Availability
17
WCI 218468701 WCI 218468701 Contact Us For Availability
17
WCI 5304415956 WCI 5304415956 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 5303307882 WCI 5303307882 Contact Us For Availability
18
WCI 218980601 WCI 218980601 Contact Us For Availability
18
EJECTOR-ICE WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303307884 WCI 5303307884 Contact Us For Availability
20
WCI 5303307888 WCI 5303307888 Contact Us For Availability
20
WCI 5304404332 WCI 5304404332 Contact Us For Availability
20A
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
20B
WCI 5304408581 WCI 5304408581 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
SHUT-OFF ARM WCI 3206333 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
WCI 5304408582 WCI 5304408582 Contact Us For Availability
24
WCI 218921302 WCI 218921302 Contact Us For Availability
24
WCI 215406135 WCI 215406135 Contact Us For Availability
25
COVER-STORAGE PAN WCI 218147701 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
25
SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT,4-24 X 0.375 ,(4) WCI 3206337 Contact Us For Availability
27
SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,(2) WCI 3206338 Contact Us For Availability
28
WCI 218891402 WCI 218891402 Contact Us For Availability
28
Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
WCI 218721109 WCI 218721109 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 216649100 WCI 216649100 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218870201 WCI 218870201 Contact Us For Availability
33
WCI 5304408583 WCI 5304408583 Contact Us For Availability
35
WCI 218740004 WCI 218740004 Contact Us For Availability
35
WCI 5304408585 WCI 5304408585 Contact Us For Availability
36
WCI 218891301 WCI 218891301 Contact Us For Availability
36
COVER-ICE MAKER WCI 3206347 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
38
WCI 218881801 WCI 218881801 Contact Us For Availability
38
WCI 218906601 WCI 218906601 Contact Us For Availability
38B
WCI 218215251 WCI 218215251 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215917800 WCI 215917800 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
46
WCI 5304404341 WCI 5304404341 Contact Us For Availability
47
WCI 215723574 WCI 215723574 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
47
WCI 5304404342 WCI 5304404342 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404329 WCI 5304404329 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 5303301454 WCI 5303301454 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
TUBE-WATER,ICE MOLD FILL ,EXTENSION WCI 215811600 Contact Us For Availability
52
TUBE-WATER,ICE MOLD FILL ,ELBOW WCI 215454600 Contact Us For Availability
52
WCI 215162503 WCI 215162503 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809511 WCI 215809511 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
58
WCI 5304404331 WCI 5304404331 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 218285701 WCI 218285701 Contact Us For Availability
62
WCI 215048703 WCI 215048703 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
67
WCI 218278501 WCI 218278501 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359605 WCI 218359605 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
83
FUSE,PC BOARD ,7 A ,125 V WCI 5304412136 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
112
WCI 215277101 WCI 215277101 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303289047 Contact Us For Availability
115
WCI 215011505 WCI 215011505 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
137
WCI 215334201 WCI 215334201 Contact Us For Availability
139
WCI 218893201 WCI 218893201 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
140
WCI 218922801 WCI 218922801 Contact Us For Availability
141B
Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability
143A
WCI 218696700 WCI 218696700 Contact Us For Availability
143B
WIRING HARNESS,FILTER HEATER WCI 218646000 Contact Us For Availability
× ![]()
