Model Electrolux FRS22XHAD1 REFRIGERATOR – Common Parts & Diagrams

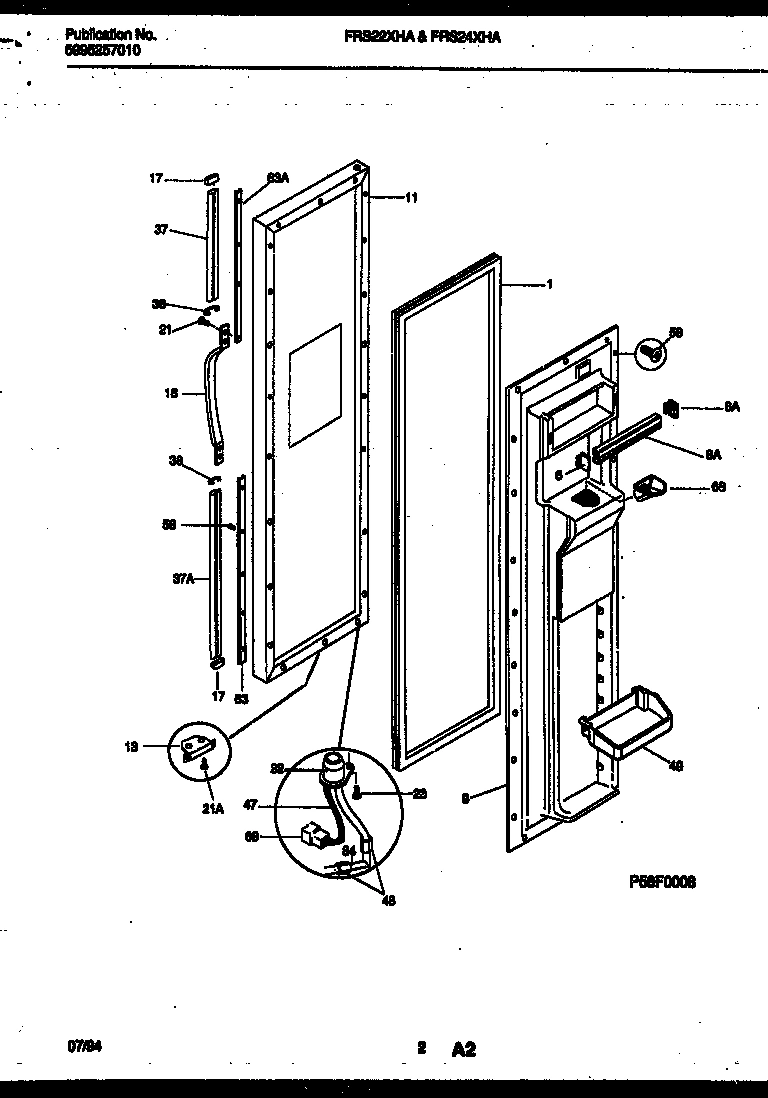

02 - FREEZER DOOR PARTS

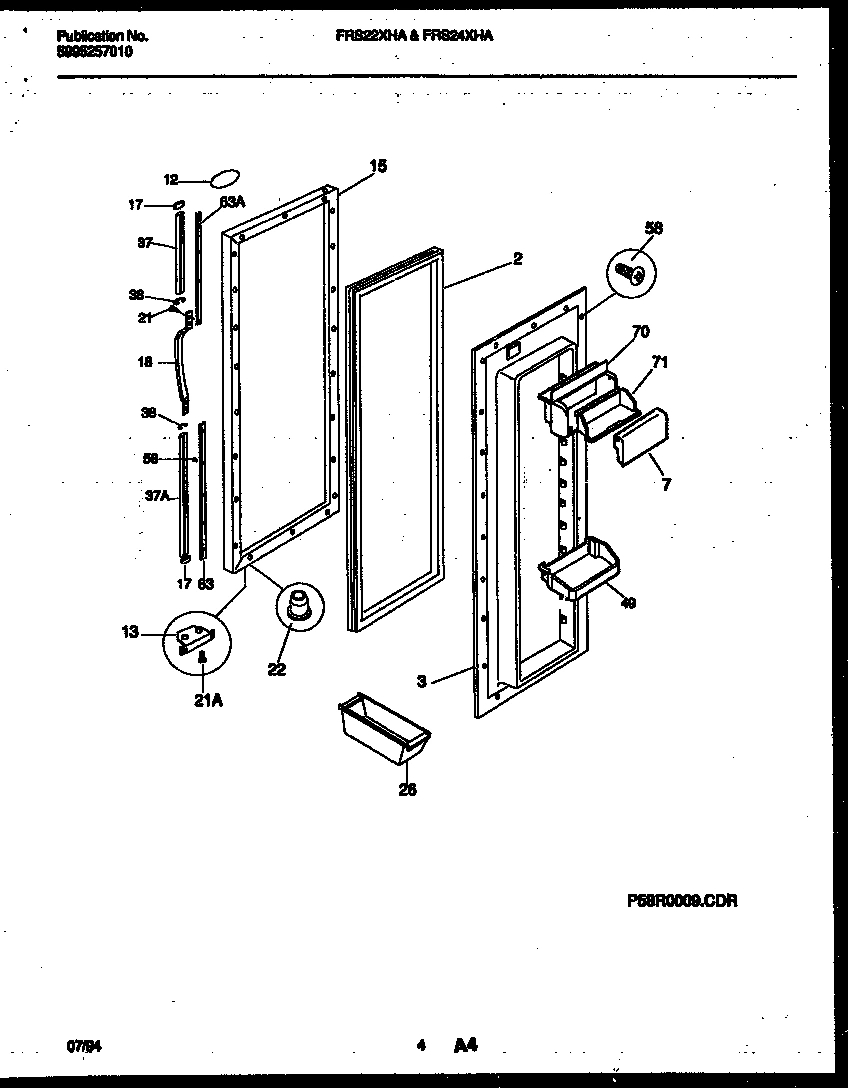

03 - REFRIGERATOR DOOR PARTS

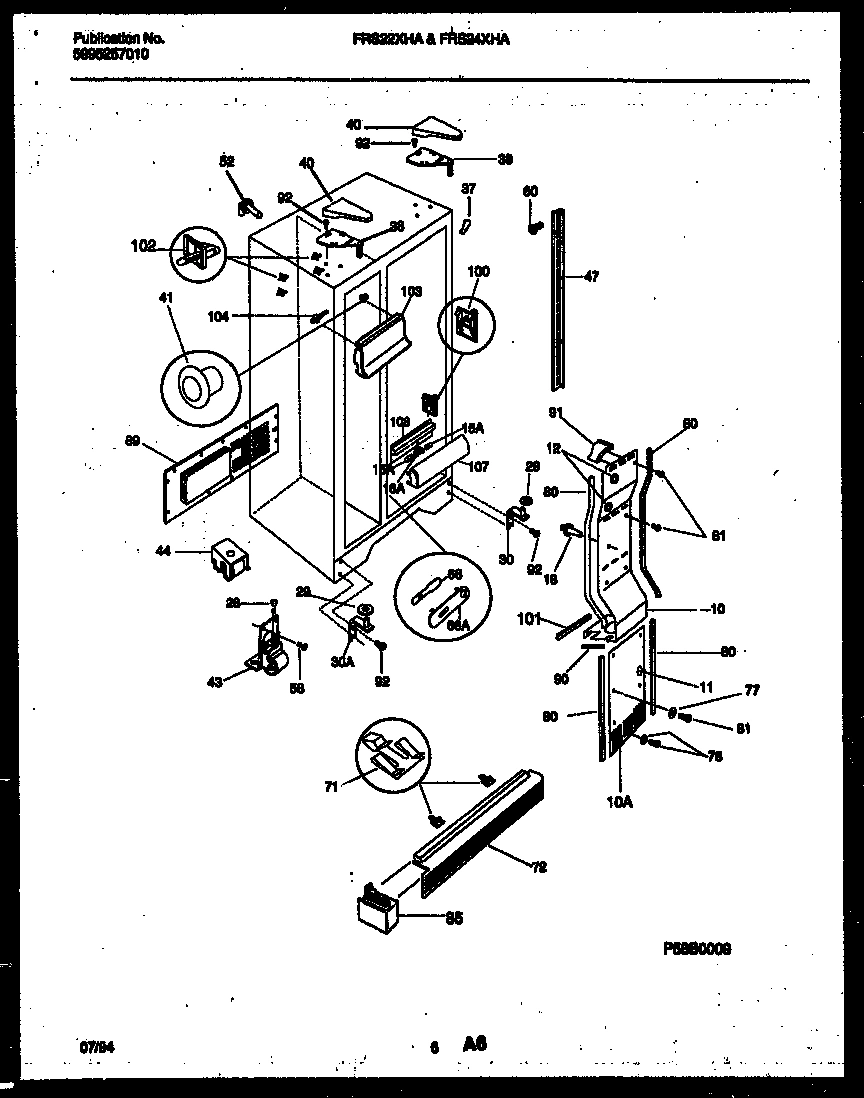

04 - CABINET PARTS

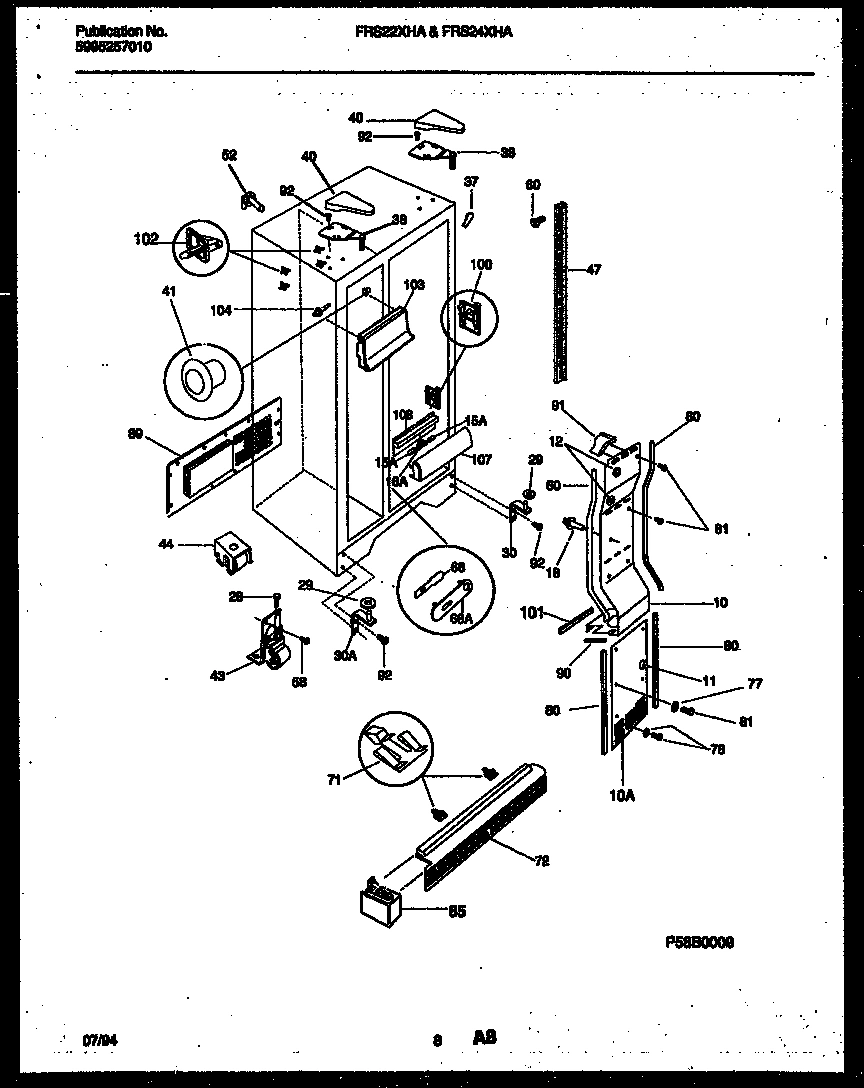

05 - CABINET PARTS

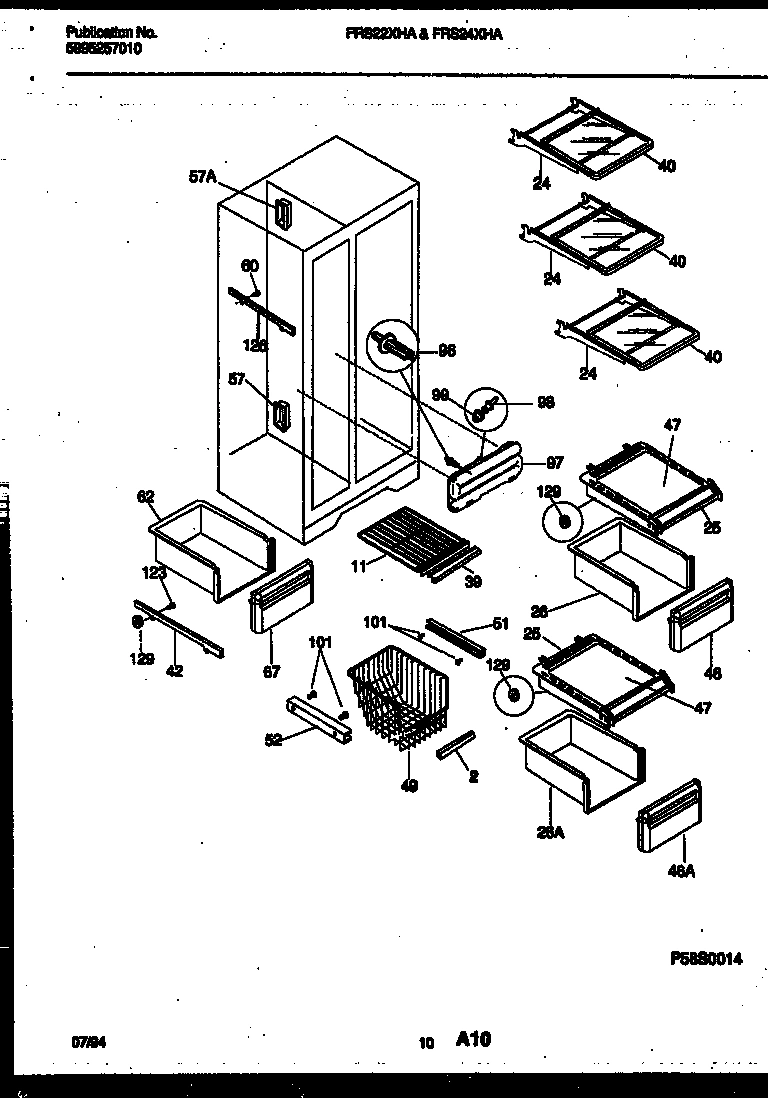

06 - SHELVES AND SUPPORTS

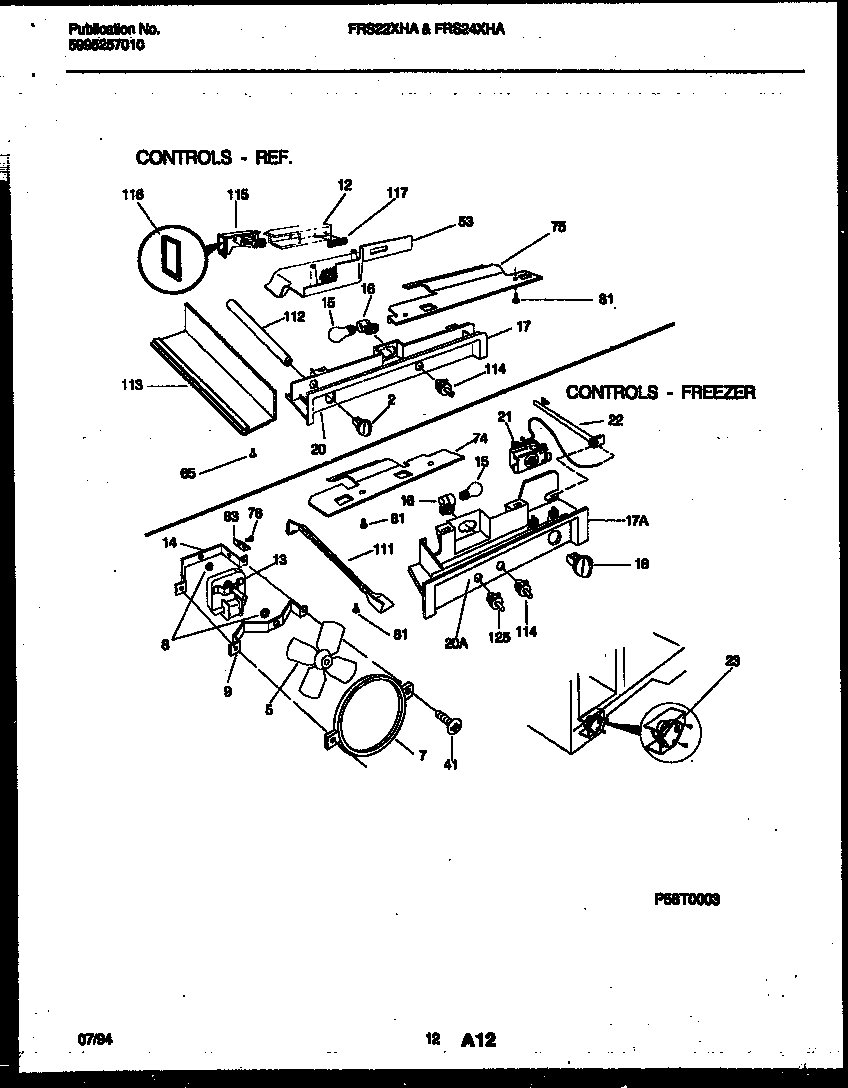

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

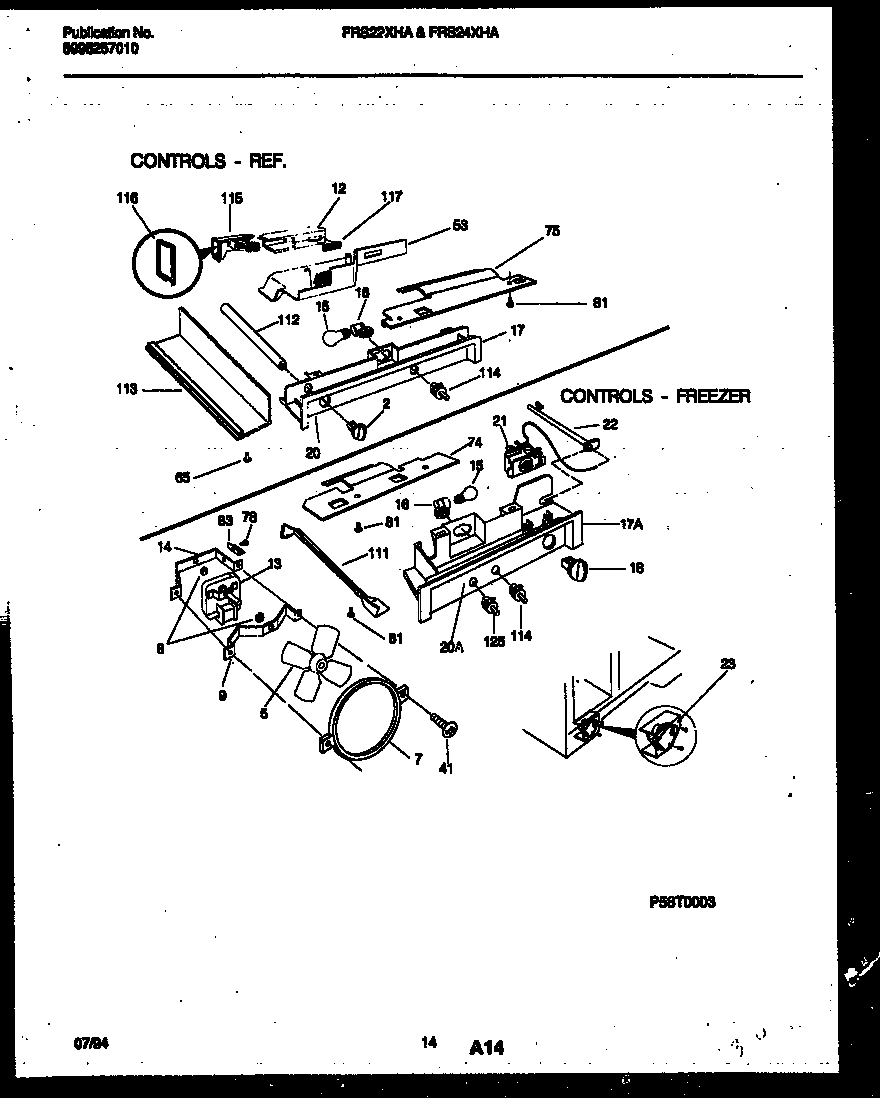

08 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

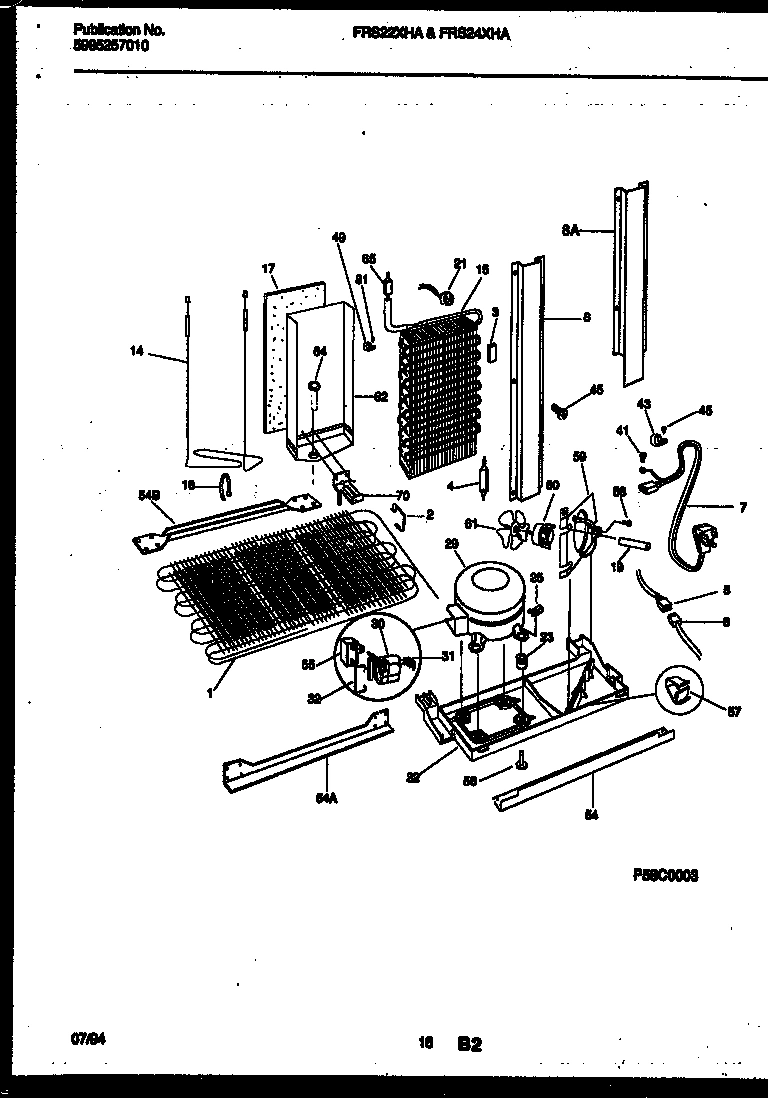

09 - SYSTEM AND AUTOMATIC DEFROST PARTS

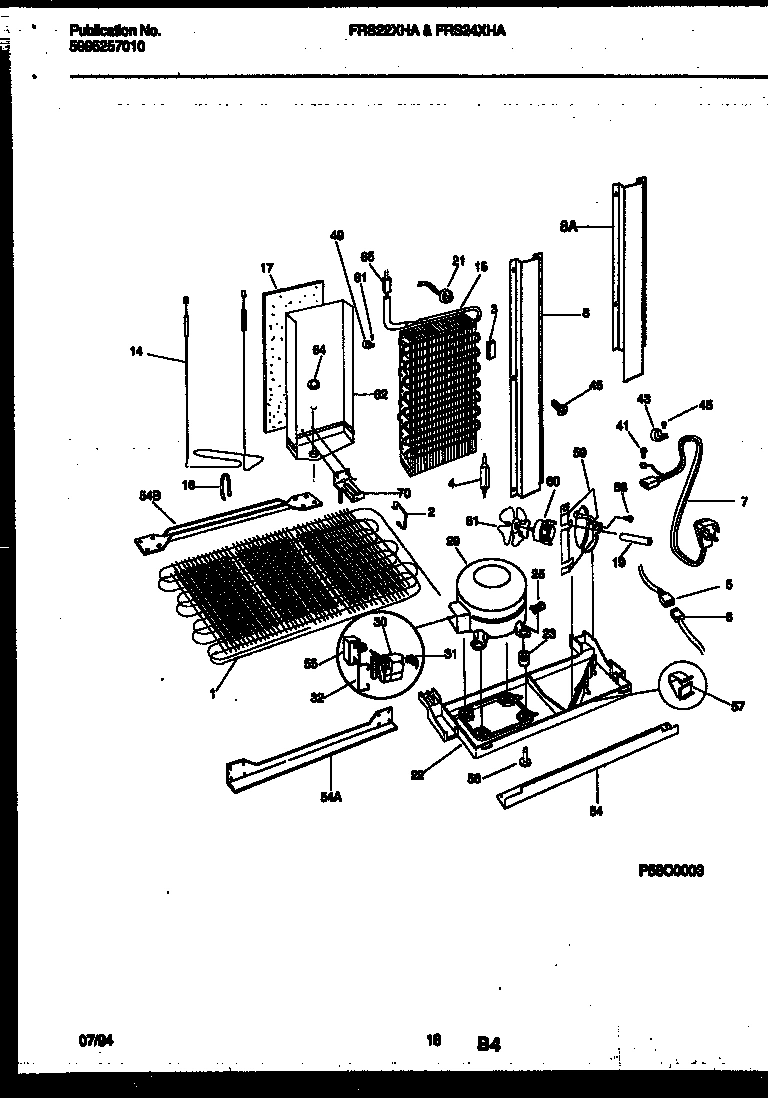

10 - SYSTEM AND AUTOMATIC DEFROST PARTS

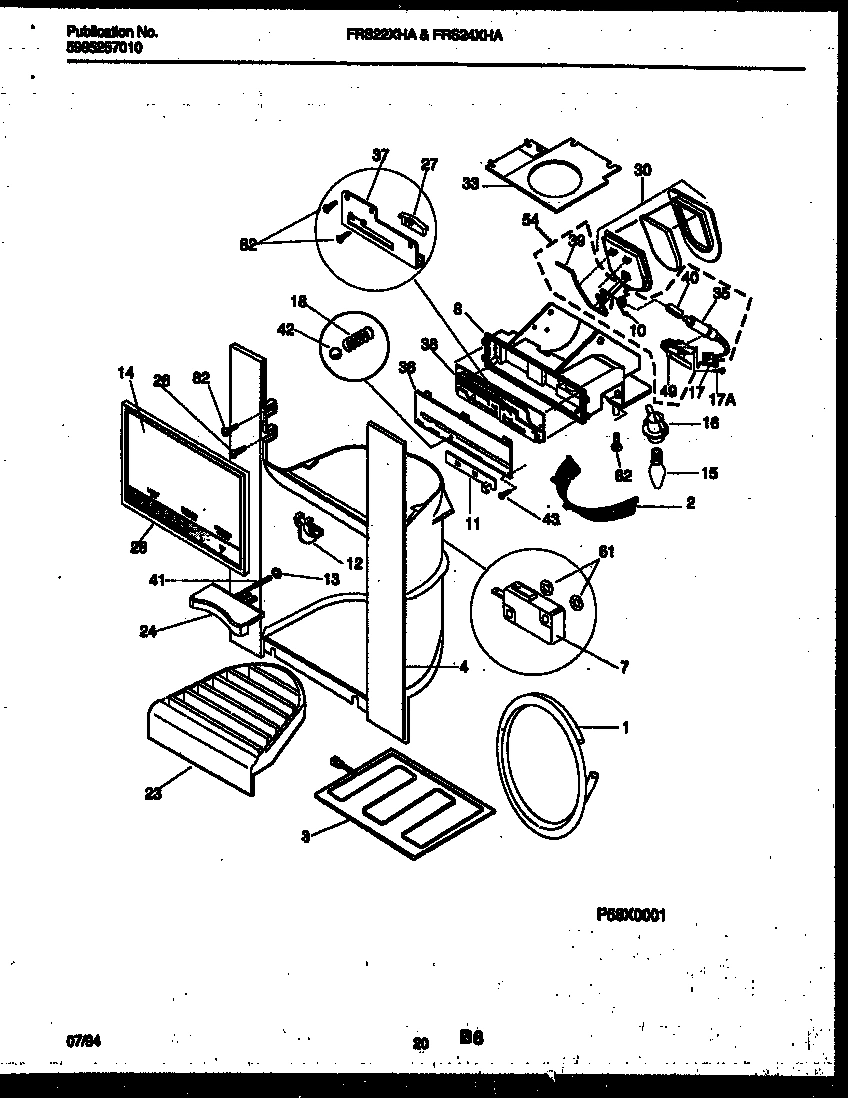

11 - ICE DOOR, DISPENSER AND WATER TANKS

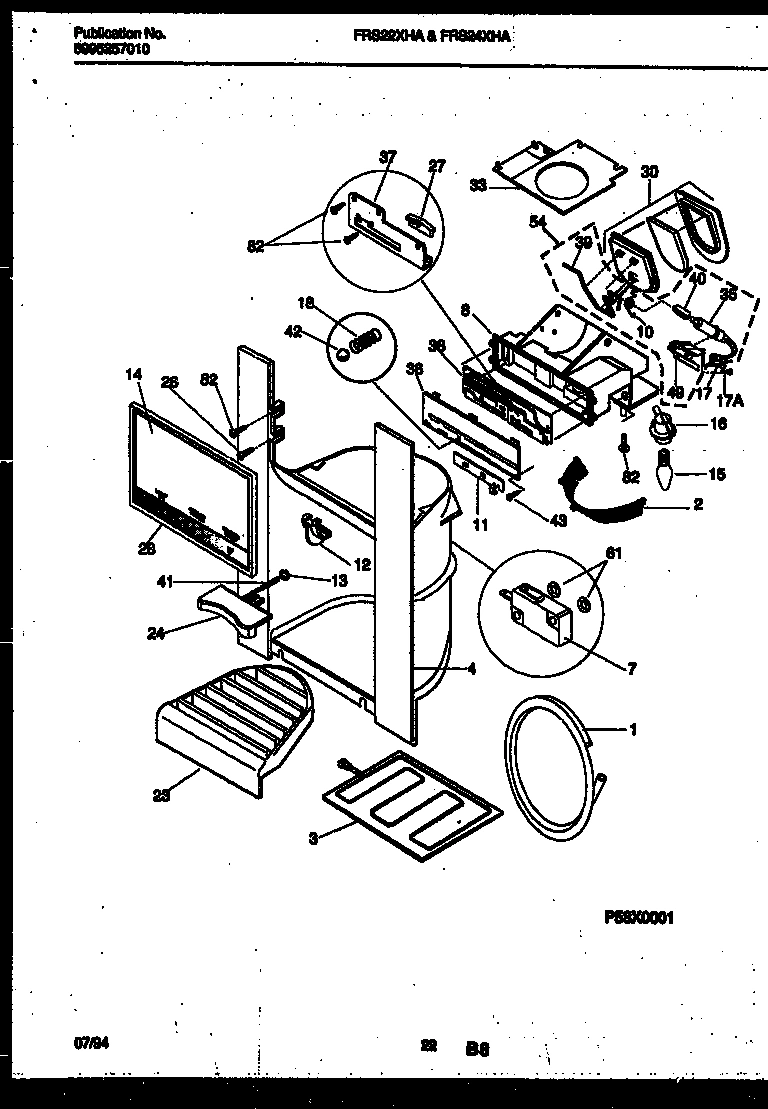

12 - ICE DOOR, DISPENSER AND WATER TANKS

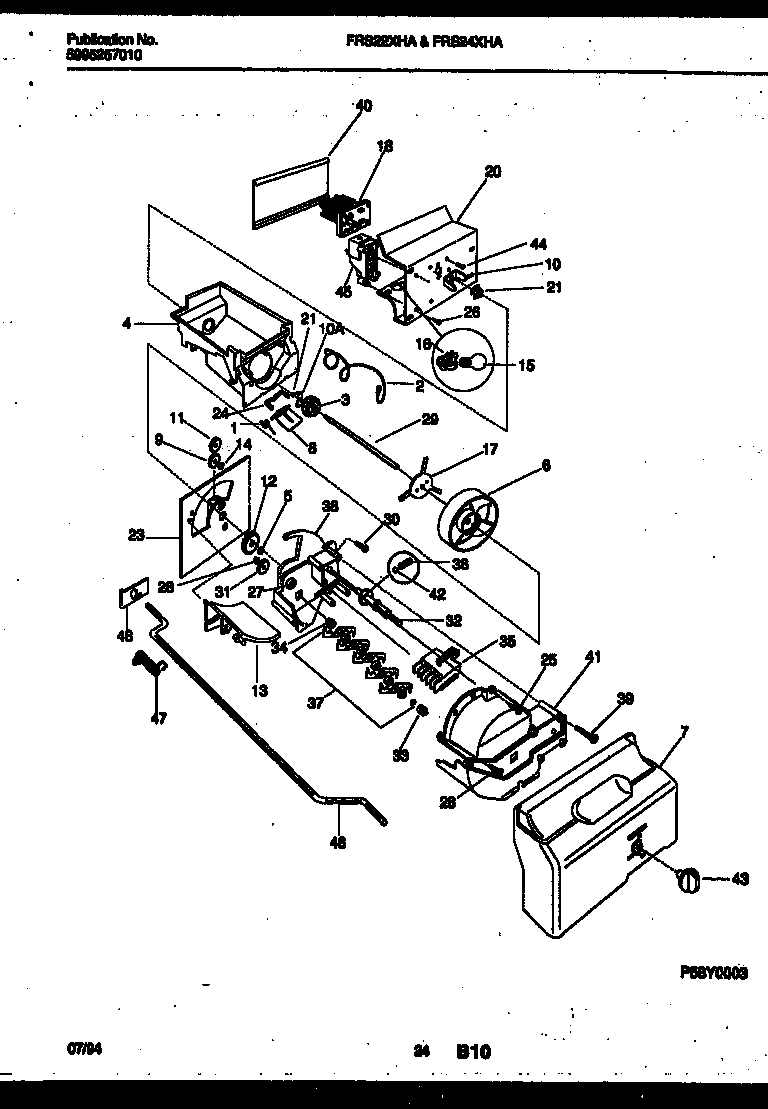

13 - ICE DISPENSER

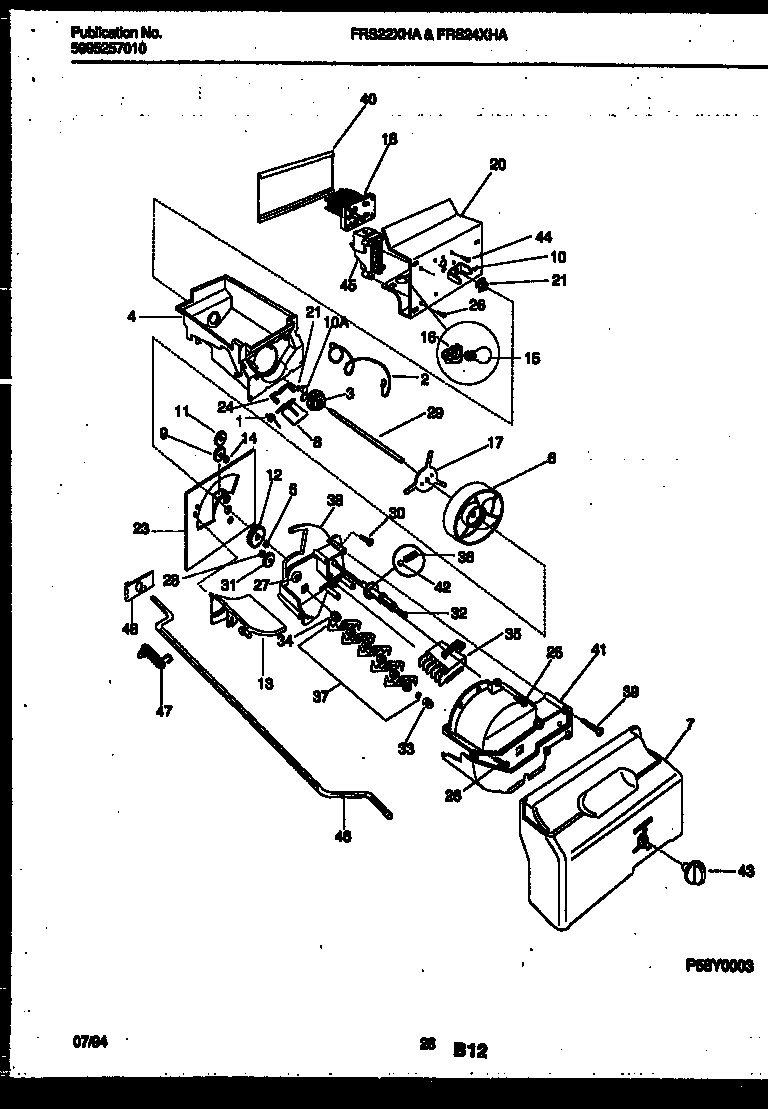

14 - ICE DISPENSER
15 - ICE MAKER AND INSTALLATION PARTS

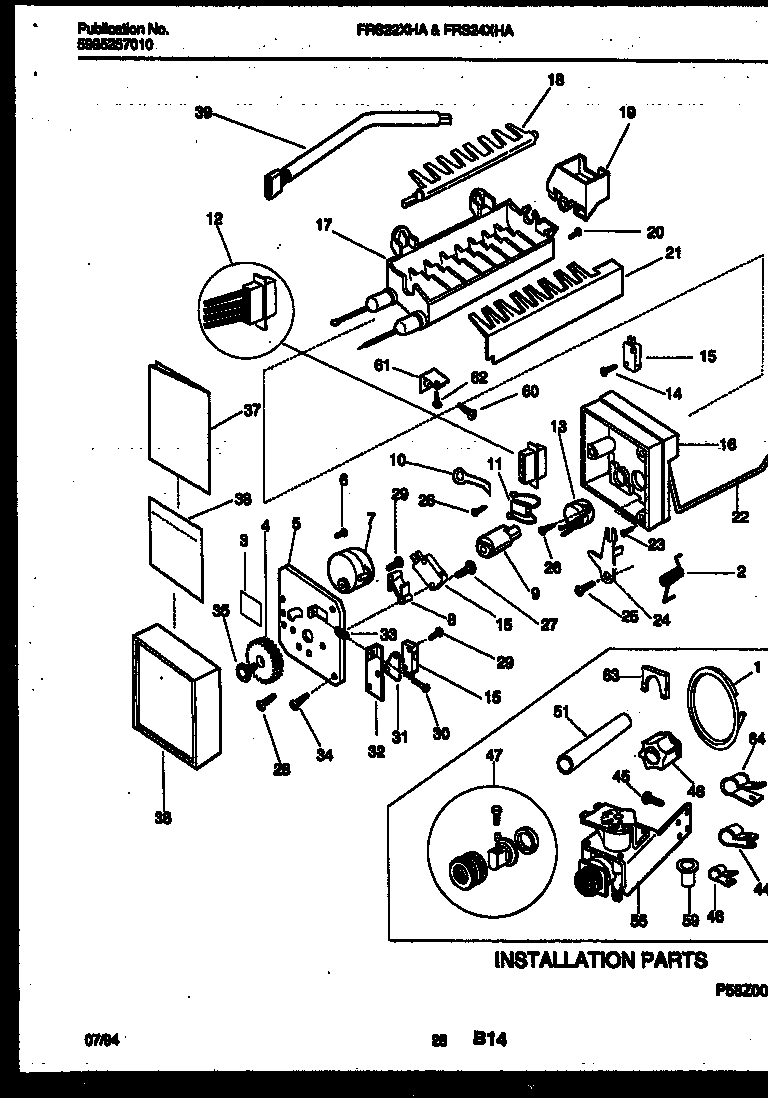

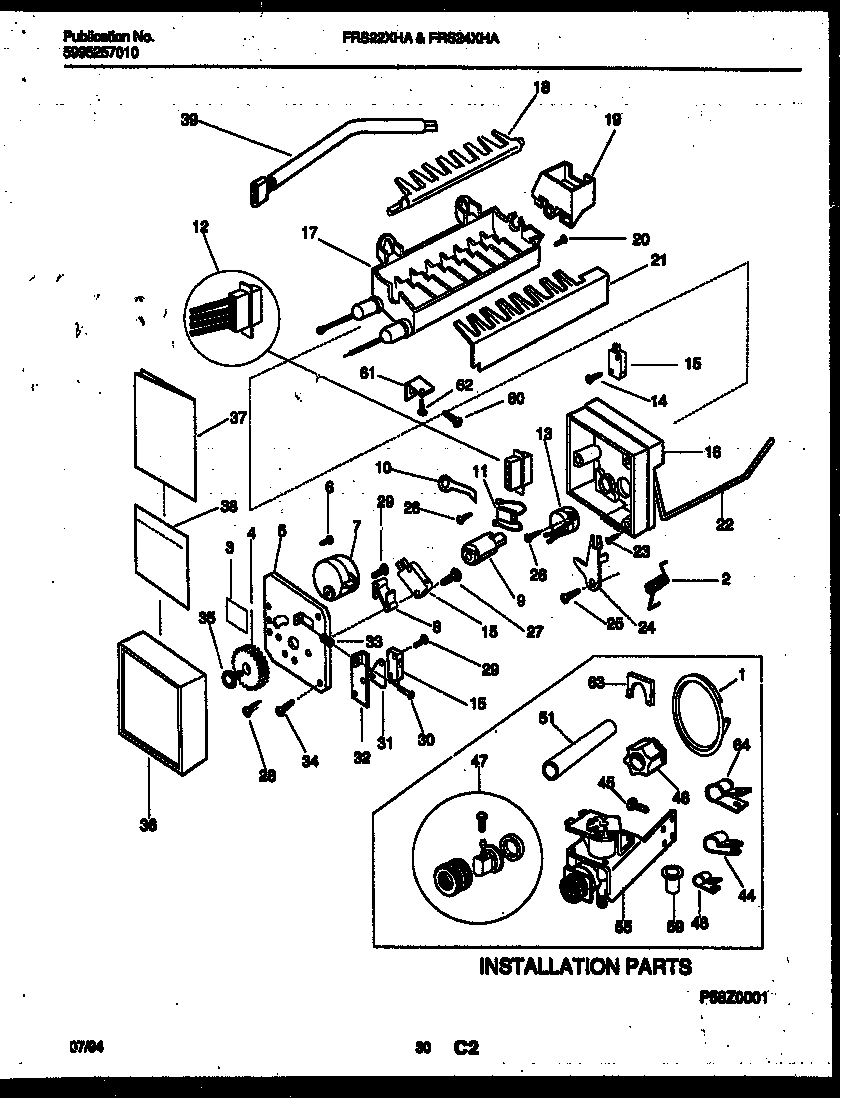

16 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FRS22XHAD1 REFRIGERATOR
*10600
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*10600
WCI 5303305325 WCI 5303305325 Contact Us For Availability
*10601
WCI 215339900 WCI 215339900 Contact Us For Availability
*10602
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*10603
WCI 215781700 WCI 215781700 Contact Us For Availability
*10603
WASHER-FLAT WCI 215923400 Contact Us For Availability
1
WCI 215294101 WCI 215294101 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1
WCI 215571300 WCI 215571300 Contact Us For Availability
1A
SPACER-TUBE (NON-ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1A
WCI 5303289026 WCI 5303289026 Contact Us For Availability
2
WCI 5303298147 WCI 5303298147 Contact Us For Availability
2
WCI 5303289045 WCI 5303289045 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 215732111 WCI 215732111 Contact Us For Availability
2
WCI 218232500 WCI 218232500 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 215226501 WCI 215226501 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
3A
WCI 215305900 WCI 215305900 Contact Us For Availability
4
WCI 5303298525 WCI 5303298525 Contact Us For Availability
4
WCI 218216800 WCI 218216800 Contact Us For Availability
4A
WCI 218270500 WCI 218270500 Contact Us For Availability
5
WCI 215669100 WCI 215669100 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATE WCI 215004900 Contact Us For Availability
5B
HARNESS-WIRING, REFR CONTROLS (NON-ILLUSTRATE WCI 215005200 Contact Us For Availability
6
WCI 5303297813 WCI 5303297813 Contact Us For Availability
6
WCI 215669000 WCI 215669000 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
6A
WCI 5303297814 WCI 5303297814 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
7
WCI 215421601 WCI 215421601 Contact Us For Availability
7A
WCI 215944300 WCI 215944300 Contact Us For Availability
8
WCI 215571200 WCI 215571200 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
WCI 215763501 WCI 215763501 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8A
WCI 215192800 WCI 215192800 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10A
WCI 218232800 WCI 218232800 Contact Us For Availability
11
WCI 5303289518 WCI 5303289518 Contact Us For Availability
11
WCI 215897500 WCI 215897500 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
12
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215901100 WCI 215901100 Contact Us For Availability
12
WCI 215766502 WCI 215766502 Contact Us For Availability
12
WCI 215420400 WCI 215420400 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215348100 WCI 215348100 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 218270300 WCI 218270300 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 215752000 WCI 215752000 Contact Us For Availability
14
WCI 215993002 WCI 215993002 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
EVAPORATOR, W/HEAT EXCHANGR WCI 215289604 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16A
WCI 5303299157 WCI 5303299157 Contact Us For Availability
17
BOX - CONTROL, REFR WCI 5303289513 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215980800 WCI 215980800 Contact Us For Availability
17A
WCI 5303296581 WCI 5303296581 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
18
WCI 5303289054 WCI 5303289054 Contact Us For Availability
18
WCI 215760200 WCI 215760200 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18A
WCI 218231600 WCI 218231600 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303301521 WCI 5303301521 Contact Us For Availability
20
WCI 215285302 WCI 215285302 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
WCI 5303301522 WCI 5303301522 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
WCI 215755300 WCI 215755300 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215277000 WCI 215277000 Contact Us For Availability
23A
WCI 215755700 WCI 215755700 Contact Us For Availability
23B
WCI 215755800 WCI 215755800 Contact Us For Availability
23C
WCI 5303289058 WCI 5303289058 Contact Us For Availability
24
WCI 215571400 WCI 215571400 Contact Us For Availability
24
WCI 215019701 WCI 215019701 Contact Us For Availability
24
WCI 215766302 WCI 215766302 Contact Us For Availability
25
WCI 218147701 WCI 218147701 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303289586 WCI 5303289586 Contact Us For Availability
25B
WCI 5303299053 WCI 5303299053 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 215254700 WCI 215254700 Contact Us For Availability
27
BEARING WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 5303297847 WCI 5303297847 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
WCI 5303917193 WCI 5303917193 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN WCI 5303289060 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
WCI 215753600 WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30A
WCI 215009000 WCI 215009000 Contact Us For Availability
30A
TAPPING PLATE,RH(NON-ILLUSTRATED) WCI 5303289291 Contact Us For Availability
30B
TAPPING PLATE, LH WCI 5303289290 Contact Us For Availability
31
OVERLOAD WCI 5303299560 Contact Us For Availability
31
WCI 215757400 WCI 215757400 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 215747501 WCI 215747501 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32A
WCI 215748102 WCI 215748102 Contact Us For Availability
33
WCI 215851100 WCI 215851100 Contact Us For Availability
33
BEARING WCI 215748200 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 218284700 WCI 218284700 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 215254400 WCI 215254400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 215763400 WCI 215763400 Contact Us For Availability
37
WCI 215756100 WCI 215756100 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37A
WCI 215753000 WCI 215753000 Contact Us For Availability
37A
WCI 215753100 WCI 215753100 Contact Us For Availability
37A
WCI 215753200 WCI 215753200 Contact Us For Availability
37A
WCI 215753300 WCI 215753300 Contact Us For Availability
37A
WCI 215753400 WCI 215753400 Contact Us For Availability
37B
WCI 215253600 WCI 215253600 Contact Us For Availability
37C
WCI 215748104 WCI 215748104 Contact Us For Availability
37D
WCI 215756200 WCI 215756200 Contact Us For Availability
37D
WCI 215839400 WCI 215839400 Contact Us For Availability
38
WCI 215595601 WCI 215595601 Contact Us For Availability
38
WCI 215894603 WCI 215894603 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38A
WCI 215630800 WCI 215630800 Contact Us For Availability
38B
WCI 215631000 WCI 215631000 Contact Us For Availability
38C
WCI 215763900 WCI 215763900 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
39
WCI 215757000 WCI 215757000 Contact Us For Availability
39
WCI 5303289065 WCI 5303289065 Contact Us For Availability
40
WCI 5303288946 WCI 5303288946 Contact Us For Availability
40
WCI 215036600 WCI 215036600 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
41A
NUT, ``U`` TYPE, NO. 8-15(A) (NON-ILLUSTRATED WCI 5303209814 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
42A
WCI 215002401 WCI 215002401 Contact Us For Availability
43
WCI 5303289059 WCI 5303289059 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43
WCI 215755002 WCI 215755002 Contact Us For Availability
43A
SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) WCI 5308017044 Contact Us For Availability
43A
WCI 215752900 WCI 215752900 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
44
SCREW,PAN HEAD, 8-32 X .25 WCI 218359200 Contact Us For Availability
45
WCI 215935901 WCI 215935901 Contact Us For Availability
46
WCI 215253701 WCI 215253701 Contact Us For Availability
47
WCI 5303288974 WCI 5303288974 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
47
WCI 215254800 WCI 215254800 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
48
WCI 215898200 WCI 215898200 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
52
WCI 5303289294 WCI 5303289294 Contact Us For Availability
53
WCI 215177800 WCI 215177800 Contact Us For Availability
53A
WCI 215267300 WCI 215267300 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303917444 WCI 5303917444 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
55
WCI 215197400 WCI 215197400 Contact Us For Availability
55A
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
55B
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 215073800 WCI 215073800 Contact Us For Availability
57A
WCI 5303289064 WCI 5303289064 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
NUT, SPEED (NON-ILLUSTRATED) WCI 215004700 Contact Us For Availability
61B
WCI 215223700 WCI 215223700 Contact Us For Availability
62
WCI 5303302802 WCI 5303302802 Contact Us For Availability
62
WCI 215048700 WCI 215048700 Contact Us For Availability
63
WCI 5300154167 WCI 5300154167 Contact Us For Availability
65
PIN-PUSH,PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66A
WCI 218171301 WCI 218171301 Contact Us For Availability
67
WCI 5303289506 WCI 5303289506 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
71A
SCREW-CLIP/GRILLE, PAN HEAD, 6-AB X 1/4 C R ( WCI 215608400 Contact Us For Availability
72
WCI 5303295758 WCI 5303295758 Contact Us For Availability
74
WCI 5303289516 WCI 5303289516 Contact Us For Availability
75
WCI 5303289052 WCI 5303289052 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
78A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
80
GASKET-COIL COVER, AIR DUCT CVR, (4) WCI 218154003 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
85
WCI 215003803 WCI 215003803 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 215177600 WCI 215177600 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
WCI 5303288973 No Longer Available
101
WCI 215305702 WCI 215305702 Contact Us For Availability
102
WCI 215134700 WCI 215134700 Contact Us For Availability
103
WCI 215413100 WCI 215413100 Contact Us For Availability
104
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
104A
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X WCI 3001212 Contact Us For Availability
107
WCI 218188800 WCI 218188800 Contact Us For Availability
108
WCI 215171800 WCI 215171800 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
112
WCI 215277101 WCI 215277101 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303289047 Contact Us For Availability
115
WCI 215011501 WCI 215011501 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
117
WCI 215011700 WCI 215011700 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
126
WCI 215205400 WCI 215205400 Contact Us For Availability
126A
WCI 218232700 WCI 218232700 Contact Us For Availability
129
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129A
WCI 5303299153 WCI 5303299153 Contact Us For Availability
× ![]()
