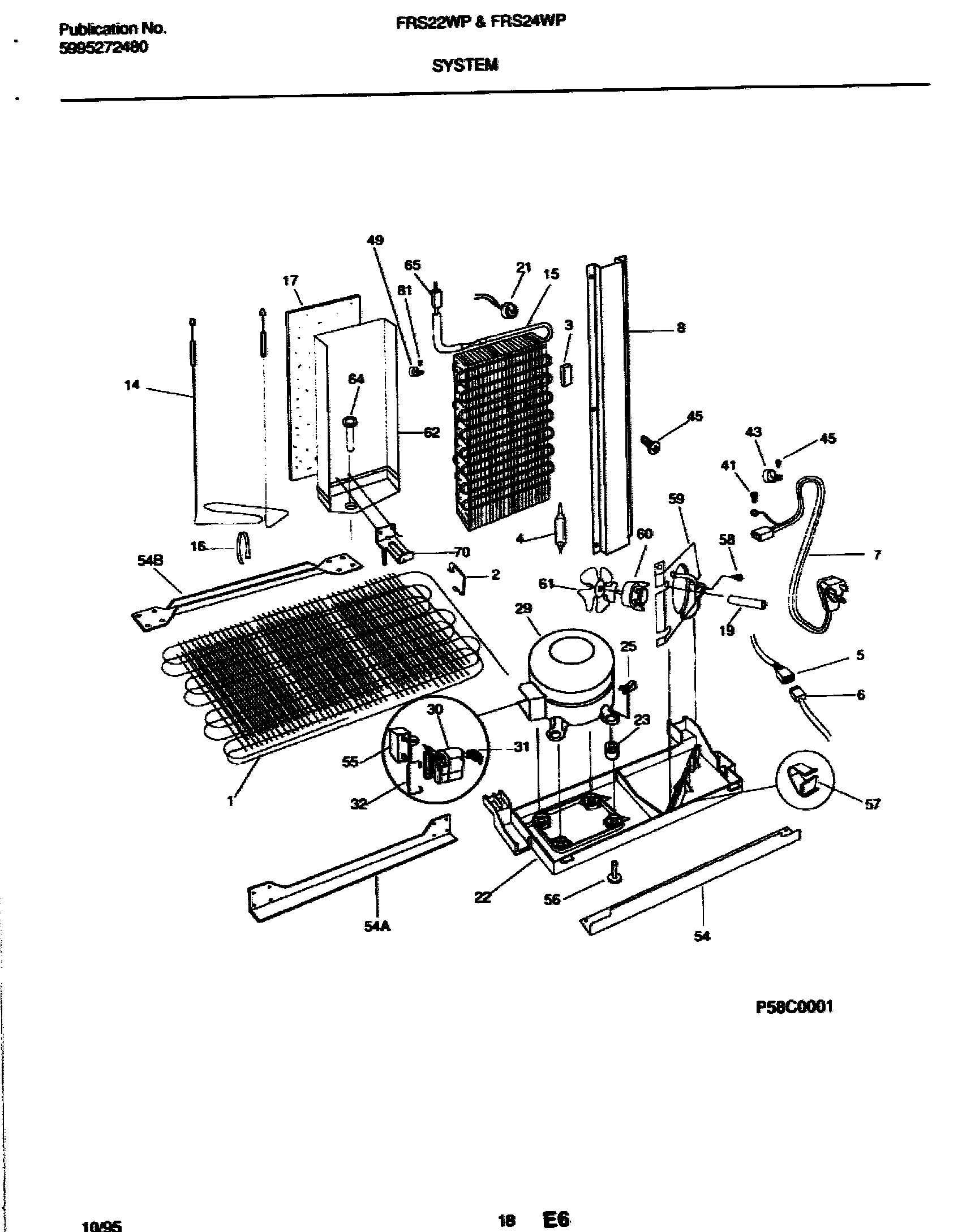

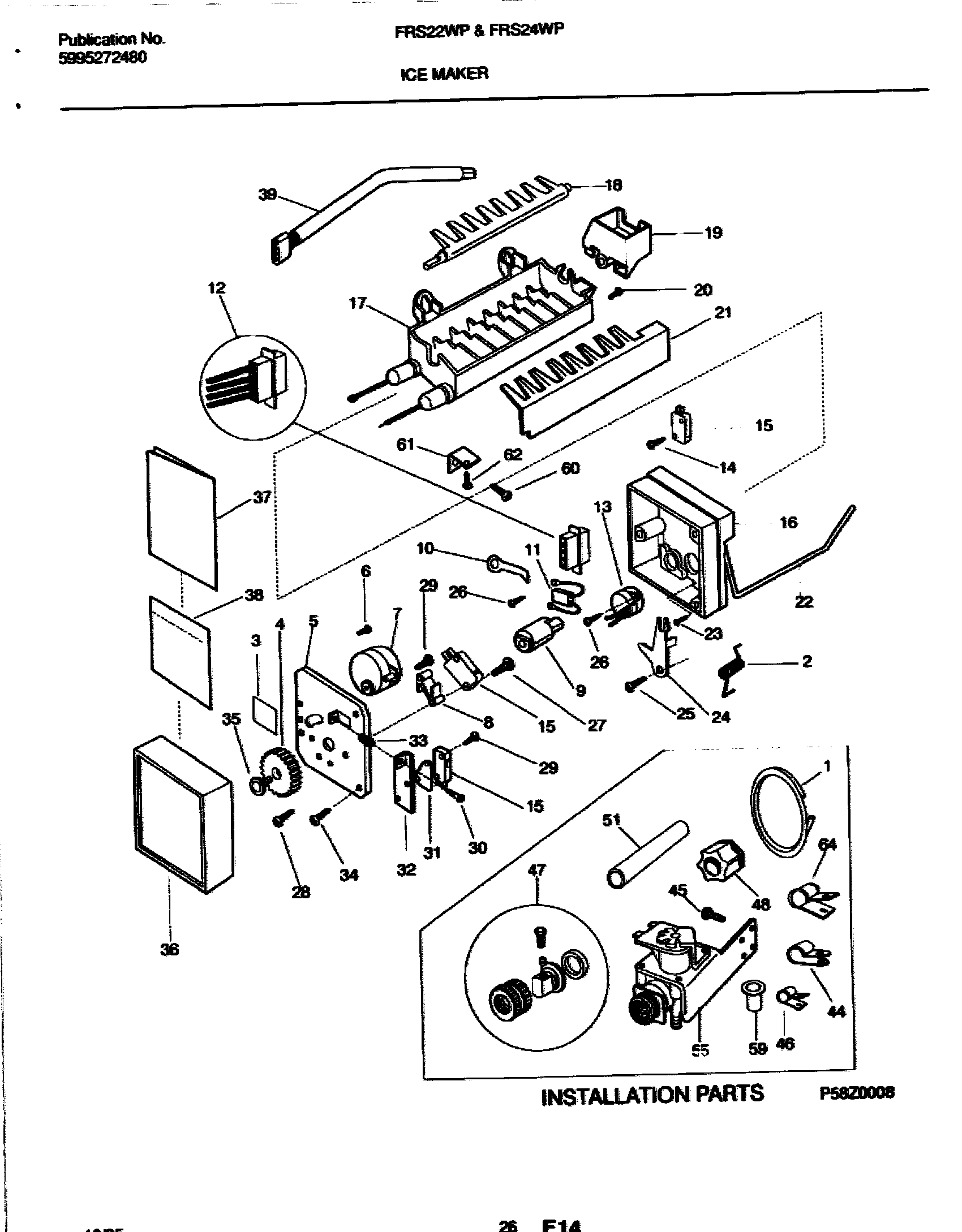

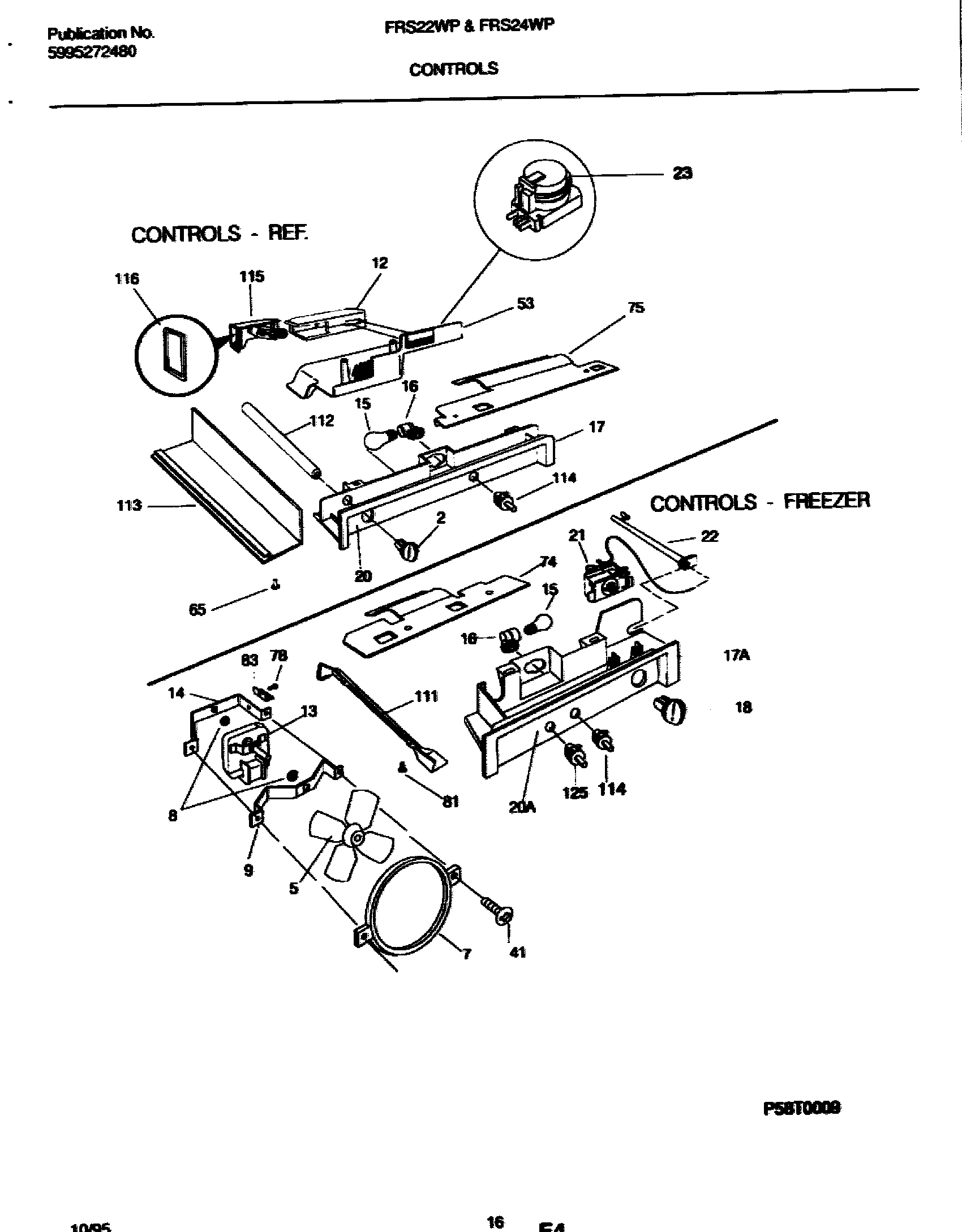

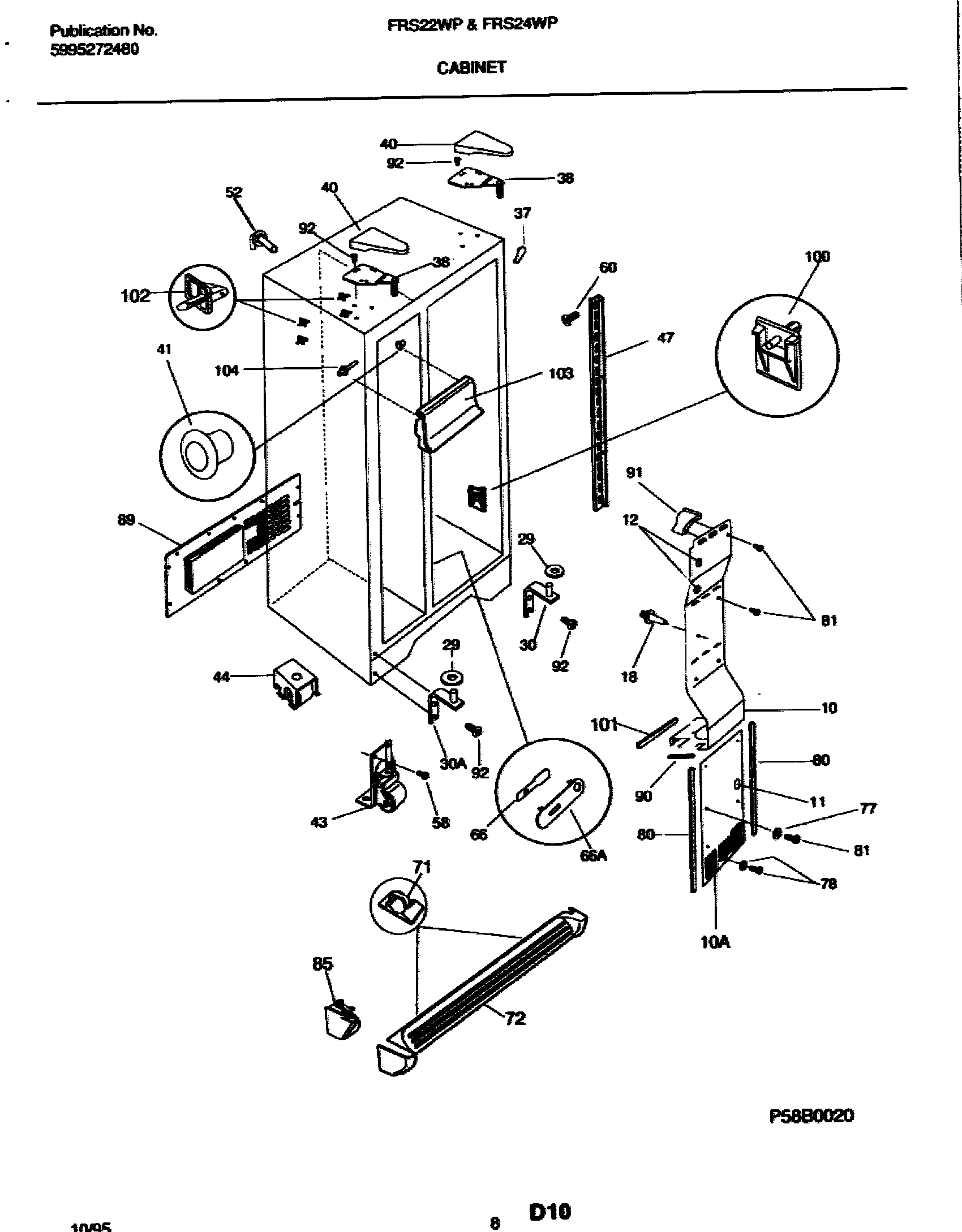

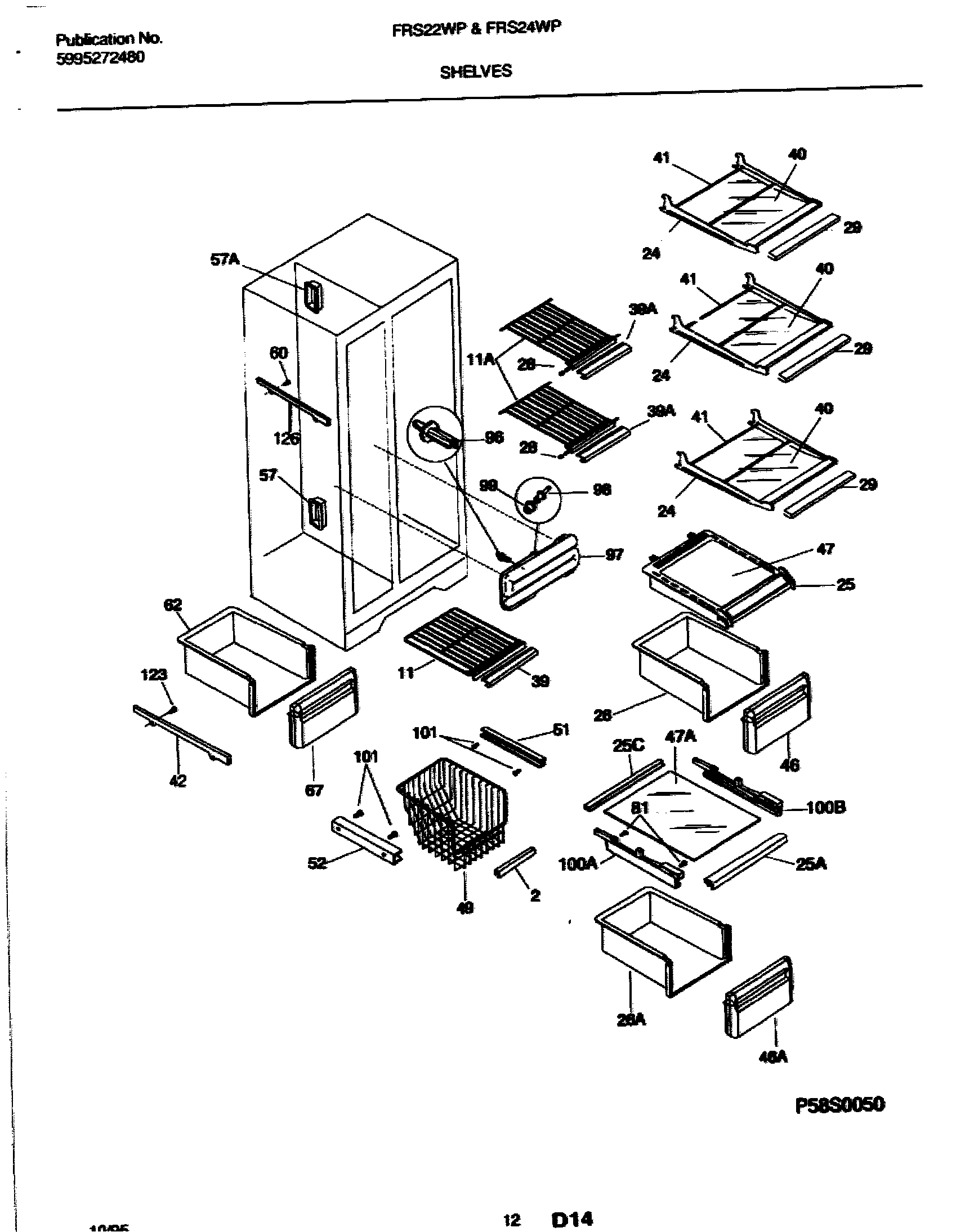

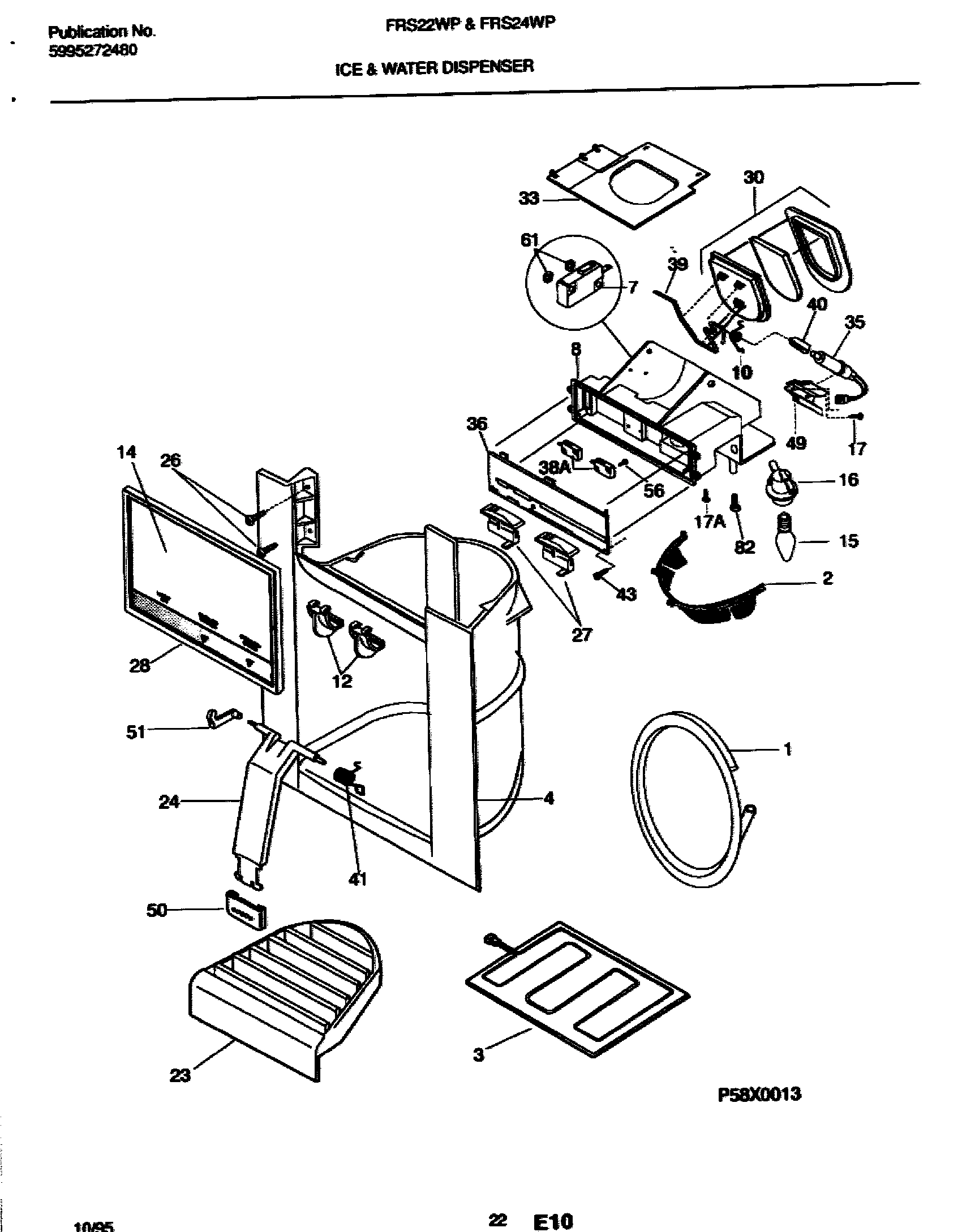

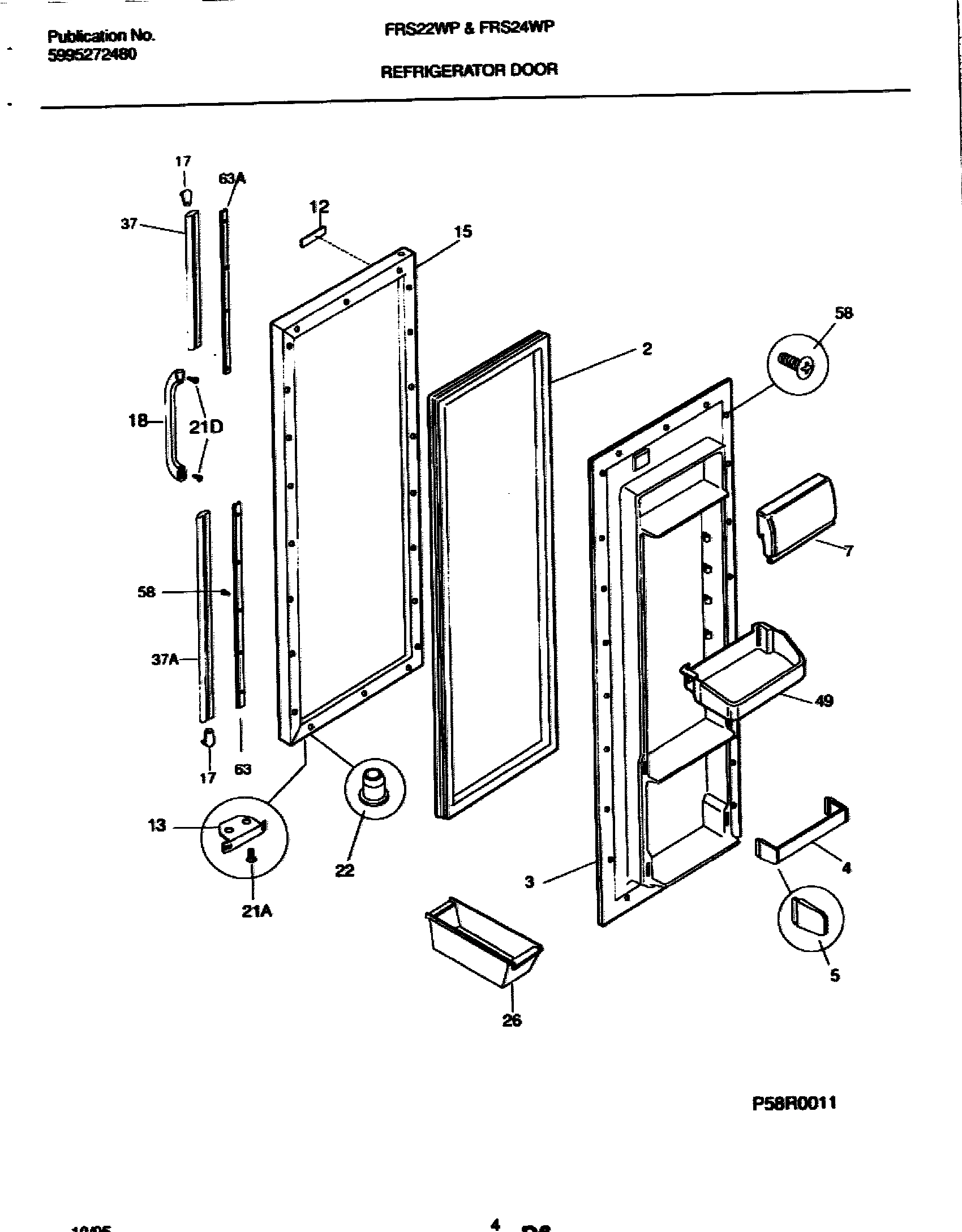

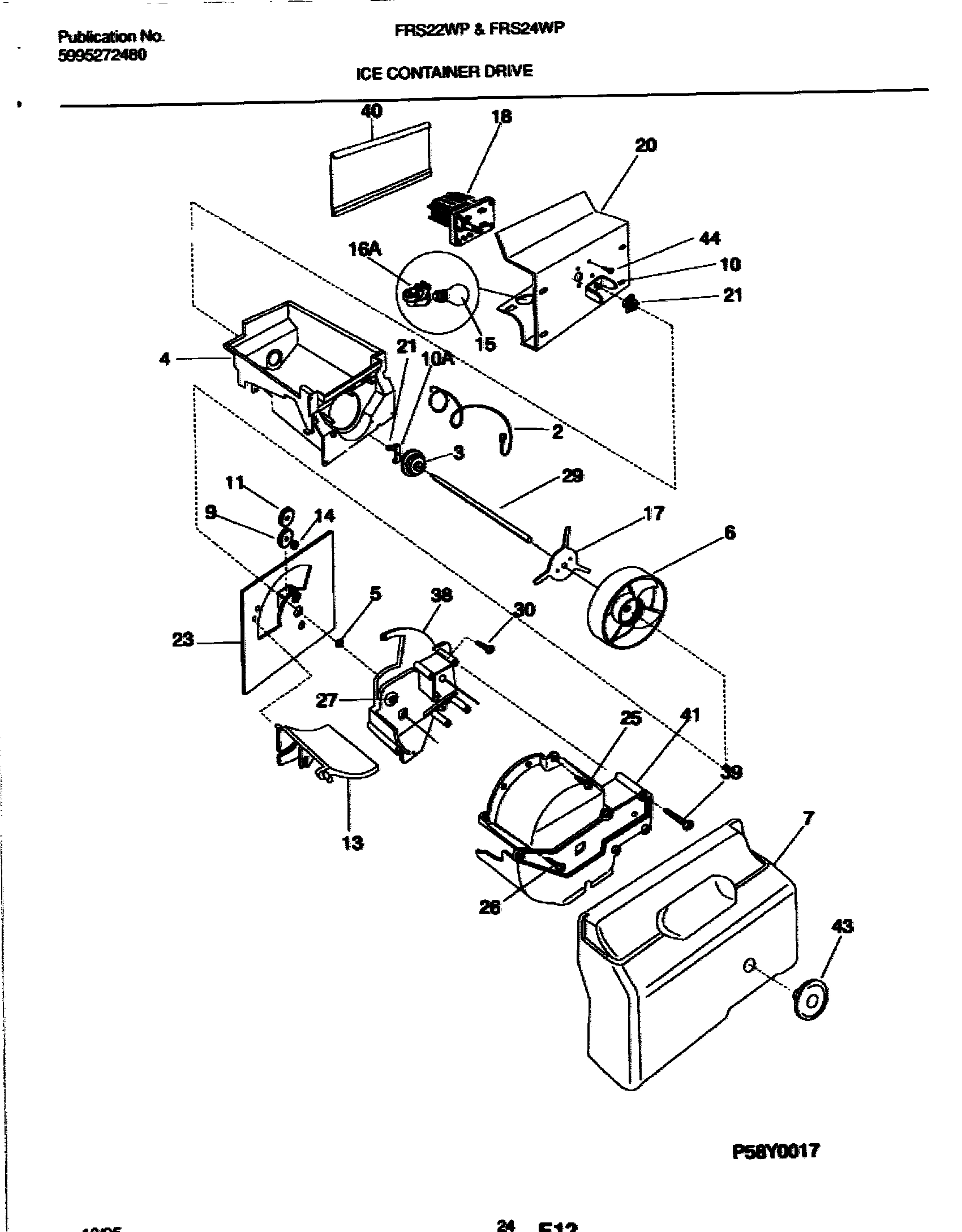

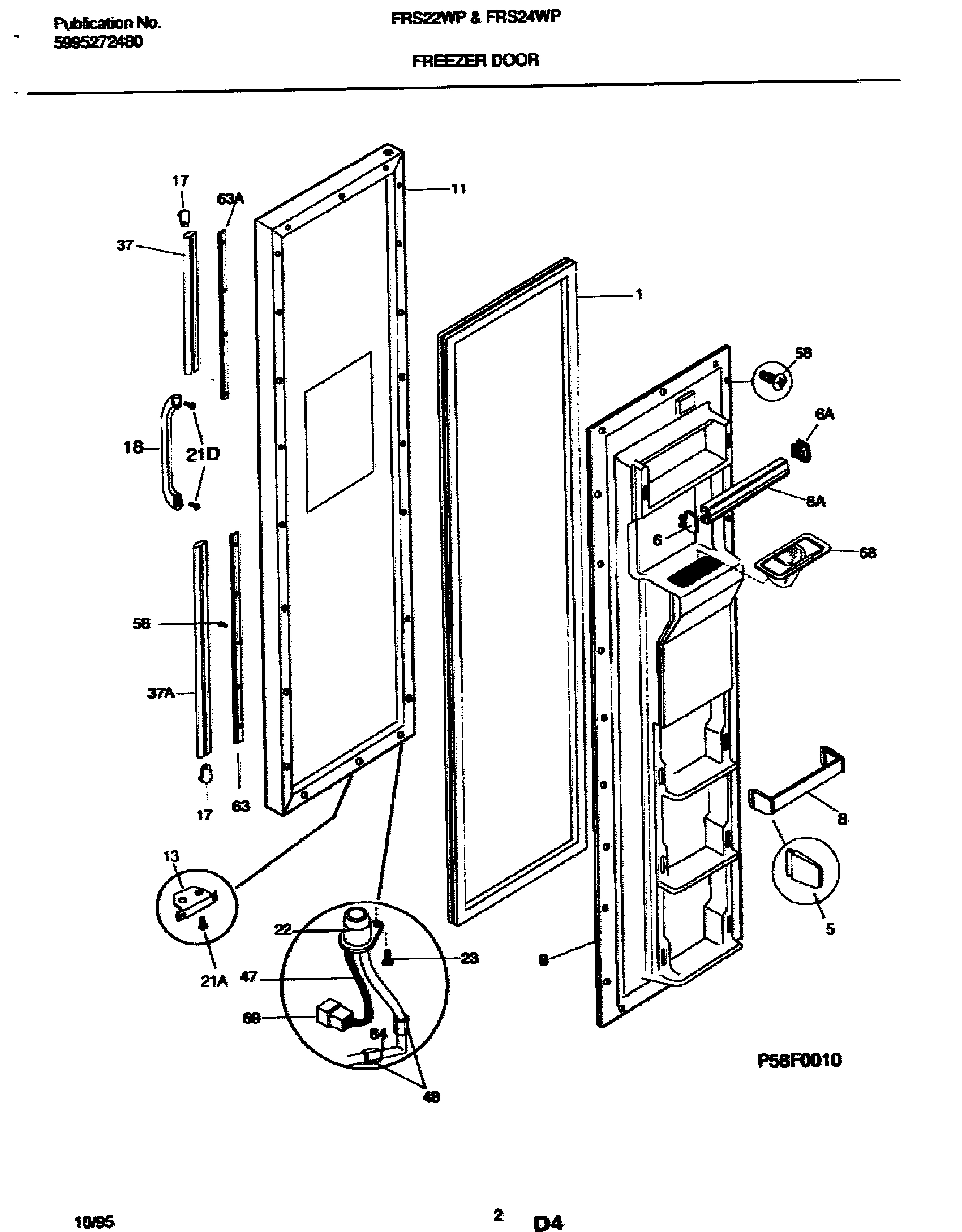

Model Electrolux FRS22WPCW1 REFRIGERATOR – Common Parts &amp; Diagrams

1

5308010366 Frigidaire Refrigerator Water Inle In Stock WCI 5308010366 $10.39

1

WCI 215294101 WCI 215294101 Contact Us For Availability

1

WCI 5303208866 WCI 5303208866 Contact Us For Availability

1

SPACER TUBE WCI 5303289026 Contact Us For Availability

1

WCI 5303289487 WCI 5303289487 Contact Us For Availability

2

WCI 215734314 WCI 215734314 Contact Us For Availability

2

WCI 5303289382 WCI 5303289382 Contact Us For Availability

2

WCI 5303308569 WCI 5303308569 Contact Us For Availability

2

WCI 5303289029 WCI 5303289029 Contact Us For Availability

2

WCI 218505301 WCI 218505301 Contact Us For Availability

2

WCI 218232500 WCI 218232500 Contact Us For Availability

2

WCI 3206348 WCI 3206348 Contact Us For Availability

3

WCI 215226501 WCI 215226501 Contact Us For Availability

3

BLOCK-EVAP COIL,STYROFOAM INSUL ,LH WCI 215305900 Contact Us For Availability

3

WCI 215484300 WCI 215484300 Contact Us For Availability

3

WCI 218232300 WCI 218232300 Contact Us For Availability

3

PLATE-I.D. WCI 3206299 Contact Us For Availability

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

WCI 215922301 WCI 215922301 Contact Us For Availability

4

WCI 218216800 WCI 218216800 Contact Us For Availability

4

LABEL-ICE CONTAINER WCI 218363200 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

WCI 5303288950 WCI 5303288950 Contact Us For Availability

5

WCI 218313200 WCI 218313200 Contact Us For Availability

5

TUBE-INLET WCI 3206414 Contact Us For Availability

5

WCI 215748105 WCI 215748105 Contact Us For Availability

5

WCI 3206303 WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

WCI 5303297813 WCI 5303297813 Contact Us For Availability

6

WCI 215752800 WCI 215752800 Contact Us For Availability

6A

WCI 5303297814 WCI 5303297814 Contact Us For Availability

7

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

7

RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability

7

WCI 215459201 WCI 215459201 Contact Us For Availability

7

WCI 218284800 WCI 218284800 Contact Us For Availability

7

WCI 215421603 WCI 215421603 Contact Us For Availability

8

WCI 5300157666 WCI 5300157666 Contact Us For Availability

8

WCI 5303289033 WCI 5303289033 Contact Us For Availability

8

WCI 218505201 WCI 218505201 Contact Us For Availability

8

SPACER-HOLDING SW WCI 3206312 Contact Us For Availability

9

WCI 5303205118 WCI 5303205118 Contact Us For Availability

9

WCI 215419700 WCI 215419700 Contact Us For Availability

9

WCI 3206313 WCI 3206313 Contact Us For Availability

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

10

WCI 218209800 WCI 218209800 Contact Us For Availability

10

WCI 3206315 WCI 3206315 Contact Us For Availability

10A

WCI 218232800 WCI 218232800 Contact Us For Availability

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

SPACER-FRZR SHELF WCI 218159700 Contact Us For Availability

WCI 218298001 WCI 218298001 Contact Us For Availability

WCI 215755200 WCI 215755200 Contact Us For Availability

11A

SHELF-FREEZER, FIXED WIRE WCI 5303289504 Contact Us For Availability

CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability

HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability

WCI 215809600 WCI 215809600 Contact Us For Availability

WCI 215627201 WCI 215627201 Contact Us For Availability

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

WCI 5303289522 WCI 5303289522 Contact Us For Availability

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

WCI 215348100 WCI 215348100 Contact Us For Availability

WCI 218285200 WCI 218285200 Contact Us For Availability

BRACKET, MOTOR MOUNTING, REAR WCI 5303205119 Contact Us For Availability

WCI 215752000 WCI 215752000 Contact Us For Availability

WCI 215475100 WCI 215475100 Contact Us For Availability

WCI 215419900 WCI 215419900 Contact Us For Availability

SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

EVAPORATOR,W/ HEAT EXCHANGER WCI 215289604 Contact Us For Availability

WCI 218284900 WCI 218284900 Contact Us For Availability

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

WCI 3206326 WCI 3206326 Contact Us For Availability

16A

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

CONTROL BOX, REFR WCI 5303289513 Contact Us For Availability

WCI 5303289496 WCI 5303289496 Contact Us For Availability

WCI 215794400 WCI 215794400 Contact Us For Availability

WCI 215754800 WCI 215754800 Contact Us For Availability

17A

CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability

17A

WCI 215840700 WCI 215840700 Contact Us For Availability

17A

WASHER-FLAT WCI 215923400 Contact Us For Availability

18

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18

WCI 5303308568 WCI 5303308568 Contact Us For Availability

18

WCI 3206328 WCI 3206328 Contact Us For Availability

19

WCI 218631200 WCI 218631200 Contact Us For Availability

19

WCI 3206330 WCI 3206330 Contact Us For Availability

20

WCI 5303308610 WCI 5303308610 Contact Us For Availability

20

WCI 215285301 WCI 215285301 Contact Us For Availability

20

WCI 3206331 WCI 3206331 Contact Us For Availability

20A

WCI 5303308611 WCI 5303308611 Contact Us For Availability

21

5303917954 Frigidaire Refrigerator Defrost Li In Stock WCI 5303917954 $18.14

21

WCI 5303300027 WCI 5303300027 Contact Us For Availability

21

ICE STRIPPER WCI 3206332 Contact Us For Availability

WCI 5303289320 No Longer Available

HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability

WCI 5303289030 WCI 5303289030 Contact Us For Availability

WCI 3206333 WCI 3206333 Contact Us For Availability

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

WCI 215447001 WCI 215447001 Contact Us For Availability

WCI 215755300 WCI 215755300 Contact Us For Availability

RING-RETAINER WCI 215755700 Contact Us For Availability

STUD WCI 215755800 Contact Us For Availability

SCREW-SUP/MOLD BODY, 8-18 X 1.00, (4) WCI 3206334 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

WCI 215919137 WCI 215919137 Contact Us For Availability

24

WCI 215918001 WCI 215918001 Contact Us For Availability

COVER-STORAGE PAN WCI 218147701 Contact Us For Availability

WCI 5303307878 WCI 5303307878 Contact Us For Availability

WCI 215014200 WCI 215014200 Contact Us For Availability

WCI 215421400 WCI 215421400 Contact Us For Availability

SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability

25A

WCI 218015302 WCI 218015302 Contact Us For Availability

25C

WCI 218015402 WCI 218015402 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

5303289500 Frigidaire Refrigerator Upper Stor In Stock WCI 5303289500 $102.31

26

SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability

26A

5303289501 Frigidaire Refrigerator Lower Stor In Stock WCI 5303289501 $96.53

27

WCI 218432600 WCI 218432600 Contact Us For Availability

27

WCI 215748400 WCI 215748400 Contact Us For Availability

27

SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability

28

END CAP-SHELF, PROTECTOR WCI 08013638 Contact Us For Availability

28

WCI 215447101 WCI 215447101 Contact Us For Availability

28

SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability

WCI 215003200 WCI 215003200 Contact Us For Availability

WCI 215919430 WCI 215919430 Contact Us For Availability

COMPRESSOR, WITH OVERLOAD WCI 5303917193 Contact Us For Availability

WCI 215757501 WCI 215757501 Contact Us For Availability

SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability

WCI 216008900 WCI 216008900 Contact Us For Availability

WCI 215753600 WCI 215753600 Contact Us For Availability

WCI 215757300 WCI 215757300 Contact Us For Availability

SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability

31

WCI 5303271616 WCI 5303271616 Contact Us For Availability

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

WCI 215012000 WCI 215012000 Contact Us For Availability

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

WCI 218510201 WCI 218510201 Contact Us For Availability

33

WCI 3206344 WCI 3206344 Contact Us For Availability

34

SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability

35

WCI 218284700 WCI 218284700 Contact Us For Availability

35

SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability

36

WCI 218432400 WCI 218432400 Contact Us For Availability

36

WCI 3206347 WCI 3206347 Contact Us For Availability

37

WCI 5303207442 WCI 5303207442 Contact Us For Availability

38

WCI 218270100 WCI 218270100 Contact Us For Availability

38

WCI 5303207445 WCI 5303207445 Contact Us For Availability

38A

SWITCH-MICRO WCI 218479900 Contact Us For Availability

WCI 215217579 WCI 215217579 Contact Us For Availability

WCI 218284600 WCI 218284600 Contact Us For Availability

WCI 215757000 WCI 215757000 Contact Us For Availability

WCI 5303289065 WCI 5303289065 Contact Us For Availability

39A

WCI 215217580 WCI 215217580 Contact Us For Availability

40

WCI 218390581 WCI 218390581 Contact Us For Availability

40

WCI 218284500 WCI 218284500 Contact Us For Availability

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

WCI 215917800 WCI 215917800 Contact Us For Availability

WCI 215919815 WCI 215919815 Contact Us For Availability

NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT WCI 5303209814 Contact Us For Availability

WCI 530800039 WCI 530800039 Contact Us For Availability

WCI 218270200 WCI 218270200 Contact Us For Availability

42

HANGER-PAN/TRAY, RH WCI 215002401 Contact Us For Availability

42

WCI 215002301 WCI 215002301 Contact Us For Availability

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

43

SCREW,4-3/8 WCI 215760300 Contact Us For Availability

43

WCI 215635000 WCI 215635000 Contact Us For Availability

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

44

SCREW, PAN HEAD, 8-32 X 0.25 WCI 218359200 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46A

5304411659 Frigidaire Refrigerator Front Stor Backorder WCI 5304411659 $123.75

47

WCI 218390584 WCI 218390584 Contact Us For Availability

47

WCI 5308000205 WCI 5308000205 Contact Us For Availability

47A

WCI 215723552 WCI 215723552 Contact Us For Availability

48

NUT,17/16 X 20, NYLON WCI 5308000200 Contact Us For Availability

49

WCI 5303289521 WCI 5303289521 Contact Us For Availability

49

WCI 215506900 WCI 215506900 Contact Us For Availability

49

WCI 215794000 WCI 215794000 Contact Us For Availability

50

WCI 215918101 WCI 215918101 Contact Us For Availability

51

WCI 215922200 WCI 215922200 Contact Us For Availability

51

WCI 5303288960 WCI 5303288960 Contact Us For Availability

51

WCI 215811600 WCI 215811600 Contact Us For Availability

52

WCI 215454600 WCI 215454600 Contact Us For Availability

52

HANGER-BASKET,LH,W/SPRING WCI 215162501 Contact Us For Availability

53

WCI 215809501 WCI 215809501 Contact Us For Availability

54

WCI 5303289027 WCI 5303289027 Contact Us For Availability

54A

WCI 5303289311 WCI 5303289311 Contact Us For Availability

54B

WCI 5303289292 WCI 5303289292 Contact Us For Availability

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

WCI 215197400 WCI 215197400 Contact Us For Availability

Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability

WCI 5303015102 WCI 5303015102 Contact Us For Availability

56

WCI 215014100 WCI 215014100 Contact Us For Availability

56

WCI 218434300 WCI 218434300 Contact Us For Availability

57

WCI 5303271653 WCI 5303271653 Contact Us For Availability

57

WCI 218247300 WCI 218247300 Contact Us For Availability

57A

WCI 5303289064 WCI 5303289064 Contact Us For Availability

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

59

WCI 5303289031 WCI 5303289031 Contact Us For Availability

59

WCI 5303001191 WCI 5303001191 Contact Us For Availability

60

WCI 215501901 WCI 215501901 Contact Us For Availability

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

WCI 215004700 WCI 215004700 Contact Us For Availability

WCI 215004800 WCI 215004800 Contact Us For Availability

WCI 5303289032 WCI 5303289032 Contact Us For Availability

WCI 215766000 WCI 215766000 Contact Us For Availability

62

WCI 5303289517 WCI 5303289517 Contact Us For Availability

62

WCI 215048701 WCI 215048701 Contact Us For Availability

64

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

65

PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability

65

WCI 5303289301 WCI 5303289301 Contact Us For Availability

67

WCI 5303309826 WCI 5303309826 Contact Us For Availability

70

WCI 5303289041 WCI 5303289041 Contact Us For Availability

71

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

72

WCI 218359609 WCI 218359609 Contact Us For Availability

74

WCI 218465000 WCI 218465000 Contact Us For Availability

75

WCI 218465100 WCI 218465100 Contact Us For Availability

80

WCI 218249801 WCI 218249801 Contact Us For Availability

82

SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability

83

BRACKET, CONNDECTOR WCI 5308000107 Contact Us For Availability

84

WCI 5308010289 WCI 5308010289 Contact Us For Availability

85

WCI 218359805 WCI 218359805 Contact Us For Availability

89

WCI 215176300 WCI 215176300 Contact Us For Availability

90

WCI 215022602 WCI 215022602 Contact Us For Availability

91

WCI 215177600 WCI 215177600 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

96

WCI 215192600 WCI 215192600 Contact Us For Availability

97

5303918258 Frigidaire Refrigerator P-1 Water In Stock WCI 5303918258 $76.89

98

CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability

99

GROMMET-TANK WCI 5300186057 Contact Us For Availability

100

SUPPORT-PAN COVER WCI 5303288973 No Longer Available

100A

WCI 218015501 WCI 218015501 Contact Us For Availability

100B

WCI 218015601 WCI 218015601 Contact Us For Availability

101

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

101

WCI 215305702 WCI 215305702 Contact Us For Availability

102

SUPPORT, MOTOR BRKT, & SHELF WCI 215134700 Contact Us For Availability

103

WCI 215413100 WCI 215413100 Contact Us For Availability

104

SCREW-ICE DR SUPT,CR SPCL PAN HD,8-15(A) X 1- WCI 3001212 Contact Us For Availability

104

SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability

111

WCI 5303289024 WCI 5303289024 Contact Us For Availability

112

WCI 215277101 WCI 215277101 Contact Us For Availability

113

COVER - DMPR ROD EXT WCI 5303289047 Contact Us For Availability

114

5303289051 Frigidaire Refrigerator Light Swit Backorder WCI 5303289051 $16.77

115

WCI 215011502 WCI 215011502 Contact Us For Availability

116

WCI 215011400 WCI 215011400 Contact Us For Availability

125

WCI 215334201 WCI 215334201 Contact Us For Availability

126

WCI 215205400 WCI 215205400 Contact Us For Availability

126

RAIL-AUGER BUCKET,RH WCI 218232700 Contact Us For Availability

1123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

WCI 5303917276 WCI 5303917276 Contact Us For Availability

WASHER, EXT TOOTH LOC, NO. 10 WCI 5308009617 Contact Us For Availability

WCI 215339900 WCI 215339900 Contact Us For Availability

WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability

SCREW-CONTROL BOX MTG, HEX HEAD, 8-15A X 1.00 WCI 215188300 Contact Us For Availability

WIRING HARNESS,TIMER WCI 215617100 Contact Us For Availability

HARNESS-WIRING, REFR CONTROLS WCI 215013800 Contact Us For Availability

HARNESS-WIRING, FRZR CONROLS WCI 215381000 Contact Us For Availability

WCI 5303917166 WCI 5303917166 Contact Us For Availability

WCI 215781700 WCI 215781700 Contact Us For Availability

WCI 218432510 WCI 218432510 Contact Us For Availability

HARNESS-WIRING,AUGER MOTOR WCI 218329200 Contact Us For Availability

WCI 08000185 WCI 08000185 Contact Us For Availability

NI6

WCI 218313100 WCI 218313100 Contact Us For Availability
