Model Electrolux FRS20ZRGB2 REFRIGERATOR – Common Parts & Diagrams

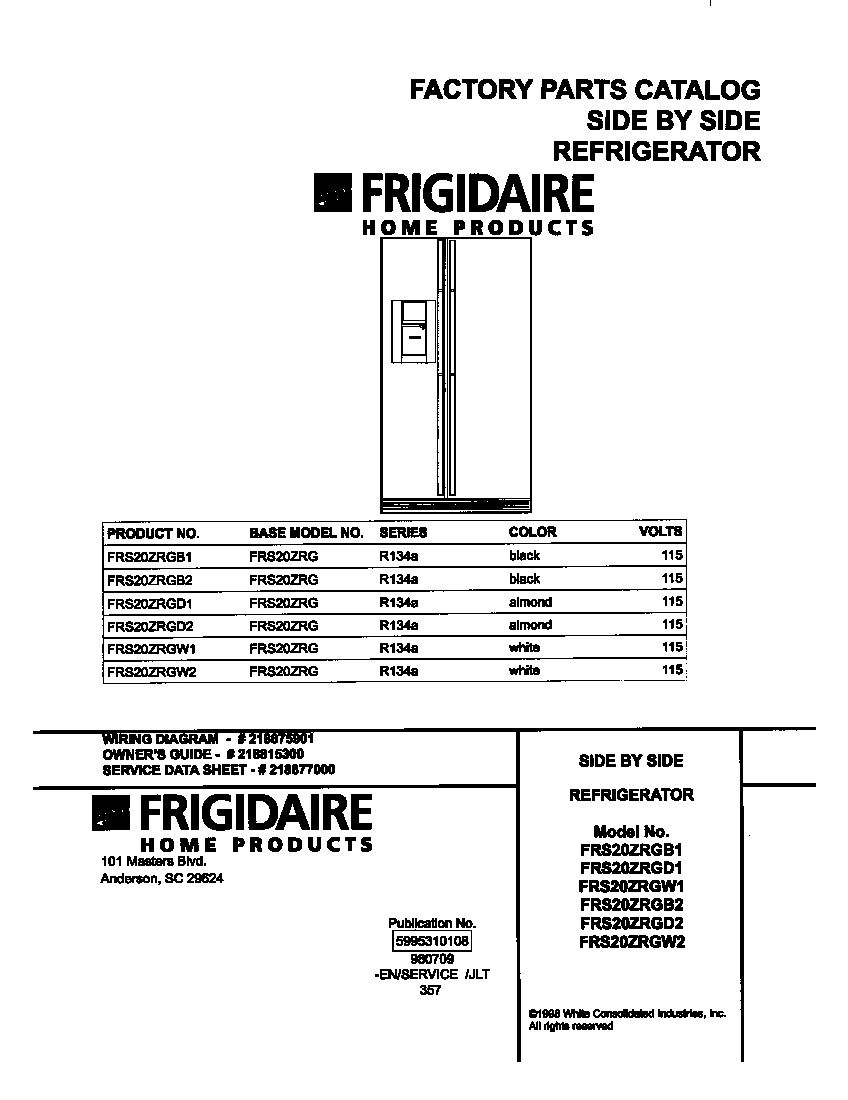

01 - COVER

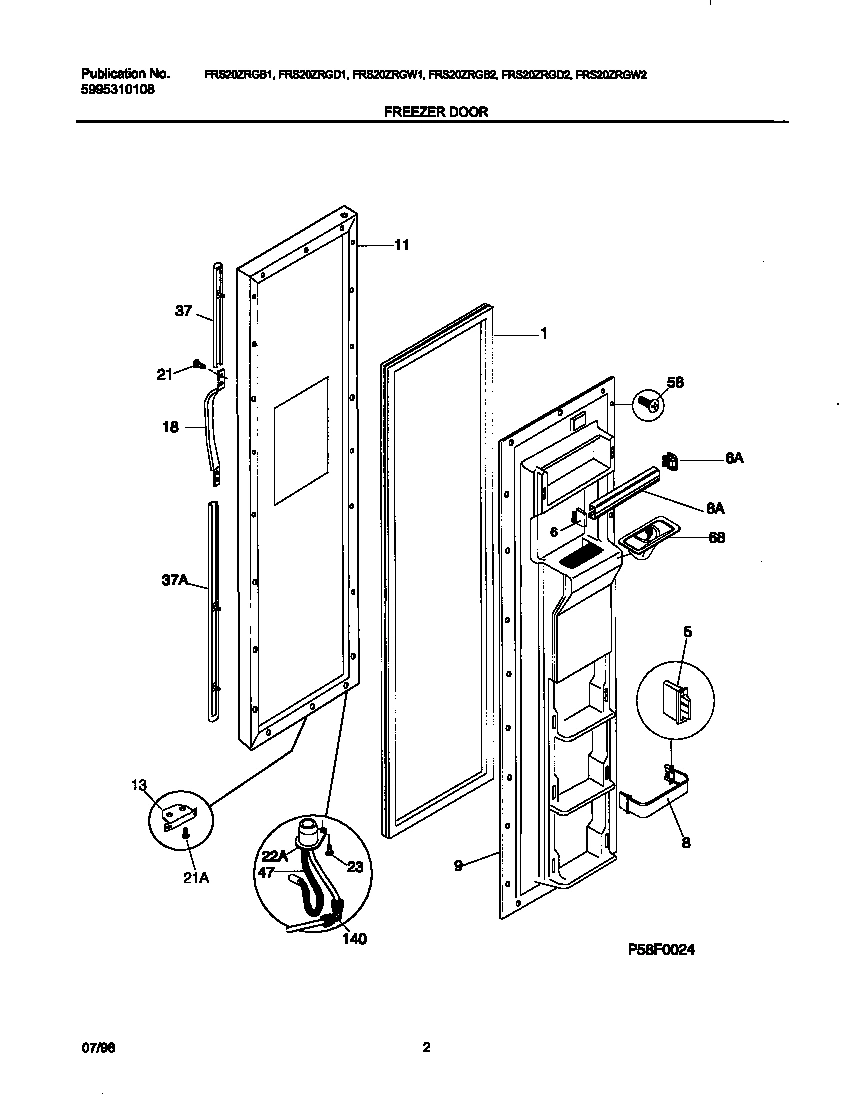

02 - FRZR DOOR

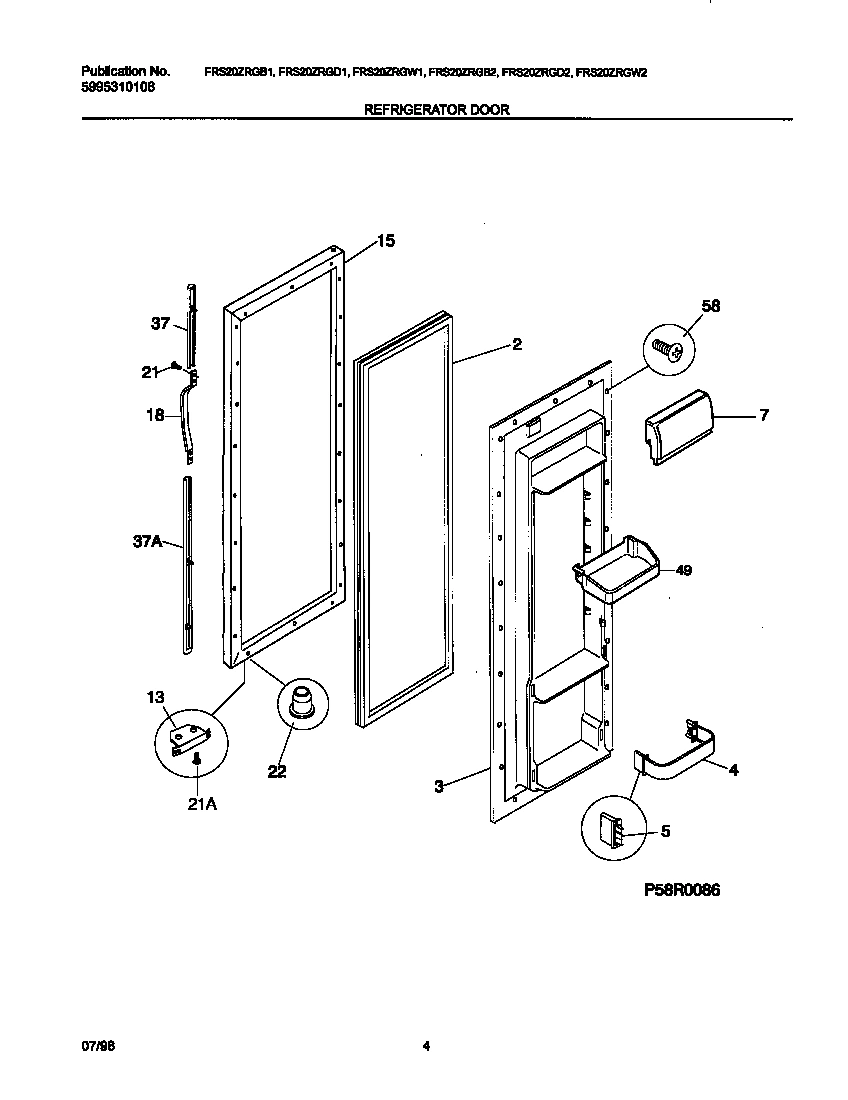

03 - REFR DOOR

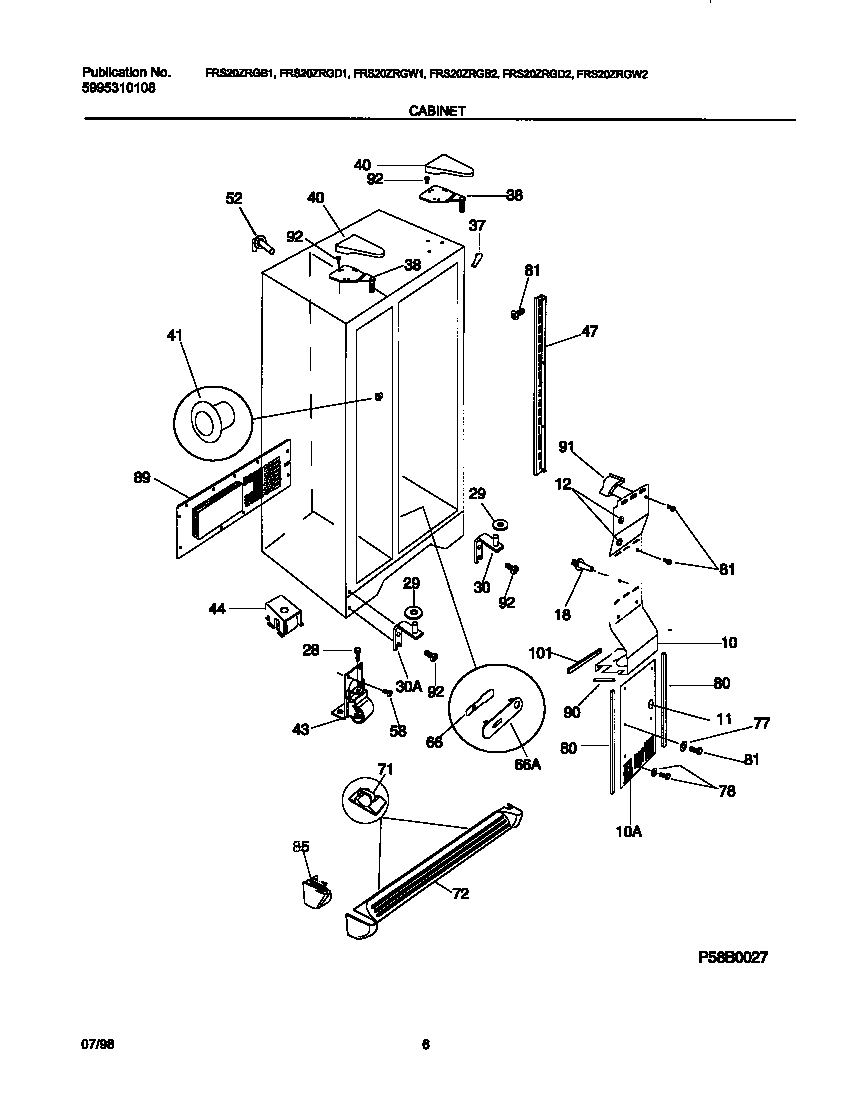

04 - CABINET

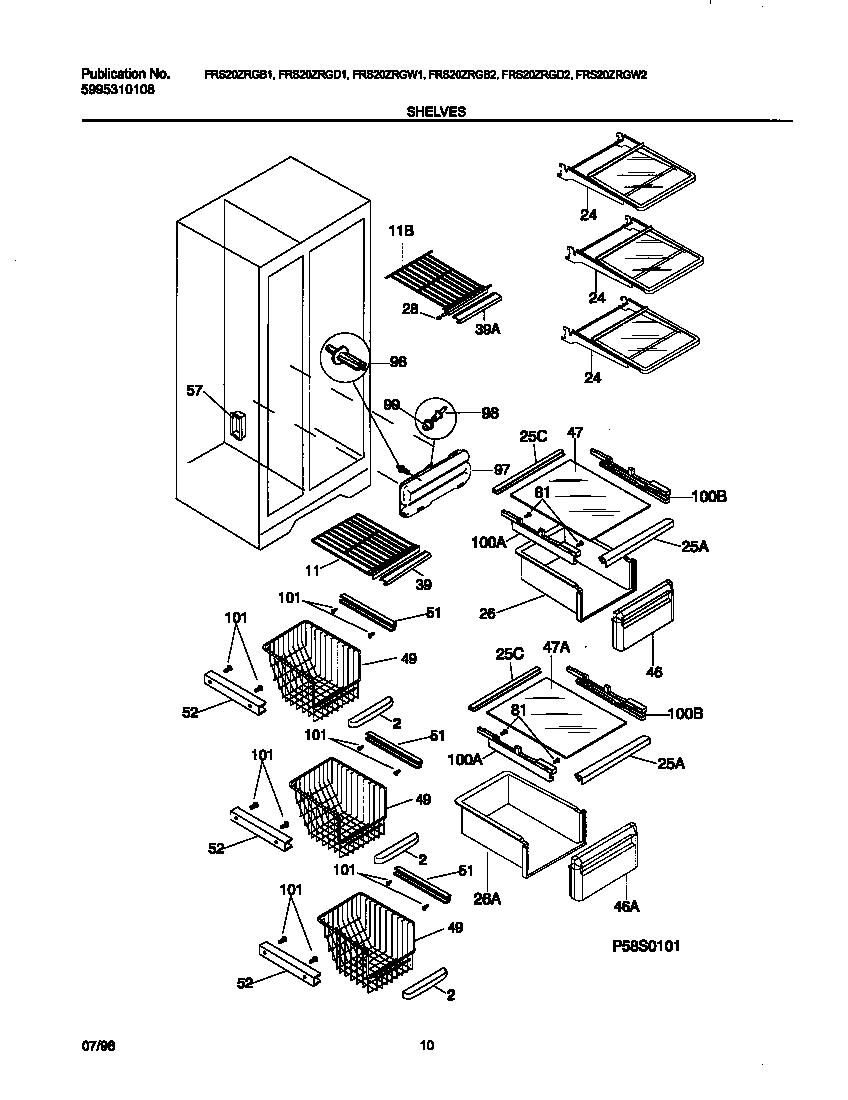

05 - SHELVES

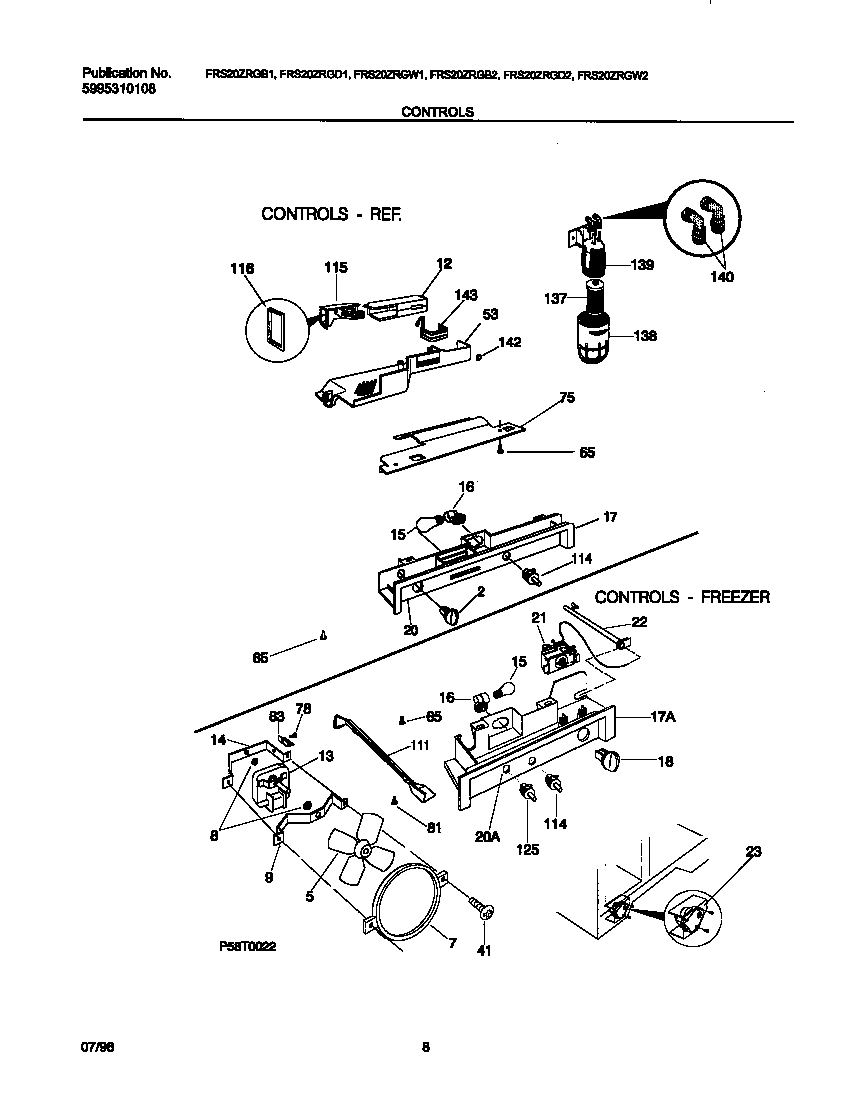

06 - CONTROLS
07 - SYSTEM

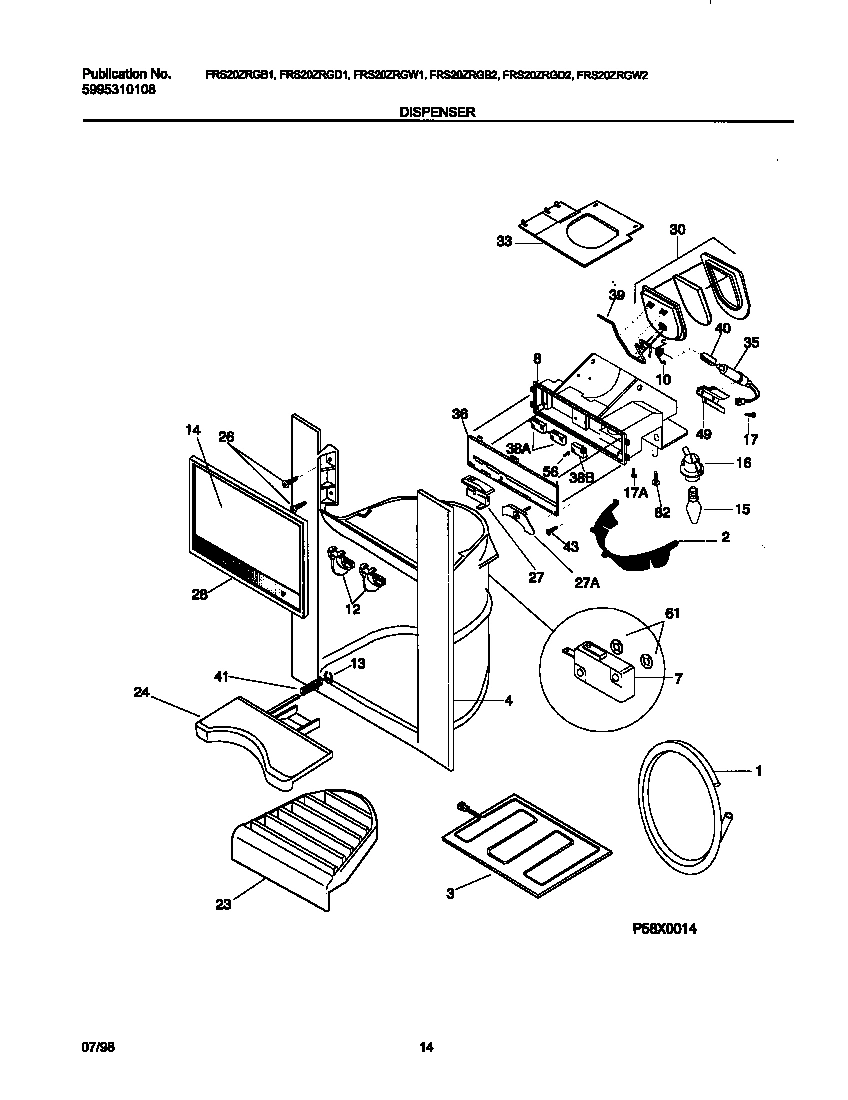

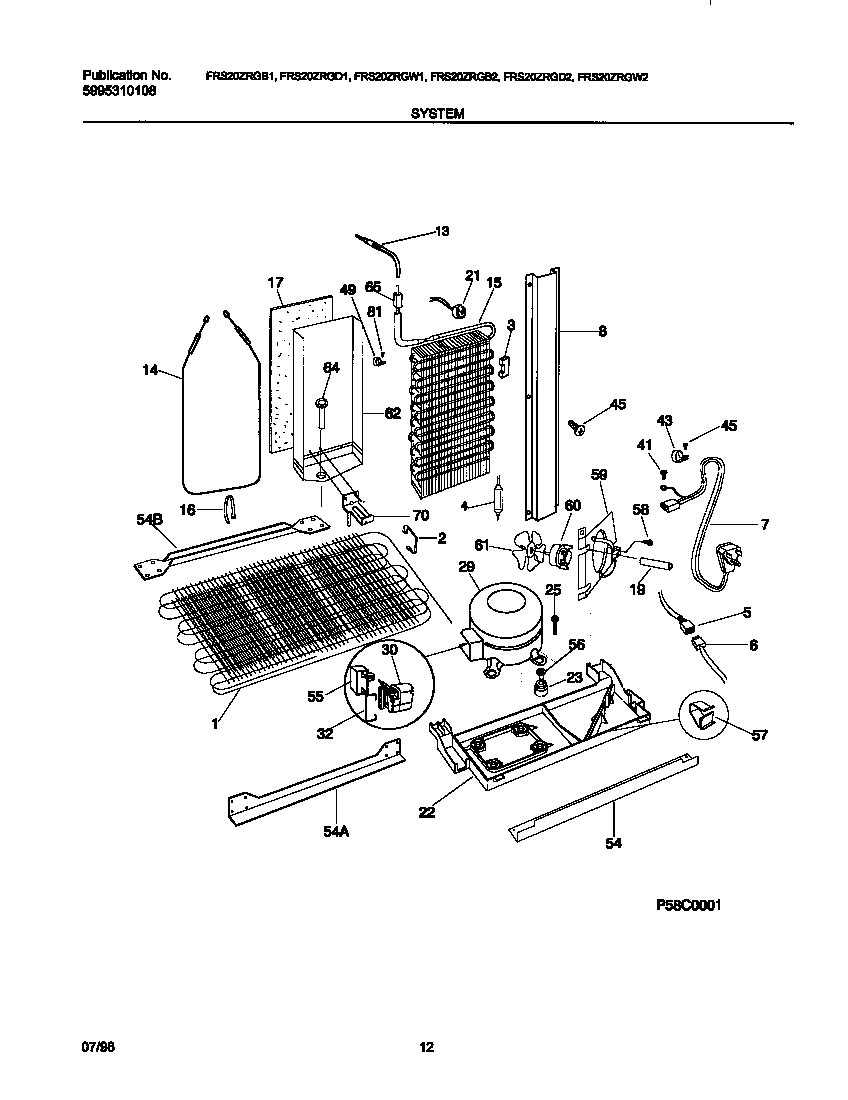

08 - ICE DISPENSER

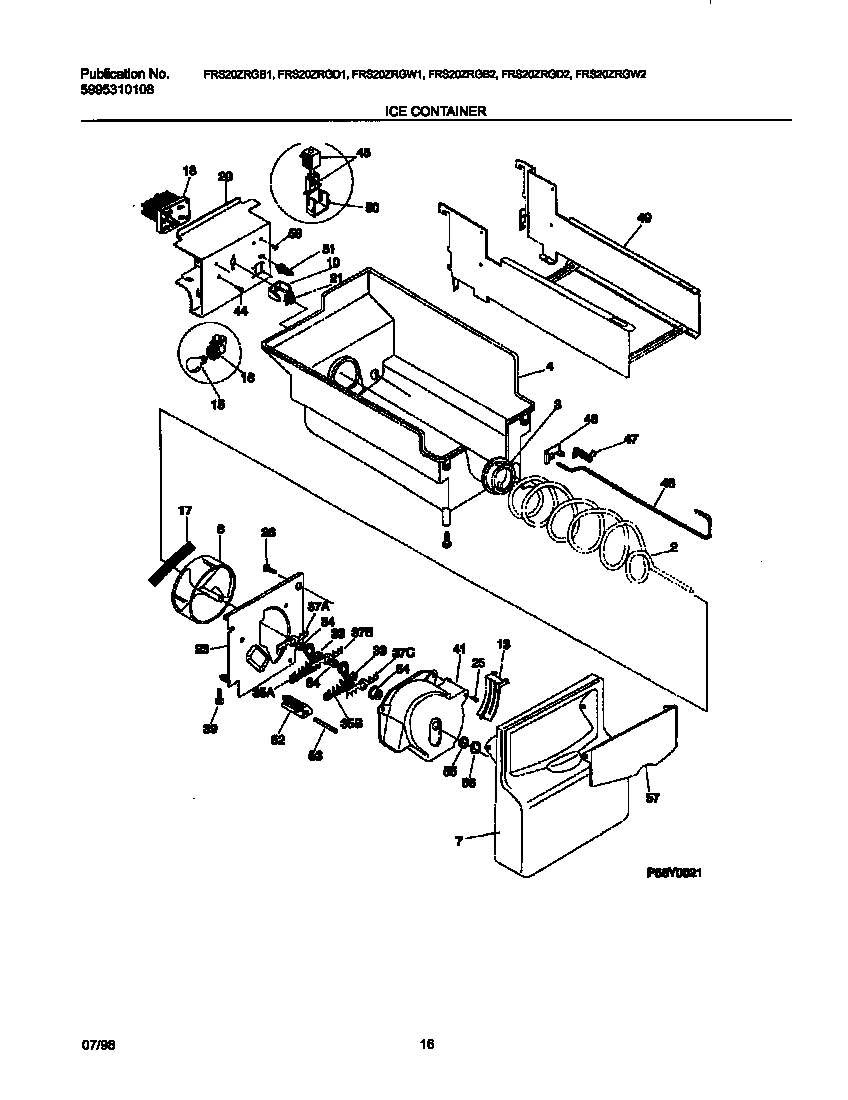

09 - ICE CONTAINER

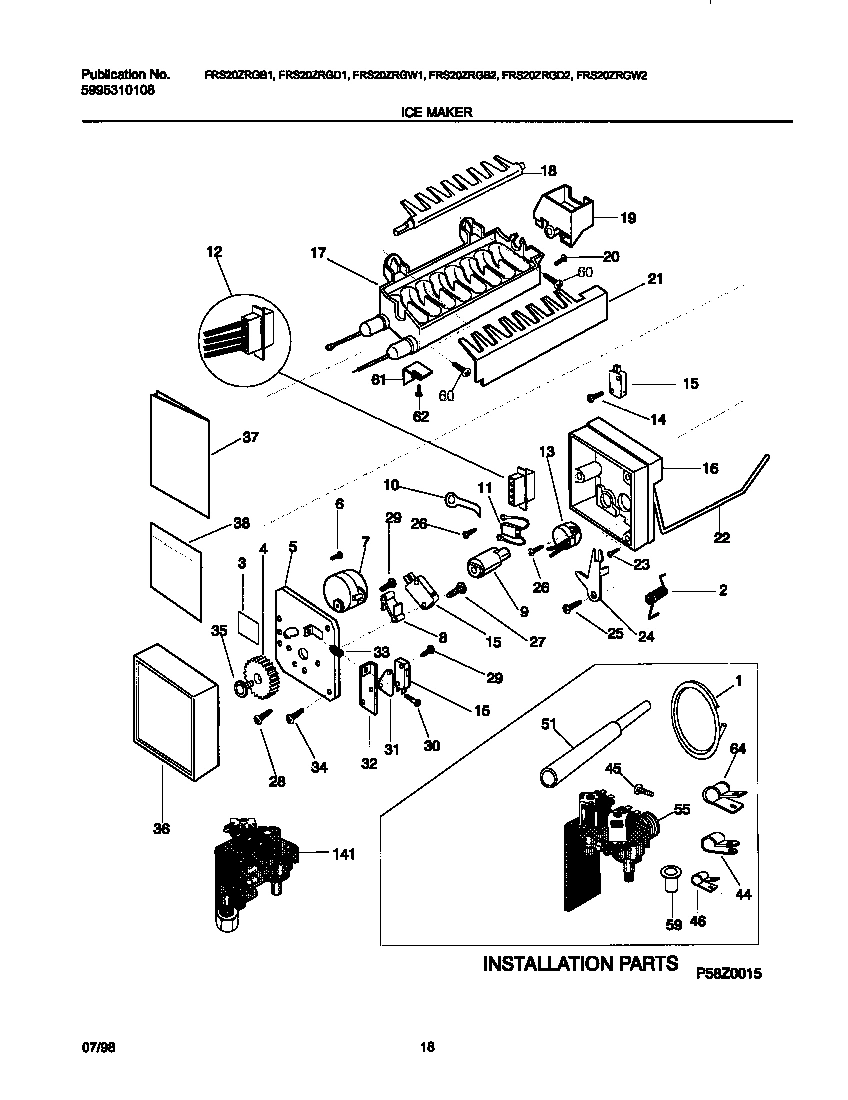

10 - ICE MAKER

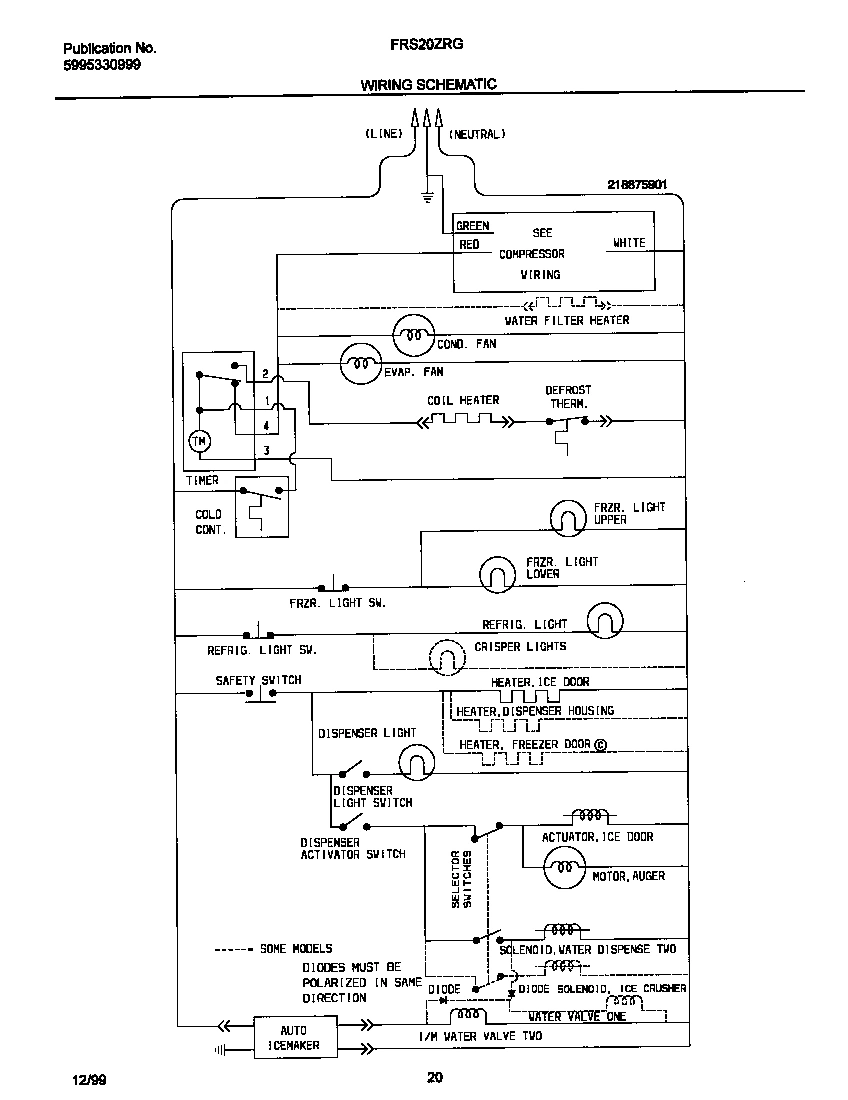

11 - WIRING DIAGRAM

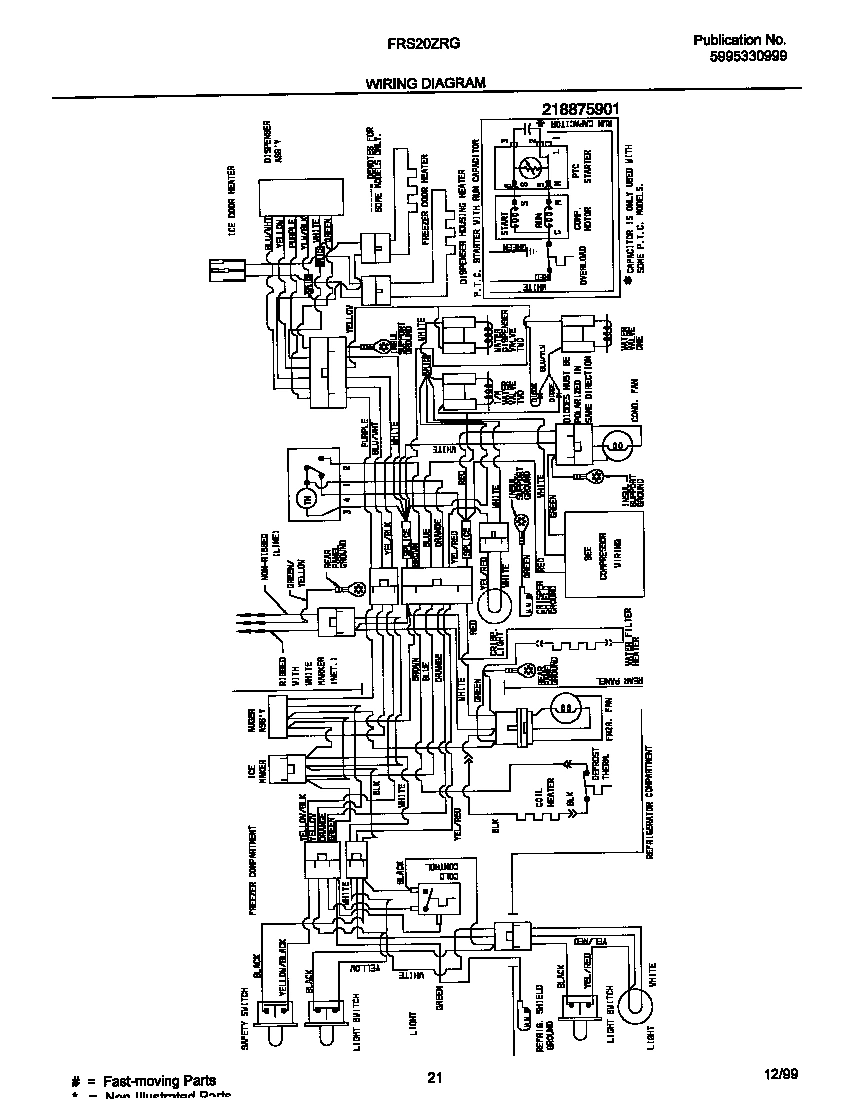

12 - WIRING DIAGRAM
Common parts from model Electrolux FRS20ZRGB2 REFRIGERATOR
*69361
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*69365
WCI 215314301 WCI 215314301 Contact Us For Availability
*69377
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*69383
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*69384
TUBE,INSULATOR ,PVC ,WHITE , WCI 218731102 Contact Us For Availability
*69385
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*69387
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*69388
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*69390
SPACER TUBE WCI 5303289026 Contact Us For Availability
*69391
WIRING HARNESS,REFR CONTROLS WCI 215005200 Contact Us For Availability
*69392
WIRING HARNESS,FILTER HEATER WCI 218646000 Contact Us For Availability
*69393
WIRING HARNESS,FRZR CONTROLS WCI 218815101 Contact Us For Availability
*69394
SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability
*69395
TUBE-INLET WCI 3206414 Contact Us For Availability
*69399
WCI 218769200 WCI 218769200 Contact Us For Availability
*69401
WCI 215004700 WCI 215004700 Contact Us For Availability
*69402
WCI 215004800 WCI 215004800 Contact Us For Availability
*69403
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*69406
TUBE-WATER INLET,FORMED ,PLASTIC , WCI 215294101 Contact Us For Availability
*69407
SHIELD-MICRO SWITCH WCI 215944300 Contact Us For Availability
*69409
WIRING HARNESS,DISP WCI 218863101 Contact Us For Availability
*69410
TAPE-I&W DISPENSER,DOUBLE FACED ,FOAM , WCI 5300460947 Contact Us For Availability
*69411
WIRING HARNESS,AUGER MOTOR WCI 5304404335 Contact Us For Availability
*69412
WCI 5304404364 WCI 5304404364 Contact Us For Availability
*69413
WCI 215781700 WCI 215781700 Contact Us For Availability
*69415
WCI 218832201 WCI 218832201 Contact Us For Availability
*69418
SCREW-SOLENOID VALVE,HX HD-SLOT WSHR , WCI 215290100 Contact Us For Availability
*69419
WCI 218836401 WCI 218836401 Contact Us For Availability
*69420
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
*69421
WCI 218731600 WCI 218731600 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 215734322 WCI 215734322 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505303 WCI 218505303 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218432103 WCI 218432103 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WIRING HARNESS,MAIN WCI 218646100 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5303297814 WCI 5303297814 Contact Us For Availability
6
WCI 5303297813 WCI 5303297813 Contact Us For Availability
6
Wiring Harness,w/valve diodes WCI 218872701 Contact Us For Availability
7
WCI 218841901 WCI 218841901 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303308341 WCI 5303308341 Contact Us For Availability
8
WCI 218835701 WCI 218835701 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
SPACER-HLDG SWITCH WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 218836203 WCI 218836203 Contact Us For Availability
12A
WIRING HARNESS,IM INTERNAL ,WITH PLUG WCI 3206349 Contact Us For Availability
12B
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215746800 WCI 215746800 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416168 WCI 218416168 Contact Us For Availability
14
SCREW-SWITCH MTG, 4-24 X 3/4, WCI 3206323 Contact Us For Availability
15
WCI 218691302 WCI 218691302 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
CONTROL BOX, REFR WCI 5303296808 Contact Us For Availability
17
WCI 5303289042 WCI 5303289042 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
WCI 5303321928 WCI 5303321928 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
BRACE-FRZR CONT BOX WCI 215980800 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 218762703 WCI 218762703 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303321926 WCI 5303321926 Contact Us For Availability
20
WCI 5303325668 WCI 5303325668 Contact Us For Availability
20
WCI 5304404881 WCI 5304404881 Contact Us For Availability
20
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303299660 WCI 5303299660 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
ACTUATOR,BLACK WCI 218796503 Contact Us For Availability
25
WCI 218015301 WCI 218015301 Contact Us For Availability
25
SCREW-COMPRESSOR MTG,HEX WASHER HEAD , WCI 218773500 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 5303288968 WCI 5303288968 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 218814901 WCI 218814901 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 08013638 Contact Us For Availability
28
WCI 218700603 WCI 218700603 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218849801 WCI 218849801 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
WCI 218740003 WCI 218740003 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218835601 WCI 218835601 Contact Us For Availability
36
COVER-ICE MAKER,COMPLETE WCI 3206347 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
WCI 215782300 No Longer Available
37C
WCI 218676001 WCI 218676001 Contact Us For Availability
38
WCI 218479900 WCI 218479900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217562 WCI 215217562 Contact Us For Availability
39
TRIM-FRZR SHELF WCI 215217563 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
43
SCREW,TW HX CR PAN HD ,8-16 X 0.500 WCI 5303001083 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
46
WCI 5303308561 WCI 5303308561 Contact Us For Availability
46
WCI 5303308562 WCI 5303308562 Contact Us For Availability
46
WCI 5304404341 WCI 5304404341 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 215723551 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 218390586 Contact Us For Availability
47
WCI 5304404342 WCI 5304404342 Contact Us For Availability
49
WCI 5303288957 WCI 5303288957 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404880 WCI 5304404880 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809510 WCI 215809510 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
SCREW-MICRO SWITCH,PAN HEAD , WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
58
WCI 5304404331 WCI 5304404331 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
62
TROUGH-DRAIN,W/SHIELD ASSY , WCI 215048201 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011504 WCI 215011504 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
137A
WCI 215334201 WCI 215334201 Contact Us For Availability
138
WCI 218657401 WCI 218657401 Contact Us For Availability
139
HOUSING-WTR FILTER WCI 218657500 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
142
WCI 218657701 WCI 218657701 Contact Us For Availability
143
WCI 218696700 WCI 218696700 Contact Us For Availability
× ![]()
