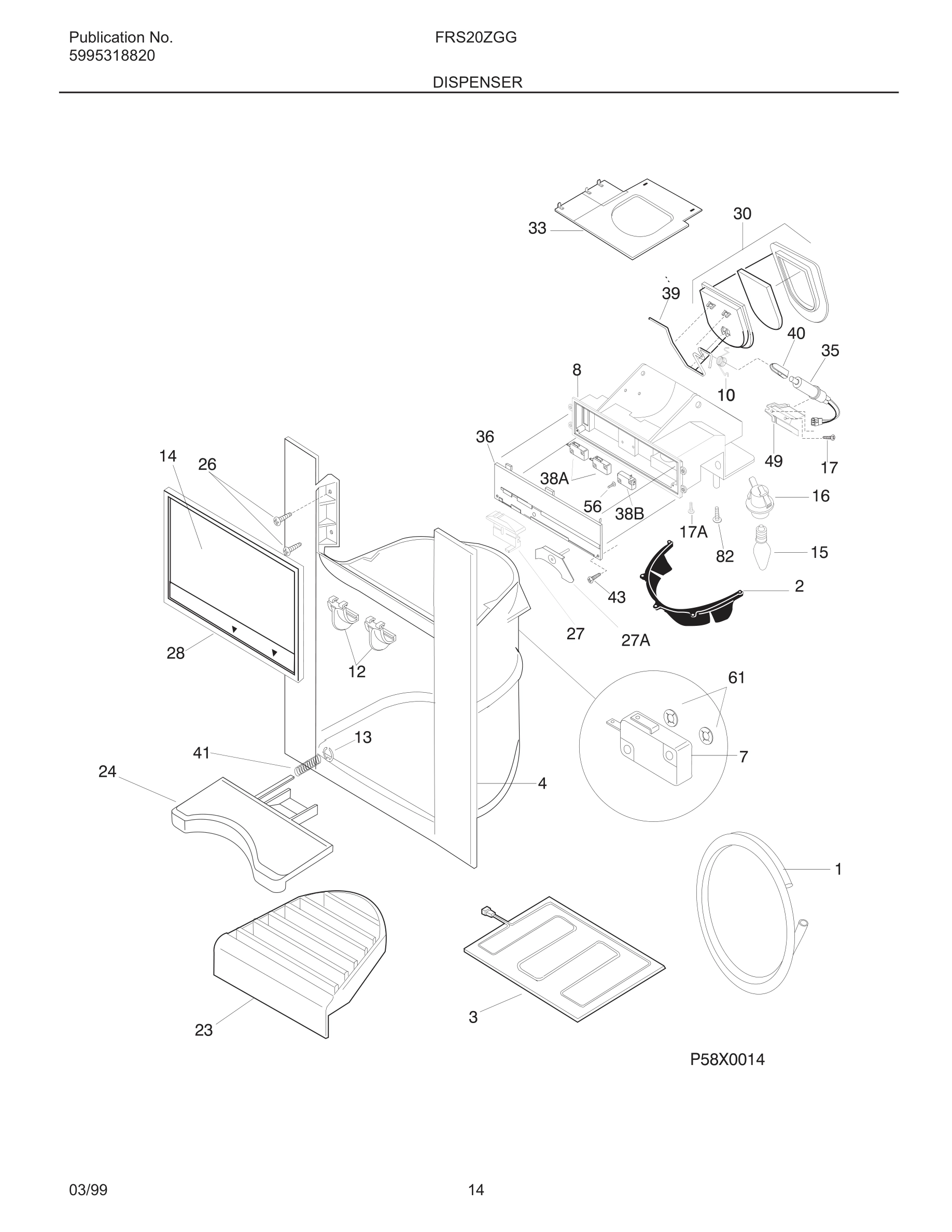

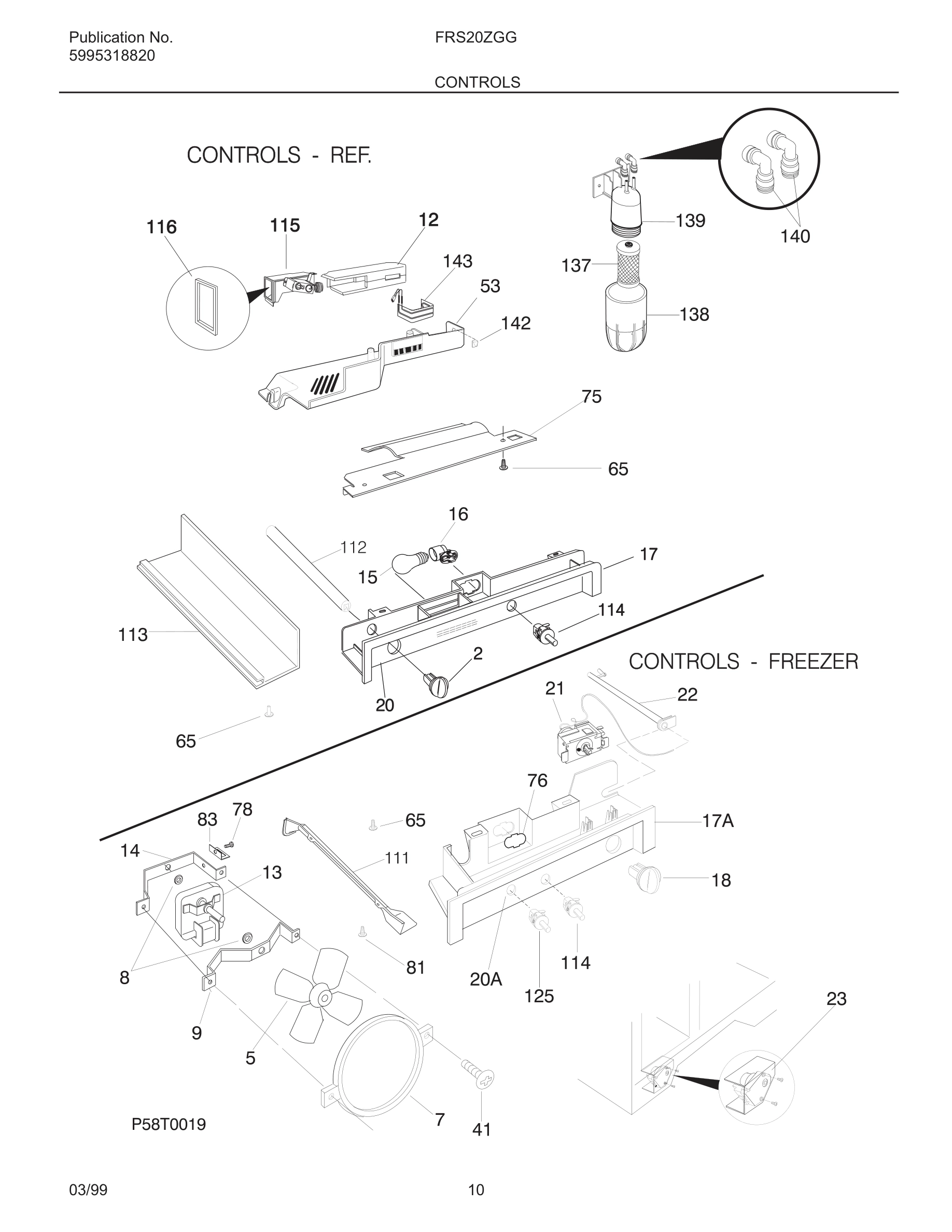

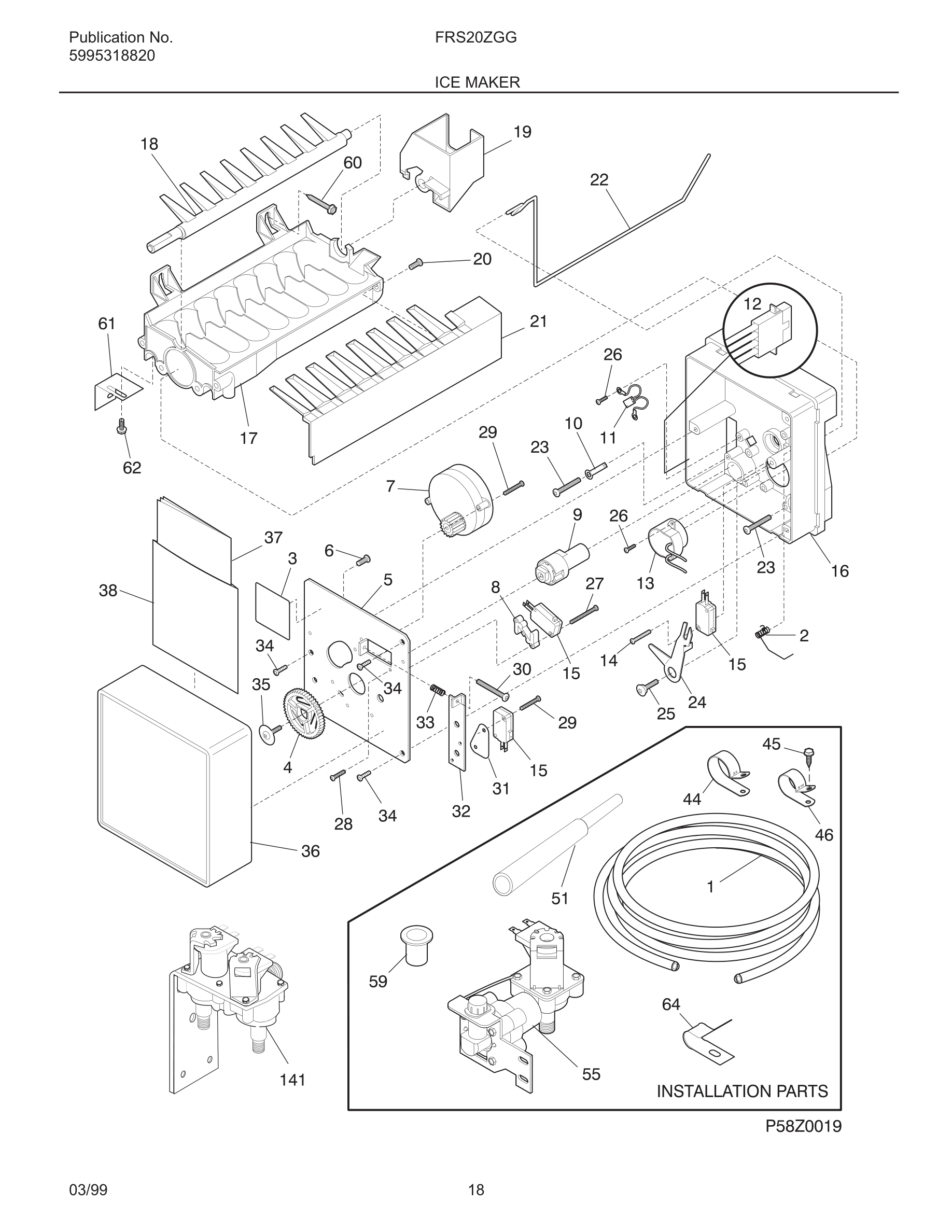

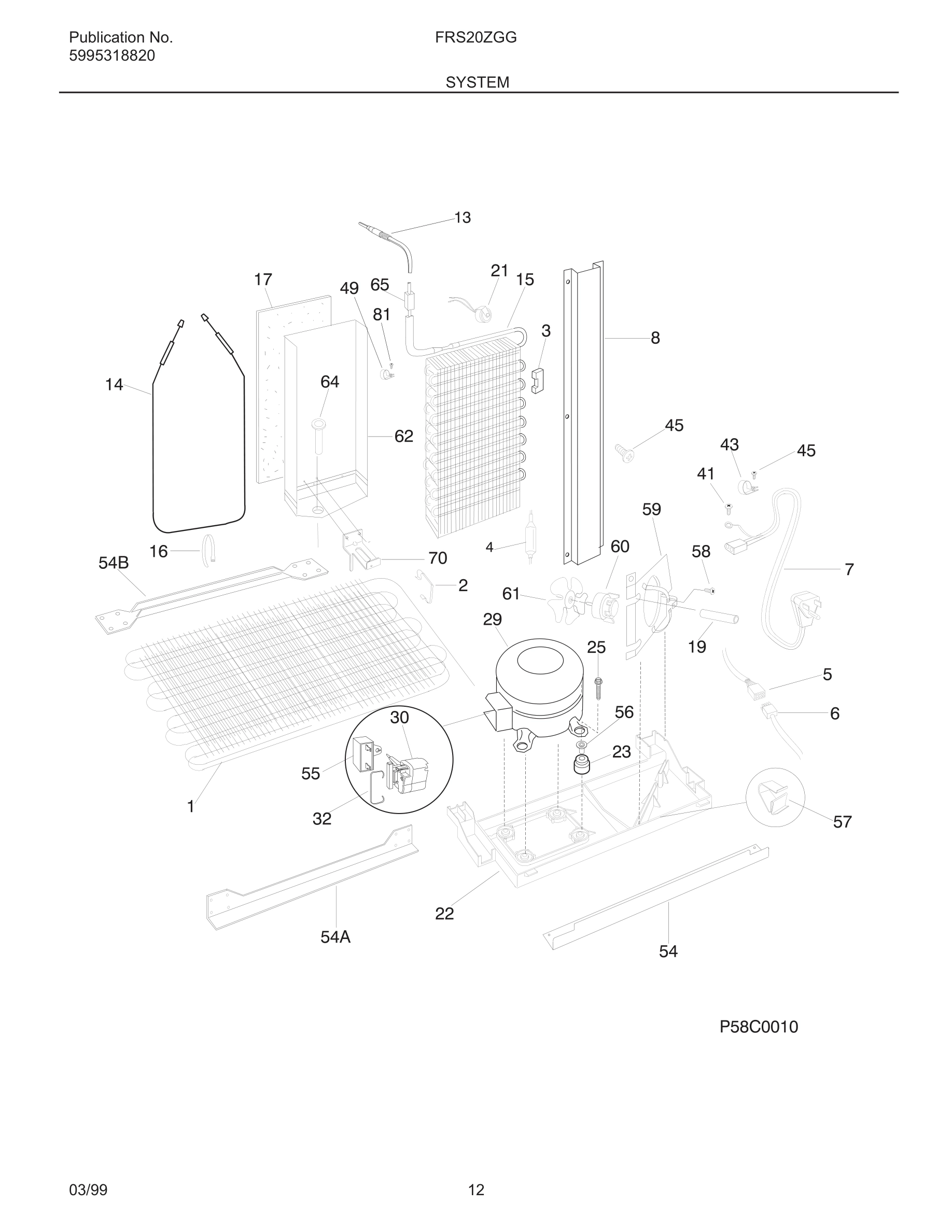

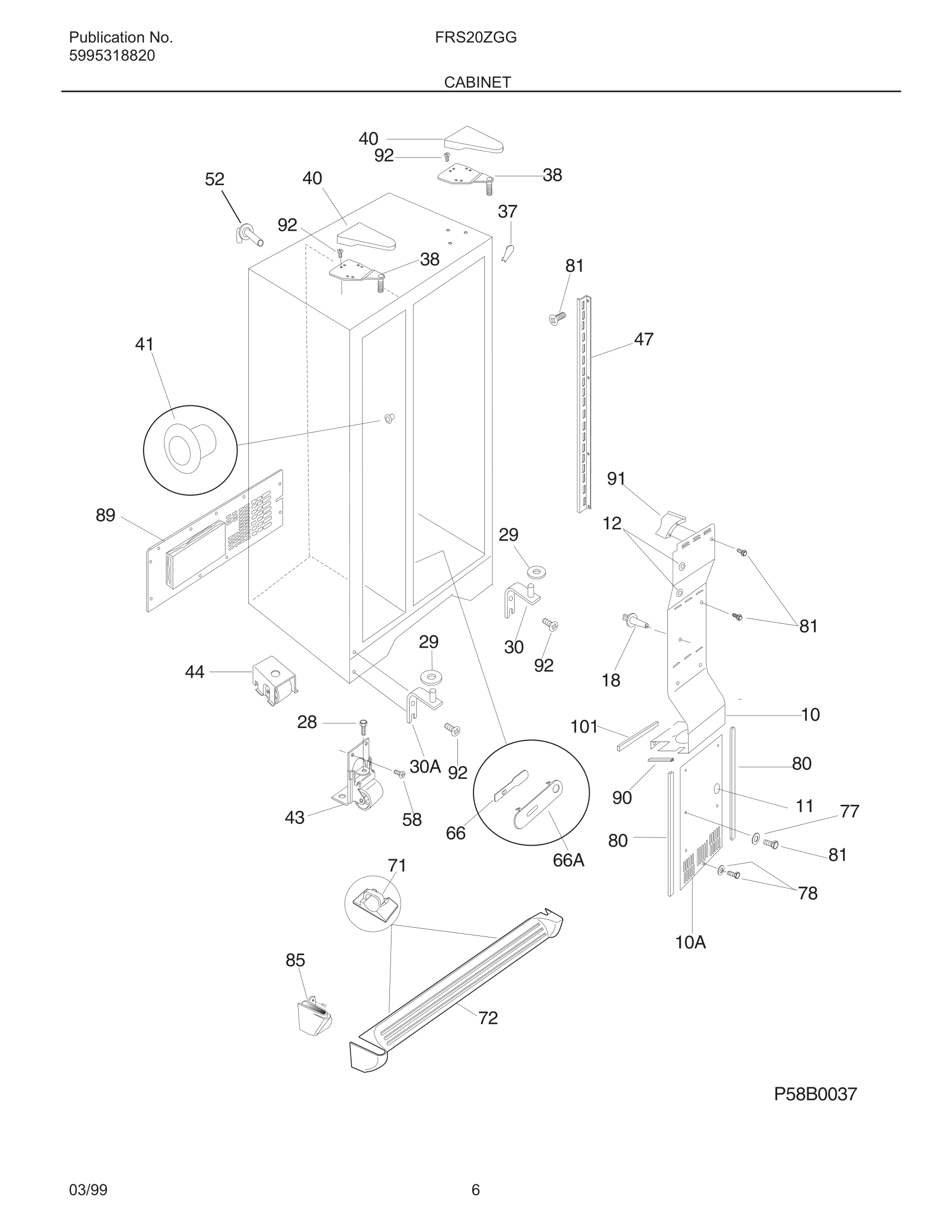

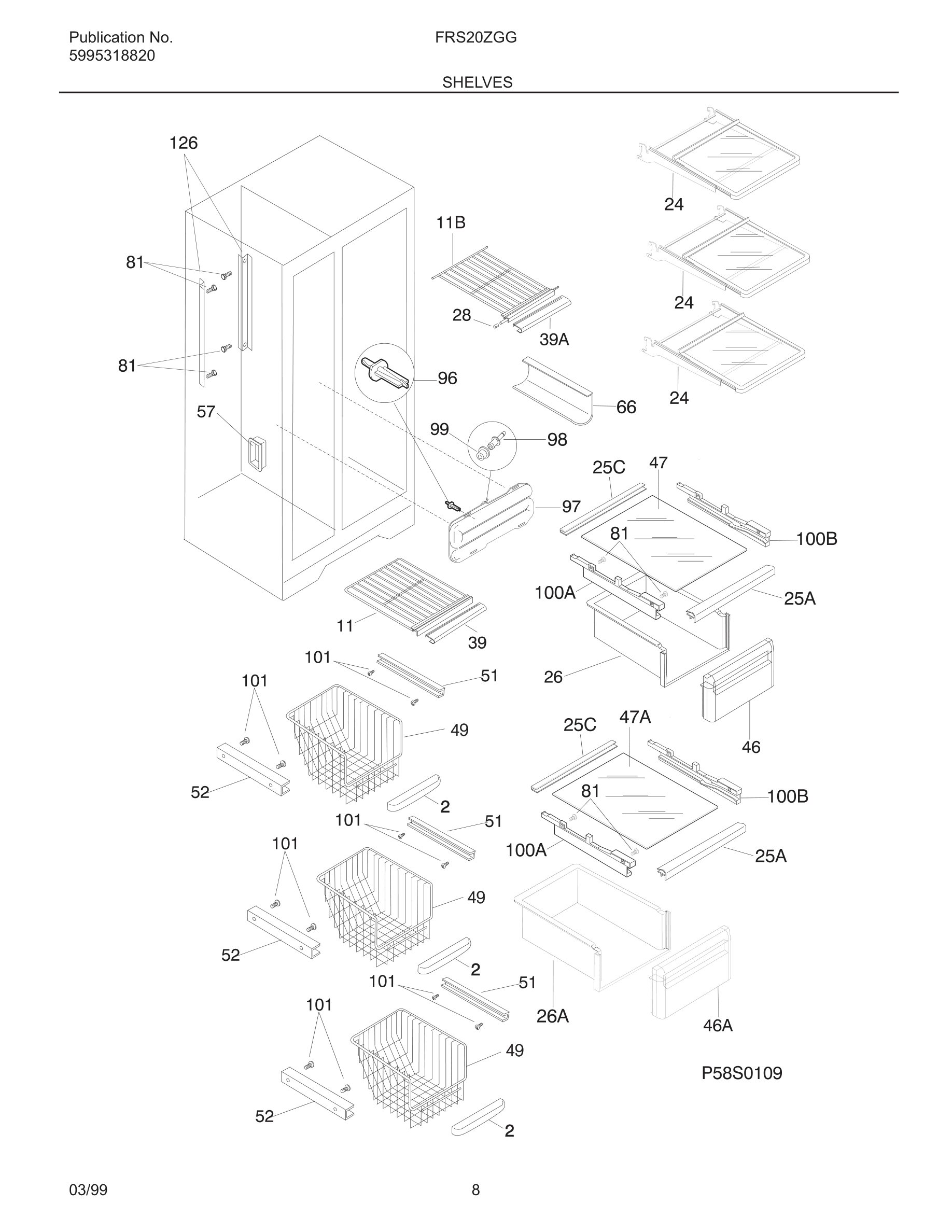

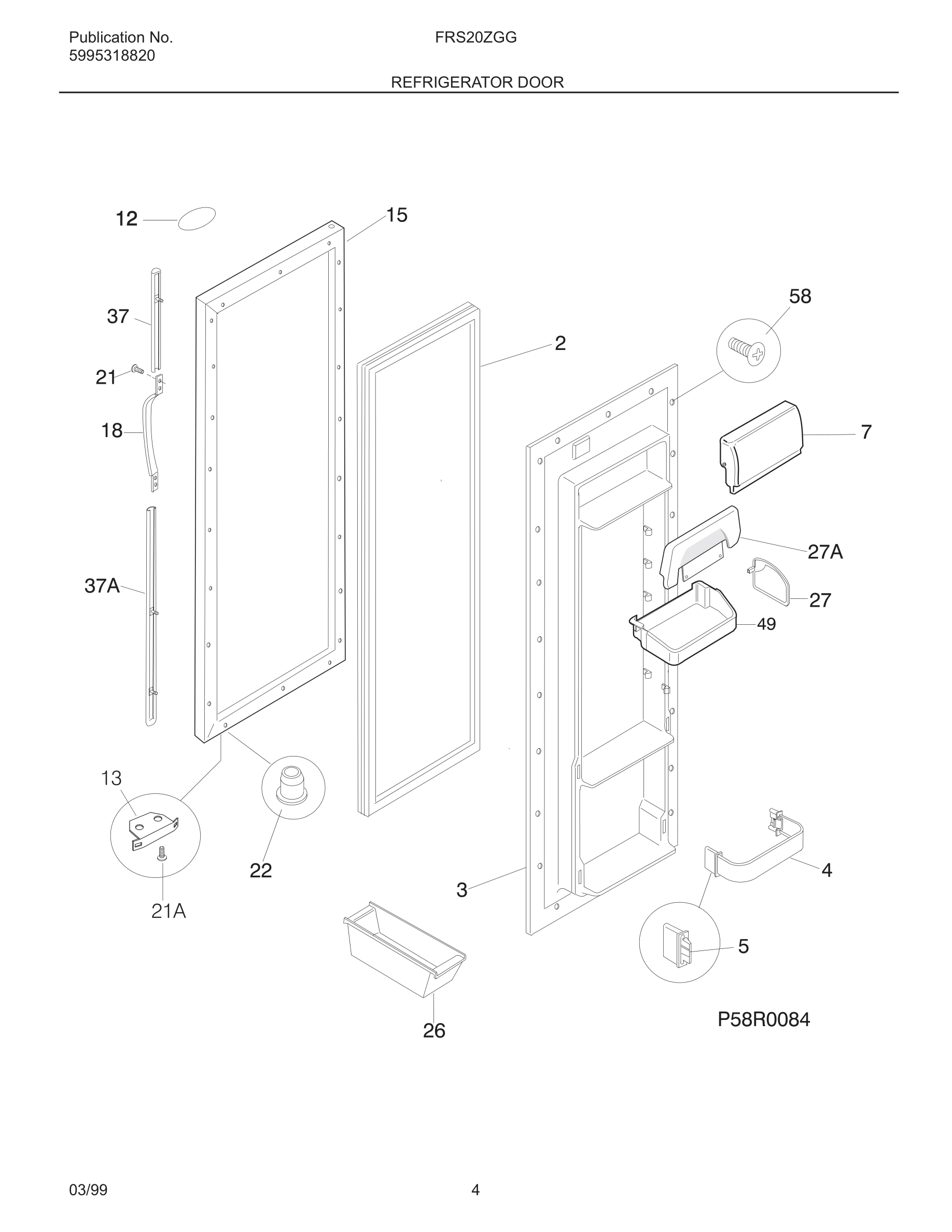

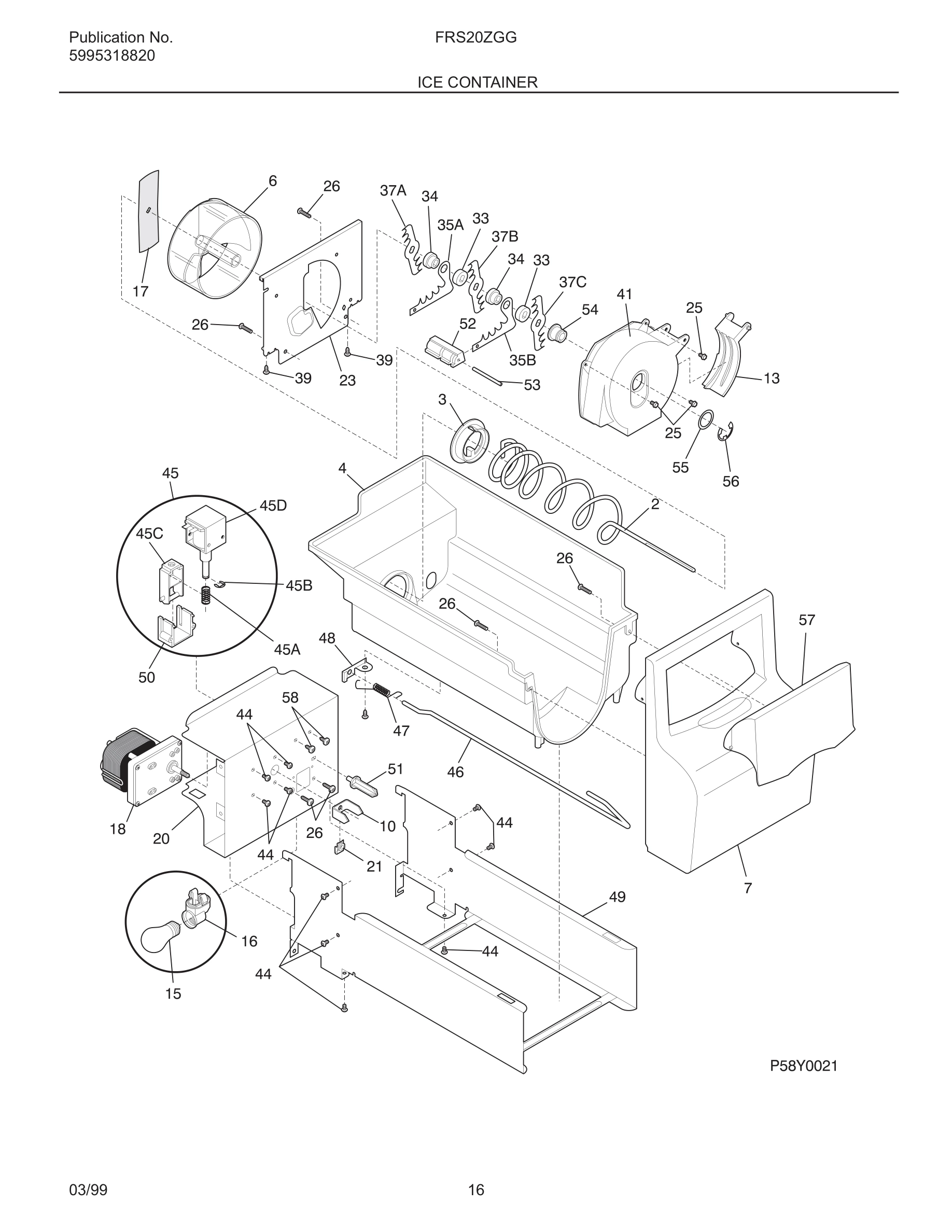

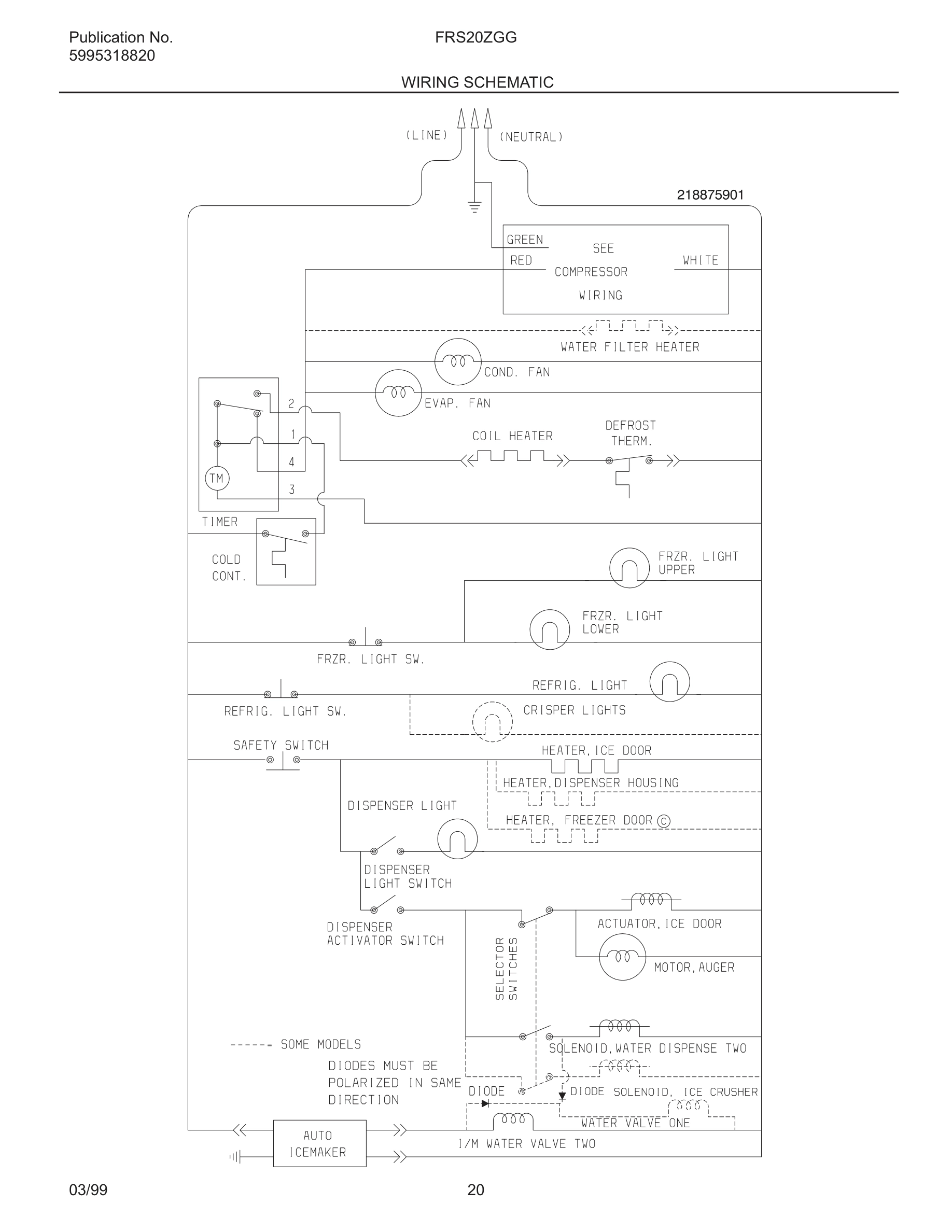

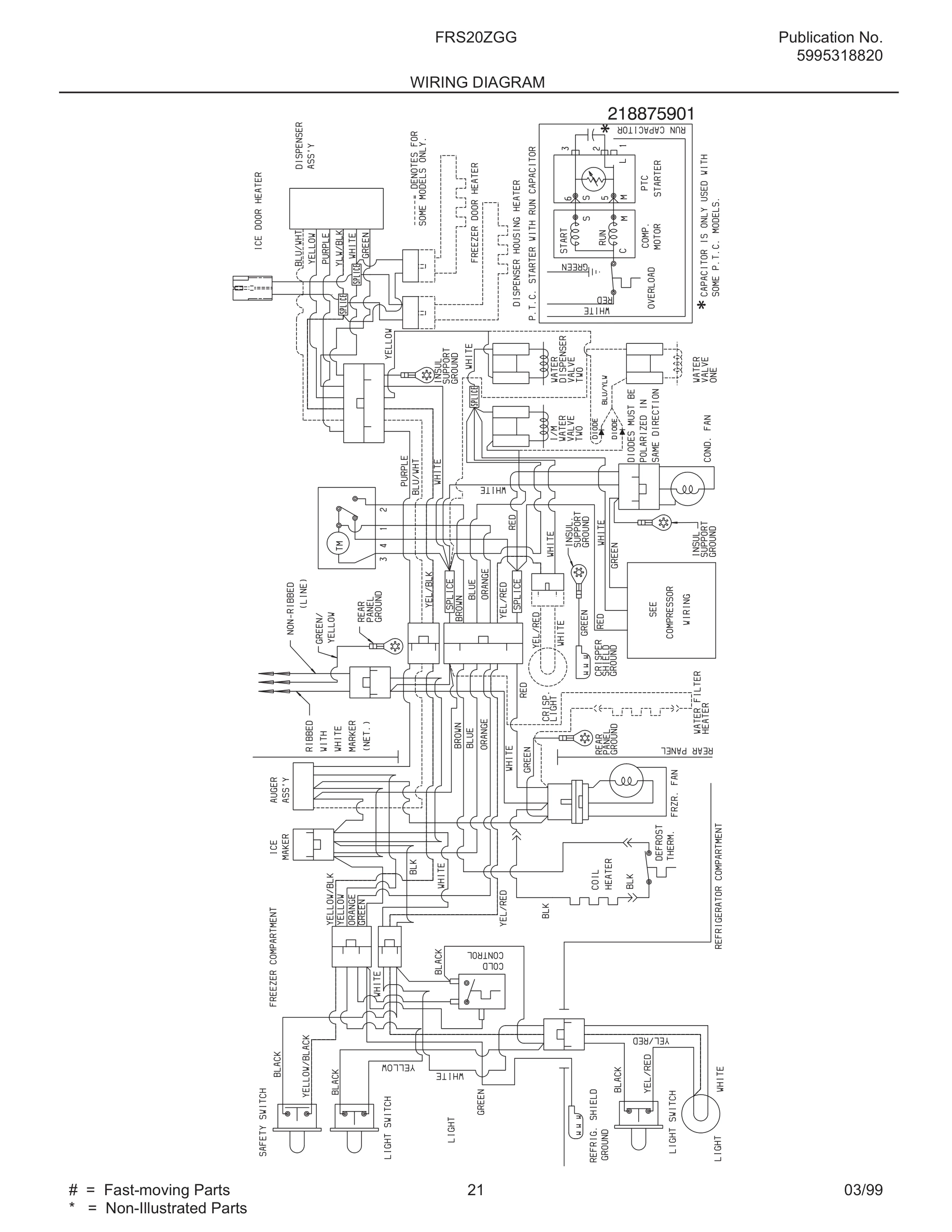

Model Frigidaire FRS20ZGGD3 REFRIGERATOR – Common Parts &amp; Diagrams

*

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

*

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

*

Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability

*

Tape-I&W dispenser,dble fcd ,fm ,60 x1-1/4 x1 WCI 5300460947 Contact Us For Availability

*

Plug-button,cabinet liner ,icemaker holes WCI 5308016571 Contact Us For Availability

*

Clip-shelf WCI 215328300 Contact Us For Availability

*

Washer,.28 x .62 x .19 ,nylon WCI 5303001038 Contact Us For Availability

*

Screw-control box mtg,hx hd ,8-15A x 1.000,re WCI 215188300 Contact Us For Availability

*

Hot Tube Repair Kit,Service WCI 5303917166 Contact Us For Availability

*

Clip-tube WCI 215781700 Contact Us For Availability

*

Harness-wiring,disp WCI 218863101 Contact Us For Availability

*

Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability

*

Nut,7/16 x 20 ,nylon WCI 218731600 Contact Us For Availability

*

Nut,7/16 x 20 ,nylon WCI 5308000200 Contact Us For Availability

*#

Valve-water,dual solenoid ,115 V ,w/nut WCI 218658000 Contact Us For Availability

1#

Condenser WCI 218787700 Contact Us For Availability

5308010366 Frigidaire Refrigerator Water Inle In Stock WCI 5308010366 $10.39

Tube-water inlet,formed ,plastic ,dispenser WCI 215294101 Contact Us For Availability

Spacer-tube WCI 5303208866 Contact Us For Availability

Spacer-tube WCI 5303289026 Contact Us For Availability

Tube-water inlet,filter ,to filter valve,w/el WCI 218832201 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Handle-frzr basket WCI 218747101 Contact Us For Availability

2

Knob-damper control,white/teal line WCI 5303307883 Contact Us For Availability

2

Clip-cond mtg,(4) WCI 5303289029 Contact Us For Availability

2

Deflector-ice disp,almond WCI 218505302 Contact Us For Availability

2

Spring,shut-off arm WCI 3206348 Contact Us For Availability

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Block-evap coil,styrofoam ,(2) WCI 218679603 Contact Us For Availability

3

Plate-I.D. WCI 3206299 Contact Us For Availability

3#

Heater-door housing WCI 215484300 Contact Us For Availability

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Housing-dispenser,almond WCI 218432102 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

5

Support-door rack,RH/LH WCI 5303288950 Contact Us For Availability

5

Harness-wiring,main WCI 218646100 Contact Us For Availability

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5*

Harness-wiring,filter heater WCI 218646000 Contact Us For Availability

5*

Harness-wiring,refr controls WCI 215005200 Contact Us For Availability

5*

Harness-wiring,frzr controls WCI 218815101 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

Harness-wiring,w/valve diodes WCI 218896001 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

7

Ring-fan orifice WCI 5308000124 Contact Us For Availability

7

Cord-electric power WCI 215459201 Contact Us For Availability

7#

Switch-actuator,micro WCI 218841901 Contact Us For Availability

7*

Shield-micro switch WCI 215944300 Contact Us For Availability

8

Module-dispenser WCI 218835701 Contact Us For Availability

8

Bushing-motor mtg,(2) WCI 5300157666 Contact Us For Availability

8

Cover-wiring WCI 218803400 Contact Us For Availability

8

Spacer-holding sw WCI 3206312 Contact Us For Availability

8*

Screw,hex hd ser wshr ,#8-18 x 3/8 WCI 218754500 Contact Us For Availability

9

Bracket-motor mtg,front WCI 5303205118 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

Spring,dispenser door WCI 218209800 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

Shelf-freezer,sliding ,wire WCI 218298005 Contact Us For Availability

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11*

Spacer-shelf WCI 218159700 Contact Us For Availability

11B

Shelf-freezer,fixed wire WCI 5304405990 Contact Us For Availability

12

Connector Plug,wiring harness WCI 3206321 Contact Us For Availability

12

Knob-selector,almond WCI 218836202 Contact Us For Availability

12

Diffuser-air WCI 215809600 Contact Us For Availability

12#

Harness-wiring,IM internal ,with plug WCI 3206349 Contact Us For Availability

13

Door Stop WCI 5303289522 Contact Us For Availability

13

Ring-snap,actuator WCI 215748101 Contact Us For Availability

13#

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

13#

Motor-evap fan WCI 215426200 Contact Us For Availability

13#

Heat Exchanger,suction line WCI 215006701 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

14

Bracket-motor mtg,rear WCI 5303205119 Contact Us For Availability

14

Label-module cover,almond WCI 218416161 Contact Us For Availability

14

Screw-switch mtg,4-24 x 3/4 ,sw to support,(2 WCI 3206323 Contact Us For Availability

14#

218657301 Frigidaire Refrigerator 15" Long X In Stock WCI 218657301 $69.03

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

Light Bulb/Lamp,4 W ,115 V WCI 218284900 Contact Us For Availability

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator,R134a System WCI 218691302 Contact Us For Availability

15*

Tube-inlet WCI 3206414 Contact Us For Availability

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Support WCI 3206326 Contact Us For Availability

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

Control Box,refr ,w/light tunnel WCI 218468702 Contact Us For Availability

Insulator-evap WCI 5303289042 Contact Us For Availability

Screw,#6 x 1/4 WCI 215794400 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

17A

Control Box,frzr WCI 5303321928 Contact Us For Availability

17A

Screw,truss head ,6-20 x 3/8 WCI 215840700 Contact Us For Availability

17A*

Brace-frzr cont box WCI 215980800 Contact Us For Availability

17A*

Washer-flat WCI 215923400 Contact Us For Availability

18

Knob-temp control WCI 5303307882 Contact Us For Availability

18

Ejector WCI 3206328 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Harness-wiring,auger motor WCI 5304404335 Contact Us For Availability

19

Tube,rubber WCI 218631200 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Label-control box,refr WCI 5303321927 Contact Us For Availability

20

Cover-motor WCI 5304404881 Contact Us For Availability

20

Screw,8-18 x 3/8 ,(2) WCI 3206331 Contact Us For Availability

20A

Label-control box,frzr WCI 5303322426 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

5303917954 Frigidaire Refrigerator Defrost Li In Stock WCI 5303917954 $18.14

21#

Control-temperature WCI 5303300027 Contact Us For Availability

21*

Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability

Bearing-hinge WCI 5303289320 No Longer Available

Housing-temp sensor,plastic WCI 5303319683 Contact Us For Availability

Base-compressor mtg,(drain pan) WCI 218811100 Contact Us For Availability

Arm,shut-off WCI 3206333 Contact Us For Availability

22*

Tube,insulator ,PVC ,white ,on temp sensor WCI 218731102 Contact Us For Availability

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Drip Tray,almond WCI 5303297845 Contact Us For Availability

Screw-sup/mold body,8-18 x 1 ,(4) WCI 3206334 Contact Us For Availability

23#

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

23*

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

23*

Cover-defrost timer,top WCI 215277000 Contact Us For Availability

23*

Shield-defrost timr,btm WCI 5303289058 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

Shelf-"Spill-Safe",sliding ,(3) WCI 218746001 Contact Us For Availability

24

Actuator,almond WCI 218796502 Contact Us For Availability

25

Screw-compressor mtg,hex washer hd ,10 B x 1 WCI 218773500 Contact Us For Availability

25

Screw-arm levr/sprt,8-18 x 9/16 WCI 3206336 Contact Us For Availability

25A

Trim-storage pan cvr,snap-on ,front WCI 218015301 Contact Us For Availability

25C

Trim-storage pan cvr,snap-on ,rear WCI 218015401 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

5303288971 Frigidaire Refrigerator Storage Pa In Stock WCI 5303288971 $100.66

26

Screw-thermo/sprt,4-24 x 3/8 ,(4) WCI 3206337 Contact Us For Availability

26A

Pan-storage,lower WCI 5303288968 Contact Us For Availability

27

Cam-slide WCI 218432600 Contact Us For Availability

27

Screw-sw&spcr/plate,4-40 x 1 WCI 3206338 Contact Us For Availability

27A

Rocker-switch WCI 218814901 Contact Us For Availability

28

End Cap-shelf,protector ,lower fzr shelf WCI 08013638 Contact Us For Availability

28

Cover-module,almond WCI 218700602 Contact Us For Availability

28

Screw-timing stop,4-40 x 3/8 WCI 3206339 Contact Us For Availability

29

5304478809 Frigidaire Refrigerator Compressor In Stock WCI 5304478809 $352.82

29

Washer,.40 x .63 x .16 ,nylon WCI 215003200 Contact Us For Availability

29

Screw-mtr & sw/plate,4-40 x 3/4 WCI 3206340 Contact Us For Availability

29*

Washer,.40 x .75 x .06 ,nylon WCI 215314301 Contact Us For Availability

30

Door Assy-ice chute,w/gasket,insul WCI 215753600 Contact Us For Availability

30

Screw-timing,8-32 x 1 WCI 3206341 Contact Us For Availability

30#

Starter/Overload Assy WCI 218721101 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

218740800 Frigidaire Refrigerator Clamp Backorder WCI 218740800 $41.22

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring WCI 3206344 Contact Us For Availability

33#

Heater-disp throat WCI 218849801 Contact Us For Availability

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw-mtg plate/sprt,8-18 x 7/16 WCI 3206345 Contact Us For Availability

35

Screw-gear/cam,6-20 x 0.437 WCI 3206346 Contact Us For Availability

35#

Heat Motor,115V WCI 218740003 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-slctr switch,ice dispenser WCI 218835601 Contact Us For Availability

36

Cover-ice maker,complete WCI 3206347 Contact Us For Availability

37

Trim-cabinet corner,almond WCI 5303321082 Contact Us For Availability

37

Data Sheet,ice maker WCI 5303320544 Contact Us For Availability

37*

Lock-handle trim,snap-in WCI 215782300 No Longer Available

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Envelope-data sheet WCI 5303207445 Contact Us For Availability

38A#

Switch-micro,single pole ,double throw WCI 218479900 Contact Us For Availability

38B#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

Trim-frzr shelf WCI 215217562 Contact Us For Availability

39

Wire-ice door WCI 218284600 Contact Us For Availability

39A

Trim-frzr shelf WCI 215217563 Contact Us For Availability

40

Yoke-heat motor WCI 218284500 Contact Us For Availability

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

41

Spring-actuator WCI 215765400 Contact Us For Availability

41*

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

41*

Nut,"U" type ,8-15(A) ,fan mtr mtg WCI 5303209814 Contact Us For Availability

43

Screw,#4 x 3/8 WCI 215760300 Contact Us For Availability

43*

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

43*

5304500008 Frigidaire Oven Screw In Stock WCI 5304500008 $7.23

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

44

Screw,pan head ,8-32 x .25 WCI 218359200 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

45*

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

45*

Screw,hx wshr hd spec ,#6-32 x .5 WCI 218769200 Contact Us For Availability

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

Front-storage pan,upper WCI 218278301 Contact Us For Availability

46

Control Rod WCI 5304404341 Contact Us For Availability

46A

Front-storage pan,lower WCI 218278302 Contact Us For Availability

47

Insert-pan cover,glass ,w/graphics WCI 218498118 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

Insert-pan cover,glass ,clear ,lower WCI 215723551 Contact Us For Availability

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

Basket-sliding,(3) WCI 218748301 Contact Us For Availability

Bracket-evap mtg WCI 215506900 Contact Us For Availability

Bracket-heat motor WCI 215794000 Contact Us For Availability

Rail Assy WCI 5304404880 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

Hanger-basket,RH WCI 5303288960 Contact Us For Availability

51

Rotation Stop WCI 5304404336 Contact Us For Availability

51

Tube-fill WCI 215811600 Contact Us For Availability

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

Tube-water inlet WCI 215454600 Contact Us For Availability

52

Hanger-basket,LH,with/spring WCI 215162501 Contact Us For Availability

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

53

Box-damper control WCI 215809508 Contact Us For Availability

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

54

Rail-cabinet base,rear WCI 5303289027 Contact Us For Availability

54A

Rail-compr support WCI 5303289311 Contact Us For Availability

54B

Rail-cabinet base,front WCI 5303289292 Contact Us For Availability

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

218859701 Frigidaire Water Valve Single Solen In Stock WCI 218859701 $51.57

55#

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Insert-compressor mtg WCI 218769300 Contact Us For Availability

56

Screw-micro switch,pan head ,4-24 x 9/16 WCI 218434300 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

57

Ferrule-inner WCI 5303271653 Contact Us For Availability

57

Clip-wiring harness WCI 218247300 Contact Us For Availability

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan mtr WCI 5303289031 Contact Us For Availability

59

Sleeve-tube insert WCI 5303001191 Contact Us For Availability

60#

Motor-condenser fan WCI 215501901 Contact Us For Availability

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

Blade-cond fan WCI 5303289032 Contact Us For Availability

61

Ring-retainer,micro switch WCI 215766000 Contact Us For Availability

61*

Nut,speed WCI 215004700 Contact Us For Availability

61*

Grommet-silencer WCI 215004800 Contact Us For Availability

62

Trough-drain,w/shield assy ,& #17 insulator WCI 215048201 Contact Us For Availability

64

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

65

Pin-mounting,push-in ,plastic WCI 5303001361 Contact Us For Availability

65

Spacer-tube WCI 5303289301 Contact Us For Availability

66

Rack-wine WCI 5304402116 Contact Us For Availability

70

Bracket-evap/cvr mtg WCI 5303289041 Contact Us For Availability

71

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

72

Grille/Kickplate,almond WCI 218359614 Contact Us For Availability

75

Shield-light,refr WCI 218465101 Contact Us For Availability

76

Cover-light socket WCI 218225800 Contact Us For Availability

77

Washer-nylon,3/16 x 5/8 OD WCI 5303001216 Contact Us For Availability

80

Seal-coil cover,(2) WCI 218249802 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

Screw,plask h/l ,#6 x 3/8 WCI 215296300 Contact Us For Availability

83

Bracket-connector WCI 5308000107 Contact Us For Availability

85

Cover-lower hinge,almond WCI 218359803 Contact Us For Availability

89

Cover-machine compt WCI 5303288947 Contact Us For Availability

90

Seal-foam WCI 215022602 Contact Us For Availability

90*

Tape-foam WCI 5303322647 Contact Us For Availability

91

Deflector-air,ice maker WCI 218836401 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

96

Support-water tank WCI 215192600 Contact Us For Availability

97

5303918258 Frigidaire Refrigerator P-1 Water In Stock WCI 5303918258 $76.89

98

Connector-tube WCI 5308015614 Contact Us For Availability

99

Grommet-tank WCI 5300186057 Contact Us For Availability

100A

Support-pan cover,LH WCI 218015501 Contact Us For Availability

100B

Support-pan cover,RH WCI 218015601 Contact Us For Availability

101

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

101

Seal-foam WCI 215305701 Contact Us For Availability

101*

Gasket-air duct cvr WCI 218663103 Contact Us For Availability

111

Wireway,frzr WCI 5303289024 Contact Us For Availability

112

Rod-damper extn WCI 215277101 Contact Us For Availability

113

Cover-dmpr rod ext WCI 5303289047 Contact Us For Availability

114#

5303289051 Frigidaire Refrigerator Light Swit Backorder WCI 5303289051 $16.77

115#

Damper Assy,w/seal WCI 215011504 Contact Us For Availability

116

Seal-damper,foam WCI 215011400 Contact Us For Availability

125

Switch-auger kill,white WCI 215334201 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

138

Cup-water filter WCI 218657401 Contact Us For Availability

139

Housing-water filtr WCI 218657500 Contact Us For Availability

140

Elbow-water tube WCI 218518700 Contact Us For Availability

141#

218832401 Frigidaire Water Inlet Valve In Stock WCI 218832401 $66.89

142

Knob-indicator,filter replment WCI 218657701 Contact Us For Availability

143

Heater-water filter WCI 218696700 Contact Us For Availability
