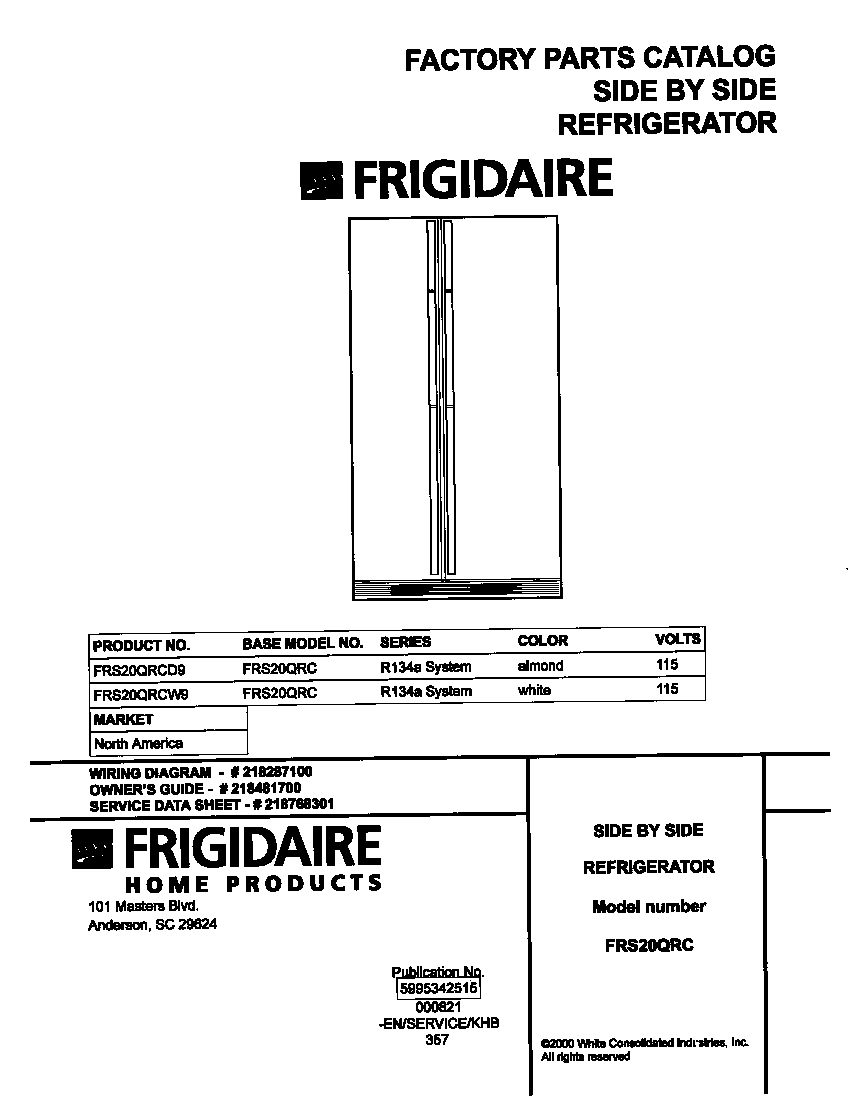

01 - COVER

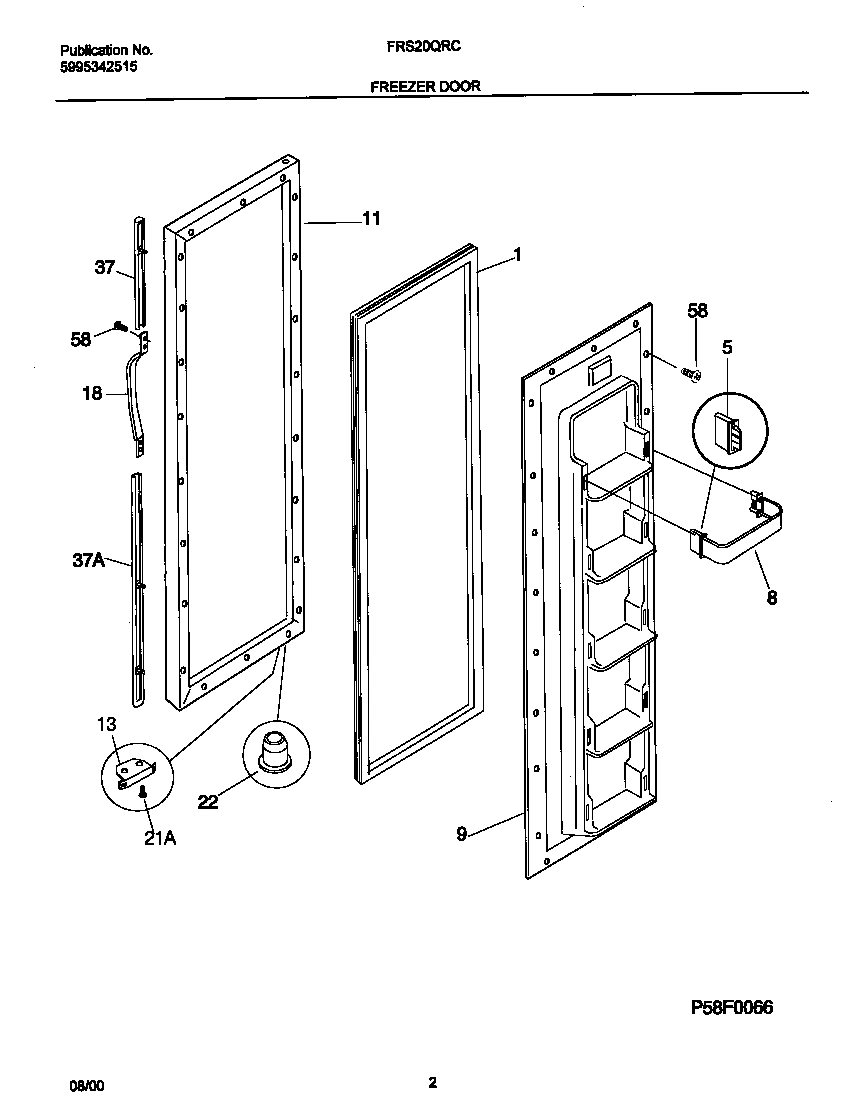

02 - FREEZER DOOR

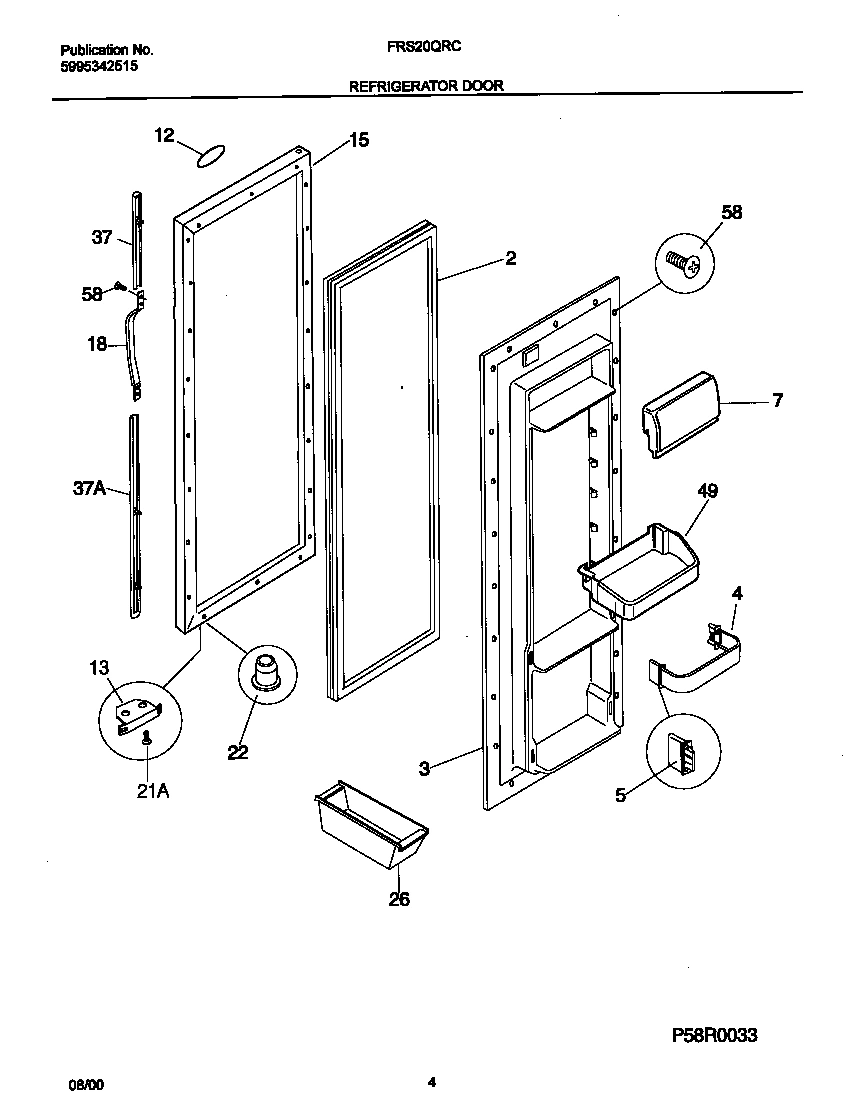

03 - REFRIGERATOR DOOR

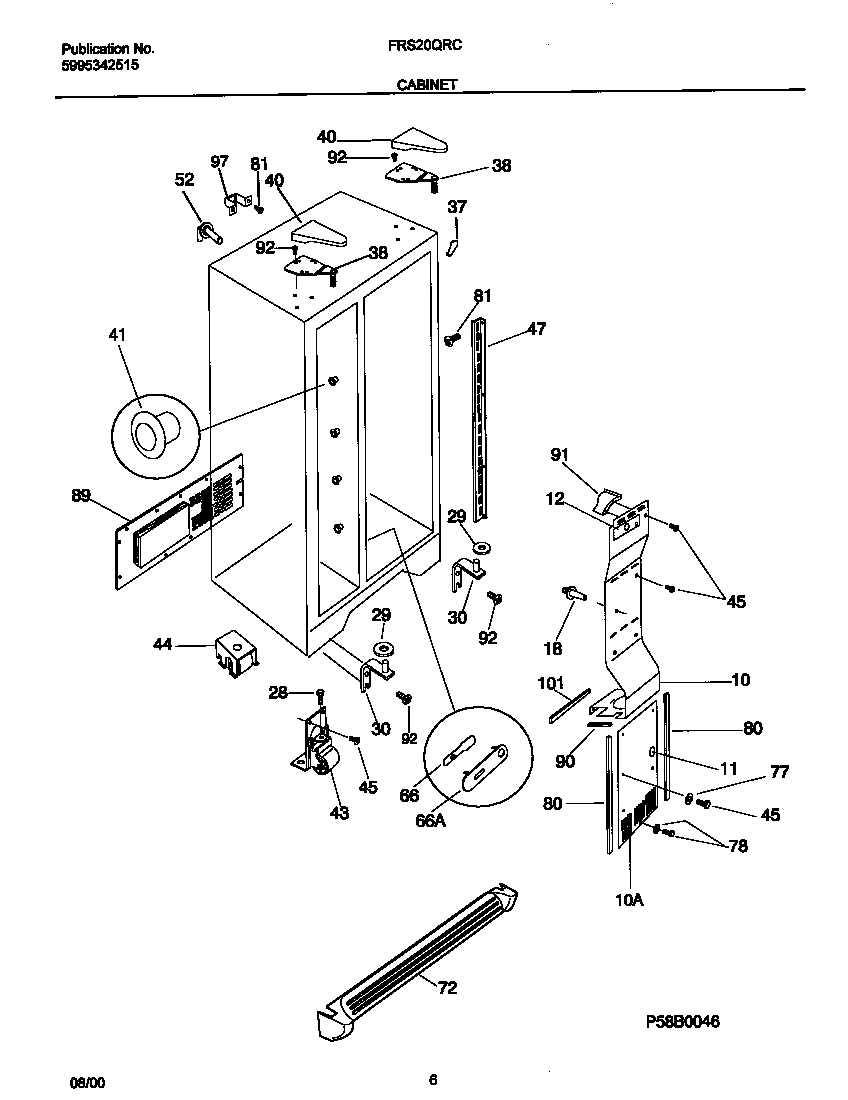

04 - CABINET

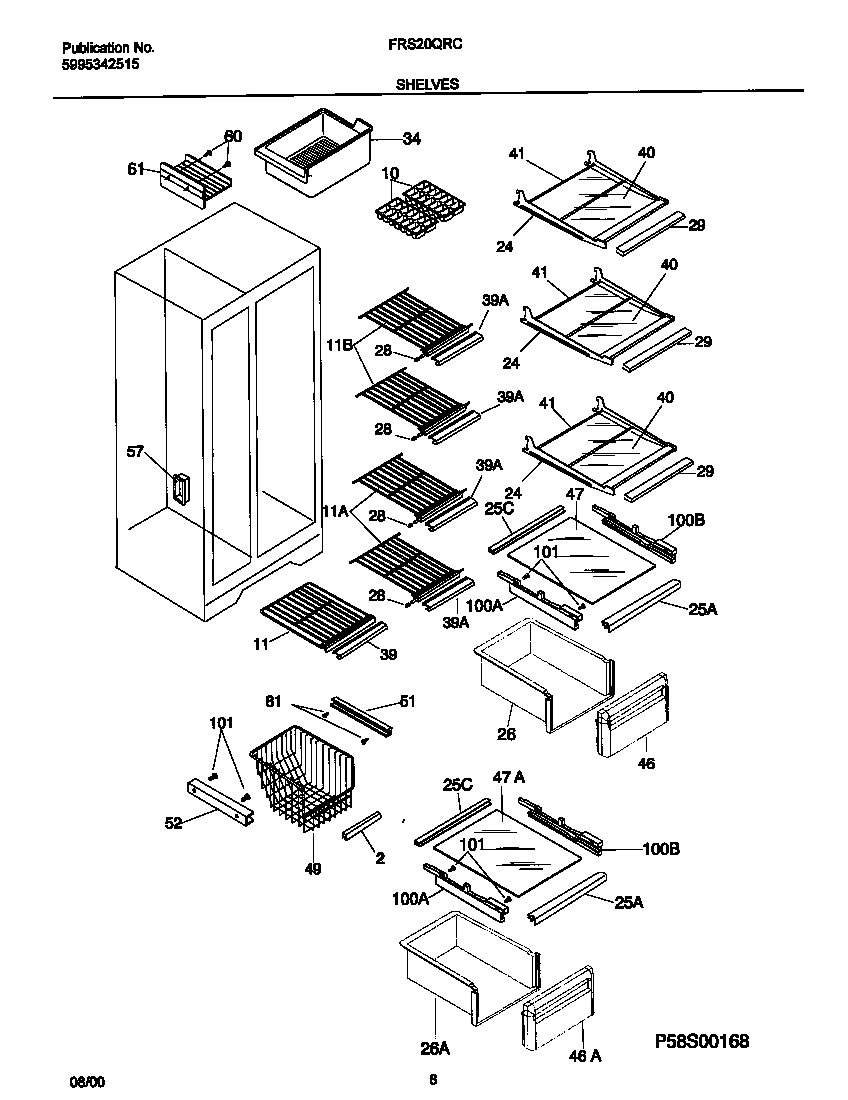

05 - SHELVES

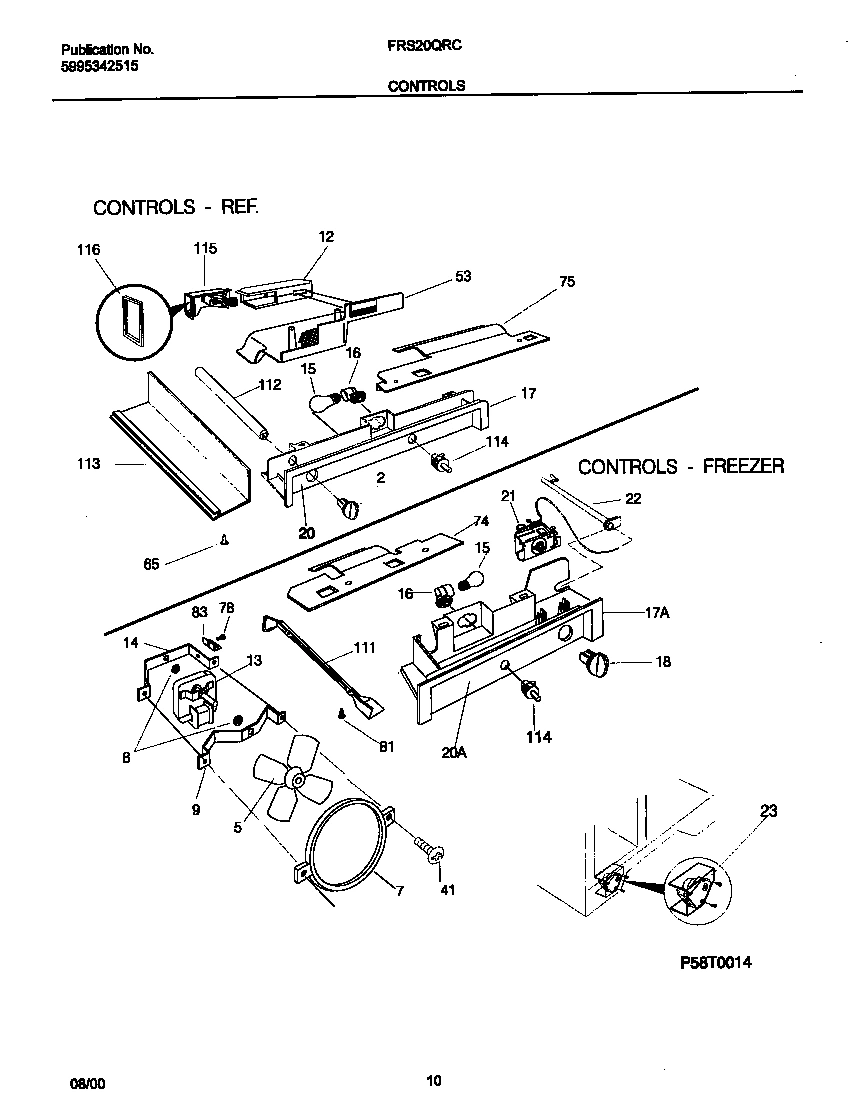

06 - CONTROL

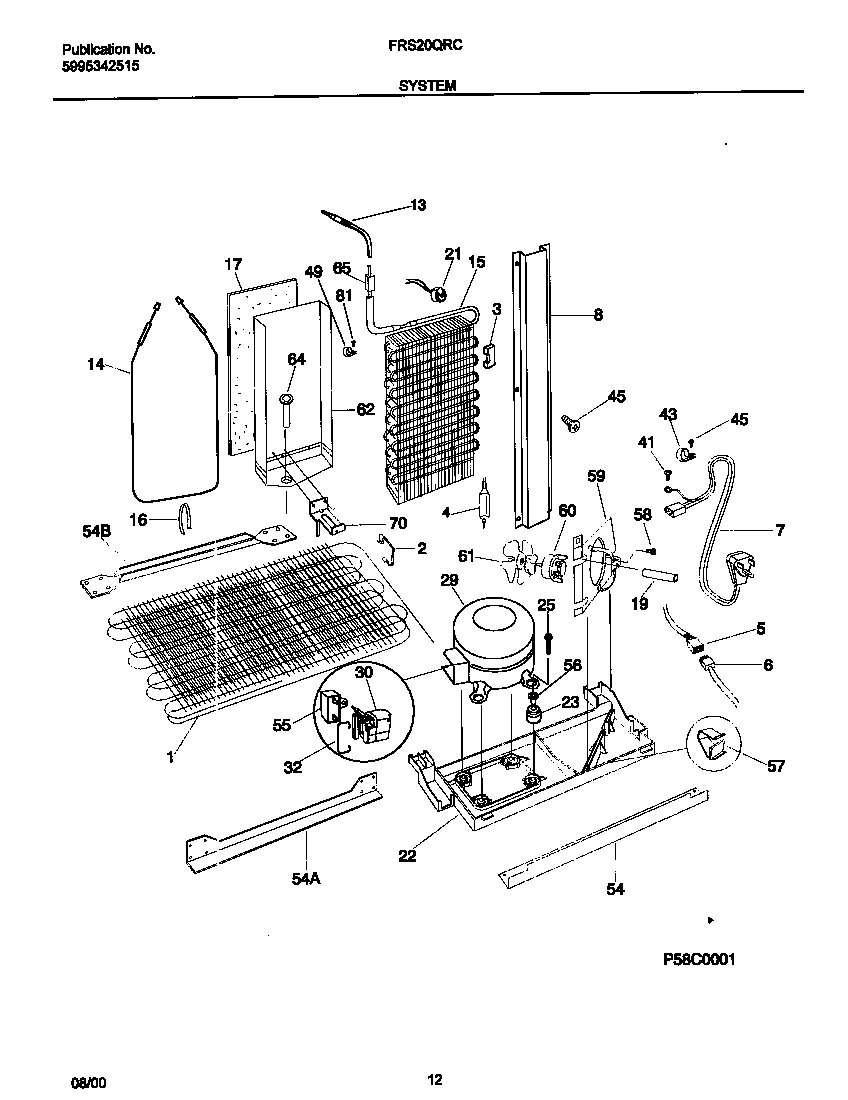

07 - SYSTEM

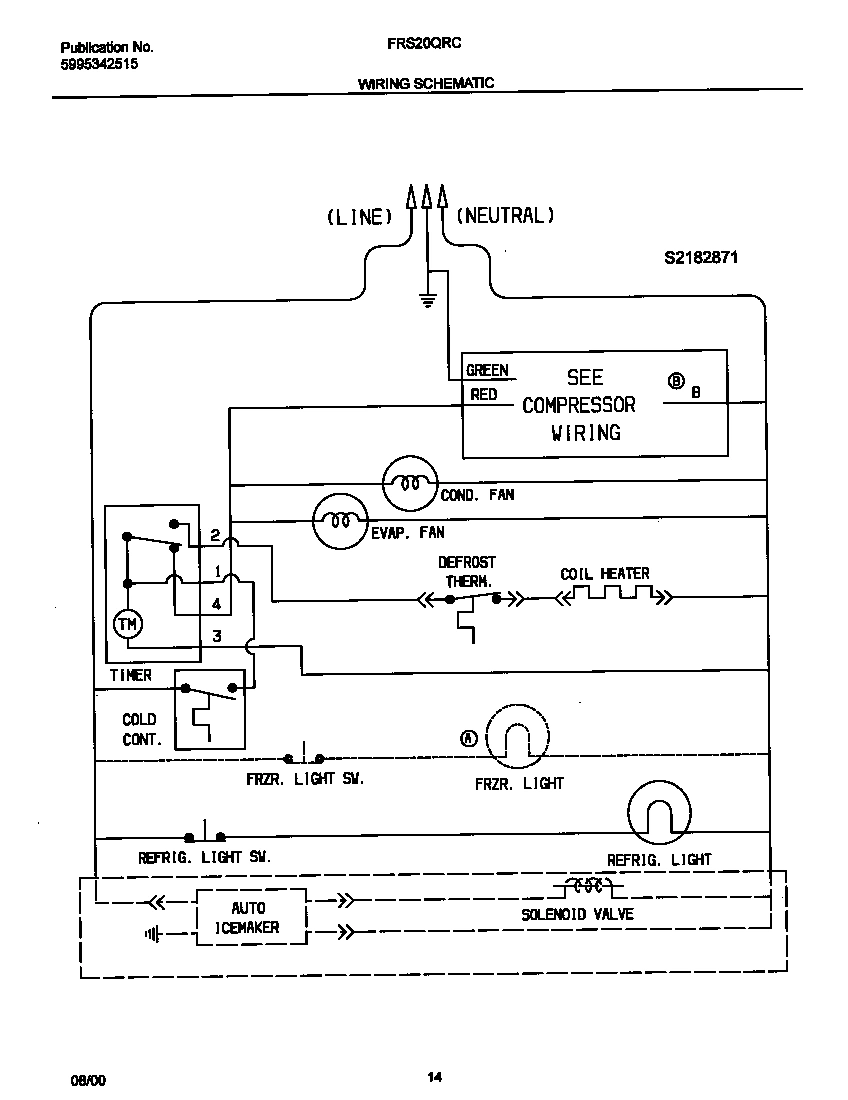

08 - WIRING SCHEMATIC

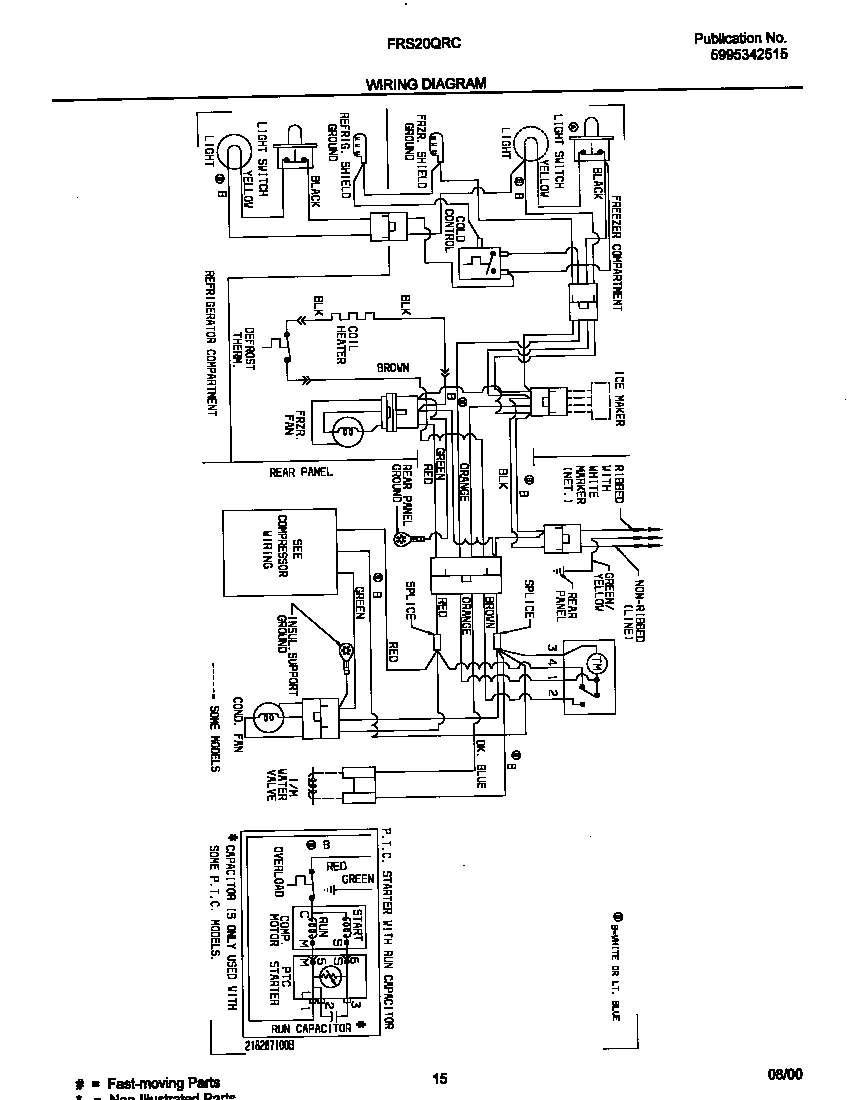

09 - WIRING DIAGRAM
Common parts from model Electrolux FRS20QRCD9 REFRIGERATOR
*06204
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*06218
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*06219
CLIP-SHELF WCI 215328300 Contact Us For Availability
*06221
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
*06222
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*06223
WCI 218731102 WCI 218731102 Contact Us For Availability
*06224
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*06226
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*06227
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*06228
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*06229
SPACER TUBE WCI 5303289026 Contact Us For Availability
*06230
WCI 5304406721 WCI 5304406721 Contact Us For Availability
*06231
WCI 218679605 WCI 218679605 Contact Us For Availability
*06232
WIRING HARNESS,REFR CONTROLS WCI 215013800 Contact Us For Availability
*06233
WIRING HARNESS,FRZR CONTROLS WCI 215226000 Contact Us For Availability
*06237
WCI 215732700 WCI 215732700 Contact Us For Availability
*06238
WCI 215004700 WCI 215004700 Contact Us For Availability
*06239
WCI 215004800 WCI 215004800 Contact Us For Availability
*06240
WCI 5303917166 WCI 5303917166 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 5303300707 WCI 5303300707 Contact Us For Availability
2
WCI 5303308569 WCI 5303308569 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
3
WCI 218679608 WCI 218679608 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 218965301 WCI 218965301 Contact Us For Availability
6
WCI 218965901 WCI 218965901 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
11
WCI 218298005 WCI 218298005 Contact Us For Availability
11
WCI 5304405989 WCI 5304405989 Contact Us For Availability
11
WCI 5304405990 WCI 5304405990 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 218718402 WCI 218718402 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 218955801 WCI 218955801 Contact Us For Availability
17
CONTROL BOX, REFR WCI 5303289049 Contact Us For Availability
17
WCI 5304415968 WCI 5304415968 Contact Us For Availability
17A
CONTROL BOX, FRZR WCI 5303289056 Contact Us For Availability
17B
BRACE-FRZR CONT BOX WCI 215980800 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
20
WCI 5303308566 WCI 5303308566 Contact Us For Availability
20
WCI 5303308567 WCI 5303308567 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
24
WCI 215919136 WCI 215919136 Contact Us For Availability
25
WCI 218015301 WCI 218015301 Contact Us For Availability
25
WCI 218015401 WCI 218015401 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
26
WCI 5303288968 WCI 5303288968 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
WCI 215919413 WCI 215919413 Contact Us For Availability
30
WCI 218721109 WCI 218721109 Contact Us For Availability
32
WCI 216649100 WCI 216649100 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
37B
WCI 218676001 WCI 218676001 Contact Us For Availability
39
WCI 215217562 WCI 215217562 Contact Us For Availability
39
TRIM-FRZR SHELF WCI 215217563 Contact Us For Availability
40
WCI 218390585 WCI 218390585 Contact Us For Availability
41
WCI 215919813 WCI 215919813 Contact Us For Availability
45
WCI 218769200 WCI 218769200 Contact Us For Availability
46
WCI 5303308561 WCI 5303308561 Contact Us For Availability
46
WCI 5303308562 WCI 5303308562 Contact Us For Availability
47
WCI 218659500 WCI 218659500 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 215723551 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 218390586 Contact Us For Availability
49
WCI 5303288957 WCI 5303288957 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
52
TUBE-WATER,ICE MOLD FILL ,ELBOW WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809501 WCI 215809501 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048202 WCI 215048202 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66
WCI 218171301 WCI 218171301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359608 WCI 218359608 Contact Us For Availability
74
WCI 218465001 WCI 218465001 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
80
WCI 218249802 WCI 218249802 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 5303288947 WCI 5303288947 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 218769900 WCI 218769900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
101A
WCI 215305701 WCI 215305701 Contact Us For Availability
101B
WCI 218663103 WCI 218663103 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
112
WCI 215277101 WCI 215277101 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303289047 Contact Us For Availability
115
WCI 215011503 WCI 215011503 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
× ![]()
