Model Electrolux FRS20QRCD4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

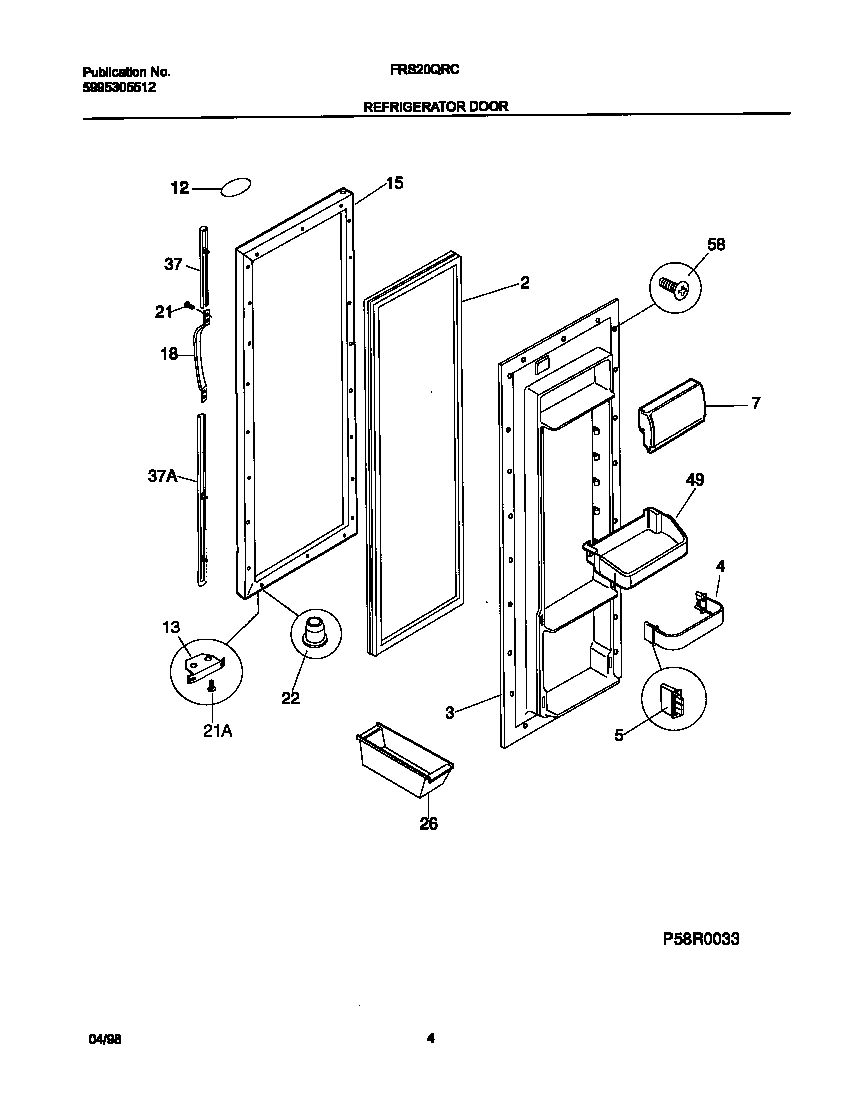

03 - REFRIGERATOR DOOR

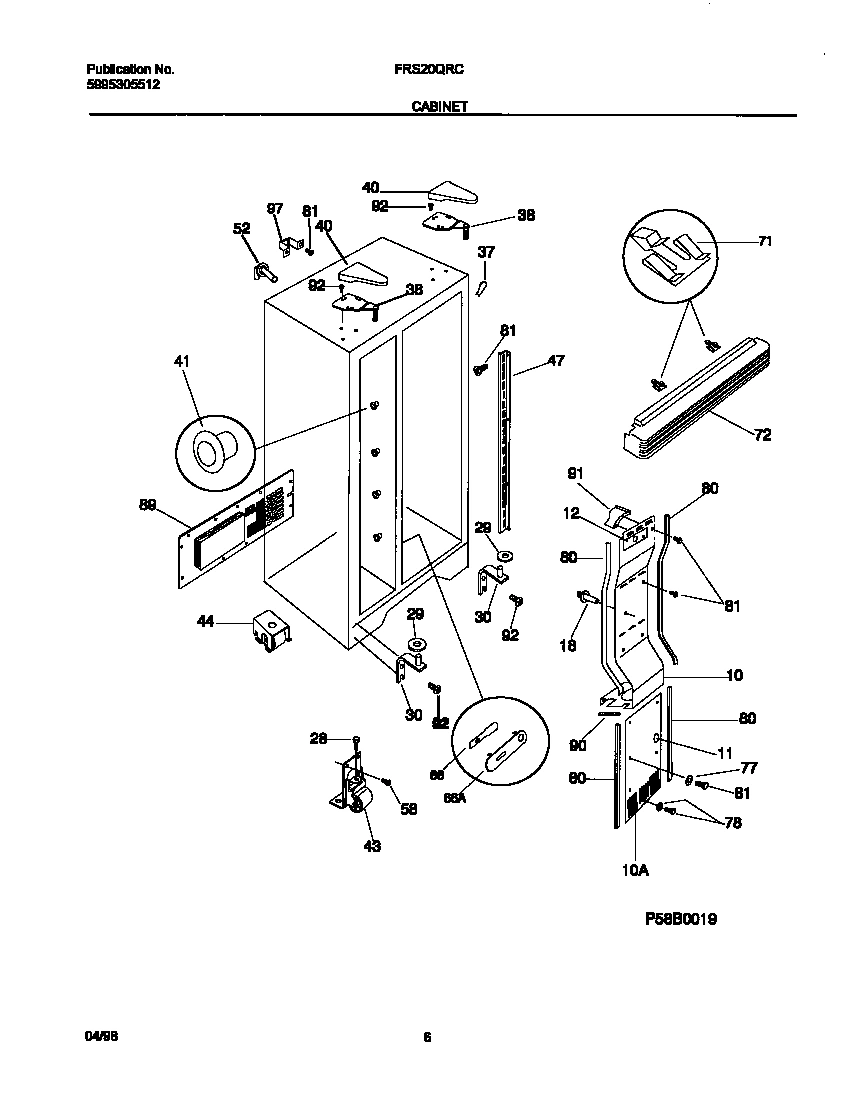

04 - CABINET

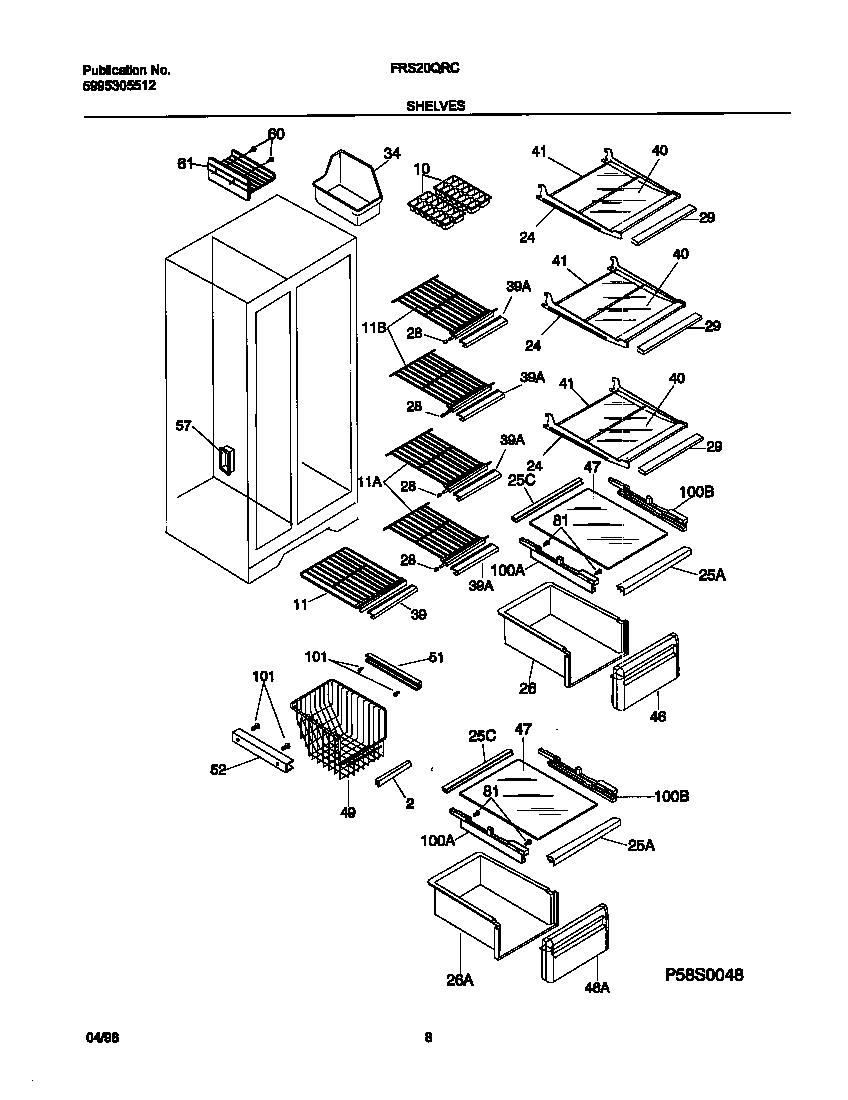

05 - SHELVES

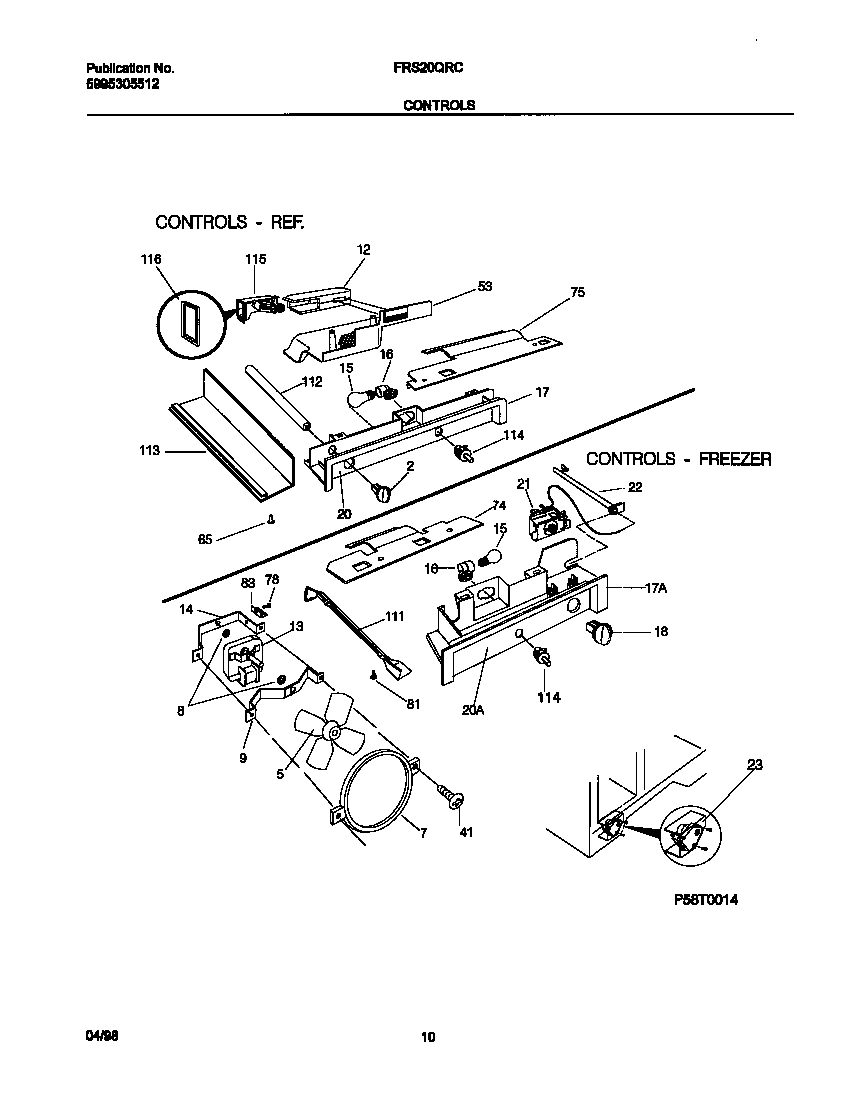

06 - CONTROLS

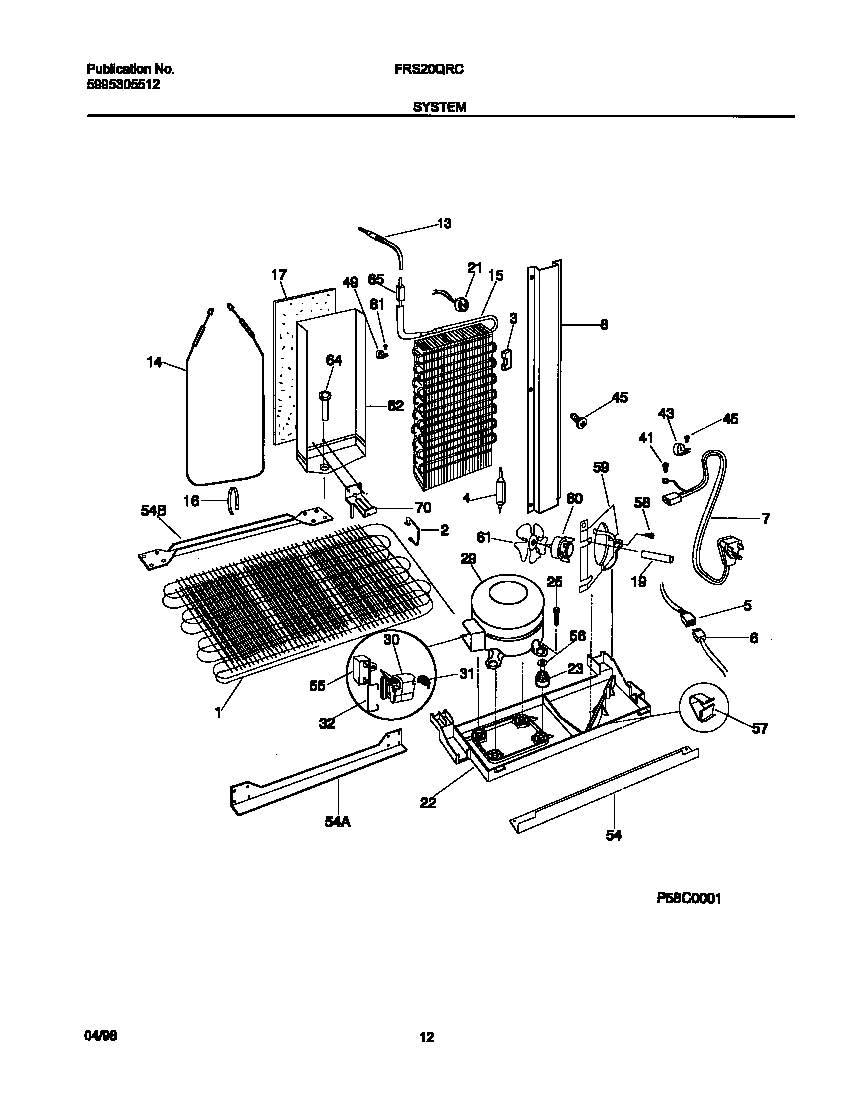

07 - SYSTEM

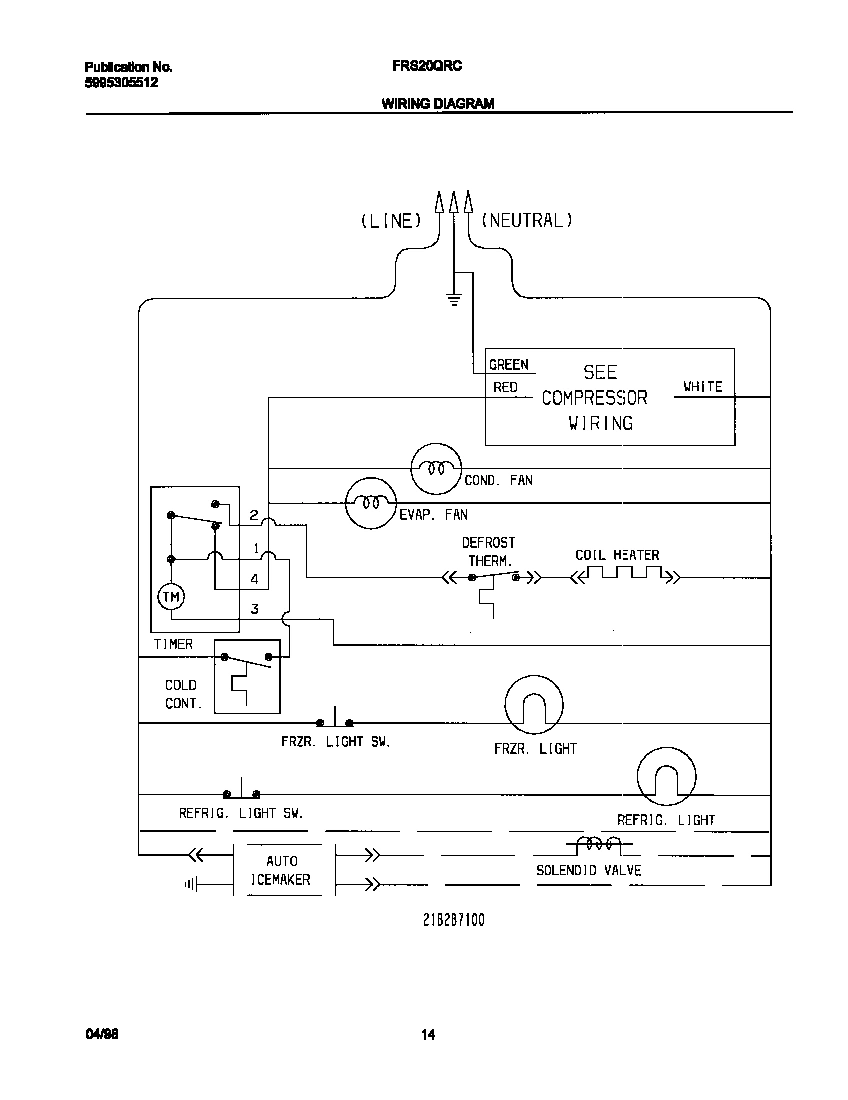

08 - WIRING DIAGRAM
09 - WIRING DIAGRAM
Common parts from model Electrolux FRS20QRCD4 REFRIGERATOR
*12880
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*12895
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*12896
SPACER-SHELF WCI 218159700 Contact Us For Availability
*12897
CLIP-SHELF WCI 215339900 Contact Us For Availability
*12898
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
*12900
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*12901
WCI 218731102 WCI 218731102 Contact Us For Availability
*12902
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*12904
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*12905
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*12906
WCI 5303208866 WCI 5303208866 Contact Us For Availability
*12907
SPACER TUBE WCI 5303289026 Contact Us For Availability
*12908
HARNESS-WIRING, REFR CONTROLS WCI 215013800 Contact Us For Availability
*12909
HARNESS-WIRING,FRZR CONTROLS WCI 215226000 Contact Us For Availability
*12910
WCI 218754500 WCI 218754500 Contact Us For Availability
*12911
TUBE-INLET WCI 3206414 Contact Us For Availability
*12914
WCI 218769200 WCI 218769200 Contact Us For Availability
*12915
WCI 215004700 WCI 215004700 Contact Us For Availability
*12916
GROMMET-SILENCER WCI 215223700 Contact Us For Availability
*12917
WCI 5303917166 WCI 5303917166 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 5303300707 WCI 5303300707 Contact Us For Availability
2
WCI 5303308569 WCI 5303308569 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 215458801 WCI 215458801 Contact Us For Availability
6
WCI 215501601 WCI 215501601 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
11
WCI 218298005 WCI 218298005 Contact Us For Availability
11
WCI 5303288962 WCI 5303288962 Contact Us For Availability
11
WCI 5303288963 WCI 5303288963 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 218718402 WCI 218718402 Contact Us For Availability
13
WCI 215746800 WCI 215746800 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 218691302 WCI 218691302 Contact Us For Availability
17
CONTROL BOX, REFR WCI 5303289049 Contact Us For Availability
17
WCI 5303289042 WCI 5303289042 Contact Us For Availability
17A
CONTROL BOX, FRZR WCI 5303289056 Contact Us For Availability
17B
BRACE-FRZR CONT BOX WCI 215980800 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
20
WCI 5303308566 WCI 5303308566 Contact Us For Availability
20
WCI 5303308567 WCI 5303308567 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
24
WCI 215919136 WCI 215919136 Contact Us For Availability
25
WCI 218015301 WCI 218015301 Contact Us For Availability
25
WCI 218015401 WCI 218015401 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
26
WCI 5303288968 WCI 5303288968 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
29
WCI 215919413 WCI 215919413 Contact Us For Availability
29A
WCI 215003200 WCI 215003200 Contact Us For Availability
29B
WCI 215314301 WCI 215314301 Contact Us For Availability
30
WCI 216008904 WCI 216008904 Contact Us For Availability
31
WCI 5303321892 WCI 5303321892 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
37C
BAND-DECORATIVE,CHROME WCI 218676001 Contact Us For Availability
39
WCI 215217562 WCI 215217562 Contact Us For Availability
39
TRIM-FRZR SHELF WCI 215217563 Contact Us For Availability
40
WCI 218390585 WCI 218390585 Contact Us For Availability
41
WCI 215919813 WCI 215919813 Contact Us For Availability
43
WCI 218615300 WCI 218615300 Contact Us For Availability
44
WCI 218738300 WCI 218738300 Contact Us For Availability
46
WCI 5303308561 WCI 5303308561 Contact Us For Availability
46
WCI 5303308562 WCI 5303308562 Contact Us For Availability
47
WCI 218659500 WCI 218659500 Contact Us For Availability
47A
INSERT-PAN COVER,GLASS ,CLEAR ,LOWER WCI 215723551 Contact Us For Availability
47B
WCI 218390586 WCI 218390586 Contact Us For Availability
49
WCI 5303288957 WCI 5303288957 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809501 WCI 215809501 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218764601 WCI 218764601 Contact Us For Availability
56A
PIN-COMPRESSOR MTG WCI 215014100 Contact Us For Availability
56B
WCI 218769300 WCI 218769300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048201 WCI 215048201 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66
WCI 218171301 WCI 218171301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359608 WCI 218359608 Contact Us For Availability
74
WCI 218465001 WCI 218465001 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
80A
WCI 218154003 WCI 218154003 Contact Us For Availability
80B
WCI 218249802 WCI 218249802 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 5303288947 WCI 5303288947 Contact Us For Availability
90A
WCI 215022602 WCI 215022602 Contact Us For Availability
90B
WCI 5303322647 WCI 5303322647 Contact Us For Availability
91
WCI 218769900 WCI 218769900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
112
WCI 215277101 WCI 215277101 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303289047 Contact Us For Availability
115
WCI 215011504 WCI 215011504 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
× ![]()
