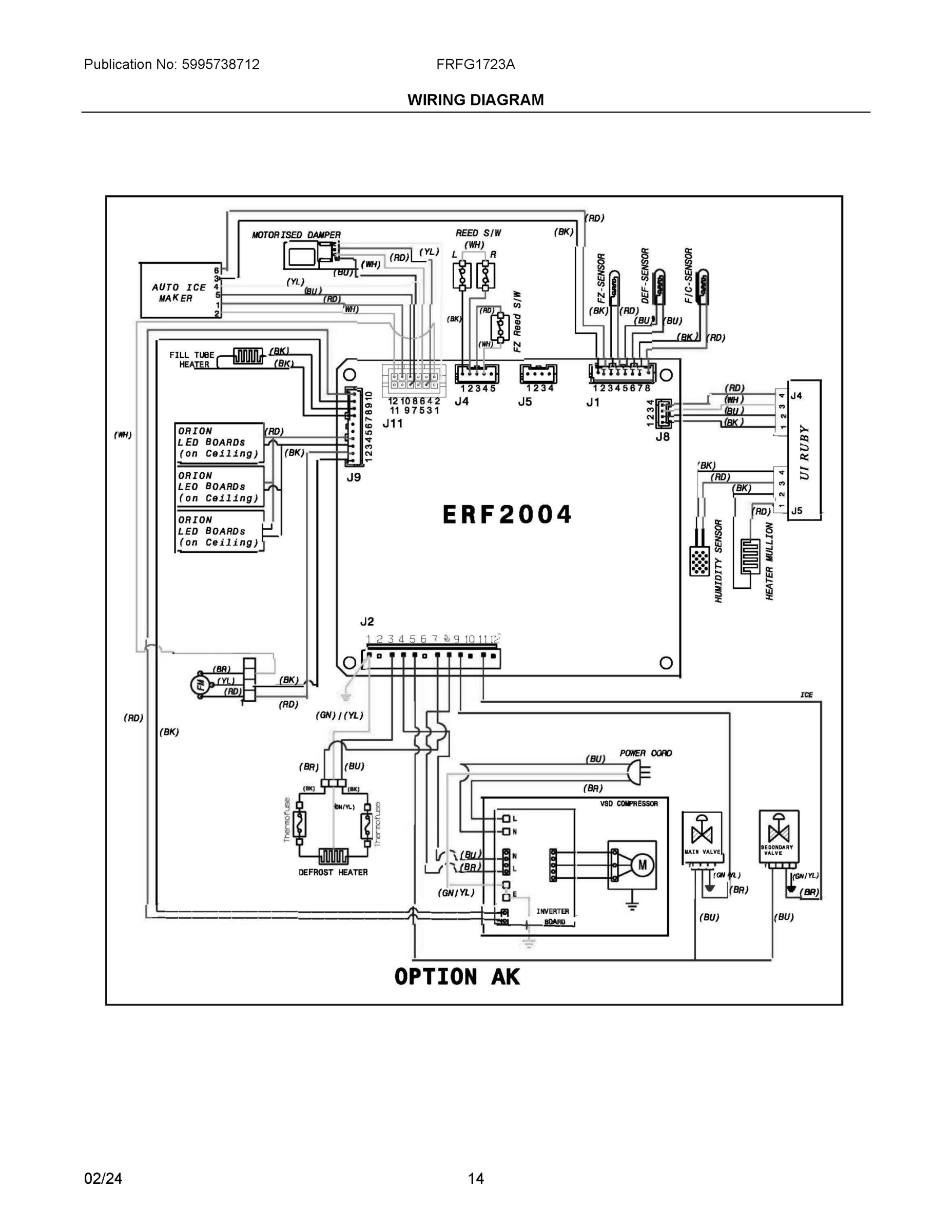

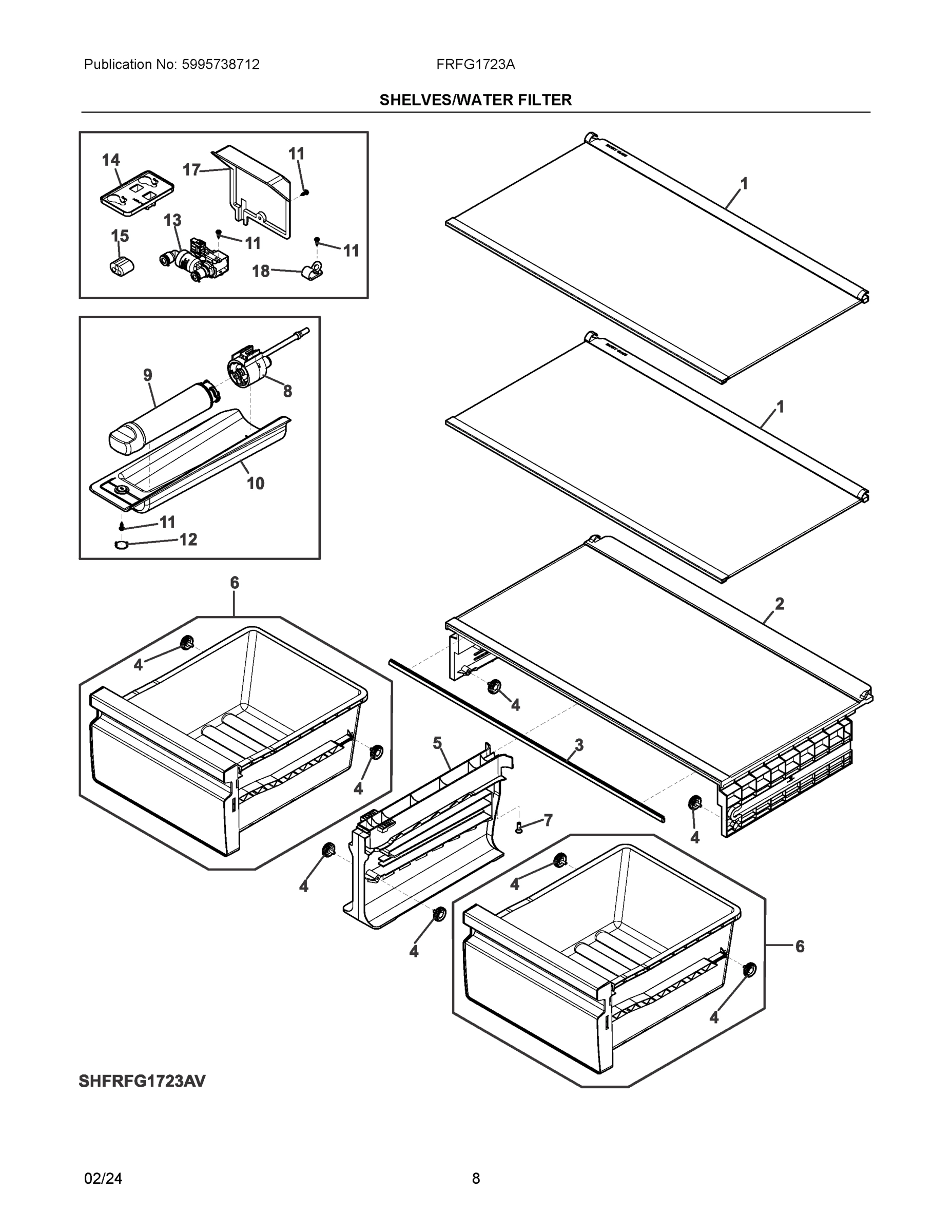

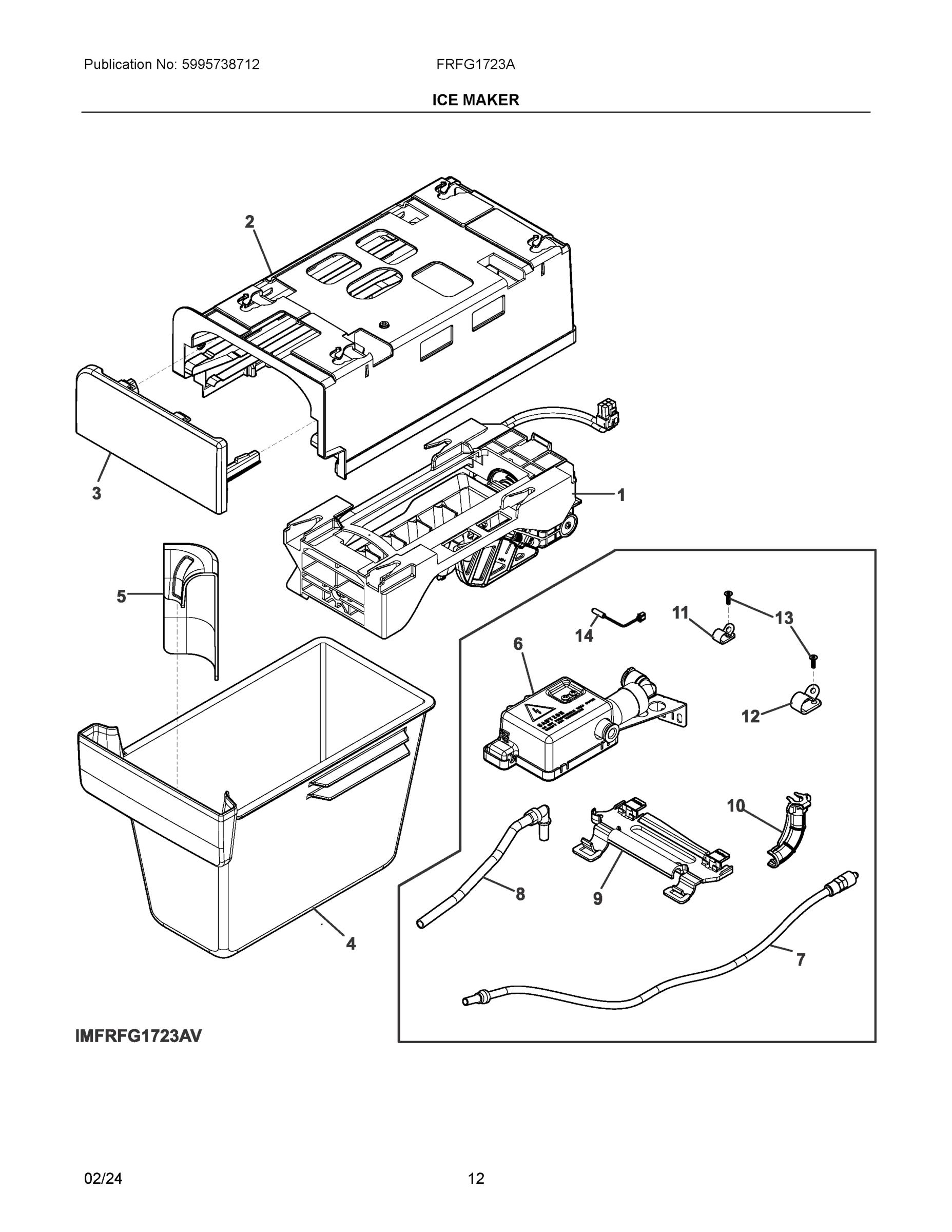

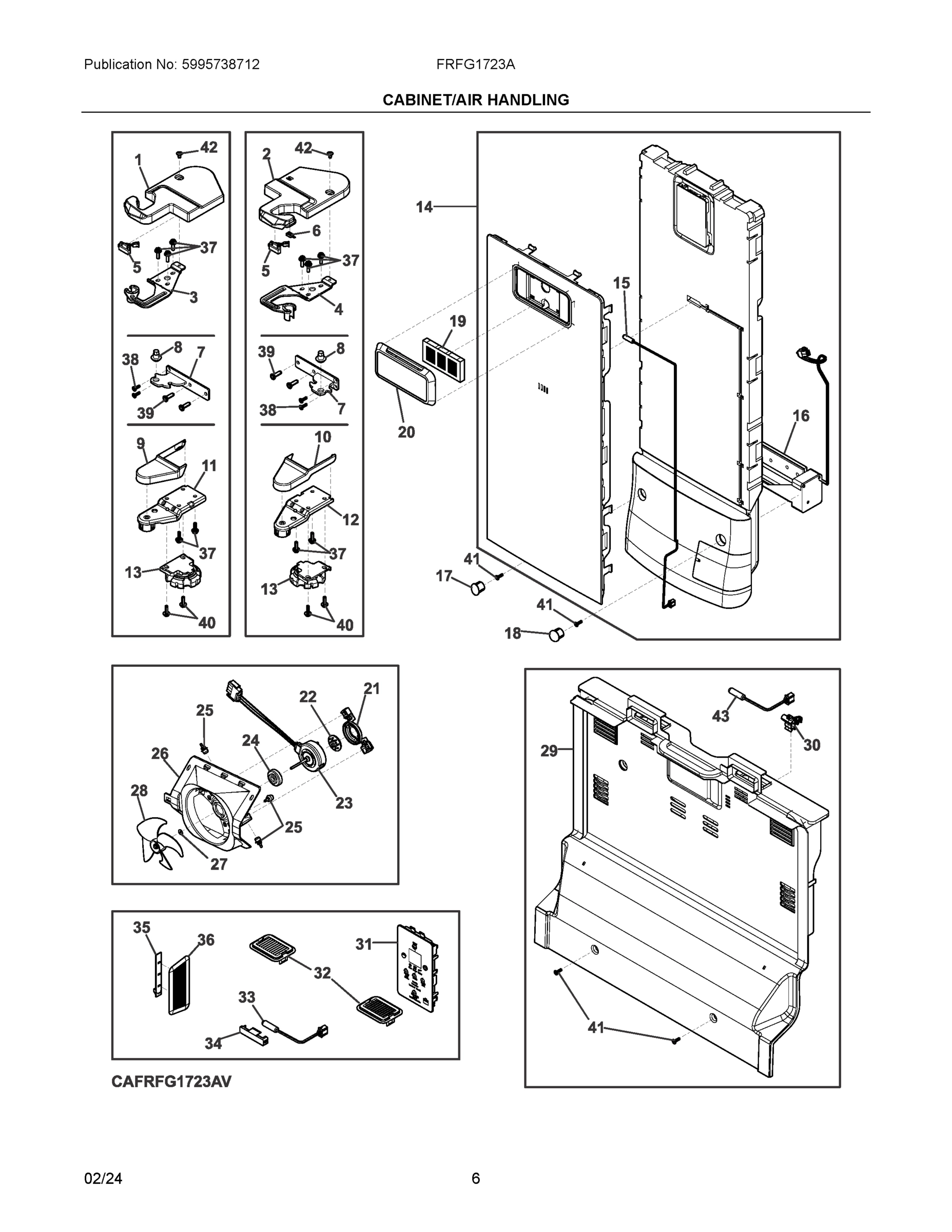

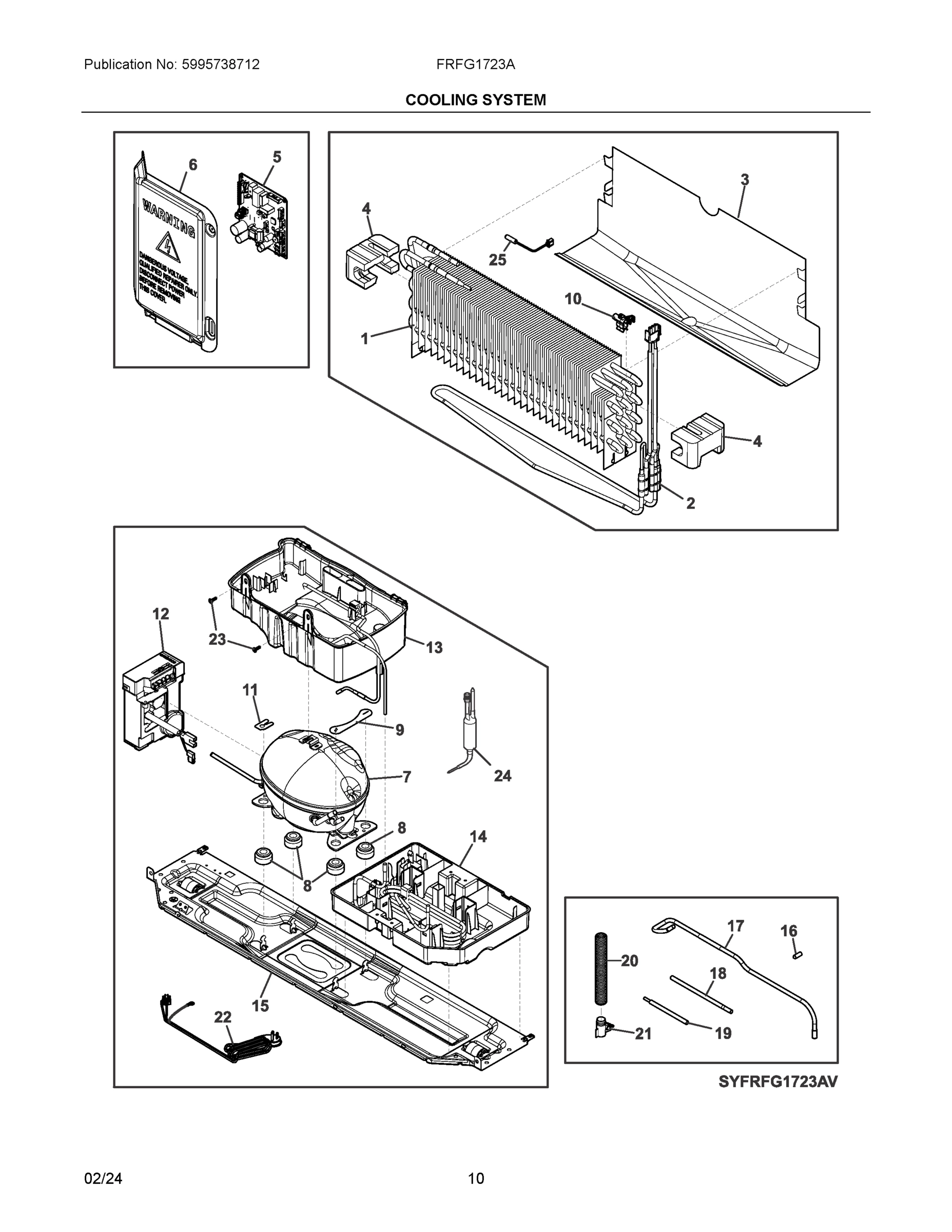

Model Electrolux FRFG1723AV02 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER – Common Parts &amp; Diagrams

1

5304529139 Frigidaire Refrigerator Evaporator Backorder WCI 5304529139 $71.57

1

5304529185 Frigidaire Cover Backorder WCI 5304529185 $8.14

1

5304529188 Frigidaire Refrigerator Shelf Backorder WCI 5304529188 $54.30

1

5304529289 Frigidaire Refrigerator Door Assem Backorder WCI 5304529289 $228.18

2

5304529140 Frigidaire Heater Backorder WCI 5304529140 $86.78

2

COVER Backorder WCI 5304529183 $8.14

2

COVER ASSEMBLY Backorder WCI 5304529189 $116.78

2

5304529286 Frigidaire Bracket Backorder WCI 5304529286 $15.53

2

5304529288 Frigidaire Refrigerator Door Assem Backorder WCI 5304529288 $224.40

3

5304511146 Frigidaire Refrigerator Nameplate In Stock WCI 5304511146 $28.09

3

5304519140 Frigidaire Refrigerator Gasket Backorder WCI 5304519140 $14.57

3

5304529154 Frigidaire Refrigerator Cover Backorder WCI 5304529154 $11.78

3

5304529181 Frigidaire Hinge Backorder WCI 5304529181 $11.76

3

TROUGH, DRAIN, EVAPORATOR WCI 5304529143 Contact Us For Availability

4

5304519124 Frigidaire Roller Assembly Backorder WCI 5304519124 $10.02

4

5304529142 Frigidaire Support Backorder WCI 5304529142 $6.84

4

5304529182 Frigidaire Hinge Assembly Backorder WCI 5304529182 $14.66

4

BEARING Backorder WCI 5304529298 $5.42

4

5304533997 Frigidaire Ice Container In Stock WCI 5304533997 $15.14

5

5304529184 Frigidaire Switch Backorder WCI 5304529184 $12.67

5

5304529200 Frigidaire Scoop Backorder WCI 5304529200 $6.34

5

5304535182 Frigidaire Electrical Control In Stock WCI 5304535182 $135.11

5

BEARING, UPPER, RH DOOR WCI 5304529296 Contact Us For Availability

5

SUPPORT, CRISPER, CENTER WCI 140056574027 Contact Us For Availability

6

SENSOR Backorder WCI 140217317019 $12.80

6

COVER Backorder WCI 5304526830 $4.53

6

5304529129 Frigidaire Refrigerator Housing Backorder WCI 5304529129 $18.58

6

5304529163 Frigidaire Refrigerator Valve Asse Backorder WCI 5304529163 $80.10

6

5304529193 Frigidaire Refrigerator Drawer Ass Backorder WCI 5304529193 $60.03

7

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $11.30

7

5304529146 Frigidaire Refrigerator Compressor In Stock WCI 5304529146 $235.64

7

5304529177 Frigidaire Hinge Assembly Backorder WCI 5304529177 $16.88

7

5304537896 Frigidaire Inlet Water Tube Assemb In Stock WCI 5304537896 $28.62

7

SCREW, PHIL SLOT, 12G X 13MM, TYP B WCI 5304529191 Contact Us For Availability

8

5304529155 Frigidaire Refrigerator Tube Backorder WCI 5304529155 $14.59

8

5304529157 Frigidaire Refrigerator Manifold Backorder WCI 5304529157 $56.29

8

5304529178 Frigidaire Pin Backorder WCI 5304529178 $5.88

8

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $4.97

8

811988531 Frigidaire Refrigerator Gasket Backorder WCI 811988531 $112.47

9

5304524607 Frigidaire Clamp Backorder WCI 5304524607 $1.83

9

CLAMP Backorder WCI 5304534887 $5.05

9

811986812 Frigidaire Rail Backorder WCI 811986812 $9.04

9

Frigidaire EPTWFU01 PureSource Ultra II Refri In Stock WCI EPTWFU01 $55.29

9

COVER, FOOT, LH HINGE WCI 5304529123 Contact Us For Availability

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79

COVER Backorder WCI 5304529125 $5.88

5304529299 Frigidaire Refrigerator Bearing Backorder WCI 5304529299 $5.88

5304533534 Frigidaire Cover Backorder WCI 5304533534 $8.01

811980406 Frigidaire Clamp Backorder WCI 811980406 $2.42

140010465148 Frigidaire Bearing Backorder WCI 140010465148 $3.64

240396803 Frigidaire Clamp Backorder WCI 240396803 $4.51

CLAMP Backorder WCI 5304519152 $5.45

5304529126 Frigidaire Refrigerator Foot Assem Backorder WCI 5304529126 $19.93

FOOT-CABINET Backorder WCI 140208834105 $15.53

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

5304529147 Frigidaire Refrigerator Inverter A Backorder WCI 5304529147 $238.31

COVER, SCREW, WATER FILTER WCI 5304529187 Contact Us For Availability

5304529124 Frigidaire Refrigerator Roller Foo Backorder WCI 5304529124 $16.75

5304529158 Frigidaire Refrigerator Valve Backorder WCI 5304529158 $81.45

5304529180 Frigidaire Refrigerator Mullion As In Stock WCI 5304529180 $77.06

5304536578 Frigidaire Drain Pan Backorder WCI 5304536578 $8.39

811949503 Frigidaire Screw Backorder WCI 811949503 $1.78

5304519080 Frigidaire Refrigerator Hinge Backorder WCI 5304519080 $6.80

5304529130 Frigidaire Refrigerator Air Tower Backorder WCI 5304529130 $86.40

5304529149 Frigidaire Refrigerator Drain Pan Backorder WCI 5304529149 $33.50

BRACKET, MANIFOLD WCI 5304529156 Contact Us For Availability

5304529132 Frigidaire Refrigerator Harness In Stock WCI 5304529132 $13.00

5304529198 Frigidaire Refrigerator Bin Backorder WCI 5304529198 $46.87

BASE ASSEMBLY Backorder WCI 807822704 $41.84

GROMMET, REAR TUBE WCI 5304529159 Contact Us For Availability

16

5304519063 Frigidaire Refrigerator Screw In Stock WCI 5304519063 $6.86

16

5304529131 Frigidaire Refrigerator Damper Ass Backorder WCI 5304529131 $45.10

16

CAP, TUBING WCI 5304529162 Contact Us For Availability

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

5304529148 Frigidaire Tube Backorder WCI 5304529148 $16.75

COVER Backorder WCI 5304529161 $19.93

COVER, SCREW, LH, AIR TOWER WCI 5304529134 Contact Us For Availability

18

COVER Backorder WCI 5304529135 $4.51

18

5304529199 Frigidaire Refrigerator Bin Backorder WCI 5304529199 $60.94

18

TUBE, PROCESS WCI 808293601 Contact Us For Availability

19

5304523065 Frigidaire Refrigerator Tubing Backorder WCI 5304523065 $9.58

19

5304529485 Frigidaire Refrigerator Handle Backorder WCI 5304529485 $170.92

19

PAULTRA2 Frigidaire Pure Air Ultra 2 Filter In Stock WCI PAULTRA2 $16.94

5304519171 Frigidaire Refrigerator Cover Backorder WCI 5304519171 $11.30

5304529151 Frigidaire Refrigerator Tube Backorder WCI 5304529151 $5.42

5304529166 Frigidaire Screw Backorder WCI 5304529166 $3.64

5304529197 Frigidaire Refrigerator Bin In Stock WCI 5304529197 $66.04

21

5304519177 Frigidaire Refrigerator Clip Backorder WCI 5304519177 $4.99

21

5304529168 Frigidaire Screw Backorder WCI 5304529168 $5.44

21

811976001 Frigidaire Assembly-Valve Backorder WCI 811976001 $5.42

22

5304519178 Frigidaire Refrigerator Grommet Backorder WCI 5304519178 $4.51

22

CORD Backorder WCI 5304529152 $28.96

22

5304535762 Frigidaire Bracket Assembly In Stock WCI 5304535762 $19.21

23

5304534927 Frigidaire Bracket Backorder WCI 5304534927 $19.78

23

809069207 Frigidaire Refrigerator Motor In Stock WCI 809069207 $88.88

23

SCREW, 4, 8X16 PH WCI 519092015 Contact Us For Availability

24

BRACKET Backorder WCI 140013815018 $7.93

24

5304529138 Frigidaire Grommet Backorder WCI 5304529138 $5.44

24

A19676501 Frigidaire Refrigerator Filter Drie In Stock WCI A19676501 $57.72

25

140013815067 Frigidaire Bracket Backorder WCI 140013815067 $7.29

25

GROMMET Backorder WCI 811972801 $4.53

26

140019597032 Frigidaire Support Backorder WCI 140019597032 $11.08

26

811975001 Frigidaire Refrigerator Shroud Backorder WCI 811975001 $9.13

27

140021544030 Frigidaire Support Backorder WCI 140021544030 $8.02

27

WASHER Backorder WCI 5304519176 $1.79

28

BLADE, EVAPORATOR FAN WCI 811699604 No Longer Available

29

5304529145 Frigidaire Refrigerator Cover Asse Backorder WCI 5304529145 $51.52

31

A04066814 Frigidaire User Interface, Asmy, Co Backorder WCI A04066814 $99.36

32

COVER, GRID, AIR RETURN WCI 5304529136 Contact Us For Availability

33

242515406 Frigidaire Refrigerator Sensor Backorder WCI 242515406 $51.56

34

COVER Backorder WCI 807917002 $5.44

35

5304523011 Frigidaire Refrigerator Light Boar Backorder WCI 5304523011 $22.91

36

LENS Backorder WCI 5304519099 $7.23

38

5304523029 Frigidaire Screw Assembly Backorder WCI 5304523029 $3.18

39

807826801 Frigidaire Screw Backorder WCI 807826801 $4.07

40

811949401 Frigidaire Refrigerator Screw In Stock WCI 811949401 $3.14

41

SCREW, TAPPING PH, M4 WCI 5304529133 Contact Us For Availability

43

5304520944 Frigidaire Refrigerator Sensor In Stock WCI 5304520944 $12.37

5304519089 Frigidaire Refrigerator Screw Backorder WCI 5304519089 $3.59

5304524004 Frigidaire Refrigerator Cover Backorder WCI 5304524004 $3.18

SCREW, PF AB PFZ PF, 3.5X1.27X19 WCI 808337901 Contact Us For Availability

CABLE TIE WCI 811908801 Contact Us For Availability

SCREW Backorder WCI 5304519066 $1.79

5304519084 Frigidaire Screw Assembly Backorder WCI 5304519084 $1.79

5304519110 Frigidaire Screw Backorder WCI 5304519110 $1.79

5304520470 Frigidaire Refrigerator Seal Backorder WCI 5304520470 $8.63

5304523032 Frigidaire Refrigerator Screw Backorder WCI 5304523032 $3.18

SCREW Backorder WCI 5304529153 $1.79

SEAL Backorder WCI 5304529160 $6.34

808199001 Frigidaire Screw Backorder WCI 808199001 $4.53

SEAL, CONNECTOR, 3 PIN WCI 5304529141 Contact Us For Availability
