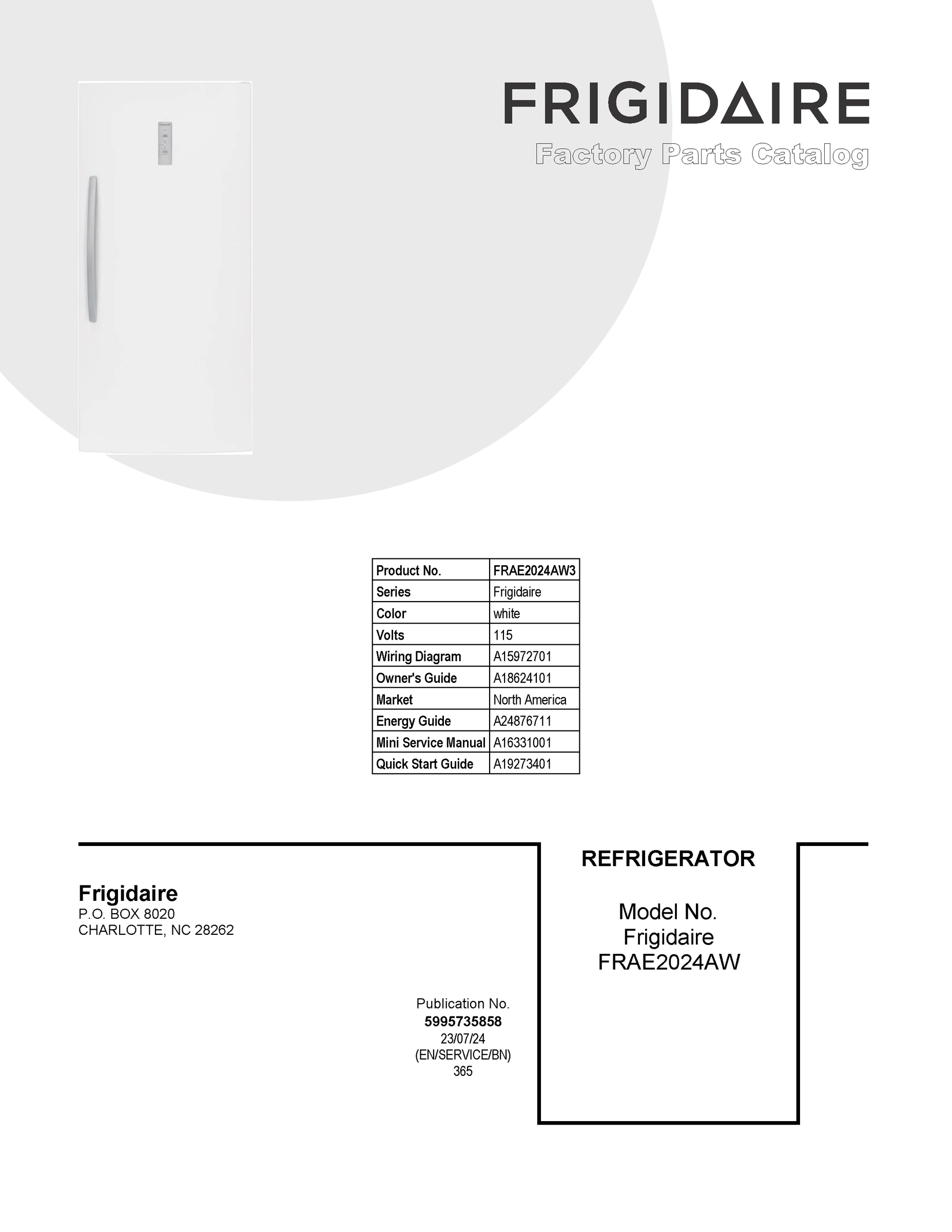

Model Electrolux FRAE2024AW3 REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET

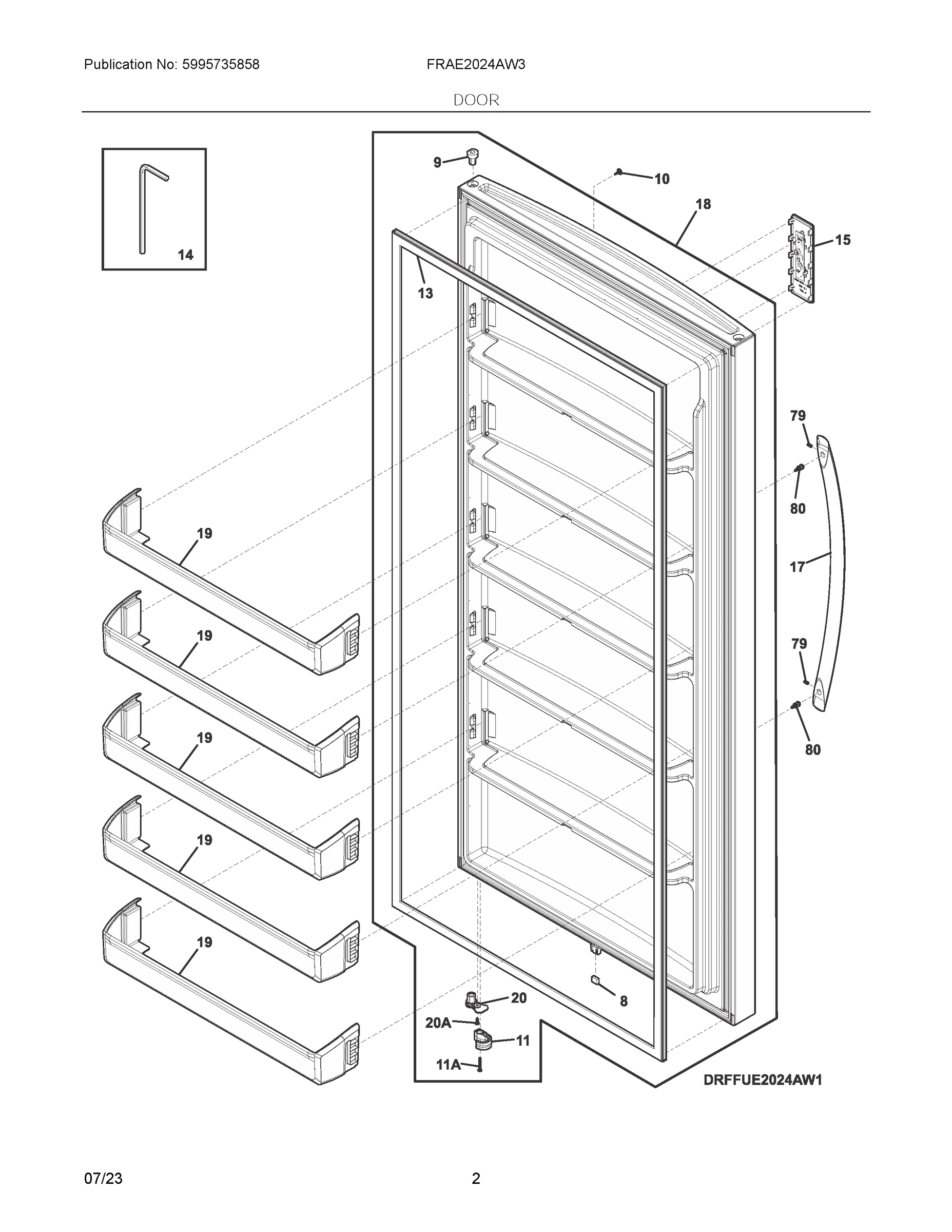

02 - DOOR
03 - CABINET
04 - SYSTEM
Common parts from model Electrolux FRAE2024AW3 REFRIGERATOR, ALL
1
COVER, HOUSING, REED SWITCH WCI 5304523792 Contact Us For Availability
5
HARNESS, WIRING, MACHINE COMPT. WCI 5304524022 Contact Us For Availability
8
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
9
BEARING, HINGE, WHITE WCI 5304519757 Contact Us For Availability
9
COVER, HINGE, WHITE, LOWER, NON HINGED WCI 5304519777 Contact Us For Availability
10
FILTER, DRIER, SERVICE WCI A19676501 Contact Us For Availability
11
HOOK, DOOR CLOSER, WHITE WCI 5304519789 Contact Us For Availability
11A
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
13
GASKET, DOOR, GRAY WCI 5304524887 Contact Us For Availability
13
COVER, ELECTRICALS, 19, COMPRESSOR WCI 5304522303 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
15
HEATER, DEFROST WCI 5304523833 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
17
CONTROLLER, COMPRESSOR PTC WCI 5304522267 Contact Us For Availability
18
CLAMP, COMPRESSOR WCI 5304524607 Contact Us For Availability
19
TUBE, DRAIN, EXTENSION WCI 5304525042 Contact Us For Availability
19
MOUNT, SOCKET WCI 5304523777 Contact Us For Availability
20
BEARING, DOOR, LOWER WCI 5304523784 Contact Us For Availability
20
TROUGH, DRAIN WCI 5304523720 Contact Us For Availability
21
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS WCI 5304523788 Contact Us For Availability
22
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS WCI 5304523693 Contact Us For Availability
23
HINGE, UPPER WCI 5304523689 Contact Us For Availability
26
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT WCI 5304523747 Contact Us For Availability
29
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM WCI 5304532166 Contact Us For Availability
30
COMPRESSOR, ASSEMBLY, TH1114HY, 29 #, W/GROMM WCI 5304519758 Contact Us For Availability
30A
GROMMET, COMPRESSOR WCI 811978901 Contact Us For Availability
31
PAN, DRAIN WCI 5304523709 Contact Us For Availability
31A
SEAL, DRAIN PAN, FOAM WCI 5304523724 Contact Us For Availability
37
RING-LOK (JUMPER IN), 37 # WCI 5304534991 Contact Us For Availability
38
LOCKRING, DRIER WCI L13000629 Contact Us For Availability
39
LOCK RING, EVAPORATOR, TO SUCTION WCI L13005654 Contact Us For Availability
40
LOCKRING, DRIER WCI L13000625 Contact Us For Availability
45
REED SWITCH HARNESS, ASSEMBLY WCI 5304527992 Contact Us For Availability
50
MAIN BOARD, ASSEMBLY, W/HOUSING WCI 5304524126 Contact Us For Availability
50A
SCREW, HEX WASH HD, M4.2 X 16 WCI 5304523738 Contact Us For Availability
51
DRAIN JUMPER, ASSEMBLY, W/SEAL WCI 5304530111 Contact Us For Availability
53
COVER, DRAIN JUMPER WCI 5304525744 Contact Us For Availability
55
CAPACITOR, 24 # WCI 5304530011 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HX WASH HD, M4.2 X 12 WCI 5304519765 Contact Us For Availability
NI
SCREW, HEX HD, #8-18 X 5/8 WCI 241500305 Contact Us For Availability
NI
CLIP, PLASTIC, W/ADHESIVE WCI 30534600 Contact Us For Availability
NIA
BUTTON, PLUG, WHITE WCI 240494001 Contact Us For Availability
NIA
SCREW, HEX HEAD, #8-18X5/8 WCI 241853202 Contact Us For Availability
× ![]()
