Model Electrolux FPZ24VWFA0 REFRIGERATOR – Common Parts & Diagrams

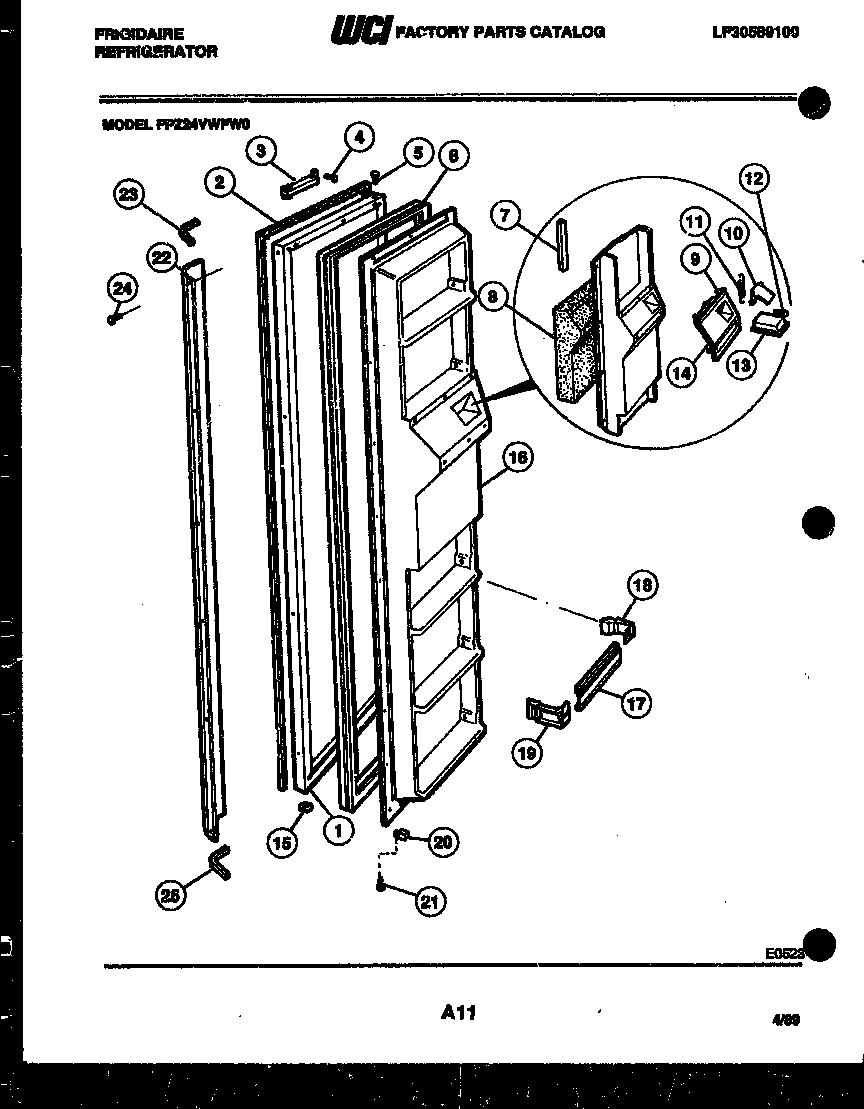

02 - FREEZER DOOR PARTS

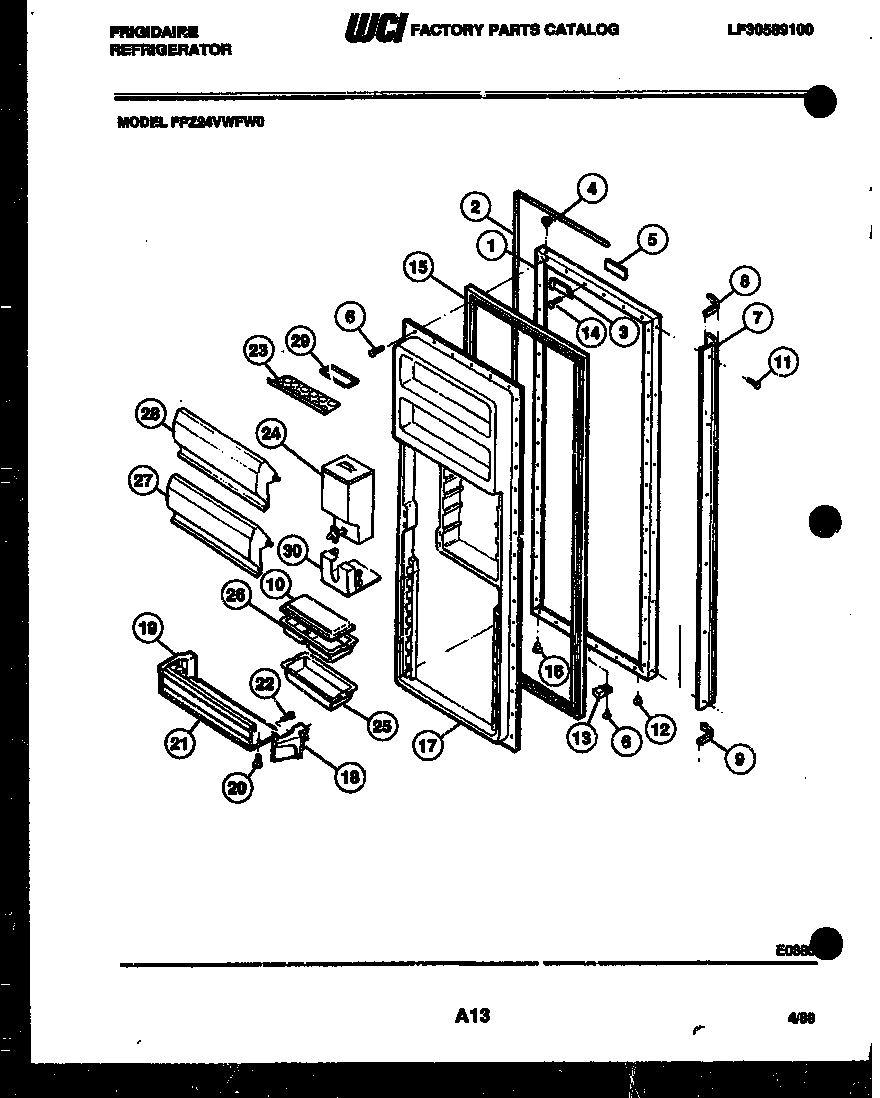

03 - REFRIGERATOR DOOR PARTS

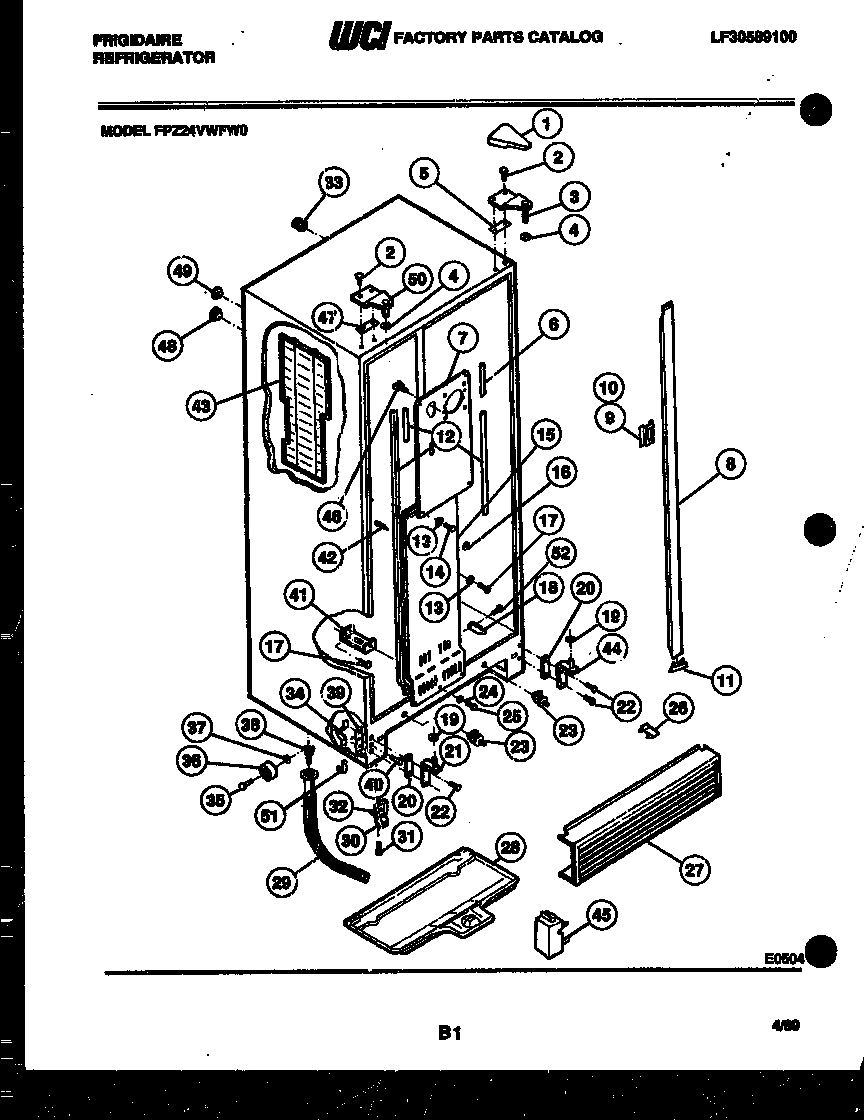

04 - CABINET PARTS

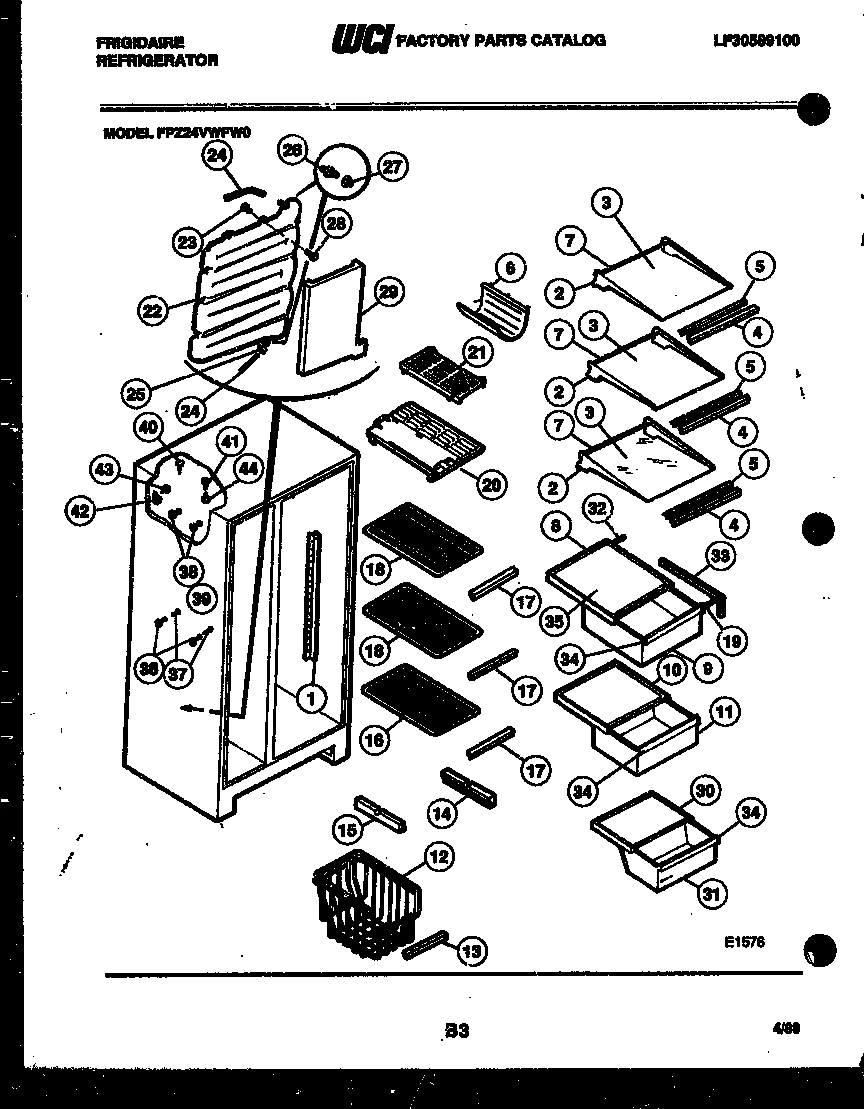

05 - SHELVES AND SUPPORTS

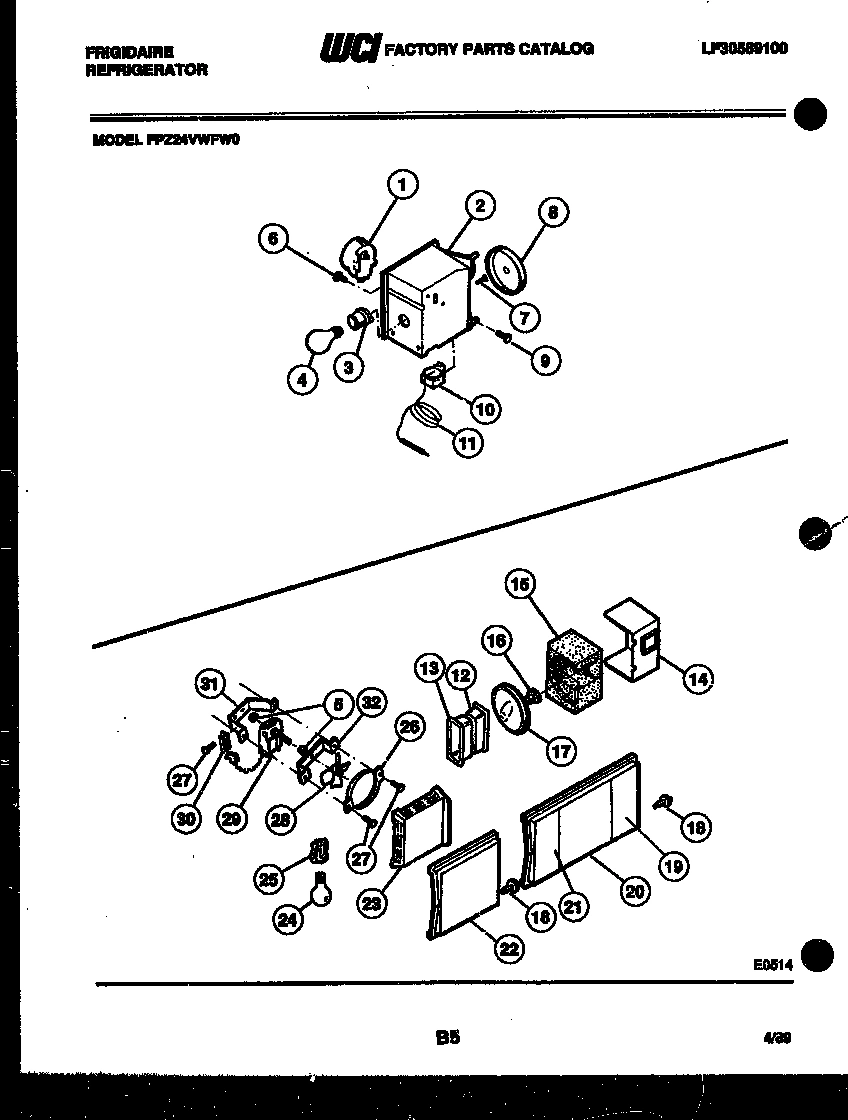

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

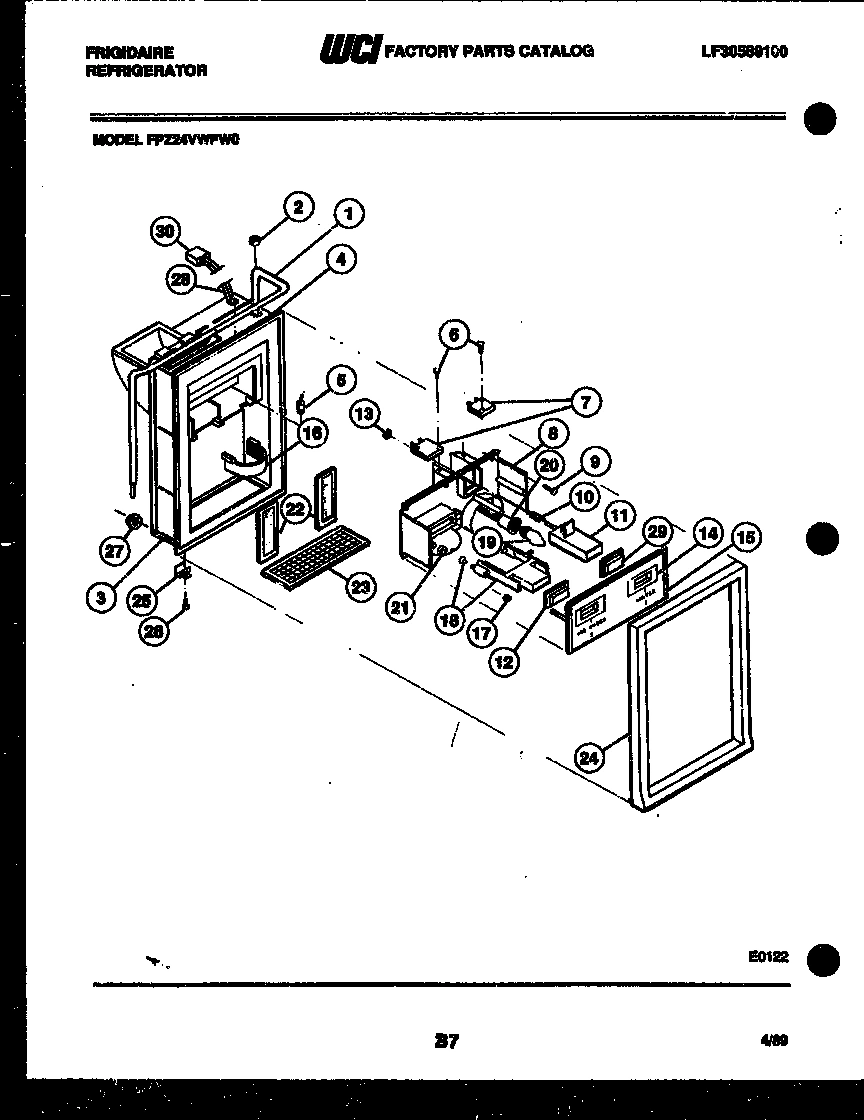

07 - ICE DOOR, DISPENSER AND WATER TANKS

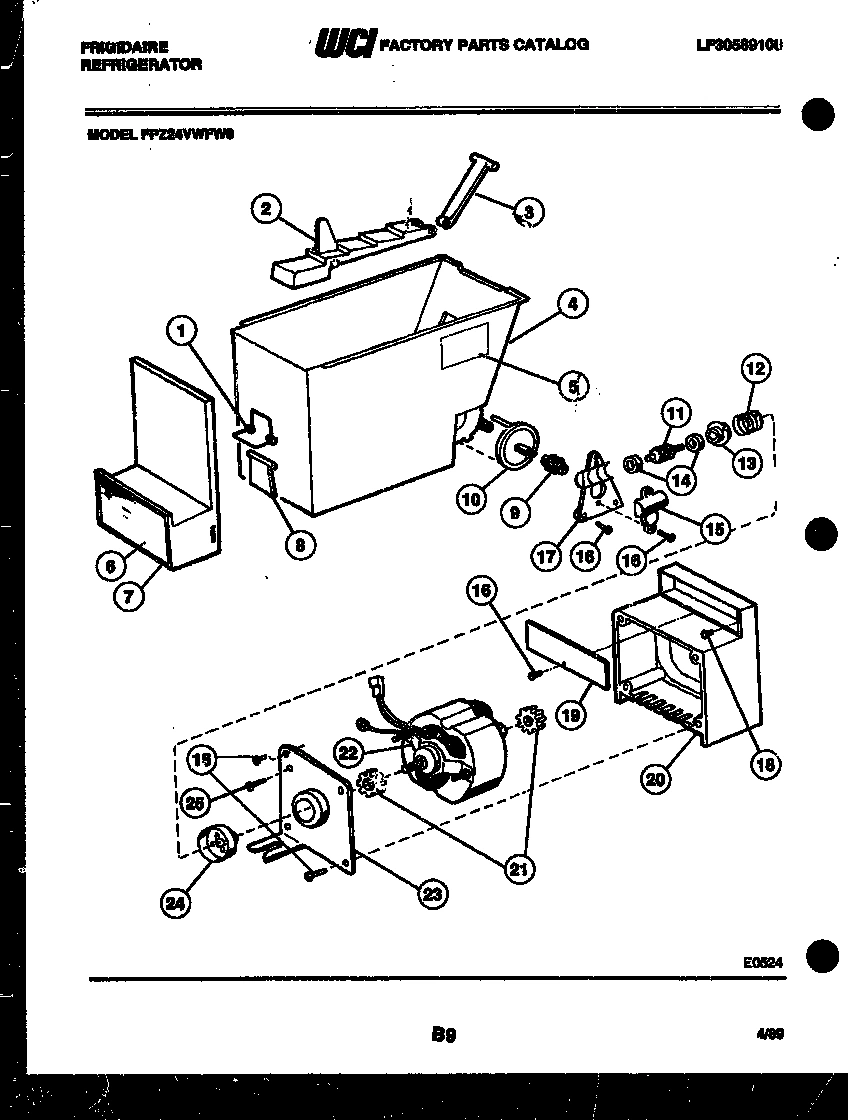

08 - ICE DISPENSER

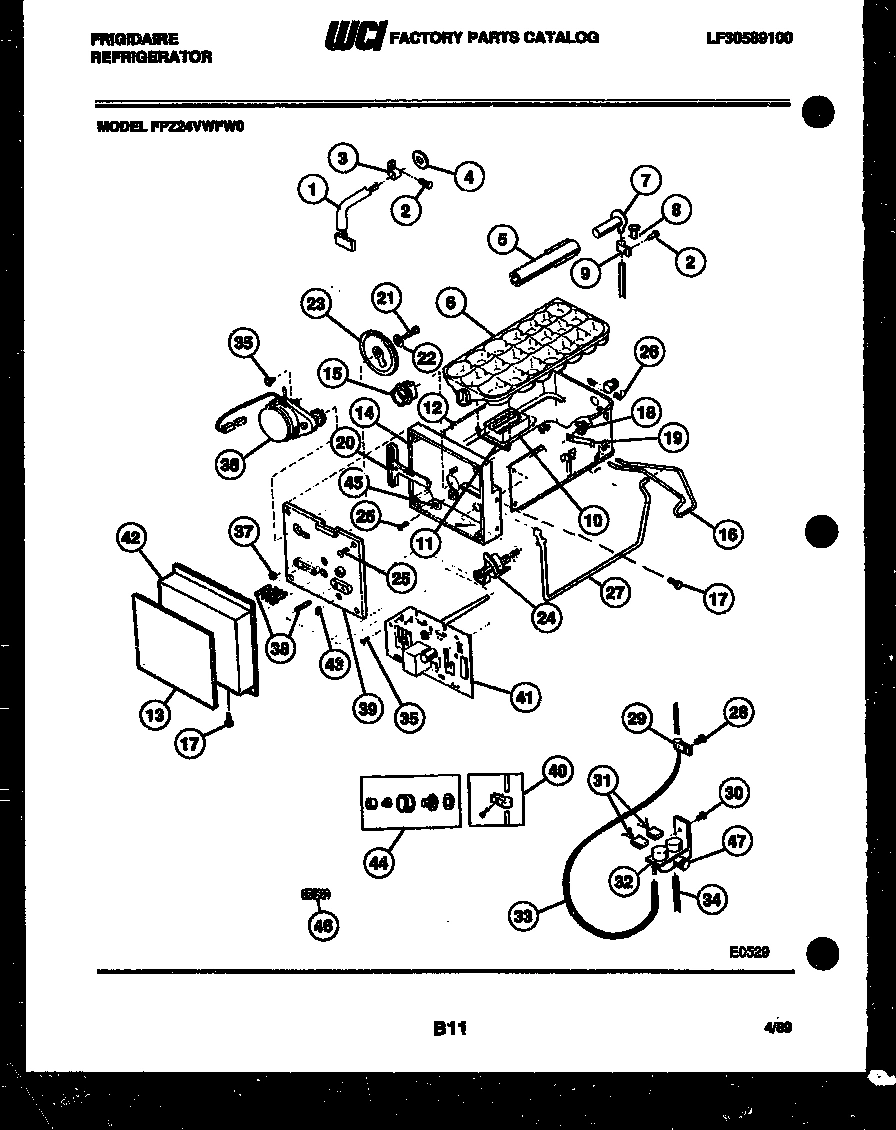

09 - ICE MAKER AND INSTALLATION PARTS

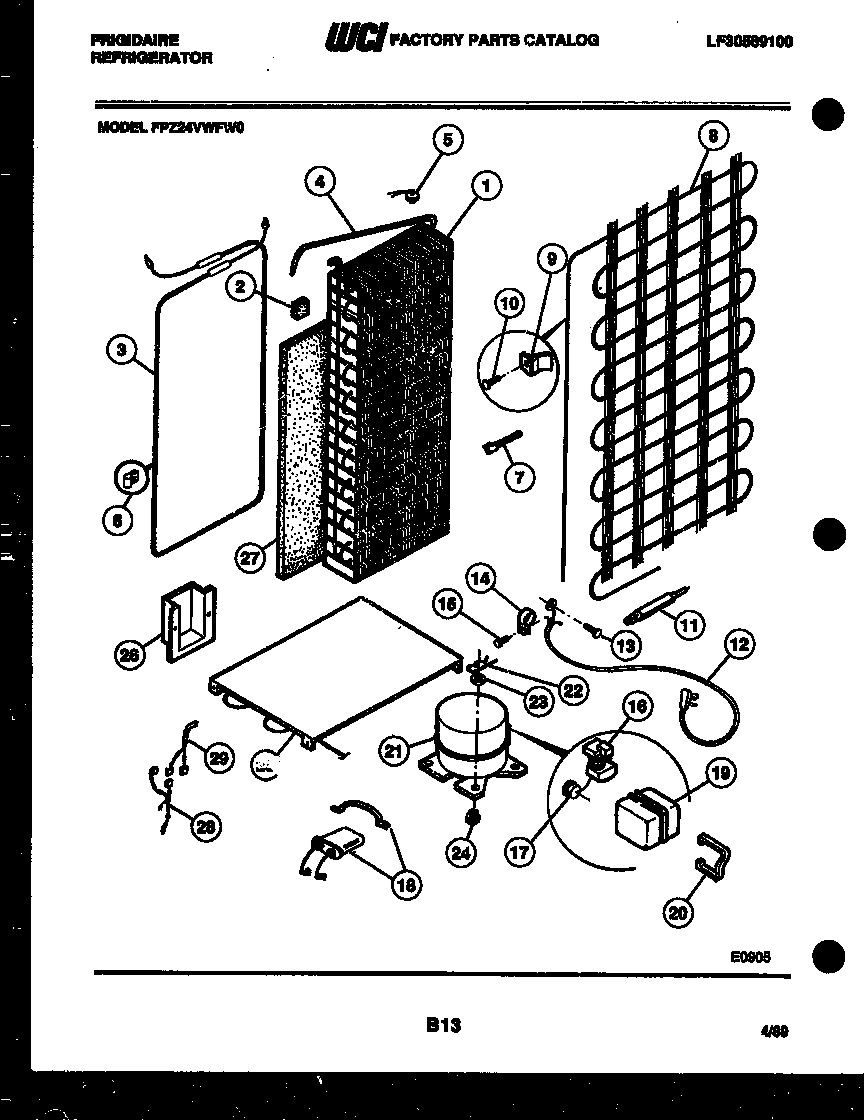

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPZ24VWFA0 REFRIGERATOR
*38914
INSULATION-BULK WCI 3007739 Contact Us For Availability
*38915
WCI 3200675 WCI 3200675 Contact Us For Availability
*38948
WCI 3203044 WCI 3203044 Contact Us For Availability
*38976
CONTROL-HUMIDITY WCI 3200580 Contact Us For Availability
*38977
DIVIDER-ICEMAKER WCI 3001149 Contact Us For Availability
*39006
WCI 08014569 WCI 08014569 Contact Us For Availability
*39019
BARREL SUPT (STOP FOR ICE BUCKET) WCI 08002732 Contact Us For Availability
*39047
WCI 00618683 WCI 00618683 Contact Us For Availability
*39047
WCI 01123459 WCI 01123459 Contact Us For Availability
*39048
WCI 01124226 WCI 01124226 Contact Us For Availability
*39048
WCI 3001139 WCI 3001139 Contact Us For Availability
*39049
WCI 08010819 WCI 08010819 Contact Us For Availability
*39049
GUIDE-IM SCREW WCI 3001150 Contact Us For Availability
*39050
WASHER-NYLON-IM SCREW WCI 3001216 Contact Us For Availability
*39066
WCI 09960005 WCI 09960005 Contact Us For Availability
1
WCI 08017634 WCI 08017634 Contact Us For Availability
1
PANEL-REFR, AVOC WCI 08009951 Contact Us For Availability
1
COVER-TOP HINGE, AVOC (2) WCI 08012930 Contact Us For Availability
1
WCI 08002744 WCI 08002744 Contact Us For Availability
1
TUBE-WATER INLET AND PILOT ASSEMBLY WCI 08017048 Contact Us For Availability
1
WCI 01123539 WCI 01123539 Contact Us For Availability
1
WCI 08010376 WCI 08010376 Contact Us For Availability
1
WCI 3017362 WCI 3017362 Contact Us For Availability
2
TRIM-FREEZER DOOR WCI 3200715 Contact Us For Availability
2
WCI 3200671 WCI 3200671 Contact Us For Availability
2
WCI 3200758 WCI 3200758 Contact Us For Availability
2
WCI 08017561 WCI 08017561 Contact Us For Availability
2
WCI 02832218 WCI 02832218 Contact Us For Availability
2
WCI 3017841 WCI 3017841 Contact Us For Availability
2
WCI 08000828 WCI 08000828 Contact Us For Availability
2A
RAIL-GLASS SUPT (6) (NON-ILLUSTRATED) WCI 3204640 Contact Us For Availability
2A
INSUL-CNTRL BOX-REAR (NON-ILLUSTRATED) WCI 08009620 Contact Us For Availability
3
CLOSER-DOOR WCI 3200272 Contact Us For Availability
3
HINGE-UPPER RH WCI 08012934 Contact Us For Availability
3
WCI 3200759 WCI 3200759 Contact Us For Availability
3
SOCKET-LIGHT WCI 08000129 Contact Us For Availability
3
WCI 08015588 WCI 08015588 Contact Us For Availability
3
WCI 02832313 WCI 02832313 Contact Us For Availability
3
WCI 08017562 WCI 08017562 Contact Us For Availability
4
BEARING-HINGE WCI 08012008 Contact Us For Availability
4
WASHER-NYLON (2) WCI 08000186 Contact Us For Availability
4
TRIM-SHELF, FRONT (3) WCI 3200685 Contact Us For Availability
4
WCI 08017053 WCI 08017053 Contact Us For Availability
4
WCI 02832311 WCI 02832311 Contact Us For Availability
4
WCI 08017565 WCI 08017565 Contact Us For Availability
5
NAMEPLATE ASSY WCI 3201581 Contact Us For Availability
5
RETAINER-GLASS (3) WCI 3200683 Contact Us For Availability
5
WCI 08010326 WCI 08010326 Contact Us For Availability
5
LABEL-ICE DISP WCI 3016895 Contact Us For Availability
5
WCI 08015765 WCI 08015765 Contact Us For Availability
6
GASKET-FREEZER DR WCI 3200717 Contact Us For Availability
6
WCI 08000785 WCI 08000785 Contact Us For Availability
6
WCI 3200682 WCI 3200682 Contact Us For Availability
6
WCI 01123574 WCI 01123574 Contact Us For Availability
6
WCI 08015781 WCI 08015781 Contact Us For Availability
6
ICE TRAY WCI 3001142 Contact Us For Availability
6
WCI 08002777 WCI 08002777 Contact Us For Availability
7
WCI 08010301 WCI 08010301 Contact Us For Availability
7
HANDLE ASSY-REFR. DOOR-W/ TRIM (INCLUDES ITEM WCI 3201857 Contact Us For Availability
7
WCI 08010371 WCI 08010371 Contact Us For Availability
7
WCI 08010240 WCI 08010240 Contact Us For Availability
7
WCI 08000009 WCI 08000009 Contact Us For Availability
7
WCI 08014530 WCI 08014530 Contact Us For Availability
7
WCI 02832310 WCI 02832310 Contact Us For Availability
8
WCI 08017045 WCI 08017045 Contact Us For Availability
8
END CAP-TOP WCI 08010239 Contact Us For Availability
8
WCI 08000773 WCI 08000773 Contact Us For Availability
8
FRAME-CVR-CRISPER-UPR WCI 3200662 Contact Us For Availability
8
KNOB-COLD CONTROL WCI 08010380 Contact Us For Availability
8
WCI 08015612 WCI 08015612 Contact Us For Availability
8
WCI 02832458 WCI 02832458 Contact Us For Availability
8
WCI 08010335 WCI 08010335 Contact Us For Availability
8
WCI 08017119 WCI 08017119 Contact Us For Availability
8A
CLIP-CVR RETAINER-RS (NON-ILLUSTRATED) WCI 08008250 Contact Us For Availability
8B
CLIP-CVR RETAINER-LS (NON-ILLUSTRATED) WCI 08008251 Contact Us For Availability
8C
TRIM (NON-ILLUSTRATED) WCI 3204600 Contact Us For Availability
9
WCI 08010660 WCI 08010660 Contact Us For Availability
9
END CAP-BOTTOM WCI 08010238 Contact Us For Availability
9
WCI 08000820 WCI 08000820 Contact Us For Availability
9
PAN-CRISPER, UPPER WCI 3200690 Contact Us For Availability
9
WCI 08015610 WCI 08015610 Contact Us For Availability
9
WCI 01123566 WCI 01123566 Contact Us For Availability
9
WCI 08000296 WCI 08000296 Contact Us For Availability
10
WCI 08010295 WCI 08010295 Contact Us For Availability
10
LID-MICRO DISH (3) WCI 3200414 Contact Us For Availability
10
WCI 08000821 WCI 08000821 Contact Us For Availability
10
COVER-CRISPER, MIDDLE WCI 3200632 Contact Us For Availability
10
CONTROL-COLD WCI 08017445 Contact Us For Availability
10
WCI 02832212 WCI 02832212 Contact Us For Availability
10
WCI 01123568 WCI 01123568 Contact Us For Availability
10
WCI 01138378 WCI 01138378 Contact Us For Availability
10A
GASKET (NON-ILLUSTRATED) WCI G180108-03 Contact Us For Availability
11
WCI 08010300 WCI 08010300 Contact Us For Availability
11
SCREW (6) WCI 08013645 Contact Us For Availability
11
WCI 08000841 WCI 08000841 Contact Us For Availability
11
PAN-CRISPER, MIDDLE WCI 3200687 Contact Us For Availability
11
WCI 08010320 WCI 08010320 Contact Us For Availability
11
WCI 01124161 WCI 01124161 Contact Us For Availability
11
WCI 01138379 WCI 01138379 Contact Us For Availability
12
PLUG BUTTON WCI 08002751 Contact Us For Availability
12
GASKET (3) WCI 08950175 Contact Us For Availability
12
WCI 08001015 WCI 08001015 Contact Us For Availability
12
WCI 08000811 WCI 08000811 Contact Us For Availability
12
BUTTON-ACTUATOR ICE WCI 08012816 Contact Us For Availability
12
WCI 01123767 WCI 01123767 Contact Us For Availability
12
WCI 01138166 WCI 01138166 Contact Us For Availability
12
WCI 08000064 WCI 08000064 Contact Us For Availability
13
WCI 08010659 WCI 08010659 Contact Us For Availability
13
WCI 08000790 WCI 08000790 Contact Us For Availability
13
WASHER-NYLON (7) WCI 08009650 Contact Us For Availability
13
WCI 3200729 WCI 3200729 Contact Us For Availability
13
WCI 08000810 WCI 08000810 Contact Us For Availability
13
WCI 02832214 WCI 02832214 Contact Us For Availability
13
WCI 08017407 WCI 08017407 Contact Us For Availability
13
WCI 08010354 WCI 08010354 Contact Us For Availability
13A
WCI 02832234 WCI 02832234 Contact Us For Availability
13A
GASKET-FERRULE (2) (NON-ILLUSTRATED) WCI 08009630 Contact Us For Availability
14
COVER-DR PNL TRIM WCI 08010304 Contact Us For Availability
14
HANGER-BASKET RH WCI 08000818 Contact Us For Availability
14
WCI 08000770 WCI 08000770 Contact Us For Availability
14
WCI 08015599 WCI 08015599 Contact Us For Availability
14
WCI 01123508 WCI 01123508 Contact Us For Availability
14
WCI 01124971 WCI 01124971 Contact Us For Availability
15
BUSHING-LWR HINGE WCI 08010308 Contact Us For Availability
15
GASKET-REFR WCI 3200273 Contact Us For Availability
15
WCI 08017223 WCI 08017223 Contact Us For Availability
15
HANGER-BASKET LH WCI 08000819 Contact Us For Availability
15
WCI 08000771 WCI 08000771 Contact Us For Availability
15
WCI 08015587 WCI 08015587 Contact Us For Availability
15
WCI 01123570 WCI 01123570 Contact Us For Availability
15
WCI 01124972 WCI 01124972 Contact Us For Availability
16
WCI 3200762 WCI 3200762 Contact Us For Availability
16
WCI 08012007 WCI 08012007 Contact Us For Availability
16
WCI 08002734 WCI 08002734 Contact Us For Availability
16
WCI 08001031 WCI 08001031 Contact Us For Availability
16
WCI 08013429 WCI 08013429 Contact Us For Availability
16
WCI 08010327 WCI 08010327 Contact Us For Availability
16
WCI 01138222 WCI 01138222 Contact Us For Availability
16
WCI 08017226 WCI 08017226 Contact Us For Availability
16A
RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED) WCI 3001125 Contact Us For Availability
17
SCREW (5) WCI 08000839 Contact Us For Availability
17
WCI 3200763 WCI 3200763 Contact Us For Availability
17
WCI 3200672 WCI 3200672 Contact Us For Availability
17
TRIM-FREEZER SHELF (3) WCI 3200728 Contact Us For Availability
17
WCI 08010379 WCI 08010379 Contact Us For Availability
17
WCI 02832213 WCI 02832213 Contact Us For Availability
17
WCI 01123569 WCI 01123569 Contact Us For Availability
17
WCI 08017526 WCI 08017526 Contact Us For Availability
18
SUPPORT-RS (5) WCI 3200543 Contact Us For Availability
18
WCI 3018742 WCI 3018742 Contact Us For Availability
18
WCI 08000779 WCI 08000779 Contact Us For Availability
18
SHELF-FREEZER (2) WCI 08001032 Contact Us For Availability
18
ICE ACTUATOR ASSY WCI 3001075 Contact Us For Availability
18
WCI 01121693 WCI 01121693 Contact Us For Availability
18
WCI 3001650 WCI 3001650 Contact Us For Availability
18A
WCI 01121694 WCI 01121694 Contact Us For Availability
18A
STRAP-CAPACITOR WCI 08017231 Contact Us For Availability
19
WCI 5304506475 No Longer Available
19
SUPPORT-LS (5) WCI 3200542 Contact Us For Availability
19
WCI 3018741 WCI 3018741 Contact Us For Availability
19
WASHER-NYLON WCI 08000100 Contact Us For Availability
19
WCI 08000305 WCI 08000305 Contact Us For Availability
19
LABEL-REFR SHIELD RH WCI 08009987 Contact Us For Availability
19
WCI 08010346 WCI 08010346 Contact Us For Availability
19
WCI 01121700 WCI 01121700 Contact Us For Availability
20
WCI 08002773 WCI 08002773 Contact Us For Availability
20
WCI 08000088 WCI 08000088 Contact Us For Availability
20
SHELF-FREEZER WCI 3001104 Contact Us For Availability
20
SHIELD-LIGHT REFR WCI 08017596 Contact Us For Availability
20
WCI 08010324 WCI 08010324 Contact Us For Availability
20
WCI 08010343 WCI 08010343 Contact Us For Availability
20
WCI 01124973 WCI 01124973 Contact Us For Availability
20A
WCI 08010342 WCI 08010342 Contact Us For Availability
21
WCI 3200674 WCI 3200674 Contact Us For Availability
21
HINGE-LOWER LH WCI 08010296 Contact Us For Availability
21
SHELF-FREEZER, UPPER WCI 3001152 Contact Us For Availability
21
LABEL-REFR SHIELD LH WCI 08009988 Contact Us For Availability
21
WCI 02832216 WCI 02832216 Contact Us For Availability
21
WCI 01123769 WCI 01123769 Contact Us For Availability
21
WCI 01124985 WCI 01124985 Contact Us For Availability
21
WCI 3916009 WCI 3916009 Contact Us For Availability
21A
WCI 08010356 WCI 08010356 Contact Us For Availability
22
WCI 08000812 WCI 08000812 Contact Us For Availability
22
WCI 08000005 WCI 08000005 Contact Us For Availability
22
TANK-WATER WCI 08950104 Contact Us For Availability
22
WCI 08010364 WCI 08010364 Contact Us For Availability
22
WCI 08015598 WCI 08015598 Contact Us For Availability
22
WCI 08017049 WCI 08017049 Contact Us For Availability
22
WCI 08010349 WCI 08010349 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 08003596 Contact Us For Availability
23
WCI 08010339 WCI 08010339 Contact Us For Availability
23
WCI 08015764 WCI 08015764 Contact Us For Availability
23
WCI 08015586 WCI 08015586 Contact Us For Availability
23
WCI 01123545 WCI 01123545 Contact Us For Availability
23
WCI 01124984 WCI 01124984 Contact Us For Availability
23
WASHER-COMPR (4) WCI 08003597 Contact Us For Availability
24
WCI 3200416 WCI 3200416 Contact Us For Availability
24
WCI 08009617 WCI 08009617 Contact Us For Availability
24
WCI 08015581 WCI 08015581 Contact Us For Availability
24
WCI 01123771 WCI 01123771 Contact Us For Availability
24
WCI 01124983 WCI 01124983 Contact Us For Availability
25
WCI 3200412 WCI 3200412 Contact Us For Availability
25
SCREW WCI 08014529 Contact Us For Availability
25
WCI 08000703 WCI 08000703 Contact Us For Availability
25
WCI 08010325 WCI 08010325 Contact Us For Availability
25
SCREW (5) WCI 08010350 Contact Us For Availability
25
WCI 08017118 WCI 08017118 Contact Us For Availability
25A
WCI 08002782 WCI 08002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN (NON-ILLUSTRATED) WCI 08002780 Contact Us For Availability
26
WCI 3200413 WCI 3200413 Contact Us For Availability
26
WCI 08000847 WCI 08000847 Contact Us For Availability
26
WCI 08015614 WCI 08015614 Contact Us For Availability
26
RING-FAN ORIFICE WCI 08000124 Contact Us For Availability
26
WCI 08010330 WCI 08010330 Contact Us For Availability
26
WCI 3001132 WCI 3001132 Contact Us For Availability
26
WCI 08013644 WCI 08013644 Contact Us For Availability
27
PALNUT-SELF THD (12) WCI 08017047 Contact Us For Availability
27
WCI 3200415 WCI 3200415 Contact Us For Availability
27
WCI 3200764 WCI 3200764 Contact Us For Availability
27
WCI 08015613 WCI 08015613 Contact Us For Availability
27
WCI 01124988 WCI 01124988 Contact Us For Availability
27
WCI 08009640 WCI 08009640 Contact Us For Availability
27A
RETAINING RING (NON-ILLUSTRATED) WCI 3001128 Contact Us For Availability
28
DOOR-COMPARTMENT WCI 3200442 Contact Us For Availability
28
WCI 08000850 WCI 08000850 Contact Us For Availability
28
WCI 08015604 WCI 08015604 Contact Us For Availability
28
WCI 08009616 WCI 08009616 Contact Us For Availability
29
WCI 08010332 WCI 08010332 Contact Us For Availability
29
BUTTON-ACTUATOR WATER WCI 08012815 Contact Us For Availability
29
WIRING HARNESS-CTRL WCI 3015098 Contact Us For Availability
30
SHELF-BEVERAGE CTR WCI 3200676 Contact Us For Availability
30
WCI 08000118 WCI 08000118 Contact Us For Availability
30
WCI 3200663 WCI 3200663 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 08000107 Contact Us For Availability
30
PLUG-HOUSING WCI 08010302 Contact Us For Availability
31
WCI 08017044 WCI 08017044 Contact Us For Availability
31
PAN-CRISPER, LOWER WCI 3200688 Contact Us For Availability
31
BRACKET-MOTOR MTG, REAR WCI 08000042 Contact Us For Availability
31
WCI 08017050 WCI 08017050 Contact Us For Availability
32
SCREW (2) WCI 08009568 Contact Us For Availability
32
GASKET-COVER WCI 08009648 Contact Us For Availability
32
WCI 08000043 WCI 08000043 Contact Us For Availability
32
WCI 08017599 WCI 08017599 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 08000004 Contact Us For Availability
33
SUPPORT-COVER RH WCI 3201640 Contact Us For Availability
33A
SUPPORT-COVER LH (NON-ILLUSTRATED) WCI 3201639 Contact Us For Availability
34
WCI 08000001 WCI 08000001 Contact Us For Availability
34
WCI 3200544 WCI 3200544 Contact Us For Availability
35
WCI 08000266 WCI 08000266 Contact Us For Availability
35
GLASS-UPPER CRISPER WCI 3200689 Contact Us For Availability
35
SCREW (5) WCI 3001115 Contact Us For Availability
36
WCI 08000265 WCI 08000265 Contact Us For Availability
36
SUPT-SHELF (2) WCI 08000244 Contact Us For Availability
36
WCI 01124982 WCI 01124982 Contact Us For Availability
37
NUT-PUSH (2) WCI 08000067 Contact Us For Availability
37
SCREW (2) WCI 3001290 Contact Us For Availability
37
WCI 00619375 WCI 00619375 Contact Us For Availability
38
WCI 08000853 WCI 08000853 Contact Us For Availability
38
SUPT-ICE MAKER (2) WCI 3001291 Contact Us For Availability
38
WCI 01124987 WCI 01124987 Contact Us For Availability
39
NUT-SPEC TWIN (4) WCI 08000011 Contact Us For Availability
39
SCREW (2) WCI 3001292 Contact Us For Availability
39
WCI 01124981 WCI 01124981 Contact Us For Availability
40
WCI 08000013 WCI 08000013 Contact Us For Availability
40
WCI 08010367 WCI 08010367 Contact Us For Availability
41
BRACKET-CVR MTG WCI 08000738 Contact Us For Availability
41
WCI 08014526 WCI 08014526 Contact Us For Availability
41
PC BOARD WCI 08011238 Contact Us For Availability
42
WCI 08000822 WCI 08000822 Contact Us For Availability
42
WCI 08010351 WCI 08010351 Contact Us For Availability
43
RETAINER RING WCI 08010348 Contact Us For Availability
44
HINGE-LOWER RH WCI 08000059 Contact Us For Availability
44
SCREW (2) WCI 3001212 Contact Us For Availability
44
WCI 08000205 WCI 08000205 Contact Us For Availability
45
WCI 3001034 WCI 3001034 Contact Us For Availability
45
WASHER WCI 3001131 Contact Us For Availability
45B
NUT-PUSH IN (NON-ILLUSTRATED) WCI 08010293 Contact Us For Availability
46
SUPPORT-COIL CVR WCI 08000097 Contact Us For Availability
46
UNION ASSEMBLY WCI G158163 Contact Us For Availability
47
SHIM-UPPER HINGE WCI 08012829 Contact Us For Availability
47
WCI 3015102 WCI 3015102 Contact Us For Availability
48
FERRULE-INNER (2) WCI 08006970 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 08006971 Contact Us For Availability
50
HINGE-UPPER LH WCI 08012828 Contact Us For Availability
51
WCI 08010289 WCI 08010289 Contact Us For Availability
51A
WCI 08000200 WCI 08000200 Contact Us For Availability
× ![]()
