Model Electrolux FPZ19TFW2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

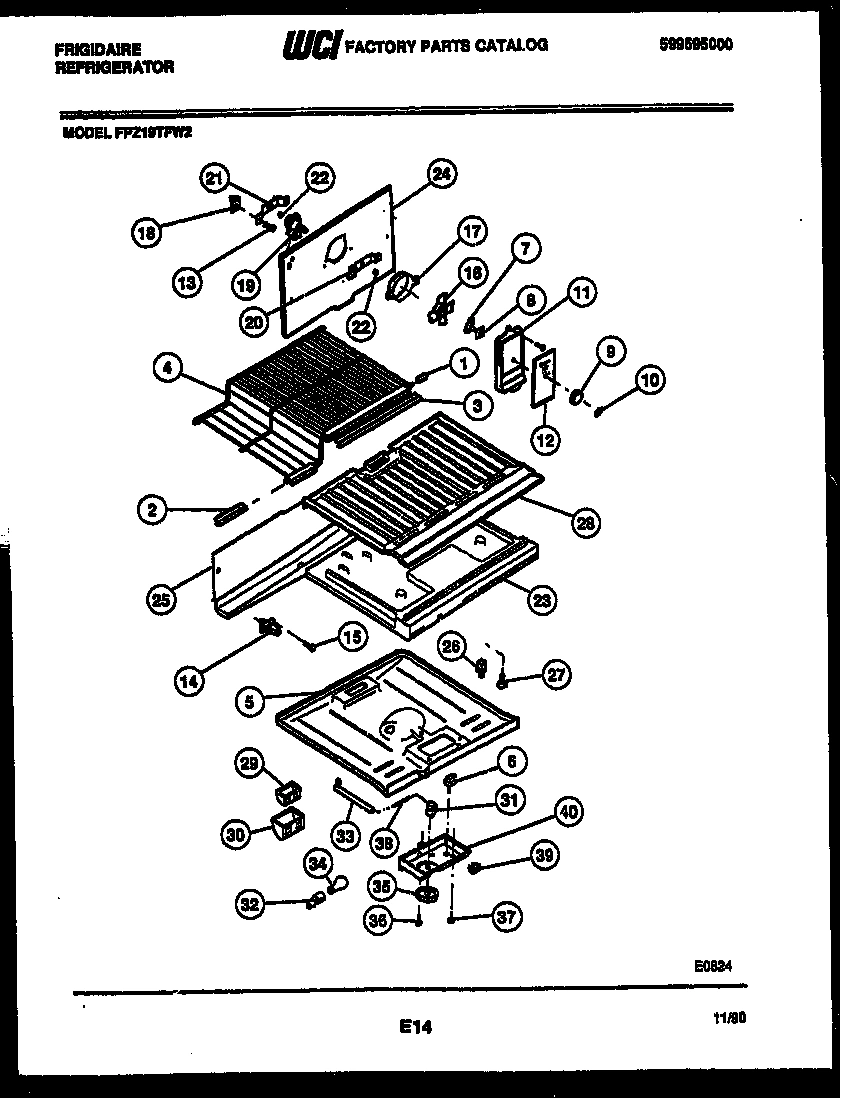

04 - SHELVES AND SUPPORTS

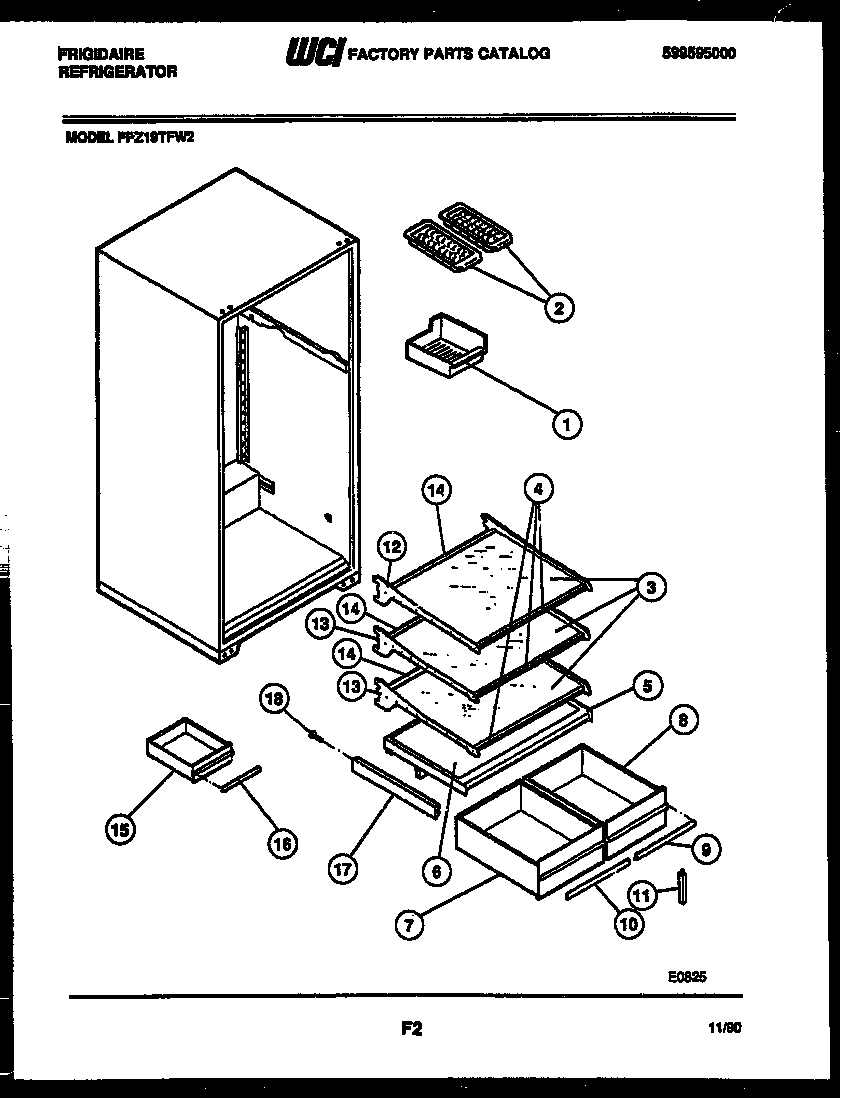

05 - SHELVES AND SUPPORTS

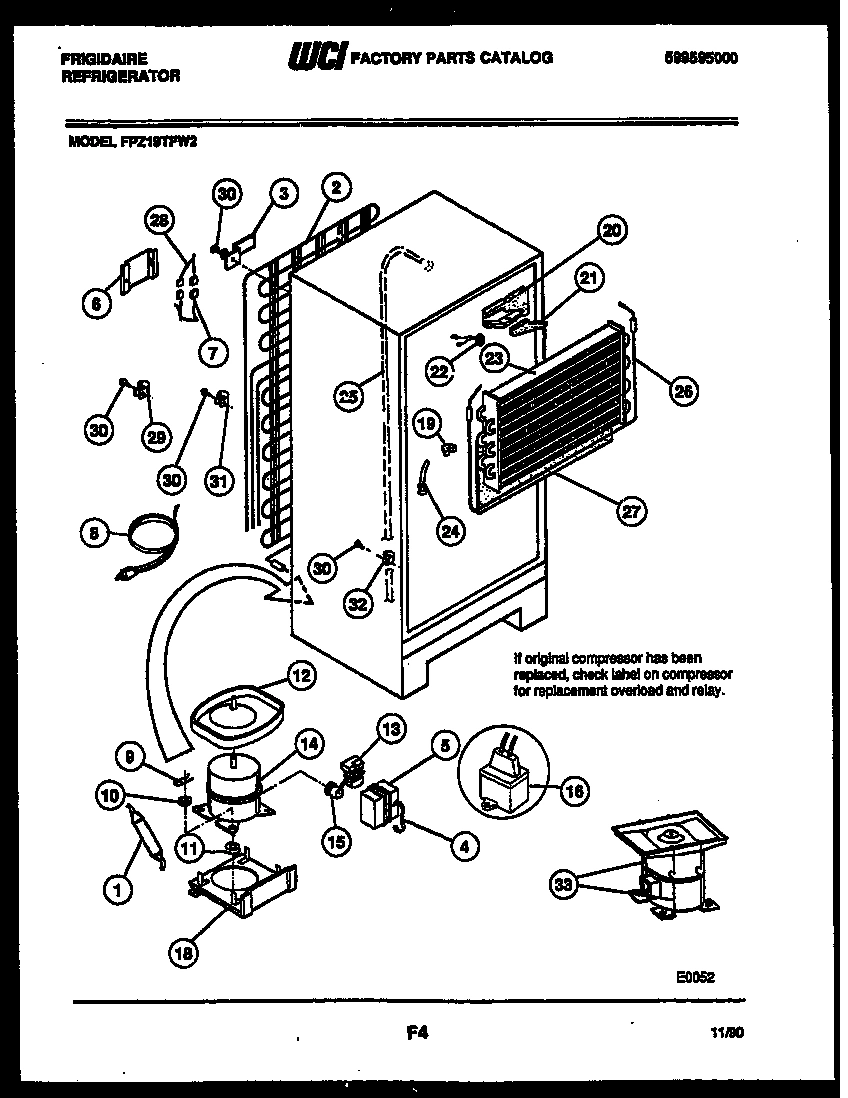

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPZ19TFW2 REFRIGERATOR
*39411
TAPPING PLATE-GUSSET LH-LOWER WCI 5303212596 Contact Us For Availability
*39411
TAPPING PLATE-GUSSET RH-LOWER WCI 5303212597 Contact Us For Availability
*39411
TAPPING PLATE (2)-UPPER WCI 5308012296 Contact Us For Availability
*39417
DEFROST PAN RETAINER - SERVICE COMPRESSOR WCI 5303916001 Contact Us For Availability
*39417
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
PROTECTOR-CAP (2) WCI 3201150 No Longer Available
1
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
2
HINGE-TOP BRACKET WCI 5308012843 Contact Us For Availability
2
TRIM, SHELF WCI 3017427 Contact Us For Availability
2
WCI 1121808 WCI 1121808 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5308012820 WCI 5308012820 Contact Us For Availability
3
TRIM, SHELF WCI 3018978 Contact Us For Availability
3
GLASS, SHELF (3) WCI 5303200319 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3A
WCI 08000395 WCI 08000395 Contact Us For Availability
4
WASHER-NYLON (1) WCI 5308000186 No Longer Available
4
SHELF-FREEZER WCI 3018979 Contact Us For Availability
4
TRIM, FRONT (3) WCI 3018980 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
5
WCI 5303018983 WCI 5303018983 Contact Us For Availability
5A
WCI 3018984 WCI 3018984 Contact Us For Availability
6
WCI 5303212490 WCI 5303212490 Contact Us For Availability
6
GLASS-COVER WCI 3200389 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
6A
GASKET-CRISPER CVR (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
DAMPER WCI 5303001331 Contact Us For Availability
7
PAN-CRISPER LH WCI 3018982 Contact Us For Availability
7
WIRING HARNESS-COMP WCI 5303001347 Contact Us For Availability
8
PLUG BUTTON-WHITE WCI 5308000134 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
8
PAN-CRISPER RH WCI 3018873 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
WCI 5308009793 WCI 5308009793 Contact Us For Availability
9
TRIM-PAN RH WCI 3017423 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
LABEL, KNOB WCI 08009823 Contact Us For Availability
10
TRIM-PAN LH WCI 3017422 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
11
FAN COVER WCI 08009817 Contact Us For Availability
11
SUPPORT, CRISPER COVER, ADJ WCI 5303206507 Contact Us For Availability
12
WCI 08009822 WCI 08009822 Contact Us For Availability
12
FRAME-CANTILEVER MEAT KEEPER WCI 3200398 Contact Us For Availability
12
DEFROST PAN - SERVICE COMPRESSOR WCI 5300184715 Contact Us For Availability
12A
PLUG-DECORATIVE (NON-ILLUSTRATED) WCI 5308013636 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
FRAME, CANTILEVER (2) WCI 3200327 Contact Us For Availability
13A
RETAINER-GLASS (2) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
13B
RETAINER-GLASS, MEAT KEEPER (NON-ILLUSTRATED) WCI 3200408 Contact Us For Availability
14
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
14
WCI 5303212598 WCI 5303212598 Contact Us For Availability
14
TRIM-REAR RETAINER (3) WCI 3203022 Contact Us For Availability
14
COMPRESSOR WCI 5303916004 Contact Us For Availability
15
PUSH PIN WCI 5303001361 Contact Us For Availability
15
PAN, MEAT WCI 3018987 Contact Us For Availability
15
WCI 5303001713 WCI 5303001713 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
WCI 3018986 WCI 3018986 Contact Us For Availability
16
CAPACITOR & STRAP WCI 5303916391 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
17A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308013663 WCI 5308013663 Contact Us For Availability
19
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
19
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
21
DRAIN-TUBE-W/SEAL RING ASSY. WCI 5303210377 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
21
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 5300157666 WCI 5300157666 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
24
COVER, COIL WCI 5308009771 Contact Us For Availability
24A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
25
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
25
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
26
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
27
WCI 5316651102 WCI 5316651102 Contact Us For Availability
27
PANEL-REFRIGERATOR-INNER WCI 3018976 Contact Us For Availability
27
WCI 5303001380 WCI 5303001380 Contact Us For Availability
28
PANEL-REFRIGERATOR-WHITE WCI 5308009928 Contact Us For Availability
28
WCI 5303200366 WCI 5303200366 Contact Us For Availability
28
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
28
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
29
REFRIGERATOR HANDLE ASSY WCI 3202009 Contact Us For Availability
29
WASHER, STEEL (4) WCI 5303206754 Contact Us For Availability
29
WCI 3204206 WCI 3204206 Contact Us For Availability
30
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
30
DOOR STOP, FREEZER (1) WCI 5308000255 Contact Us For Availability
31
CONTROL, COLD WCI 5303018894 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
PAN RETAINER KIT WCI 08950024 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
35
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
35
WCI 3018893 WCI 3018893 Contact Us For Availability
36
WCI 5303001260 WCI 5303001260 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
39
SWITCH-ROCKER WCI 3018891 Contact Us For Availability
40
PLUG, WHITE WCI 5303001388 Contact Us For Availability
40
CONTROL BOX WCI 3018895 Contact Us For Availability
41
WCI 5303210351 WCI 5303210351 Contact Us For Availability
42
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
43
WCI 5308010008 WCI 5308010008 Contact Us For Availability
× ![]()
