Model Electrolux FPZ17TFL2 REFRIGERATOR – Common Parts & Diagrams

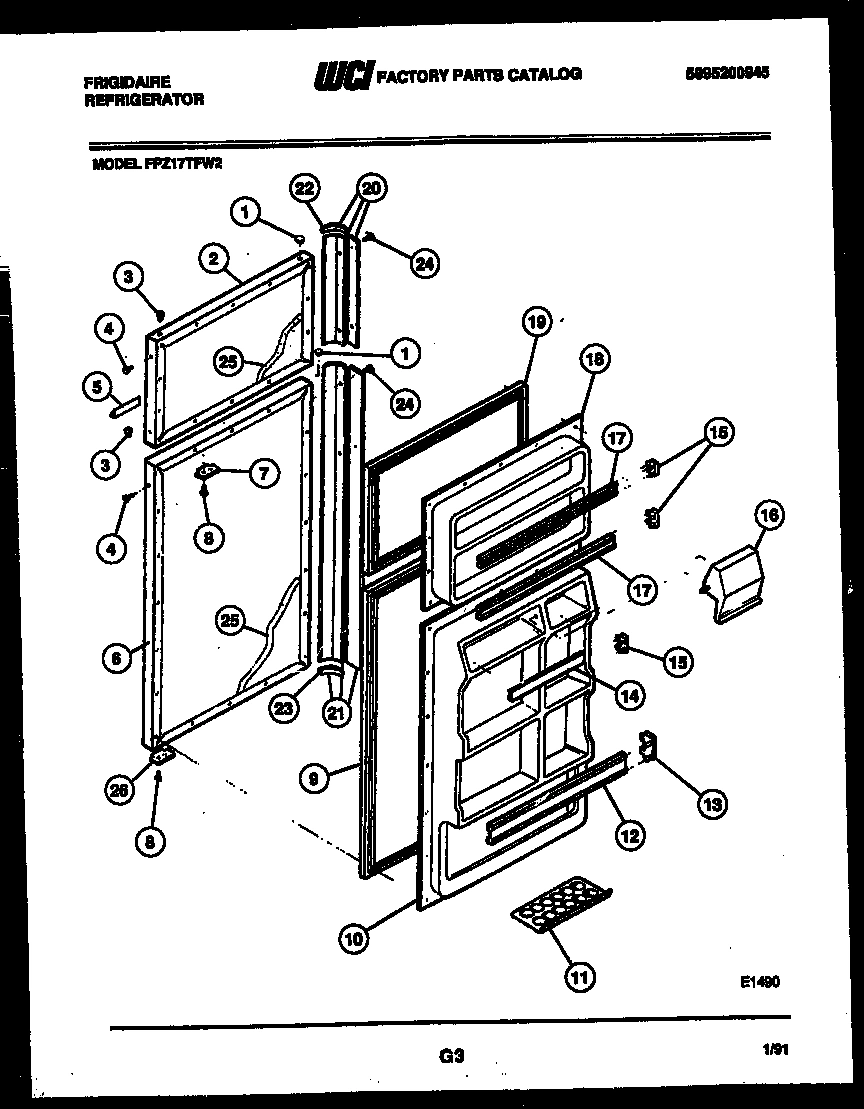

02 - DOOR PARTS

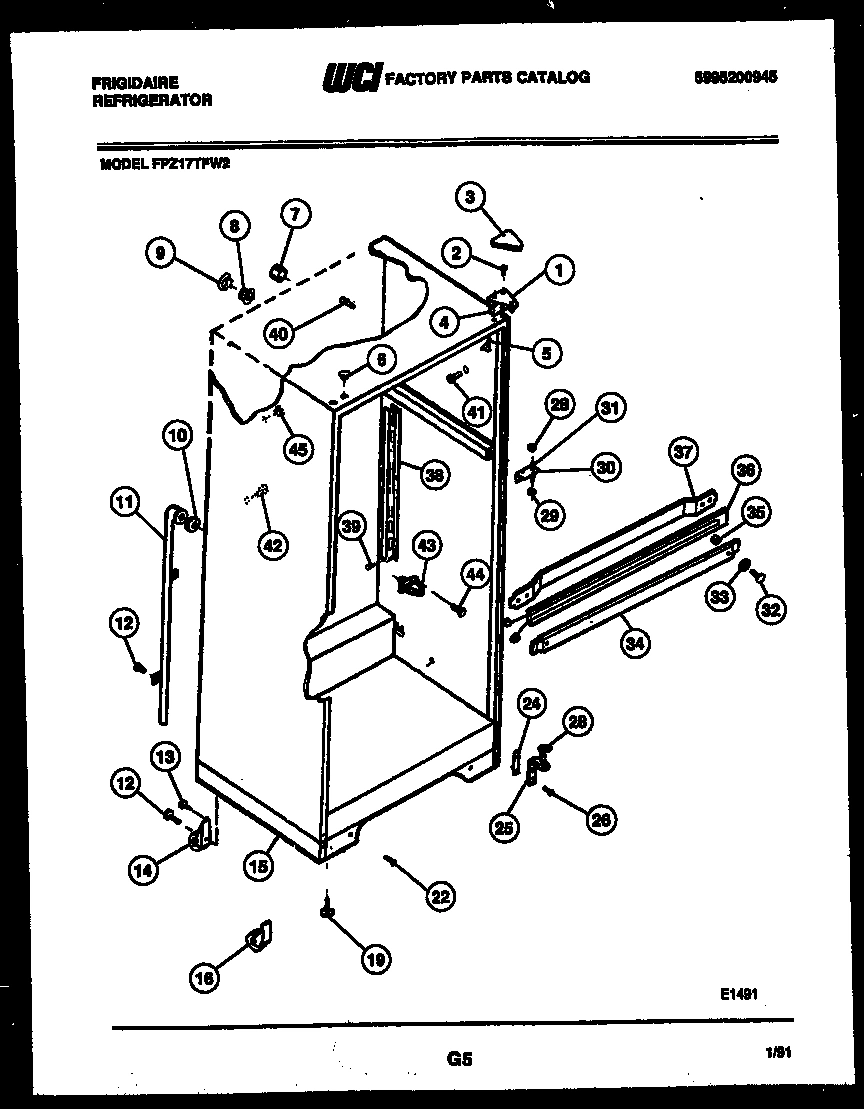

03 - CABINET PARTS

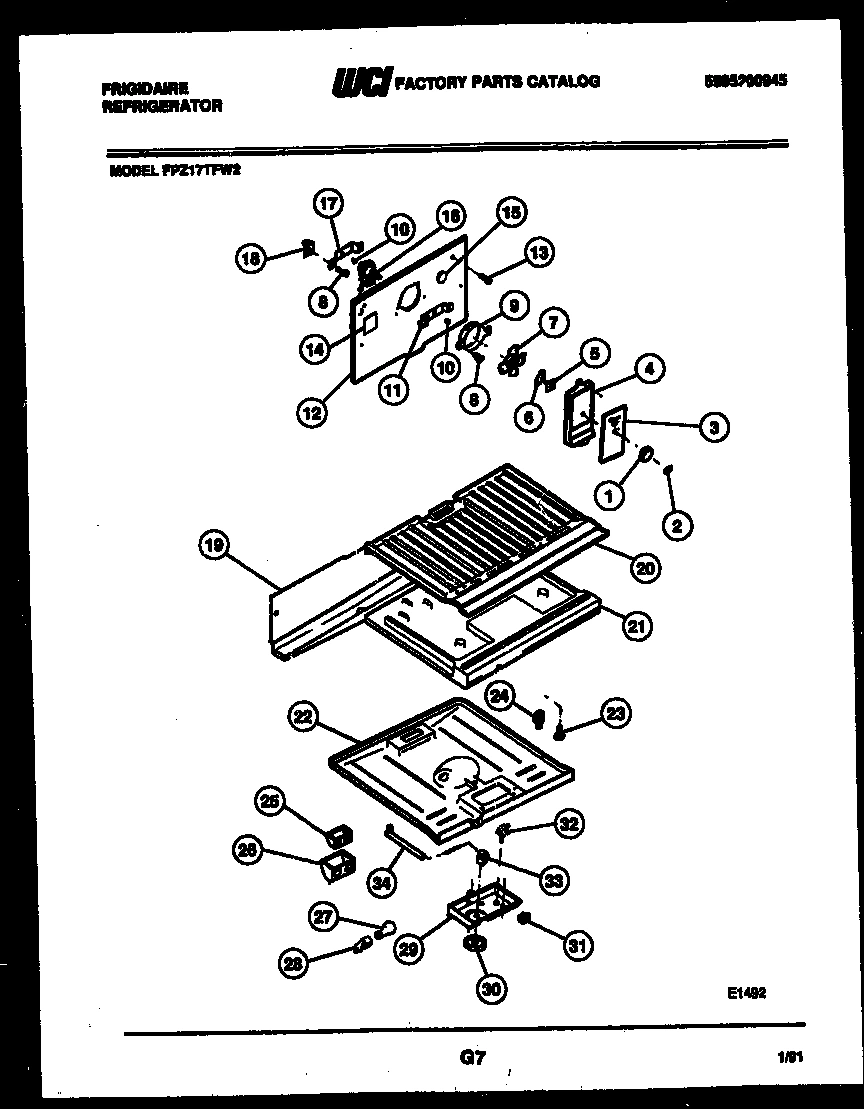

04 - SHELVES AND SUPPORTS

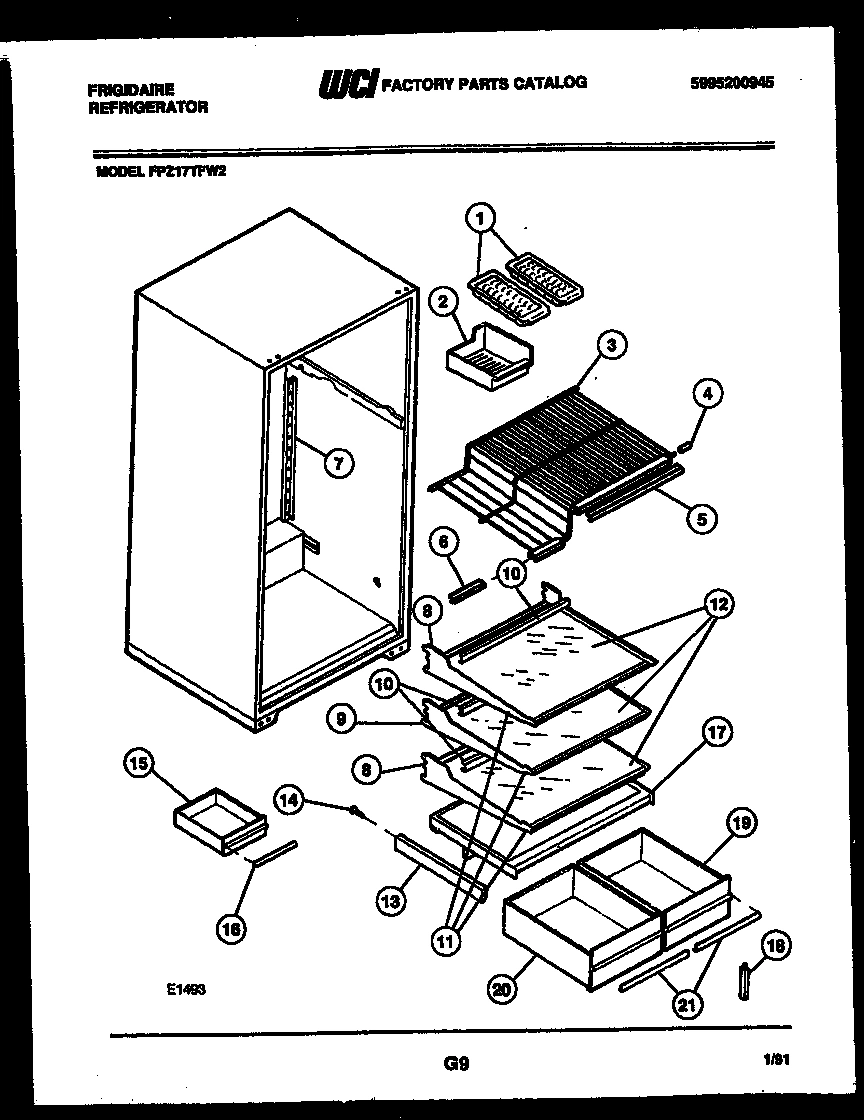

05 - SHELVES AND SUPPORTS

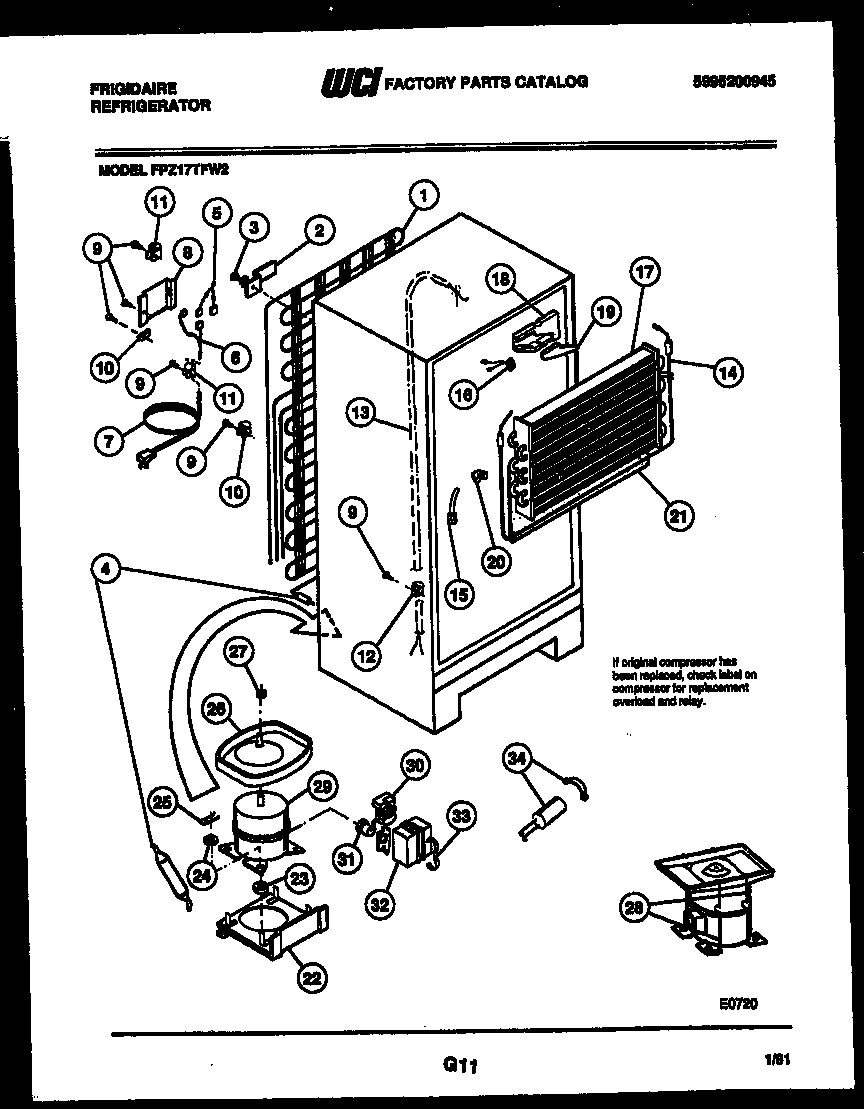

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPZ17TFL2 REFRIGERATOR
*40245
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
WCI 01121808 WCI 01121808 Contact Us For Availability
1
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
1
PLUG-ALMOND (2) WCI 5303001308 Contact Us For Availability
1
WCI 08009793 WCI 08009793 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
LABEL, KNOB WCI 08009823 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 5308012933 WCI 5308012933 Contact Us For Availability
3
WCI 08009822 WCI 08009822 Contact Us For Availability
3
WCI 08009859 WCI 08009859 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
END CAP (2) WCI 3201150 No Longer Available
4
WCI 5303001037 WCI 5303001037 Contact Us For Availability
4
WCI 08009821 WCI 08009821 Contact Us For Availability
4A
WCI 08010646 WCI 08010646 Contact Us For Availability
5
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
5
WCI 5303001028 WCI 5303001028 Contact Us For Availability
5
WIRING HARNESS-CNTRL WCI 3018900 Contact Us For Availability
5
TRIM-LONG WCI 3018897 Contact Us For Availability
6
WCI 5303001389 WCI 5303001389 Contact Us For Availability
6
DAMPER WCI 5303001331 Contact Us For Availability
6
TRIM-SHORT WCI 3017427 Contact Us For Availability
6
WCI 5303001347 WCI 5303001347 Contact Us For Availability
7
RUBBER TUBE-FERRULE (2) WCI 5303001198 Contact Us For Availability
7
CHANNEL-SHELF MTG (2) WCI 5308000302 Contact Us For Availability
7
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
WCI 5303001286 WCI 5303001286 Contact Us For Availability
8
FRAME-SHELF (2) WCI 3203935 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
ORIFICE RING-PLASTIC WCI 5308000124 Contact Us For Availability
9
WCI 5303001287 WCI 5303001287 Contact Us For Availability
9
WCI 3203936 WCI 3203936 Contact Us For Availability
10
SEAL RING-TUBE WCI 5303207353 Contact Us For Availability
10
WCI 5300157666 WCI 5300157666 Contact Us For Availability
10
WCI 3203931 WCI 3203931 Contact Us For Availability
11
DRAIN TUBE & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
11
WCI 5303001226 WCI 5303001226 Contact Us For Availability
11
TRIM-FRONT SHELF (3) WCI 5303018883 Contact Us For Availability
11A
RETAINER-SHELF FRONT (2) (NON-ILLUSTRATED) WCI 3018884 Contact Us For Availability
11B
WCI 3203933 WCI 3203933 Contact Us For Availability
12
SCREW-8-15 X 1/2 WCI 5308009762 Contact Us For Availability
12
WCI 3001527 WCI 3001527 Contact Us For Availability
12
GLASS-SHELF (3) WCI 3018882 Contact Us For Availability
12A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
12A
SIDE RAIL-GLASS SPPT (3) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
13
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
13
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
14
WCI 5308009773 WCI 5308009773 Contact Us For Availability
14
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
14
SCREW-HANGER MTG (2) WCI 08014528 Contact Us For Availability
15
BASE-CABINET WCI 5303269889 Contact Us For Availability
15
WCI 3018875 WCI 3018875 Contact Us For Availability
16
WCI 5303212490 WCI 5303212490 Contact Us For Availability
16
TRIM, MEAT PAN WCI 3017424 Contact Us For Availability
17
WCI 5303205119 WCI 5303205119 Contact Us For Availability
17
COVER-STORAGE PAN WCI 5303018892 Contact Us For Availability
17
WCI 5308009756 WCI 5308009756 Contact Us For Availability
17A
GASKET-COVER RH (NON-ILLUSTRATED) WCI 5308009647 Contact Us For Availability
18
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
18
SUPPORT-COVER WCI 5303206508 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 08003583 WCI 08003583 Contact Us For Availability
19
WCI 08010005 WCI 08010005 Contact Us For Availability
19
PAN-FRESH SEAL RH WCI 3018872 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
BOTTOM PANEL-FREEZER WCI 5303001537 Contact Us For Availability
20
PAN-FRUIT LH WCI 3018873 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
INSULATOR-COIL/COVER WCI 5316651102 Contact Us For Availability
21
DIVIDER WCI 5303018899 Contact Us For Availability
21
TRIM-PAN (2) WCI 3017423 Contact Us For Availability
22
BOLT-ROLLER ADJ (2) WCI 5303212598 Contact Us For Availability
22
TOP PANEL-REFR WCI 3018881 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303001380 WCI 5303001380 Contact Us For Availability
24
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
24
WASHER-COMPRESSOR MTG (4) WCI 5308003633 Contact Us For Availability
24A
TAPPING PLATE UPPER-GUSSET (2) (NON-ILLUSTRAT WCI 5308012296 Contact Us For Availability
25
WCI 5303007739 WCI 5303007739 Contact Us For Availability
25
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
25
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25A
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
25B
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
25B
EXTENSION-AIR DEFLECTOR W/ INSULATION (NON-IL WCI 5303200590 Contact Us For Availability
26
DOOR STOP-REFRIGERATOR (1) WCI 5303212491 Contact Us For Availability
26
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
26
DRAIN PAN WCI 5300171129 Contact Us For Availability
26A
DRAIN PAN-SERVICE COMPR WCI 5300184715 Contact Us For Availability
27
WCI 5303001348 WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT-SERVICE COMPR WCI 5303916001 Contact Us For Availability
28
WASHER, 1/4 NYLON (2) WCI 5308000007 Contact Us For Availability
29
WASHER-5/16 NYLON WCI 5308000186 No Longer Available
29
CONTROL BOX WCI 3018895 Contact Us For Availability
29
COMPR W/ ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
WCI 5303001369 WCI 5303001369 Contact Us For Availability
30
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
31
WCI 5308000184 WCI 5308000184 Contact Us For Availability
31
SWITCH, ENERGY SAVER WCI 5303018896 Contact Us For Availability
31
WCI 5303270294 WCI 5303270294 Contact Us For Availability
31A
WCI 3202891 WCI 3202891 Contact Us For Availability
32
WCI 5308012258 WCI 5308012258 Contact Us For Availability
32
WCI 5303209254 WCI 5303209254 Contact Us For Availability
33
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
33
WCI 5303018894 WCI 5303018894 Contact Us For Availability
33
STRAP-COVER MTG WCI 5303211232 Contact Us For Availability
33A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
34
WCI 5303916134 WCI 5303916134 Contact Us For Availability
34
HOUSING-CNTRL CAP TUBE WCI 3018891 Contact Us For Availability
34
WCI 5303916391 WCI 5303916391 Contact Us For Availability
35
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
36
WCI 5308017408 WCI 5308017408 Contact Us For Availability
37
WCI 5308003604 WCI 5308003604 Contact Us For Availability
40
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
43
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
44
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
45
PLUG-FREEZER LINER WCI 5308016571 Contact Us For Availability
× ![]()
