Model Electrolux FPWE18TPL1 REFRIGERATOR – Common Parts & Diagrams

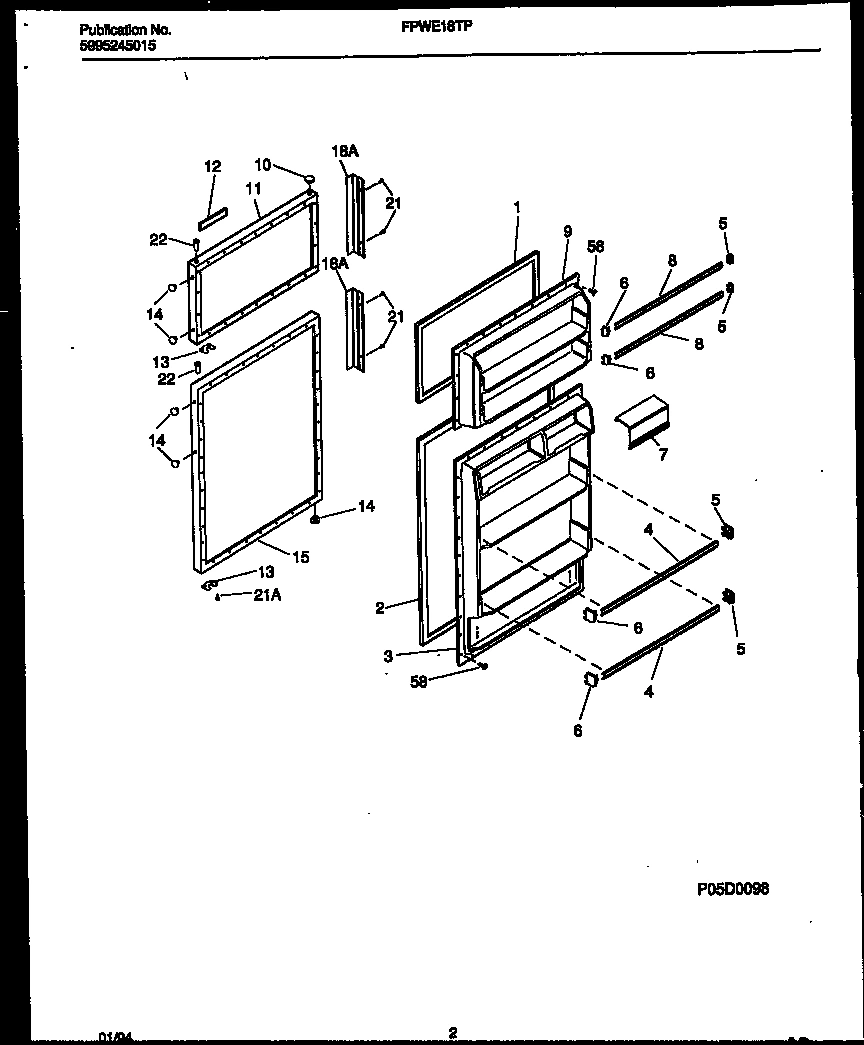

02 - DOOR PARTS

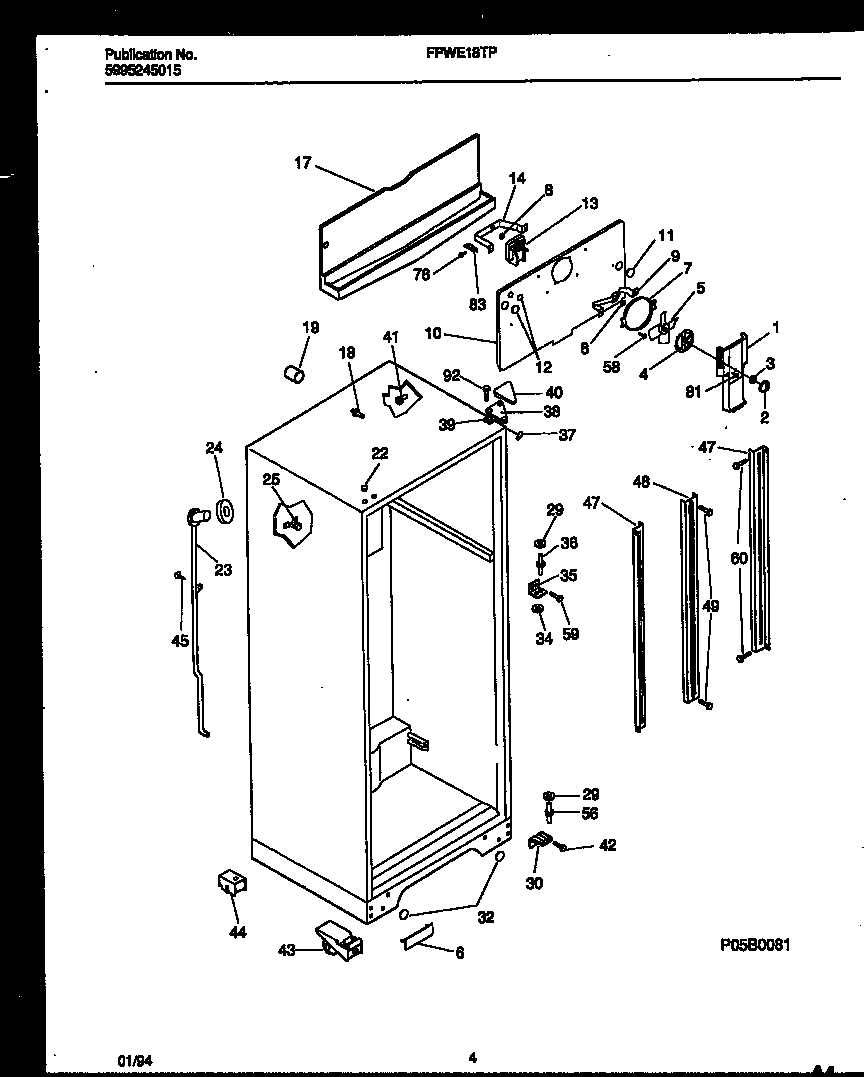

03 - CABINET PARTS

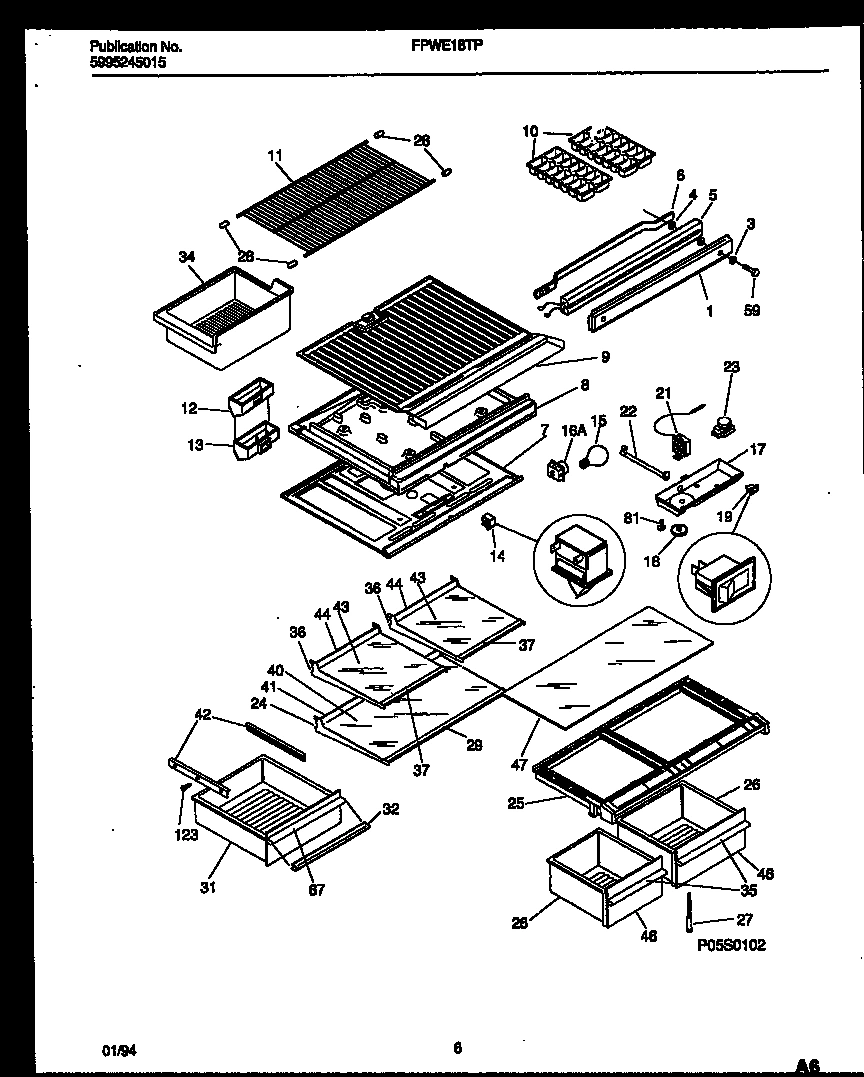

04 - SHELVES AND SUPPORTS

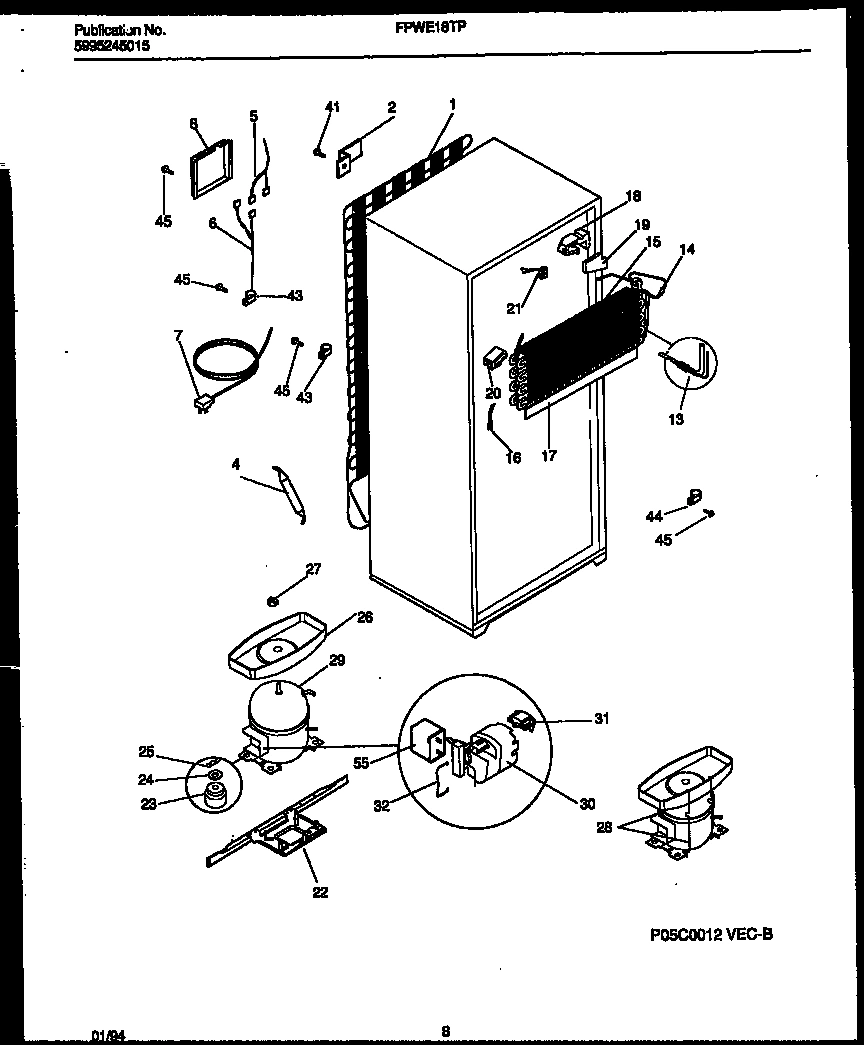

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPWE18TPL1 REFRIGERATOR
*91786
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*91796
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*91801
WCI 5300170910 WCI 5300170910 Contact Us For Availability
1
WCI 3206450 WCI 3206450 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
SPACER-MULLION MTG, STEEL WCI 5303200464 Contact Us For Availability
5
SUPPORT - DOOR RACK, RH WCI 5303207230 No Longer Available
5
WCI 3206445 WCI 3206445 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
SUPPORT - DOOR RACK, LH WCI 5303207229 No Longer Available
6
WCI 215170802 WCI 215170802 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206454 WCI 3206454 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206456 WCI 3206456 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 3206455 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
WCI 5303288242 WCI 5303288242 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215133500 WCI 215133500 Contact Us For Availability
13A
WCI 5303200590 WCI 5303200590 Contact Us For Availability
15
EVAPORATOR WCI 3206452 Contact Us For Availability
17
WCI 3206390 WCI 3206390 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
KNOB-TEMP CONTROL WCI 3206391 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303207249 WCI 5303207249 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215069021 WCI 215069021 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 5303208431 WCI 5303208431 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 215217504 WCI 215217504 Contact Us For Availability
29
WCI 5303925125 WCI 5303925125 Contact Us For Availability
29A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
32
WCI 215217702 WCI 215217702 Contact Us For Availability
32
WCI 5303208419 WCI 5303208419 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
35
TRIM-CRISPER PAN, (2) WCI 3206440 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
FRAME-HALF SHELF, (2) WCI 215069020 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
TRIM-HALF SHELF, FRONT, (3) WCI 215217503 Contact Us For Availability
37A
WCI 5303209263 WCI 5303209263 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
40
GLASS-SHELF, FULL SHELF WCI 5303282446 Contact Us For Availability
41
WCI 5303282450 WCI 5303282450 Contact Us For Availability
41A
LOCK-SHELF TRIM, REAR (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
42
WCI 5303282330 WCI 5303282330 Contact Us For Availability
42
HANGER-MEAT PAN, RH WCI 5303282331 Contact Us For Availability
43
WCI 5300188673 WCI 5300188673 Contact Us For Availability
43
GLASS-SHELF, HALF SHELF, (2) WCI 5303282445 Contact Us For Availability
43A
WCI 5308009760 WCI 5308009760 Contact Us For Availability
43B
BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED) WCI 5308009761 Contact Us For Availability
43C
WCI 5308009790 WCI 5308009790 Contact Us For Availability
43D
WCI 5308011326 WCI 5308011326 Contact Us For Availability
44
ROLLER ASSY, METAL HOUSING, REAR, (2) WCI 5303283014 Contact Us For Availability
44
TRIM-HALF SHELF, REAR, (3) WCI 5303282451 Contact Us For Availability
46
WCI 5303290917 WCI 5303290917 Contact Us For Availability
46
WCI 5303290918 WCI 5303290918 Contact Us For Availability
47
WCI 3206202 WCI 3206202 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 5303275649 Contact Us For Availability
48
WCI 3916030 WCI 3916030 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
67
WCI 5303290919 WCI 5303290919 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
