Model Electrolux FPW18TPW1 REFRIGERATOR – Common Parts & Diagrams

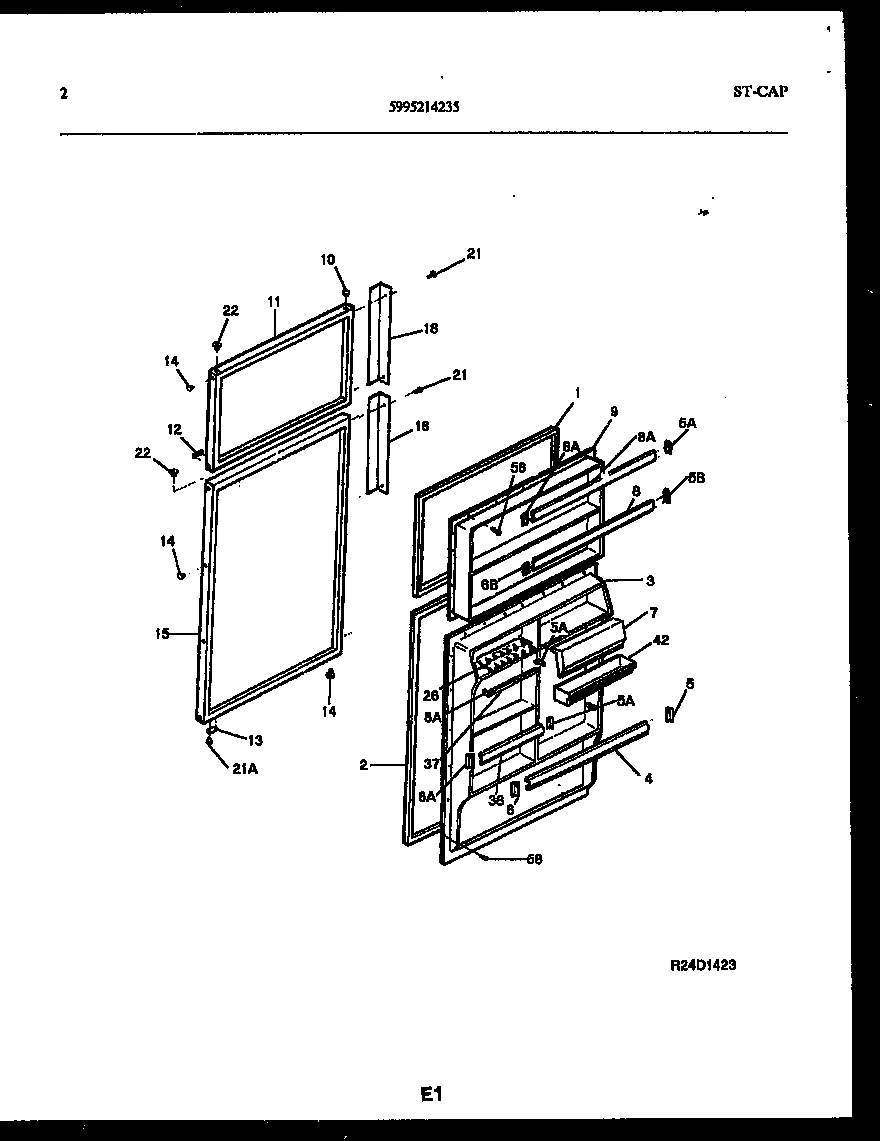

02 - DOOR PARTS

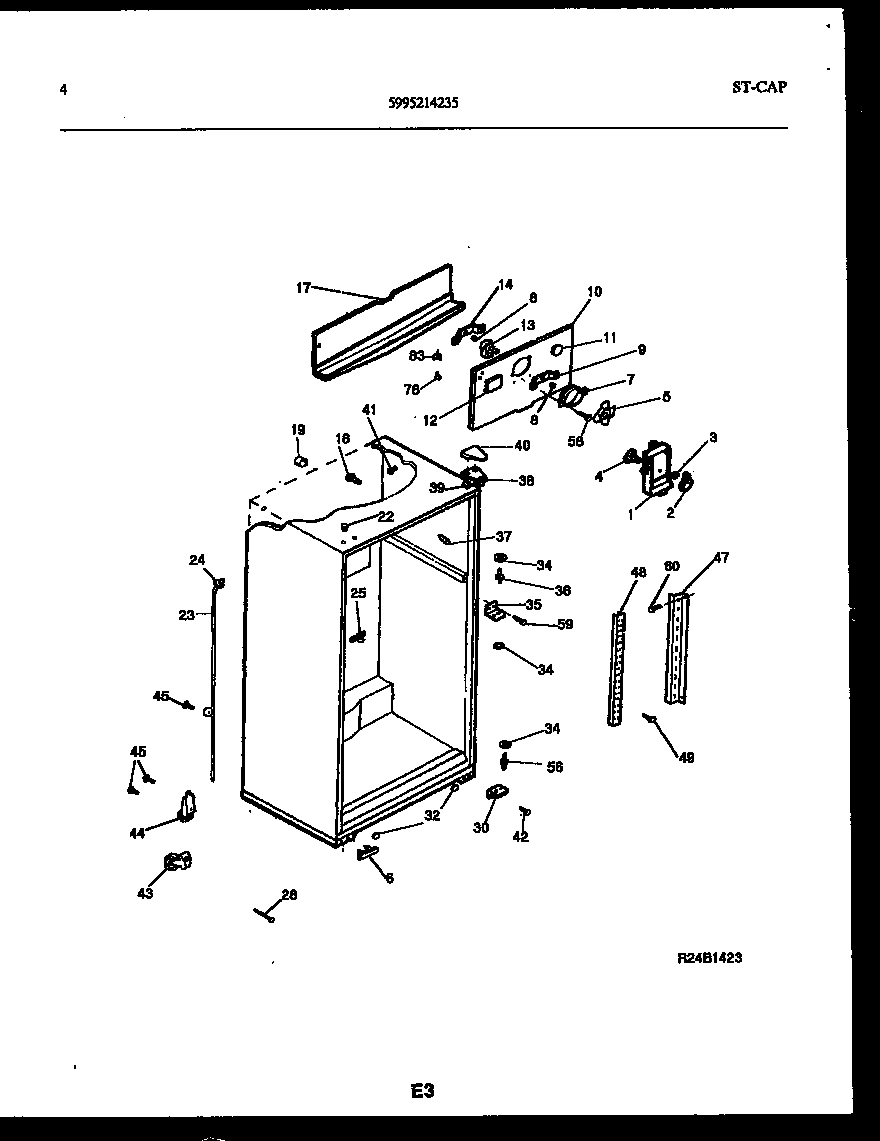

03 - CABINET PARTS

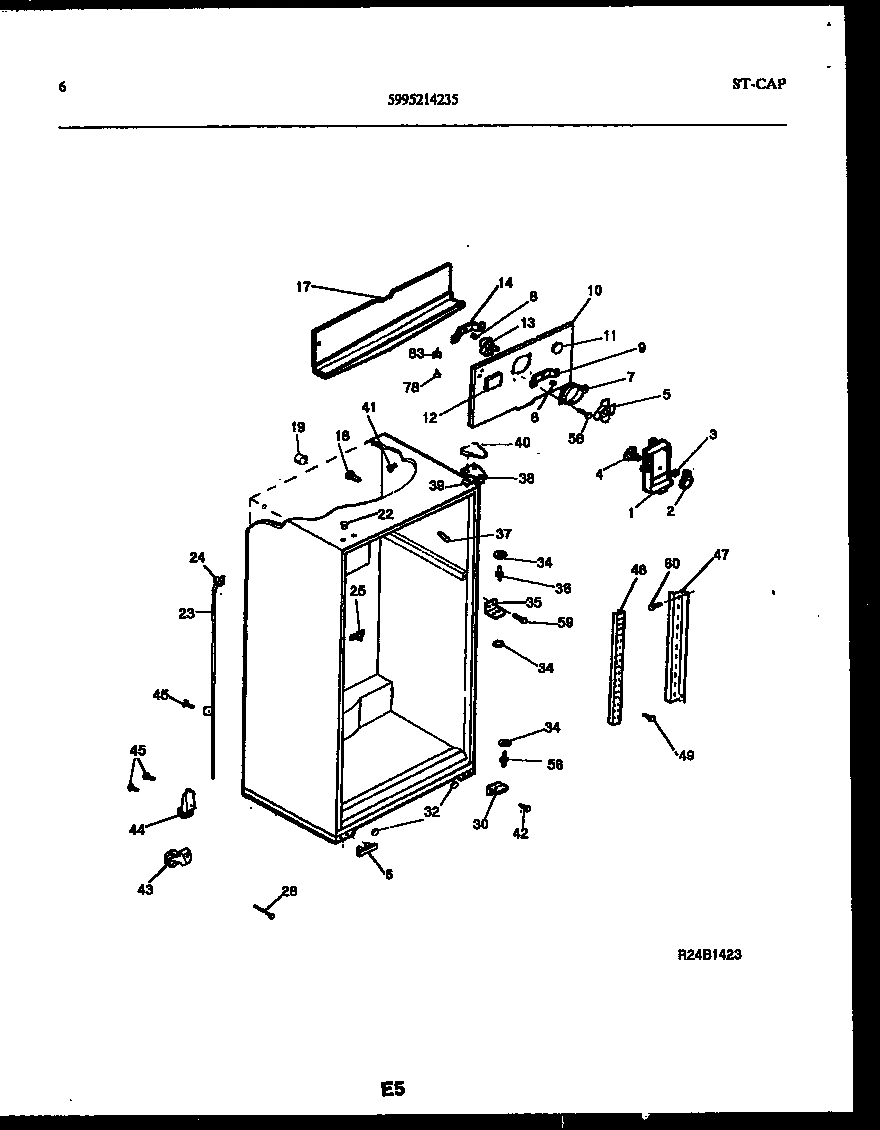

04 - CABINET PARTS

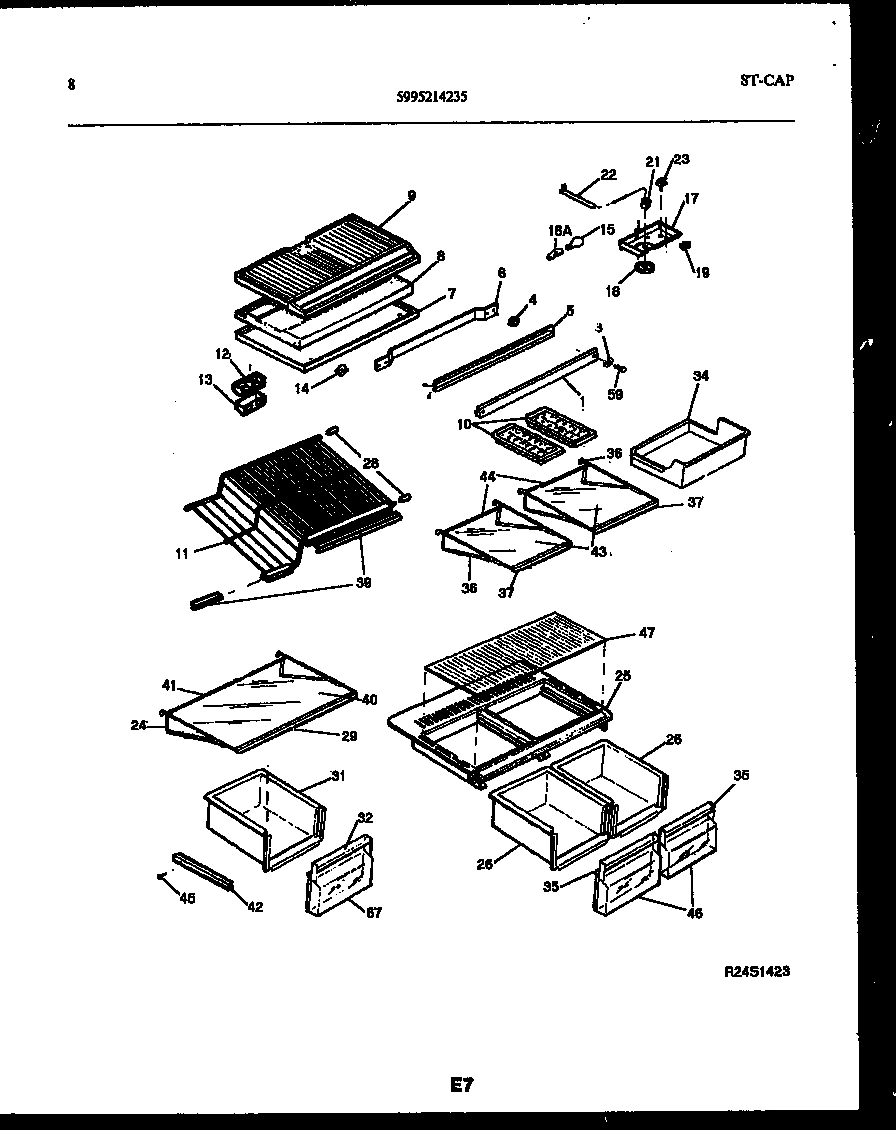

05 - SHELVES AND SUPPORTS

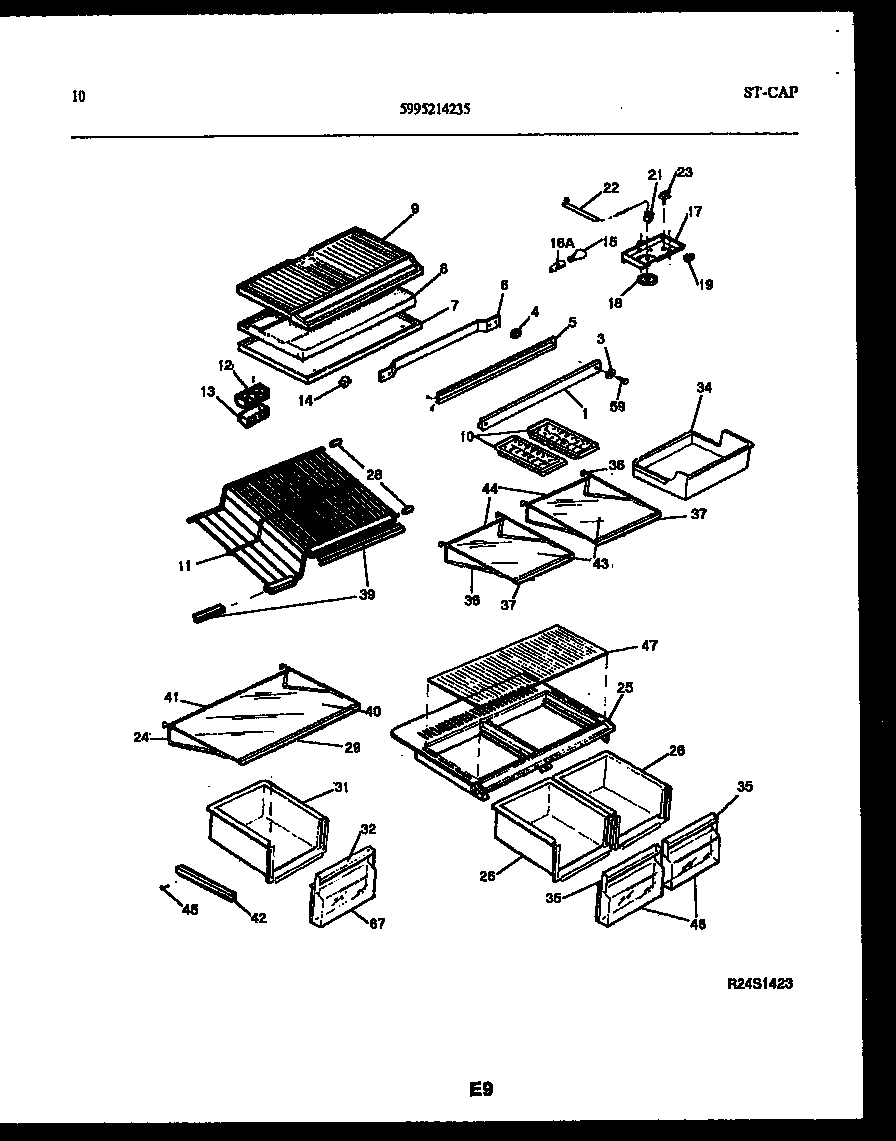

06 - SHELVES AND SUPPORTS

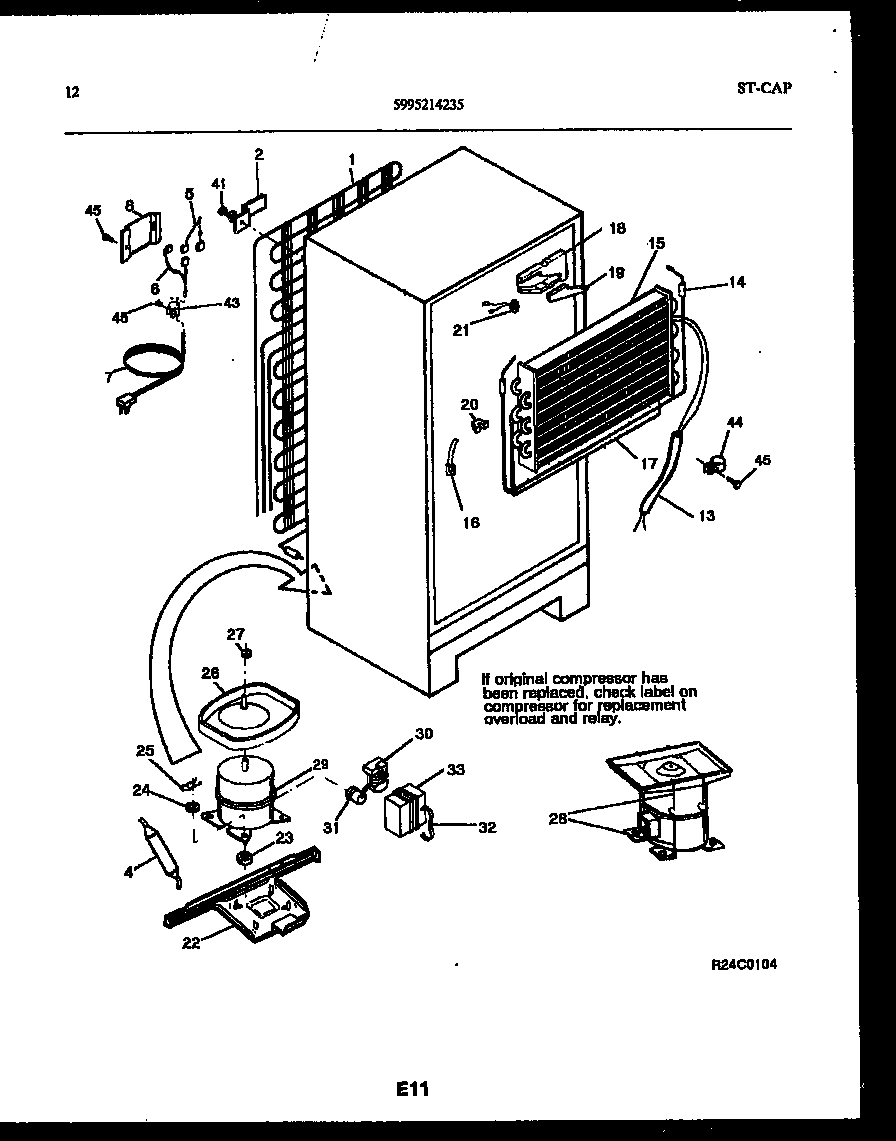

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

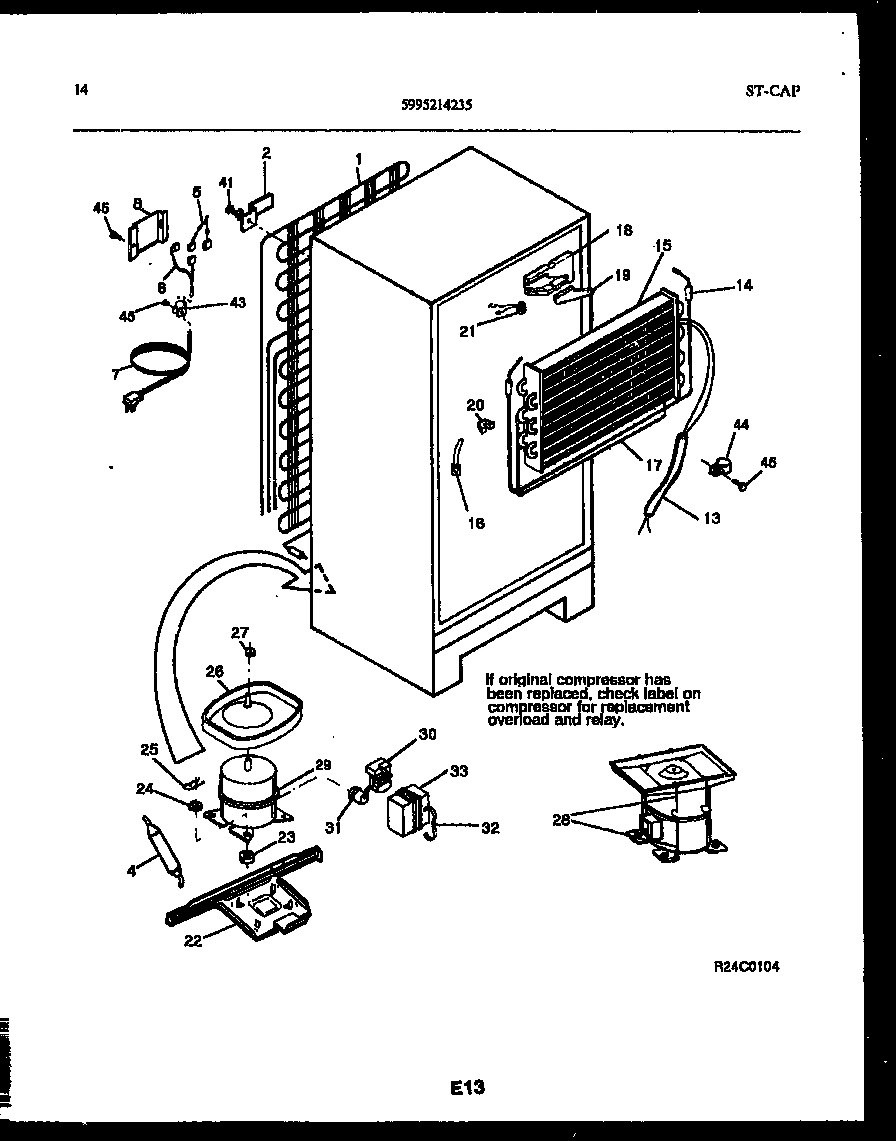

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPW18TPW1 REFRIGERATOR
*57089
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*57091
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*57097
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 3206387 WCI 3206387 Contact Us For Availability
1
WCI 3206446 WCI 3206446 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 3206388 WCI 3206388 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
4
WCI 3206110 WCI 3206110 Contact Us For Availability
4
WCI 5303206753 WCI 5303206753 Contact Us For Availability
5
WCI 3206445 WCI 3206445 Contact Us For Availability
5
WIRING HARNESS,CONTROL/DIVIDER WCI 3018900 Contact Us For Availability
6
WCI 3206135 WCI 3206135 Contact Us For Availability
6
WCI 5303206752 WCI 5303206752 Contact Us For Availability
6
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206454 WCI 3206454 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206456 WCI 3206456 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206455 WCI 3206455 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206451 WCI 3206451 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 5303208422 WCI 5303208422 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 3206452 WCI 3206452 Contact Us For Availability
17
WCI 3206444 WCI 3206444 Contact Us For Availability
17
WCI 3206390 WCI 3206390 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
KNOB-TEMP CONTROL WCI 3206391 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
SWITCH-ENERGY SAVER WCI 3206389 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
PLATE-COMPRESSOR MTG, WITH RAIL WCI 3206126 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303282453 WCI 5303282453 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
CLIP-CANTILEVER SHLF (NON-ILLUSTRATED) WCI 5300170910 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 5303208431 WCI 5303208431 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5308009761 WCI 5308009761 Contact Us For Availability
29
WCI 5303282459 WCI 5303282459 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
31
WCI 5303270406 WCI 5303270406 Contact Us For Availability
32
PLUG-BUTTON, CABINET BASE, (2) WCI 3206142 Contact Us For Availability
32
WCI 5303208419 WCI 5303208419 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
TRIM-CRISPER PAN, (2) WCI 3206440 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 5303282452 WCI 5303282452 Contact Us For Availability
37
WCI 5303202336 WCI 5303202336 Contact Us For Availability
37
WCI 5303282460 WCI 5303282460 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, SMALL WCI 5303272521 Contact Us For Availability
39
WCI 5303282461 WCI 5303282461 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 5303282446 WCI 5303282446 Contact Us For Availability
40A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
41
WCI 5303282450 WCI 5303282450 Contact Us For Availability
42
WCI 3206380 WCI 3206380 Contact Us For Availability
42A
WCI 3206379 WCI 3206379 Contact Us For Availability
43
WCI 5300188673 WCI 5300188673 Contact Us For Availability
43
WCI 5303282445 WCI 5303282445 Contact Us For Availability
43A
WCI 5308009760 WCI 5308009760 Contact Us For Availability
43A
RETAINER-GLASS (2) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
43B
WCI 5308009790 WCI 5308009790 Contact Us For Availability
43C
WCI 5308011326 WCI 5308011326 Contact Us For Availability
44
WCI 3206237 WCI 3206237 Contact Us For Availability
44
WCI 5303282451 WCI 5303282451 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
FRONT-CRISPER PAN, LH WCI 3206441 Contact Us For Availability
46
WCI 5303208429 WCI 5303208429 Contact Us For Availability
47
WCI 3206202 WCI 3206202 Contact Us For Availability
47
INSERT-CRISPER COVER, GLASS WCI 5303275649 Contact Us For Availability
48
WCI 3916030 WCI 3916030 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
59
SCREW-HNG/MULL MTG,ACORN HX WSH HD,10-24(23)X WCI 3206134 Contact Us For Availability
67
WCI 5303208420 WCI 5303208420 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
