Model Electrolux FPUH19D7LF0 FREEZER – Common Parts & Diagrams

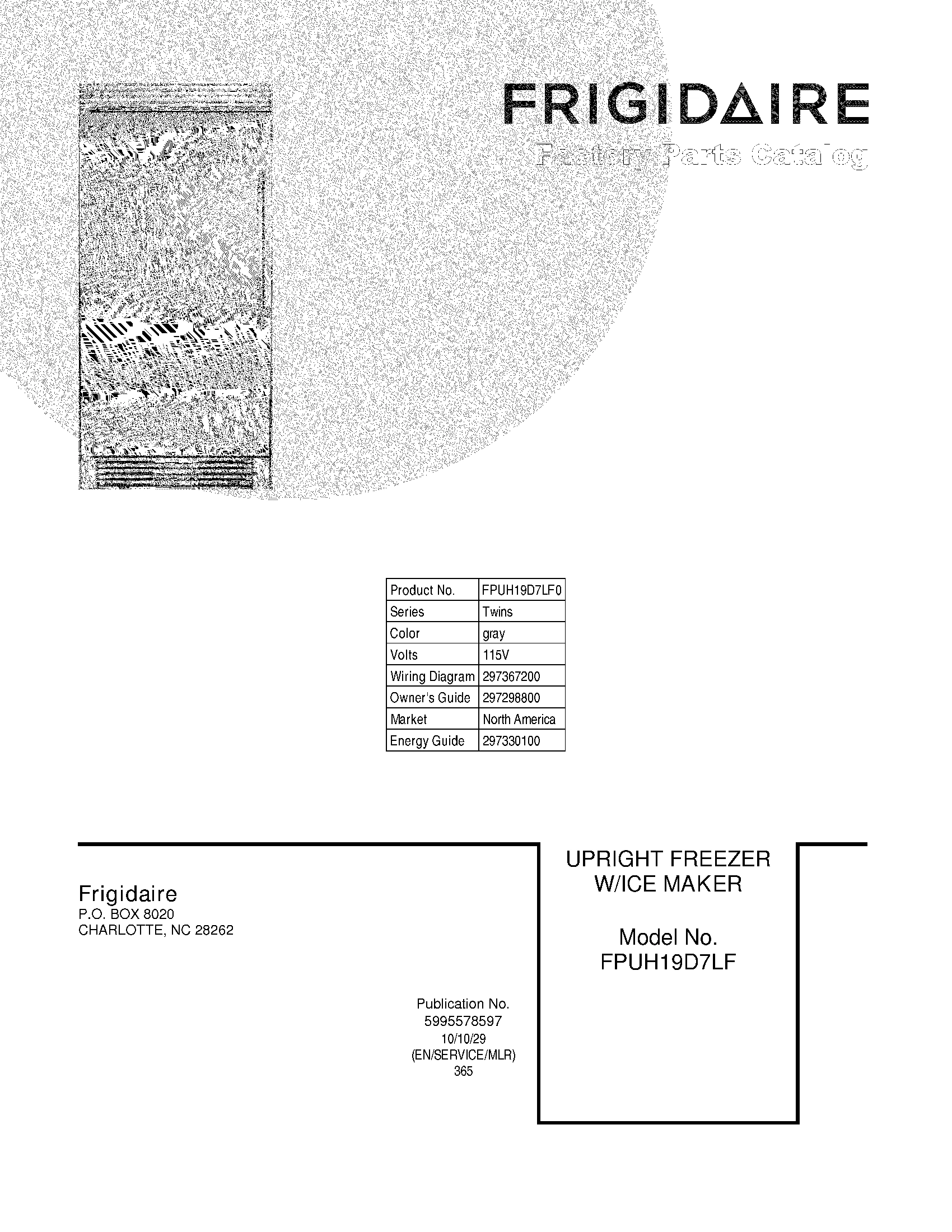

01 - COVER

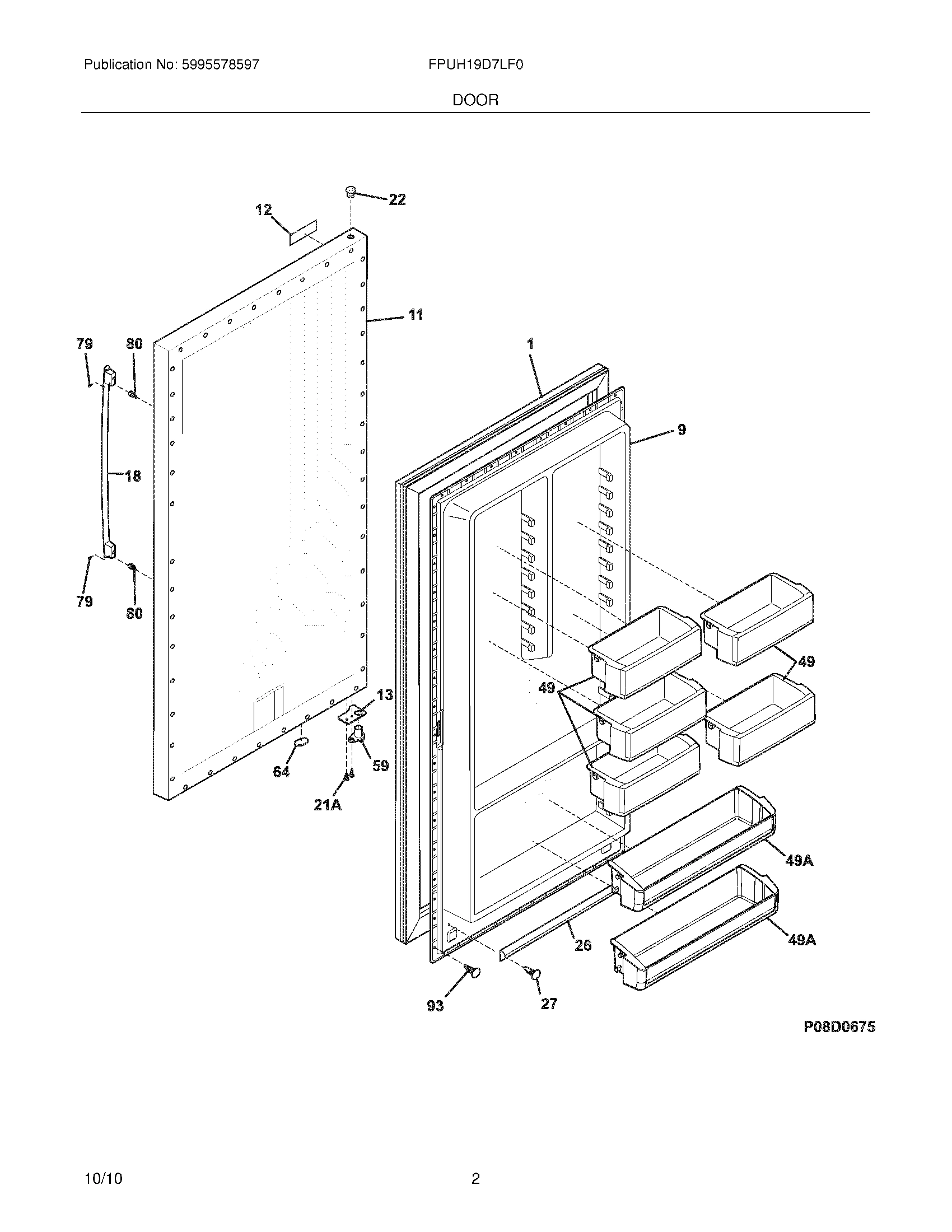

03 - DOOR

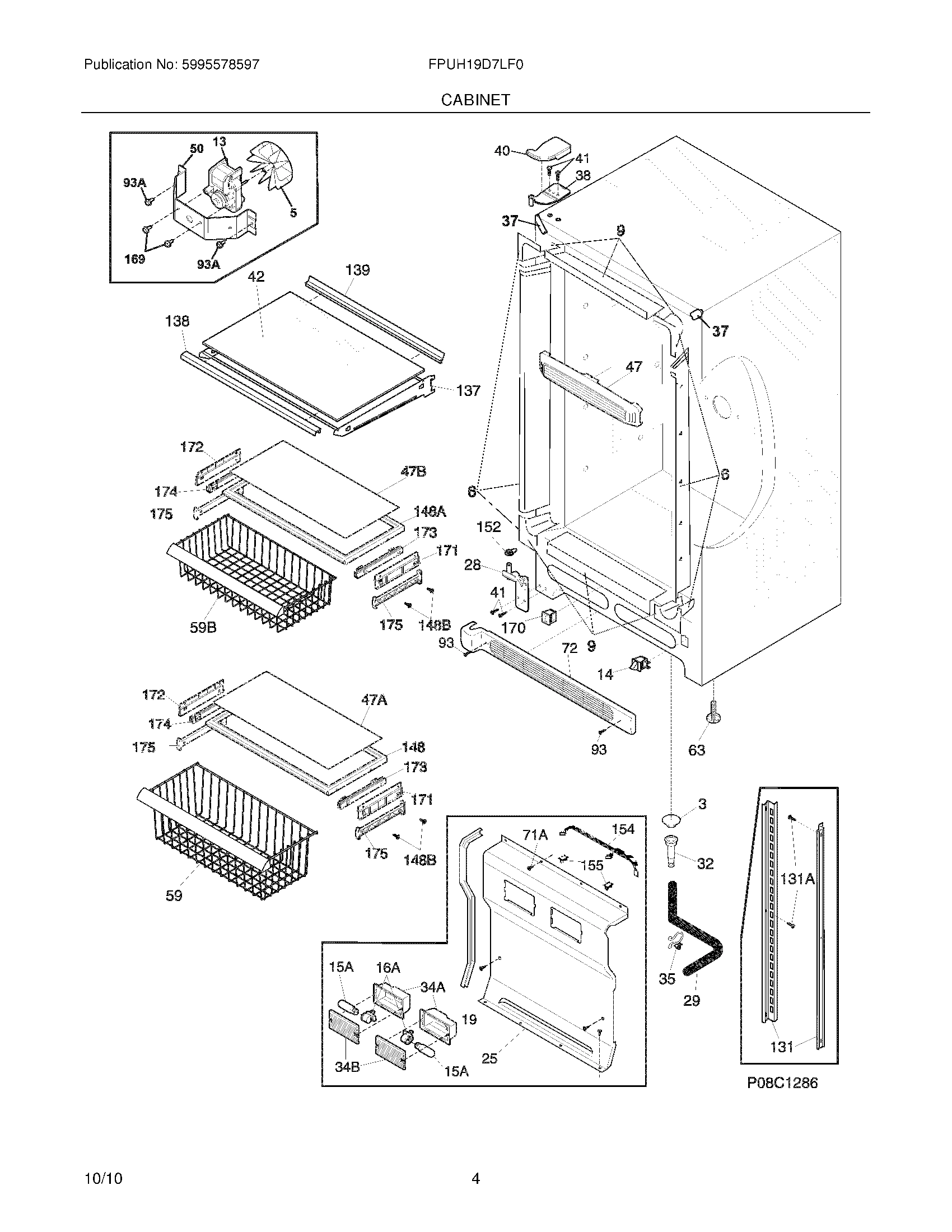

05 - CABINET

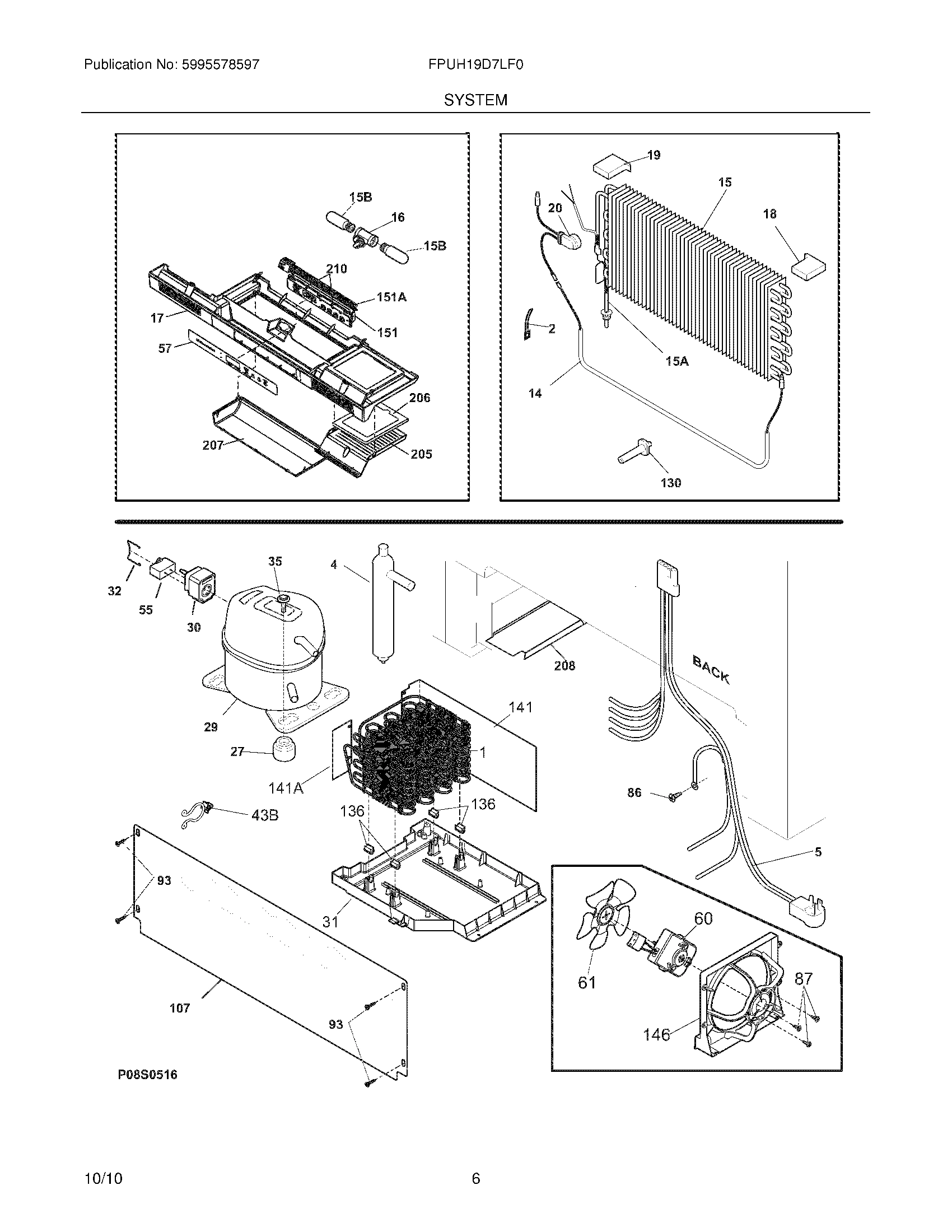

07 - SYSTEM

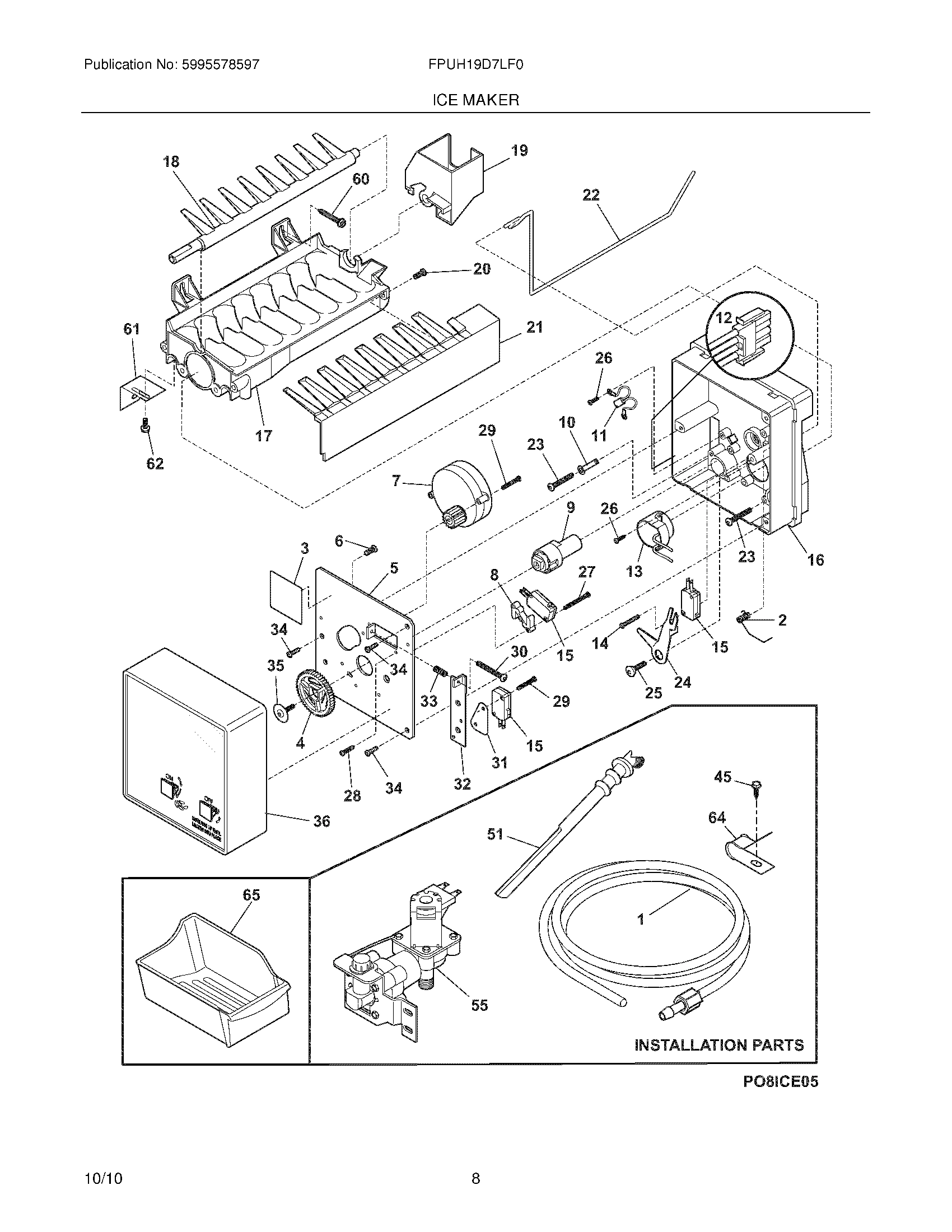

09 - ICE MAKER
Common parts from model Electrolux FPUH19D7LF0 FREEZER
1
WCI 297152200 WCI 297152200 Contact Us For Availability
1
WCI 297044904 WCI 297044904 Contact Us For Availability
2
STRAP-EVAP/HEATER,ALUMINUM ,(2) WCI 5308000110 Contact Us For Availability
3
WCI 216503100 WCI 216503100 Contact Us For Availability
5
Fan Blade,evaporator WCI 297259600 Contact Us For Availability
6
WCI 297200900 WCI 297200900 Contact Us For Availability
9
Panel-inner door,frzr WCI 297280800 Contact Us For Availability
9
WCI 297200100 WCI 297200100 Contact Us For Availability
12
WCI 242015101 WCI 242015101 Contact Us For Availability
13
WCI 297302801 WCI 297302801 Contact Us For Availability
13
WCI 5304456665 WCI 5304456665 Contact Us For Availability
14
WCI 216730700 WCI 216730700 Contact Us For Availability
15
WCI 5304456667 WCI 5304456667 Contact Us For Availability
15A
Heat Exchanger,suct/cap tube WCI 297217900 Contact Us For Availability
16
WCI 241622802 WCI 241622802 Contact Us For Availability
16A
Socket,light/lamp ,25 W WCI 297139501 Contact Us For Availability
17
WCI 297269000 WCI 297269000 Contact Us For Availability
18
Handle Assembly,stainless ,w/endcaps WCI 297330300 Contact Us For Availability
18
Insulator-evap,styrofoam ,RH WCI 297078701 Contact Us For Availability
19
WCI 216204902 WCI 216204902 Contact Us For Availability
19
Insulator-evap,styrofoam ,LH WCI 297078801 Contact Us For Availability
20
WCI 297216600 WCI 297216600 Contact Us For Availability
21A
Screw,door stop mtg ,FH38-16X.750 ,P Twin WCI 297197500 Contact Us For Availability
24
WCI 5304456675 WCI 5304456675 Contact Us For Availability
25
WCI 297099254 WCI 297099254 Contact Us For Availability
26
WCI 216524201 WCI 216524201 Contact Us For Availability
27
WCI 5304472186 WCI 5304472186 Contact Us For Availability
30
WCI 216954229 WCI 216954229 Contact Us For Availability
31
WCI 297165800 WCI 297165800 Contact Us For Availability
32
WCI 216954300 WCI 216954300 Contact Us For Availability
35
WCI 240491503 WCI 240491503 Contact Us For Availability
35
WCI 216273000 WCI 216273000 Contact Us For Availability
38
WCI 297303901 WCI 297303901 Contact Us For Availability
40
WCI 297304001 WCI 297304001 Contact Us For Availability
42
WCI 297265900 WCI 297265900 Contact Us For Availability
45
WCI 5304455650 WCI 5304455650 Contact Us For Availability
47A
Glass,basket cover WCI 297102705 Contact Us For Availability
47B
Glass,basket cover WCI 297102704 Contact Us For Availability
49
Bin-door,2-liter WCI 297295300 Contact Us For Availability
49A
Bin-door,gallon ,(2) WCI 297295400 Contact Us For Availability
51
WCI 216887500 WCI 216887500 Contact Us For Availability
57
WCI 297269400 WCI 297269400 Contact Us For Availability
59
WCI 297302900 WCI 297302900 Contact Us For Availability
59B
Basket,assy-mid level WCI 297269700 Contact Us For Availability
60
WCI 218362501 WCI 218362501 Contact Us For Availability
63
WCI 216396900 WCI 216396900 Contact Us For Availability
64
WCI 5304455846 WCI 5304455846 Contact Us For Availability
64
WCI 216403701 WCI 216403701 Contact Us For Availability
65
WCI 240385201 WCI 240385201 Contact Us For Availability
71A
Screw,8-18AB x.470 QX WCI 297146820 Contact Us For Availability
79
WCI 218755401 WCI 218755401 Contact Us For Availability
80
WCI 218755504 WCI 218755504 Contact Us For Availability
107
WCI 297165400 WCI 297165400 Contact Us For Availability
136
WCI 240405201 WCI 240405201 Contact Us For Availability
137
Frame-shelf,cantilever ,(2) WCI 297050600 Contact Us For Availability
138
Trim-shelf,front WCI 297261400 Contact Us For Availability
139
Trim-shelf,rear WCI 297261500 Contact Us For Availability
146
WCI 216337701 WCI 216337701 Contact Us For Availability
146
WCI 297164000 WCI 297164000 Contact Us For Availability
148
WCI 297142600 WCI 297142600 Contact Us For Availability
148
Frame,basket-cover ,btm WCI 297271703 Contact Us For Availability
151
WCI 297326502 WCI 297326502 Contact Us For Availability
151
WCI 297327800 WCI 297327800 Contact Us For Availability
169
Screw,hex washer head ,8-32 x 0.500 ,bracket WCI 216912401 Contact Us For Availability
170
WCI 297280403 WCI 297280403 Contact Us For Availability
171
Bracket,basket cover ,RH WCI 297092700 Contact Us For Availability
172
Bracket,basket cover ,LH WCI 297092701 Contact Us For Availability
175
Support,basket WCI 297099500 Contact Us For Availability
205
Holder,air filter WCI 297294301 Contact Us For Availability
207
Shield-light,clear WCI 297294500 Contact Us For Availability
210
WCI 216905301 WCI 216905301 Contact Us For Availability
NI
WCI 297110400 WCI 297110400 Contact Us For Availability
NI
WCI 5304406520 WCI 5304406520 Contact Us For Availability
NI
WCI 240561701 WCI 240561701 Contact Us For Availability
NI
WCI 297001704 WCI 297001704 Contact Us For Availability
NI
WCI 240555002 WCI 240555002 Contact Us For Availability
NI
Nut-anchor,door hdl screw WCI 240537301 Contact Us For Availability
NI
WCI 297305500 WCI 297305500 Contact Us For Availability
NI
Bracket,RH leg levelor WCI 297164651 Contact Us For Availability
NI
WCI 216502500 WCI 216502500 Contact Us For Availability
NI
Plug-suction line WCI 297014702 Contact Us For Availability
NI
Bracket,LH leg levelor WCI 297164650 Contact Us For Availability
× ![]()
