Model Electrolux FPTR18D3RS3 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

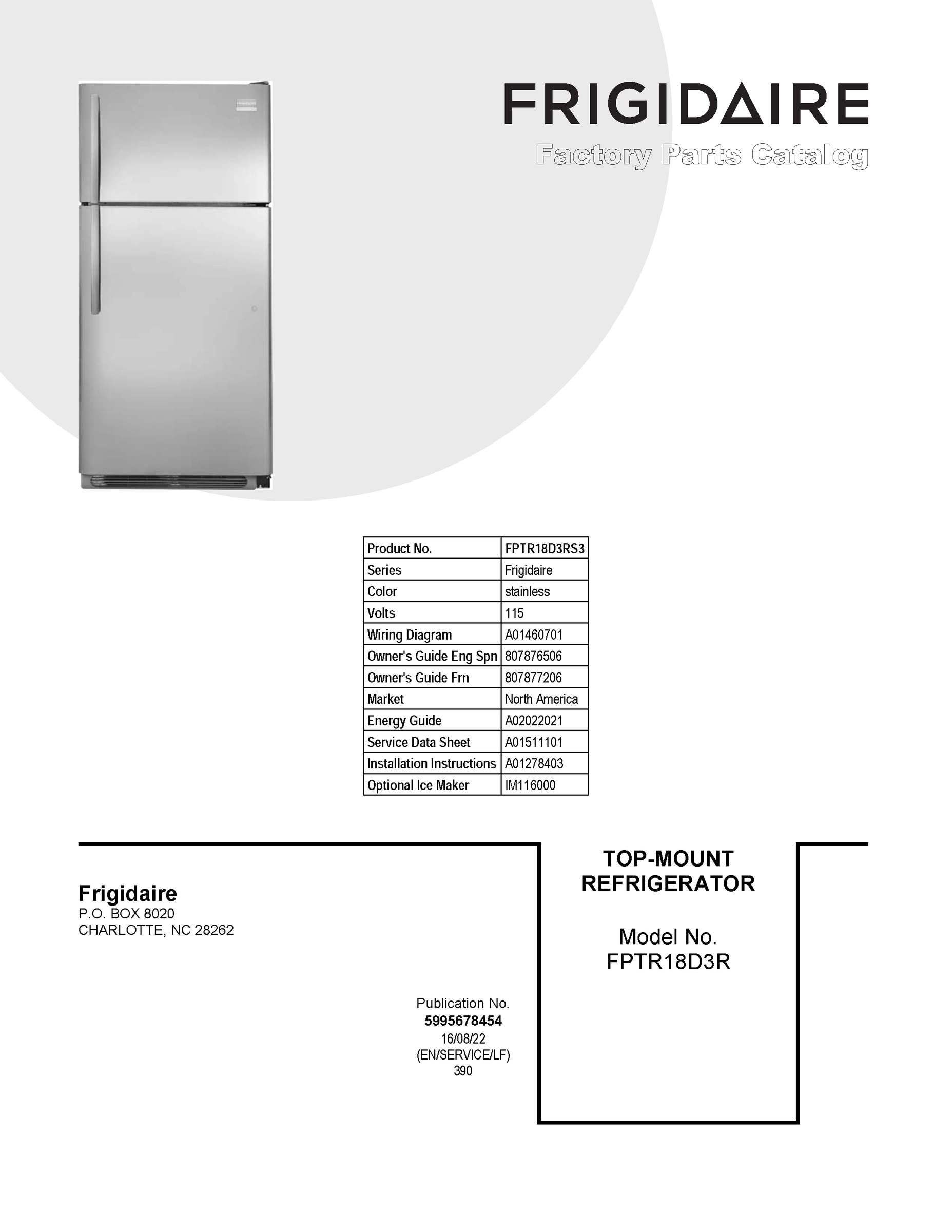

01 - COVER SHEET

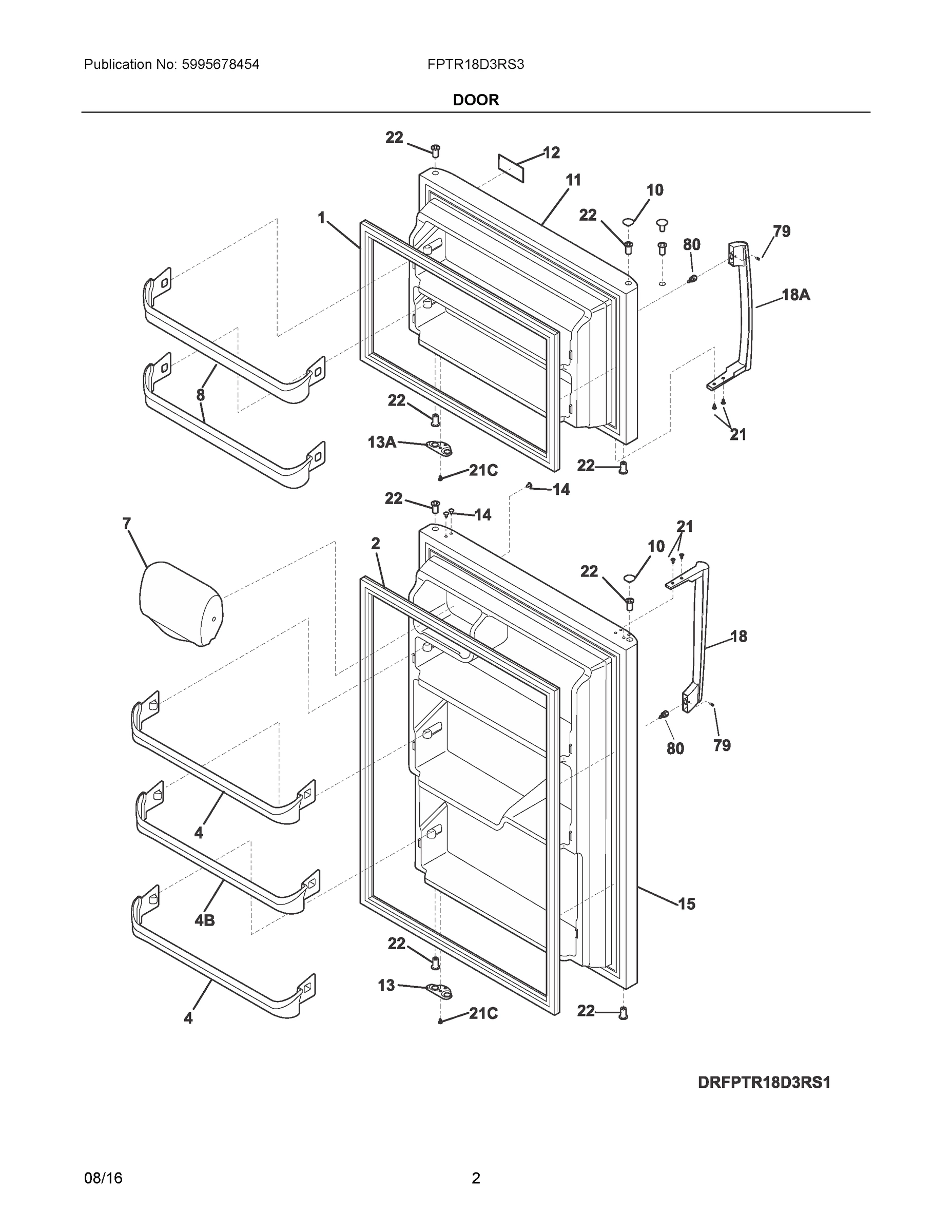

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FPTR18D3RS3 REFRIGERATOR, TOP MOUNT
1
WCI 242193218 WCI 242193218 Contact Us For Availability
1
WCI 242230902 WCI 242230902 Contact Us For Availability
1
WCI 241785407 WCI 241785407 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
WCI 242193219 WCI 242193219 Contact Us For Availability
2
WCI 242229401 WCI 242229401 Contact Us For Availability
4
WCI 240534901 WCI 240534901 Contact Us For Availability
4B
RACK-DOOR, 4B WCI 240534701 Contact Us For Availability
5
WCI 242219302 WCI 242219302 Contact Us For Availability
6
WCI 5304497413 WCI 5304497413 Contact Us For Availability
7
WCI 240337712 WCI 240337712 Contact Us For Availability
7
WCI 242287501 WCI 242287501 Contact Us For Availability
8
WCI 240534801 WCI 240534801 Contact Us For Availability
8
WCI 242237301 WCI 242237301 Contact Us For Availability
9
WCI 242229301 WCI 242229301 Contact Us For Availability
10
WCI 240381307 WCI 240381307 Contact Us For Availability
10
WCI 242239304 WCI 242239304 Contact Us For Availability
11
WCI 240358008 WCI 240358008 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 240410206 Contact Us For Availability
12
WCI 242249201 WCI 242249201 Contact Us For Availability
12
WCI 242015101 WCI 242015101 Contact Us For Availability
13
WCI 242240602 WCI 242240602 Contact Us For Availability
13A
WCI 240312419 WCI 240312419 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
WCI 240494007 WCI 240494007 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801301 WCI 241801301 Contact Us For Availability
18
KNOB, COLD CONTROL WCI 242217001 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
WCI 5303918638 WCI 5303918638 Contact Us For Availability
21A
WCI 5303918645 WCI 5303918645 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
BASE-COMPRESSOR, W/ROLLERS WCI 241665606 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24A
SHELF-"SPILL-SAFE", SLIDING, W/PAN HANGER WCI 240358926 Contact Us For Availability
25
WCI 240364787 WCI 240364787 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
WCI 241920605 WCI 241920605 Contact Us For Availability
29
WCI 5303918659 WCI 5303918659 Contact Us For Availability
30
BRACKET-LOWER HINGE, ZINC WCI 240314011 Contact Us For Availability
31
PAN-MEAT, W/O GRAPHICS, CLEAR WCI 240530811 Contact Us For Availability
32
WCI 5304497418 WCI 5304497418 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, ZINC WCI 240313806 Contact Us For Availability
35A
SPACER-HINGE, CENTER, WHITE WCI 240336802 Contact Us For Availability
37
WCI 242161206 WCI 242161206 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
WCI 240354408 WCI 240354408 Contact Us For Availability
41
WCI 5304500407 WCI 5304500407 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
47
INSERT-PAN COVER, 23.82" X 15.50", GLASS WCI 240350608 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
WCI 242050604 WCI 242050604 Contact Us For Availability
61
WCI 241639502 WCI 241639502 Contact Us For Availability
72
WCI 241839414 WCI 241839414 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.375 WCI 218755401 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
89
WCI 241733911 WCI 241733911 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
ROLLER ASSY, FRONT RH, (2) WCI 241889001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WCI 241705801 WCI 241705801 Contact Us For Availability
NIA
WCI 218515401 WCI 218515401 Contact Us For Availability
NIA
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET WCI 241586701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
