Model Electrolux FPS21TLW2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

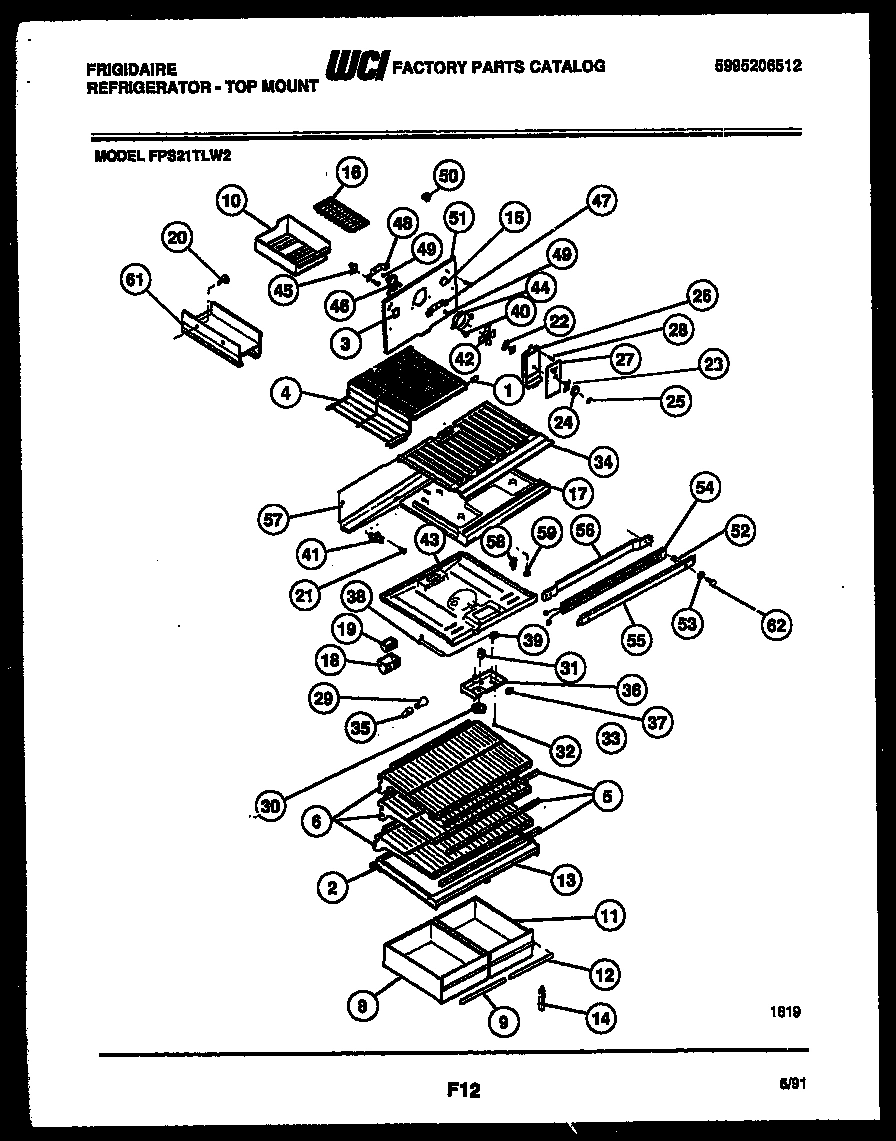

04 - SHELVES AND SUPPORTS

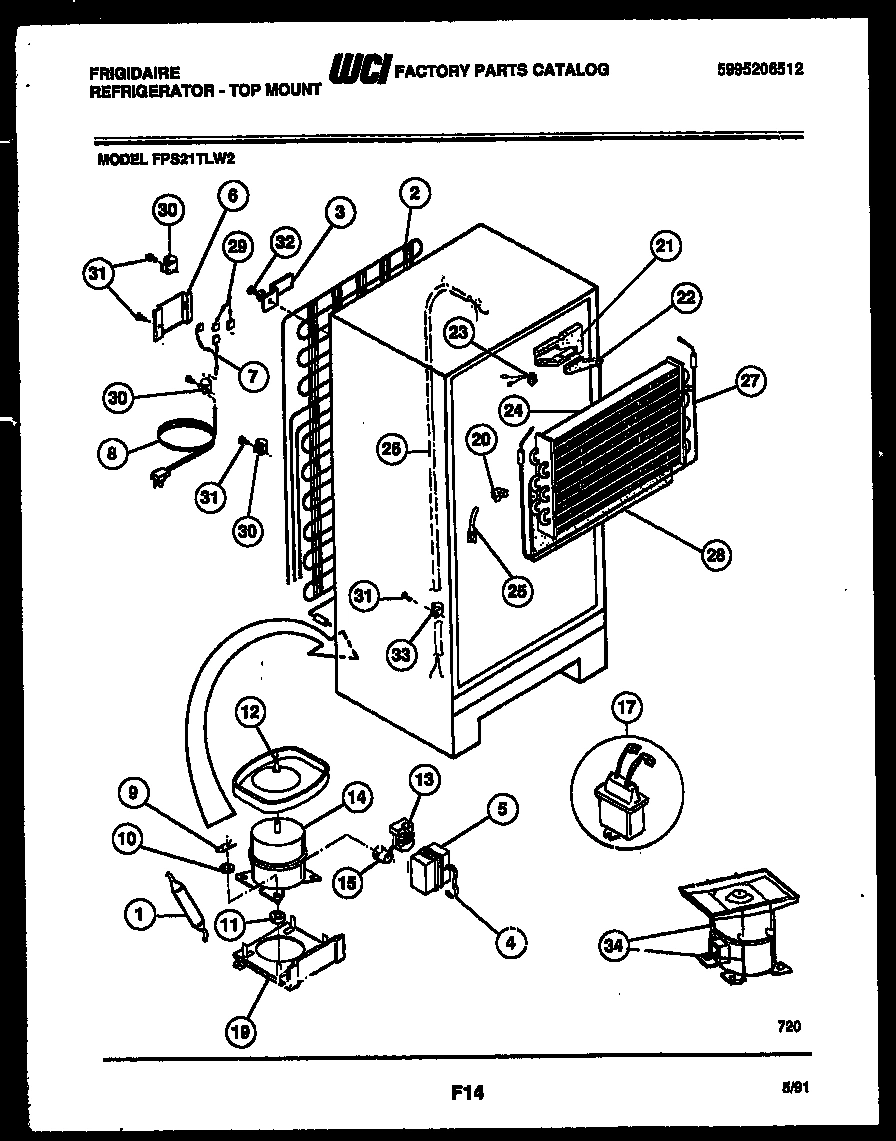

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPS21TLW2 REFRIGERATOR
*46060
TAPPING - PLATE - UPPER (2) WCI 5308012296 Contact Us For Availability
*46068
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
2
HINGE-UPPER BRACKET WCI 5308012843 Contact Us For Availability
2
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5308012820 WCI 5308012820 Contact Us For Availability
3
DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 5303001342 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 3205036 WCI 3205036 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
TRIM-SHELF (3) WCI 3018732 Contact Us For Availability
6
WCI 5303212490 WCI 5303212490 Contact Us For Availability
6
WCI 3203770 WCI 3203770 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
8
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
TRIM-PAN WCI 3017423 Contact Us For Availability
9
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WASHER-COMPRESSOR MTG (4) WCI 5308003633 Contact Us For Availability
11
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
12
TRIM-PAN WCI 3017422 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5303007603 WCI 5303007603 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
14
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
14
COMPRESSOR W/ ELECTRICALS WCI 5303916012 Contact Us For Availability
15
WCI 5308017532 WCI 5308017532 Contact Us For Availability
16
WCI 01121808 WCI 01121808 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
DIVIDER-FOAM WCI 5303019039 Contact Us For Availability
17
WCI 5303916391 WCI 5303916391 Contact Us For Availability
17A
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
17B
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
19
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
19
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
19
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
19B
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DEFROST DRAIN TUBE & RING SEAL ASSY WCI 5303210377 Contact Us For Availability
21
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
RACK-REFRIGERATOR DOOR WCI 3019031 Contact Us For Availability
22
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 5303001028 WCI 5303001028 Contact Us For Availability
24
WCI 5308009928 WCI 5308009928 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
24
EVAPORATOR WCI 5303271578 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
WCI 3019032 WCI 3019032 Contact Us For Availability
25
LABEL-KNOB-DAMPER WCI 08009823 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
FAN COVER WCI 08009825 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
HANDLE-COMPLETE-W/END CAPS WCI 5308017497 Contact Us For Availability
27
WCI 08009934 WCI 08009934 Contact Us For Availability
28
WCI 5316651102 WCI 5316651102 Contact Us For Availability
28
WCI 5303212487 WCI 5303212487 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
30
KNOB, TEMPERATURE CONTROL WCI 3018893 Contact Us For Availability
31
WCI 5303018894 WCI 5303018894 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001260 WCI 5303001260 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
35
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
36
CONTROL BOX WCI 3018895 Contact Us For Availability
37
PLUG, WHITE WCI 5303001388 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
41
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
43
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
44
ORIFICE RING-FAN WCI 5308000124 Contact Us For Availability
45
WCI 5308000107 WCI 5308000107 Contact Us For Availability
47
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
48
WCI 5303205119 WCI 5303205119 Contact Us For Availability
49
WCI 5300157666 WCI 5300157666 Contact Us For Availability
50
NUT U-TYPE (2) WCI 5303209814 Contact Us For Availability
51
WCI 5308013665 WCI 5308013665 Contact Us For Availability
52
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
53
WASHER-NO. 10 STEEL-MULLION (2) WCI 5303206754 Contact Us For Availability
54
WCI 5303210351 WCI 5303210351 Contact Us For Availability
55
WCI 5303200366 WCI 5303200366 Contact Us For Availability
56
WCI 5308010008 WCI 5308010008 Contact Us For Availability
57
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
59
WCI 5303001380 WCI 5303001380 Contact Us For Availability
61
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
61A
LABEL (NON-ILLUSTRATED) WCI 08012329 Contact Us For Availability
62
WCI 5308012258 WCI 5308012258 Contact Us For Availability
× ![]()
