Model Electrolux FPRU19F8WF3 REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET

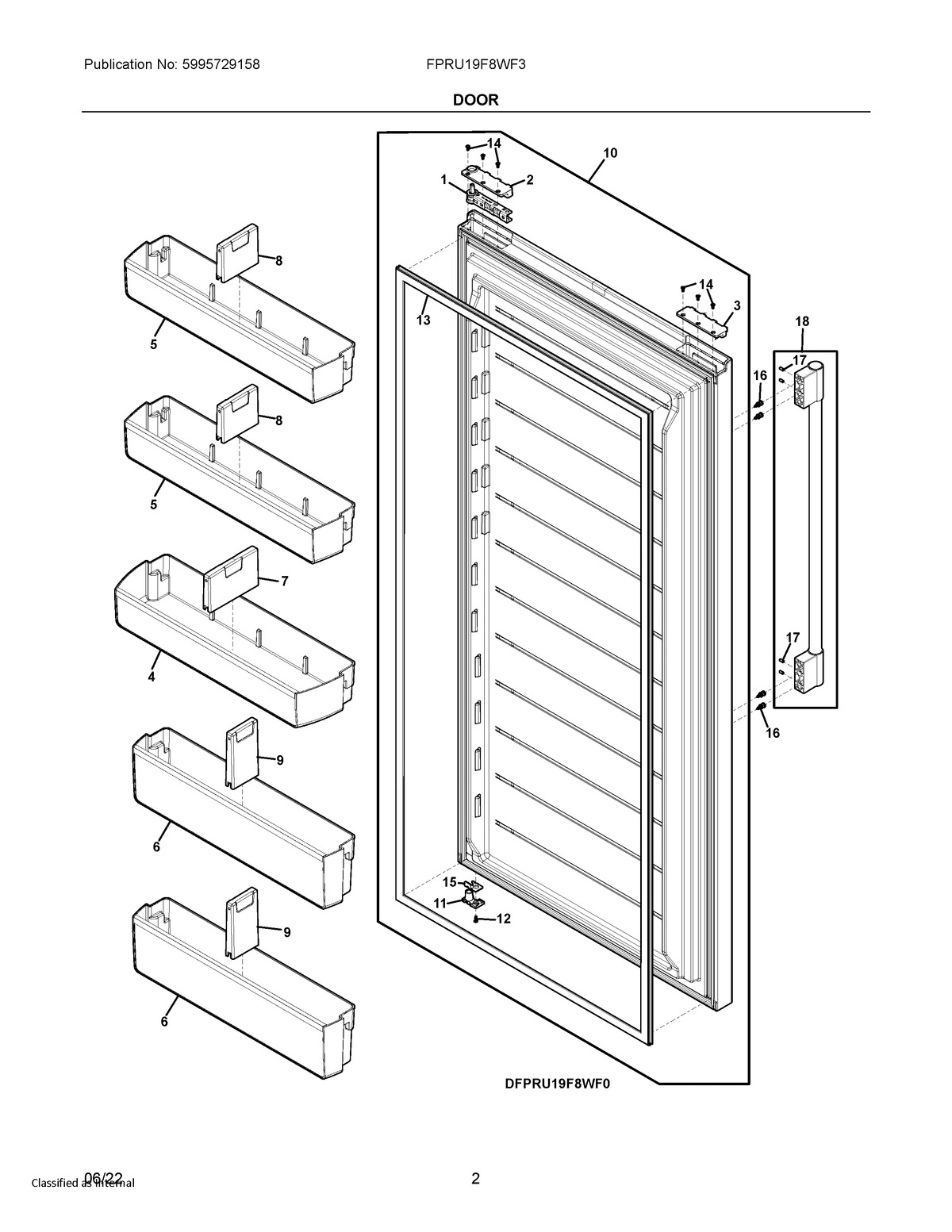

02 - DOOR

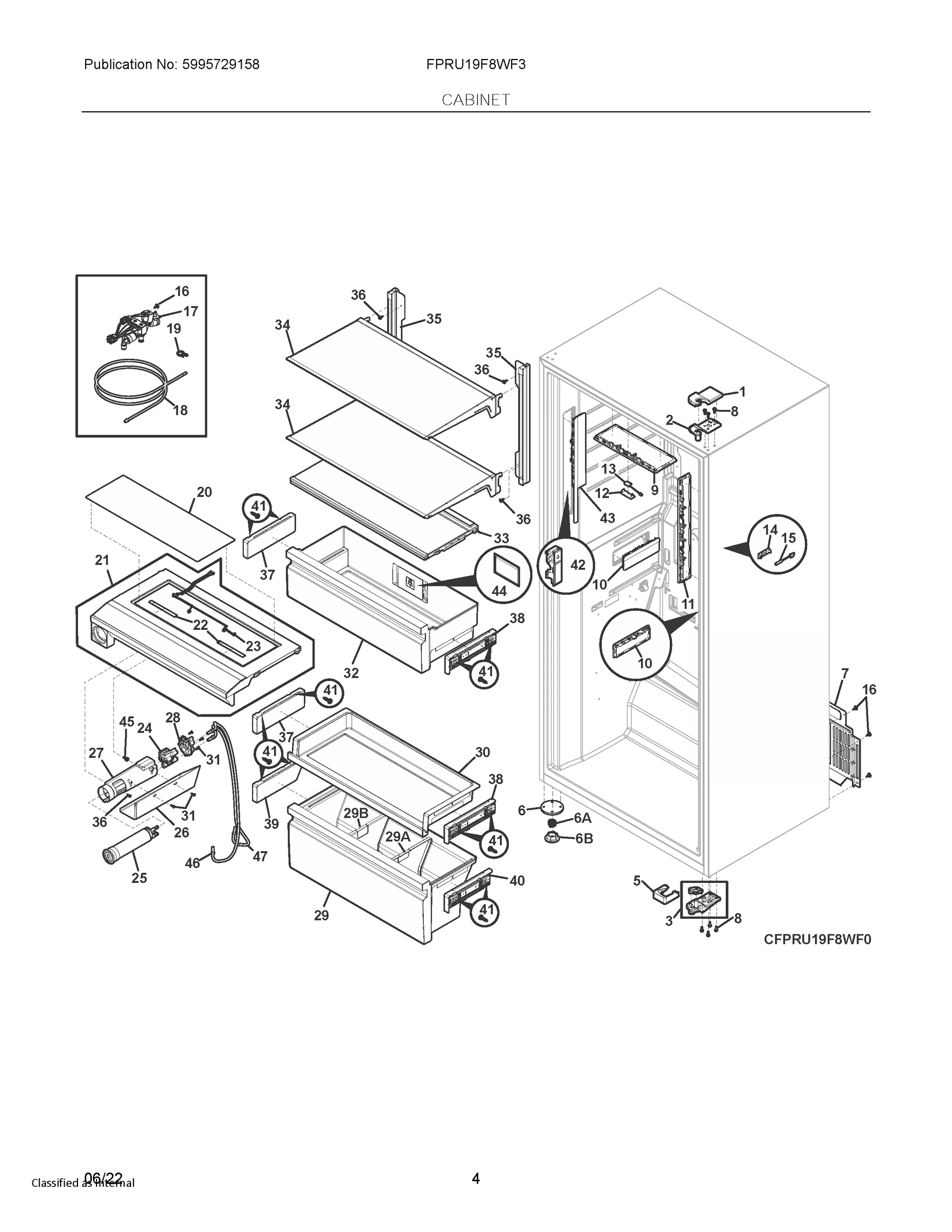

03 - CABINET

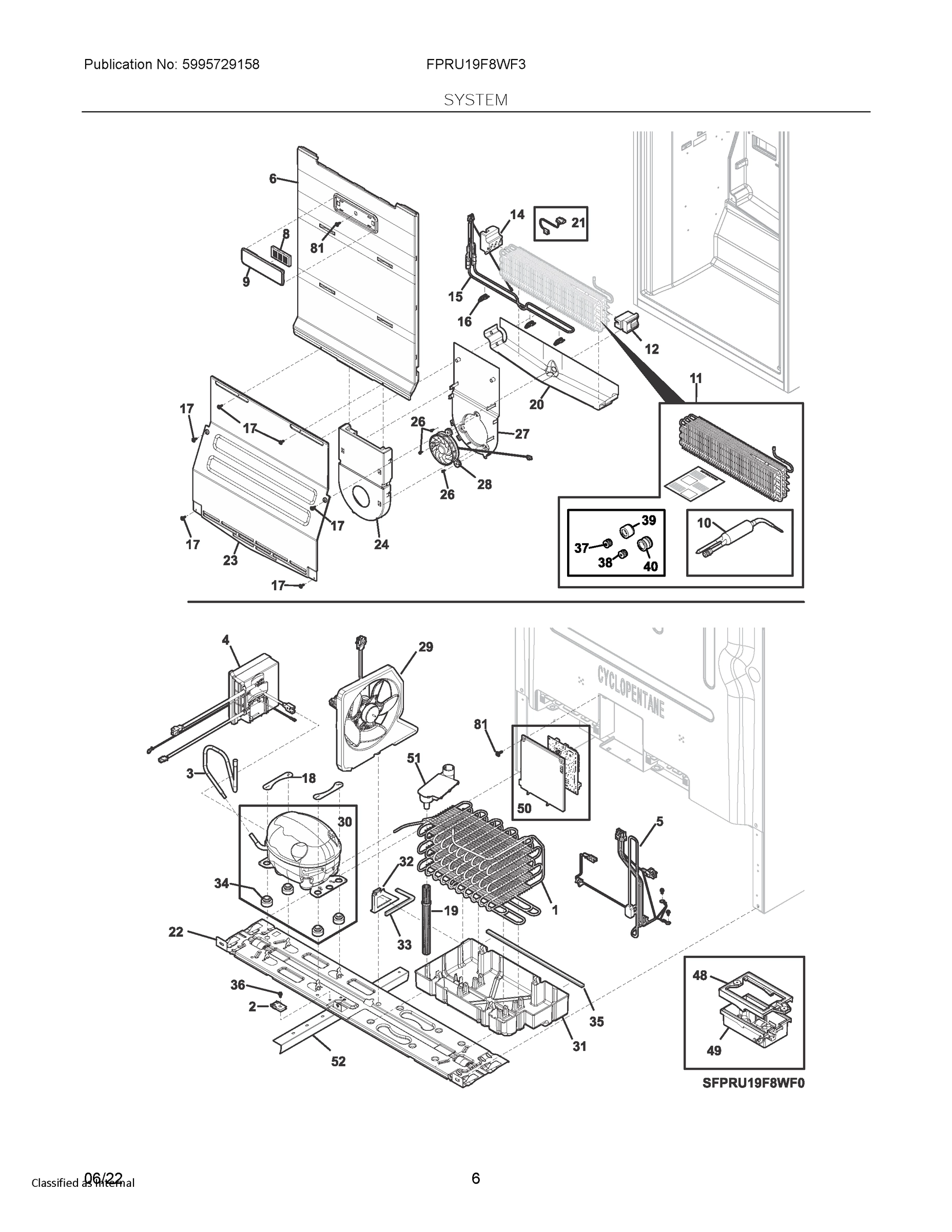

04 - SYSTEM
Common parts from model Electrolux FPRU19F8WF3 REFRIGERATOR, ALL
1
CLOSER ASSEMBLY, DOOR, RH UPPER WCI 5304524643 Contact Us For Availability
3
HINGE ASSEMBLY, LOWER, RH WCI 5304525238 Contact Us For Availability
7
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
9
COVER, AIR FILTER, FRIG PRO WCI 5304524695 Contact Us For Availability
10
FILTER, DRIER, SERVICE WCI A19676501 Contact Us For Availability
10
DOOR ASSEMBLY, COMPLETE, STAINLESS, RH SWING WCI 5304524738 Contact Us For Availability
10
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN WCI 5304524656 Contact Us For Availability
11
LIGHT ASSEMBLY, LED, 3X, W/LENS, PCB, HARN WCI 5304524658 Contact Us For Availability
12
COVER, REED SWITCH WCI 5304524761 Contact Us For Availability
12
SUPPORT, EVAPORATOR, RH WCI 5304524954 Contact Us For Availability
13
GASKET, DOOR, GRAY WCI 5304524887 Contact Us For Availability
14
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
14
SUPPORT, EVAPORATOR, LH WCI 5304523832 Contact Us For Availability
15
THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTOR WCI 5303918775 Contact Us For Availability
15
HEATER, DEFROST WCI 5304524953 Contact Us For Availability
16
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
17
VALVE, WATER, TRIPLE SOLENOID WCI 5304524756 Contact Us For Availability
17
SCREW, HEX WASH HD, M4.2 X 16 WCI 5304523738 Contact Us For Availability
18
CLAMP, COMPRESSOR WCI 5304524607 Contact Us For Availability
19
TUBE, DRAIN, EXTENSION WCI 5304525042 Contact Us For Availability
20
TROUGH, DRAIN, EVAPORATOR WCI 5304524755 Contact Us For Availability
21
CONTROL PANEL, ASSEMBLY, W/LIGHT-UI PCB WCI 5304524714 Contact Us For Availability
21
HARNESS ASSEMBLY, DEFROST NTC WCI 5304524828 Contact Us For Availability
22
BASE ASSEMBLY, COMPRESSOR, W/LEG LEVELERS WCI 5304524791 Contact Us For Availability
23
COVER ASSEMBLY, EVAPORATOR WCI 5304524719 Contact Us For Availability
24
MANIFOLD, WATER FILTER WCI 5304524817 Contact Us For Availability
24
COVER ASSEMBLY, EVAP FAN, W/AIR DUCT WCI 5304528048 Contact Us For Availability
25
FILTER, WATER, WF-1, FRIG PUREPOUR WCI FPPWFU01 Contact Us For Availability
26
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
27
BRACKET, WATER FILTER WCI 5304524837 Contact Us For Availability
27
BRACKET, FAN MOUNTING WCI 5304524782 Contact Us For Availability
28
SUPPORT, WATER FILTER WCI 5304524839 Contact Us For Availability
29
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM WCI 5304519734 Contact Us For Availability
29
DRAWER ASSEMBLY, FULL WIDTH, LOWER, W/DIVIDER WCI 5304524710 Contact Us For Availability
30
COMPRESSOR, ASSEMBLY, VTH1111Y, 230V, W/GROMM WCI 5304530136 Contact Us For Availability
30A
GROMMET, CMPRSR MTG WCI 5304530281 Contact Us For Availability
31
PAN, DRAIN WCI 5304523709 Contact Us For Availability
31A
TAPE, DRAIN PAN, FOAM, FRONT WCI 5304519744 Contact Us For Availability
32
BAFFLE, DRAIN PAN, AIR BLOCK WCI 5304519745 Contact Us For Availability
33
SEAL, FOAM, AIR BLOCK WCI 5304519751 Contact Us For Availability
34
SHELF ASSEMBLY, GLASS, W/TRIM WCI 5304524669 Contact Us For Availability
34
GROMMET, COMPRESSOR WCI 5304523829 Contact Us For Availability
35
SEAL, DRAIN PAN, FOAM WCI 5304523724 Contact Us For Availability
36
SCREW, HEX WASHER HEAD, 8-18 X 5/16 WCI 240433204 Contact Us For Availability
38
LOCK RING,DRIER,3N ST 01,38 WCI L13000622 Contact Us For Availability
39
LOCK RING,EVAPORATOR,TO SUCTI WCI L13005654 Contact Us For Availability
40
SLIDE ASSEMBLY, 8 INCH, RH WCI 5304524851 Contact Us For Availability
40
LOCK RING, DRIER WCI L13002357 Contact Us For Availability
42
DISPENSER, ASSEMBLY, WATER, W/SWITCHES WCI 5304524691 Contact Us For Availability
43
LAMP ASSEMBLY, LED, DISPENSER WCI 5304524659 Contact Us For Availability
46
HOSE, FILTER OUTLET WCI 242220129 Contact Us For Availability
47
HOSE, FILTER INLET WCI 242220130 Contact Us For Availability
48
FRAME, POWER SUPPLY WCI 5304524865 Contact Us For Availability
49
PC BOARD, ASSEMBLY, POWER SUPPLY, W/HOUSING WCI 5304524866 Contact Us For Availability
51
DRAIN JUMPER, ASSEMBLY, W/SEAL WCI 5304530111 Contact Us For Availability
52
BAFFLE, DIVIDER WCI 5304523694 Contact Us For Availability
53
COVER, DRAIN JUMPER WCI 5304525744 Contact Us For Availability
81
SCREW, HX WASH HD, M4.2 X 12 WCI 5304519765 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
NI
SCREW, HEX WASH HD, M4 X 10 WCI 5304523801 Contact Us For Availability
NIA
SPACER, SHELF/WTR TUBE WCI 241705801 Contact Us For Availability
NIA
GASKET, SHELF WCI 297350900 Contact Us For Availability
× ![]()
