Model Electrolux FPK190AN5D REFRIGERATOR – Common Parts & Diagrams

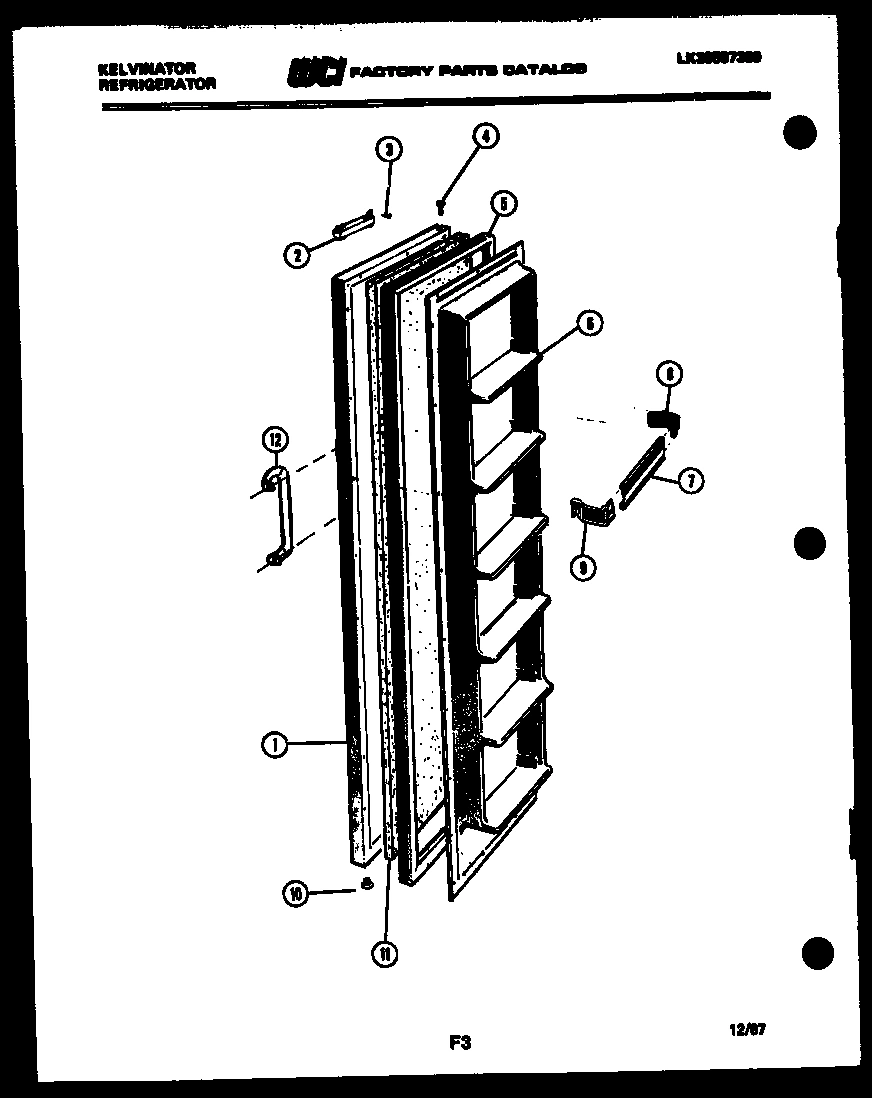

02 - FREEZER DOOR PARTS

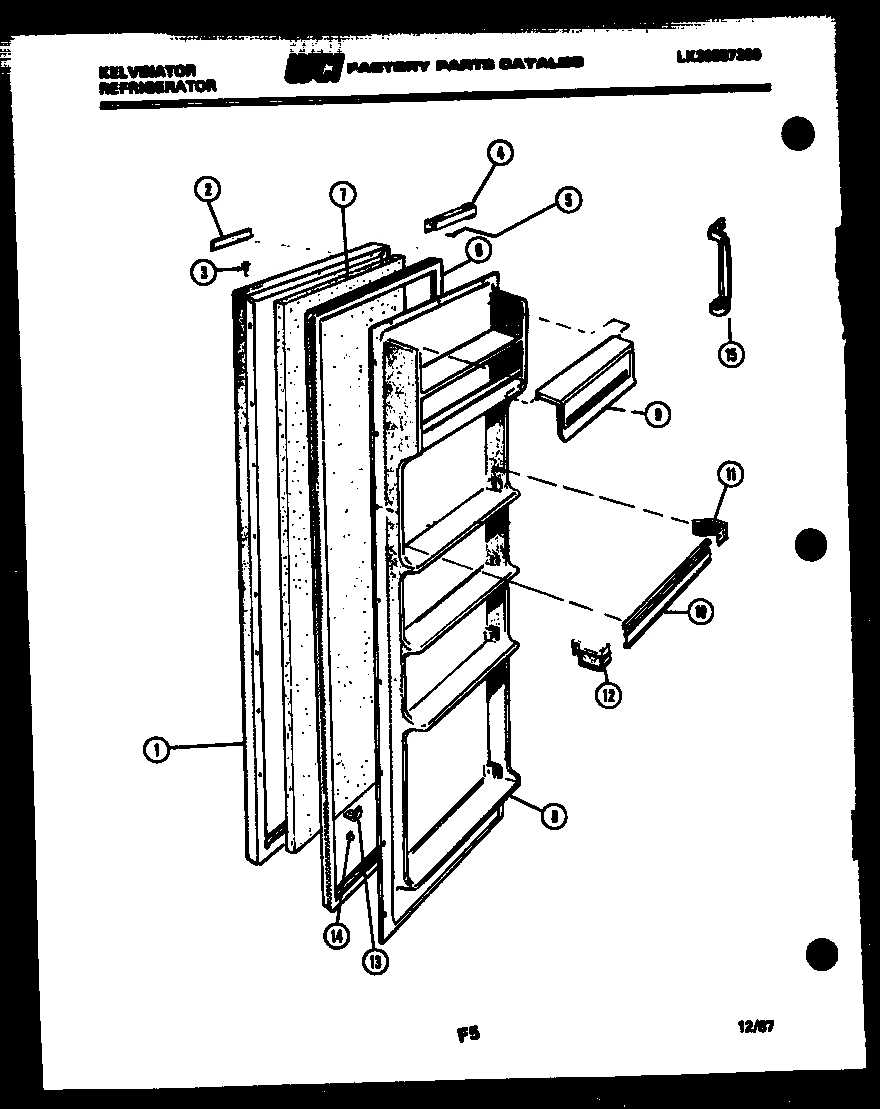

03 - REFRIGERATOR DOOR PARTS

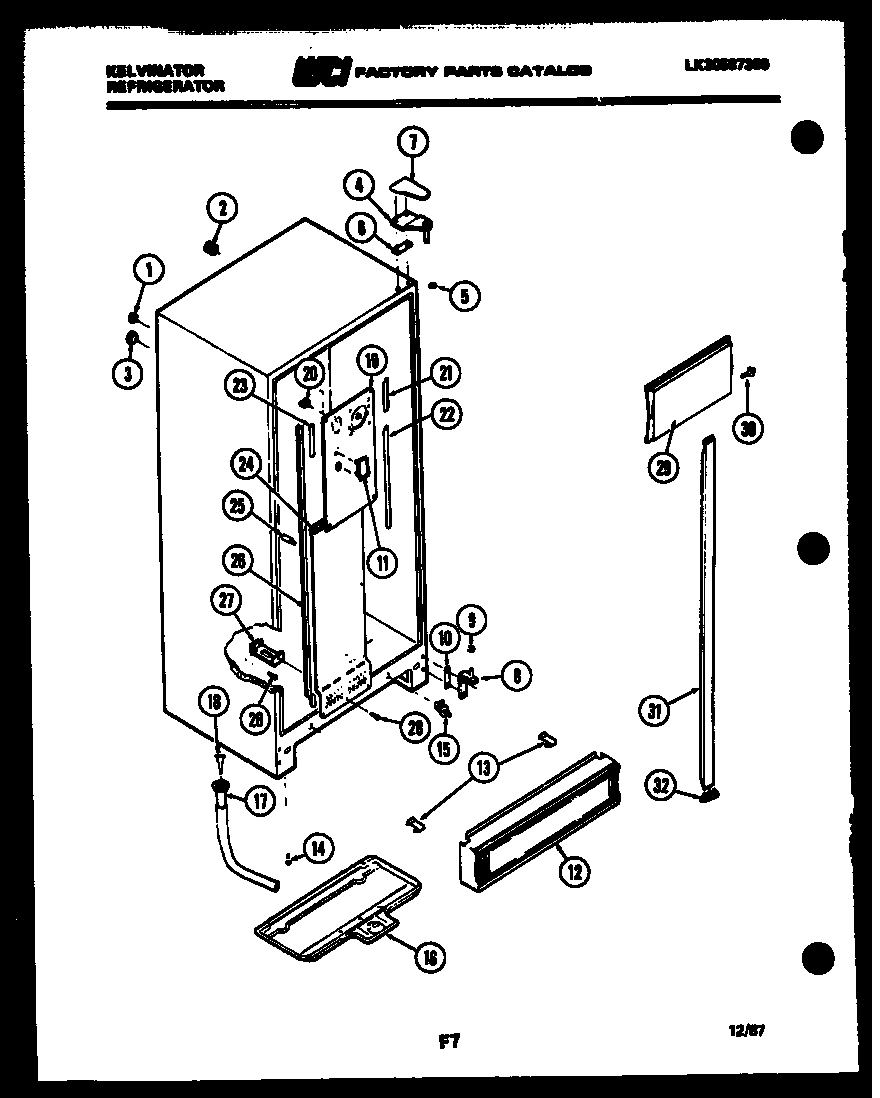

04 - CABINET PARTS

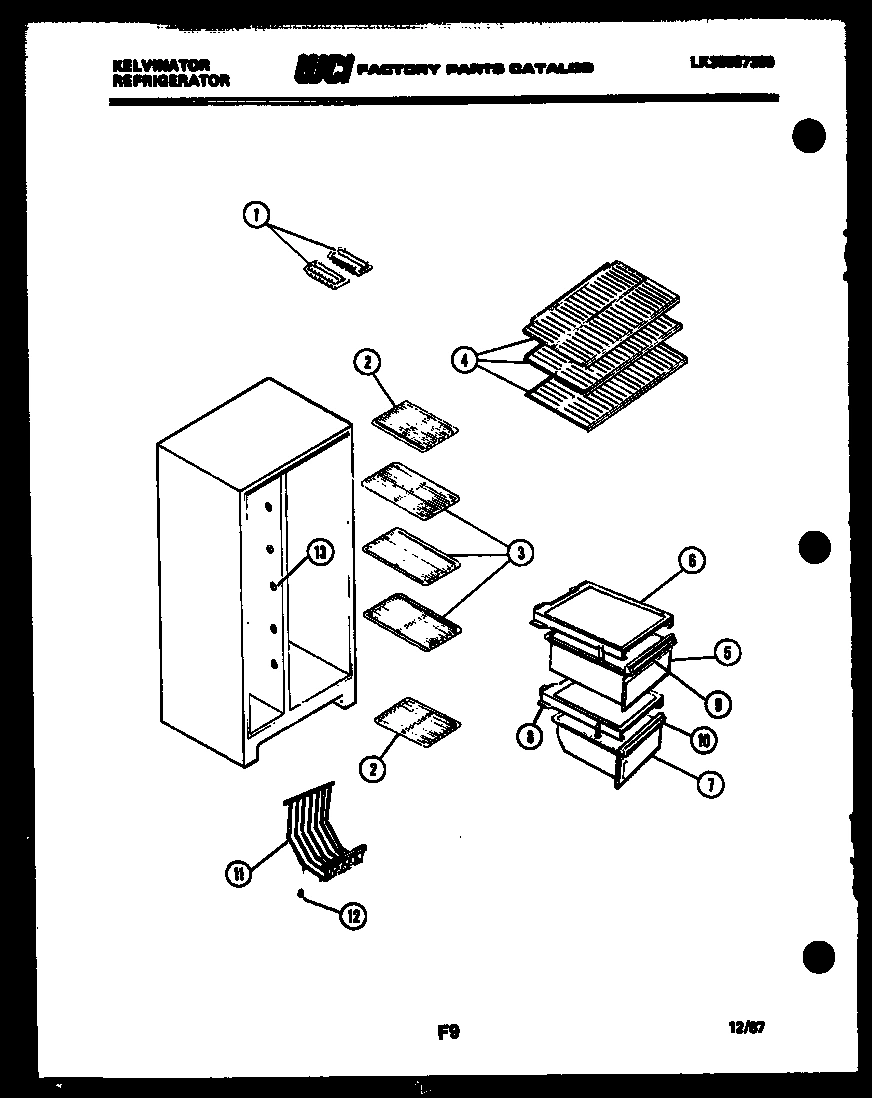

05 - RACKS AND TRAYS

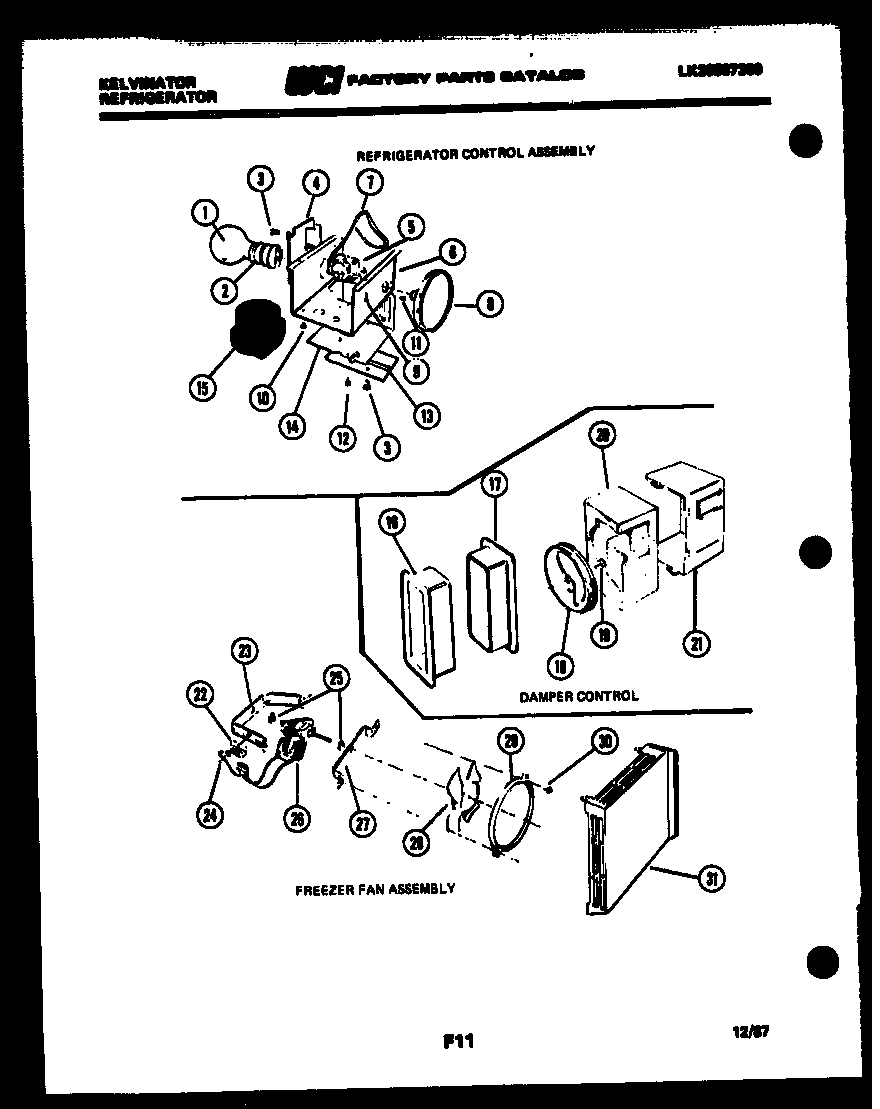

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

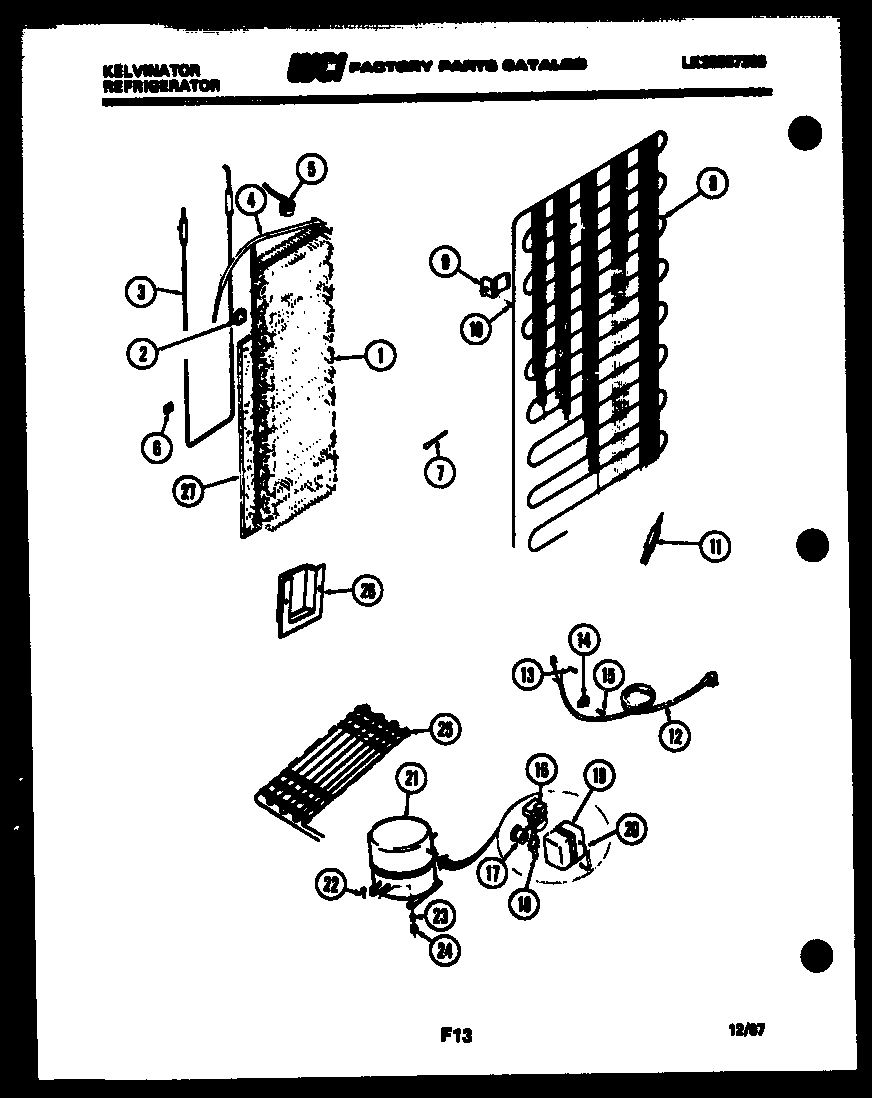

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPK190AN5D REFRIGERATOR
*20495
WCI G185566 WCI G185566 Contact Us For Availability
*20537
PLUG-REFR LINER (4) WCI G162892-01 Contact Us For Availability
*20537
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*20583
WCI G189376 WCI G189376 Contact Us For Availability
1
WCI G179739-11 WCI G179739-11 Contact Us For Availability
1
WCI G179733-11 WCI G179733-11 Contact Us For Availability
1
WCI G174734 WCI G174734 Contact Us For Availability
1
WCI G189612 WCI G189612 Contact Us For Availability
1A
PLUG-DOOR BTM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
WCI G173156 WCI G173156 Contact Us For Availability
2
TUBE, RUBBER WCI G85642 Contact Us For Availability
2
WCI G168748-01 WCI G168748-01 Contact Us For Availability
2
WCI G168302 WCI G168302 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
2A
TAPE-DBL FACED (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
3
HINGE BEARING-UPR WCI G183139 Contact Us For Availability
3
WCI G174733 WCI G174733 Contact Us For Availability
3
WCI G168748-02 WCI G168748-02 Contact Us For Availability
3
RIVET-PLASTIC WCI G165545 Contact Us For Availability
3
WCI G157191 WCI G157191 Contact Us For Availability
3A
HINGE BEARING-LWR (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
4
DOOR CLOSER WCI G161119 Contact Us For Availability
4
HINGE-TOP RS WCI G183715 Contact Us For Availability
4
WCI G167408-03 WCI G167408-03 Contact Us For Availability
4
WCI G165543 WCI G165543 Contact Us For Availability
4
WCI G189613 WCI G189613 Contact Us For Availability
4A
WCI G183716 WCI G183716 Contact Us For Availability
4C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI G157591 Contact Us For Availability
5
SCREW-MTG WCI G169729 Contact Us For Availability
5
GASKET-FREEZER WCI G180551-03 Contact Us For Availability
5
WASHER-HNG PIN (2) WCI G170156 Contact Us For Availability
5
WCI G163953-06 WCI G163953-06 Contact Us For Availability
5
CONTRL-TEMPERATUR WCI G162205-05 Contact Us For Availability
6
WCI G164835-01 WCI G164835-01 Contact Us For Availability
6
GASKET-REFR WCI G180551-01 Contact Us For Availability
6
SHIM-HNG (2) WCI G183861 Contact Us For Availability
6
COVER-UPPER PAN WCI G163915-02 Contact Us For Availability
6
BRACKET-CONTRL MTG WCI G164788 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
WCI G165434 WCI G165434 Contact Us For Availability
7
WCI G161019-15 WCI G161019-15 Contact Us For Availability
7
WCI G89643 WCI G89643 Contact Us For Availability
7
HINGE COVER-ALMD WCI G183558-11 Contact Us For Availability
7
WCI G163881-13 WCI G163881-13 Contact Us For Availability
8
WCI G164878-01 WCI G164878-01 Contact Us For Availability
8
WCI G162383 WCI G162383 Contact Us For Availability
8
WCI G163916-02 WCI G163916-02 Contact Us For Availability
8
CONTRL KNOB-TEMP WCI G164906-01 Contact Us For Availability
8
WCI G188725 WCI G188725 Contact Us For Availability
8A
SCREW-HNG MTG (4) (NON-ILLUSTRATED) WCI G99167 Contact Us For Availability
8B
WCI G141673 WCI G141673 Contact Us For Availability
9
WCI G164731-15 WCI G164731-15 Contact Us For Availability
9
WASHER-HNG PIN (4) WCI G164355 Contact Us For Availability
9
TRIM-UPPER PAN WCI G161013-49 Contact Us For Availability
9
WCI G164637 WCI G164637 Contact Us For Availability
10
WCI G161019-14 WCI G161019-14 Contact Us For Availability
10
SHIM-HNG (6) WCI G162903 Contact Us For Availability
10
WCI G161013-53 WCI G161013-53 Contact Us For Availability
10A
WCI G142361 WCI G142361 Contact Us For Availability
10B
SPEED NUT (2) WCI G77210 Contact Us For Availability
11
SUPPORT RS (4) WCI G161018-01 Contact Us For Availability
11
WCI G165416-11 WCI G165416-11 Contact Us For Availability
11
WCI G167018 WCI G167018 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
12
SUPPORT LS (4) WCI G161080-01 Contact Us For Availability
12
WCI G161905-02 WCI G161905-02 Contact Us For Availability
12
END CAP-TRIVET WCI G166495-01 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
13
BUMPER-LIGHT SW. WCI G165376 Contact Us For Availability
13
CLIP GRILLE WCI G162994 Contact Us For Availability
13
WCI G166068 WCI G166068 Contact Us For Availability
14
WCI G185726 WCI G185726 Contact Us For Availability
14
COVER-CONTRL BRKT WCI G164778 Contact Us For Availability
15
HANDLE-REFR DOOR WCI G172612-01 Contact Us For Availability
16
WCI G162890 WCI G162890 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
16
WCI G182225-04 WCI G182225-04 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
WCI G188727 WCI G188727 Contact Us For Availability
17A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
18
WCI G171193 WCI G171193 Contact Us For Availability
18
CONTRL KNOB-DAMPR WCI G165217-01 Contact Us For Availability
18
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
19
WCI G178355-01 WCI G178355-01 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
20
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
20
WCI G164575 WCI G164575 Contact Us For Availability
21
WCI G165233 WCI G165233 Contact Us For Availability
21
CONTRL BOX-DAMPR WCI G164523 Contact Us For Availability
21
WCI G189470 WCI G189470 Contact Us For Availability
22
WCI G174234-02 WCI G174234-02 Contact Us For Availability
22
WCI G164571 WCI G164571 Contact Us For Availability
22
WCI G183344 WCI G183344 Contact Us For Availability
23
WCI G174234-01 WCI G174234-01 Contact Us For Availability
23
WCI G185303 WCI G185303 Contact Us For Availability
23
SLEEVE (3) WCI G154588 Contact Us For Availability
24
WCI G169477-03 WCI G169477-03 Contact Us For Availability
25
BUSHING (2) WCI G187559 Contact Us For Availability
25
WCI G169471 WCI G169471 Contact Us For Availability
25
DEFROST PLATE WCI G188724 Contact Us For Availability
26
WCI G188000-03 WCI G188000-03 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
WCI G165845 WCI G165845 Contact Us For Availability
27
BRACKT-COVER MTG WCI G158022 Contact Us For Availability
27
WCI G185302 WCI G185302 Contact Us For Availability
27
INSULATOR-EVAP (NON-ILLUSTRATED) WCI G169641 Contact Us For Availability
27A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
27B
WCI G184851 WCI G184851 Contact Us For Availability
29
WCI G164419-22 WCI G164419-22 Contact Us For Availability
29
WCI G167217 WCI G167217 Contact Us For Availability
30
SUPPORT-SHIELD (4) WCI G165177 Contact Us For Availability
31
MULLION-ALMD WCI G164643-11 Contact Us For Availability
31
WCI G164654-01 WCI G164654-01 Contact Us For Availability
31A
WCI G169100 WCI G169100 Contact Us For Availability
31A
WCI G169297 WCI G169297 Contact Us For Availability
31A
WCI G165844 WCI G165844 Contact Us For Availability
31B
CLIP, GROUNDING WCI G162703 Contact Us For Availability
32
MULLION TRIM-ALMD WCI G169745-11 Contact Us For Availability
× ![]()
