Model Electrolux FPIM18MF5 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

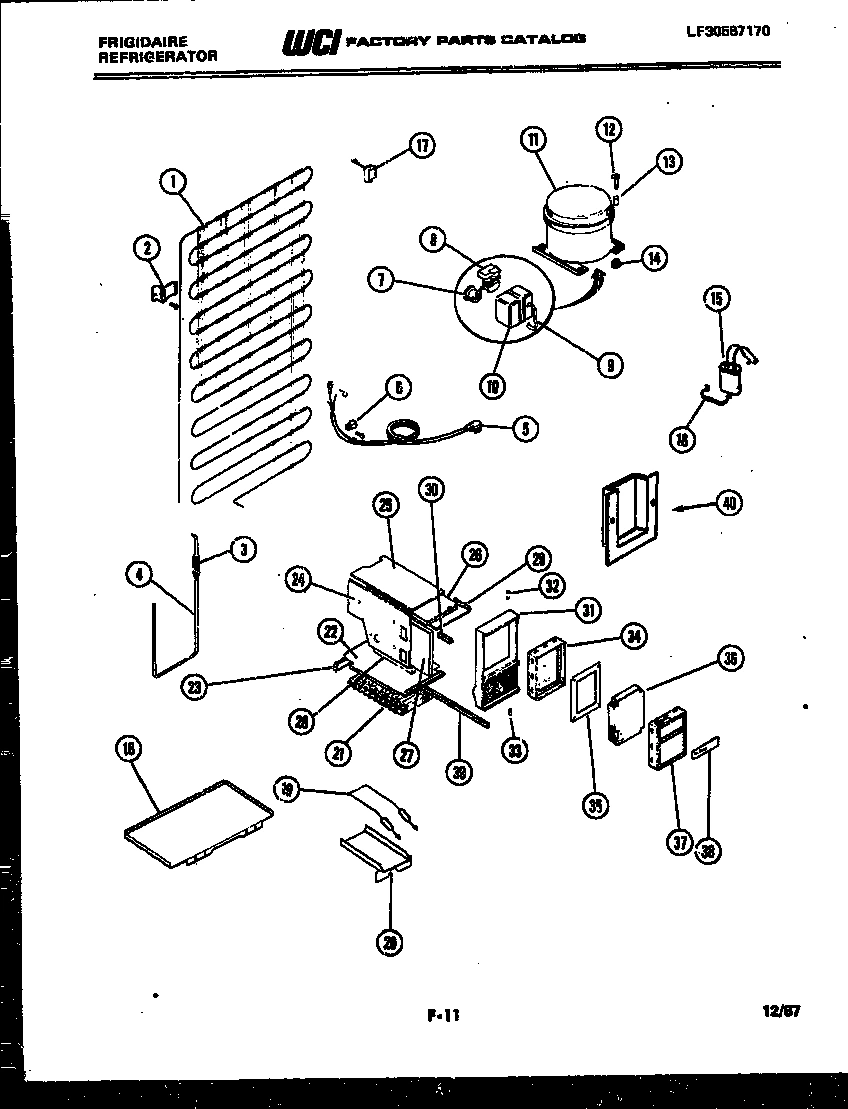

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPIM18MF5 REFRIGERATOR
1
OUTER PANEL-COFE WCI 8017628 Contact Us For Availability
1
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
1
WCI 3007561 WCI 3007561 Contact Us For Availability
2
WCI 8009594 WCI 8009594 Contact Us For Availability
2
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
2
BRACKET-MTG (4) WCI 8003600 Contact Us For Availability
2A
SCREW-MTG (4) (NON-ILLUSTRATED) WCI 8000039 Contact Us For Availability
3
PLUG HNG-COFE WCI 8000174 Contact Us For Availability
3
TUBE-RUBBER (4) WCI 8000004 Contact Us For Availability
3
DRIER WCI 8000027 Contact Us For Availability
4
LABEL-NAMEPLATE WCI 8011327 Contact Us For Availability
4
CONTROL-TEMP WCI 8000068 Contact Us For Availability
4
WCI 8008774 WCI 8008774 Contact Us For Availability
4A
WCI 8008729 WCI 8008729 Contact Us For Availability
4B
SCREW-CONT MTG (NON-ILLUSTRATED) WCI 8000009 Contact Us For Availability
5
NAMEPLATE ASSY WCI 8009843 Contact Us For Availability
5
WCI 8008706 WCI 8008706 Contact Us For Availability
5
WCI 8000064 WCI 8000064 Contact Us For Availability
6
WCI 8012007 WCI 8012007 Contact Us For Availability
6
BRACKET-MTG WCI 8008707 Contact Us For Availability
6
CLAMP-CORD WCI 8002756 Contact Us For Availability
6A
INSUL-CONT BOX (NON-ILLUSTRATED) WCI 8009649 Contact Us For Availability
7
PLUG HDL-COFE WCI 8000178 Contact Us For Availability
7
WCI 8008708 WCI 8008708 Contact Us For Availability
7
WCI 3015179 WCI 3015179 Contact Us For Availability
7
WCI 8017572 WCI 8017572 Contact Us For Availability
7A
CLIP-OVERLOAD (NON-ILLUSTRATED) WCI 8017232 Contact Us For Availability
8
WCI 8000255 WCI 8000255 Contact Us For Availability
8
WCI 8008709 WCI 8008709 Contact Us For Availability
8
WCI 3015178 WCI 3015178 Contact Us For Availability
8
WCI 8017226 WCI 8017226 Contact Us For Availability
8A
SCREW-MTG (NON-ILLUSTRATED) WCI 8011745 Contact Us For Availability
9
BUMPER-LIGHT SW WCI 8000790 Contact Us For Availability
9
CLAMP-COVER WCI 8000117 Contact Us For Availability
9A
SCREW-GROUND (NON-ILLUSTRATED) WCI 8003581 Contact Us For Availability
9B
SCREW-MTG (NON-ILLUSTRATED) WCI 8000008 Contact Us For Availability
10
WCI 3007357 WCI 3007357 Contact Us For Availability
10
WCI 8012843 WCI 8012843 Contact Us For Availability
10
WCI 8006982 WCI 8006982 Contact Us For Availability
10A
SCREW-MTG (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
10B
WASHER-TOP HNG (NON-ILLUSTRATED) WCI 8002738 Contact Us For Availability
11
WCI 8008736 WCI 8008736 Contact Us For Availability
11
SHIM-TOP HNG WCI 8012829 Contact Us For Availability
11
COMPR W/ ELEC WCI 3916007 Contact Us For Availability
11
WCI 3916008 WCI 3916008 Contact Us For Availability
12
WCI 8008740 WCI 8008740 Contact Us For Availability
12
WCI 8000042 WCI 8000042 Contact Us For Availability
12
SCREW-MTG (3) WCI 8000029 Contact Us For Availability
13
WCI 8008741 WCI 8008741 Contact Us For Availability
13
BUSHING (2) WCI 8000032 Contact Us For Availability
13
SLEEVE-MTG (3) WCI 8002758 Contact Us For Availability
14
WCI 8008742 WCI 8008742 Contact Us For Availability
14
WCI 8008710 WCI 8008710 Contact Us For Availability
14
GROMMET-MTG (4) WCI 8008778 Contact Us For Availability
15
WCI 8009600 WCI 8009600 Contact Us For Availability
15
WCI 8000036 WCI 8000036 Contact Us For Availability
15
CAPACITOR-RUN WCI 3001650 Contact Us For Availability
15A
WCI 8009599 WCI 8009599 Contact Us For Availability
16
SHELF RACK-CTR (2) WCI 8008734 Contact Us For Availability
16
WCI 8000043 WCI 8000043 Contact Us For Availability
16
STRAP-CAP MTG WCI 8017231 Contact Us For Availability
17
WCI 8008733 WCI 8008733 Contact Us For Availability
17
WCI 8000010 WCI 8000010 Contact Us For Availability
17
THERMOSTAT-DEFR WCI 8000805 Contact Us For Availability
18
WCI 8008735 WCI 8008735 Contact Us For Availability
18
WCI 8008711 WCI 8008711 Contact Us For Availability
18
WCI 8007120 WCI 8007120 Contact Us For Availability
18A
SCREW-MTG (4) (NON-ILLUSTRATED) WCI 8000812 Contact Us For Availability
18B
RIVET-MTG (4) (NON-ILLUSTRATED) WCI 8002773 Contact Us For Availability
19
BUTTER DISH WCI 8009664 Contact Us For Availability
19
WCI 8008712 WCI 8008712 Contact Us For Availability
19
WCI 3007377 WCI 3007377 Contact Us For Availability
19A
STRAP-HEATER (NON-ILLUSTRATED) WCI 8000110 Contact Us For Availability
20
WCI 8009996 WCI 8009996 Contact Us For Availability
20
WCI 8008713 WCI 8008713 Contact Us For Availability
20
WCI 3007378 WCI 3007378 Contact Us For Availability
20A
WCI 8008714 WCI 8008714 Contact Us For Availability
20B
WCI 8008715 WCI 8008715 Contact Us For Availability
21
WCI 8010237 WCI 8010237 Contact Us For Availability
21
LIGHT SOCKET WCI 8000815 Contact Us For Availability
21
WCI 3015180 WCI 3015180 Contact Us For Availability
21
WCI 8008773 WCI 8008773 Contact Us For Availability
21A
INSUL-MOISTURE BARRIER (NON-ILLUSTRATED) WCI 8009646 Contact Us For Availability
22
END CAP-TOP WCI 8010238 Contact Us For Availability
22
WCI 8000801 WCI 8000801 Contact Us For Availability
22
BOTTOM-FRZR WCI 8008749 Contact Us For Availability
22A
INSUL-FRZR BTM (NON-ILLUSTRATED) WCI 8008750 Contact Us For Availability
23
END CAP-BTM WCI 8010239 Contact Us For Availability
23
KNOB-TEMP CNTRL WCI 8008716 Contact Us For Availability
23
INSUL BLOCK-EVAP WCI 8008751 Contact Us For Availability
24
SCREW-MTG (4) WCI 8013645 Contact Us For Availability
24
CHANNEL RS & LS WCI 8002744 Contact Us For Availability
24
HOUSING OTR LINER-SIDE WCI 8008752 Contact Us For Availability
24A
SCREW-MTG (6) (NON-ILLUSTRATED) WCI 8002728 Contact Us For Availability
25
WCI 8008718 WCI 8008718 Contact Us For Availability
25
HSG OTR LINER-TOP WCI 8008777 Contact Us For Availability
26
WCI 8008719 WCI 8008719 Contact Us For Availability
26
INSUL FRZR-UPR WCI 8008753 Contact Us For Availability
27
WCI 8008720 WCI 8008720 Contact Us For Availability
27
INSUL FRZR-MID WCI 8008754 Contact Us For Availability
28
WCI 8008721 WCI 8008721 Contact Us For Availability
28
INSUL FRZR-LWR WCI 8008755 Contact Us For Availability
28A
WCI 8008722 WCI 8008722 Contact Us For Availability
28A
INSUL-FRONT (NON-ILLUSTRATED) WCI 8008764 Contact Us For Availability
29
WCI 8002739 WCI 8002739 Contact Us For Availability
29
WCI 8008756 WCI 8008756 Contact Us For Availability
30
DAMPR-MEAT KPR (NON-ILLUSTRATED) WCI 8008723 Contact Us For Availability
30
WCI 8008766 WCI 8008766 Contact Us For Availability
30A
WCI 8003665 WCI 8003665 Contact Us For Availability
31
WCI 8000729 WCI 8000729 Contact Us For Availability
31
WCI 8008762 WCI 8008762 Contact Us For Availability
31A
INSUL-FR PANEL (NON-ILLUSTRATED) WCI 8008763 Contact Us For Availability
32
WCI 8000092 WCI 8000092 Contact Us For Availability
32
HINGE PIN-UPR WCI 8008765 Contact Us For Availability
33
CLIP-GRILLE WCI 8000091 Contact Us For Availability
33
HINGE PIN-LWR WCI 8008767 Contact Us For Availability
34
PLUG-GRILLE WCI 8000168 Contact Us For Availability
34
WCI 8008769 WCI 8008769 Contact Us For Availability
35
HINGE-BTM WCI 8000059 Contact Us For Availability
35
WCI 8008771 WCI 8008771 Contact Us For Availability
35A
WASHER-BTM HNG (NON-ILLUSTRATED) WCI 8000007 Contact Us For Availability
35B
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 8002737 Contact Us For Availability
35C
NUT-MTG-TWIN (4) (NON-ILLUSTRATED) WCI 8000011 Contact Us For Availability
36
SHIM-BTM HNG WCI 8000088 Contact Us For Availability
36
INSUL-DOOR WCI 8008770 Contact Us For Availability
36A
PIN-SHOULDER (2) (NON-ILLUSTRATED) WCI 8000013 Contact Us For Availability
36B
SPEED NUT (2) (NON-ILLUSTRATED) WCI 8000001 Contact Us For Availability
37
WCI 8008724 WCI 8008724 Contact Us For Availability
37
WCI 8009644 WCI 8009644 Contact Us For Availability
38
WCI 8009625 WCI 8009625 Contact Us For Availability
38
WCI 8008772 WCI 8008772 Contact Us For Availability
39
COVER-LWR PAN WCI 8017221 Contact Us For Availability
39
WCI 8008759 WCI 8008759 Contact Us For Availability
39A
WCI 8008760 WCI 8008760 Contact Us For Availability
39B
BTN PLUG 1-1/64 (NON-ILLUSTRATED) WCI 8002769 Contact Us For Availability
39C
BTN PLUG 1-1/2 (NON-ILLUSTRATED) WCI 8008730 Contact Us For Availability
40
STORAGE PAN-UPR WCI 8009626 Contact Us For Availability
40
WCI 8013644 WCI 8013644 Contact Us For Availability
40A
WIRING HARNESS-COMPR & LIGHTS (NON-ILLUSTRATE WCI 8008781 Contact Us For Availability
40B
INSUL-HARNESS/EVAP (NON-ILLUSTRATED) WCI 8009645 Contact Us For Availability
41
COVER-UPR PAN WCI 8017220 Contact Us For Availability
42
WCI 8000344 WCI 8000344 Contact Us For Availability
43
WCI 8008728 WCI 8008728 Contact Us For Availability
44
ICE TRAY WCI 8000153 Contact Us For Availability
45
ROLLER ASSY (2) WCI 8000118 Contact Us For Availability
45A
WCI 8017044 WCI 8017044 Contact Us For Availability
46
ROLLER-REAR (2) WCI 8000265 Contact Us For Availability
46A
PIN-ROLLER (2) (NON-ILLUSTRATED) WCI 8000266 Contact Us For Availability
46B
PUSH NUT (2) (NON-ILLUSTRATED) WCI 8000067 Contact Us For Availability
47
COVER, HNG, COFE WCI 8012932 Contact Us For Availability
48
BRKT-CONNECTOR WCI 8000107 Contact Us For Availability
48A
SCREW-MTG (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
49
PLUG HINGE-COFE WCI 8007128 Contact Us For Availability
49A
PLUG-REFR LINER (NON-ILLUSTRATED) WCI 8000087 Contact Us For Availability
49B
PLUG-FRZR LINER (NON-ILLUSTRATED) WCI 8016571 Contact Us For Availability
49C
TAPPING PLATE-HINGE (2) (NON-ILL WCI 8000033 Contact Us For Availability
× ![]()
