Model Electrolux FPI17TFH2 REFRIGERATOR – Common Parts & Diagrams

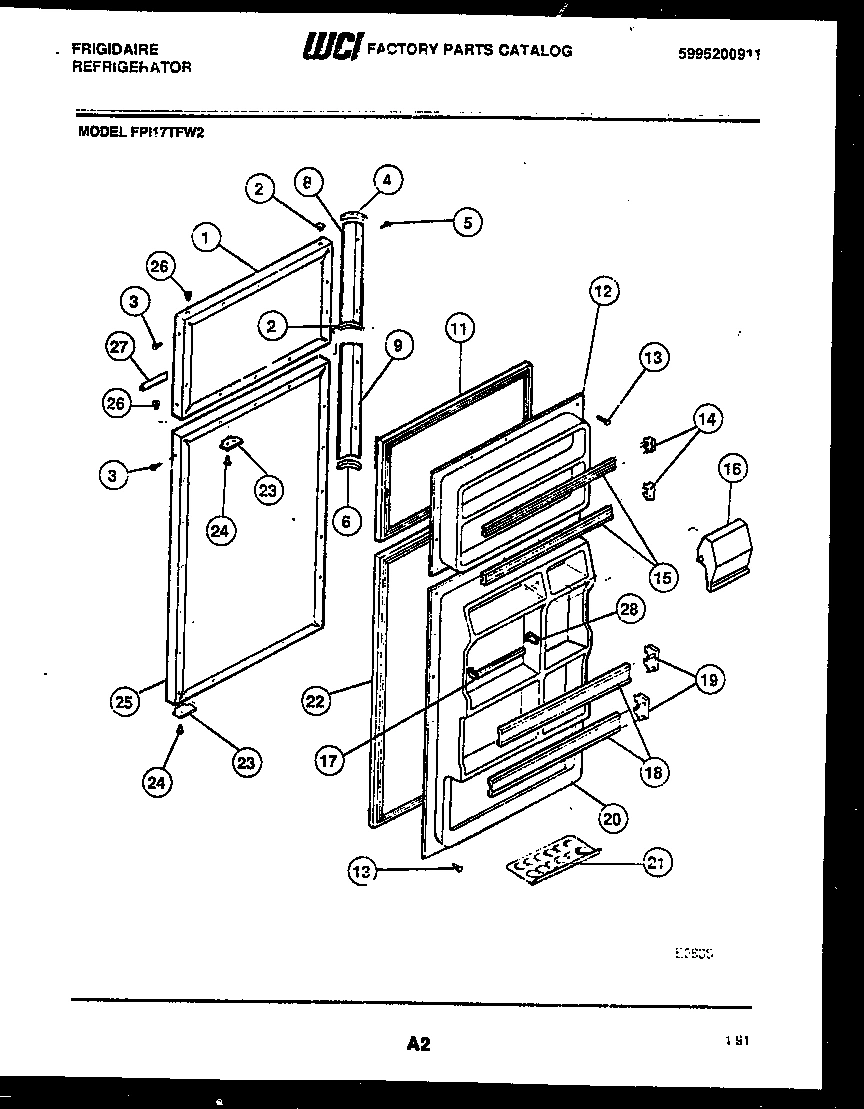

02 - DOOR PARTS

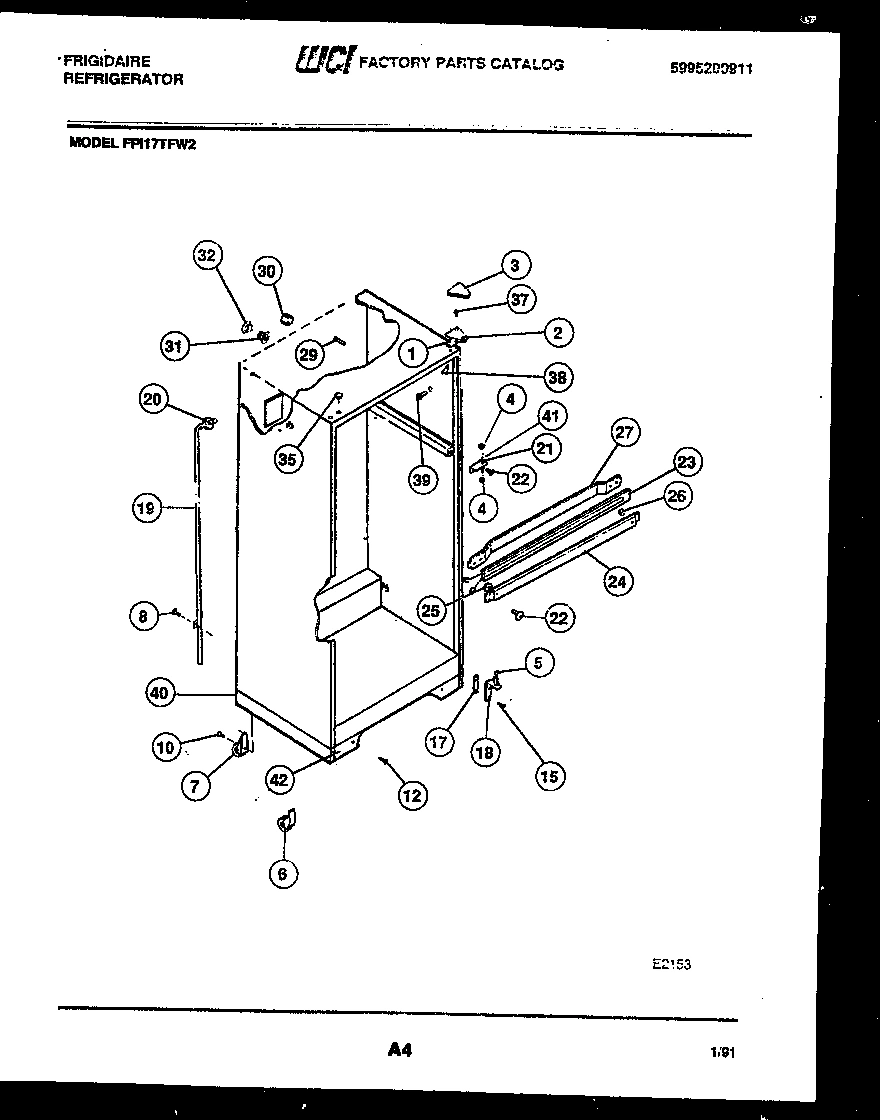

03 - CABINET PARTS

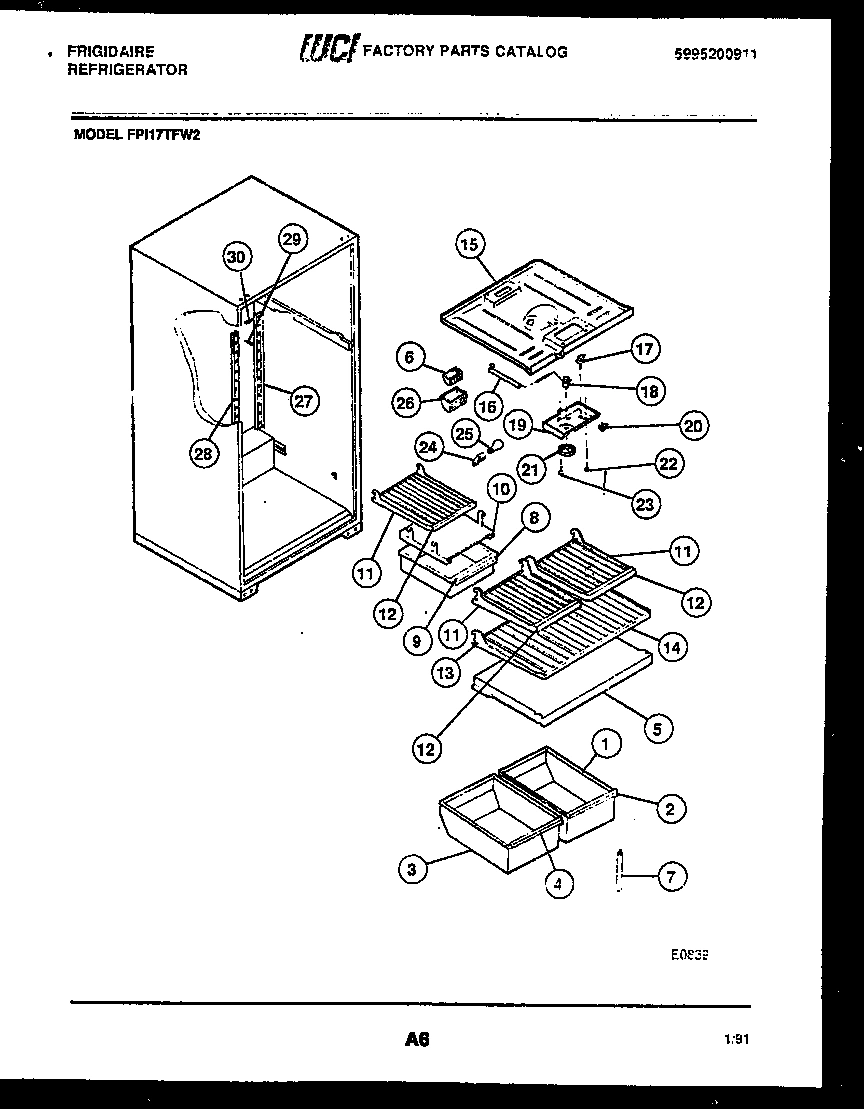

04 - SHELVES AND SUPPORTS

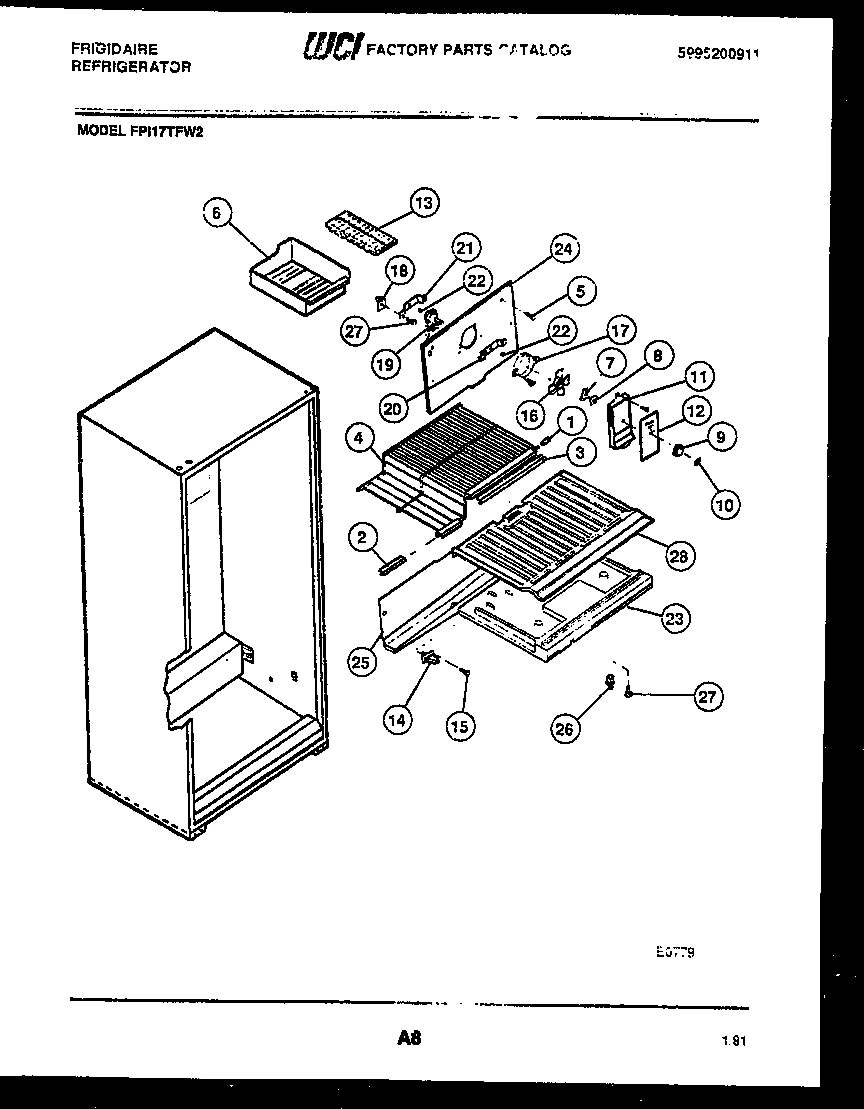

05 - SHELVES AND SUPPORTS

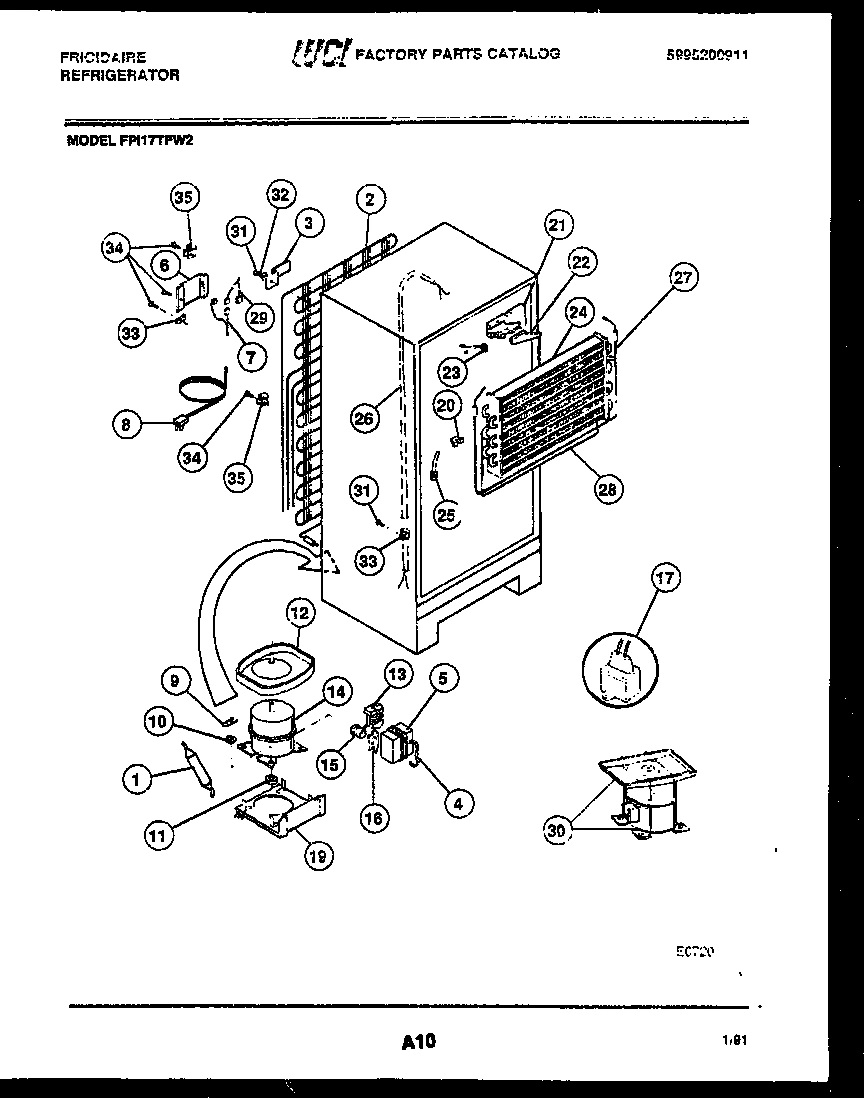

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPI17TFH2 REFRIGERATOR
*40313
PLUG-FREEZER LINER WCI 5308016571 Contact Us For Availability
*40316
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
*40318
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
1
WCI 3200489 WCI 3200489 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 5308012843 Contact Us For Availability
2
TRIM-FREEZER SHELF WCI 3017427 Contact Us For Availability
2
WCI 5303001341 WCI 5303001341 Contact Us For Availability
3
COVER - HINGE-WHEAT WCI 5303001665 Contact Us For Availability
3
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
3
TRIM-FREEZER SHELF WCI 3018897 Contact Us For Availability
3
BRACKET-COND (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
4
WCI 3017423 WCI 3017423 Contact Us For Availability
4
WCI 08009859 WCI 08009859 Contact Us For Availability
5
WASHER, NYLON WCI 5308000186 No Longer Available
5
COVER-CRISPER WCI 5303018892 Contact Us For Availability
5
WCI 5303209254 WCI 5303209254 Contact Us For Availability
6
WCI 5303212490 WCI 5303212490 Contact Us For Availability
6
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
6B
EXTENSION AIR DEFLECTOR & INSULATION (NON-ILL WCI 5303200590 Contact Us For Availability
7
WCI 5308009773 WCI 5308009773 Contact Us For Availability
7
SUPPORT-CRISPER CVR WCI 5303206508 Contact Us For Availability
7
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
7
HARNESS-COMPR WCI 5303001347 Contact Us For Availability
8
MEAT PAN WCI 3018875 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
TRIM, MEAT PAN WCI 3017424 Contact Us For Availability
9
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
9
CLIP, MOUNTING (4) WCI 5308003596 Contact Us For Availability
10
SCREW-1/4-28 X 2 3/8 (2) WCI 08009762 Contact Us For Availability
10
WCI 5303200492 WCI 5303200492 Contact Us For Availability
10
LABEL, DAMPER WCI 08009823 Contact Us For Availability
10
WASHER-MTG (4) WCI 5308003633 Contact Us For Availability
11
WCI 5303212507 WCI 5303212507 Contact Us For Availability
11
WCI 08009821 WCI 08009821 Contact Us For Availability
12
BOLT-1/4-28 X 1/2 WCI 5303212598 Contact Us For Availability
12
TRIM-1/2 SHELF (3) WCI 3018877 Contact Us For Availability
12
WCI 08009822 WCI 08009822 Contact Us For Availability
12
PAN DEFROST-ORIGINAL WCI 5300171129 Contact Us For Availability
12A
DEFROST PAN-SERVICE COMP (NON-ILLUSTRATED) WCI 5300184715 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 01121808 WCI 01121808 Contact Us For Availability
13
WCI 5303200494 WCI 5303200494 Contact Us For Availability
14
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
14
WCI 5303018883 WCI 5303018883 Contact Us For Availability
14
WCI 5303916012 WCI 5303916012 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 3018881 Contact Us For Availability
15
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
15
WCI 5303270294 WCI 5303270294 Contact Us For Availability
16
HOUSING-CONTROL CAPILLARY TUBE WCI 3018891 Contact Us For Availability
16
CLIP-OVERLOAD WCI 3202891 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212488 WCI 5303212488 Contact Us For Availability
17
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
HINGE-LOWER BRACKET WCI 5303212489 Contact Us For Availability
18
WCI 5303018894 WCI 5303018894 Contact Us For Availability
18B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
18C
WCI 5303212597 WCI 5303212597 Contact Us For Availability
19
TUBE-DRAIN & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
19
BOX, CONTROL WCI 3018895 Contact Us For Availability
19
WCI 5308013663 WCI 5308013663 Contact Us For Availability
20
RING - SEAL WCI 5303207353 Contact Us For Availability
20
WCI 5303018896 WCI 5303018896 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20
BLOCK EVAPORATOR LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001369 WCI 5303001369 Contact Us For Availability
21
KNOB, TEMPERATURE CONTROL WCI 3018893 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
21
BLOCK EVAPORATOR RH WCI 5308013648 Contact Us For Availability
22
WCI 5308012258 WCI 5308012258 Contact Us For Availability
22
WCI 5300157666 WCI 5300157666 Contact Us For Availability
22
PLUG EVAPORATOR BLOCK RH WCI 5303007287 Contact Us For Availability
23
WCI 5308017408 WCI 5308017408 Contact Us For Availability
23
WCI 5303001260 WCI 5303001260 Contact Us For Availability
23
WCI 5303018899 WCI 5303018899 Contact Us For Availability
24
WCI 5308011745 WCI 5308011745 Contact Us For Availability
24
WCI 3916132 WCI 3916132 Contact Us For Availability
24
COVER-COIL WCI 3001527 Contact Us For Availability
24
WCI 5308009756 WCI 5308009756 Contact Us For Availability
25
PANEL-REFR-WHEAT WCI 5308009845 Contact Us For Availability
25
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
25
TROUGH-DRAIN WCI 08010005 Contact Us For Availability
26
WCI 5308012007 WCI 5308012007 Contact Us For Availability
26
SPACER (2) WCI 5303200464 Contact Us For Availability
26
WCI 5303001448 WCI 5303001448 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 5308009754 WCI 5308009754 Contact Us For Availability
27
WCI 3018385 WCI 3018385 Contact Us For Availability
27
STRAP MULLION WCI 5308003604 Contact Us For Availability
27
CHANNEL-SHELF MTG (2) WCI 5308000302 Contact Us For Availability
27
WCI 5303001380 WCI 5303001380 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
CHANNEL-SHELF MTG-CTR WCI 5303015409 Contact Us For Availability
28
BOTTOM-FREEZER WCI 5303001537 Contact Us For Availability
29
SUPPORT (2) WCI 5308000097 Contact Us For Availability
29
SCREW (3) WCI 5308016568 Contact Us For Availability
29
HARNESS-DIVIDER WCI 3018900 Contact Us For Availability
30
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
30
WCI 5303001198 WCI 5303001198 Contact Us For Availability
31
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001287 WCI 5303001287 Contact Us For Availability
32
WASHER - NO. 10 EXT TOOTH WCI 5308009617 Contact Us For Availability
35
BUTTON-PLUG-WHEAT WCI 5303001678 Contact Us For Availability
38
TRIM-CORNER-WHEAT WCI 5303202338 Contact Us For Availability
40
BASE-CABINET WCI 5303269889 Contact Us For Availability
41
WCI 5308000184 WCI 5308000184 Contact Us For Availability
42
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
× ![]()
