Model Electrolux FPI16TEW0 REFRIGERATOR – Common Parts & Diagrams

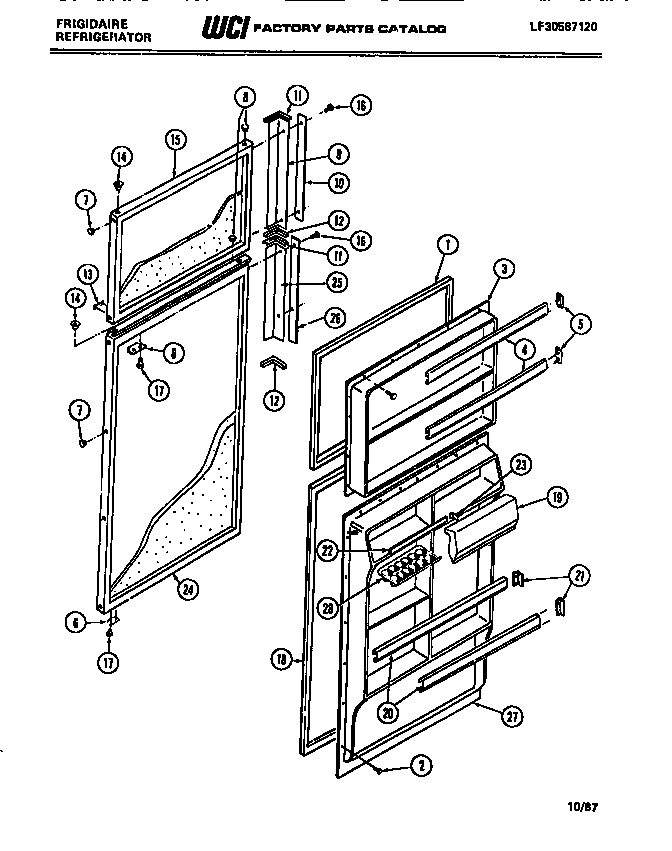

02 - FOOD & FREEZER DOORS

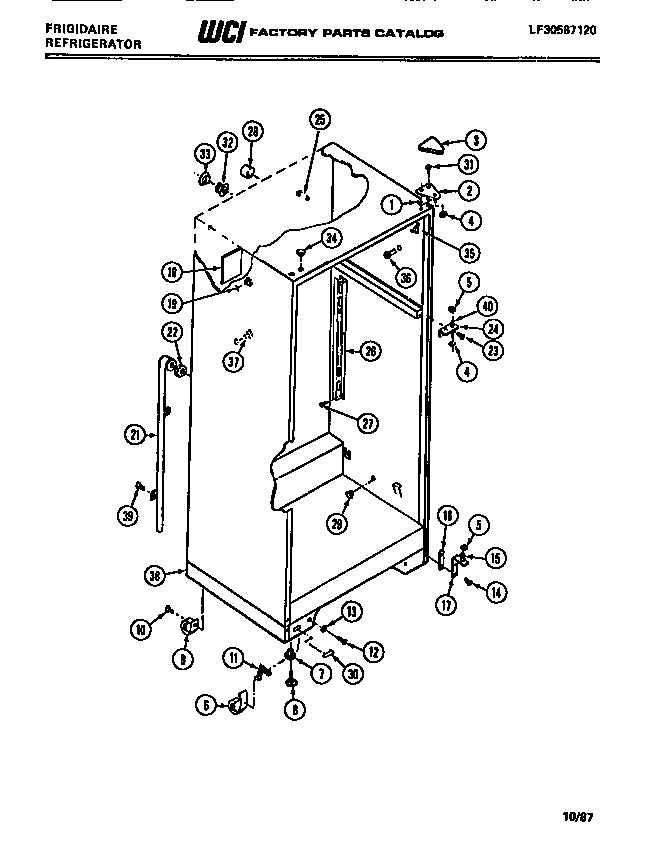

03 - CABINET

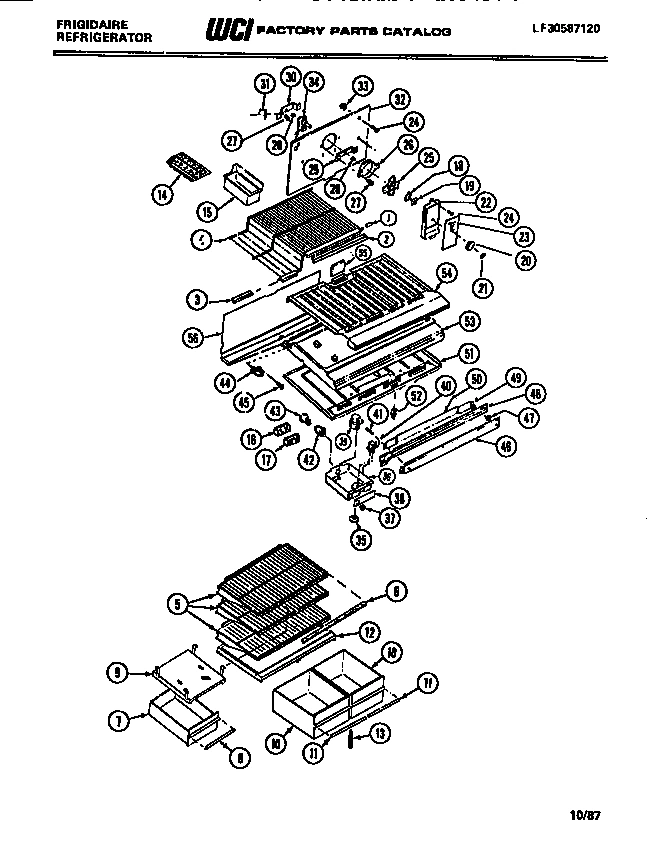

04 - SHELVES, MOULDING
05 - COMPRESSOR, CONDENSER, EVAPORATOR
Common parts from model Electrolux FPI16TEW0 REFRIGERATOR
1
GASKET WCI 8016626 Contact Us For Availability
1
SHIM WCI 8012829 Contact Us For Availability
1
END CAP, SHELF (2) WCI 8013638 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
2
HINGE WCI 8012843 Contact Us For Availability
2
TRIM, SHELF WCI 8009675 Contact Us For Availability
2
WCI 8009262 WCI 8009262 Contact Us For Availability
3
PANEL, INNER WCI 8009909 Contact Us For Availability
3
COVER, HNG, WHTE WCI 8012820 Contact Us For Availability
3
TRIM, SHELF WCI 8010651 Contact Us For Availability
3
BRACKET, COND. WCI 8003600 Contact Us For Availability
4
WCI 8000007 WCI 8000007 Contact Us For Availability
4
SHELF, FRZR WCI 8009859 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
SHELF, FULL (3) WCI 8010013 Contact Us For Availability
5
COVER, TERM WCI 8006982 Contact Us For Availability
6
STOP, DOOR WCI 8000255 Contact Us For Availability
6
ROLLER ASSY, FRNT. WCI 8009760 Contact Us For Availability
6
TRIM, SHELF (3) WCI 8009668 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BTN, PLUG, WHTE WCI 8000090 Contact Us For Availability
7
NUT, ANCHOR WCI 8003584 Contact Us For Availability
7
PAN, MEAT WCI 8009855 Contact Us For Availability
7
HARNESS, COMPR. WCI 8009628 Contact Us For Availability
8
BTN, PLUG, WHTE WCI 8000134 Contact Us For Availability
8
SCREW, LEVELING WCI 8003583 Contact Us For Availability
8
TRIM, PAN WCI 8009848 Contact Us For Availability
8
CORD, SERVICE WCI 8000064 Contact Us For Availability
9
ROLLER ASSY., REAR WCI 8009773 Contact Us For Availability
9
WCI 8017502 WCI 8017502 Contact Us For Availability
9
CLIP WCI 8003596 Contact Us For Availability
10
BOLT (2) WCI 8009762 Contact Us For Availability
10
CRISPER WCI 8009814 Contact Us For Availability
10
WASHER WCI 8003597 Contact Us For Availability
11
CAP WCI 8010239 Contact Us For Availability
11
SPRING WCI 8009790 Contact Us For Availability
11
TRIM, CRISPER WCI 8009847 Contact Us For Availability
11
GROMMET WCI 8008778 Contact Us For Availability
12
CAP WCI 8010238 Contact Us For Availability
12
BOLT (2) WCI 8009761 Contact Us For Availability
12
COVER, CRISPER WCI 8013649 Contact Us For Availability
12
PAN & NUT WCI 8012951 Contact Us For Availability
13
WCI 8009843 WCI 8009843 Contact Us For Availability
13
WASHER, NYLON WCI 8011326 Contact Us For Availability
13
WCI 8013637 WCI 8013637 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13A
SUPPORT, BASE, CAB (2) (NI) WCI 8013678 Contact Us For Availability
14
BEARING WCI 8012007 Contact Us For Availability
14
SCREW (2) WCI 8010252 Contact Us For Availability
14
TRAY, ICE (2) WCI 8000153 Contact Us For Availability
14
COMPR. W/ELECT. WCI 8950233 Contact Us For Availability
15
PANEL, OUTER, WHTE WCI 8009840 Contact Us For Availability
15
PIN WCI 8003578 Contact Us For Availability
15
CONTAINER, ICE WCI 8009795 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
16
SCREW WCI 8013645 Contact Us For Availability
16
SHIM WCI 8000755 Contact Us For Availability
16
WCI 8000071 WCI 8000071 Contact Us For Availability
16
RETAINER, O.L. WCI 8000117 Contact Us For Availability
17
SCREW WCI 8011745 Contact Us For Availability
17
BRKT, HNG. WCI 8017609 Contact Us For Availability
17
COVER, AIR DFLTR WCI 8000055 Contact Us For Availability
17
CAPACITOR WCI 8017536 Contact Us For Availability
18
GASKET WCI 8009733 Contact Us For Availability
18
PLUG, DECOR. WCI 8000082 Contact Us For Availability
18
DAMPER WCI 8000066 Contact Us For Availability
18
STRAP WCI 8017231 Contact Us For Availability
19
DOOR, DAIRY WCI 8009784 Contact Us For Availability
19
BTN. PLUG (3) WCI 8016571 Contact Us For Availability
19
NUT, PUSH WCI 8000067 Contact Us For Availability
19
PLATE, MTG. WCI 8013663 Contact Us For Availability
20
RACK, DR (2) WCI 8009700 Contact Us For Availability
20
KNOB, DMPR CONT WCI 8009793 Contact Us For Availability
20
BLOCK LS WCI 8017227 Contact Us For Availability
21
SUPT. LH WCI 8009805 Contact Us For Availability
21
TUBE, DRAIN WCI 8010012 Contact Us For Availability
21
LABEL, KNOB WCI 8009823 Contact Us For Availability
21
BLOCK, RS WCI 8013648 Contact Us For Availability
21A
SUPT. RH WCI 8009804 Contact Us For Availability
22
RACK, DR WCI 8013640 Contact Us For Availability
22
RING, SEAL WCI 8009755 Contact Us For Availability
22
WCI 8009817 WCI 8009817 Contact Us For Availability
22
PLUG, BLOCK WCI 8013646 Contact Us For Availability
23
SUPT LH WCI 8009806 Contact Us For Availability
23
SCREW WCI 8012258 Contact Us For Availability
23
LABEL, FAN COV. WCI 8009822 Contact Us For Availability
23
THERMOSTAT WCI 8000073 Contact Us For Availability
23A
SUPT RH WCI 8009808 Contact Us For Availability
24
PNL EXT, WHITE WCI 8009844 Contact Us For Availability
24
SCREW, COV. MTG. WCI 8012354 Contact Us For Availability
24
BRACKET, HNG WCI 8000757 Contact Us For Availability
24
WCI 8009756 WCI 8009756 Contact Us For Availability
25
HANDLE COMPLTE WCI 8009803 Contact Us For Availability
25
SUPT. CVR. WCI 8000097 Contact Us For Availability
25
WCI 8000010 WCI 8000010 Contact Us For Availability
25
STRAP, ALUM. WCI 8000110 Contact Us For Availability
26
TRIM WCI 8010232 Contact Us For Availability
26
CHANNEL (2) WCI 8000302 Contact Us For Availability
26
RING, ORIFICE WCI 8000124 Contact Us For Availability
26
HEAT, EXCH. WCI 8010274 Contact Us For Availability
27
PANEL, INT. WCI 8009791 Contact Us For Availability
27
SCREW (6) WCI 8002728 Contact Us For Availability
27
HEATER, DEFR. WCI 8009754 Contact Us For Availability
28
WCI 8009719 WCI 8009719 Contact Us For Availability
28
WCI 8000004 WCI 8000004 Contact Us For Availability
28
BUSHING (2) WCI 8000032 Contact Us For Availability
28
WCI 8009638 WCI 8009638 Contact Us For Availability
28A
KIT DR CONV, WHITE (NI) WCI 8011778 Contact Us For Availability
29
BTN. PLUG (2) WCI 8000087 Contact Us For Availability
29
WCI 8000043 WCI 8000043 Contact Us For Availability
29
HARNESS, DIVIDER WCI 8006993 Contact Us For Availability
30
BTN., PLUG WCI 8003585 Contact Us For Availability
30
WCI 8000042 WCI 8000042 Contact Us For Availability
30
WCI 8000187 WCI 8000187 Contact Us For Availability
31
SCREW WCI 8002748 Contact Us For Availability
31
SCREW (2) WCI 8000123 Contact Us For Availability
31
BRACKT, CONN WCI 8000107 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
COVER, COIL WCI 8009753 Contact Us For Availability
32
CLAMP WCI 8000109 Contact Us For Availability
33
WCI 8006971 WCI 8006971 Contact Us For Availability
33
WCI 8000126 WCI 8000126 Contact Us For Availability
33
CLAMP WCI 8002756 Contact Us For Availability
34
BTN., PLUG, WHITE WCI 8007099 Contact Us For Availability
34
WCI 8004176 WCI 8004176 Contact Us For Availability
34
WCI 8003643 WCI 8003643 Contact Us For Availability
35
TRIM, WHITE WCI 8010014 Contact Us For Availability
35
SCREW WCI 8000039 Contact Us For Availability
35
KNOB, CONTROL WCI 8010011 Contact Us For Availability
36
GROMMET (2) WCI 8002747 Contact Us For Availability
36
WCI 8009781 WCI 8009781 Contact Us For Availability
36
KIT, RETAINER WCI 8950024 Contact Us For Availability
36A
TAPE, SOUND (NI) WCI 8017610 Contact Us For Availability
37
GROMMET (2) WCI 8009759 Contact Us For Availability
37
WCI 8016615 WCI 8016615 Contact Us For Availability
38
BASE, CABINET WCI 8010091 Contact Us For Availability
38
LABEL, CONT BOX WCI 8009816 Contact Us For Availability
39A
PLATE, TPG (4) (NI) WCI 8012296 Contact Us For Availability
39A
SCREW, MTG (NI) WCI 8000008 Contact Us For Availability
40
PIN, HINGE WCI 8000184 Contact Us For Availability
40
CONTROL, TEMP WCI 8017218 Contact Us For Availability
40A
SCREW, MTG (NI) WCI 8000009 Contact Us For Availability
41
WCI 8003637 WCI 8003637 Contact Us For Availability
42
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
43
BULB, LIGHT WCI 8000801 Contact Us For Availability
44
SPOUT, DRAIN WCI 8000056 Contact Us For Availability
45
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
46
MULLION, WHITE WCI 8010030 Contact Us For Availability
47
WASHER, STL (4) WCI 8003607 Contact Us For Availability
48
WCI 8017408 WCI 8017408 Contact Us For Availability
49
SPACER (2) WCI 8010007 Contact Us For Availability
50
STRAP, MULN. MTG WCI 8003604 Contact Us For Availability
51
TOP, REFR WCI 8010000 Contact Us For Availability
51A
SCREW, MTG (3) (NI) WCI 8000070 Contact Us For Availability
52
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
53
DIVIDER, STYRO WCI 8009750 Contact Us For Availability
54
BOTTOM, FRZR WCI 8010002 Contact Us For Availability
55
WCI 8000185 WCI 8000185 Contact Us For Availability
56
WCI 8010005 WCI 8010005 Contact Us For Availability
× ![]()
